HFE-Slide10

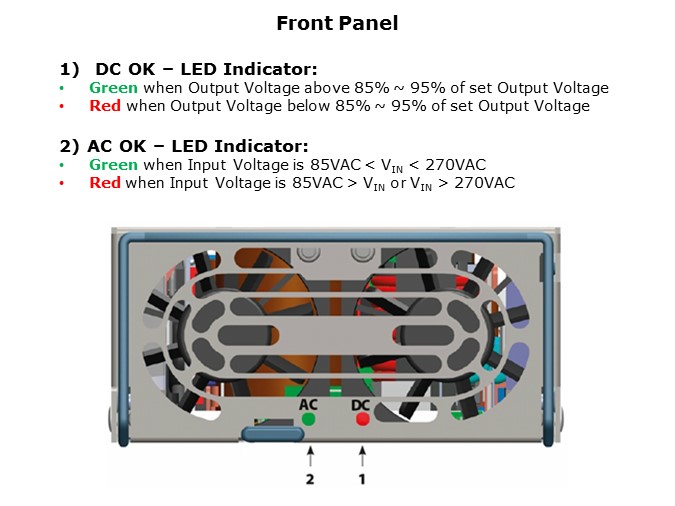

There are two LED indicators on the front panel: the right hand LED monitors the state of the output voltage, the LED changing from green (good) to red if the output voltage falls below 85% to 95% of nominal; the left hand LED changes from green to red if the AC input is outside of the HFE operating range.
