LM27402 Slide 9

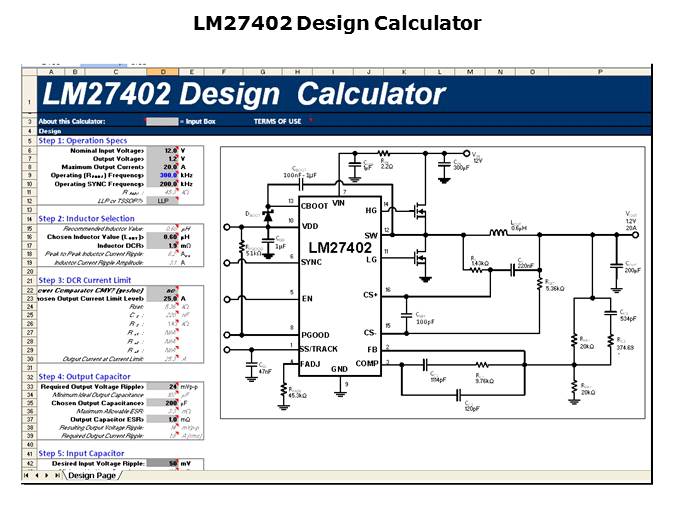

For additional technical assistance, the LM27402 Design Calculator was created to help power designers in the creation and realization of a working power supply.  This application will help designers find suitable compensation components for voltage mode control loop stability.  Additionally, it will help analyze power dissipation and efficiency.  The efficiency can also be analyzed based on selected FET specifications.
