ALD-Slide7

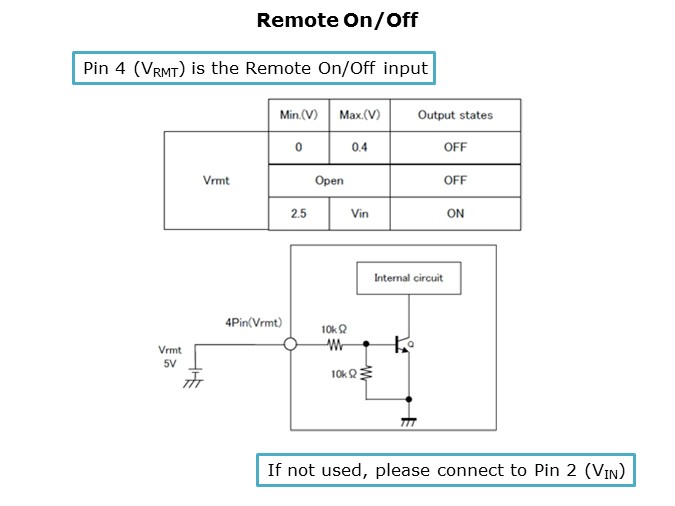

Pin 4 of the device is the remote on/off input. To turn the outputs off, Pin 4 can either be pulled low or left floating. To enable the outputs, a voltage greater than 2.5V should be applied to Pin 4 typically by connecting it to the Vin terminal.
