LTC3877-Slide7

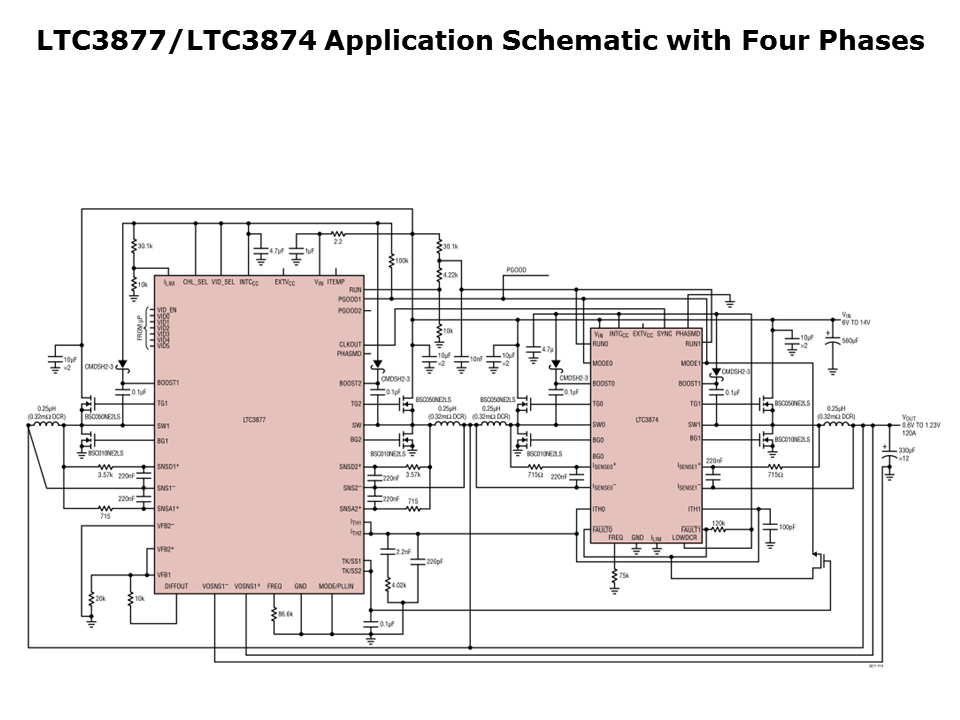

This slide shows an application schematic using the LTC3877 for two phases in conjunction with the LTC3874 for the other two phases. This design converts a 6V to 14V input to a 0.6V to 1.23V output at up to 120A.
