SAS-SATA-Slide4

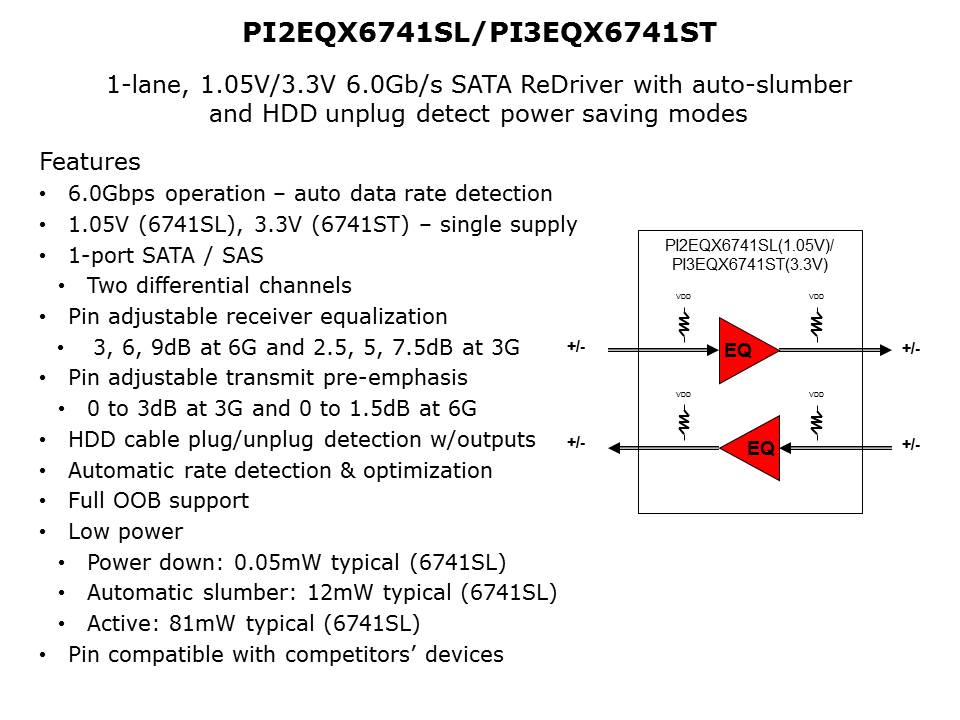

The Pericom PI2EQX6741SL offers a low power SATA3 6G 1-port/2-channel ReDriver intended for the notebook, tablet, desktop PC markets. Receive equalization, and transmit pre-emphasis/swing are controlled through pin strap. The 6741 has an HDD unplug detection condition feature. During HDD unplug, the device goes into a power saving mode where the output is disabled. This device also has slumber mode which functions when the receive input is idle. The PI3EQX6741ST is pin compatible with other competitors, but with high performance power saving features.

PTM Published on: 2012-12-13
