EVL6563H-100W: 100W PFC, 400V, 90 ~ 265VAC

Summary

This application note describes a demonstration board based on the transition-mode PFC controller L6563H and presents the results of its bench demonstration. The board implements a 100 W, wide-range mains input, PFC pre-conditioner suitable for ballast, adapters, flatscreen displays, and all SMPS having to meet the IEC61000-3-2 or the JEITA-MITI regulation.

The L6563H is a current-mode PFC controller operating in transition mode (TM) and implementing an internal high-voltage startup circuitry.

Specifications

Manufacturer STMicroelectronics
Category Power Management
Sub-Category Power Factor Correction
Eval Board Part Number 497-10379-ND
Eval Board Supplier STMicroelectronics
Eval Board Board not Stocked
Output Power 100 W
Voltage In 90 ~ 265 VAC
Voltage Out 400 V

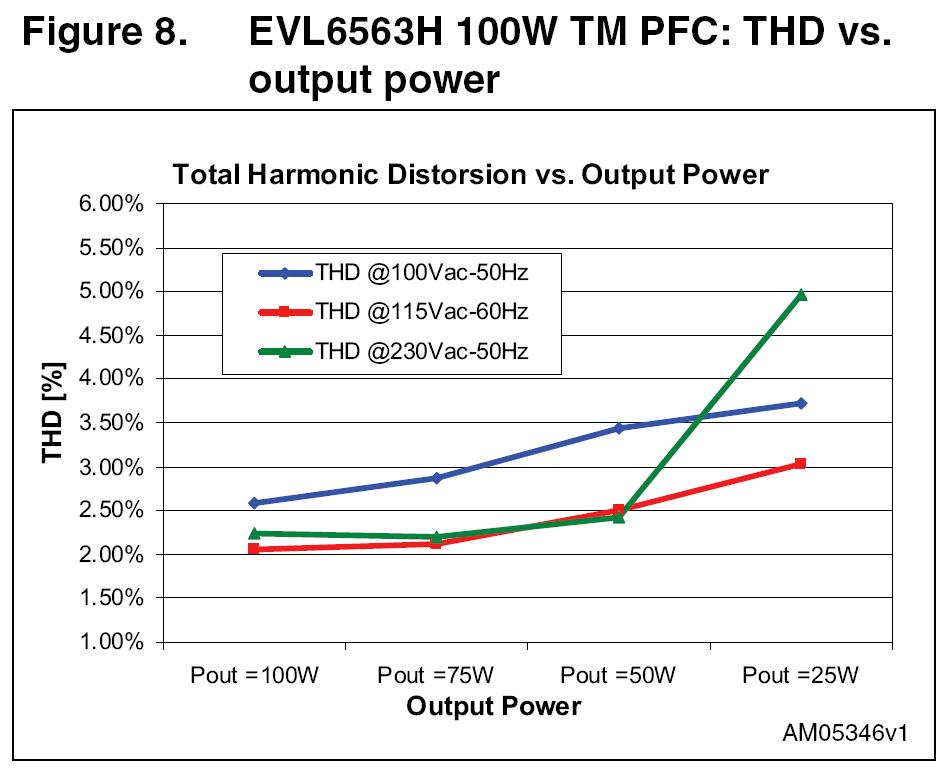

THD @ Conditions 2.3% @ 230 Vin, 100W
2.1% @ 115 Vin, 100W

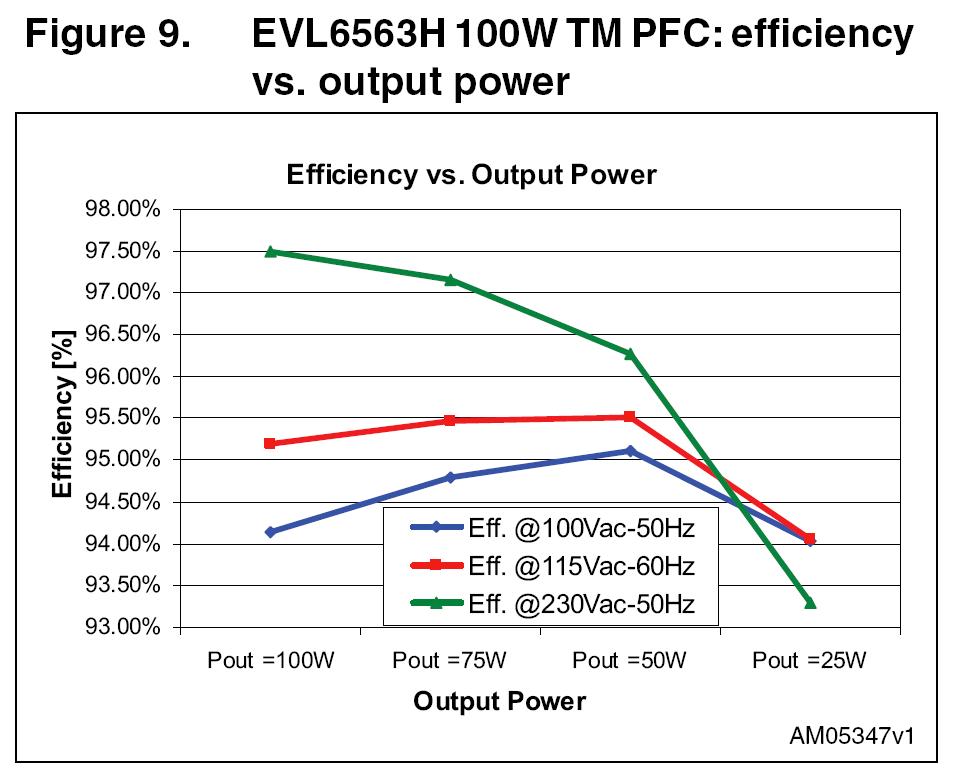

Efficiency @ Conditions >94%, 115V in, 400V @ 25 ~ 100 W
>93%, 230V in, 400V @ 25 ~ 100 W
Features Open Circuit Protection
Over Voltage Protection
Shutdown, Enable, Standby
Under Voltage Protection, Brown-Out
Switching Frequency 40 kHz
Application / Target Market Battery Chargers
LCD TV / Monitor
Power: AC Adapters
Component Count + Extras 56 + 4
Design Author STMicroelectronics
Main I.C. Base Part L6563H
Date Created By Author
Date Added To Library 2011-03

Eval Board

Order a fully assembled board:

Quantity Available: 0

Quantity:

Support Documents & Media

EVL6563H-100W - User Guide - AN3063 L6563H - Datasheet

Media

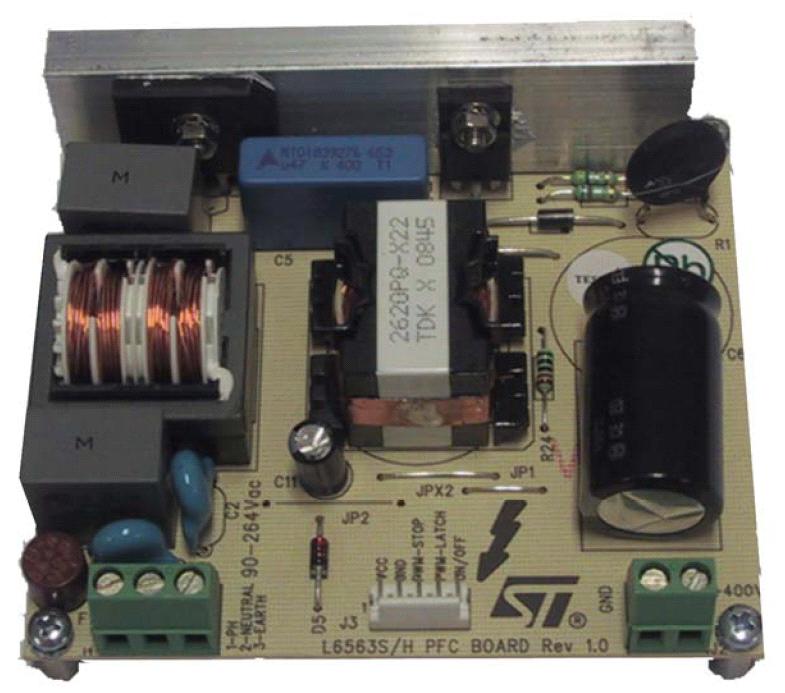

EVL6563H_100W_Schematic.JPG EVL6563H_100W_Board.JPG EVL6563H_100W_Chart.JPG EVL6563H_100W_Chart2.JPG
