Designs (3)

3 Results - Page 1/1
Schematic View Design
Power Management > OR-ing Controllers DC1066A: 48V @ 5A Ideal Diode-OR Controller Manufacturer: Analog Devices Inc.

Demonstration Circuit 1066 showcases the LTC4355 positive high voltage diode-OR controller and monitor in a 200W, 48V application.

Schematic View Design
Power Management > OR-ing Controllers DC2705A: 12V @ 7A, Ideal Diode with Reverse Input Protection Manufacturer: Analog Devices Inc.

DC2705A showcases the LTC4376 ideal diode controller with integrated MOSFET and reverse input protection up to –40V. The LTC4376 has a current capability of 7A. The board includes two independent LTC4376 ideal diode circuits sharing a common ground and operating over a range of 4V to 40V.

Schematic View Design

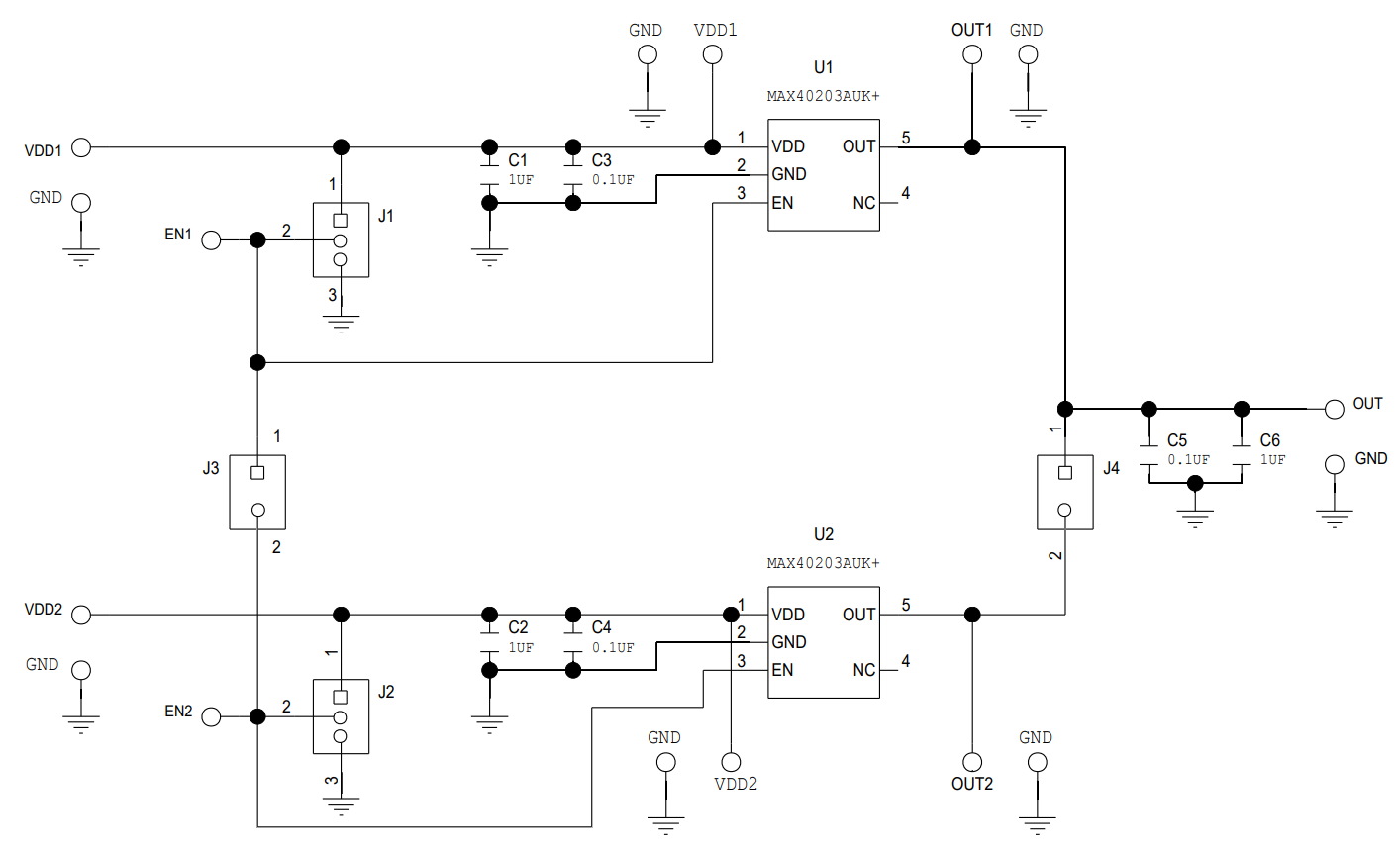

Power Management > OR-ing Controllers MAX40203EVKIT#: 1.2 ~ 5.5V @ 1A, Ideal Diode-OR Controller Manufacturer: Analog Devices Inc./Maxim Integrated

The MAX40203 evaluation kit (EV kit) provides a proven design to evaluate the MAX40203 “ideal-diode”. This EV kit demonstrates the MAX40203 in a space-saving 5-pin SOT23 (MAX40203AUK+). This EV kit can be used to evaluate the MAX40203AUK+ as well.

3 Results - Page 1/1
