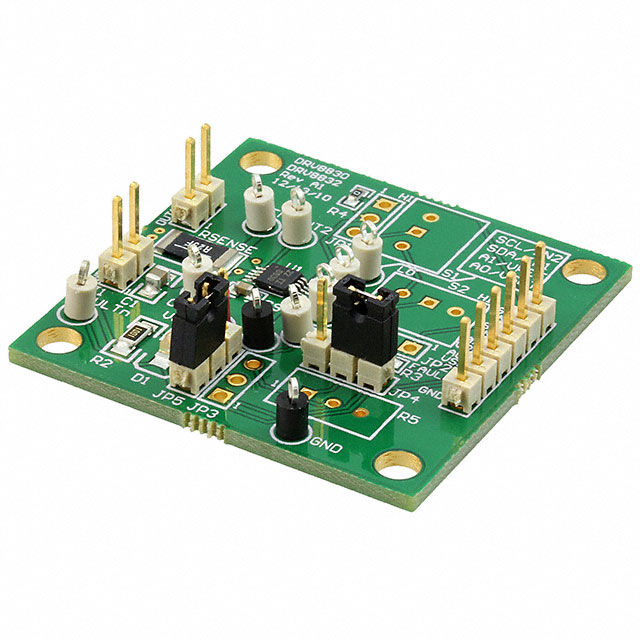

The DRV8830 evaluation module consists of a 1A, H-bridge motor driver with a I2C control interface and small number external components that can be used to drive one brushed DC motor or other loads like solenoids. With the DRV8830EVM, designers can quickly and easily evaluate the performance of DRV8830 motor driver in their specific application. The DRV8830 includes an internal reference voltage which is used to set the PWM regulated output voltage controlled by the VSET bits from the serial interface. This EVM operates on power supply voltages from 2.75 V to 6 V.
Features
Low RDSON (450mΩ LS+HS)
EVM includes LED indicator of fault state.

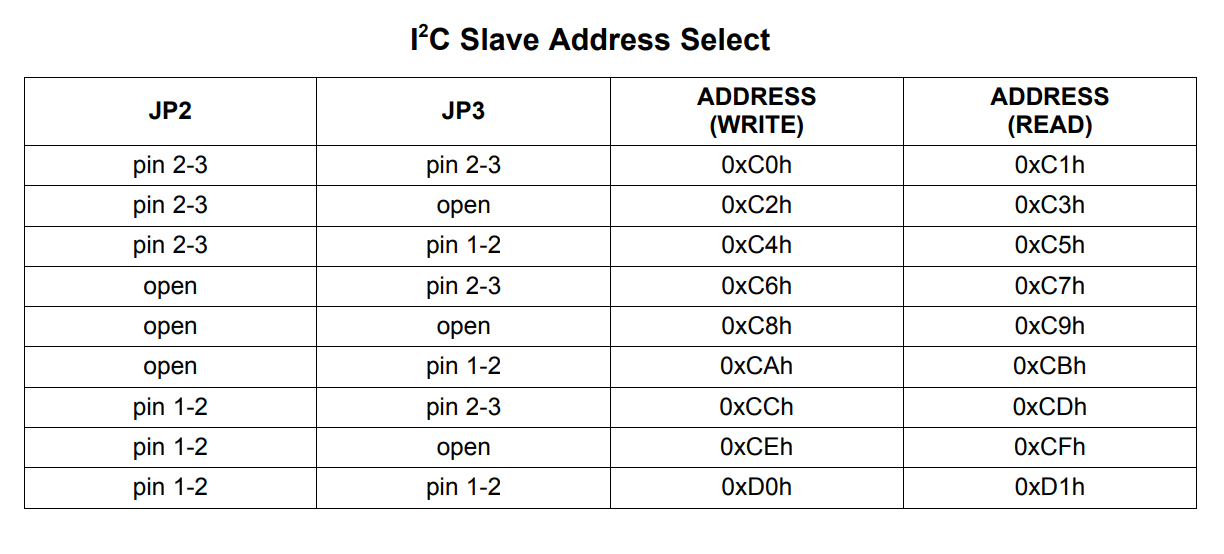

The address pins of the DRV8830 can be configured to respond to one of 9 slave addresses enabling the user to use the same I2C bus for multiple drivers.
| Manufacturer | Texas Instruments |
|---|---|
| Category | Motor Control |
| Eval Board Part Number | 296-45691-ND |
| Eval Board Supplier | Texas Instruments |
| Eval Board |
Normally In Stock
|
| Voltage In |
2.75 ~ 6 V
|
| Number of Motors and Type |
1, DC Brush Motor
|
| Power / Current Out |
1 A
|
| Features |
Brake Function
Current Limit (Adj. or Fixed) Fault Indication I²C Interface Over Current Protection Short Circuit Protection Thermal Protection Under Voltage Protection, Brown-Out |
| Component Count + Extras |
8 + 16
|
| Application / Target Market |
Digital Cameras
Portable Devices Printer, Plotter Pumps Robotics |
| Design Author |
Texas Instruments
|
| Main I.C. Base Part |
DRV8830
|
| Date Created By Author | 2011-03 |
| Date Added To Library | 2019-01 |
