TMC5041-EVAL-KIT: 2 Stepper, 1.1A/Phase @ 4.5 ~ 26V

Summary

TMC5041-EVAL-KIT is a set of one MCU Board "Landungsbrücke", a bridge Board and one TMC5041-EVAL driver Board. It allows for a quick and simple start within only minutes to make your motor turning, while still providing full access to all registers and full functionality and diagnostics.

For Diagnosis all Signals between MCU and TMC5041 are accessible with probes on the "Eselsbrücke" Bridgeboard.

To simplify the transfer to your own processor platform the MCU board can be disconnected.

Additionally required is a Power Supply (max. 24V).

Specifications

Manufacturer Analog Devices Inc.
Category Motor Control
Eval Board Part Number 505-TMC5041-EVAL-KIT-ND
Eval Board Supplier Analog Devices Inc./Maxim Integrated
Eval Board Normally In Stock
Voltage In 4.75 ~ 26 V
Number of Motors and Type 2, Stepper Motors, BiPolar
Power / Current Out 1.1 A (x2)
Features Open Circuit Protection
Short Circuit Protection
SPI Interface
Thermal Protection
UART Interface
Component Count + Extras 34 + 15
Application / Target Market Digital Cameras
Factory Automation
Medical
Motor Control
Printer, Plotter
Robotics
Security IP Camera
Design Author TRINAMIC
Main I.C. Base Part TMC5041
Date Created By Author 2015-05
Date Added To Library 2015-08

Eval Board

Order a fully assembled board:

Quantity Available: 0

Quantity:

Support Documents & Media

TMC5041-EVAL - Gerbers TMC5041 - Datasheet TMC-Landungsbrücke MCU Board Flyer

Media

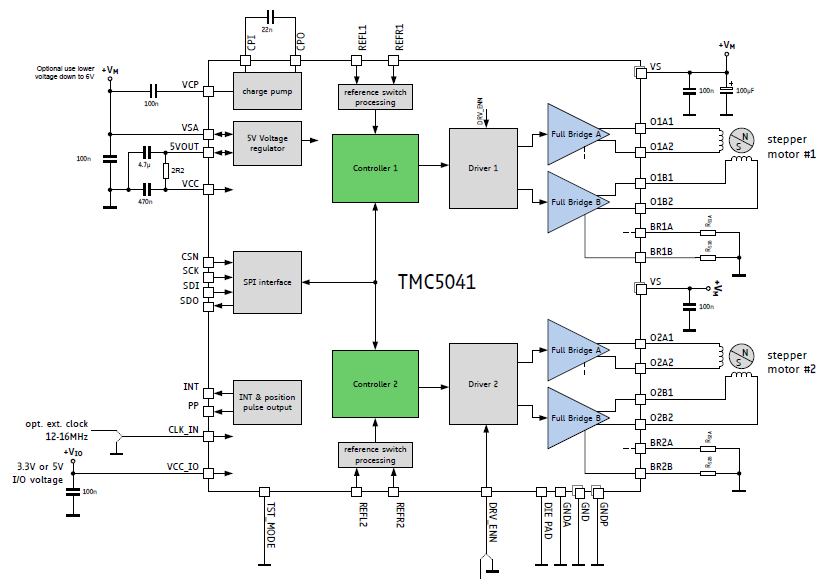

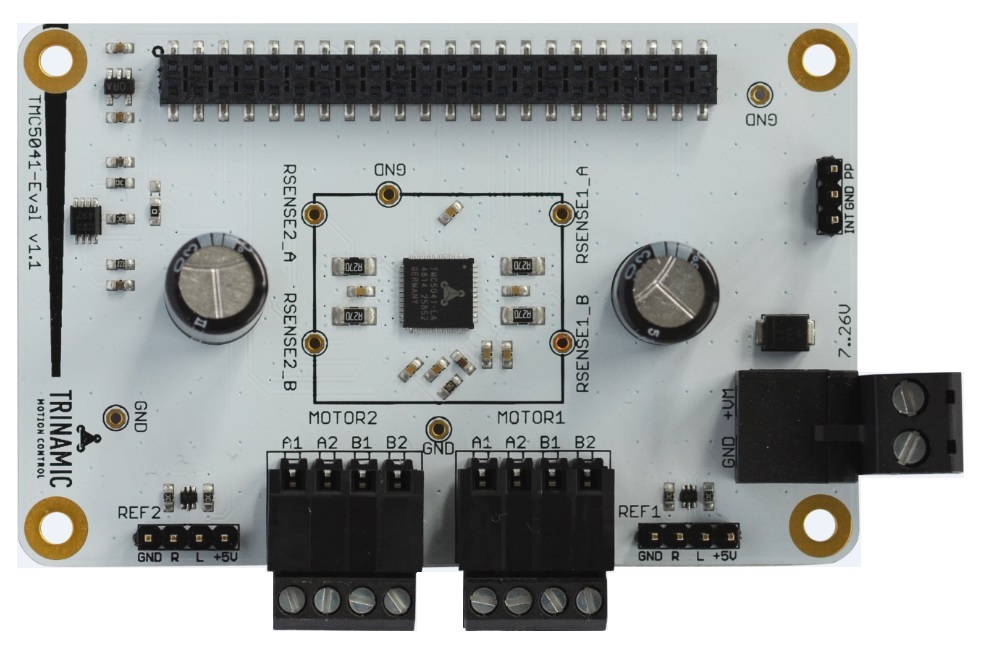

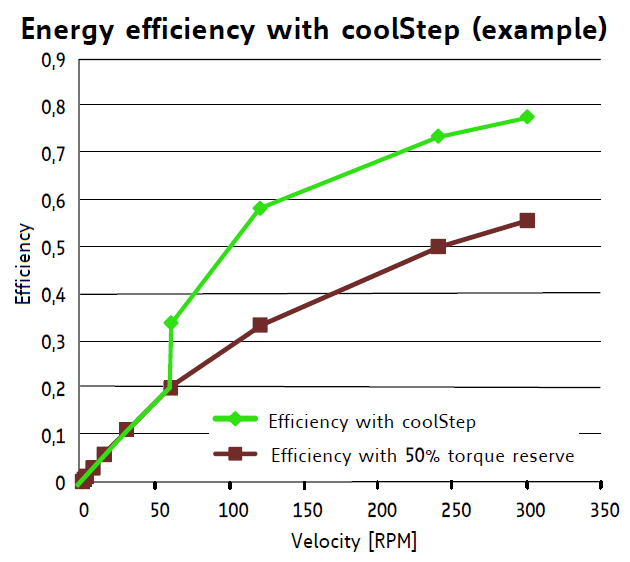

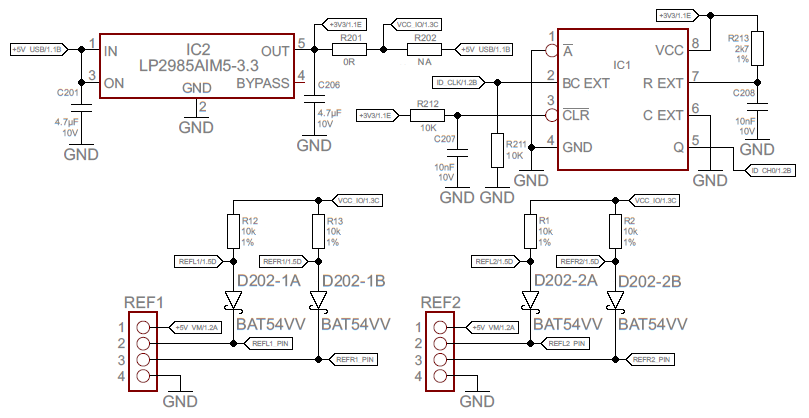

TMC5041_EVAL_Schematic_Full.png TMC5041_EVAL_Schematic_2_Full.png TMC5041_EVAL_Board_Full.jpg TMC5041_EVAL_Block_Diagram_Full.png TMC5041_EVAL_Chart_Full.png
