TPA2010D1EVM: Mono 2.5W @ 4 Ω, Class D Amp

Summary

The TPA2010D1 audio power amplifier evaluation module is a complete, low-power single-channel audio power amplifier. It consists of the TI TPA2010D1 2.5-W low-voltage Class-D audio power amplifier IC in a very small NanoFree WCSP package, along with a small number of other parts mounted on a circuit board that is approximately one and a quarter inches square.

Specifications

Manufacturer Texas Instruments
Category Audio Amplifiers
Eval Board Part Number 296-18923-ND
Eval Board Supplier Texas Instruments
Eval Board Normally In Stock
Amplifier Type Class D
Number of Outputs Mono
Output Power (RMS) @ Load 2.5 W @ 4 Ω
Voltage In 2.5 ~ 5.5 V
THD+N (1kHz) @ Conditions < 0.3% @ 1.8 W (4 Ω, 5V)
< 0.3% @ 400 mW (4 Ω, 2.5V)
Features Filterless Output
Thermal Protection
Turn On/Off Depop
Efficiency @ Conditions >95%, 2W @ 4Ω, 5V
>73%, 0.4 W @ 4 Ω, 2.5 V
Standby Current [Typical]
Quiescent Current [Typical]
Component Count + Extras 8 + 7
Application / Target Market Portable Devices
Design Author Texas Instruments
Main I.C. Base Part TPA2010D1
Quiescent Current [Maximum] 4.9 mA
Standby Current [Maximum] 2 µA
Date Created By Author
Date Added To Library 2011-03

Eval Board

Order a fully assembled board:

Quantity Available: 2

Quantity:

Support Documents & Media

TPA2010D1EVM - User Guide TPA2010D1 - Datasheet Ultra Librarian Software:CAD Symbols and Footprints (Zip File) TI's CAD/CAE Symbols and Footprint Search

Media

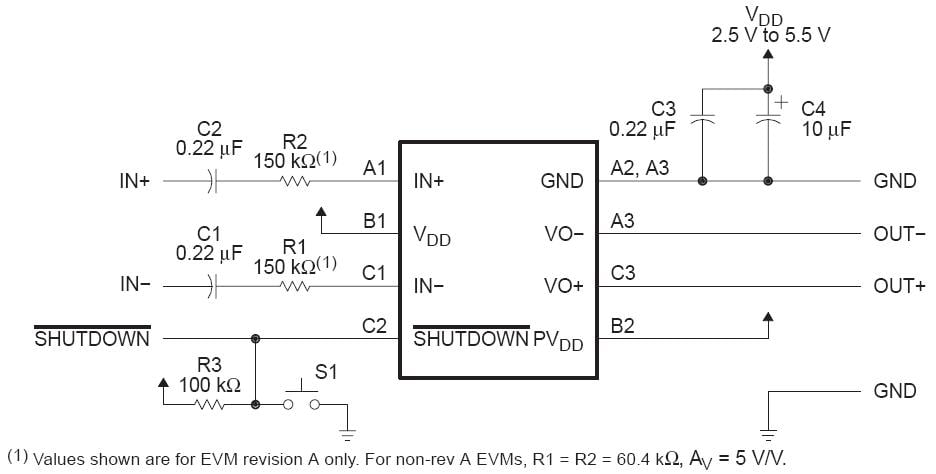

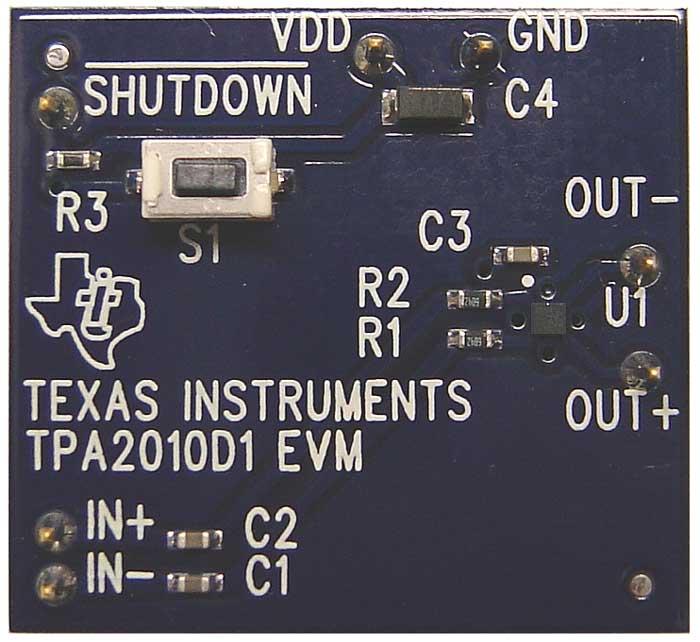

TPA2010D1EVM_Schematic.JPG TPA2010D1EVM_Board.JPG
