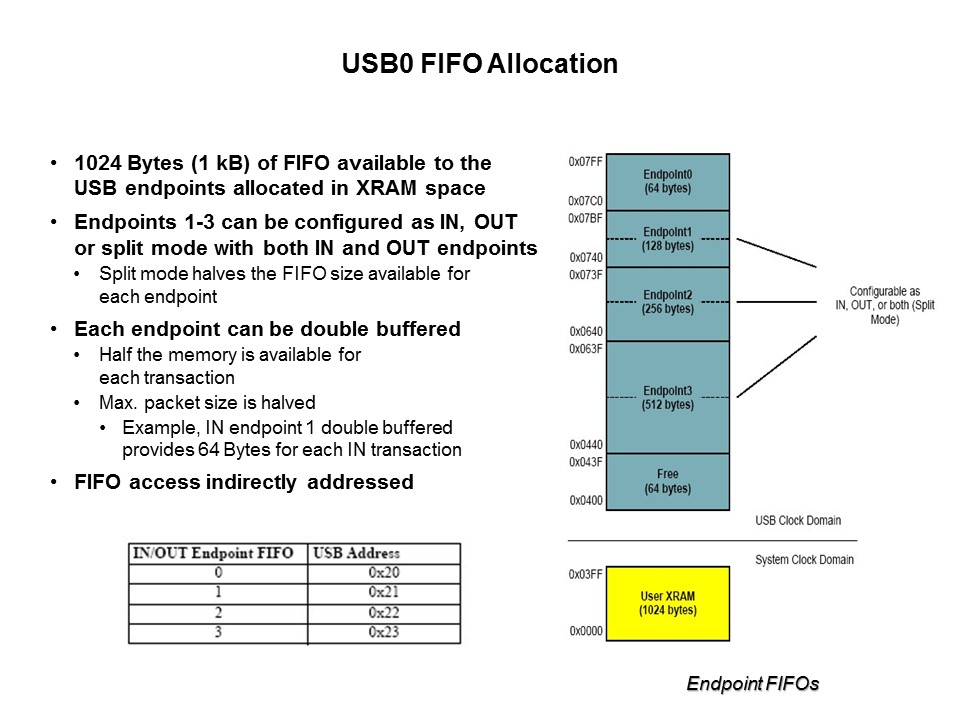

There is 1 kB of memory available to the USB controller and it is split among the eight endpoints. Endpoint 0 is a 64 Byte memory location that is used for the control transfers during enumeration. The other memory areas are allocated to the remaining endpoints and range in size. The memory can be split such that there are IN and OUT endpoints or they can be used in a double buffered mode. In this case the data is made available to successive transactions and the overall maximum packet size that can be used is half that of the endpoint buffer size. This FIFO space is accessed using the indirect scheme previously outlined using the USB0ADR and USB0DAT registers.
PTM Published on: 2011-06-01
