STV8163
+3.3 V, +5 V and Adjustable Triple-Voltage Regulator
with Disable and Reset Functions
®
September 2003 1/11
FEATURES
■Input Voltage range between 5V and 18V,
limited to VOUT + 6.5V
■Maximum Available Output Currents greater than
0.8 A
■Fixed Precision Output 1 voltage of 3.3 V ± 2% (at
10 mA)
■Fixed Precision Output 2 voltage of 5 V ± 2% (at
10 mA)
■Programmable Output 3 voltage: 2.5 to 16 V ± 2%
■Output 1 with Reset facility
■Outputs 2 and 3 can be disabled by digital input
■Short Circuit Protection on each output
■Thermal Protection
■Low Dropout Voltages
DESCRIPTION
The STV8163 is a monolithic triple positive voltage
regulator designed to provide fixed precision output
voltages of 3.3 V, 5 V and an adjustable voltage for
currents up to 0.6 A.
The adjustable value of the third output can be fixed
from 2.5 V to 16 V.
An internal reset circuit generates a reset pulse
when the voltage of Output 1 drops below the
regulated voltage value.
Outputs 2 and 3 can be disabled by a digital input.
Short-circuit and thermal protections are included in
all versions.
Clipwatt11
(Plastic Package)
Order Code: STV8163
PROGRAM
9
8
7
6
5
4
3
2
1
INPUT3
OUTPUT3
INPUT2
GROUND
OUTPUT2
INPUT1
OUTPUT1
DELAY CAPACITOR
RESET
11
DISABLE
10
Obsolete Product(s) - Obsolete Product(s) Obsolete Product(s) - Obsolete Product(s)
Obsolete Product(s) - Obsolete Product(s) Obsolete Product(s) - Obsolete Product(s)
STV8163
2/11
TABLE OF CONTENTS
Chapter 1 GENERAL INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Chapter 2 ELECTRICAL CHARACTERISTICS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
2.1 Absolute Maximum Ratings ................................................................................................4
2.2 Thermal Data ......................................................................................................................4
2.3 Electrical Characteristics ......................................................................................................4
Chapter 3 CIRCUIT DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
3.1 Currents versus Maximum Power Limitation ........................................................................6
Chapter 4 APPLICATION DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Chapter 5 PACKAGE MECHANICAL DATA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Chapter 6 REVISION HISTORY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Obsolete Product(s) - Obsolete Product(s) Obsolete Product(s) - Obsolete Product(s)
3/11
STV8163 GENERAL INFORMATION
1 GENERAL INFORMATION
Figure 1: STV8163 Block Diagram
4Regulator 1
1
3
Reference
INPUT1 OUTPUT1
RESET
DELAY CAPACITOR
2
Protections
7Regulator 2 5
INPUT2 OUTPUT2
9 8
Regulator 3
11
10
INPUT3
DISABLE
OUTPUT3
PROGRAM
GROUND
6
Obsolete Product(s) - Obsolete Product(s) Obsolete Product(s) - Obsolete Product(s)
ELECTRICAL CHARACTERISTICS STV8163
4/11
2 ELECTRICAL CHARACTERISTICS
2.1 Absolute Maximum Ratings
2.2 Thermal Data
2.3 Electrical Characteristics
TAMB = 25° C, VIN1 = 5.3 V, VIN2 = 7 V and VIN3 = 10 V, unless otherwise specified.
Symbol Parameter Value Unit
VIN DC Input Voltage at pins INPUT1, INPUT2 and INPUT3 20 V
VDIS Disable Input Voltage at pin DISABLE 20 V
VRST Output Voltage at pin RESET 20 V
IOUTPUT Output Currents Internally Limited
PtPower Dissipation Internally Limited
TSTG Storage Temperature -65 to +150 °C
TJJunction Temperature 0 to +150 °C
Symbol Parameter Value Unit
RthJC Thermal Resistance (Junction-to-Case) 3 °C/W
RthJA Thermal Resistance (Junction-to-Ambient) ≥101
1. Depending on heat sink conditions.
°C/W
TJMaximum Recommended Junction Temperature 140 °C
TOPER Operating Free Air Temperature Range 0 to +70 °C
Symbol Parameter Test Conditions Min. Typ. Max. Unit
VOUT1 Output Voltage IOUT1 = 10 mA 3.24 3.30 3.36 V
VOUT2 Output Voltage IOUT2 = 10 mA 4.90 5.00 5.10 V
VOUT3 Output Voltage IOUT3 = 10 mA 2.5 16 V
VOUT1 Output Voltage 5.3 V < VIN1 < 10 V
5 mA < IOUT1 < 600 mA 3.18 3.42 V
VOUT2 Output Voltage 7 V < VIN2 < 12 V
5 mA < IOUT2 < 600 mA 4.80 5.20 V
VIO1 Dropout Voltage IOUT1 = 0.6 A 11.4V
V
IO2 Dropout Voltage IOUT2 = 0.6 A 11.4V
V
IO3 Dropout Voltage IOUT3 = 0.6 A 11.4V
Obsolete Product(s) - Obsolete Product(s) Obsolete Product(s) - Obsolete Product(s)
5/11
STV8163 ELECTRICAL CHARACTERISTICS
VOUT1LI Line Regulation 5.3 V < VIN1 < 10 V,
IOUT1 = 200 mA 30 mV
VOUT2LI Line Regulation 7 V < VIN2 < 12 V,
IOUT2 = 200 mA 50 mV
VOUT3LI Line Regulation 10 V < VIN3 < 15 V,
IOUT3 = 200 mA, VOUT3 = 8 V 80 mV
VOUT1LO Load Regulation 5 mA < IOUT1 < 600 mA 100 mV
VOUT2LO Load Regulation 5 mA < IOUT2 < 600 mA 100 mV
VOUT3LO Load Regulation 5 mA < IOUT3 < 600 mA,
VOUT3 = 8 V 160 mV
IQQuiescent Current IOUT1 = 10 mA
Outputs 2 and 3 disabled 2.2 3.0 mA
VO1RST Reset Threshold Voltage1K = VOUT1, IOUT1 > 50 mA K-0.4 K-0.25 K-0.10 V
VRTH Reset Threshold Hysteresis See circuit description. 30 75 120 mV
tRD Reset Pulse Delay CE = 100 nF
See circuit description. 25 ms
VRL Saturation Voltage in Reset
Condition IRESET = 5 mA 0.4 V
IRH Leakage Current in Normal
Condition, at RESET pin VRESET = 10 V 10 µA
KOUT1
KOUT2
KOUT3
Output Voltage Thermal Drift
TJ = 0 to 125°C
100 ppm/°C
IOUT1SC Short Circuit Output Current VIN1 = 5.3 V 0.8 1.3 1.8 A
IOUT2SC Short Circuit Output Current VIN2 = 7 V 0.8 1.3 1.8 A
IOUT3SC Short Circuit Output Current VIN3 = VOUT3 + 2V 0.8 1.3 1.8 A
VPROG Input Voltage at PROGRAM pin 2 V
IPROG Input Current at PROGRAM pin 5 µA
VDISH Voltage High Level at DISABLE pin (Outputs 2 and 3 active) 2 V
VDISL Voltage Low Level at DISABLE pin (Outputs 2 and 3 disabled) 0.8 V
IDIS Bias Current at DISABLE pin 0 V < VDISABLE < 5.3 V -100 2 µA
TJSD Junction Temperature for Thermal Shutdown 150 °C
TSDH Thermal Shutdown Temperature Hysteresis 15 °C
1. This reset signal is activated by a decrease of VOUT1 voltage which can be due to an overload of pin OUT1
or by a lack of Input Voltage (VIN1).
Symbol Parameter Test Conditions Min. Typ. Max. Unit
KOUT
∆VOUT 106
⋅
∆TV
OUT
⋅
--------------------------------
=
Obsolete Product(s) - Obsolete Product(s) Obsolete Product(s) - Obsolete Product(s)
CIRCUIT DESCRIPTION STV8163
6/11
3 CIRCUIT DESCRIPTION
The STV8163 is a triple-voltage regulator with Reset and Disable functions.
The three regulation parts are supplied from a single voltage reference circuit trimmed by zener
zapping during EWS testing. Since the supply voltage of this voltage reference is connected to pin
INPUT1 (VIN1), the second and third regulators will not work if pin INPUT1 is not supplied.
The output stages are designed using a Darlington configuration with a typical dropout voltage of
1.0 V.
The adjustable voltage of pin OUTPUT3 is defined by output bridge resistors (R1 and R2). The
values of these resistors are calculated to obtain, with the targeted value for pin OUTPUT3, the
VPROG voltage (2.0 V) on the median point connected to pin PROGRAM.
IMPORTANT: In all applications, all three inputs must be polarized. If Outputs 2 or 3 are not used, the
corresponding inputs must be connected to Input 1.
The Disable circuit will switch off pins OUTPUT2 and OUTPUT3 if a voltage less than 0.8 V is
applied to pin DISABLE.
The Reset circuit checks the voltage at pin OUTPUT1. If this voltage drops below VOUT1-0.25 V
(3.05 V Typ.), the "a" comparator (Figure 2) rapidly discharges the external capacitor (Ce) and the
reset output immediately switches to low. When the voltage at pin OUTPUT1 exceeds
VOUT1-0.175 V (3.125 V Typ.), the VCe voltage increases linearly to the reference voltage (VREF =
2.5 V) corresponding to a Reset Pulse Delay (tRD) as shown in Figure 3.
Afterwards, the reset output returns to high. To avoid glitches in the reset output, the second
comparator "b" has a large hysteresis (1.9 V).
3.1 Currents versus Maximum Power Limitation
The currents provided by the three outputs can reach 1.6 A. However, the power dissipation in the
STV8163 must be established so as not to activate the automatic thermal shutdown (TJ=150°C).
It is recommended not to have all three currents at their maximum value simultaneously.
For example, if TAMB(MAX.) = 70° C, the maximum power dissipation in the STV8163 will be (with
RthJA = 12 °C/W):
This means that the following conditions apply to input voltages and currents:
(VIN1 - 3.3 V) x IIO1 + (VIN2 - 5 V) x IIO2 + (VIN3 - VOUT3) x IIO3 < 5.8 W
tRD
Ce2.5V×
10µA
--------------------------
=
140°C70°–C
12°CW⁄
----------------------------------- 5.8W=
Obsolete Product(s) - Obsolete Product(s) Obsolete Product(s) - Obsolete Product(s)
7/11
STV8163 CIRCUIT DESCRIPTION

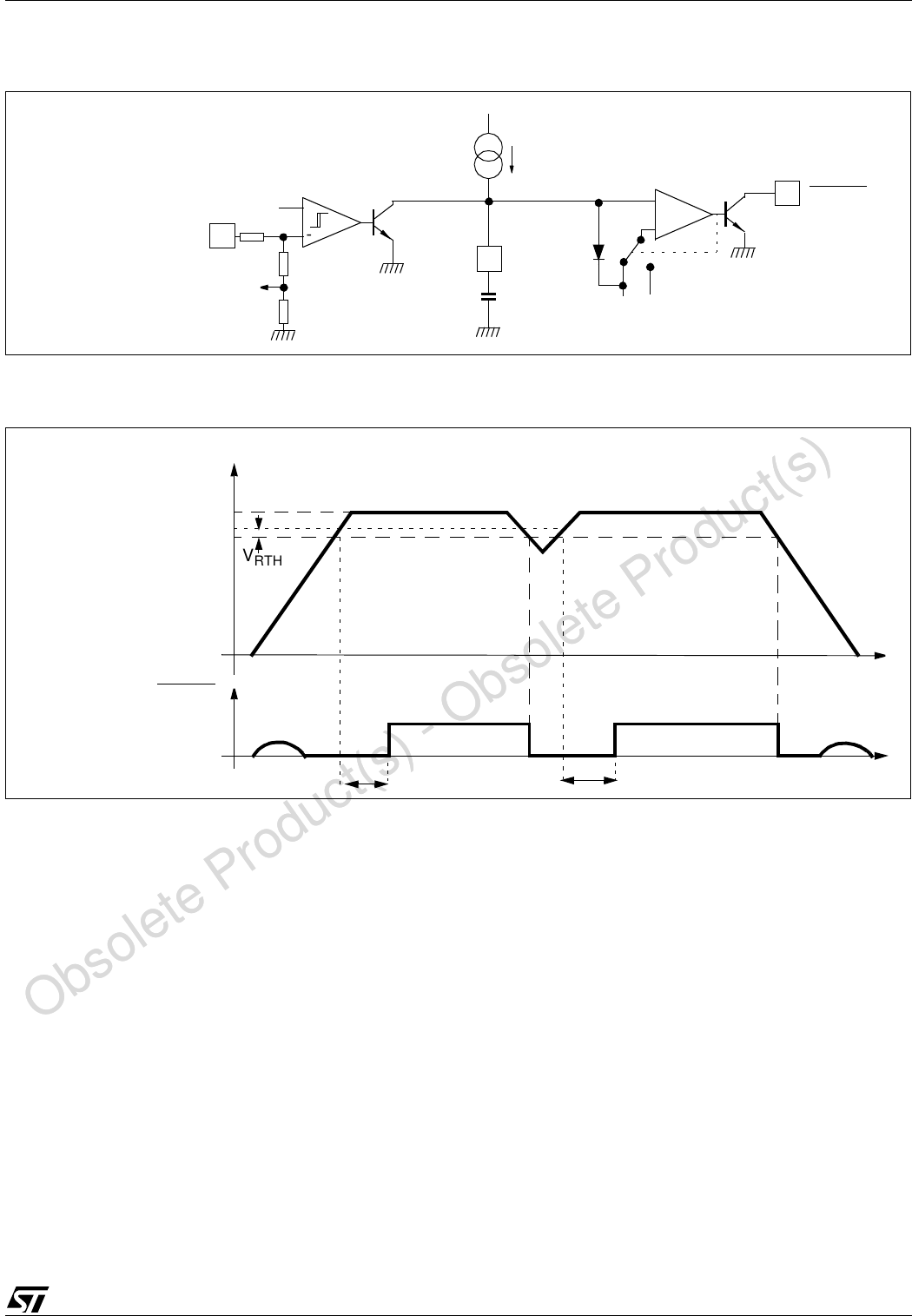

Figure 2: Reset Diagram
Figure 3: Internal Reset Voltage
OUTPUT1
REG
VREF
-
+a
+
-
Ce VREF 0.6V
bRESET
10 µA
2
VREF = 2.5 V
1
3
RESET
K
VRTH
VO1RST
tRD
tRD
VOUT1
Power On Power Off
K = Actual Value of VOUT1
Obsolete Product(s) - Obsolete Product(s) Obsolete Product(s) - Obsolete Product(s)
APPLICATION DIAGRAM STV8163
8/11
4 APPLICATION DIAGRAM
Figure 4: STV8163 Typical Application
12
9
7
Ce 0.1 µF
C2 C3
C1 to C6 = 10 µF
OUTPUT2
OUTPUT3
INPUT2
INPUT3
5
8
10
RESET DELAY
CAPACITOR
PROGRAM
DISABLE
GROUND
11
VOUT1
VOUT2
4INPUT1 OUTPUT1 3
6
VIN1
VIN2
VIN3
C1
VOUT3
C5 C6C4
R1
R2
VO3 VPROG R1 R2+
R1
----------------------
×=
V PROG = 2.0 V
.—.
Obsolete Product(s) - Obsolete Product(s) Obsolete Product(s) - Obsolete Product(s)
9/11
STV8163 PACKAGE MECHANICAL DATA
5 PACKAGE MECHANICAL DATA
Figure 5: 11-Pin Plastic Clipwatt Package
Dim. mm Inches
Min. Typ. Max. Min. Typ. Max.
A3.20 0.126
B1.05 0.041
C0.15 0.006
D1.50 0.059
E0.49 0.55 0.019 0.002
F0.80 0.91 0.031 0.036
G1.57 1.70 1.83 0.062 0.067 0.072
H1 12.00 0.480
H2 18.60 0.732
H3 19.85 0.781
L17.90 0.700
L1 14.45 0.569
L2 10.70 11.00 11.20 0.421 0.433 0.441
L3 5.50 0.217
M2.54 0.100
M1 2.54 0.100
Number of Pins
N11
B
D
L
L1 L2
E
M1 M
C
AA
H3
H1
F
G1
G
Obsolete Product(s) - Obsolete Product(s) Obsolete Product(s) - Obsolete Product(s)
REVISION HISTORY STV8163
10/11
6 REVISION HISTORY
Revision Main Changes Date
1.2 New Edition June 2000
1.3
New edition. Pin name changed from DISABLE to DISABLE. Reset Threshold values
updated. Update of Quiescent Current value in Chapter 2.3: Electrical Characteristics
on page 4.
8 January 2002
1.4 Update of reset voltage characteristics. Update of IQ, IDIS and VO1RST values in
Chapter 2.3: Electrical Characteristics on page 4.31 January 2002
1.5 Document level changes from Preliminary Data to Datasheet. Modification of Short
Circuit Output Current values in Section 2.3: Electrical Characteristics.21 May 2002
1.6 Output voltages and current further specified on Title page 12 June 2002
Obsolete Product(s) - Obsolete Product(s) Obsolete Product(s) - Obsolete Product(s)
11/11
STV8163
