FALC®-LH
E1/T1/J1 Framer and Line
Interface Component for Long
and Short Haul Applications
PEB 2255 Version 1.3
Data Sheet, DS 1, July 2000
Datacom
Never stop thinking.
Edition 2000-07
Published by Infineon Technologies AG,
St.-Martin-Strasse 53,
D-81541 München, Germany
©Infineon Technologies AG 7/13/00.
All Rights Reserved.
Attention please!
The information herein is given to describe certain components and shall not be considered as warranted
characteristics.
Terms of delivery and rights to technical change reserved.
We hereby disclaim any and all warranties, including but not limited to warranties of non-infringement, regarding
circuits, descriptions and charts stated herein.
Infineon Technologies is an approved CECC manufacturer.
Information
For further information on technology, delivery terms and conditions and prices please contact your nearest
Infineon Technologies Office in Germany or our Infineon Technologies Representatives worldwide (see address
list).
Warnings
Due to technical requirements components may contain dangerous substances. For information on the types in
question please contact your nearest Infineon Technologies Office.
Infineon Technologies Components may only be used in life-support devices or systems with the express written
approval of Infineon Technologies, if a failure of such components can reasonably be expected to cause the failure
of that life-support device or system, or to affect the safety or effectiveness of that device or system. Life support
devices or systems are intended to be implanted in the human body, or to support and/or maintain and sustain
and/or protect human life. If they fail, it is reasonable to assume that the health of the user or other persons may
be endangered.
( .Inflnssn
Datacom
FALC®-LH
E1/T1/J1 Framer and Line
Interface Component for Long
and Short Haul Applications
PEB 2255 Version 1.3
Data Sheet, DS 1, July 2000
Never stop thinking.
For questions on technology, delivery and prices please contact the Infineon
Technologies Offices in Germany or the Infineon Technologies Companies and
Representatives worldwide: see our webpage at http://www.infineon.com
PEB 2255
Revision History: 2000-07 DS 1
Previous Version: Preliminary Data Sheet DS1
Page Subjects (major changes since last revision)
Inflqeon
PEB 2255
FALC-LH V1.3
Data Sheet 5 2000-07
Preface
The FALC®-LH framer and line interface component is designed to fulfill all required
interfacing between an analog E1/T1/J1 line and the digital PCM system highway/H.100
bus.
The digital functions as well as the analog characteristics are configured via a flexible
microprocessor interface.
Inflqeon
PEB 2255
FALC-LH V1.3
Data Sheet 6 2000-07
Organization of this Document
This Data Sheet is organized as follows:
•Chapter 1,Introduction
Gives a general description of the product and its family, lists the key features, and
presents some typical applications.
•Chapter 2,Pin Descriptions
Lists pin locations with associated signals, categorizes signals according to function,
and describes signals.
•Chapter 3 to Chapter 5,Functional Description E1/T1/J1
These chapters describe the functional blocks and principle operation modes,
organized into separate sections for E1 and T1/J1 operation
•Chapter 6 and Chapter 7,Operational Description E1/T1/J1
Shows the operation modes and how they are to be initialized (separately for E1 and
T1/J1).
•Chapter 8,Signaling Controller Operating Modes
Describes signaling controller functions for both E1 and T1/J1 operation.
•Chapter 9 and Chapter 10,E1 Registers and T1/J1 Registers
Gives a detailed description of all implemented registers and how to use them in
different applications/configurations.
•Chapter 11,Electrical Characteristics
Specifies maximum ratings, DC and AC characteristics.
•Chapter 12,Package Outlines
Shows the mechanical values of the device package.
•Chapter 13,Appendix
Gives an example for overvoltage protection and information about application notes
and other support.
•Chapter 14,Glossary
•Index
Inflqeon
PEB 2255
FALC-LH V1.3
Data Sheet 7 2000-07
Related Documentation
Your Comments
We welcome your comments on this document. We are continuously trying improving
our documentation. Please send your remarks and suggestions by e-mail to
sc.docu_comments@infineon.com
Please provide in the
subject
of your e-mail:
device name (FALC®-LH), device number (PEB 2255), device version (Version 1.3),
and in the
body
of your e-mail:
document type (Data Sheet), issue date (2000-07) and document revision number
(DS 1).
This document refers to the following international standards
(in alphabetical/numerical order):
ANSI/EIA-656
ANSI T1.102
ANSI T1.403
AT&TPUB43802
AT&TPUB54016
AT&TPUB62411
ESD Ass. Standard EOS/ESD-5.1-1993
ETSI ETS 300 011
ETIS ETS 300 166
ETSI ETS 300 233
ETSI ETS 300 324
ETSI ETS 300 347
ETSI TBR12
ETSI TBR13
FCC Part68
GR-253-CORE
GR-499-CORE
GR-1089-CORE
H.100
H-MVIP
IEEE 1149.1
ITU-T G.703
ITU-T G.704
ITU-T G.705
ITU-T G.706
ITU-T G.732
ITU-T G.735
ITU-T G.736
ITU-T G.737
ITU-T G.738
ITU-T G.739
ITU-T G.823
ITU-T G.824
ITU-T G.962
ITU-T G.963
ITU-T G.964
ITU-T I.431
ITU-Q.703
JT-G703
JT-G704
JT-G706
JT-I431
MIL-Std. 883D
TR-TSY-000009
UL1459
In neon me. ,
PEB 2255
FALC-LH V1.3
Table of Contents Page
Data Sheet 82000-07
1 Introduction ............................................... 17
1.1 Features................................................... 18
1.2 LogicSymbol ............................................... 21
1.3 TypicalApplications.......................................... 22
2 Pin Descriptions ........................................... 24
2.1 PinDiagram................................................ 24
2.2 PinDefinitionsandFunctions .................................. 25
3 Functional Description E1/T1/J1 .............................. 45
3.1 FunctionalOverview ......................................... 45
3.2 BlockDiagram .............................................. 46
3.3 FunctionalBlocks............................................ 47
3.3.1 MicroprocessorInterface .................................... 47
3.3.1.1 MixedByte/WordAccesstotheFIFOs ....................... 47
3.3.1.2 FIFOStructure.......................................... 49
3.3.1.3 InterruptInterface ....................................... 50
3.3.2 Boundary Scan Interface . . . ................................. 52
4 Functional Description E1 ................................... 54
4.1 ReceivePathinE1Mode ..................................... 54
4.1.1 ReceiveEqualizationNetwork(E1) ............................ 55
4.1.2 Receive Line Attenuation Indication (E1) . . ...................... 55
4.1.3 ReceiveClockandDataRecovery(E1) ........................ 55
4.1.4ReceiveLineCoding(E1) ................................... 55
4.1.5 Loss of Signal Detection (E1) ................................ 57
4.1.6 ReceiveJitterAttenuator(E1) ................................ 58
4.1.7 JitterTolerance(E1) ....................................... 60
4.1.8OutputJitter(E1) .......................................... 60
4.1.9Transmit Jitter Attenuator (E1) ................................ 61
4.1.10 Framer/Synchronizer ....................................... 62
4.1.11 ReceiveElasticBuffer(E1) .................................. 63
4.1.12 ReceiveSignalingController(E1) ............................. 66
4.1.12.1 HDLCorLAPDaccess ................................... 66
4.1.12.2 SabitAccess(E1)....................................... 66
4.1.12.3 Channel Associated Signaling CAS (E1, serial mode) . .......... 66
4.1.12.4Channel Associated Signaling CAS (E1, µP access mode) . . ..... 68
4.2 SystemInterfaceinE1Mode................................... 69
4.2.1 TimeSlotAssigner(E1)..................................... 72
4.3 TransmitPathinE1Mode ..................................... 73
4.3.1 TransmitSignalingController(E1)............................. 76
4.3.1.1 HDLCorLAPDaccess ................................... 76
4.3.1.2 SabitAccess(E1)....................................... 76
4.3.1.3 Channel Associated Signaling CAS (E1, serial access mode) ..... 76
In neon me. ,
PEB 2255
FALC-LH V1.3
Table of Contents Page
Data Sheet 92000-07
4.3.1.4Channel Associated Signaling CAS (E1, µP access mode) . . ..... 77
4.3.2 TransmitElasticBuffer(E1).................................. 77
4.3.3 Transmitter(E1)........................................... 78
4.3.4TransmitLineInterface(E1) ................................. 79
4.3.5 Programmable Pulse Shaper (E1) . . ........................... 80
4.3.6 TransmitLineMonitor(E1) .................................. 80
4.4Framer Operating Modes (E1) . ................................. 82
4.4.1 General ................................................. 82
4.4.2 DoubleframeFormat(E1) ................................... 83
4.4.2.1 TransmitTransparentModes............................... 83
4.4.2.2 Synchronization Procedure ................................ 84
4.4.2.3 A-BitAccess ........................................... 85
4.4.2.4Sa-BitAccess ......................................... 85
4.4.3 CRC-Multiframe (E1) . ...................................... 86
4.4.3.1 Synchronization Procedure ................................ 87
4.4.3.2 AutomaticForceResynchronization(E1) ..................... 88
4.4.3.3 FloatingMultiframeAlignmentWindow(E1) ................... 88
4.4.3.4CRC4PerformanceMonitoring(E1) ......................... 88
4.4.3.5 Modified CRC4MultiframeAlignmentAlgorithm(E1) ............ 88
4.4.3.6 A-BitAccess(E1)........................................ 89
4.4.3.7 Sa-BitAccess(E1)...................................... 90
4.4.3.8E-BitAccess(E1)........................................ 91
4.5 AdditionalFunctions(E1)...................................... 93
4.5.1 ErrorPerformanceMonitoringandAlarmHandling................ 93
4.5.2 Auto Modes . . ............................................ 94
4.5.3 Error Counter . ............................................ 95
4.5.4ErroredSecond ........................................... 95
4.5.5 SecondTimer ............................................ 95
4.5.6 In-Band Loop Generation and Detection . . ...................... 95
4.5.7 TimeSlot0TransparentMode ............................... 96
4.6 TestFunctions(E1) .......................................... 97
4.6.1 Pseudo-Random Bit Sequence Generation and Monitor . . .......... 97
4.6.2 Remote Loop . ............................................ 97
4.6.3 Payload Loop Back . . ...................................... 98
4.6.4LocalLoop ............................................... 99
4.6.5 Single Channel Loop Back . ................................ 100
4.6.6 AlarmSimulation(E1) ..................................... 101
5 Functional Description T1/J1 ................................ 102
5.1 ReceivePathinT1/J1Mode .................................. 102
5.1.1 ReceiveEqualizationNetwork(T1/J1)......................... 103
5.1.2 Receive Line Attenuation Indication (T1/J1) .................... 103
5.1.3 ReceiveClockandDataRecovery(T1/J1) ..................... 103
In neon me. ,
PEB 2255
FALC-LH V1.3
Table of Contents Page
Data Sheet 10 2000-07
5.1.4ReceiveLineCoding(T1/J1) ................................ 103
5.1.5 Loss of Signal Detection (T1/J1) . . . .......................... 104
5.1.6 ReceiveJitterAttenuator(T1/J1)............................. 105
5.1.7 JitterTolerance(T1/J1) .................................... 108
5.1.8OutputJitter(T1/J1)....................................... 109
5.1.9Transmit Jitter Attenuator (T1/J1) . . .......................... 109
5.1.10 Framer/Synchronizer(T1/J1)................................ 110
5.1.11 ReceiveElasticBuffer(T1/J1) ............................... 111
5.1.12 ReceiveSignalingController(T1/J1).......................... 115
5.1.12.1 HDLC/SDLCorLAPDAccess ............................. 115
5.1.12.2 CAS Bit-robbing (T1/J1, serial access mode) . . ............... 115
5.1.12.3 CAS Bit-robbing (T1/J1, µPaccessmode) ................... 116
5.1.12.4Bit Oriented Messages in ESF-DL Channel (T1/J1) . . . ......... 116
5.1.12.5 DataLinkAccessinF72Format(T1/J1) ..................... 116
5.2 SystemInterfaceinT1/J1Mode ............................... 116
5.2.1 TimeSlotAssigner(T1/J1) ................................. 121
5.3 TransmitPathinT1/J1Mode.................................. 123
5.3.1 TransmitSignalingController(T1/J1) ......................... 129
5.3.1.1 HDLCorLAPDaccess .................................. 129
5.3.1.2 CAS Bit-robbing (T1/J1) . . ................................ 129
5.3.1.3 Data Link Access in ESF/F24andF72Format(T1/J1).......... 130
5.3.2 TransmitElasticBuffer(T1/J1) .............................. 131
5.3.3 Transmitter(T1/J1) ....................................... 133
5.3.4TransmitLineInterface(T1/J1) .............................. 134
5.3.5 Programmable Pulse Shaper and Line Build-Out (T1/J1) . ......... 135
5.3.6 TransmitLineMonitor(T1/J1) ............................... 136
5.4Framer Operating Modes (T1/J1) .............................. 137
5.4.1 General ................................................ 137
5.4.2 GeneralAspectsofSynchronization .......................... 137
5.4.3 4-Frame Multiframe (F4Format,T1/J1) ....................... 140
5.4.3.1 Synchronization Procedure ............................... 140
5.4.412-Frame Multiframe (D4orSFFormat,T1/J1) ................. 140
5.4.4.1 Synchronization Procedure ............................... 141
5.4.5 Extended Superframe (F24orESFFormat,T1/J1)............... 142
5.4.5.1 Synchronization Procedures .............................. 142
5.4.5.2 RemoteAlarm(yellowalarm)Generation/Detection ............ 144
5.4.5.3 CRC6 Generation and Checking (T1/J1) ..................... 144
5.4.6 72-Frame Multiframe (SLC96Format,T1/J1) ................... 144
5.4.6.1 Synchronization Procedure ............................... 145
5.4.7 SummaryofFrameConditions(T1/J1) ........................ 147
5.5 AdditionalFunctions(T1/J1) .................................. 148
5.5.1 ErrorPerformanceMonitoringandAlarmHandling............... 148
In neon me. ,
PEB 2255
FALC-LH V1.3
Table of Contents Page
Data Sheet 11 2000-07
5.5.2 Auto Modes . . ........................................... 150
5.5.3 Error Counter . ........................................... 150
5.5.4ErroredSecond .......................................... 150
5.5.5 SecondTimer ........................................... 150
5.5.6 Clear Channel Capability . . . ................................ 151
5.5.7 In-Band Loop Generation and Detection . . ..................... 151
5.5.8TransparentMode ........................................ 151
5.5.9PulseDensityDetection.................................... 152
5.6 TestFunctions(T1/J1)....................................... 152
5.6.1 Pseudo-Random Bit Sequence Generation and Monitor . . ......... 152
5.6.2 Remote Loop . ........................................... 153
5.6.3 Payload Loop Back . . ..................................... 154
5.6.4LocalLoop .............................................. 155
5.6.5 Single Channel Loop Back (loopback of time slots) .............. 156
5.6.6 AlarmSimulation(T1/J1) ................................... 157
6 Operational Description E1 .................................. 158
6.1 OperationalOverviewE1..................................... 158
6.2 DeviceResetE1 ........................................... 158
6.3 DeviceInitializationinE1Mode................................ 158
7 Operational Description T1/J1 ............................... 163
7.1 OperationalOverviewT1/J1 .................................. 163
7.2 DeviceResetT1/J1 ......................................... 163
7.3 DeviceInitializationinT1/J1Mode ............................. 163
8 Signaling Controller Operating Modes ........................ 169
8.1 HDLCMode............................................... 169
8.1.1 Non-Auto-Mode (MODE.MDS2...1 =01) ....................... 169
8.1.2 Transparent Mode 1 (MODE.MDS2...0 =101) . . . ............... 169
8.1.3 Transparent Mode 0 (MODE.MDS2...0 =100) . . . ............... 170
8.1.4ReceiveDataFlow........................................ 170
8.1.5 TransmitDataFlow ....................................... 171
8.2 Extended Transparent Mode . . ................................ 171
8.3 SignalingControllerFunctions................................. 172
8.3.1 SharedFlags ............................................ 172
8.3.2 PreambleTransmission.................................... 172
8.3.3 TransparentTransmissionandReception...................... 172
8.3.4CyclicTransmission(fullytransparent) ........................ 172
8.3.5 CRCON/OFFFeatures .................................... 173
8.3.6 ReceiveAddresspushedtoRFIFO........................... 173
8.3.7 HDLCDataTransmission .................................. 173
8.3.8HDLCDataReception ..................................... 175
8.3.9SabitAccess(E1) ........................................ 176
In neon me. ,
PEB 2255
FALC-LH V1.3
Table of Contents Page
Data Sheet 12 2000-07
8.3.10 BitOrientedMessageMode(T1/J1) .......................... 176
8.3.10.1 DataLinkAccessinESF/F72Format(T1/J1)................. 178
9E1Registers.............................................. 180
9.1 E1ControlRegisterAddresses ................................ 180
9.2 DetailedDescriptionofE1ControlRegisters ..................... 183
9.3 E1StatusRegisterAddresses................................. 228
9.4DetailedDescriptionofE1StatusRegisters ...................... 230
10 T1/J1 Registers ........................................... 258
10.1 T1/J1ControlRegisterAddresses.............................. 258
10.2 DetailedDescriptionofT1/J1ControlRegisters ................... 261
10.3 T1/J1StatusRegisterAddresses .............................. 307
10.4DetailedDescriptionofT1/J1StatusRegisters .................... 309
11 Electrical Characteristics ................................... 335
11.1 AbsoluteMaximumRatings................................... 335
11.2 OperatingRange .......................................... 335
11.3 DCCharacteristics.......................................... 336
11.4ACCharacteristics.......................................... 339
11.4.1 Recommended Oscillator Circuits . . .......................... 339
11.4.2 XTALClockTiming ....................................... 339
11.4.3 JTAG Boundary Scan Interface .............................. 341
11.4.4Reset .................................................. 342
11.4.5 MicroprocessorInterface ................................... 342
11.4.5.1 IntelBusInterfaceMode ................................. 342
11.4.5.2 MotorolaBusInterfaceMode.............................. 345
11.4.6 LineInterface............................................ 347
11.4.7 SystemInterface ......................................... 350
11.4.8PulseTemplates-Transmitter............................... 355
11.4.8.1 PulseTemplateE1 ..................................... 355
11.4.8.2 PulseTemplateT1...................................... 356
11.5 Capacitances.............................................. 357
11.6 PackageCharacteristics ..................................... 358
11.7 TestConfiguration .......................................... 359
12 Package Outlines .......................................... 360
13 Appendix ................................................ 361
13.1 ProtectionCircuitry ......................................... 361
13.2 ApplicationNotes........................................... 362
13.3 Software Support ........................................... 362
13.4Differences to Version PEB 2255 V1.1 .......................... 364
14 Glossary ................................................. 365
In neon me. ,
PEB 2255
FALC-LH V1.3
List of Figures Page
Data Sheet 13 2000-07
Figure1 LogicSymbol............................................ 21
Figure2 MultipleE1/T1/J1LinkoverFrameRelay ...................... 22
Figure 3 8Channel E1/T1/J1 Interface to the ATM Layer . ................ 23
Figure 4MultipleFALCClockingOptions ............................. 23
Figure5 PinConfiguration......................................... 24
Figure6 BlockDiagram........................................... 46
Figure 7 FIFO Word Access (Intel Mode) . . ........................... 49
Figure 8FIFOWordAccess(MotorolaMode).......................... 50
Figure 9InterruptStatusRegisters .................................. 51
Figure 10 Block Diagram of Test Access Port and Boundary Scan. .......... 53
Figure11 ReceiveClockSystem(E1)................................. 54
Figure12 ReceiverConfiguration(E1)................................. 56
Figure13 JitterAttenuationPerformance(E1)........................... 59
Figure 14JitterTolerance(E1) ...................................... 60
Figure15 TransmitClockSystem(E1) ................................ 62
Figure 16 The Receive Elastic Buffer as Circularly Organized Memory . . ..... 65
Figure 17 2.048 MHzReceiveSignalingHighway(E1).................... 68
Figure 18SystemInterface(E1) ..................................... 70
Figure 19ReceiveSystemInterfaceClocking(E1)....................... 71
Figure 20 Transmit System Interface Clocking: 2.048 MHz(E1)............. 74
Figure 21 Transmit System Interface Clocking: 8.192MHz/4.096Mbit/s(E1)... 75
Figure 22 2.048 MHzTransmitSignalingHighway(E1) ................... 77
Figure23 TransmitterConfiguration(E1)............................... 79
Figure 24TransmitLineMonitorConfiguration(E1) ...................... 81
Figure25 DataFlowinTransparentMode.............................. 84
Figure 26 CRC4MultiframeAlignmentRecoveryAlgorithms ............... 92
Figure 27 Remote Loop (E1) . . ...................................... 97
Figure 28Payload Loop (E1) . . ...................................... 98
Figure 29Local Loop (E1) .......................................... 99
Figure 30 Single Channel Loopback (E1) . . . .......................... 100
Figure31 ReceiveClockSystem(T1/J1).............................. 102
Figure32 ReceiverConfiguration(T1/J1) ............................. 104
Figure33 JitterAttenuationPerformance(T1/J1) ....................... 107
Figure 34JitterTolerance(T1/J1)................................... 108
Figure35 TransmitClockSystem(T1/J1)............................. 110
Figure 36 The Receive Elastic Buffer as Circularly Organized Memory . . .... 113
Figure37 SystemInterface(T1/J1).................................. 118
Figure 38ReceiveSystemInterfaceClocking(T1/J1).................... 119
Figure 392.048 Mbit/sReceiveSignalingHighway(T1/J1) ............... 120
Figure 401.544 Mbit/sReceiveSignalingHighway(T1/J1) ............... 120
Figure 41 ReceiveFS/DLBitsinTimeSlot0onRDO(T1/J1).............. 122
Figure 42 Transmit System Interface Clocking: 1.544 MHz(T1/J1).......... 124
In neon me. ,
PEB 2255
FALC-LH V1.3
List of Figures Page
Data Sheet 142000-07
Figure 43 Transmit System Interface Clocking: 8MHz/4Mbit/s(T1/J1)...... 125
Figure 44 2.048 Mbit/sTransmitSignalingClocking(T1/J1)............... 126
Figure 451.544 Mbit/sTransmitSignalingHighway(T1/J1)............... 126
Figure 46 SignalingMarkerforCAS/CAS-CCApplications(T1/J1).......... 127
Figure 47 SignalingMarkerforCAS-BRApplications(T1/J1).............. 128
Figure 48 Transmit FS/DL Bits on XDI(T1/J1) ......................... 129
Figure 49 TransmitterConfiguration(T1/J1) ........................... 134
Figure50 TransmitLineMonitorConfiguration(T1/J1)................... 136
Figure 51 Influences on Synchronization Status (T1/J1) . . . ............... 139
Figure 52 Remote Loop (T1/J1)..................................... 153
Figure 53 Payload Loop (T1/J1)..................................... 154
Figure 54Local Loop (T1/J1). . ..................................... 155
Figure 55 Channel Loopback (T1/J1). ................................ 156
Figure56 HDLCReceiveDataFlowofFALC®-LH...................... 170
Figure57 HDLCTransmitDataFlowofFALC®-LH ..................... 171
Figure 58InterruptDrivenDataTransmission(flowdiagram).............. 174
Figure 59InterruptDrivenTransmissionExample....................... 175
Figure60 InterruptDrivenReceptionSequenceExample................. 175
Figure61 CrystalOscillatorCircuit(master/slavemode).................. 339
Figure62 ExternalOscillatorCircuit(mastermode) ..................... 339
Figure 63 XTALExternalClockTiming ............................... 339
Figure 64ExternalPullableCrystalTuningRange ...................... 340
Figure 65 JTAG Boundary Scan Timing .............................. 341
Figure66 ResetTiming........................................... 342
Figure67 IntelNon-MultiplexedAddressTiming........................ 342
Figure 68IntelMultiplexedAddressTiming............................ 343
Figure 69IntelReadCycleTiming................................... 343
Figure70 IntelWriteCycleTiming................................... 344
Figure71 MotorolaReadCycleTiming............................... 345
Figure72 MotorolaWriteCycleTiming............................... 346
Figure73 TimingofDualRailOpticalInterface......................... 347
Figure 74Receive Clock and RFSP/FREEZSTiming.................... 348
Figure75 SystemInterfaceTiming .................................. 350
Figure 76 XMFSTiming........................................... 351
Figure 77 XMFSTiming(cont’d.).................................... 351
Figure 78SystemClockTiming..................................... 353
Figure 79PulseShapeatTransmitterOutputforE1Applications........... 355
Figure 80 T1PulseShape......................................... 356
Figure 81 Thermal Behavior of Package .............................. 358
Figure 82 Input/OutputWaveformsforACTesting ...................... 359
Figure 83 ProtectionCircuitry....................................... 361
Figure 84 ExternalLineFrontendCalculator........................... 363
In neon me. ,
PEB 2255
FALC-LH V1.3
List of Tables Page
Data Sheet 15 2000-07
Table1 PinDefinitions-MicroprocessorInterface...................... 25
Table2 PinDefinitions-LineInterface............................... 28
Table 3 Pin Definitions - Clock Generation . ........................... 32
Table 4PinDefinitions-SystemInterface ............................ 35
Table 5 Pin Definitions - Miscellaneous . . . ........................... 43
Table 6 Data Bus Access (16-Bit Intel Mode).......................... 48
Table 7 Data Bus Access (16-Bit Motorola Mode) ...................... 48
Table 8SelectableBusandMicroprocessorInterfaceConfiguration........ 48
Table 9Recommended Receiver Configuration Values (E1) . . . .......... 56
Table10 SystemClocking(E1) ..................................... 59
Table11 OutputJitter(E1)......................................... 60
Table12 ReceiveBufferOperatingModes(E1)......................... 64
Table13 SystemClockandDataRates(E1)........................... 69
Table 14TimeSlotAssigner(E1).................................... 72
Table15 TransmitBufferOperatingModes(E1) ........................ 78
Table16 ExampleTransmitterConfigurationValues(E1)................. 79
Table 17 Allocation of Bits 1 to 8ofTimeSlot0(E1)..................... 83
Table 18Transmit Transparent Mode (Doubleframe E1) . . ................ 84
Table 19CRC-Multiframe Structure (E1) . . . ........................... 86
Table20 TransmitTransparentMode(CRCMultiframeE1) ............... 87
Table21 SummaryofAlarmDetectionandRelease(E1) ................. 93
Table 22 Recommended Receiver Configuration Values (T1/J1). . ......... 104
Table23 SystemClocking(T1/J1).................................. 106
Table 24OutputJitter(T1/J1)...................................... 109
Table25 ReceiveBufferOperatingModes(T1/J1) ..................... 112
Table 26 Channel Translation Modes (T1/J1).......................... 113
Table27 SystemClockandDataRates(T1/J1)........................ 117
Table 28TimeSlotAssigner(T1/J1) ................................ 121
Table 29TransmitBufferOperatingModes(T1/J1)..................... 132
Table30 ExampleTransmitterConfigurationValues(T1/J1).............. 134
Table 31 Pulse Shaper Programming (T1/J1) ......................... 135
Table32 ResynchronizationTiming(T1/J1)........................... 138
Table 33 4-FrameMultiframeStructure(T1/J1)........................ 140
Table 3412-FrameMultiframeStructure(T1/J1)....................... 141
Table 35 Extended Superframe Structure (F24, ESF;T1/J1).............. 142
Table36 72-FrameMultiframeStructure(T1/J1)....................... 146
Table37 SummaryFrameRecover/OutofFrameConditions(T1/J1)....... 147
Table 38SummaryofAlarmDetectionandRelease(T1/J1).............. 148
Table 39InitialValuesafterReset(E1) .............................. 158
Table 40 InitializationParameters(E1)............................... 160
Table 41 LineInterfaceInitialization(E1)............................. 161
Table 42 FramerInitialization(E1).................................. 161
In neon me. ,
PEB 2255
FALC-LH V1.3
List of Tables Page
Data Sheet 16 2000-07
Table 43 HDLCControllerInitialization(E1)........................... 162
Table 44 CAS-CCInitialization(E1)................................. 162
Table 45 Initial Values after reset and FMR1.PMOD =1(T1/J1)........... 164
Table 46 InitializationParameters(T1/J1) ............................ 165
Table 47 LineInterfaceInitialization(T1/J1)........................... 166
Table 48 FramerInitialization(T1/J1)................................ 166
Table 49 InitializationoftheHDLCcontroller(T1/J1).................... 167
Table50 InitializationoftheCAS-BRController(T1/J1).................. 168
Table 51 E1 Control Register Address Arrangement .................... 180
Table52 E1StatusRegisterAddressArrangement..................... 228
Table 53 T1/J1 Control Register Address Arrangement . . . ............... 258
Table 54Pulse Shaper Programming (T1/J1) ......................... 288
Table55 T1/J1StatusRegisterAddressArrangement .................. 307
Table56 MaximumRatings ....................................... 335
Table 57 Power Supply Range ..................................... 335
Table 58DCParameters ......................................... 336
Table 59XTALTimingParameterValues ............................ 339
Table 60 JTAG Boundary Scan Timing Parameter Values. ............... 341
Table61 ResetTimingParameterValues ............................ 342
Table62 IntelBusInterfaceTimingParameterValues .................. 344
Table63 MotorolaBusInterfaceTimingParameterValues............... 346
Table 64DualRailOpticalInterfaceParameterValues.................. 347
Table 65 Receive Clock and RFSP/FREEZSTimingParameterValues..... 348
Table66 SystemInterfaceTimingParameterValues ................... 351
Table67 SystemClockTimingParameterValues...................... 354
Table 68T1PulseTemplate(ANSIT1.102)........................... 356
Table 69Capacitances........................................... 357
Table70 PackageCharacteristicValues ............................. 358
Table 71 AC Test Conditions . ..................................... 359
Inflqeon
PEB 2255
FALC-LH V1.3
Introduction
Data Sheet 17 2000-07
1 Introduction
The FALC®-LH framer and line interface component is designed to fulfill all required
interfacing between an analog E1/T1/J1 line and the digital PCM system highway, H.100
or H-MVIP bus for world market telecommunication systems.
Due to its multitude of implemented functions, it fits to a wide range of networking
applications and fulfills the according international standards. The FALC®-LH offers a
generic E1/T1/J1 analog line interface without the need to change external components.
Optional crystal-less jitter attenuation reduces the amount of required external
components.
Equipped with a flexible microprocessor interface, it connects to any control processor
environment. A standard boundary scan interface is provided to support board level
testing. Flat pack device packaging, small number of external components and low
power consumption lead to reduced overall system costs.
Other members of the FALC®family are the FALC®54for short haul applications, the
FALC®56 for long haul and short haul applications as well as the QuadFALCTM supplying
four long haul and short haul interfaces on one single chip.
Data Sheet 182000-07
Type Package
PEB 2255 P-MQFP-80-1
E1/T1/J1 Framer and Line Interface Component for
Long and Short Haul Applications
FALC®-LH
PEB 2255
Version 1.3
1.1 Features
Line Interface
• High density, generic interface for all
E1/T1/J1 applications
• Analog receive and transmit circuitry for long haul and
short haul applications
• Data and clock recovery using an integrated
digital phase locked loop
• Maximum line attenuation up to -43dBat1024kHz
(E1)
and up to -36 dB at 772 kHz (T1/J1)
• Programmable transmit pulse shapes for E1 and T1/J1 pulse masks
• Programmable line build-out for CSUsignals according to ANSI T1.403 +FCC68in
steps of 0 dB, -7.5 dB, -15 dB and -22.5 dB (T1/J1)
• Low transmitter output impedances for high transmit return loss
• Tristate function of the analog transmit line outputs
• Transmit line monitor protecting the device from damage
• Jitter specifications of ITU-T I.431, G.703, G.736 (E1), G.823 (E1) and AT&T
TR62411 (T1/J1) are met
• Optional crystal-less wander and jitter attenuation/compensation
• Dual rail or single rail digital inputs and outputs
•Unipolar NRZor CMI coding for interfacing fibre optical transmission routes
• Selectable line codes (E1: HDB3, AMI - T1/J1: B8ZS, AMI with ZCS) for analog
interface
• Loss of signal indication with programmable thresholds according to ITU-T G.775 and
ETS300233 (E1)/ANSI T1.403, T1.231(T1/J1)
• Clock generator for jitter free system/transmit clocks
• Local loop and remote loop for diagnostic purposes
• Only one type of transformer (ratio 1: ) for E1 75/120 Ωand T1/J1 100/110 Ω2
P-MQFP-80-1
Inflqeon
PEB 2255
FALC-LH V1.3
Introduction
Data Sheet 192000-07
Frame Aligner
• Frame alignment/synthesis for 2048 kbit/s according to ITU-T G.704(E1) and for
1544 kbit/saccordingtoITU-T G.704and JT G.704(T1/J1)
• Programmable frame formats :
E1: Doubleframe, CRC Multiframe (E1)
T1: 4-Frame Multiframe (F4,FT), 12-Frame Multiframe (F12, D3/4), Extended
Superframe (F24, ESF), Remote Switch Mode (F72, SLC96)
• Selectable conditions for recover/loss of frame alignment
• CRC4to non-CRC4interworking of ITU-T G. 706 Annex B (E1)
• Error checking via CRC4procedures according to ITU-T G. 706 (E1)
• Error checking via CRC6 procedures according to ITU-T G. 706 and JT G.706 (T1/J1)
• Performs synchronization in ESF format according to NTT requirements (J1)
• Alarm and performance monitoring per second
16 bit counter for CRC-, framing errors, code violations, error monitoring via E bit and
SA6 bit (E1), errored blocks, PRBS bit errors
• Insertion and extraction of alarm indication signals (AIS, Remote⁄Yellow Alarm, AUXP)
• IDLE code insertion for selectable channels
•8.192 MHz/2.048 MHz (E1) or 8.192 MHz/1.544 MHz (T1/J1) system clock frequency
• Selectable 2048/4096 kbit/s backplane interface with programmable receive/transmit
timeslot offset
• Programmable tristate function of 4096 kbit/s output via RDO
• Elastic store for receive and transmit route clock wander and jitter compensation;
controlled slip capability and slip indication
• Programmable elastic buffer size: 2 frames/1 frame/short buffer/bypass
• Supports fractional E1 or T1 access
• Flexible transparent modes
• Programmable In-Band Loop Code detection and generation (TR62411)
• Channel loop back, line loop back or payload loop back capabilities (TR54016)
• Pseudo random bit sequence (PRBS) generator and monitor
• Provides loop-timed mode
• Clear channel capabilities (T1/J1)
Signaling Controller
• HDLC controller
Bit stuffing, CRC check and generation, flag generation, flag and address recognition,
handling of bit oriented functions, programmable preamble
• DL-channel protocol for ESF format according to ANSI T1.403 or according to AT&T
TR54016 (T1/J1)
• DL-channel protocol for F72 (SLC96) format
• CAS controller with last look capability, enhanced CAS- register access and freeze
signaling indication
• Robbed bit signaling capability (T1/J1)
Inflqeon
PEB 2255
FALC-LH V1.3
Introduction
Data Sheet 20 2000-07
• Provides access to serial signaling data streams
• CAS Multiframe synchronization and synthesis according to ITU-T G.732
• Alarm insertion and detection (AIS and LOS in Timeslot 16)
• Transparent mode
• FIFO buffers (64bytes deep) for efficient transfer of data packets.
• Time-slot assignment
Any combination of time slots selectable for data transfer independent of signaling
mode
Microprocessor Interface
•8/16 bit microprocessor bus interface (Intel or Motorola type)
• All registers directly accessible (byte or word access)
• Multiplexed and non-multiplexed address bus operations
• Extended interrupt capabilities
• Hardware and software reset
• One second timer
General
• Boundary scan standard IEEE 1149.1
•P-MQFP-80 package;body size 14x14; pitch 0.65
• 5V power supply
• Typical power consumption 450 mW
Applications
• Wireless Basestations
• E1/T1/J1 ATM Gateways, Multiplexer
• E1/T1/J1 Channel &Data Service Units (CSU,DSU)
• E1/T1/J1 Internet Access Equipment
• LAN/WAN Router
• ISDN PRI, PABX
• Digital Access Cross Connect Systems (DACS)
• SONET/SDH Add/Drop Multiplexer
PEB 2255
FALC-LH V1.3
Introduction
Data Sheet 21 2000-07
1.2 Logic Symbol
Figure 1 Logic Symbol
FALC
®
-LH
PEB 2255
SCLKR
SYPR/RFM
RSIGM
RMFB
DLR/RSIG
RDO
RES
ROID
RL1 / RDIP / ROID
RL2 / RDIN / RCLKI
REFR
V
DDR
V
SSR
TDI
TMS
TCK
TDO
V
DD
V
SS
A(0-6)
D(0-15)
ALE
RD/DS
WR/RW
BHE/BLE
DBW
CS
IM
INT
XSIG
XSIGM
XMFB
DLX
XDI
XMFS
SCLKX
SYPX
XL1M
XL1 / XDOP / XOID
XL2 / XDON
XL2M
XOID
XCLK/FSC
V
DDX
V
SSX
Microprocessor Interface
Transmit
System
Interface
Receive
System
Interface
Transmit
Line
Interface
Boundary
Scan
Receive
Line
Interface
RFSP
RCLK
XTAL1
XTAL2
XTAL3
XTAL4
SYNC
SYNC2
CLK16M
CLK12M
CLK8M
CLKX
FSC
System Clocks
F0044
. . Inflqeon
PEB 2255
FALC-LH V1.3
Introduction
Data Sheet 22 2000-07
1.3 Typical Applications
The figures show a multiple link circuit for Frame Relay applications using the FALC-LH
together with the 128channel HDLC controller M128X and the Memory Timeswitch
MTLS as well as an 8channel interface to the ATM layer combined with n IWE8device.
•
Figure 2 Multiple E1/T1/J1 Link over Frame Relay
MTSL
PEB 2047
Memory Time Switch
FALC
®
-LH
PEB 2255
FALC
®
-LH
PEB 2255
FALC
®
-LH
PEB 2255
FALC
®
-LH
PEB 2255
E1 / T1 / J1
E1 / T1 / J1
E1 / T1 / J1
E1 / T1 / J1
MUNICH128X
PEB 20324
CPUMemory
System Bus
PCI/Generic
Clock
Clock
Clock(s)
F0024
Inflqeon :II: :II: :II: :II: :II: F :II: F :II: F :II: :II: :II: W :II: :II: W W
PEB 2255
FALC-LH V1.3
Introduction
Data Sheet 23 2000-07
•
Figure 3 8 Channel E1/T1/J1 Interface to the ATM Layer
•
Figure 4 Multiple FALC Clocking Options
IWE8
PXB4220
FALC
®
-LH
PEB 2255
FALC
®
-LH
PEB 2255
E1 / T1 / J1
E1 / T1 / J1
RAM
ATM Layer
Port 1
Port 8
AAL1 or ATM Mode
F0026
FALC
®
-LH
PEB 2255
FALC
®
-LH
PEB 2255
FALC
®
-LH
PEB 2255
FALC
®
-LH
PEB 2255
Clock(s)
FALC
®
-LH
PEB 2255
FALC
®
-LH
PEB 2255
FALC
®
-LH
PEB 2255
FALC
®
-LH
PEB 2255
FALC
®
-LH
PEB 2255
FALC
®
-LH
PEB 2255
FALC
®
-LH
PEB 2255
FALC
®
-LH
PEB 2255
Clock(s) pullable
crystals
F0045
jfizjjjjfizjjjjfizjjjjfi In neon mg g.
PEB 2255
FALC-LH V1.3
Pin Descriptions
Data Sheet 242000-07
2 Pin Descriptions
2.1 Pin Diagram
(top view)
•
Figure 5 Pin Configuration
ITP10482
TMS
V
DDR
SS
V
SYNC
XSIGM
RSIGM
RD0
INT
RES
BHE/BLE
CS
WR/RW
RD/DS
ALE
A6
A5
A4
A3
A2
A1
A0
D0TCK
XL1M
TDI
DDX
V
XL1/XDOP/XOID
SSX
V
XTAL3
DBW
XL2/XDON
XL2M
IM
XTAL4
XTAL1
XTAL2
RL1/RDIP/ROID
REFR
RL2/RDIN/RCLKI
SSR
V
V
DD
XDI
DD
V
V
SS
PEB 2255
FALC -LH
D1
D2
D3
DD
V
V
SS
D6
D5
D4
D7
D8
D9
D11
D10
D12
D13
D15
D14
TD0
1234567891011121314151617181920
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
4061
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
42434445464748495051525354555657585960 41
XMFS
SCLKX
SCLKR
SYPX
/RFM
FSC
RMFB
/XOID
DLX
DLR/RSIG
FREEZS/RFSP
RCLK
16M
12M
8M
CLKX
FSC/XCLK
XSIG/SYNC2/ROID
CLK
CLK
CLK
R
SYPR
XMFB
P-MQFP-80-1
PEB 2255
FALC-LH V1.3
Pin Descriptions
Data Sheet 25 2000-07
2.2 Pin Definitions and Functions
•
•
Table 1 Pin Definitions - Microprocessor Interface
Pin No. Symbol Input (I)
Output (O)
Supply (S)
Function
42...48 A0 … A6 I Address Bus
These inputs interface to seven bits of the
system’s address bus to select one of the
internal registers for read or write.
41…38
35…28
25…22
D0…D3
D4…D11
D12..D15
I/O Data Bus
Bidirectional tristate data lines which interface
to the system’s data bus. Their configuration is
controlled by the level of pin DBW:
8-bit mode (DBW =0): D0 … D7 are active.
D8… D15 are in high impedance and have to
be connected to VDD or VSS.
16-bit mode (DBW =1): D0 … D15 are active.
In case of byte transfers, the active half of the
bus is determined by A0and BHE/BLE and the
selected bus interface mode (via pin IM). The
unused half is in high impedance state.
49 ALE I Address Latch Enable
A high on this line indicates an address on the
external address/data bus. The address
information provided on lines A0 … A6 is
internally latched with the falling edge of ALE.
This function allows the FALC®-LH to be
connected to a multiplexed address/data bus
directly. In this case, pins A0 … A6 must be
connected to the Data Bus pins externally. In
case of demultiplexed mode this pin has to be
connected to VDD or VSS directly.
52 CS IChip Select
A low signal selects the FALC®-LH for read
and write operations.
eon
PEB 2255
FALC-LH V1.3
Pin Descriptions
Data Sheet 26 2000-07
50 RD/DS IRead Enable (Intel bus mode)
This signal indicates a read operation. When
the FALC®-LH is selected via CS,theRD
signal enables the bus drivers to output data
from an internal register addressed by
A0…A6ontotheDataBus.
Data Strobe (Motorola bus mode)
This pin serves as input to control read/write
operations. It is logically ored with pin CS.
51 WR/RW IWrite Enable (Intel bus mode)
This signal indicates a write operation. When
CS is active the FALC®-LH loads an internal
register with data provided on the Data Bus.
Read/Write Enable (Motorola bus mode)
This signal distinguishes between read and
write operation.
11 DBW I Data Bus Width (Bus Interface Mode)
A low signal on this input selects the 8-bit bus
interface mode. A high signal on this input
selects the 16-bit bus interface mode. In this
case word transfer to/from the internal
registers is enabled. Byte transfers are
implemented by using A0 and BHE/BLE.
8IM I Interface Mode
The level at this pin defines the bus interface
mode:
A low signal on this input selects the Intel
interface mode. A high signal on this input
selects the Motorola interface mode.
Table 1 Pin Definitions - Microprocessor Interface (cont’d)
Pin No. Symbol Input (I)
Output (O)
Supply (S)
Function
PEB 2255
FALC-LH V1.3
Pin Descriptions
Data Sheet 27 2000-07
53 BHE/BLE I+PUBus High Enable (Intel bus mode)
If 16-bit bus interface mode is enabled, this
signal indicates a data transfer on the upper
byte of the data bus (D8… D15). In 8-bit bus
interface mode this signal has no function and
should be tied to VDD.
Bus Low Enable (Motorola bus mode)
If 16-bit bus interface mode is enabled, this
signal indicates a data transfer on the lower
byte of the data bus (D0 … D7). In 8-bit bus
interface mode this signal has no function and
should be tied to VDD.
56 INT O/oD Interrupt Request
INT serves as general interrupt request which
may include all interrupt sources. These
interrupt sources can be masked via registers
IMR0 … 5. Interrupt status is reported via
registers GIS (Global Interrupt Status) and
ISR0 … 3,5.
Output characteristics (push-pull active low/
high, open drain) are determined by
programming the IPC register.
(oD =open drain output)
Table 1 Pin Definitions - Microprocessor Interface (cont’d)
Pin No. Symbol Input (I)
Output (O)
Supply (S)
Function
PEB 2255
FALC-LH V1.3
Pin Descriptions
Data Sheet 282000-07
•
Table 2 Pin Definitions - Line Interface
Pin No. Symbol Input (I)
Output (O)
Supply (S)
Function
Line Interface Receive
2 RL1 I (analog) Line Receiver 1
Analog Input from the external transformer.
Selected if LIM1.DRS =0.
RDIP I Receive Data Input Positive
Digital input for received dual rail PCM(+) route
signal which will be latched with the internal
generated Receive Route Clock. An internal
DPLL will extract the Receive Route Clock from
the incoming data pulse. The Duty cycle of the
received signal has to be close to 50%.
The Dual Rail mode is selected if LIM1.DRS =1
and FMR0.RC1 =1. Input polarity is selected by
bit RC0.RDIS (after reset: active low).
ROID I Receive Optical Interface Data
Unipolar data received from fiber optical
interface with 2048 kbit/s (E1) or 1544 kbit/s (T1/
J1).Latching of data is done with the falling edge
of RCLKI. Input polarity is selected by bit
RC0.RDIS.
The Single Rail mode is selected if
LIM1.DRS =1 and FMR0.RC1 =0.
80ROIDI Receive Optical Interface Data
LOOP.SPN =1
Unipolar data received from fiber optical
interface with 2048 kbit/s (E1) or 1544 kbit/s (T1/
J1).Latching of data is done with the falling edge
of RCLKI. Input polarity is selected by bit
RC0.RDIS.
The Single Rail mode is selected if
LIM1.DRS =1 and FMR0.RC1 =0.
Note: This pin contains multiple functions, see
also SYNC2 and XSIG.
PEB 2255
FALC-LH V1.3
Pin Descriptions
Data Sheet 292000-07
4RL2 I (analog) Line Receiver 2
Analog Input from the external transformer.
Selected if LIM1.DRS =0.
RDIN I Receive Data Input Negative
Input for received dual rail PCM(-) route signal
which will be latched with the internal generated
Receive Route Clock. An internal DPLL will
extract the Receive Route Clock from the
incoming data pulse. The duty cycle of the
received signal has to be close to 50%.
The dual rail mode is selected if LIM1.DRS =1
and FMR0.RC1 =1. Input polarity is selected by
bit RC0.RDIS (after reset: active low).
RCLKII Receive Clock Input
Receive clock input for the optical interface if
LIM1.DRS =1 and FMR0.RC1/0 =00.
Clock frequency: 2048 kHz(E1)or1544 kHz
(T1/J1).
Table 2 Pin Definitions - Line Interface (cont’d)
Pin No. Symbol Input (I)
Output (O)
Supply (S)
Function
PEB 2255
FALC-LH V1.3
Pin Descriptions
Data Sheet 30 2000-07
Line Interface Transmit
15 XL1 O (analog) Transmit Line 1
Analog output to the external transformer.
Selected if LIM1.DRS =0. After reset this pin is
in a high impedance state until bit FMR0.XC1 is
set.
XDOP O Transmit Data Output Positive
This digital output for transmitted dual rail
PCM(+) route signals can provide
- half bauded signals with 50%duty cycle
(LIM0.XFB =0) or
- full bauded signals with 100%duty cycle
(LIM0.XFB =1)
Thedatawillbeclockedoffonthepositive
transitions of XCLKin both cases. Output
polarity is selected by bit LIM0.XDOS (after
reset: active low). The dual rail mode is selected
if LIM1.DRS =1andFMR0.XC1 =1. After reset
this pin is in a high impedance state until register
LIM1.DRS is set.
XOID O Transmit Optical Interface Data
Unipolar data sent to fiber optical interface with
2048 kbit/s (E1) or 1544 kbit/s (T1/J1) which will
be clocked off on the positive transitions of
XCLK.ClockingoffdatainNRZcode is done
with 100%duty cycle. Data in CMI code (E1
only) are shifted out with 50%or 100%duty
cycle according to the CMI coding. Output
polarity is selected by bit LIM0.XDOS (after
reset: data is sent active high).
The single rail mode is selected if LIM1.DRS =1
and FMR0.XC1 =0. After reset this pin is in a
high impedance state until register LIM1.DRS is
set. If LOOP.SPN =1 this pin function is not
defined and should be tristated by enabling
XPM2.XLT.
Table 2 Pin Definitions - Line Interface (cont’d)
Pin No. Symbol Input (I)
Output (O)
Supply (S)
Function
PEB 2255
FALC-LH V1.3
Pin Descriptions
Data Sheet 31 2000-07
17 XL1M I Transmit Line 1 Monitor
Analog input from external transmit transformer
(XL1). This pin must be connected, otherwise
pin XL1 could be set into high impedance state
automatically. If digital line interface mode is
selected (LIM1.DRS =1), this input has to be
connected to VSSX.
13 XL2 O (analog) Transmit Line 2
Analog output for the external transformer.
Selected if LIM1.DRS =0. After reset this pin is
in a high impedance state until bit FMR0.XC1 is
set.
XDON O Transmit Data Output Negative
This digital output for transmitted dual rail
PCM(-) route signals can provide
- half bauded signals with 50%duty cycle
(LIM0.XFB =0) or
- full bauded signals with 100%duty cycle
(LIM0.XFB =1)
Thedatawillbeclockedoffonthepositive
transitions of XCLKin both cases. Output
polarity is selected by bit LIM0.XDOS (after
reset: active low).
The dual rail mode is selected if LIM1.DRS =1
and FMR0.XC1 =1. After reset this pin is in a
high impedance state until register LIM1.DRS is
set.
12 XL2M I Transmit Line 2 Monitor
Analog input from external transmit transformer
(XL2). This pin must be connected, otherwise
pin XL2 could be set into high impedance state
automatically. If digital line interface mode is
selected (LIM1.DRS =1), this input has to be
connected to VSSX.
Table 2 Pin Definitions - Line Interface (cont’d)
Pin No. Symbol Input (I)
Output (O)
Supply (S)
Function
PEB 2255
FALC-LH V1.3
Pin Descriptions
Data Sheet 32 2000-07
•
Table 3 Pin Definitions - Clock Generation
Pin No. Symbol Input (I)
Output (O)
Supply (S)
Function
7XTAL1 I Crystal Connection 16.384 MHz
A pullable crystal of 16.384 MHz has to be
provided at these pins, if jitter attenuation of the
system clocks is done internally.
If not, or if crystal-less jitter attenuation is used,
either a regular crystal of 16.384 MHz has to be
connected to XTAL1/XTAL2 or a 16.384-MHz
clock must be connected to XTAL1 while XTAL2
is left open.
6XTAL2 O
10 XTAL3 I Crystal Connection
16.384 MHz (E1)/12.352 MHz (T1/J1)
A pullable crystal of 16.384 MHz/12.352 MHz is
only required at these pins, if jitter attenuation of
the transmit clocks is done internally. If jitter
attenuation is provided externally, the jitter
attenuated clock of 16.384 MHz/12.352 MHz
has to be applied to XTAL3 while XTAL4is left
open.
If crystal-less jitter attenuation is used, either a
regularcrystal of16.384 MHz/12.352 MHz has to
be connected to XTAL3/XTAL4or a 16.384-
MHz/12.352-MHz clock has to be connected to
XTAL3 while XTAL4is left open.
E1 mode only:
If no transmit jitter attenuation is required,
XTAL3 should be connected to VDD or VSS,
XTAL4is to be left open.
9XTAL4O
79XCLKOTransmit Clock
Transmit clock of 2.048 MHz (E1) or 1.544 MHz
(T1/J1). This clock is driven from SCLKX or
RCLKor generated internally.
FSC O 8kHz Frame Synchronization Pulse
is output on this pin, if LIM1.EFSC =1is
selected. The synchronization pulse is active
high for one cycle (pulse width = 488 ns) and
derived from the clock supplied on pin CLK16M.
PEB 2255
FALC-LH V1.3
Pin Descriptions
Data Sheet 33 2000-07
66 FSC O8 kHz Frame Synchronization Pulse
is output on this pin. The synchronization pulse
is active lowfor one cycle (pulse width =488ns)
and derived from the clock supplied on pin
CLK16M.
75 CLK16M O System Clock 16.384 MHz
Buffered XTAL1 clock (LIM3.CSC=1) or jitter
attenuated clock (LIM3.CSC=0, if crystal-less
jitter attenuation is used).
76 CLK12M O System Clock
16.384 MHz (E1)/12.384 MHz (T1/J1)
Buffered XTAL3 clock (LIM3.CSC=1) or jitter
attenuated clock (LIM3.CSC=0, if crystal-less
jitter attenuation is used).
77 CLK8MO System Clock 8.192 MHz
Clock derived from CLK16M reference.
78CLKX OSystem Clock Output
Output frequencies are 2.048 MHz or 4.096
MHz, inverted or non-inverted. The clock is
derived from CLK16M, frequency and polarity in
relation to FSC are selected by setting of
LIM0.SCL1...0.
60 SYNC I Clock Synchronization
If a clock is detected at the SYNC pin, the
FALC®-LH synchronizes to this 2.048-MHz (E1)/
2.048 or 1.544-MHz (T1/J1) clock if in master
mode or if signal is lost in slave mode. This pin
hastobeconnectedtoV
SS,ifnoclockis
supplied.
Table 3 Pin Definitions - Clock Generation (cont’d)
Pin No. Symbol Input (I)
Output (O)
Supply (S)
Function
PEB 2255
FALC-LH V1.3
Pin Descriptions
Data Sheet 342000-07
80SYNC2 I Clock Synchronization 2
Secondary reference clock for internal transmit
clock generation.
The clock frequency is 2.048-MHz (E1) or 2.048/
1.544-MHz (T1/J1).
This function is selected by setting LIM3.ESY=1
Note: This pin contains multiple functions, see
also ROID and XSIG.
72 RCLKO+PUReceive Clock
extracted from the incoming data pulses.
Clock frequency: 2048 kHz (E1) or
1544 kHz (T1/J1)
In case of loss of signal (LOS) the RCLKis
derived from the clock that is provided on
XTAL1.
If LIM0.ELOS is set, RCLKissethighincaseof
loss of signal (FRS0.LOS =1).
If NRZmode is selected, RCLKis the buffered
RCLKI clock.
Table 3 Pin Definitions - Clock Generation (cont’d)
Pin No. Symbol Input (I)
Output (O)
Supply (S)
Function
n Ineon m "me E. , E1 mode T1/J1 mode
PEB 2255
FALC-LH V1.3
Pin Descriptions
Data Sheet 35 2000-07
•
Table 4 Pin Definitions - System Interface
Pin No. Symbol Input (I)
Output (O)
Supply (S)
Function
System Interface Receive
57 RDO O ReceiveDataOut
Received data which is sent to the system
highway at 4096kbit/s,2048 kbit/s or
1544 kbit/s (T1/J1 only). In 4096 kbit/s mode
data is shifted out in the channel phase which is
selected by RC0.SICS. During the other channel
phase RDO is set into tristate.
Clocking off data is done with the falling edge of
SCLKR or RCLK, if the receive elastic store is
bypassed. The delay between the beginning of
time-slot 0 and the initial edge of SCLKR(after
SYPR goes active) is determined by the values
of registers RC1 and RC0.
70 DLR O Data Link Bit Receive
E1 mode:
Marks the SA4...8bits within the data steam on
RDO. The SA4...8bit positions in time slot 0 of
every frame not containing the frame alignment
signal are selected by register XC0.SA4E-
SA8E.
T1/J1 mode:
Provides a signal which marks the DL bit
position within the data stream on RDO. It can
be used as receive strobe signal for external
data link controllers. In 4096kbit/smodeDLRis
active only during the channel phase selectedby
RCO.SICS.
RSIG O Receive Signaling Data
Output for receive signaling data sent to the
signaling highway.
This function is selected by setting
LOOP.SPN =1
LIM3.ESY=1
XSP.CASEN =0
PEB 2255
FALC-LH V1.3
Pin Descriptions
Data Sheet 36 2000-07
71 RFSP OReceive Frame Synchronous Pulse
E1: FMR3.CFRZ=0
T1/J1: XC0.SFRZ=0
Active low framing pulse derived from the
received PCM route signal. During loss of
synchronization (bit FRS0.LFA) this pulse is
suppressed (not influenced during alarm
simulation).
The pulse frequency is 8kHz, pulse width is 488
ns (E1) or 648 ns (T1/J1).
OPRBS Monitor Status
The status of the PRBS monitor is output on this
pin, if FMR3.CFRZ=0(E1)orXC0.SFRZ=1
(T1/J1) and LCR1.EPRM =1. It is set high, if the
PRBS monitor is in synchronous state.
FREEZSO Freeze Signaling (T1/J1)
If XC0.SFRZ=1 (T1/J1) or FMR3.CFRZ=1
(E1) and LCR1.EPRM =0, the Freeze Signaling
Status is indicated.
Register access
(LOOP.SPN=0 and LIM3.ESY=0):
• E1: Bit FRS1.TSL16LFA =1
• T1: FRS0.LFA/LMFA =1
or a receive slip (positive or negative)
occurred
Serial signaling access
(LOOP.SPN=1 and LIM3.ESY=1):
• E1: Bit FRS1.TSL16LFA =1
or FRS0.LOS=1
or a receive slip occurred
• T1: FRS0.LFA/LMFA =1
or FRS0.LOS=1
or a receive slip occurred
The signal is cleared after an error-free
superframe. During alarm simulation this signal
gets active during simulation steps 2 and 6.
Table 4 Pin Definitions - System Interface (cont’d)
Pin No. Symbol Input (I)
Output (O)
Supply (S)
Function
PEB 2255
FALC-LH V1.3
Pin Descriptions
Data Sheet 37 2000-07
65 SYPR ISynchronous Pulse Receive
SIC2.SRFSO =0 (reset value):
Defines the beginning of time slot 0 on system
highway port RDO together with the values of
RC0.RCO, RC0.RCOS and RC1.RTO.
Sampling is done with the falling edge of
SCLKR.
The pulse cycle is an integer multiple of 125 µs.
RFM O Receive Frame Marker
SIC2.SRFSO =1:
This marker will be active high for one 2.048-
MHz (E1)/1.544-MHz (T1/J1)cycle (SIC1.SRSC
=1;2.048 Mbit/s PCM highway interface mode)
or two 8.192-MHz cycles (SIC1.SRSC =0;
4.096 Mbit/s PCM highway interface mode). It is
clocked with the fallingedge of SCLKRorRCLK,
depending on the selected receive buffer size
(SIC1).The marker can be activated within any
bit position of a received frame (RC0/1).
63 SCLKRI System Clock Receive
Working clock for the receive system interface
with a frequency of 8.192 MHz (SIC1.SRSC =0,
SIC1.SXSC=0) or 2.048 MHz (E1)/1.544 MHz
(T1/J1) (SIC1.SRSC =1, SIC1.SXSC=1).Ifthe
receive elastic store is bypassed
(SIC1.RBS1...0), the clock supplied on thispin is
ignored. During reset phase, a clock has to be
provided.
Table 4 Pin Definitions - System Interface (cont’d)
Pin No. Symbol Input (I)
Output (O)
Supply (S)
Function
Inflqeon E1/T1/J1 mode T1/J1 GAS-BR mode Genera‘ T1/J1 mode
PEB 2255
FALC-LH V1.3
Pin Descriptions
Data Sheet 382000-07
58RSIGM O Receive Signaling Marker
E1/T1/J1 mode: Marks the time-slots which are
defined by register RTR1-4of every received
frame on port RDO.
T1/J1 CAS-BR mode: When using the CAS-BR
signaling scheme, the robbed bit of each
channel every six frames is marked, if it is
enabled via register XC0.BRM =1.
General:In4096 kbit/s mode RSIGM is active
only during the channel phase selected by
RCO.SICS.
67 RMFB O Receive Multiframe Begin
RMFB marks the beginning of every received
multiframe (RDO, first bit of the FAS word in
frame 1 of a multiframe). Active high for one
2048 kbit/s period. In 4096 kbit/s mode RMFB is
active during the first two bits of channel phase
one of a multiframe.
In T1/J1 mode the function depends on
programming bit XC0.MFBS:
MFBS =1: RMFB marks the beginning of every
received multiframe (RDO).
MFBS =0: Marks the beginning of every
received superframe. Additionalpulses every 12
frames are provided when using ESF/F24or
F72 format.
Table 4 Pin Definitions - System Interface (cont’d)
Pin No. Symbol Input (I)
Output (O)
Supply (S)
Function
Inflqeon E1 mode/LOOF.SPN : 0 T1/J1 mode/XCOMFBS T1/J1 mode/XCOMFBS : O E1 mode on‘y/LOOPSPN
PEB 2255
FALC-LH V1.3
Pin Descriptions
Data Sheet 392000-07
System Interface Transmit
68XMFB O Transmit Multiframe Begin
E1 mode/LOOP.SPN =0:
Marks the begin of every transmitted multiframe
(XDI).
T1/J1 mode/XC0.MFBS =1:
XMFB marks the beginning of every transmitted
multiframe (XDI).
T1/J1 mode/XC0.MFBS =0:
XMFB marks the beginning of every transmitted
superframe. Additional pulses every 12 frames
are provided when using ESF/F24or F72
format.
General:
This signal is always active high for one 2048
kbit/s period. In 4096kbit/smode,itisactive
during the first two bits of a multiframe.
XOID O Transmit Optical Interface Data
E1 mode only/LOOP.SPN =1:
Unipolar data sent to fiber optical interface with
2048 kbit/s which will be clocked off on the
positive transitions of XCLK. Clocking off data in
NRZmode is done with a duty cycle of 100%.
CMI code data is shifted out with a duty cycle of
50%/100%according to the CMI coding.
Output polarity is selected by LIM0.XDOS
(active high after reset).
Single rail mode is selected if LIM1.DRS =1 and
FMR0.XC1 =0.
Table 4 Pin Definitions - System Interface (cont’d)
Pin No. Symbol Input (I)
Output (O)
Supply (S)
Function
eon
PEB 2255
FALC-LH V1.3
Pin Descriptions
Data Sheet 40 2000-07
64SYPXISynchronous Pulse Transmit
Defines the beginning of time slot 0 at system
highway port XDI together with the values of
XC0.XCO, XC1.XTO and XC1.XCOS. Sampling
is done with the falling edge of SCLKX.
The pulse cycle is an integer multiple of 125 µs.
62 SCLKX ISystem Clock Transmit
Working clock for the transmit system interface
with a frequency of 8.192MHz(SIC1.SXSC =0,
SIC1.SRSC =0) or 2.048 MHz (E1)/1.544 MHz
(T1/J1) (SIC1.SXSC =1, SIC1.SRSC =1).
55 XDI I Transmit Data In
Transmit data received from the system
highway. Latching of data is done with the falling
transitions of SCLKX.
E1 data rate (SCLKX = 8.192MHz):
FMR1.IMOD =0: 4096kbit/s
FMR1.IMOD =1: 2048 kbit/s
E1 data rate (SCLKX = 2.048MHz):
FMR1.IMOD =1&SIC1.SXSC =1: 2048kbit/s
T1/J1data rate (SCLKX = 8.192MHz):
FMR1.IMOD =0: 4096kbit/s
FMR1.IMOD =1&SIC1.SXSC =0: 2048 kbit/s
T1/J1data rate (SCLKX = 1.544 MHz):
FMR1.IMOD =1&SIC1.SXSC =1: 1544 kbit/s
The delay between the beginning of time slot 0
and the initial edge of SCLKX (after SYPXgoes
active) is determined by the values of transmit
time slot offset (XC1.XTO5-0), transmit clock
slot offset (XC0.XCO2-0) and XC1.XCOS.
Table 4 Pin Definitions - System Interface (cont’d)
Pin No. Symbol Input (I)
Output (O)
Supply (S)
Function
In neon mg g. E1 mode T1/J1 mode
PEB 2255
FALC-LH V1.3
Pin Descriptions
Data Sheet 41 2000-07
69DLXOData Link Bit Transmit
E1 mode:MarkstheS
A4...8bits within the data
stream on XDI. The SA4...8bit positions in time-
slot 0 of every frame not containing the frame
alignment signal are selected by register
XC0.SA4E-SA8E.
T1/J1 mode: This output provides a signal which
marks the DL-bit position within the data stream
on XDI. In 4096 kbit/s mode DLXis active only
during the channel phase selected by
RCO.SICS.
80XSIG I Transmit Signaling Data
Input for transmit signaling data received from
the signaling highway.
This function is selected by setting
LOOP.SPN =1
LIM3.ESY=1
Note: This pin contains multiple functions, see
also SYNC2 and ROID.
Table 4 Pin Definitions - System Interface (cont’d)
Pin No. Symbol Input (I)
Output (O)
Supply (S)
Function
PEB 2255
FALC-LH V1.3
Pin Descriptions
Data Sheet 42 2000-07
59XSIGM O Transmit Signaling Marker
Marks the transmit time slots which are defined
by register TTR1-4of every frame transmitted
on port XDI. In 4096 kbit/s mode, XSIGM is
active only during the channel phase which is
selected by RC0.SICS.
T1 mode/CAS-BR:
If CAS-BR is selected by FMR1.SIGM =1, the
robbed bit of each channel every six frames is
marked, if marker is enabled by setting
XC0.BRM =1.
61 XMFS I Transmit Multiframe Synchronization
This port defines the first frame of the multiframe
on the transmit system interface port XDI.
Note: A new multiframe position has been
settled at least one multiframe after pulse XMFS
has been supplied.
If this input is not used, it has to be connected to
VSS. In this case multiframe start is generated
internally.
Table 4 Pin Definitions - System Interface (cont’d)
Pin No. Symbol Input (I)
Output (O)
Supply (S)
Function
PEB 2255
FALC-LH V1.3
Pin Descriptions
Data Sheet 43 2000-07
•
Table 5 Pin Definitions - Miscellaneous
Pin No. Symbol Input (I)
Output (O)
Supply (S)
Function
Power Supply
1VDDR SPositive Power Supply for the analog receiver
5VSSR SPower Supply: Ground for the analog receiver
16 VDDXSPositive Power Supply for the analog
transmitter
14VSSXSPower Supply: Ground for the analog
transmitter
27, 37, 74VSS SPower Supply: Ground for digital subcircuits
(0 V)
For correct operation, all three pins have to be
connected to ground.
26, 36, 73 VDD SPositive Power Supply
for the digital subcircuits (5.0 V)
For correct operation, all three pins have to be
connected to positive power supply.
Device Reset
54RES I Reset
A high signal on this pin forces the FALC®-LH
into reset state. During Reset the FALC®-LH
needs active clocks on pins SCLKR, SCLKX,
XTAL1 and XTAL3 (E1: XTAL3 only, if slicer
mode selectable by LIM1.JATT/RL =10 will be
used).
During Reset
- all unidirectional output stages are in high-
impedance state, except pins CLK16M,
CLK12M, CLK8M, CLKX,FSC
,XCLKand
RCLK(active clocks are required during reseton
pins SCLKR, SCLKX,XTAL1 and XTAL31))
- all bidirectional output stages (data bus) are in
input mode if signal RD is “high”
'5 Inflneon m "me E. xTALa not requwed m Ehbypass made
PEB 2255
FALC-LH V1.3
Pin Descriptions
Data Sheet 44 2000-07
Note: Unused input pins have to be connected to a defined voltage level (V
DD
or V
SS
).
Analog Reference
3REFRO Reference Resistance of 12 kΩ +/- 1%and a
capacitor of 680 pF (including external parasitic
capacitances). Both have to be connected to pin
VSSR in parallel by short external connections.
Boundary Scan/Joint Test Access Group (JTAG)2)
18TDI I +PUTest Data Input for Boundary Scan
according to IEEE Std. 1149.1
If not connected an internal pull-up transistor
ensures high input level.
19TMS I +PUTest Mode Select for Boundary Scan
If not connected an internal pull-up transistor
ensures high input level.
20 TCKI+PUTest Clock for Boundary Scan
If not connected an internal pull-up transistor
ensures high input level.
21 TDO O Test Data Output for Boundary Scan
1) XTAL3 not required in E1/bypass mode
2) Boundary scan reset is done automatically upon power up. No pin TRS is provided.
Table 5 Pin Definitions - Miscellaneous (cont’d)
Pin No. Symbol Input (I)
Output (O)
Supply (S)
Function
Inflqeon
PEB 2255
FALC-LH V1.3
Functional Description E1/T1/J1
Data Sheet 45 2000-07
3 Functional Description E1/T1/J1
3.1 Functional Overview
The FALC®-LH device contains analog and digital function blocks, which are configured
and controlled by an external microprocessor or microcontroller.
The main interfaces are
• Receive and Transmit Line Interface
• PCM System Highway Interface
• Microprocessor Interface
• Boundary Scan Interface
as well as several control lines for reset and clocking purpose.
The main internal functional blocks are
• Analog line receiver with equalizer network and digital clock/data recovery
• Analog line driver with programmable pulse shaper
• Clock generation
• Elastic buffers for receive and transmit direction
• Receive framer
• Receive line decoding, alarm detection, and PRBS monitoring
• Transmit framer
• Transmit line coding, alarm and PRBS generation
• Receive jitter attenuator
• Transmit jitter attenuator
• HDLC controller
• Loop switching (local, remote, payload, single channel)
• Register access interface
• Boundary scan control
DDDD DD ‘ DDDDD DDD DDDD DDDD D
PEB 2255
FALC-LH V1.3
Functional Description E1/T1/J1
Data Sheet 46 2000-07
3.2 Block Diagram
•
Figure 6 Block Diagram
Local Loop
Equalizer
+
Filter
Analog
LOS
Detector
Alarm
Detector
Pulse
Shaper
+
Transmit
Attenuation
JATT
Receive
Elastic
Buffer
Backplane
Interface
Transmit
Elastic
Buffer
Pay-
load
Loop
Divider
Divider
PD
Osc.
DCO-X
Divider
PD
Osc.
DCO-R
Alignment
Performance
Monitoring
Counters
Framer
DL Extract
SA4-8
Extract
Clock &Data
Recovery
DPLL
Backplane
Interface
Peak
Detector
HDLC
DL/BOM
SA4-8
Time Slot
Assigner
CAS-CC
CAS-BR
Signaling
Controller
AMI
B8ZS
HDB3
Encoder
PRBS
Generator
Generation
Framer
DL Insert
SA4-8Insert
AMI
B8ZS
HDB3
Decoder
PRBS
Monitor
Boundary
Scan Microprocessor
Interface Interrupt
Control
SCLKX
XTAL3
12.352 MHz (T1)
16.384 MHz (E1)
System
Clocks
XTAL1
16.384 MHz
SYNC
INT
Control
D0 ... 15
A0 ...
6
XCLK
XL1 / XL2
XDOP / XDON
XOID / ---
RCLKRFSP SCLKR
SYPR RDO RMFB
RSIGM
DLR / RSIG DLXXSIGM
XMFB XDI XSIG
SYPX
XMFS
SCLKX
RCLKSYNC2
RCLK
ROID
RL1 / RL2
RDIP / RDIN
ROID / RCLKI
DR
DR
Line
Driver
X
S
E1
T1 or RL
(T1)
RL (E1) RL (E1)
RL (T1)
8MHz 2 MHz 2/1.5MHz 8/6MHz
CLK12M
F0046
In neon me. ,
PEB 2255
FALC-LH V1.3
Functional Description E1/T1/J1
Data Sheet 47 2000-07
3.3 Functional Blocks
3.3.1 Microprocessor Interface
The communication between the CPUand the FALC®-LH is done via a set of directly
accessible registers. The interface may be configured as Intel or Motorola type with a
selectable data bus width of 8or 16 bits.
The CPUtransfers data to/from the FALC®-LH (via 64byte deep FIFOs per direction),
sets the operating modes, controls function sequences, and gets status information by
writing or reading control/status registers. All accesses can be done as byte or word
accessesif enabled. If 16-bit bus width is selected, access to lower/upper part of the data
bus is determined by address line A0 and signal BHE/BLE as shown in Table 6 and
Table 7.
In Table 8 is shown how the ALE (address latch enable) line is used to control the bus
structure and interface type. The switching of ALE allows the FALC®-LH to be directly
connected to a multiplexed address/data bus.
3.3.1.1 Mixed Byte/Word Access to the FIFOs
Reading from or writing to the internal FIFOs (RFIFO and XFIFO) can be done using a
8-bit (byte) or 16-bit (word) access depending on the selected bus interface mode.
Randomly mixed byte/word access to the FIFOs is allowed without any restrictions.
If byte access is used, high byte or low byte can be used as well. Any value written to
high or low byte is placed in the FIFO in sequential order.
PEB 2255
FALC-LH V1.3
Functional Description E1/T1/J1
Data Sheet 48 2000-07
Table 6 Data Bus Access (16-Bit Intel Mode)
Table 7 Data Bus Access (16-Bit Motorola Mode)
Table 8 Selectable Bus and Microprocessor Interface Configuration
The assignment of registers with even/odd addresses to the data lines in case of 16-bit
register access depends on the selected microprocessor interface mode:
Intel (Address n +1) (Address n)
Motorola (Address n) (Address n +1)
↑↑
↓↓
n: even address
BHE A0 Register Access FALC®-LH Data Pins
Used
0 0 FIFO word access
Register word access (even addresses) D0...D15
0 1 Register byte access (odd addresses) D8...D15
1 0 Register byte access (even addresses) D0...D7
1 1 No transfer performed None
BLE A0 Register Access FALC®-LH Data Pins
Used
0 0 FIFO word access
Register word access (even addresses) D0...D15
0 1 Register byte access (odd addresses) D0...D7
1 0 Register byte access (even addresses) D8...D15
1 1 No transfer performed None
ALE IM Microprocessor interface Bus Structure
GND/VDD 1 Motorola demultiplexed
GND/VDD 0 Intel demultiplexed
switching 0 Intel multiplexed
Data Lines D15 D8D7 D0
. . Inflqeon
PEB 2255
FALC-LH V1.3
Functional Description E1/T1/J1
Data Sheet 49 2000-07
3.3.1.2 FIFO Structure
In transmit and receive direction of the signaling controller 64-byte deep FIFOs are
provided for the intermediate storage of data between the system internal highway and
the CPUinterface. The FIFOs are divided into two halves of 32-bytes. Only one half is
accessible to the CPUat any time.
In case 16-bit data bus width is selected by fixing pin DBW to logical ‘1’ word access to
the FIFOs is enabled. Data output to bus lines D0-D15 as a function of the selected
interfacemodeisshowninFigure 7 and Figure 8. Of course, byte access is also
allowed. The effective length of the accessible part of RFIFO can be changed from
32 bytes (RESET value) down to 2 bytes by programming CCR1.RFT1...0.
Figure 7 FIFO Word Access (Intel Mode)
32
1
32
RFIFO
Byte 4
Byte 3
Byte 2
Byte 11
2
3
4
D15 D8 D7 D0 D0
D7
D8D15
4
3
2
1 Byte 1
Byte 2
Byte 3
Byte 4
XFIFO
32
1
32
ITD01798
V . Inflqeon m
PEB 2255
FALC-LH V1.3
Functional Description E1/T1/J1
Data Sheet 50 2000-07
Figure 8 FIFO Word Access (Motorola Mode)
3.3.1.3 Interrupt Interface
Special events in the FALC®-LH are indicated by means of a single interrupt output with
programmable characteristics (open drain, push-pull;IPC register), which requests the
CPUto read status information from the FALC®-LH, or to transfer data from/to FALC®-
LH.
Since only one INT request output is provided, the cause of an interrupt must be
determined by the CPUby reading the FALC’s interrupt status registers (GIS, ISR0...3,
ISR5) that means the interrupt at pin INT and the interrupt status bits are reset by reading
the interrupt status registers. Register ISR0...3,5 are from type “Clear on Read“.
The structure of the interrupt status registers is shown in Figure 9.
32
1
32
RFIFO
Byte 4
Byte 3
Byte 2
Byte 11
2
3
4
D15 D8 D7 D0 D0
D7
D8D15
4
3
2
1 Byte 1
Byte 2
Byte 3
Byte 4
XFIFO
32
1
32
ITD01799
PEB 2255
FALC-LH V1.3
Functional Description E1/T1/J1
Data Sheet 51 2000-07
Figure 9 Interrupt Status Registers
Each interrupt indication of registers ISR0…3,5 can be selectively masked by setting the
corresponding bit in the corresponding mask registers IMR0…3,5. If the interrupt status
bits are masked they neither generate an interrupt at INT nor are they visible in
ISR0 … 3,5.
GIS, the non-maskable Global Interrupt Status Register, serves as pointer to pending
interrupts. After the FALC®-LH has requested an interrupt by activating its INT pin, the
CPUshould first read the Global Interrupt Status register GIS to identify the requesting
interrupt source register. After reading the assigned interrupt status registers
ISR0...ISR3 and ISR5, the pointer in register GIS is cleared or updated if another
interrupt requires service.
If all pending interrupts are acknowledged by reading (GIS is reset), pin INT goes
inactive.
Updating of interrupt status registers ISR0 … 3,5 and GIS is only prohibited during read
access.
Masked Interrupts Visible in Status Registers
• The Global Interrupt Status register (GIS) indicates those interrupt status registers
with active interrupt indications (GIS.ISR0...3,5).
• An additional mode can be selected via bit IPC.VIS.
• In this mode, masked interrupt status bits neither generate an interrupt at pin INT nor
are they visible in GIS, but are displayed in the respective interrupt status
register(s) ISR0...3,5.
This mode is useful when some interrupt status bits are to be polled in the individual
interrupt status registers.
ITS09740
ISR0ISR1ISR3 ISR2
GIS
ISR3
IMR3 IMR0
ISR0
ISR1
IMR1
IMR2
ISR2
ISR5
IMR5
ISR5
Inflqeon
PEB 2255
FALC-LH V1.3
Functional Description E1/T1/J1
Data Sheet 52 2000-07
Note: In the visible mode, all active interrupt status bits, whether the corresponding
actual interrupt is masked or not, are reset when the interrupt status register is
read. Thus, when polling of some interrupt status bits is desired, care must be
taken that unmasked interrupts are not lost in the process.
Note: All unmasked interrupt statuses are treated as before.
Please note that whenever polling is used, all interrupt status registers concerned have
to be polled individually (no “hierarchical” polling possible), since GIS only contains
information on actually generated - i.e. unmasked-interrupts.
3.3.2 Boundary Scan Interface
Identification Register: 32 bit
Version: 4H
Part Number: 0042H
Manufacturer:083H
In FALC®-LH a Test Access Port (TAP) controller is implemented. The essential part of
the TAP is a finite state machine (16 states) controlling the different operational modes
of the boundary scan. Both, TAP controller and boundary scan, meet the requirements
given by the JTAG standard: IEEE 1149.1. Figure 10 gives an overview.
PEB 2255
FALC-LH V1.3
Functional Description E1/T1/J1
Data Sheet 53 2000-07
Figure 10 Block Diagram of Test Access Port and Boundary Scan
Test handling is performed via the pins TCK(Test Clock), TMS (Test Mode Select), TDI
(Test Data Input) and TDO (Test Data Output). Test data at TDI are loaded with a 4-MHz
clock signal connected to TCK. ‘1’ or ‘0’ on TMS causes a transition from one controller
statetoanother;constant ’1’ on TMS leads to normal operation of the chip.
If no boundary scan testing is planned TMS and TDI do not need to be connected since
pull-up transistors ensure high input levels in this case. After switching on the device
(power-on), a reset signal is generated internally, which forces the TAP controller into
test logic reset state.
Clock
Generation
CLOCK
Reset
Power ON
Reset
TAP Controller
-Finite State Machine
-Instruction Register (3 bits)
-Test Signal Generator
TCK
TMS
TDI
TDO
CLOCK
Test
Control
Data IN
Control Bus
6
ID Data OUT
SS Data OUT
BS Data IN
Identification Scan (32 Bits)
Boundary Scan (n Bits)
1
2
n
Pins
ITB09842
Enable
Data OUT
Test Access Port
C" Inflqeon
PEB 2255
FALC-LH V1.3
Functional Description E1
Data Sheet 542000-07
4 Functional Description E1
4.1 Receive Path in E1 Mode
Figure 11 Receive Clock System (E1)
Receive Line Interface
For data input, three different data types are supported:
• Ternary coded signals received at multifunction ports RL1 and RL2 from a -10 dB
(short haul, LIM0.EQON =0) or -43 dB (long haul, LIM0.EQON =1) ternary interface.
The ternary interface is selected if LIM1.DRS is reset.
• Digital dual rail signals received on ports RDIP and RDIN. The dual rail interface is
selected if LIM1.DRS and FMR0.RC1 is set.
•Unipolar data on port ROID received from a fiber optical interface. The optical
interface is selected if LIM1.DRS is set and FMR0.RC1 is reset.
Alternatively the optical interface can be switched to pin 68(XMFB/XOID) and pin 80
(ROID) by setting bit LOOP.SPN.
Equalizer
Clock &
Data
Recovery
DPLL
Line
Decoder
Alarm
Detector
Analog
LOS
Detector
RDATA
RCLK
DCO-R
PD
Osc.
SYNC
XTAL1
16.384
MHz
CLK16M
CLK8M
CLKX
FSC
RL1/RDIP/ROID
RL2/RDIN/RCLKI
F0057
Inflqeon
PEB 2255
FALC-LH V1.3
Functional Description E1
Data Sheet 55 2000-07
Long Haul Interface
The FALC®-LH has an integrated short-haul and long-haul line interface, consisting of a
receive equalization network and noise filtering.
4.1.1 Receive Equalization Network (E1)
The FALC®-LH automatically recovers the signals received on pins RL1/2 in a range of
up to -43 dB. The maximum reachable length with a 22 AWG twisted-pair cable is 1500
m. After reset the FALC®-LH is in “Short Haul“ mode, received signals are recovered up
to -10 dB of cable attenuation. Switching in “Long Haul“ mode is done by setting of
register LIM0.EQON.
The integrated receive equalization network recovers signals with up to -43dBofcable
attenuation. Noise filters eliminate the higher frequency part of the received signals. The
incoming data is peak detected and sliced at 55%of the peak value to produce the digital
data stream. The received data is then forwarded to the clock &data recovery unit.
The current equalizer status is indicated by register RES (Receive Equalizer Status) in
long haul mode.
4.1.2 Receive Line Attenuation Indication (E1)
Status register RES reports the current receive line attenuation in a range of 0 to -43dB
in 25 steps of approximately 1.7 dB each. The least significant 5 bits of this register
indicate the cable attenuation in dB. These 5 bits are only valid in conjunction with the
two most significant bits (RES.EV1/0 =01).
4.1.3 Receive Clock and Data Recovery (E1)
The analog received signal on port RL1/2 is equalized and then peak-detected to
produce a digital signal. The digital received signal on port RDIP/N is directly forwarded
to the DPLL. The receive clock and data recovery extracts the route clock RCLKfrom
the data stream received at the RL1/2, RDIP/RDIN or ROID lines and converts the data
stream into a single rail, unipolar bit stream. The clock and data recovery works with the
clock frequency supplied by XTAL1. Normally the clock that is output via pin RCLKis the
recovered clock from the signal provided on RL1/2 or RDIP/N and has a duty cycle close
to 50 %. The free run frequency is defined by XTAL1 divided by 8in periods with no
signal. The intrinsic jitter generated in the absence of any input jitter is not more than
0.035 UI. In digital bipolar line interface mode the clock and data recovery accepts only
HDB3 or AMI coded signals with 50%duty cycle.
4.1.4 Receive Line Coding (E1)
The HDB3 line code or the AMI coding is provided for the data received from the ternary
or the dual rail interface. In case of the optical interface a selection between the NRZ
code and the CMI Code (1T2B) with HDB3 postprocessing is provided. If CMI code
o
PEB 2255
FALC-LH V1.3
Functional Description E1
Data Sheet 56 2000-07
(1T2B) is selected the receive route clock is recovered from the data stream. The 1T2B
decoder does not correct any errors. In case of NRZcoding data is latched with the
falling edge of signal RCLKI. The HDB3 code is used along with double violation
detection or extended code violation detection (selectable). In AMI code all code
violations is detected.
The detected errors increment the code violation counter (16 bits length).
When using the optical interface with NRZcoding, the decoder is by-passed and no code
violations are detected.
The signal at the ternary interface is received at both ends of a transformer.
The E1-operating modes 75 or 120 Ωare selectable by switching resistors in parallel.
This selection does not require changing transformers.
Figure 12 Receiver Configuration (E1)
Table 9 Recommended Receiver Configuration Values (E1)
Parameter Characteristic Impedance [Ω]
120 75
R2(±1%)[Ω]240150
t2:t11: 1:
ITS10967
Line
t
2
t
1
RL2
RL1
2
R
R
FALC
2 2
In neo me ,
PEB 2255
FALC-LH V1.3
Functional Description E1
Data Sheet 57 2000-07
4.1.5 Loss of Signal Detection (E1)
There are different definitions for detecting Loss of Signal (LOS) alarms in the ITU-T
G.775 and ETS 300233. The FALC®-LH covers all these standards. The LOS indication
is performed by generating an interrupt (if not masked) and activating a status bit.
Additionally a LOS status change interrupt is programmable via register IPC.SCI.
• Detection:
An alarm is generated if the incoming data stream has no pulses (no transitions) for a
certain number (N) of consecutive pulse periods. “No pulse” in the digital receive
interface means a logical zero on pins RDIP/RDIN/ROID. A pulse with an amplitude
less than QdB below nominal is the criteria for “no pulse” in the analog receive
interface (LIM1.DRS=0). In short haul mode (LIM0.EQON=0) the receive signal level
Qis programmable via three control bits LIM1.RIL2...0 in a range of about 1400 to 200
mV differential voltage between pins RL1/2. In long haul mode (LIM0.EQON=1) the
analog LOS criteria is defined by the equalizer status. The number N can be set via
an 8bit register PCD. The contents of the PCD register is multiplied by 16, which
results in the number of pulse periods or better, the time which has to suspend until
the alarm has to be detected. The range therefore results from 16 to 4096pulse
periods. ETS300233 requires detection intervals of at least 1 ms. This time period
results always in a LFA (Loss of Frame Alignment) before a LOS is detected.
• Recovery:
In general the recovery procedure starts after detecting a logical “one“ (digital receive
interface) or a pulse (analog receive interface) with an amplitude more than QdB
(defined by LIM1.RIL2...0, LIM0.EQON=0) of the nominal pulse. The value in the 8bit
register PCR defines the number of pulses (1 to 255) to clear the LOS alarm.
Additional recovery conditions may be programmed by register LIM2.
Note: In long haul mode, LOS alarm is declared either if “no pulses”are detected
for the period defined in PCD or the signal level drops below typically about
-35 dB of the nominal signal (“low signal level”). Additionally, the incoming
data stream is cleared, if this “low signal level”is detected in order to
generate a fixed data stream before first bit errors occur. Typically, this loss
of signal threshold is about -35 dB.
For recovery this means, that at first the signal level has to increase and
then the pulses are counted and compared to PCR to return from LOS
indication.
Please also note, that this behavior is slightly different to FALC-LH V1.1.
Inflqeon
PEB 2255
FALC-LH V1.3
Functional Description E1
Data Sheet 582000-07
4.1.6 Receive Jitter Attenuator (E1)
The receive jitter attenuator is placed in the receive path. The jitter attenuator meets the
requirements of ITU-T I.431,G.736-739,G.823 and ETSI TBR12/13.
The internal DCO-R generates a “jitter free“ output clock which is directly dependent on
the phase difference of the incoming clock and the jitter attenuated clock.The receive
jitter attenuator can be either synchronized with the extracted receive clock RCLKor to
a2.048-MHz clock provided on pin SYNC. The received data is written into the receive
elastic buffer with RCLKand are read out with the dejittered clock CLK8M/CLKX sourced
by DCO-R if it is connected to SCLKR. Optionally a 8kHz clock is provided on pin XCLK/
FSC or FSC.
The DCO-R circuitry attenuates the incoming jittered clock starting at 2 Hz jitter
frequency with 20 dB per decade fall off. Wander with a jitter frequency below 2 Hz is
passed unattenuated. The intrinsic jitter in the absence of any input jitter is <0.02 UI.
For some applications it might be useful starting of jitter attenuation atlower frequencies.
Therefore the corner frequency is switchable by the factor of ten down to 0.2 Hz
(LIM2.SCF).
Jitter attenuation can be achieved either using an external tunable crystal on pins
XTAL1/XTAL2 or using the crystal-less jitter attenuation selected by LIM2.DJA1/2. In this
case, a stable clock or regular crystal of 16.384 MHz has to be provided on pin XTAL1
(+/- 50 ppm). In crystal-less mode the system clock output on pin CLK16M can be either
the dejittered or the non-dejittered clock (LIM3.CSC).
The DCO-R circuitry is automatically centered to the nominal bit rate if the reference
clock on pin SYNC/RCLKismissedfortwo2.048-MHz clock periods. In analog line
interface mode the RCLKis always running. Only in digital line interface mode with single
rail data a gapped clock at RCLKI may occur. In this case, DCO-R centers automatically.
The receive jitter attenuator works in two different modes:
• Slave mode
In Slave mode (LIM0.MAS =0) the DCO-R is synchronized with the recovered route
clock. In case of LOS the DCO-R switches to Master mode automatically.
• Master mode
In Master mode (LIM0.MAS =1) the jitter attenuator is in free running mode if no clock
on pin SYNC is supplied. If a 2.048 MHz clock at the SYNC input is applied the DCO-
R synchronizes to this input.
The following table shows the clock modes with the corresponding synchronization
sources.
eon
PEB 2255
FALC-LH V1.3
Functional Description E1
Data Sheet 592000-07
•
The jitter attenuator meets the jitter transfer requirements of the recommendations I.431
and G.735-739(refer to Figure 13).
Figure 13 Jitter Attenuation Performance (E1)
Also the requirements of ETSI TBR12/13 are satisfied. Insuring adequate margin against
TBR12/13 output jitter limit with 15 UI input at 20 Hz the DCO-R circuitry starts jitter
attenuation at nearly 2 Hz.
Table 10 System Clocking (E1)
Mode Internal
LOS Active SYNC
Input System Clocks generated by DCO-R
Master independent Fixed to
VSS Free running, DCO-R centered
Master independent 2 MHz Synchronized with SYNC input (external 2 MHz)
Slave no Fixed to
VSS Synchronized with Line RCLK
Slave no 2 MHz Synchronized with Line RCLK
Slave yes Fixed to
VSS Free running, DCO-R is centered
Slave yes 2 MHz Synchronized with SYNC input
(external 2.048 MHz)
ITD10312
1
-60
Frequency
Attenuation
10 100 1000 10000 100000Hz
ITU G.736 Template
-50
-40
-30
-20
-10
0
10
dB FALC
R
C" Inflqeon
PEB 2255
FALC-LH V1.3
Functional Description E1
Data Sheet 60 2000-07
4.1.7 Jitter Tolerance (E1)
The FALC®-LH receiver’s tolerance to input jitter complies to ITUfor CEPT application.
Figure 14 shows the curves of different input jitter specifications stated below as well as
the FALC®-LH performance.
Figure 14 Jitter Tolerance (E1)
4.1.8 Output Jitter (E1)
In the absence of any input jitter the FALC®-LH generates the output jitter, which is
specified in theTable 11 below.
Table 11 Output Jitter (E1)
Specification Measurement Filter Bandwidth Output Jitter
(UI peak to peak)
Lower Cutoff Upper Cutoff
ITU-T I.431 20 Hz 100 kHz <0.02
700 Hz 100 kHz <0.02
Jitter Amplitude
Jitter Frequency
1 10 100 1000 10000 100000Hz
UI
1
0.1
10
100
1000 PUB62411
TR-NWT 000499 Cat II
CCITT G.823
ITU-T I.431
FALC
®
F0025
In neon me. ,
PEB 2255
FALC-LH V1.3
Functional Description E1
Data Sheet 61 2000-07
4.1.9 Transmit Jitter Attenuator (E1)
The transmit jitter attenuator DCO-Xcircuitry generates a “jitter free“ transmit clock and
meets the following requirements: ITU-T I.431, G. 703, G. 736-739,G.823 and ETSI
TBR12/13. The DCO-Xcircuitry works internally with the same high frequency clock as
the receive jitter attenuator it does. It synchronizes either to the working clock of the
transmit backplane interface or the clock provided by pin SYNC2 or the receive clock
RCLK(remote loop/loop-timed). The DCO-Xattenuates the incoming clock jitter starting
at 6 Hz with 20 dB per decade fall off. With the jitter attenuated clock, which is directly
dependent on the phase difference of the incoming clock and the jitter attenuated clock,
data is read from the transmit elastic buffer or from the JATT buffer (remote loop with
JATT). Wander with a jitter frequency below 6 Hz is passed transparently.
The DCO-Xaccepts gapped clocks which are used in ATM or SDH/SONET applications.
The jitter attenuated transmit clock is output by pin XCLK.
In the loop-timed clock configuration (LIM2.ELT) the DCO-Xcircuitry generates a
transmit clock which is frequency synchronized with RCLK. In this configuration the
transmit elastic buffer has to be enabled.
DCO-Xcan optionally be used with XTAL1 clock reference (selected by
LIM1.TCD1 =1). The dejittered transmit clock can be output on pin CLK16M. In this case
the clocks CLKX,CLK8 and FSC are not synchronized with RCLK/SYNC.
Infiqeon
PEB 2255
FALC-LH V1.3
Functional Description E1
Data Sheet 62 2000-07
Figure 15 Transmit Clock System (E1)
Note: DR = Dual Rail Interface
DCO-R Digital Controlled Oscillator Receive
DCO-X Digital Controlled Oscillator Transmit
4.1.10 Framer/Synchronizer
The following functions are performed:
• Synchronization on pulse frame and multiframe
• Error indication when synchronization is lost. In this case, AIS is automatically sent to
the system side and Remote Alarm to the remote end if en/disabled.
• Initiating and controlling of resynchronization after reaching the asynchronous state.
This can be done automatically by the FALC®-LH, or user controlled via the
microprocessor interface.
• Detection of remote alarm indication from the incoming data stream.
• Separation of service bits and data link bits. This information is stored in status
registers.
• Generation of various maskable interrupt statuses of the receiver functions.
DA
Pulse
Shaper
Framer Elastic
Store XDI
DCO-XPD
Osc.
LIM1.TCD
1
SCLKX
SYNC2
RCLK
XCLK
XTAL1
16.384
MHz
XTAL3
16.384 MHz
8MHz 2 MHz
F0047
Inflqeon
PEB 2255
FALC-LH V1.3
Functional Description E1
Data Sheet 63 2000-07
• Generation of control signals to synchronize the CRC checker and the receive elastic
buffer.
If programmed and applicable to the selected multiframe format, CRC checking of the
incoming data stream is done by generating check bits for a CRC submultiframe
according to the CRC 4procedure (refer to ITU-T G704). These bits are compared with
those check bits that are received during the next CRC submultiframe. If there is at least
one mismatch, the CRC error counter (16 bit) is incremented.
4.1.11 Receive Elastic Buffer (E1)
The received bit stream is stored in the receive elastic buffer. The memory is organized
as a two-frame elastic buffer with a maximum size of 64×8bit. The size of the elastic
buffer can be configured independently for the receive and transmit direction.
Programming of the receive buffer size is done by SIC1.RBS1/0 :
• RBS1/0 =00 : two frame buffer or 512 bits
Maximum of wander amplitude (peak-to-peak): 190UI(1UI= 488 ns )
average delay after performing a slip: about 1 frame
• RBS1/0 =01 : one frame buffer or 256 bits
Max. wander amplitude: 94 UI
average delay after performing a slip: 128bits, (SYPR =output)
• RBS1/0 =10 : short buffer or 92bits:
Max. wander amplitude: 18µs
average delay after performing a slip: 46bits,(SYPR =output)
• RBS1/0 =11 : Bypass of the receive elastic buffer, (SYPR =output)
The functions are:
• Clock adaption between system clock (SCLKR) and internally generated route clock
(RCLK).
• Compensation of input wander and jitter.
• Frame alignment between system frame and receive route frame
• Reporting and controlling of slips
Controlled by special signals generated by the receiver, the unipolar bit stream is
converted into bit-parallel data which is circularly written to the elastic buffer using
internally generated Receive Route Clock (RCLK).
Reading of stored data is controlled by the System Clock sourced by SCLKRandthe
Synchronous Pulse (SYPR) in conjunction with the programmed offset values for the
receive time slot/clock slot counters. After conversion into a serial data stream, the data
PEB 2255
FALC-LH V1.3
Functional Description E1
Data Sheet 642000-07
is given out via port RDO. If the receive buffer is bypassed, data is clocked off with RCLK
instead of SCLKR.
In one frame or short buffer mode the delay through the receive buffer is reduced to an
average delay of 128or 46 bits. Slips are performed in all buffer modes except the
bypass mode. After a slip is detected the read pointer is adjusted to one half of the
current buffer size.
The following table gives an overview of the receive buffer operating mode.
Note: Combinations of SIC1.RBS1...0 and LOOP.SFM other than described are not
allowed. The use of LOOP.SFM = 1 is not recommended, but possible for
FALC
®
54 compatibility.
•.
Table 12 Receive Buffer Operating Modes (E1)
SIC1.RBS1...0 Buffer Size TS Offset programing
(RC1...0) Slip performance
11
LOOP.SFM =0
bypass1)
1) In bypass mode the clock provided on pin SCLKR is ignored. Clocking is done with RCLK.
RFM (SYPR =output) must
be selected;value of
RC1...0 determines the
position of RFM
no slips
10
LOOP.SFM =0
short buffer RFM (SYPR =output) must
be selected;value of
RC1...0 determines the
position of RFM
yes
01
LOOP.SFM =0
1frame RFM(SYPR =output) must
be selected;value of
RC1...0 determines the
position of RFM
yes
00
LOOP.SFM =1
1frame SYPR is input and
determines the frame
position together with
RC1...0 offset.
Slip conditions are
detected and reported,
but no slip is performed.
Slipshavetobeinitiated
by software
(reprogramming of
RC1...0).
00
LOOP.SFM =0
2frames SYPR is input and
determines the frame
position together with
RC1...0 offset.
yes
Slips are performed on
the frame boundary
PEB 2255
FALC-LH V1.3
Functional Description E1
Data Sheet 65 2000-07
In single frame mode ( SIC1. RBS), values of receive time slot offset (RC1/0) have to be
specified great enough to prevent too great approach of frame begin (line side) and
frame begin (system side).
Figure 16 gives an idea of operation of the receive elastic buffer:
A slip condition is detected when the write pointer (W) and the read pointer (R) of the
memory are nearly coincident, i.e. the read pointer is within the slip limits (S +,S–).Ifa
slip condition is detected, a negative slip (one frame or one half of the current buffer size
is skipped) or a positive slip (one frame or one half of the current buffer size is read out
twice) is performed at the system interface, depending on the difference between RCLK
and the current working clock of the receive backplane interface. i.e. on the position of
pointer R and W within the memory. A positive/negative slip is indicated in the interrupt
status bits ISR3.RSP and ISR3.RSN.
•
Figure 16 The Receive Elastic Buffer as Circularly Organized Memory
Limits for Slip Detection (mode dependent)
Read Pointer (System Clock controlled)
Write Pointer (Route Clock controlled)
R’
S+, S-
R:
:
W:
Frame 2 Time Slots
S-
R
Frame 1 Time Slots
Moment of Slip Detection
ITD10952
WS+
Slip
Inflqeon
PEB 2255
FALC-LH V1.3
Functional Description E1
Data Sheet 66 2000-07
4.1.12 Receive Signaling Controller (E1)
The signaling controller can be programmed to operate in various signaling modes. The
FALC®-LH performs the following signaling and data link methods:
4.1.12.1 HDLC or LAPD access
In case of common channel signaling the signaling procedure HDLC/SDLC or LAPD
according to Q.921 is supported. The signaling controller of the FALC®-LH performs the
FLAG detection, CRC checking, address comparison and zero bit-removing. The
received data flow and the addressrecognition features can be performed in very flexible
way, to satisfy almost any practical requirements. Depending on the selected address
mode, the FALC®-LH performs a 1 or 2 byte address recognition. If a 2-byte address field
is selected, the high address byte is compared with the fixed value FEH or FCH (group
address) as well as with two individually programmable values in RAH1 and RAH2
registers. According to the ISDN LAPD protocol, bit 1 of the high byte address is
interpreted as command/response bit (C/R) and is excluded from the address
comparison. Buffering of receive data is done in a 64byte deep RFIFO.
In signaling controller transparent mode, fully transparent data reception without HDLC
framing is performed, i.e. without FLAG recognition, CRC checking or bit-stuffing. This
allows user specific protocol variations.
The FALC®-LH offers the flexibility to extract data during certain time slots. Any
combination of time slots may be programmed independently for the receive and
transmit direction.
4.1.12.2 Sabit Access (E1)
The FALC®-LH supports the Sabit signaling of time slot 0 of every other frame as follows:
• the access via register RSW
• the access via registers RSA4-8, capable of storing the information for a complete
multiframe
• the access via the 64byte deep receive FIFO of the signaling controller. This Sabit
access gives the opportunity to receive a transparent bit stream as well as HDLC
frames where the signaling controller automatically processes the HDLC protocol.
Any combination of Sabits which should be extracted and stored in the RFIFO may
be selected by XC0.SA8E-SA4E. The access to the RFIFO is supported by
ISR0.RME/RPF.
4.1.12.3 Channel Associated Signaling CAS (E1, serial mode)
The signaling information is carried in time slot 16 (TS16). The signaling controller
samples the bit stream on the receive system side (selected by setting LOOP.SPN=1,
LIM3.ESY=1).
In neon me. ,
PEB 2255
FALC-LH V1.3
Functional Description E1
Data Sheet 67 2000-07
The complete CAS multiframe can be transmitted on pin RSIG. The signaling data is
clocked with the working clock of the receive highway in conjunction with the receive
synchronization pulse (SYPR/RFM). Data on RSIG is transmitted in the last 4bits per
time slot and are aligned to the data on RDO. The first 4bits per time slot can be
optionally fixed high or low, except for time slot 0 and 16. In time slot 0 the FAS/NFAS
word is transmitted, in time slot 16 the CAS multiframe pattern. Data on RSIG is valid
only if the freeze signaling status is inactive. In case of freeze status, old data are
repeated. With FMR1.SAIS =1 an all-ones data stream may be transmitted on RDO and
RSIG.
The signaling procedure is done as it is described in ITU-T G.704and G.732.
The main functions are:
• Synchronization to a CAS multiframe
• Detection of AIS and remote alarm in CAS multiframes
• Separation of CAS service bits
Updating of the receive signaling information is controlled by the freeze signaling status.
The freeze signaling status is output on pin RFSP/FREEZS and is generated, if:
• Bit FRS1.TSL16LFA =1or
• FRS0.LOS=1or
• a receive slip occurred
The receive signaling buffer is updated if the alarm remains inactive for at least one
complete CAS multiframe. Setting of bit SIC2.FFS forces the freeze status active. The
current freeze status could be read in register SIS.SFS. Optionally automatic freeze
signaling may be disabled by setting bit SIC3.DAF.
The CAS controller acts on the PCM highway side of the receive buffer. Therefore slips
disturb CAS data.
. . Inflqeon
PEB 2255
FALC-LH V1.3
Functional Description E1
Data Sheet 682000-07
•
Figure 17 2.048 MHz Receive Signaling Highway (E1)
4.1.12.4 Channel Associated Signaling CAS (E1, µP access mode)
The signaling information is carried in time slot 16 (TS16). Receive data is stored in
registers RS1-16 aligned to the CAS multiframe boundary. The signaling controller
samples the bit stream on the receive line side.
The signaling procedure is done as it is described in ITU-T G.704and G.732.
The main functions are:
• Synchronization to a CAS multiframe
• Detection of AIS and remote alarm in CAS multiframes
• Separation of CAS service bits
• Storing of received data in registers RS1...16 with last look capability
Updating of the receive signaling information is controlled by the freeze signaling status.
If signaling information is frozen updating of the registers RS1...16 is disabled. The
freeze signaling status is output on pin RFSP/FREEZS and is generated, if:
• Bit FRS1.TSL16LFA =1
The receive signaling buffer is updated if the alarm remains inactive for at least one
complete CAS multiframe.
To relieve the µP load from always reading the complete RS1-16 buffer every 2 ms the
FALC®-LH notifies the µP via interrupt ISR0.CASC only when signaling changes from
one multiframe to the next.
The CAS controller acts on the PCM highway side of the receive buffer. Therefore slips
disturb CAS data.
ITT10517
0123456701234567 01234567
~
~~
~~
~
~
~
~
~
DCBAABCDDCBA FAS / NFAS
TS0 TS1 TS31TS31
125
µ
s
T
SYPR
SCLKR
RDO
RSIG
T = Time-Slot Offset (Register RC1/0)
= Frame Alignment SignalFAS = TS0 not containing the FAS wordNFAS = Signaling Bits for Time-Slot 1-30 of CAS MultiframeABCD
~~
PEB 2255
FALC-LH V1.3
Functional Description E1
Data Sheet 692000-07
4.2 System Interface in E1 Mode
The FALC®-LH offers a flexible feature for system designers where for transmit and
receive direction different system clocks and system pulses are necessary. The interface
to the receive system highway is realized by two data buses, one for the data RDO and
one for the signaling data RSIG. The receive highway is clocked via pin SCLKR/RCLK,
while the interface to the transmit system highway is independently clocked via pin
SCLKX. Selectable system clock and data rates and their valid combinations are shown
in the table below.
Generally the data or marker on the system interface are clocked off or latched on the
falling edge of the SCLKR/Xclock. 8.192-MHz clocking rate allows transmitting of time
slots in different channel phases. The active channel phase is selected by RC0.SICS,
during the inactive channel phase the output signal is tristated. The signals on pin SYPR
in conjunction with the assigned timeslot offset in register RC0 and RC1 define the
beginning of a frame on the receive system highway. The signal on pin SYPXin
conjunction with the assigned timeslot offset in register XC0 and XC1 define the
beginning of a frame on the transmit system highway.
Adjusting the frame begin (time slot 0, bit 0) relative to SYPR/Xcanbeprogrammedin
clock steps in the range of 0...125 µsec.
A receive frame marker RFM can be activated during any bit position of the entire frame.
Programming is done with registers RC1/0. The pin function RFM is selected by
SIC2.SRFS0. The receive frame marker is active high for one 2.048 MHz cycle
(2.048 Mbit/s PCM highway interface mode) or two 8.192 MHz cycles (4.096Mbit/sPCM
highway interface mode) and is clocked off with the falling edge of the clock which is in/
output on port SCLKR.
Table 13 System Clock and Data Rates (E1)
System Data Rate Clock Rate 2.048 MHz Clock Rate 8.192 MHz
2.048 Mbit/s x1)
1) x=valid;-- =invalid
x
4.096Mbit/s -- x
PEB 2255
FALC-LH V1.3
Functional Description E1
Data Sheet 70 2000-07
Figure 18 System Interface (E1)
Receive
Elastic
Buffer
Receive
Jitter
Attenuator
Receive
Backplane
Transmit
Backplane
Receive Data
Transmit Data
Receive Clock
Transmit Clock SYNC2
RCLK
PLB
BY
P
BY
P
Transmit
Jitter
Attenuator
SCLKR
SCLKX
RSIGM
SYPR
RFM
RMFB
DLR/RSIG
RDO
XSIG
XSIGM
XMFB
DLX
XDI
XMFS
SYPX
System Clocks
Transmit
Elastic
Buffer
SYNC
BY
P
F0050
. . Inflqeon
PEB 2255
FALC-LH V1.3
Functional Description E1
Data Sheet 71 2000-07
•
Figure 19 Receive System Interface Clocking (E1)
ITD10951
~
~
~
~
FRAME 1 FRAME 2 FRAME 3 FRAME 15 FRAME 16 FRAME 1 FRAME 2 FRAME 15
~
~
~
~~
~
~
~
~
~
Bit 255 Bit 0 Bit 1 Bit 2 Bit 3 Bit 4 Bit 5 Bit 6 Bit 7
Bit 0 Bit 1 Bit 2 Bit 3 Bit 4 Bit 5 Bit 6 Bit 7
Bit 2Bit 1Bit 0
Bit 255
T
Multi Frame 1 Multi Frame 2
4 Mbit Interface 2 Mbit Interface
Programmable via RC0/1
RDO
RMFB
SYPR
SYPR
SCLKR
8.192 MHz
2.048 MHz
SCLKR
2 Mbit/s Data Rate
RDO/RSIG
TS0
RDO/RSIG
(SCLKR = 8.192 MHz)
4 Mbit/s Data Rate
DLR
Sa-Bit Marker
XC0 . SA8E-SA4E
Receive Frame Marker
RFM
RC0/1
RSIGM
Time-Slot Marker
RTR1...4
4 Mbit/s Data Rate
(SCLKR = 8.192 MHz)
RDO/RSIG
Trigger
Edge Edge
Sample
marks any
Sa Bit
bit position
marks any
marks any
Time-Slot
4 Mbit Interface
2 Mbit Interface
Bit 3 Bit 4 Bit 5 Bit 6 Bit 7
1)
only falling trigger edge shown, depending on Bit SIC3.RESR
1)
PEB 2255
FALC-LH V1.3
Functional Description E1
Data Sheet 72 2000-07
4.2.1 Time Slot Assigner (E1)
The FALC®-LH offers the flexibility to connect data during certain time slots, as defined
by registers RTR1-4and TTR1-4, to the RFIFO and XFIFO, respectively. Any
combinations of time slots can be programmed for the receive and transmit directions. If
CCR1.EITS =1 the selected time slots (RTR1-4) are stored in the RFIFO of the signaling
controller and the XFIFO contents are inserted into the transmit path as controlled by
registers TTR1-4.
Table 14 Time Slot Assigner (E1)
Receive
Time Slot
Register
Transmit
Time Slot
Register
Time Slots Receive
Time Slot
Register
Transmit
Time Slot
Register
Time Slots
RTR 1.7 TTR 1.7 0 RTR 3.7 TTR 3.7 16
RTR 1.6 TTR 1.6 1 RTR 3.6 TTR 3.6 17
RTR 1.5 TTR 1.5 2 RTR 3.5 TTR 3.5 18
RTR 1.4TTR 1.43RTR3.4TTR 3.419
RTR 1.3 TTR 1.3 4RTR 3.3 TTR 3.3 20
RTR 1.2 TTR 1.2 5 RTR 3.2 TTR 3.2 21
RTR 1.1 TTR 1.1 6 RTR 3.1 TTR 3.1 22
RTR 1.0 TTR 1.0 7 RTR 3.0 TTR 3.0 23
RTR 2.7 TTR 2.7 8RTR 4.7 TTR 4.7 24
RTR 2.6 TTR 2.6 9RTR 4.6 TTR 4.6 25
RTR 2.5 TTR 2.5 10 RTR 4.5 TTR 4.5 26
RTR 2.4TTR 2.411 RTR 4.4TTR 4.427
RTR 2.3 TTR 2.3 12 RTR 4.3 TTR 4.3 28
RTR 2.2 TTR 2.2 13 RTR 4.2 TTR 4.2 29
RTR 2.1 TTR 2.1 14RTR 4.1 TTR 4.1 30
RTR 2.0 TTR 2.0 15 RTR 4.0 TTR 4.0 31
Inflqeon
PEB 2255
FALC-LH V1.3
Functional Description E1
Data Sheet 73 2000-07
4.3 Transmit Path in E1 Mode
Compared to the receive path the inverse functions are performed for the transmit
direction.
The interface to the transmit system highway is realized by two data buses, one for the
data XDI and one for the signaling data XSIG. The time slot assignment is equivalent to
the receive direction.
Latching of data is controlled by the System Clock (SCLKX) and the Synchronous Pulse
(SYPX/XMFS) in conjunction with the programmed offset values for the Transmit Time
slot/Clock slot Counters XC1/0. Refer also to Table 13 on page 69.
The received bit stream on ports XDI and XSIG can be multiplexed internally on a time
slot basis, if enabled by SIC3.TTRF =1, if not serial CAS mode is selected (see
Chapter 4.1.12.3 on page 66).ThedatareceivedonportXSIG can be sampled if the
transmit signaling marker XSIGM is active high. Data on port XDI is sampled if XSIGM
is low for the respective time slot. Programming the XSIGM marker is done with registers
TTR1-4.
. . Inflqeon
PEB 2255
FALC-LH V1.3
Functional Description E1
Data Sheet 742000-07
Figure 20 Transmit System Interface Clocking: 2.048 MHz (E1)
FRAME0 FRAME1 FRAME2 FRAME15 FRAME0 FRAME1 FRAME2
Multi Frame 1 Multi Frame 2
XDI
XMFB
XMFS
SYPX
Trigger Edge
Bit 0 Sample Edge
SCLKX
XDI/XSIG Bit 1 Bit 2 Bit 3 Bit 4Bit 5 Bit 6 Bit 7 Bit 8
DLX
Sa-Bit Marker
XC0.SA8E-SA4E
Bit 4
marked
1)
delay T is programmable by XC0/1;
SYPX
T
1)
XSIGM
TS0
F0031
C" Inflqeon
PEB 2255
FALC-LH V1.3
Functional Description E1
Data Sheet 75 2000-07
Figure 21 Transmit System Interface Clocking: 8.192 MHz/4.096 Mbit/s (E1)
FRAME0 FRAME1 FRAME2 FRAME15 FRAME0 FRAME1 FRAME2
Multi Frame 1 Multi Frame 2
XDI
XMFB
XMFS
SYPX
Trigger Edge
Bit 0 Sample Edge
SCLKX
XDI/XSIG
RC0.SICS =0
DLX
Sa-Bit Marker
XC0.SA8E-SA4E
RC0.SICS =0
Bit 4
marked
1)
delay T is programmable by XC0/1;
SYPX
T
1)
12345678
12345678
Bit 4
marked
DLX
Sa-Bit Marker
XC0.SA8E-SA4E
RC0.SICS =0
XDI/XSIG
RC0.SICS =1
XSIGM
Time-Slot Marker
TTR1...4
RC0.SICS =0
F0029
n neon m m5: ,
PEB 2255
FALC-LH V1.3
Functional Description E1
Data Sheet 76 2000-07
4.3.1 Transmit Signaling Controller (E1)
Similar to the receive signaling controller the same signaling methods and the same time
slot assignment is provided. The FALC®-LH performs the following signaling and data
link methods:
4.3.1.1 HDLC or LAPD access
The transmit signaling controller of the FALC®-LH performs the FLAG generation, CRC
generation, zero bit-stuffing and programmable IDLE code generation. Buffering of
transmit data is done in the 64byte deep XFIFO. The signaling information is internally
multiplexed with the data applied to port XDI or XSIG.
In signaling controller transparent mode, fully transparent data transmission without
HDLC framing is performed. Optionally the FALC®-LH supports the continuous
transmission of the XFIFO contents.
The FALC®-LH offers the flexibility to insert data during certain time slots. Any
combinations of time slots may be programmed separately for the receive and transmit
directions.
4.3.1.2 Sabit Access (E1)
The FALC®-LH supports the Sabit signaling of time slot 0 of every second frame as
follows:
- the access via register XSW
- the access via registers XSA4E...XSA8E, capable of storing the information for a
complete multiframe
- the access via the 64byte deep XFIFO of the signaling controller. This Sabit access
gives the opportunity to send a transparent bit stream as well as HDLC frames where the
signaling controller automatically processes the HDLC protocol. Any combination of Sa
bits which shall be inserted into the outgoing data stream may be selected by
XC0.SA4E...SA8E.
4.3.1.3 Channel Associated Signaling CAS (E1, serial access mode)
In external signaling mode the signaling data is received on port XSIG. The signaling
data is sampled with the working clock of the transmit system interface (SCLKX)in
conjunction with the transmit synchronization pulse (SYPX). Data on XSIG is latched in
the bit positions 5...8per time slot, bits 1...4are ignored. Time slot 0 and 16 are sampled
completely (bit 1...8). The received CAS multiframe is inserted frame aligned into the
data stream on XDI. Data sourced by the internal signaling controller overwrites the
external signaling data. CAS data is read from XSIG during the last frame of a
multiframe, if CRC4/multiframe mode is selected. The CAS-multiframe is aligned to the
CRC4-multiframe. Other frames are ignored.
C" Inflqeon
PEB 2255
FALC-LH V1.3
Functional Description E1
Data Sheet 77 2000-07
If the FALC®-LH is optioned for no signaling, the data stream from the system interface
passes the FALC®-LH undisturbedly.
•
Figure 22 2.048 MHz Transmit Signaling Highway (E1)
4.3.1.4 Channel Associated Signaling CAS (E1, µP access mode)
Transmit data stored in registers XS1-16 is transmitted in time slot 16 aligned to the
multiframe boundary. The signaling controller inserts the bit stream either on the transmit
line side or if external signaling is enabled on the transmit system side via pin function
XSIG.
Data sourced by the internal signaling controller overwrites the external signaling data.
If the FALC®-LH is optioned for no signaling, the data stream from the system interface
passes the FALC®-LH undisturbedly.
4.3.2 Transmit Elastic Buffer (E1)
The received bit stream from pin XDI is optionally stored in the transmit elastic buffer.
The memory is organized as the receive elastic buffer. The functions are also equal to
the receive side. Programming of the transmit buffer size is done by SIC1.XBS1/0 :
•XBS1/0 =00 : Bypass of the transmit elastic buffer
•XBS1/0 =01 : one frame buffer or 256 bits
Max. wander amplitude (peak-to-peak): 94 UI(1UI=488ns )
average delay after performing a slip: 128bits
•XBS1/0 =10 : two frame buffer or 512 bits
Maximum of wander amplitude: 190UI
average delay after performing a slip: 1 frame or 256 bits
ITT10518
0123456701234567 01234567
~
~~
~~
~
~
~
~
~
DCBAABCDDCBA FAS / NFAS
TS0 TS1 TS31TS31
125
µ
s
T
SYPX
SCLKX
XDI
XSIG
T = Time-Slot Offset (Register XC1/0)
= Frame Alignment SignalFAS = TS0 not containing the FAS wordNFAS = Signaling Bits for Time-Slot 1-30 of CAS MultiframeABCD
~~
PEB 2255
FALC-LH V1.3
Functional Description E1
Data Sheet 782000-07
•XBS1/0 =11 : short buffer or 92bits:
Max. wander amplitude: 18µs
average delay after performing a slip: 46bits
The functions of the transmit buffer are:
• Clock adaption between system clock (SCLKX) and internally generated transmit
clock (XCLK).
• Compensation of input wander and jitter.
• Frame alignment between system frame and transmit line frame
• Reporting and controlling of slips
Writing of received data from XDI is controlled by SCLKX and SYPX/XMFS in
conjunction with the programmed offset values for the transmit time slot/clock slot
counters. Reading of stored data is controlled by the clock generated by DCO-Xcircuitry
and the transmit framer. With the dejittered clock data is read from the transmit elastic
buffer and are forwarded to the transmitter. Reporting and controlling of slips is done
according to the receive direction. Positive/negative slips are reported in interrupt status
bits ISR5.XSP and ISR5.XSN. If the transmit buffer is bypassed data is directly
transferred to the transmitter.
The following table gives an overview of the transmit buffer operating modes.
4.3.3 Transmitter (E1)
The serial bit stream is then processed by the transmitter which has the following
functions:
• Frame/multiframe synthesis of one of the two selectable framing formats
• Insertion of service and data link information
• AIS generation (Alarm indication signal)
• Remote alarm generation
• CRC generation and insertion of CRC bits
• CRC bits inversion in case of a previously received CRC error
• IDLE code generation per DS0
Table 15 Transmit Buffer Operating Modes (E1)
SIC1.XBS1...0 Buffer Size TS Offset
programming Slip performance
00 bypass enabled no
11 short buffer enabled yes
01 1 frame enabled yes
10 2 frames enabled yes
If XSW.XTM =1,
slip is performed on
the frame boundary
C" Inflqeon
PEB 2255
FALC-LH V1.3
Functional Description E1
Data Sheet 792000-07
• Auxiliary pattern generation
The frame/multiframe boundaries of the transmitter may be externally synchronized by
using the SYPX/XMFS pin. Any change of the transmit time slot assignment
subsequently produces a change of the framing bit positions on the line side. This
feature is required if signaling- and service- bits are routed through the switching network
and are inserted in transmit direction via the system interface.
In loop-timed configuration (LIM2.ELT) disconnecting the control of the transmit system
highway from the transmitter is done by setting XSW.XTM. The transmitter is now in a
free running mode without any possibility to update the multiframe position in case of
changing the transmit time slot assignment. The framing bits are generated independent
of the transmit system interface. For proper operation the transmit elastic buffer size
should be programmed to 2 frames.
The contents of selectable time slots can be overwritten by the pattern defined via
register IDLE. The selection of “idle channels” is done by programming the four-byte
registers ICB1 … ICB4.
4.3.4 Transmit Line Interface (E1)
The analog transmitter transforms the unipolar bit stream to ternary (alternate bipolar)
return to zero signals of the appropriate programmable shape. The unipolar data is
provided by the digital transmitter.
Figure 23 Transmitter Configuration (E1)
•
Table 16 Example Transmitter Configuration Values (E1)
Parameter1)
1) includes all parasitics
Characteristic Impedance [Ω]
120 75
R1(±1%)[Ω]1818
t2 : t1 1 : 1 :
ITS10968
Line
t
1
t
2
XL2
XL1
R
1
1
R
FALC
R
2 2
Inflqeon
PEB 2255
FALC-LH V1.3
Functional Description E1
Data Sheet 80 2000-07
Similar to the receive line interface three different data types are supported:
• Ternary Signal
Single rail data is converted into a ternary signal which is output on pins XL1 and XL2.
The HDB3 and AMI line code is employed. Selected by FMR0.XC1/0 and
LIM1.DRS =0.
• Dual rail data PCM(+), PCM(–) at multifunction ports XDOP/XDON with 50 %or
100 %duty cycle and with programmable polarity. Line coding is done in the same
way as in the ternary interface. Selected by FMR0.XC1/0 and LIM1.DRS =1.
•Unipolar data on port XOID is transmitted either in NRZ(Non Return to Zero) with
100 %duty cycle or in CMI (Code Mark Inversion or known as 1T2B) Code with or
without (FMR3.CMI) preprocessed HDB3 coding to a fibre optical interface. Clocking
off data is done with the rising edge of the transmit clock XCLK(2048 kHz) and with
a programmable polarity. Selection is done by FMR0.XC1 =0 and LIM1.DRS =1.
4.3.5 Programmable Pulse Shaper (E1)
The analog transmitter includes a programmable pulse shaper to satisfy the
requirements of ITU-T I.431. The amplitude and shape of the transmit pulses are
completely programmable via registers XPM0...2 from the microprocessor interface.
The transmitter requires an external step up transformer to drive the line.
4.3.6 Transmit Line Monitor (E1)
The transmit line monitor compares the transmit line pulses on XL1 and XL2 with the
transmit input signals received on pins XL1M and XL2M. The monitor detects faults on
the primary side of the transformer and protects the device from damage by setting the
transmit lines into high impedance state automatically. Faults on the secondary side can
not be detected. To detect shorts, the configuration shown in Figure 24 must be
provided and the default (reset) value of registers XPM0...2 must be selected. Otherwise
a short detection can not be guaranteed. Two conditions are detected by the monitor:
“Transmit Line Ones Density“ (more than 31 consecutive zeroes) and “Transmit Line
Shorted“. In both cases a transmit line monitor status change interrupt is provided.
. . Inflqeon jil
PEB 2255
FALC-LH V1.3
Functional Description E1
Data Sheet 81 2000-07
Figure 24 Transmit Line Monitor Configuration (E1)
ITS09746
Pulse
Shaper
Monitor
Line
TRI
XPM2.DAXLT/XLT
XDATA
XL1
XL2
XL2M
XL1M
R
FALC -LH
Inflqeon
PEB 2255
FALC-LH V1.3
Functional Description E1
Data Sheet 82 2000-07
4.4 Framer Operating Modes (E1)
4.4.1 General
Bit: FMR1.PMOD =0
PCM line bit rate : 2.048 Mbit/s
Single frame length : 256 bit, No. 1 … 256
Framing frequency : 8kHz
HDLC controller : nx64kbit/s, n =1...32 or nx4kbit/s, n=1...5
Organization : 32 time slots, No. 0 … 31
with 8bits each, No. 1 … 8
The operating mode of the FALC®-LH is selected by programming the carrier data rate
and characteristics, line code, multiframe structure, and signaling scheme.
The FALC®-LH implements all of the standard framing structures for E1 or PCM 30
(CEPT, 2.048 Mbit/s) carriers. The internal HDLC- or CAS Controller supports all
signaling procedures including signaling frame synchronization/synthesis and signaling
alarm detection in all framing formats. The time slot assignment from the PCM line to the
system highway and vice versa. is performed without any changes of numbering (TS0
↔TS0, … , TS31 ↔TS31).
Summary of E1- Framing Modes
• Doubleframe format according to ITU-T G. 704
• Multiframe format according to ITU-T G. 704
• CRC4processing according to ITU-T G. 706
• Multiframe format with CRC4to non CRC4interworking according to ITU-T G. 706
• Multiframe format with modified CRC4to non CRC4interworking
• Multiframe format with CRC4performance monitoring
After RESET, the FALC®-LH is switched into doubleframe format automatically.
Switching between the framing formats is done via bit FMR2.RFS1/0 and FMR3.EXTIW
for the receiver and FMR1.XFS for the transmitter.
PEB 2255
FALC-LH V1.3
Functional Description E1
Data Sheet 83 2000-07
4.4.2 Doubleframe Format (E1)
The framing structure is defined by the contents of time slot 0 (refer to Table 17).)
Note:
1. S
i
bits: reserved for international use. If not used, these bits should be fixed to ‘1’.
Access to received information via bits RSW.RSI and RSP.RSIF. Transmission is
enabled via bits XSW.XSIS and XSP.XSIF.
2. Fixed to ‘1’. Used for synchronization.
3. Remote alarm indication: In undisturbed operation ‘0’; in alarm condition ‘1’.
4. Sabits: Reserved for national use. If not used, they should be fixed at ‘1’.Accessto
received information via bits RSW.RY0 …RY4. Transmission is enabled via bits
XSW.XY0 …XY4. HDLC-signaling in bits Sa4- Sa8 is selectable. (*)
Note: (*) As a special extension for double frame format, the S
a
-bit registers
RSA4-8
⁄
XSA4-8 may be used optionally.
4.4.2.1 Transmit Transparent Modes
In transmit direction, contents of time slot 0 frame alignment signal of the outgoing PCM
frame are normally generated by the FALC®-LH. However, transparency for the
complete time slot 0 can be achieved by selecting the transparent mode XSP.TT0. With
the Transparent Service Word Mask register TSWM the Si-bits, A-bit and the SA4-8bits
can be selectively switched through transparently. XSW.XTM =0 must be selected.
Table 17 Allocation of Bits 1 to 8 of Time Slot 0 (E1)
Bit Number
Alternate
Frames
12345678
Frame Containing the
Frame Alignment Signal Si0011011
Note 1 Frame Alignment Signal
FramenotContainingthe
Frame Alignment Signal
or
Service Word
Si1AS
a4Sa5 Sa6 Sa7 Sa8
Note 1 Note 2 Note 3 Note 4
'5 Inflneon m "we .. pm ml or xsxc m XF‘FOrEufler [slgnahng commuter} Addmanauy amumauc Hansmlsswon a! me Arm ‘5 selec|able r—Afi
PEB 2255
FALC-LH V1.3
Functional Description E1
Data Sheet 84 2000-07
•
•
Figure 25 Data Flow in Transparent Mode
4.4.2.2 Synchronization Procedure
Synchronization status is reported via bit FRS0.LFA. Framing errors are counted by the
Framing Error Counter (FEC). Asynchronous state is reached after detecting 3 or 4
consecutive incorrect FAS words or 3 or 4consecutive incorrect service words (bit 2 =0
in time slot 0 of every other frame not containing the frame alignment word), the selection
is done via bit RC1.ASY4. Additionally, the service word condition can be disabled.
When the framer lost its synchronization an interrupt status bit ISR2.LFA is generated.
In asynchronous state, counting of framing errors and detection of remote alarm is
stopped. AIS is automatically sent to the backplane interface (can be disabled via bit
FMR2.DAIS).
Further on the updating of the registers RSA6S and RS1-16 is halted (remote alarm
indication, Sa/Si-Bit access).
Table 18 Transmit Transparent Mode (Doubleframe E1)
Transmit Transparent Source for
Enabled by Framing A Bit SaBits SiBits
–
XSP.TT0
TSWM.TSIF
TSWM.TSIS
TSWM.TRA
TSWM.TSA4-8
(int. generated)
via pin XDI1)
(int. generated)
(int. generated)
(int. generated)
(int. generated)
1) pin XDI or XSIG or XFIFO-Buffer (signaling controller)
XSW.XRA2)
via pin XDI
XSW.XRA
XSW.XRA
via pin XDI
XSW.XRA
2) Additionally, automatic transmission of the A-bit is selectable
XSW.XY0…43)
via pin XDI
XSW.XY0…4
XSW.XY0…4
XSW.XY0…4
via pin XDI
3) As a special extension for double frame format, the Sa-bit register may be used optionally.
XSW.XSIS,XSP.XSIF
via pin XDI
via pin XDI
via pin XDI
XSW.XSIS,XSP.XSIF
XSW.XSIS,XSP.XSIF
XSW XSA8... 4
XDI XL1/2
TSWM bits FMR1.ENSA TT0
Framing
Service Word
XSIG
SIC3.TTRF
TTR1...4
F0059
Inflqeon
PEB 2255
FALC-LH V1.3
Functional Description E1
Data Sheet 85 2000-07
The resynchronization procedure starts automatically after reaching the asynchronous
state. Additionally, it may be invoked user controlled via bit: FMR0.FRS (Force
Resynchronization: the FAS word detection is interrupted until the framer is in the
asynchronous state. After that, resynchronization starts automatically).
Synchronous state is established after detecting:
• a correct FAS word in frame n,
• the presence of the correct service word (bit 2 =1) in frame n +1,
• a correct FAS word in frame n +2.
If the service word in frame n +1 or the FAS word in frame n +2 or both are not found
searching for the next FAS word starts in frame n +2 just after the previous frame
alignment signal.
Reaching the synchronous state causes a frame alignment recovery interrupt status
ISR2.FAR if enabled. Undisturbed operation starts with the beginning of the next
doubleframe.
4.4.2.3 A-Bit Access
If the FALC®-LH detects a remote alarm indication in the received data stream the
interrupt status bit ISR2.RA is set. With setting of bit XSW.XRA a remote alarm (RAI) is
send to the far end.
By setting FMR2.AXRA the FALC®-LH automatically transmit the remote alarm bit =1in
the outgoing data stream if the receiver detects a loss of frame alignment FRS0.LFA =1.
If the receiver is in synchronous state FRS0.LFA =0 the remote alarm bit is reset.
Note: The A-bit may be processed via the system interface. Setting bit TSWM.TRA
enables transparency for the A bit in transmit direction (refer to Table Table 18).
4.4.2.4 Sa- Bit Access
As an extension for access to the Sa-bits via registers RSA4-8/XSA4-8an option is
implemented to allow the usage of internal Sa-bit registers RSA4-8/XSA4-8in
doubleframe format.
This function is enabled by setting FMR1.ENSA =1 for the transmitter and FMR1.RFS1/
0=01 for the receiver. The FALC®-LH works then internally with a 16-frame structure
but no CRC multiframe alignment/generation is performed.
PEB 2255
FALC-LH V1.3
Functional Description E1
Data Sheet 86 2000-07
4.4.3 CRC-Multiframe (E1)
The multiframe structure shown in Table 19 Table is enabled by setting bit:
FMR2.RFS1/0 for the receiver and FMR1.XFS for the transmitter.
Multiframe : 2 submultiframes =2×8frames
Frame alignment : refer to section Doubleframe Format
Multiframe alignment : bit 1 of frames 1, 3, 5, 7, 9, 11 with the pattern ‘001011’
CRCbits : bit1offrames0,2,4,6,8, 10, 12, 14
CRC block size : 2048 bit (length of a submultiframe)
CRC procedure : CRC4, according to ITU-T G.704, G.706)
E: Spare bits for international use. Access to received information via bits
RSP.RS13 and RSP.RS15. Transmission is enabled via bits XSP.XS13 and
XSP.XS15. Additionally, automatic transmission for submultiframe error
indication is selectable.
Sa: Spare bits for national use. Additionally, Sa bit access via registers
RSA4…8and XSA4…8is provided. HDLC-signaling in bits Sa4-Sa8is
selectable.
C1…C
4: Cyclic redundancy check bits.
A: Remote alarm indication. Additionally, automatic transmission of the A-bit is
selectable.
Table 19 CRC-Multiframe Structure (E1)
Sub-
Multiframe Frame
Number Bits1to8oftheFrame
123456 78
Multiframe I 0
1
2
3
4
5
6
7
C1
0
C2
0
C3
1
C4
0
0
1
0
1
0
1
0
1
0
A
0
A
0
A
0
A
1
Sa4
1
Sa4
1
Sa4
1
Sa4
1
Sa5
1
Sa5
1
Sa5
1
Sa5
0
Sa61
0
Sa62
0
Sa63
0
Sa64
1
Sa7
1
Sa7
1
Sa7
1
Sa7
1
Sa8
1
Sa8
1
Sa8
1
Sa8
II 8
9
10
11
12
13
14
15
C1
1
C2
1
C3
E*
C4
E*
0
1
0
1
0
1
0
1
0
A
0
A
0
A
0
A
1
Sa4
1
Sa4
1
Sa4
1
Sa4
1
Sa5
1
Sa5
1
Sa5
1
Sa5
0
Sa61
0
Sa62
0
Sa63
0
Sa64
1
Sa7
1
Sa7
1
Sa7
1
Sa7
1
Sa8
1
Sa8
1
Sa8
1
Sa8
Infineon m "we .. um XDI av xswe m XF‘FO bunev lswanalmq cummHev) Amumamc transrmssmn mHhe Arm ‘5 se‘emab‘e The Sam reals‘ev xsmra may be used unuonauv
PEB 2255
FALC-LH V1.3
Functional Description E1
Data Sheet 87 2000-07
For transmit direction, contents of time slot 0 are additionally determined by the selected
transparent mode (see also Figure 25):
The CRC procedure is automatically invoked when the multiframe structure is enabled.
CRC errors in the received data stream are counted by the 16 bit CRC Error Counter
CEC (one error per submultiframe, maximum).
Additionally a CRC4error interrupt status ISR0.CRC4may be generated if enabled by
IMR0.CRC4.
All CRC bits of one outgoing submultiframe are automatically inverted in case a CRC
error is flagged for the previous received submultiframe. This function is enabled via bit
RC0.CRCI. Setting the bit RC0.XCRCI inverts the CRC bits before transmission to the
distant end. The function of RC0.XCRCI and RC0.CRCI are logically ored.
4.4.3.1 Synchronization Procedure
Multiframe alignment is assumed to have been lost if doubleframe alignment has been
lost (flagged on status bit FRS0.LFA). The rising edge of this bits causes an interrupt.
The multiframe resynchronization procedure starts when doubleframe alignment has
been regained which is indicated by an interrupt status bit ISR2.FAR. For doubleframe
synchronization refer to section doubleframe format. It may also be invoked by the user
by setting
• bit FMR0.FRS for complete doubleframe and multiframe re-synchronization
• bit FMR1.MFCS for multiframe re-synchronization only.
The CRC checking mechanism is enabled after the first correct multiframe pattern has
been found. However, CRC errors are not counted in asynchronous state.
Table 20 Transmit Transparent Mode (CRC Multiframe E1)
Transmit Transparent Source for
enabled by Framing +
CRC ABit SaBits EBits
–
XSP.TT0
TSWM.TSIF
TSWM.TSIS
TSWM.TRA
TSWM.TSA4–8
(int. generated)
via pin XDI1)
via pin XDI
via pin XDI
(int. generated)
(int. generated)
1) pin XDI or XSIG or XFIFO buffer (signaling controller)
XSW.XRA2)
via pin XDI
XSW.XRA1)
XSW.XRA1)
via pin XDI
XSW.XRA1)
2) Automatic transmission of the A-bit is selectable
XSW.XY0…43)
via pin XDI
XSW.XY0…42)
XSW.XY0…42)
XSW.XY0…42)
via pin XDI
3) The Sa-bit register XSA4-8may be used optionally
XSP.XS13/XS154)
via pin XDI
(int. generated)
via pin XDI
XSP.XS13/XS153)
XSP.XS13/XS153)
4)Additionally, automatic transmission of submultiframe error indication is selectable
Inflqeon
PEB 2255
FALC-LH V1.3
Functional Description E1
Data Sheet 88 2000-07
In doubleframe asynchronous state, counting of framing errors, CRC4bit errors and
detection of remote alarm is stopped. AIS is automatically sent to the backplane interface
(can be disabled via bit FMR2.DAIS). Further on the updating of the registers RSA6S
and RS1-16 is halted (remote alarm indication, Sa/Si-bit access).
The multiframe synchronous state is established after detecting two correct multiframe
alignment signals at an interval of n ×2ms (n=1, 2, 3 …). The Loss of multiframe
alignment flag FRS0.LMFA is reset. Additionally an interrupt status multiframe alignment
recovery bit ISR2.MFAR is generated with the falling edge of bit FRS0.LMFA.
4.4.3.2 Automatic Force Resynchronization (E1)
In addition, a search for Doubleframe alignment is automatically initiated if two
multiframe pattern with a distance of n ×2 ms have not been found within a time interval
of 8ms after doubleframe alignment has been regained (bit FMR1.AFR). A new search
for frame alignment is started just after the previous frame alignment signal.
4.4.3.3 Floating Multiframe Alignment Window (E1)
After reaching doubleframe synchronization a 8ms timer is started. If a multiframe
alignment signal is found during the 8ms time interval the internal timer is reset to
remaining 6 ms in order to find the next multiframe signal within this time. If the
multiframe signal is not found for a second time an interrupt status ISR0.T8MS is
provided. This interrupt usually occurs every 8ms until multiframe synchronization is
achieved.
4.4.3.4 CRC4 Performance Monitoring (E1)
In the synchronous state checking of multiframe pattern is disabled. However, with bit
FMR2.ALMF an automatic multiframe resynchronization mode can be activated. If 915
out of 1000 errored CRC submultiframes are found then a false frame alignment is
assumed and a search for double- and multiframe pattern is initiated. The new search
for frame alignment is started just after the previous basic frame alignment signal.
4.4.3.5 Modified CRC4 Multiframe Alignment Algorithm (E1)
The modified CRC4multiframe alignment algorithm allows an automatic interworking
between framers with and without a CRC4capability. The interworking is realized as it
is described in ITU-T G.706 Appendix B and shown in Figure 4.5 on page 93.
If doubleframe synchronization is consistently present but CRC4multiframe alignment is
not achieved within 400 ms it is assumed that the distant end is initialized to doubleframe
format. The CRC4to non-CRC4interworking is enabled via FMR2.RFS1/0 =11 and is
activated only if the receiver has lost its synchronization. If doubleframe alignment (basic
frame alignment) is established a 400 ms timer and searching for multiframe alignment
is started. A research for basic frame alignment is initiated if the CRC4multiframe
Inflqeon
PEB 2255
FALC-LH V1.3
Functional Description E1
Data Sheet 89 2000-07
synchronization could not be achieved within 8ms and is started just after the previous
frame alignment signal. The research of the basic frame alignmentis done in parallel and
is independent of the synchronization procedure of the primary basic frame alignment
signal. During the parallel search all receiver functions are based on the primary frame
alignment signal, like framing errors, Sa-, Si-, A-bits …). All subsequent multiframe
searches are associated with each basic framing sequence found during the parallel
search.
If the CRC4multiframe alignment sequence was not found within the time interval of
400 ms, the receiver is switched into a non-CRC4mode indicated by setting the bit
FRS0.NMF (No Multiframing Found) and ISR2.T400MS. In this mode checking of CRC
bits is disabled and the received E-bits are forced to low. The transmitter framing format
is not changed. Even if multiple basic FAS resynchronizations have been established
during the parallel search, the receiver is maintained to the initially determined primary
frame alignment signal location.
However, if the CRC4multiframe alignment could be achieved within the 400 ms time
interval assuming a CRC4to CRC4interworking, then the basic frame alignment
sequence associated to the CRC4multiframe alignment signal is chosen. If necessary,
the primary frame alignment signal location is adjusted according to the multiframe
alignment signal. The CRC4performance monitoring is started if enabled by
FMR2.ALMF and the received E-bits are processed in accordance with ITU-T G.704.
Switching into the doubleframe format (non CRC4) mode after 400mscanbedisabled
by setting of FMR3.EXTIW. In this mode the FALC®-LH continues search for
multiframing. In the interworking mode setting of bit FMR1.AFR is not allowed.
4.4.3.6 A-Bit Access (E1)
If the FALC®-LH detects a remote alarm indication (bit 2 in TS0 not containing the FAS
word) in the received data stream the interrupt status bit ISR2.RA is set. With the
deactivation of the remote alarm the interrupt status bit ISR2.RAR is generated.
By setting FMR2.AXRA the FALC®-LH automatically transmits the remote alarm bit =1
in the outgoing data stream if the receiver detects a loss of frame alignment
(FRS0.LFA =1). If the receiver is in synchronous state (FRS0.LFA =0) the remote alarm
bit is reset in the outgoing data stream.
Additionally, if bit FMR3.EXTIW is set and the multiframe synchronous state could not
be achieved within the 400 ms after finding the primary basic framing, the A-bit is
transmitted active high to the remote end until the multiframing is found.
Note: The A-bit may be processed via the system interface. Setting bit TSWM.TRA
enables transparency for the A bit in transmit direction (refer to Table 20).
Inflqeon
PEB 2255
FALC-LH V1.3
Functional Description E1
Data Sheet 90 2000-07
4.4.3.7 Sa- Bit Access (E1)
Due to signaling procedures using the five Sabits (Sa4…S
a8)ofeveryotherframeofthe
CRC multiframe structure, three possibilities of access via the microprocessor are
implemented.
• The standard procedure allows reading/writing the Sa-bit registers RSW, XSW without
further support. The Sa-bit information is updated every other frame.
• The advanced procedure, enabled via bit FMR1.ENSA, allows reading/writing the Sa-
bit registers RSA4…8,XSA4…8.
A transmit or receive multiframe begin interrupt (ISR0.RMB or ISR1.XMB) is provided.
Registers RSA4-8contains the service word information of the previously received CRC-
multiframe or 8doubleframes (bit slots 4-8of every service word). These registers are
updated with every multiframe begin interrupt ISR0.RMB.
With the transmit multiframe begin an interrupt ISR1.XMB is generated and the contents
of this registers XSA4-8are copied into shadow registers. The contents is subsequently
sent out in the service words of the next outgoing CRC multiframe (or every
doubleframes) if none of the time slot 0 transparent modes is enabled. The transmit
multiframe begin interrupt XMB request that these registers should be serviced. If
requests for new information is ignored, current contents is repeated.
• The extended access via the receive and transmit FIFOs of the signaling controller. In
this mode it is possible to transmit/receive a HDLC frame or a transparent bit stream
in any combination of the Sabits. Enabling is done by setting of bit CCR1.EITS and
the corresponding bits XC0.SA8E-4E/TSWM.TSA8-4and resetting of registers TTR1-
4,RTR1-4and FMR1.ENSA. The access to and from the FIFOs is supported by
ISR0.RME,RPF and ISR1.XPR,ALS.
SA6-Bit Detection according to ETS 300233
Four consecutive received SA6-bits are checked on the by ETS 300233 defined SA6-bit
combinations. The FALC®-LH detects following fixed SA6-bit combinations: SA61,
SA62, SA63,SA64=1000;1010;1100;1110;1111. All other possible 4-bit combinations
are grouped to status “X”.
A valid SA6-bit combination must occur three times in a row. The corresponding status
bit in register RSA6S is set. Register RSA6S is from type “Clear on Read”. With any
change of state of the SA6-bit combinations an interrupt status ISR0.SA6SC is
generated.
During the basic frame asynchronous state updating of register RSA6S and interrupt
status ISR0.SA6SC is disabled. In multiframe format the detection of the SA6-bit
combinations can be done either synchronous or asynchronous to the submultiframe
(FMR3.SA6SY). In synchronous detection mode updating of register RSA6S is done in
the multiframe synchronous state (FRS0.LMFA=0). In asynchronous detection mode
updating is independent to the multiframe synchronous state.
Inflqeon
PEB 2255
FALC-LH V1.3
Functional Description E1
Data Sheet 91 2000-07
Sa6 Bit Error Indication Counters
The Sa6 bit error indication counter CRC2L/H (16 bits) counts the received Sa6 bit
sequence 0001 or 0011 in every CRC submultiframe. In the primary rate access digital
section this counter option gives information about CRC errors reported from the TE via
Sa6 bit. Incrementing is only possible in the multiframe synchronous state.
The Sa6 bit error indication counter CRC3L/H (16 bits) counts the received Sa6 bit
sequence 0010 or 0011 in every CRC submultiframe. In the primary rate access digital
section this counter option gives information about CRC errors detected at T-reference
point and reporting them via the Sa6 bit. Incrementing is only possible in the multiframe
synchronous state.
4.4.3.8 E-Bit Access (E1)
Due to signaling requirements, the E bits of frame 13 and frame 15 of the CRC
multiframe can be used to indicate received errored submultiframes:
Submultiframe I status E- Bit located in frame 13
Submultiframe II status E- Bit located in frame 15
no CRC error: : E =1
CRC error: : E =0
Standard Procedure
After reading the Submultiframe Error Indication RSP.SI1 and RSP.SI2, the
microprocessor has to update contents of register XSP (XS13, XS15). Access to these
registers has to be synchronized with Transmit or Receive Multiframe Begin Interrupts
(ISR0.RMB or ISR1.XMB).
Automatic Mode
In the multiframe synchronous state the E-bits are processed according to ITU-T G.704
independently of bit XSP.EBP (E-bit polarity selection).
By setting bit XSP.AXS status information of received submultiframes is automatically
inserted in the E-bit position of the outgoing CRC multiframe without any further
interventions of the microprocessor.
In the doubleframe and multiframe asynchronous state the E-bits are set or cleared,
depending on the setting of bit XSP.EBP.
Submultiframe Error Indication Counter
The EBC (E-Bit) Counter EBCL and EBCH (16 bits) counts zeros in E-bit position of
frame 13 and 15 of every received CRC Multiframe. This counter option gives
information about the outgoing transmit PCM line if the E bits are used by the remote end
'5 Inflneon m "we .. Ann MS may Hansen 7 cac A m, Cum 01 m 7
PEB 2255
FALC-LH V1.3
Functional Description E1
Data Sheet 92 2000-07
for submultiframe error indication. Incrementing is only possible in the multiframe
synchronous state.
Note: E-bits may be processed via the system interface. Setting bit TSWM.TSIS enables
transparency for E bits in transmit direction (refer to Table 20).
Figure 26 CRC4 Multiframe Alignment Recovery Algorithms
ITD10310
OUT of Primary BFA:
Inhibit Incoming CRC-4 Performance Monitoring
Reset all Timers
Set FRS0.LFA/LMFA/NMF = 110
No BFA Search ?
Primary
Yes
Reset Internal Frame Alignment Status
Start 400 ms Timer
IN Primary BFA:
Enable Primary BFA Loss Checking Process
(FRS0.LFA = 0)
Start 8 ms Timer
Can CRC-4
MFA be found
Yes
in 8 ms ?
400 ms
Timer
Elapsed ?
Yes
No
Parallel
BFA Search
Good ?
No
No
Assume CRC-4 to CRC-4 Interworking:
Confirm Primary BFA Associated with CRC-4 MFA
Reset Internal Multiframe Alignment Status
Adjust Primary BFA if Necessary
(FRS0.LMFA = 0)
Confirm Primary BFA
Set Internal 400 ms Timer Expiration Status Bit
Assume CRC-4 to non CRC-4 Interworking:
(FRS0.NMF = 1)
Start CRC-4 Performance Monitoring
Yes
or LFA ?
Error Count
CRC-4 No Continue CRC-4 Performance Monitoring
_
<
915
Yes
CRC-4 MFA Search
PEB 2255
FALC-LH V1.3
Functional Description E1
Data Sheet 93 2000-07
4.5 Additional Functions (E1)
4.5.1 Error Performance Monitoring and Alarm Handling
Alarm Indication Signal: Detection and recovery is flagged by bit FRS0.AIS and
ISR2.AIS. Transmission is enabled via bit FMR1.XAIS.
Loss of Signal: Detection and recovery is flagged by bit FRS0.LOS and ISR2.LOS.
Remote Alarm Indication: Detection and release is flagged by bit FRS0.RRA, RSW.RRA
and ISR2.RA/RAR. Transmission is enabled via bit XSW.XRA.
AIS in time slot 16: Detection and release is flagged by bit FRS1.TS16AIS and
ISR3.AIS16. Transmission is enabled by writing all ones in registers XS1-16.
LOS in time slot 16: Detection and release is flagged by bit FRS1.TS16LOS.
Transmission is enabled by writing all zeros in registers XS1-16.
Remote Alarm in time slot 16: Detection and release is flagged by bit FRS1.TS16RA and
ISR3.RA16. Transmission is enabled via bit CCR1.XTS16RA or XS1.2.
Transmit Line Shorted: Detection and release is flagged by bit FRS1.XLS and
ISR1.XLSC.
Transmit Ones Density: Detection and release is flagged by bit FRS1.XLO and
ISR1.XLSC.
•
Table 21 Summary of Alarm Detection and Release (E1)
Alarm Detection Condition Clear Condition
Loss of Signal
(LOS) no transitions (logical
zeros) in a programmable
time interval of 16...4096
consecutive pulse periods.
Programmable receive
input signal threshold
programmable number of ones
(1-256) in a programmable time
interval of 16...4096 consecutive
pulse periods. A one is a signal
with a level above the
programmed threshold.
Alarm Indication
Signal (AIS) FMR0.ALM =0:
less than 3 zeros in
250 µs and loss of frame
alignment declared
FMR0.ALM =1:
less than 3 zeros in
each of two consecutive
250 µs periods
FMR0.ALM =0:
more than 2 zeros in
250 µs
FMR0.ALM =1:
more than 2 zeros in each of two
consecutive 500 µs periods
Remote Alarm
(RRA) bit 3 =1intimeslot0not
containing the FAS word set conditions no longer detected.
PEB 2255
FALC-LH V1.3
Functional Description E1
Data Sheet 94 2000-07
4.5.2 Auto Modes
• Automatic remote alarm access
If the receiver has lost its synchronization a remote alarm can be sent automatically,
if enabled by bit FMR2.AXRA to the distant end. The remote alarm bit is set
automatically in the outgoing data stream if the receiver is in asynchronous state
(FRS0.LFA bit is set). In synchronous state the remote alarm bit is removed.
• Automatic E bit access
By setting bit XSP.AXS status information of received submultiframes is automatically
inserted in E-bit position of the outgoing CRC Multiframe without any further
interventions of the microprocessor.
• Automatic AIS to system interface
In asynchronous state the synchronizer enforces automatically an AIS to the receive
system interface. However, received data can be transparently switched through if bit
FMR2.DAIS is set.
Remote Alarm in
time slot 16 (TS16RA) Y-bit =1receivedinCAS
multiframe alignment word Y-bit =0receivedinCAS
multiframe alignment word
Loss of Signal in
time slot 16
(TS16LOS)
all zeros for at least 16
consecutivelyreceivedtime
slots 16
receiving a one in
time slot 16
Alarm Indication
Signal in time slot 16
(TS16AIS)
time slot 16 containing less
than 4zeros in each of two
consecutive CAS
multiframes periods
time slot 16 containing more than
3 zeros in each of two
consecutive CAS multiframes
periods
Transmit Line Short
(XLS) If XL1 and XL2 are
shortened for at least 32
pulses;pins XL1 and XL2
are forced into a high
impedance state
automatically, if bit
XPM2.DAXLT is reset.
After 32 consecutive pulse
periods the outputs XL1/2 are
activated again and the internal
transmit current limiter is
checked. If a short between XL1/
2 is still existing, the outputs XL1/
2 are switched into high
impedance state again. When the
short disappears pins XL1/2 are
activated automatically.
Transmit Ones Density
(XLO) 32 consecutive zeros in the
transmit data stream on
XL1/2
Cleared with each transmitted
pulse
Table 21 Summary of Alarm Detection and Release (E1) (cont’d)
Alarm Detection Condition Clear Condition
Inflqeon
PEB 2255
FALC-LH V1.3
Functional Description E1
Data Sheet 95 2000-07
• Automatic clock source switching
In Slave mode (LIM0.MAS =0) the DCO-R synchronizes to the recovered route clock.
In case of Loss of Signal LOS the DCO-R switches automatically to Master mode.
• Automatic freeze signaling:
Updating of the received signaling information is controlled by the freeze signaling
status. Optionally automatic freeze signaling can be disabled by setting bit SIC3.DAF.
4.5.3 Error Counter
The FALC®-LH offers six error counters each of them has a length of 16 bit. They record
code violations, framing bit errors, E-bit errors, CRC4bit errors and CRC4error events
which are flagged in the different SA6 bit combinations. Each of the error counter is
buffered. Updating the buffer is done in two modes:
• one second accumulation
• on demand via handshake with writing to the DEC register
In the one second mode an internal one second timer updates these buffers and reset
the counter to accumulate the error events in the next one second period. The error
counter can not overflow. Error events occurring during reset are not lost.
4.5.4 Errored Second
The FALC®-LH supports the error performance monitoring by detecting the following
alarms or error events in the received data:
framing errors, CRC errors, code violations, loss of frame alignment, loss of signal, alarm
indication signal, E bit error, receive and transmit slips.
With a programmable interrupt mask register IMR4all these alarms or error events can
generate an Errored Second Interrupt (ISR3.ES) if enabled.
4.5.5 Second Timer
Additionally a one second timer interrupt is generated internally to indicate that the
enabled alarm status bits or the error counters have to be checked. The clock is derived
from signal RCLK.
4.5.6 In-Band Loop Generation and Detection
The FALC®-LH generates and detects a framed or unframed in-band loop up/activate
and down/deactivate pattern with bit error rates up to1/100. Framed or unframed in-band
loop code is selected by LCR1.FLLB. Replacing transmit data with the in-band loop
codes is done by FMR3.XLD/XLU.
The FALC®-LH also offers the ability to generate and detect a flexible in-band loop up
and down pattern (if LCR1.LLBP =1) or a default pattern 00001 for up and 001 for down
(if LCR1.LLBP =0).
Inflqeon
PEB 2255
FALC-LH V1.3
Functional Description E1
Data Sheet 96 2000-07
The user defined loop up and loop down pattern is programmable individually from 2 to
8bit in length (LCR1.LAC1/0 and LCR1.LDC1/0). Programming of loop codes is done in
registers LCR2 and LCR3.
Status and interrupt status bits inform the user whether a loop up or loop down code was
detected.
4.5.7 Time Slot 0 Transparent Mode
The transparent modes are useful for loopbacks or for routing data unchanged through
the FALC®-LH.
In receive direction, transparency for ternary or dual/single rail unipolar data is always
achieved if the receiver is in the synchronous state. In asynchronous state the data may
be transparently switched through if bit FMR2.DAIS is set. However, correct time slot
assignment can not be guaranteed due to missing frame alignment between line and
system side.
Setting of bit FMR2.RTM disconnects control of the internal elastic store from the
receiver. The elastic buffer is now in a “free running” mode without any possibility to
update the time slot assignment to a new frame position in case of re-synchronization of
the receiver. Together with FMR2.DAIS this function can be used to realize undisturbed
transparent reception.
Transparency in transmit direction can be achieved by activating the time slot 0
transparent mode (bit XSP.TT0 or TSWM.7-0). If XSP.TT0 =1 all internal information of
the FALC®-LH (framing, CRC, Sa/Sibit signaling, remote alarm) is ignored. With register
TSWM the Si-bits, A-bit or the Sa4-8bits can be selectively enabled to send data
transparent from port XDI to the far end. For complete transparency the internal signaling
controller, IDLE code generation and AIS alarm generation, single channel and payload
loop back has to be disabled.
H U T T //
PEB 2255
FALC-LH V1.3
Functional Description E1
Data Sheet 97 2000-07
4.6 Test Functions (E1)
4.6.1 Pseudo-Random Bit Sequence Generation and Monitor
The FALC®-LH has the ability to generate and monitor 215-1 and 220-1 pseudo-random
bit sequences (PRBS). The generated PRBS pattern is transmitted optionally inverted or
not to the remote end via pins XL1/2 or XDOP/N. Generating and monitoring of PRBS
pattern is done according to ITU-T O. 151.
The PRBS monitor senses the PRBS pattern in the incoming data stream.
Synchronization is done on the inverted and non inverted PRBS pattern. The current
synchronization status is reported in status and interrupt status registers. Enabled by bit
LCR1.EPRM each PRBS bit error increments an error counter (CEC2). Synchronization
is reached within 400 ms with a probability of 99.9% and a bit error rate of 1/10. If an ’all
0’ or ’all 1’ signal is detected, synchronous state is indicated, too.
4.6.2 Remote Loop
In the remote loopback mode the clock and data recovered from the line inputs RL1/2 or
RDIP/RDIN are routed back to the line outputs XL1/2 or XDOP/XDON via the analog or
digital transmitter. As in normal mode they are also processed by the synchronizer and
then sent to the system interface.The remote loopback mode is selected by setting the
respective control bits LIM1.RL+JATT. Received data may be looped with or without the
transmit jitter attenuator (FIFO =JATT).
Figure 27 Remote Loop (E1)
ITS09750
RDO
XDI
RCLK
RL1
RL2
XL1
XL2
FIFO
XCLK RCLK
DCO1/2
Framer
Rec.
Framer
Trans. Store
Elast.
Elast.
Store
Recovery
Data
Clock +
MUX
MUX
/—« /<>
PEB 2255
FALC-LH V1.3
Functional Description E1
Data Sheet 98 2000-07
4.6.3 Payload Loop Back
To perform an effective circuit test a payload loop is implemented. The payload loop
back (FMR2.PLB) loops the data stream from the receiver section back to transmitter
section. The looped data passes the complete receiver including the wander and jitter
compensation in the receive elastic store and were output on pin RDO. Instead of the
data an AIS (FMR2.SAIS) can be sent to the system interface.
The framing bits, CRC4and Spare bits are not looped, if XSP.TT0 =0. They are
originated by the FALC®-LH transmitter. If the PLB is enabled the transmitter and the
dataonpinsXL1/2 or XDOP/XDON are clocked with SCLKR/RCLKinstead of SCLKX.
If XSP.TT0 =1 the received time slot 0 is sent transparently back to the line interface.
Data on the following pins are ignored: XDI, XSIG, SCLKX,SYPXand XMFS. All the
received data is processed normally.
Figure 28 Payload Loop (E1)
Note: Returned data is not multiframe synchronous.
ITS09748
Clock +
Data Rec.
Framer Elast.
Store
Trans.
Framer
RDO
XDI
RCLK
RL1
RL2
XL1
XL2
Recovery
SCLKX
SCLKR
MUX
AIS-GEN
Elast.
Store
. . Inflqeon
PEB 2255
FALC-LH V1.3
Functional Description E1
Data Sheet 99 2000-07
4.6.4 Local Loop
The local loopback mode, selected by LIM0.LL =1, disconnects the receive lines RL1/2
or RDIP/RDIN from the receiver. Instead of the signals coming from the line the data
provided by system interface are routed through the analog receiver back to the system
interface. However, the bit stream is transmitted undisturbedly on the line. However an
AIS to the distant end can be enabled by setting FMR1.XAIS without influencing the data
looped back to the system interface.
Note that enabling the local loop usually invokes an out of frame error until the receiver
can resynchronize with the new framing. The serial codes for transmitter and receiver
have to be identical.
In digital interface NRZmode, a clock must be provided on pin RCLKI(=RL2) to enable
switching into local loop mode.
Figure 29 Local Loop (E1)
ITS09749
RDO
XDI
RCLK
AIS-GEN
RL1
RL2
XL1
XL2
Framer
Rec.
Framer
Trans.
Store
Elast.
Recovery
Data
Clock +
MUX Elast.
Store
H H F: fl k
PEB 2255
FALC-LH V1.3
Functional Description E1
Data Sheet 100 2000-07
4.6.5 Single Channel Loop Back
Each of the 32 time slots may be selected for loopback from the system PCM input (XDI)
to the system PCM output (RDO). This loopback is programmed for one time slot at a
time selected by register LOOP. During loopback, an idle channel code programmed in
register IDLE is transmitted to the remote end in the corresponding PCM route time slot.
For the time slot test, sending sequences of test patterns like a 1 kHz check signal
should be avoided. Otherwise, an increased occurrence of slips in the tested time slot
disturbs testing. These slips do not influence the other time slots and the function of the
receive memory. The usage of a quasi-static test pattern is recommended.
Figure 30 Single Channel Loopback (E1)
ITS09747
RDO
XDI
RCLK
RL1
RL2
XL1
XL2
IDLE Code
Framer
Trans.
Framer
Rec. Store
Elast.
Store
Elast.
MUX
MUX
Recovery
Data
Clock +
Inflqeon
PEB 2255
FALC-LH V1.3
Functional Description E1
Data Sheet 101 2000-07
4.6.6 Alarm Simulation (E1)
Alarm simulation does not affect the normal operation of the device, i.e. all time slots
remain available for transmission. However, possible ‘real’ alarm conditions are not
reported to the processor when the device is in the alarm simulation mode.
The alarm simulation is initiated by setting the bit FMR0.SIM. The following alarms are
simulated:
• Loss of Signal
• Alarm Indication Signal (AIS)
• Loss of pulse frame
• Remote alarm indication
• Receive and transmit slip indication
• Framing error counter
• Code violation counter (HDB3 Code)
• CRC4error counter
• E-Bit error counter
• CEC2 counter
• CEC3 counter
Some of the above indications are only simulated if the FALC®-LH is configured in a
mode where the alarm is applicable (e.g. no CRC4error simulation when doubleframe
format is enabled).
Setting of the bit FMR0.SIM initiates alarm simulation, interrupt status bits is set. Error
counting and indication occurs while this bit is set. After it is reset all simulated error
conditions disappear, but the generated interrupt statuses are still pending until the
corresponding interrupt status register is read. Alarms like AIS and LOS are cleared
automatically. Interrupt status register and error counters are automatically cleared on
read.
. Inflqeon
PEB 2255
FALC-LH V1.3
Functional Description T1/J1
Data Sheet 102 2000-07
5 Functional Description T1/J1
5.1 Receive Path in T1/J1 Mode
Figure 31 Receive Clock System (T1/J1)
Receive Line Interface (T1/J1)
For data input, three different data types are supported:
• Ternary coded signals received at multifunction ports RL1 and RL2 from a -10 dB
(short haul, LIM0.EQON =0) or -36 dB (long haul, LIM0.EQON =1) ternary interface.
The ternary interface is selected if LIM1.DRS is reset.
• Digital dual rail signals received on ports RDIP and RDIN. The dual rail interface is
selected if LIM1.DRS and FMR0.RC1 is set.
•Unipolar data on port ROID received from a fiber optical interface. The optical
interface is selected if LIM1.DRS is set and FMR0.RC1...0 =00.
Alternatively the optical interface can be switched to pin 68(XMFB/XOID) and pin 80
(ROID) by setting bit LOOP.SPN.
Equalizer
Clock &Data
Recovery
DPLL
Line
Decoder
Alarm
Detector
Analog
LOS
Detector
DCO-R
PD
Osc.
Rate
Converter
XTAL1
16.384 MHz
CLK16M
CLK8M
CLKX
FSC
RL1 / RDIP / ROID
RL2 / RDIN / RCLKIRDATA
RCLK
F0048
Inflqeon
PEB 2255
FALC-LH V1.3
Functional Description T1/J1
Data Sheet 103 2000-07
Receive Short and Long Haul Interface (T1/J1)
The FALC®-LH has now an integrated short-haul and long-haul line interface, consisting
of a receive equalization network, noise filtering and programmable line build-outs
(LBO).
5.1.1 Receive Equalization Network (T1/J1)
The FALC®-LH automatically recovers the signals received on pins RL1/2 in a range of
up to -36 dB. The maximum reachable length with a 22 AWG twisted-pair cable is 2000
m. After Reset the FALC®-LH is in “Short Haul“ mode, received signals are recovered up
to -10 dB of cable attenuation. Switching in “Long Haul“ mode is done by setting of
register LIM0.EQON.
The integrated receive equalization network recovers signals with up to -36 dB of cable
attenuation. Noise filters eliminate the higher frequency part of the received signals. The
incoming data is peak detected and sliced at 55%of the peak value to produce the digital
data stream. The received data is then forwarded to the clock &data recovery unit.
5.1.2 Receive Line Attenuation Indication (T1/J1)
Status register RES reports the current receive line attenuation in a range of 0 to -36 dB
in 25 steps of approximately 1.4dB each. The least significant 5 bits of this register
indicate the cable attenuation in dB. These 5 bits are only valid in conjunction with the
two most significant bits (RES.EV1/0 =01).
5.1.3 Receive Clock and Data Recovery (T1/J1)
The analog received signal on port RL1/2 is equalized and then peak-detected to
produce a digital signal. The digital received signal on port RDIP/N is directly forwarded
to the DPLL. The receive clock and data recovery extracts the route clock RCLKfrom
the data stream received at the RL1/2, RDIP/RDIN or ROID lines and converts the data
stream into a single rail, unipolar bit stream. Normally the clock that is output via pin
RCLKis the recovered clock from the signal provided by RL1/2 or RDIP/N has a duty
cyclecloseto50%. The free run frequency is defined by XTAL3 divided by 8in periods
with no signal. The intrinsic jitter generated in the absence of any input jitter is not more
than 0.035 UI. In digital bipolar line interface mode the clock and data recovery accepts
only B8ZS or AMI coded signals with 50 %duty cycle.
5.1.4 Receive Line Coding (T1/J1)
The B8ZS line code or the AMI (ZCS) coding is provided for the data received from the
ternary or the dual rail interface. All code violations that do not correspond to zero
substitution rules are detected. The detected errors increment the code violation counter
(16 bits length). In case of the optical interface mode NRZcoding is performed
automatically and data is latched with the falling edge of pin RCLKI. When using the
12
PEB 2255
FALC-LH V1.3
Functional Description T1/J1
Data Sheet 1042000-07
optical interface with NRZcoding, the decoder is by-passed and no code violations are
detected.
Additionally, the receive line interface contains the alarm detection for Alarm Indication
Signal AIS (Blue Alarm) and the Loss of Signal LOS (Red Alarm).
Pulse density violations are detected and indicated via bit FRS1.PDEN.
The signal at the ternary interface is received at both ends of a transformer.
Figure 32 Receiver Configuration (T1/J1)
•
5.1.5 Loss of Signal Detection (T1/J1)
There are different definitions for detecting Loss of Signal alarms (LOS) in the ITU-T
G.775 and AT&TTR54016. The FALC®-LH covers all these standards. The LOS
indication is performed by generating an interrupt (if not masked) and activating a status
bit. Additionally a LOS status change interrupt is programmable via register IPC.SCI.
• Detection:
An alarm is generated if the incoming data stream has no pulses (no transitions) for a
certain number (N) of consecutive pulse periods. “No pulse” in the digital receive
interface means a logical zero on pins RDIP/RDIN/ROID. A pulse with an amplitude
less than QdB below nominal is the criteria for “no pulse” in the analog receive
interface (LIM1.DRS=0). In short haul mode (LIM0.EQON =0), the receive signal level
Qis programmable via three control bits LIM1.RIL2...0 in a range of about 1400 to 200
mV differential voltage between pins RL1/2 (see Chapter 11.3 on page 357). In long
Table 22 Recommended Receiver Configuration Values (T1/J1)
Parameter Characteristic Impedance
100 Ω110 Ω
T1 J1
R2(±1%)[Ω]200 220
t2:t11: 1:
ITS10967
Line
t
2
t
1
RL2
RL1
2
R
R
FALC
2 2
In neon me. ,
PEB 2255
FALC-LH V1.3
Functional Description T1/J1
Data Sheet 105 2000-07
haul mode (LIM0.EQON =1) the analog LOS criteria is defined by the equalizer
status. The number N may be set via a 8bit register PCD. The contents of the PCD
register is multiplied by 16, which results in the number of pulse periods, or better, the
time which has to suspend until the alarm has to be detected. The range therefore
results from 16 to 4096 pulse periods.
• Recovery:
In general the recovery procedure starts after detecting a logical “one“ (digital receive
interface) or a pulse (analog receive interface) with an amplitude more than QdB
(defined by LIM1.RIL2...0) of the nominal pulse. The value in the 8bit register PCR
defines the number of pulses (1 to 255) to clear the LOS alarm. Additional recovery
conditions may be programmed by register LIM2.
Note: In long haul mode, LOS alarm is declared either if “no pulses”are detected
for the period defined in PCD or the signal level drops below typically about
-35 dB of the nominal signal (“low signal level”). Additionally, the incoming
data stream is cleared, if this “low signal level”is detected in order to
generate a fixed data stream before first bit errors occur. Typically, this loss
of signal threshold is about -36 dB. Because the DS1 signal varies at 3.0V +/
- 20%, this loss of signal threshold correlates directly to the transmitted
pulse amplitude. It changes to -33 dB, if the generated maximum transmit
amplitude at the remote end is not more than 2.4V
For recovery this means, that at first the signal level has to increase and
then the pulses are counted and compared to PCR to return from LOS
indication.
Please also note, that this behavior is slightly different to FALC-LH V1.1.
5.1.6 Receive Jitter Attenuator (T1/J1)
The receive jitter attenuator is placed in the receive path. The jitter attenuator meets the
requirements of PUB 62411, PUB43802, TR-TSY009,TR-TSY253, TR-TSY 499 and
ITU-T I.431, G.703 and G. 824.
The internal DCO-R generates a “jitter free“ output clock which is directly dependent on
the phase difference of the incoming clock and the jitter attenuated clock. The receive
jitter attenuator can be either synchronized with the extracted receive clock RCLKor to
a1.544 or 2.048-MHz clock provided on pin SYNC. Received data are written into the
receive elastic buffer with RCLKand are read out with SCLKR. Optionally an 8kHz clock
is provided on pin XCLK/FSC or FSC.
The DCO-R circuitry attenuates the incoming jittered clock starting at 6 Hz jitter
frequency with 20 dB per decade fall off. Wander with a jitter frequency below 6 Hz is
passed unattenuated. The intrinsic jitter in the absence of any input jitter is <0.02UI.
eon
PEB 2255
FALC-LH V1.3
Functional Description T1/J1
Data Sheet 106 2000-07
For some applications it might be useful starting of jitter attenuation atlower frequencies.
Therefore the corner frequency is switchable by the factor of ten down to 0.6 Hz
(LIM2.SCF).
Jitter attenuation can be achieved either using an external tunable crystal on pins
XTAL1/XTAL2 or using the crystal-less jitter attenuation selected by LIM2.DJA1/2. In this
case, a stable clock or regular crystal of 16.384 MHz has to be provided on pin XTAL1
(+/- 50 ppm). In crystal-less mode the system clock output on pin CLK16M can be either
the dejittered or the non-dejittered clock (LIM3.CSC).
The DCO-R circuitry is automatically centered to the nominal bit rate if the reference
clock on pin SYNC/RCLKismissedfortwo2.048 or 1.544-MHz clock periods. In analog
line interface mode the RCLKis always running. Only in digital line interface mode with
single rail data (NRZ) a gapped clock on pin RCLKmay occur.
The receive jitter attenuator works in two different modes:
• Slave mode
In Slave mode (LIM0.MAS =0) the DCO-R is synchronized with the recovered route
clock. In case of LOS the DCO-R switches to Master mode automatically.
• Master mode
In Master mode (LIM0.MAS =1) the jitter attenuator is in free running mode if on pin
SYNC no clock is supplied. If an external clock on the SYNC input is applied, the DCO-
R synchronizes to this input. The external frequency can be 1.544 MHz
(LIM1.DCOC=0) or 2.048 MHz (LIM1.DCOC=1).
The following table shows the clock modes with the corresponding synchronization
sources.
Table 23 System Clocking (T1/J1)
Mode Internal
LOS Active SYNC
Input System Clocks
Master independent Fixed to
VSS free running (oscillator centered)
Master independent 1.544 MHz Synchronized with SYNC input
(LIM1.DCOC=0)
Master independent 2.048 MHz Synchronized with SYNC input
(LIM1.DCOC=1)
Slave no Fixed to
VSS Synchronized with Line RCLK
Slave no 1.544 MHz
or
2.048 MHz
Synchronized with Line RCLK
52 S‘ope
PEB 2255
FALC-LH V1.3
Functional Description T1/J1
Data Sheet 107 2000-07
The jitter attenuator meets the jitter transfer requirements of the PUB62411,
PUB43802, TR-TSY009,TR-TSY253, TR-TSY 499,I.431 and G. 703.(refer to
Figure 33).
Figure 33 Jitter Attenuation Performance (T1/J1)
Slave yes Fixed to
VSS Free running (oscillator centered)
Slave yes 1.544 MHz Synchronized with SYNC
(LIM1.DCOC =0)
Slave yes 2.048 MHz Synchronized with SYNC
(LIM1.DCOC =1)
Table 23 System Clocking (T1/J1) (cont’d)
Mode Internal
LOS Active SYNC
Input System Clocks
ITD10314
1
-70
Frequency
Attenuation
-60
-50
-40
-30
-20
-10
0
10
10 100 1000 10000 100000
dB
Hz
Slope
Slope -
-
40
20
dB/Decade
dB/Decade
FALC
PUB 62411_H
PUB 62411_L
R
. . Inflqeon
PEB 2255
FALC-LH V1.3
Functional Description T1/J1
Data Sheet 1082000-07
5.1.7 Jitter Tolerance (T1/J1)
The FALC®-LH receiver’s tolerance to input jitter complies to ITUand Bellcore
requirements for T1 applications.
Figure 34 shows the curves of different input jitter specifications stated below as well as
the FALC®-LH performance.
Figure 34 Jitter Tolerance (T1/J1)
Jitter Amplitude
Jitter Frequency
1 10 100 1000 10000 100000Hz
UI
1
0.1
10
100
1000 PUB62411
TR-NWT 000499 Cat II
CCITT G.823
ITU-T I.431
FALC
®
F0025
PEB 2255
FALC-LH V1.3
Functional Description T1/J1
Data Sheet 1092000-07
5.1.8 Output Jitter (T1/J1)
According to the input jitter defined by PUB62411 the FALC®-LH generates the output
jitter, which is specified in Table 24Table below.
5.1.9 Transmit Jitter Attenuator (T1/J1)
The transmit jitter attenuator DCO-Xcircuitry generates a “jitter free“ transmit clock and
meets the following requirements: PUB 62411, PUB43802, TR-TSY009,TR-TSY253,
TR-TSY 499 and ITU-T I.431 and G.703. The DCO-Xcircuitry works internally with the
same high frequency clock as the receive jitter attenuator it does. It synchronizes either
to the working clock of the transmit backplane interface or the clock provided by pin
SYNC2 (1.544 MHz if LIM1.DCOC=0or2.048 MHz if LIM1.DCOC=1) or the receive
clock RCLK(remote loop with JATT/loop-timed). The DCO-Xattenuates the incoming
jitter starting at 6 Hz with 20 dB per decade fall off. With the jitter attenuated clock, which
is directly dependent on the phase difference of the incoming clock and the jitter
attenuated clock, data is read from the transmit elastic buffer (2 frames) or from the JATT
buffer (2 frames, remote loop with JATT) Wander with a jitter frequency below 6 Hz is
passed transparently.
The DCO-Xaccepts gapped clocks which are used in ATM or SDH/SONET applications.
The jitter attenuated clock is output on pin XCLK.
The transmit jitter attenuator can be disabled.
In the loop-timed clock configuration (LIM2.ELT) the DCO-Xcircuitry generates a
transmit clock which is frequency synchronized with RCLK. In this configuration the
transmit elastic buffer has to be enabled.
Table 24 Output Jitter (T1/J1)
Specification Measurement Filter Bandwidth Output Jitter
(UI peak to peak)
Lower Cutoff Upper Cutoff
PUB62411 10 Hz 8kHz <0.02
8kHz 40kHz <0.02
10 Hz 40kHz <0.02
Broadband <0.02
. . Inflneon ‘. g .. ,
PEB 2255
FALC-LH V1.3
Functional Description T1/J1
Data Sheet 110 2000-07
Figure 35 Transmit Clock System (T1/J1)
Note: DR = Dual Rail Interface; DCO-X = Digital Controlled Oscillator Transmit
5.1.10 Framer/Synchronizer (T1/J1)
The following functions are performed:
• Synchronization on pulse frame and multiframe
• Error indication when synchronization is lost. In this case, AIS is sent to the system
side automatically and Remote Alarm to the remote end if en/disabled.
• Initiating and controlling of resynchronization after reaching the asynchronous state.
This can be done automatically by the FALC®-LH or user controlled via the
microprocessor interface.
• Detection of remote alarm (yellow alarm) indication from the incoming data stream.
• Separation of service bits and data link bits. This information is stored in special status
registers.
• Detection of framed or unframed In Band Loop Up/Down Code
• Generation of various maskable interrupt statuses of the receiver functions.
DA
Pulse
Shaper
Framer Elastic
Store XDI
DCO-X
PD
Osc.
SCLKX
SYNC2
RCLK
XCLK
XTAL3
12.352 MHz
6MHz 1.5MHz
Rate
Conv.
F0049
Inflqeon
PEB 2255
FALC-LH V1.3
Functional Description T1/J1
Data Sheet 111 2000-07
• Generation of control signals to synchronize the CRC checker and the receive elastic
buffer.
If programmed and applicable to the selected multiframe format, CRC checking of the
incoming data stream is done by generating check bits for a CRC multiframe according
to the CRC 6 procedure (refer to ITU-T G.704). These bits are compared with those
check bits that are received during the next CRC multiframe. If there is at least one
mismatch, the CRC error counter (16 bit) is incremented.
5.1.11 Receive Elastic Buffer (T1/J1)
The received bit stream is stored in the receive elastic buffer. The memory is organized
as a two-frame elastic buffer with a maximum size of 48 ×8bit. The size of the elastic
buffer can be configured independently for the receive and transmit direction.
Programming of the receive buffer size is done by SIC1.RBS1/0 :
• RBS1/0 =00 : two frame buffer or 384 bits
Maximum of wander amplitude (peak-to-peak): (1 UI=648 ns )
System interface clocking rate: 8.192MHz:
142UI in channel translation mode 0
78UI in channel translation mode 1
System interface clocking rate: 1.544 MHz:
max. wander: 126 UI
average delay after performing a slip: 1 frame or 193bits
• RBS1/0 =01 : one frame buffer or 193bits
System interface clocking rate: 8.192MHz:
Max. wander : 80UI in channel translation mode 0
Max. wander : 50 UI in channel translation mode 1
System interface clocking rate: 1.544 MHz:
max. wander: 74UI
average delay after performing a slip: 96bits
• RBS1/0 =10 : short buffer or 96bits:
System interface clocking rate: 8.192MHz:
Max. wander : 28UI in channel translation mode 0;channel translation mode 1 not
supported
System interface clocking rate: 1.544 MHz:
max. wander: 38UI
average delay after performing a slip: 48 bits
• RBS1/0 =11 : Bypass of the receive elastic buffer
The functions of the receive elastic buffer are:
• Clock adaption between system clock (SCLKR) and internally generated route clock
(RCLK).
• Compensation of input wander and jitter.
PEB 2255
FALC-LH V1.3
Functional Description T1/J1
Data Sheet 112 2000-07
• Frame alignment between system frame and receive route frame
• Reporting and controlling of slips
Controlled by special signals generated by the receiver, the unipolar bit stream is
converted into bit-parallel, time slot serial data which is circularly written to the elastic
buffer using the internally generated Receive Route Clock (RCLK).
Reading of stored data is controlled by the System Clock sourced by SCLKRandthe
Synchronous Pulse (SYPR) in conjunction with the programmed offset values for the
receive time slot/clock slot counters. After conversion into a serial data stream, the data
is given out via port RDO. If the receive buffer is bypassed, data is clocked off with RCLK
instead of SCLKR.
If 8.192 MHz reference frequency is used, one of two channel translation modes has to
be selected. The 24received time slots (T1/J1) can be translated into the 32 system time
slots (E1) in two different channel translation modes (selected by FMR1.CTM).
Unequipped time slots are set to ‘FFH’. Refer to Table 26.
In one frame or short buffer mode the delay through the receive buffer is reduced to an
average delay of 96or48 bits. In this case SYPR to be programmed as input is not
allowed. Slips are performed in all buffer modes except the bypass mode. After a slip is
detected the read pointer is adjusted to one half of the current buffer size. The following
table gives an overview of the receive buffer operating mode.
•.
Table 25 Receive Buffer Operating Modes (T1/J1)
SIC1.RBS1...0 Buffer Size TS Offset programing (RC1...0) Slip
performance
11 bypass1)
1) In bypass mode the clock provided on pin SCLKR is ignored. Clocking is done with RCLK.
RFM (SYPR =output) must be
selected;value of RC1...0
determines the position of RFM
no slips
10 short buffer RFM (SYPR =output) must be
selected;value of RC1...0
determines the position of RFM
yes
01 1 frame RFM (SYPR =output) must be
selected;value of RC1...0
determines the position of RFM
yes
00 2 frames SYPR is input and determines the
frame position together with
RC1...0 offset.
yes
Slips are
performed on the
frame boundary
O" Inflqeon
PEB 2255
FALC-LH V1.3
Functional Description T1/J1
Data Sheet 113 2000-07
Figure 36 gives an idea of operation of the receive elastic buffer:
A slip condition is detected when the write pointer (W) and the read pointer (R) of the
memory are nearly coincident, i.e. the read pointer is within the slip limits (S +,S–).Ifa
slip condition is detected, a negative slip (one frame or one half of the current buffer size
is skipped) or a positive slip (one frame or one half of the current buffer size is read out
twice) is performed at the system interface, depending on the difference between RCLK
and the current working clock of the receive backplane interface. i.e. on the position of
pointer R and W within the memory. A positive/negative slip is indicated in the interrupt
status bits ISR3.RSP and ISR3.RSN.
Figure 36 The Receive Elastic Buffer as Circularly Organized Memory
•
Table 26 Channel Translation Modes (T1/J1)
Speech Channels
Time Slots
C. Translation Mode 0 C. Translation Mode 1
FS/DL FS/DL 0
11 1
22 2
33 3
–44
Limits for Slip Detection (mode dependent)
Read Pointer (System Clock controlled)
Write Pointer (Route Clock controlled)
R’
S+, S-
R:
:
W:
Frame 2 Time Slots
S-
R
Frame 1 Time Slots
Moment of Slip Detection
ITD10952
WS+
Slip
PEB 2255
FALC-LH V1.3
Functional Description T1/J1
Data Sheet 1142000-07
-:FF
H
455
56 6
67 7
–88
799
810 10
911 11
–12 12
10 13 13
11 1414
12 15 15
–16 16
13 17 17
141818
15 1919
–20 20
16 21 21
17 22 22
1823 23
–2424
19–25
20 – 26
21 – 27
–– 28
22 – 29
23 – 30
24–31
Table 26 Channel Translation Modes (T1/J1) (cont’d)
Speech Channels
Time Slots
C. Translation Mode 0 C. Translation Mode 1
In neon me. ,
PEB 2255
FALC-LH V1.3
Functional Description T1/J1
Data Sheet 115 2000-07
5.1.12 Receive Signaling Controller (T1/J1)
The signaling controller may be programmed to operate in various signaling modes. The
FALC®-LH performs the following signaling and data link methods.
5.1.12.1 HDLC/SDLC or LAPD Access
In case of common-channel signaling the signaling procedure HDLC/SDLC or LAPD
according to Q.921 is supported. The signaling controller of the FALC®-LH performs the
FLAG detection, CRC checking, address comparison and zero bit-removing. The
received data flow and the address recognition features may be performed in very
flexible way, to satisfy almost any practical requirements. Depending on the selected
address mode, the FALC®-LH may perform a 1 or 2 byte address recognition. If a 2-byte
address field is selected, the high address byte is compared with the fixed value FEH or
FCH (group address) as well as with two individually programmable values in RAH1 and
RAH2 registers. According to the ISDN LAPD protocol, bit 1 of the high byte address is
interpreted as command/response bit (C/R) and is excluded from the address
comparison. Buffering of receive data is done in a 64byte deep RFIFO.
In signaling controller transparent mode, fully transparent data reception without HDLC
framing is performed, i.e. without FLAG recognition, CRC checking or bit-stuffing. This
allows user specific protocol variations.
The FALC®-LH offers the flexibility to extract data during certain time slots. Any
combination of time slots may be programmed independently for the receive and
transmit direction.
5.1.12.2 CAS Bit-robbing (T1/J1, serial access mode)
The signaling information is carried in the LSB of every sixth frame for each time slot.
The signaling controller samples the bit stream on the receive system side.
The complete CAS multiframe is transmitted on pin RSIG. The signaling data is clocked
out with the working clock of the receive highway in conjunction with the receive
synchronization pulse (SYPR). Data on RSIG is transmitted in the last 4bits per time slot
and are time slot aligned to the data on RDO. In ESF format the A,B,C,D bits are placed
in the bit positions 5-8per time slot. In F12/72 format the A and B bits are repeated in
the C and D bit positions. The first 4bits per time slot can be optionally fixed high or low.
The FS/DL time slot is transmitted on RDO and RSIG. During IDLE time slots no
signaling information is transmitted. Data on RSIG are only valid if the freeze signaling
status is inactive. With FMR1.SAIS an all ones may be transmitted on RDO and RSIG.
Update of the receive signaling information is controlled by the freeze signaling status.
If signaling information is frozen updating of the registers RS1-16 is disabled. The freeze
signaling status is output on pin RFSP/FREEZS and is generated, if:
• FRS0.LFA/LMFA =1or
• FRS0.LOS=1or
Inflqeon
PEB 2255
FALC-LH V1.3
Functional Description T1/J1
Data Sheet 116 2000-07
• a receive slip occurred
5.1.12.3 CAS Bit-robbing (T1/J1, µP access mode)
The signaling information is carried in the LSB of every sixth frame for each time slot.
The signaling controller samples the bit stream on the receive line side. Receive
signaling data is stored in the registers RS1-12.
To relieve the µP load from always reading the complete RS1-12 buffer every 3 ms the
FALC®-LH notifies the µP via interrupt ISR0.RSC only when signaling changes from one
multiframe to the next.
5.1.12.4 Bit Oriented Messages in ESF-DL Channel (T1/J1)
The FALC®-LH supports the DL-channel protocol for ESF format according to ANSI
T1.403 specification or according to AT&TTR54016. The HDLC- and Bit Oriented
Message (BOM)-Receiver may be switched ON/OFF independently. If the FALC®-LH is
used for HDLC formats only, the BOM receiver has to be switched off. If HDLC- and
BOM-receiver has been switched on (MODE.HRAC/BRAC), an automatic switching
between HDLC and BOM mode is enabled. If eight or more consecutive ones are
detected, the BOM mode is entered. Upon detection of a flag in the data stream, the
FALC®-LH switches back to HDLC-mode. In BOM-mode, the following byte format is
assumed (the left most bit is received first): 111111110xxxxxx0
Two different BOM reception modes can be programmed (CCR1.BRM).
5.1.12.5 Data Link Access in F72 Format (T1/J1)
The DL-channel protocol is supported as follows:
- access is done on a multiframe basis via registers RDL1-3,
- the DL bit information from frame 26 to 72 is stored in the Receive FIFO of the signaling
controller.
5.2 System Interface in T1/J1 Mode
The interface to the receive system highway is realized by two data buses, one for the
data RDO and one for the signaling data RSIG. The receive highway is clocked via pin
SCLKR, while the interface to the transmit system highway is independently clocked via
pin SCLKX. The frequency of these working clocks and the data rate for the receive and
transmit system interface is programmable by SIC1.SRSC and SIC1.SXSC. Transmit
and receive clock frequencies have to be the same. Selectable system clock and data
rates and their valid combinations are shown in the table below.
PEB 2255
FALC-LH V1.3
Functional Description T1/J1
Data Sheet 117 2000-07
•
x=valid, -- =invalid
Generally the data or marker on the system interface are clocked off or latched on the
falling edge of the SCLKR/SCLKX clock independently.
The signal on pin SYPR in conjunction with the assigned timeslot offset in register RC0
and RC1 define the beginning of a frame on the receive system highway.
ThesignalonpinSYPXin conjunction with the assigned timeslot offset in register XC0
and XC1 define the beginning of a frame on the transmit system highway.
Adjusting the frame begin (time slot 0, bit 0) relative to SYPR/Xis possible in the range
of 0...125 µsec.
A receive frame marker RFM can be activated (SIC2.SRFSO =1) during any bit position
of the entire frame. Programming is done with registers RC1/0. The receive frame
marker is active high for one 1.544/2.048 MHz cycle and is clocked off with the falling
edge of the clock which is input on port SCLKR or RCLK.
Table 27 System Clock and Data Rates (T1/J1)
System Data Rate Clock Rate 1.544 MHz Clock Rate 8.192 MHz
1.544 Mbit/s x --
2.048 Mbit/s -- x
4.096Mbit/s -- x
PEB 2255
FALC-LH V1.3
Functional Description T1/J1
Data Sheet 1182000-07
Figure 37 System Interface (T1/J1)
Receive
Elastic
Buffer
Receive
Jitter
Attenuator
Receive
Backplane
Transmit
Backplane
Receive Data
Transmit Data
Receive Clock
Transmit Clock SYNC2
RCLK
PLB
BY
P
BY
P
Transmit
Jitter
Attenuator
SCLKR
SCLKX
RSIGM
SYPR
RFM
RMFB
DLR/RSIG
RDO
XSIG
XSIGM
XMFB
DLX
XDI
XMFS
SYPX
System Clocks
Transmit
Elastic
Buffer
SYNC
BY
P
F0050
C" Inflqeon
PEB 2255
FALC-LH V1.3
Functional Description T1/J1
Data Sheet 1192000-07
Figure 38 Receive System Interface Clocking (T1/J1)
ITD10949
~
~
~
~
FRAME 1 FRAME 2 FRAME 3 FRAME 11 FRAME 12 FRAME 1 FRAME 2
~
~
~
~
Bit 255
Bit 0
Bit 255
T
4 Mbit Interface 2 Mbit Interface
Programmable via RC0/1
RDO
RMFB
SYPR
SYPR
SCLKR
8.192 MHz
1.544 MHz
SCLKR
2 Mbit/s Data Rate
RDO/RSIG
RDO/RSIG
(SCLKR = 8.192 MHz)
4 Mbit/s Data Rate
RFM
Receive Frame Marker
RSIGM
Time-Slot Marker
RTR1...4
4 Mbit/s Data Rate
(SCLKR = 8.192 MHz)
RDO/RSIG
Bit 0 Bit 1 Bit 2 Bit 3 Bit 4 Bit 5 Bit 6 Bit 7
Bit 0 Bit 1 Bit 2 Bit 3 Bit 4 Bit 5 Bit 6 Bit 7 Bit 0
Bit 1 Bit 2 Bit 3 Bit 4 Bit 5 Bit 6 Bit 7
(SCLKR = 1.544 MHz)
RDO Bit 192 FDL Bit 1 Bit 2 Bit 3 Bit 4
Programmable via RC0/1
T
DLR
DL Bit Marker
1.544 Mbit Interface
1.544 Mbit/s Data Rate
4 Mbit Interface
2 Mbit Interface
(e.g. F12 Frame Format)
Sample
Edge
Edge
Trigger
TS0
Sample Edge
marks any
bit position
marks any
Time-Slot
1)
only falling trigger edge shown, depending on Bit SIC3.RESR
1)
RCO/1
. . Inflqeon
PEB 2255
FALC-LH V1.3
Functional Description T1/J1
Data Sheet 120 2000-07
•
Figure 39 2.048 Mbit/s Receive Signaling Highway (T1/J1)
•
Figure 40 1.544 Mbit/s Receive Signaling Highway (T1/J1)
ITT10519
F01234567
DCBAABCDDCBA
TS0 TS1 TS4TS31
T
SYPR
SCLKR
RDO
RSIG
T = Time-Slot Offset
= FS/DL-BitF = Signaling Bits for Time-Slot 1-24ABCD
TS2 TS3
01 76543201 765432012
76543
FS/DL-Channel IDLE-Channel
Time-Slot Mapping acc. Channel Translation Mode 0
FABCD
ITT10521
0123456701234567 01234567
~
~~
~~
~
~
~
~
~
DCBAABCDDCBA
TS0 TS1 TS23
125
µ
s
T
SYPR
SCLKR
RDO
RSIG
T = Time-Slot Offset
= FS/DL-BitF= Signaling Bits for Time-Slot 1-24ABCD
~~
FF
FCBADF
PEB 2255
FALC-LH V1.3
Functional Description T1/J1
Data Sheet 121 2000-07
5.2.1 Time Slot Assigner (T1/J1)
The FALC®-LH offers the flexibility to connect data during certain time slots, as defined
by registers RTR1-4and TTR1-4, to the RFIFO and XFIFO, respectively. Any
combinations of time slots can be programmed for the receive and transmit directions. If
CCR1.EITS =1 the selected time slots (RTR1-4) are stored in the RFIFO of the signaling
controller and the XFIFO contents is inserted into the transmit path as controlled by
registers TTR1-4.
In receive direction, transparency for ternary or dual/single rail unipolar data is always
achieved if the receiver is in the synchronous state and bit FMR5.RTF is set. All bits in
the F-bit position of the incoming multiframe are forwarded to RDO and inserted in the
FS/DL time-slot or in the F-bit position.
In asynchronous state the received data may be transparently switched through if bit
FMR2.DAIS is set.
For the receive path bit FMR5.RTF has the same function as bit FMR4.TM.
Table 28 Time Slot Assigner (T1/J1)
Receive
Time Slot
Register
Transmit
Time Slot
Register
Time Slots Receive
Time Slot
Register
Transmit
Time Slot
Register
Time Slots
RTR 1.7 TTR 1.7 0 RTR 3.7 TTR 3.7 16
RTR 1.6 TTR 1.6 1 RTR 3.6 TTR 3.6 17
RTR 1.5 TTR 1.5 2 RTR 3.5 TTR 3.5 18
RTR 1.4TTR 1.43RTR3.4TTR 3.419
RTR 1.3 TTR 1.3 4RTR 3.3 TTR 3.3 20
RTR 1.2 TTR 1.2 5 RTR 3.2 TTR 3.2 21
RTR 1.1 TTR 1.1 6 RTR 3.1 TTR 3.1 22
RTR 1.0 TTR 1.0 7 RTR 3.0 TTR 3.0 23
RTR 2.7 TTR 2.7 8RTR 4.7 TTR 4.7 24
RTR 2.6 TTR 2.6 9RTR 4.6 TTR 4.6 25
RTR 2.5 TTR 2.5 10 RTR 4.5 TTR 4.5 26
RTR 2.4TTR 2.411 RTR 4.4TTR 4.427
RTR 2.3 TTR 2.3 12 RTR 4.3 TTR 4.3 28
RTR 2.2 TTR 2.2 13 RTR 4.2 TTR 4.2 29
RTR 2.1 TTR 2.1 14RTR 4.1 TTR 4.1 30
RTR 2.0 TTR 2.0 15 RTR 4.0 TTR 4.0 31
eon g "we ..
PEB 2255
FALC-LH V1.3
Functional Description T1/J1
Data Sheet 122 2000-07
Figure 41 Receive FS/DL Bits in Time Slot 0 on RDO (T1/J1)
ITD06460
12345678
FS/DL Time-Slot
MSB LSB
FS/DL Data Bit
FS/DL
Inflqeon
PEB 2255
FALC-LH V1.3
Functional Description T1/J1
Data Sheet 123 2000-07
5.3 Transmit Path in T1/J1 Mode
Compared to the receive paths the inverse functions are performed for the transmit
direction.
The interface to the transmit system highway is realized by two data buses, one for the
data XDI and one for the signaling data XSIG. The time slot assignment is equivalent to
the receive direction. All unequipped (idle) time slots are ignored.
Latching of data is controlled by the System Clock (SCLKX) and the Synchronous Pulse
(SYPX/XMFS) in conjunction with the programmed offset values for the Transmit Time
slot/Clock slot Counters XC1/0. The frequency of the working clock for the transmit
system interface is programmable by SIC1.SXSC. Refer also to Table 27 on page 117.
The received bit stream on ports XDI and XSIG can be multiplexed internally on a time
slot basis, if enabled by SIC3.TTRF =1, if not serial CAS mode is selected (see
Chapter 5.1.12.2 on page 115). The data received on port XSIG can be sampled if the
transmit signaling marker XSIGM is active high. Data on port XDI is sampled if XSIGM
is low for the respective time slot. Programming the XSIGM marker is done with registers
TTR1-4.
C" Inflqeon
PEB 2255
FALC-LH V1.3
Functional Description T1/J1
Data Sheet 1242000-07
Figure 42 Transmit System Interface Clocking: 1.544 MHz (T1/J1)
FRAME1 FRAME2 FRAME3 FRAME12 FRAME1 FRAME2 FRAME3
XDI
XMFB
XMFS
SYPX
Trigger Edge
Bit 0 Sample Edge
SCLKX
XDI FDL Bit 1 Bit 2 Bit 3 Bit 4Bit 5 Bit 6 Bit 7
DLX
DL Bit Marker
1)
delay T is programmable by XC0/1;
SYPX
T
1)
XSIGM
Time Slot Marker
F0030
. . Inflqeon
PEB 2255
FALC-LH V1.3
Functional Description T1/J1
Data Sheet 125 2000-07
Figure 43 Transmit System Interface Clocking: 8 MHz/4 Mbit/s (T1/J1)
FRAME1 FRAME2 FRAME3 FRAME12 FRAME1 FRAME2 FRAME3
XDI
XMFS
SYPX
Trigger Edge
Bit 0 Sample Edge
SCLKX
XDI/XSIG
RC0.SICS =0
DLX
DL-Bit Marker
RC0.SICS =0
1)
delay T is programmable by XC0/1;
SYPX
T
1)
1 2 3 4 5 6 7 8
12345678
DLX
DL-Bit Marker
RC0.SICS =1
XDI/XSIG
RC0.SICS =1
XSIGM
Time-Slot Marker
XTR1...4
RC0.SICS =0(1)
Blatt-1
C" Inflqeon WWW
PEB 2255
FALC-LH V1.3
Functional Description T1/J1
Data Sheet 126 2000-07
•
Figure 44 2.048 Mbit/s Transmit Signaling Clocking (T1/J1)
•
Figure 45 1.544 Mbit/s Transmit Signaling Highway (T1/J1)
ITT10520
F01234567
DCBAABCDDCBA
TS0 TS1 TS4TS31
T
SYPX
SCLKX
XDI
XSIG
T = Time-Slot Offset
= FS/DL-BitF= Signaling Bits for Time-Slot 1-24ABCD
TS2 TS3
01 76543201 765432012
76543
FS/DL-Channel IDLE-Channel
Time-Slot Mapping acc. Channel Translation Mode 0
FABCD
ITT10522
0123456701234567 01234567
~
~~
~ ~
~
~
~
~
DCBAABCDDCBA
TS0 TS1 TS23
125
µ
s
T
SYPX
SCLKX
XDI
XSIG
T = Time-Slot Offset
= FS/DL-BitF= Signaling Bits for Time-Slot 1-24ABCD
~~
FF
FCBADF
~
PEB 2255
FALC-LH V1.3
Functional Description T1/J1
Data Sheet 127 2000-07
Figure 46 Signaling Marker for CAS/CAS-CC Applications (T1/J1)
ITD06462
Frame 1 Frame 2 Frame 3
Frame 12
Multiframe n (e.g. F12)
24 1 2 3 6
5
478 9 19 20 21 22 23 24
FS/
DL DL
FS/
Signals in channel translation mode 0
Signals in channel translation mode 1
FS/
DLDL
FS/
1
18
17
16
21 19 20 21 22 23 24
RD0
XDI
XMFB
RMFB
XDI
RD0
XDI
RD0
~
~~
~
~
~~
~
~
~
1)
XSIGM
RSIGM
XSIGM
RSIGM
RSIGM and XSIGM are programed via registers RTR1
channel 24
1)
4 to mark only... 4 / TTR1...
1)
PEB 2255
FALC-LH V1.3
Functional Description T1/J1
Data Sheet 1282000-07
Figure 47 Signaling Marker for CAS-BR Applications (T1/J1)
ITD06463
Frame 1 Frame 2 Frame 6
Frame 12
Multiframe n (e.g.F12)
24 1 2 3 6
5
478 9 19 20 21 22 23 24
FS/
DL DL
FS/
Signals in channel translation mode 0
Signals in channel translation mode 1
FS/
DLDL
FS/
1
18
17
16
21 19 20 21 22 23 24
RD0
XDI
XMFB
RMFB
XDI
RD0
XSIGM
RSIGM
XDI
RD0
XSIGM
RSIGM
Signals in frames 6 and 12 of each multiframe
Signals in frames 6 and 12 of each multiframe
RSIGM and XSIGM will mark the robbed bit positions if XCO.BRM is set high
1)
~
~~
~
~
~
~
~~
~
~
~~
~
~
~~
~
1)
1)
PEB 2255
FALC-LH V1.3
Functional Description T1/J1
Data Sheet 1292000-07
Transmit Direction
FS/DL data on system transmit highway (XDI), time slot 0.
Figure 48 Transmit FS/DL Bits on XDI (T1/J1)
5.3.1 Transmit Signaling Controller (T1/J1)
Similar to the receive signaling controller the same signaling methods and the same time
slot assignment are provided. The FALC®-LH performs the following signaling and data
link methods.
5.3.1.1 HDLC or LAPD access
The transmit signaling controller of the FALC®-LH performs the FLAG generation, CRC
generation, zero bit-stuffing and programmable IDLE code generation. Buffering of
transmit data is done in the 64byte deep XFIFO. The signaling information is multiplexed
internally with the data applied on port XDI or XSIG.
In signaling controller transparent mode, fully transparent data transmission without
HDLC framing is performed. Optionally the FALC®-LH supports the continuous
transmission of the XFIFO contents.
Operating in HDLC or BOM mode “flags” or “idle” may be transmitted as interframe
timefill. The FALC®-LH offers the flexibility to insert data during certain time slots. Any
combinations of time slots may be programmed separately for the receive and transmit
directions.
5.3.1.2 CAS Bit-robbing (T1/J1)
The signaling controller inserts the bit stream either on the transmit line side or if external
signaling is enabled on the transmit system side. Signaling data may be sourced
internally from registers XS1-12 or externally on port XSIG.
In external signaling mode the signaling data is sampled with the working clock of the
transmit system interface (SCLKX) in conjunction with the transmit synchronous pulse
(SYPX). Data on XSIG is latched in the bit positions 5-8per time slot, bits 1-4are
ITD06460
12345678
FS/DL Time-Slot
MSB LSB
FS/DL Data Bit
FS/DL
Inflqeon
PEB 2255
FALC-LH V1.3
Functional Description T1/J1
Data Sheet 130 2000-07
ignored. The FS/DL bit is sampled on port XSIG and inserted in the outgoing data
stream. The received CAS multiframe is inserted frame aligned into the data stream on
XDI. Data sourced by the internal signaling controller overwrites the external signaling
data.
Internal multiplexing of data and signaling data may be disabled on a per time slot basis
(Clear Channel Capability). This is also valid when using the internal and external
signaling mode.
5.3.1.3 Data Link Access in ESF/F24 and F72 Format (T1/J1)
The DL-channel protocol is supported as follows:
- access is done on a multiframe basis via registers XDL1-3 or
- HDLC access or transparent transmission (non HDLC mode) from XFIFO
The signaling information stored in the XFIFO is inserted in the DL bits of frame 26 to 72
in F72 format or in every other frame in ESF format. Operating in HDLC or BOM mode
“flags” or “idle” may be transmitted as interframe timefill.
Inflqeon
PEB 2255
FALC-LH V1.3
Functional Description T1/J1
Data Sheet 131 2000-07
5.3.2 Transmit Elastic Buffer (T1/J1)
Thetransmitelasticstorewithasizeofmax.2×193 bit (two frames) serves as a
temporary store for the PCM data to adapt the system clock (SCLKX) to the internally
generated clock for the transmit data, and to re-translate time slot structure used in the
system to that of the line side. Its optimal start position is initiated when programming the
transmit time slot offset values. A difference in the effective data rates of system side and
transmit side may lead to an overflow/underflow of the transmit memory: thus, errors in
data transmission to the remote end may occur. This error condition (transmit slip) is
reported to the microprocessor via interrupt status registers.
The received bit stream from pin XDI is optionally stored in the transmit elastic buffer.
The memory is organized as the receive elastic buffer. Programming of the transmit
buffer size is done by SIC1.XBS1/0 :
•XBS1/0 =00 : bypass of the transmit elastic buffer
•XBS1/0 =01 : one frame buffer or 193bits
Maximum of wander amplitude (peak-to-peak): (1 UI=648 ns )
System interface clocking rate: 8.192MHz:
Max. wander : 80UI in channel translation mode 0
Max. wander : 50 UI in channel translation mode 1
System interface clocking rate: 1.544 MHz:
max. wander: 74UI
average delay after performing a slip: 96bits
•XBS1/0 =10 : two frame buffer or 386bits
System interface clocking rate: 8.192MHz:
142UI in channel translation mode 0
78UI in channel translation mode 1
System interface clocking rate: 1.544 MHz:
max. wander: 126 UI
average delay after performing a slip: 193bits
•XBS1/0 =11 : short buffer or 96bits:
System interface clocking rate: 8.192MHz:
Max. wander : 28UI in channel translation mode 0;channel translation mode 1 not
supported
System interface clocking rate: 1.544 MHz:
max. wander: 38UI
average delay after performing a slip: 48 bits
The functions of the transmit buffer are:
• Clock adaption between system clock (SCLKX) and internally generated transmit
route clock (XCLK).
• Compensation of input wander and jitter.
• Frame alignment between system frame and transmit route frame
PEB 2255
FALC-LH V1.3
Functional Description T1/J1
Data Sheet 132 2000-07
• Reporting and controlling of slips
Writing of received data from XDI is controlled by SCLKX and SYPX/XMFS in
conjunction with the programmed offset values for the transmit time slot/clock slot
counters. Reading of stored data is controlled by the clock generated by DCO-Xcircuitry
and the transmit framer. With the dejittered clock data is read from the transmit elastic
buffer and are forwarded to the transmitter. Reporting and controlling of slips is
automatically done according to the receive direction. Positive/negative slips are
reported in interrupt status bits ISR5.XSP and ISR5.XSN.
A re-initialization of the transmit memory is done by re-programming the transmit time
slot counter XC1 and with the next SYPXpulse. After that, this memory has its optimal
start position.
The frequency of the working clock for the transmit system interface is programmable by
SIC1.SXSC and SIC1.SRSC to be 1.544 or 8.192MHz.
Generally the data or marker on the system interface are clocked off or latched on the
falling edge of the SCLKX clock.
The following table gives an overview of the transmit buffer operating modes.
Table 29 Transmit Buffer Operating Modes (T1/J1)
SIC1.XBS1...0 Buffer Size TS Offset
programming Slip performance
00
SCLKX=1.544 MHz bypass enabled no
00
SCLKX=8.192MHz 1 frame enabled yes1)
1) compatible with FALC®54
01 short buffer enabled yes
10 1 frame enabled yes
11 2 frames enabled yes
If XSW.XTM =1,
slip is performed on
the frame boundary
In neon me. ,
PEB 2255
FALC-LH V1.3
Functional Description T1/J1
Data Sheet 133 2000-07
5.3.3 Transmitter (T1/J1)
The serial bit stream is then processed by the transmitter which has the following
functions:
• Frame/multiframe synthesis of one of the four selectable framing formats
• Insertion of service and data link information
• AIS generation (Blue Alarm)
• Remote alarm (yellow alarm) generation
• CRC generation and insertion of CRC bits
• CRC bits inversion in case of a previously received CRC error or in case of activating
per control bit
• Generation of Loop Up/Down code
• IDLE code generation per DS0
The frame/multiframe boundaries of the transmitter may be externally synchronized by
using the SYPX/XMFS pin. Any change of the transmit time slot assignment
subsequently produces a change of the framing bit positions on the line side. This
feature is required if signaling and data link bits are routed through the switching network
and are inserted in transmit direction via the system interface.
In loop-timed configuration (LIM2.ELT =1) disconnecting the control of the transmit
system highway from the transmitter is done by setting FMR5.XTM. The transmitter is
now in a free running mode without any possibility to update the multiframe position in
case of changing the transmit time slot assignment. The FS/DL bits are generated
independently of the transmit system interface. For proper operation the transmit elastic
buffer size must be programmed to 2 frames.
The contents of selectable time slots may be overwritten by the pattern defined via
register IDLE. The selection of “idle channels” is done by programming the three-byte
registers ICB1 … ICB3.
If AMI coding with zero code suppression (B7-stuffing) is selected, “clear channels”
without B7-stuffing can be defined by programming registers CCB1 … CCB3.
II Eli
PEB 2255
FALC-LH V1.3
Functional Description T1/J1
Data Sheet 1342000-07
5.3.4 Transmit Line Interface (T1/J1)
The analog transmitter transforms the unipolar bit stream to ternary (alternate bipolar)
return to zero signals of the appropriate programmable shape. The unipolar data is
provided by pin XDI and the digital transmitter.
Similar to the receive line interface three different data types are supported:
Figure 49 Transmitter Configuration (T1/J1)
•
• Ternary Signal
Single rail data is converted into a ternary signal which is output on pins XL1 and XL2.
Selection between B8ZS or simple AMI coding with zero code suppression (B7
stuffing) is provided. B7 stuffing may be disabled on a per time slot basis (Clear
Channel capability). Selected by FMR0.XC1/0 and LIM1.DRS =0.
• Dual rail data PCM(+), PCM(-) at multifunction ports XDOP and XDON with 50 %or
100 %duty cycle and with programmable polarity. Line coding is done in the same
way as in the ternary interface. Selected by FMR0.XC1=1 and LIM1.DRS =1.
•Unipolar data on port XOIDistransmittedinNRZ(Non Return to Zero) with 100 %
duty cycle to a fibre optical interface. Clocking off data is done with the rising edge of
the transmit clock XCLK(1544 kHz) and with a programmable polarity. Selection is
done by FMR0.XC1...0 =00 and LIM1.DRS =1.
Table 30 Example Transmitter Configuration Values (T1/J1)
Parameter T1 J1
Characteristic Impedance [Ω]100 110
R1(±1%)[Ω]55
t2 : t1 1 : 1 :
ITS10968
Line
t
1
t
2
XL2
XL1
R
1
1
R
FALC
R
2 2
. . Inflqeon
PEB 2255
FALC-LH V1.3
Functional Description T1/J1
Data Sheet 135 2000-07
5.3.5 Programmable Pulse Shaper and Line Build-Out (T1/J1)
In long haul applications the transmit pulse masks are optionally generated according to
FCC68and ANSI T1. 403. To reduce the crosstalk on the received signals the
FALC®-LH offers the ability to place a transmit attenuator in the data path. Transmit
attenuation is selectable from 0, -7.5, -15 or -22.5 dB (register LIM2.LBO2/1).
ANSI T1. 403 defines only 0...-15 dB.
The FALC®-LH includes a programmable pulse shaper to satisfy the requirements of
ANSI T1. 102, also various DS1, DSX-1 specifications are met. The amplitude of the
pulse shaper is programmable individually via the microprocessor interface to allow a
maximum of different pulse templates. The line length is selected by programming the
registers XPM2...0 as shown for typical values in the table below. The values with
transformer ratio: 1: ;cable: PULP 22AWG (100 Ω);serial resistors: 5 Ω.TheXPM
register values are given in decimal.
•
The transmitter requires an external step up transformer to drive the line. The required
programming values might vary between applications and have to be optimized
according to external component values, parasitics, and so on.
Table 31 Pulse Shaper Programming (T1/J1)
Range in
mRange in
ft. XPM0 XPM1 XPM2 XP04-
XP00 XP14-
XP10 XP24-
XP20 XP34-
XP30
hexadecimal decimal
0...40 0...133 199B01252463
40...81 133...266 5B 9F01272673
81...122 266...399 7D AB 01 2927 10 3
122...162 399...533 7F B7 01 31 27 13 3
162...200 533...655 5F BB 01 31 26 143
2
. . Inflqeon jil
PEB 2255
FALC-LH V1.3
Functional Description T1/J1
Data Sheet 136 2000-07
5.3.6 Transmit Line Monitor (T1/J1)
The transmit line monitor compares the transmit line pulses on XL1 and XL2 with the
transmit input signals received on pins XL1M and XL2M. The monitor detects faults on
the primary side of the transformer and protects the device from damage by setting the
transmit lines into high impedance state automatically. Faults on the secondary side can
not be detected. To detect shorts, the configuration shown in Figure 50 must be
provided and the default (reset) value of registers XPM0...2 must be selected. Otherwise
a short detection can not be guaranteed. Two conditions are detected by the monitor:
“Transmit Line Ones Density“ (more than 31 consecutive zeroes) and “Transmit Line
Shorted“. In both cases a transmit line monitor status change interrupt is provided.
Figure 50 Transmit Line Monitor Configuration (T1/J1)
ITS09746
Pulse
Shaper
Monitor
Line
TRI
XPM2.DAXLT/XLT
XDATA
XL1
XL2
XL2M
XL1M
R
FALC -LH
Inflqeon
PEB 2255
FALC-LH V1.3
Functional Description T1/J1
Data Sheet 137 2000-07
5.4 Framer Operating Modes (T1/J1)
5.4.1 General
ActivatedwithbitFMR1.PMOD=1.
PCM line bit rate : 1.544 Mbit/s
Single frame length : 193bit,No.1…193
Framing frequency : 8kHz
Organization : 24time slots, No. 1 … 24
with 8bits each, No. 1 … 8and one preceding F bit
Selection of one of the four permissible framing formats is performed by bits
FMR4.FM1...0. These formats are:
F4 :4-frame multiframe
F12 : 12-frame multiframe (D4)
ESF : Extended Superframe (F24)
F72 : 72-frame multiframe (SLC96)
The operating mode of the FALC®-LH is selected by programming the carrier data rate
and characteristics, line code, multiframe structure, and signaling scheme.
The FALC®-LH implements all of the standard and/or common framing structures PCM
24(T1, 1.544 Mbit/s) carriers. The internal HDLC-Controller supports all signaling
procedures including signaling frame synchronization/synthesis in all framing formats.
After RESET, the FALC®-LH must be programmed with FMR1.PMOD =1 to enable the
T1(PCM24) mode. Switching between the framing formats is done via bit FMR4.FM1/0
for the receiver and for the transmitter.
5.4.2 General Aspects of Synchronization
Synchronization status is reported via bit FRS0.LFA (Loss Of Frame Alignment).
Framing errors (pulse frame and multiframe) are counted by the Framing Error Counter
FEC.
Loss of Frame Alignment (FRS0.LFA or opt. FRS0.LMFA) is declared if:
2 out of 4framing bits or
2 out of 5 framing bits or
2 out of 6 framing bits in F4/12/72 format or
2 out of 6 framing bits per multiframe period in ESF format or
4consecutive multiframe pattern in ESF format are incorrect.
It depends on the selected multiframe format and optionally on bit FMR2.SSP which
framing bits are observed:
F4:FT bits →FRS0.LFA
F12, F72:SSP =0: FT bits →FRS0.LFA: FS bits →FRS0.LFA
PEB 2255
FALC-LH V1.3
Functional Description T1/J1
Data Sheet 1382000-07
and FRS0.LMFA SSP =1:FT →FRS0.LFA
FS →FRS0.LMFA
ESF:ESF framing bits →FRS0.LFA
The resynchronization procedure may be controlled by either one of the following
procedure:
• Automatically (FMR4.AUTO =1). Additionally, it may be triggered by the user by
setting/resetting one of the bits FMR0.FRS (Force Resynchronization) or FMR0.EXLS
(External Loss of Frame).
•User controlled, exclusively, via above control bits in the non-auto-mode
(FMR4.AUTO =0).
FT and FS bit conditions, i.e. pulse frame alignment and multiframe alignment can be
handled separately if programmed via bit FMR2.SSP. Thus, a multiframe re-
synchronization can be automatically initiated after detecting 2 errors out of 4/5/6
consecutive multiframing bits without influencing the state of the terminal framing.
In the synchronous state, the setting of FMR0.FRS or FMR0.EXLS resets the
synchronizer and initiates a new frame search. The synchronous state is reached if there
is only one definite framing candidate. In the case of repeated apparent simulated
candidates, the synchronizer remains in the asynchronous state.
In asynchronous state, the function of FMR0.EXLS is the same as above. Setting bit
FMR0.FRS induces the synchronizer to lock onto the next available framing candidate if
there is one. Otherwise, a new frame search is started. This is useful in case the framing
pattern that defines the pulseframe position is imitated periodically by a pattern in one of
the speech/data channels.
The control bit FMR0.EXLS should be used first because it starts the synchronizer to
search for a definite framing candidate.
To observe actions of the synchronizer, the Frame Search Restart Flag FRS0.FSRF is
implemented. It toggles at the start of a new frame search if no candidate has been found
at previous attempt.
When resynchronization is initiated, the following values apply for the time required to
achieve the synchronous state in case there is one definite framing candidate within the
data stream:
•
Table 32 Resynchronization Timing (T1/J1)
Frame Mode Average Maximum Units
F4
F12
ESF
F72
1.0
3.5
3.4
13.0
1.5
4.5
6.125
17.75
ms
ms
ms
ms
PEB 2255
FALC-LH V1.3
Functional Description T1/J1
Data Sheet 1392000-07
Figure 51 Influences on Synchronization Status (T1/J1)
ITD03574
Auto-Mode
Definite Candidate
Synchronous
Asynchronous
EXLS
FRS
DON
DOFF
Synchronous
Asynchronous
Non-Auto-Mode
Definite Candidate
EXLS, FRS
DON
DOFF
EXLS, FRS
Synchronous
Multiple Candidates
Asynchronous
Multiple Candidates
Synchronous
Asynchronous
EXLS, FRS
FRS
DON
DOFF
EXLS
FRS
1)
EXLS, FRS
FRS
DON
DOFF
EXLS
FRS
1)
: Depends on the Disturbance
D One Disturbance
:
PEB 2255
FALC-LH V1.3
Functional Description T1/J1
Data Sheet 140 2000-07
Figure 51 gives an overview of influences on synchronization status for the case of
different external actions. Activation of auto-mode and non-auto mode is performed via
bit FMR4.AUTO. Generally, for initiating resynchronization it is recommended to use bit:
FMR0.EXLS first. In case where the synchronizer remains in the asynchronous state, bit
FMR0.FRS may be used to enforce it to lock onto the next framing candidate, although
it might be a simulated one.
5.4.3 4-Frame Multiframe (F4 Format, T1/J1)
The allocation of the FT bits (bit 1 of frames 1 and 3) for frame alignment signal is shown
in Table 33.
Remote alarm (yellow alarm) is indicated by setting bit 2 to ‘0’ in each time slot.
•
5.4.3.1 Synchronization Procedure
For multiframe synchronization, the terminal framing bits (FT bits) are observed. The
synchronous state is reached if at least one terminal framing candidate is definitely
found, or the synchronizer is forced to lock onto the next available candidate
(FMR0.FRS).
5.4.4 12-Frame Multiframe (D4 or SF Format, T1/J1)
Normally, this kind of multiframe structure only makes sense when using the
CAS Robbed Bit Signaling. The multiframe alignment signal is located at the FS-bit
position of every other frame (refer to Table 34).
There are two possibilities of remote alarm (yellow alarm) indication:
•Bit2=0 in each time slot of a frame, selected with bit FMR0.SRAF =0
• The last bit of the multiframe alignment signal (bit 1 of frame 12) changes from ‘0’ to
‘1’, selected with bit FMR0.SRAF =1.
Table 33 4-Frame Multiframe Structure (T1/J1)
Frame Number FTFS
1
2
3
4
1
–
0
–
Service bit
Service bit
PEB 2255
FALC-LH V1.3
Functional Description T1/J1
Data Sheet 141 2000-07
•
5.4.4.1 Synchronization Procedure
In the synchronous state terminal framing (FT bits) and multiframing (FS bits) are
observed, independently. Further reaction on framing errors depends on the selected
synchronization/resynchronization procedure (via bit FMR2.SSP):
• FMR2.SSP =‘0’: terminal frame and multiframe synchronization are combined.
Two errors within 4/5/6 framing bits (via bits FMR4.SSC1/0) of one of the above leads
to the asynchronous state for terminal framing and multiframing. Additionally to the bit
FRS0.LFA, loss of multiframe alignment is reported via bit FRS0.LMFA.
The resynchronization procedure starts with synchronizing upon the terminal framing.
If the pulse framing has been regained, the search for multiframe alignment is
initiated. Multiframe synchronization has been regained after two consecutive correct
multiframe patterns have been received.
• FMR2.SSP =‘1’: terminal frame and multiframe synchronization are separated
Two errors within 4/5/6 terminal framing bits lead to the same reaction as described
above for the “combined” mode.
Two errors within 4/5/6 multiframing bits lead to the asynchronous state only for the
multiframing. Loss of multiframe alignment is reported via bit FRS0.LMFA. The state
of terminal framing is not influenced.
Now, the resynchronization procedure includes only the search for multiframe
alignment. Multiframe synchronization has been regained after two consecutive
correct multiframe patterns have been received.
Table 34 12-Frame Multiframe Structure (T1/J1)
Frame Number FTFSSignaling Channel
Designation
1
2
3
4
5
6
7
8
9
10
11
12
1
–
0
–
1
–
0
–
1
–
0
–
–
0
–
0
–
1
–
1
–
1
–
0/RA1)
1) This bit can be used for remote alarm indication, if FMR0.SRAF =1 is set. In this case, this FS bit is not used
to regain synchronization.
A
B
PEB 2255
FALC-LH V1.3
Functional Description T1/J1
Data Sheet 142 2000-07
5.4.5 Extended Superframe (F24 or ESF Format, T1/J1)
The use of the first bit of each frame for the multiframe alignment word, the data link bits,
and the CRC bits is shown in Table 35 on page 142.
•
5.4.5.1 Synchronization Procedures
For multiframe synchronization the FAS bits are observed. Synchronous state is reached
if at least one framing candidate is definitely found, or the synchronizer is forced to lock
onto the next available candidate (FMR0.FRS).
In the synchronous state the framing bits (FAS bits) are observed. The following
conditions selected by FMR4.SSC1/0 lead to the asynchronous state:
• two errors within 4/5 framing bits
Table 35 Extended Superframe Structure (F24, ESF;T1/J1)
Multiframe
Frame Number F Bits Signaling
Channel
Designation
Multiframe
Bit Number Assignments
FAS DL CRC
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
0
193
386
579
772
965
1158
1351
1544
1737
1930
2123
2316
2509
2702
2895
3088
3231
3474
3667
3860
4053
4246
4439
–
–
–
0
–
–
–
0
–
–
–
1
–
–
–
0
–
–
–
1
–
–
–
1
m
–
m
–
m
–
m
–
m
–
m
–
m
–
m
–
m
–
m
–
m
–
m
–
–
e1
–
–
–
e2
–
–
–
e3
–
–
–
e4
–
–
–
e5
–
–
–
e6
–
–
A
B
C
D
Inflqeon
PEB 2255
FALC-LH V1.3
Functional Description T1/J1
Data Sheet 143 2000-07
• two or more erroneous framing bits within one ESF multiframe
•4incorrect (1 out of 6) consecutive multiframes independent of CRC6 errors.
There are four multiframe synchronization modes selectable via FMR2.MCSP and
FMR2.SSP.
• FMR2.MCSP/SSP =00
In the synchronous state, the setting of FMR0.FRS or FMR0.EXLS resets the
synchronizer and initiates a new frame search. The synchronous state is reached
again, if there is only one definite framing candidate. In the case of repeated apparent
simulated candidates, the synchronizer remains in the asynchronous state.
In asynchronous state, setting bit FMR0.FRS induces the synchronizer to lock onto
the next available framing candidate if there is one. At the same time the internal
framing pattern memory is cleared and other possible framing candidates are lost.
• FMR2.MCSP/SSP =01
Synchronization is achieved when 3 consecutive multiframe pattern are correctly
found independent of the occurrence of CRC6 errors. If only one or two consecutive
multiframe pattern were detected the FALC®-LH stays in the asynchronous state,
searching for a possible additionally available framing pattern. This procedure is
repeated until the framer has found three consecutive multiframe pattern in a row.
• FMR2.MCSP/SSP =10
This mode has been added in order to be able to choose multiple framing pattern
candidates step by step. I.e. if in synchronous state the CRC error counter indicates
that the synchronization might have been based on an alias framing pattern, setting
of FMR0.FRS leads to synchronization on the next candidate available. However, only
the previously assumed candidate is discarded in the internal framing pattern
memory. The latter procedure can be repeated until the framer has locked on the right
pattern (no extensive CRC errors).
The synchronizer is completely reset and initiates a new frame search, if there is no
multiframing found. In this case bit FSR0.FSRF toggles.
• FMR2.MCSP/SSP =11
Synchronization including automatic CRC6 checking
Synchronization is achieved when framing pattern are correctly found and the CRC6
checksum is received without an error. If the CRC6 check failed on the assumed
framing pattern the FALC®-LH stays in the asynchronous state, searching for a
possible available framing pattern. This procedure is repeated until the framer has
locked on the right pattern. This automatic synchronization mode has been added in
order to reduce the microprocessor load.
Inflqeon
PEB 2255
FALC-LH V1.3
Functional Description T1/J1
Data Sheet 144 2000-07
5.4.5.2 Remote Alarm (yellow alarm) Generation/Detection
Remote alarm (yellow alarm) is indicated by the periodical pattern ‘1111 1111 0000 0000
…’ in the DL bits. Remote alarm is declared even in the presence of BER 1/1000. The
alarm is reset when the “yellow alarm pattern“ no longer is detected.
Depending on bit RC1.SJR the FALC®-LH generates and detect the Remote Alarm
accordingtoJTG.704. In the DL-bit position 16 continuos “1“ are transmitted if
FMR0.SRAF=0andFMR4.XRA=1.
Alternatively remote alarm can be indicated by setting bit 2 of every time slot after
selecting FMR0.SRAF =1.
5.4.5.3 CRC6 Generation and Checking (T1/J1)
Generation and checking of CRC6 bits transmitted/received in the e1-e6 bit positions is
done according to ITU-T G.706. The CRC6 checking algorithm is enabled via bit
FMR1.CRC. If not enabled, all check bits in the transmit direction are set. In the
synchronous state received CRC6 errors are accumulated in a 16 bit error counter and
are additionally indicated by an interrupt status.
• CRC6 Inversion
If enabled by bit RC0.CRCI, all CRC bits of one outgoing extended multiframe are
automatically inverted in case a CRC error is flagged for the previous received
multiframe. Setting the bit RC0.XCRCI inverts the CRC bits before transmitted to the
distant end. This function is logically ored with RC0.CRCI.
• CRC6 Generation/Checking According to JT G. 706
Setting of RC1.SJR the FALC®-LH generates and check the CRC6 bits according to
JT G. 706. The CRC6 checksum is calculated including the FS/DL bits. In synchronous
state CRC6 errors increment an error counter.
5.4.6 72-Frame Multiframe (SLC96 Format, T1/J1)
The 72-multiframe is an alternate use of the FS-bit pattern and is used for carrying data
link information. This is done by stealing some of redundant multiframing bits after the
transmission of the 12-bit framing header (refer to Figure 36 on page 146). The position
of A and B signaling channels (robbed bit signaling) is defined by zero-to-one and one-
to-zero transitions of the FS bits and is continued when the FS bits are replaced by the
data link bits.
Remote Alarm (YellowAlarm)isindicatedbysettingbit2tozeroineachtimeslot.An
additional use of the D bits for alarm indication is user defined and must be done
externally.
Inflqeon
PEB 2255
FALC-LH V1.3
Functional Description T1/J1
Data Sheet 145 2000-07
5.4.6.1 Synchronization Procedure
In the synchronous state terminal framing (FT bits) and multiframing (FS bits of the
framing header) are observed independently. Further reaction on framing errors
depends on the selected synchronization/resynchronization procedure (via bit
FMR2.SSP):
• FMR2.SSP =‘0’: terminal frame and multiframe synchronization are combined
Two errors within 4/5/6 framing bits (via bits FMR4.SSC1/0) of one of the above lead
to the asynchronous state for terminal framing and multiframing. Additionally to the
resynchronization procedure starts with synchronizing upon the terminal framing. If
the pulse framing has been regained, the search for multiframe alignment is initiated.
Multiframe synchronization has been regained after two consecutive correct
multiframe patterns have been received.
• FMR2.SSP =‘1’: terminal frame and multiframe synchronization are separated
Two errors within 4/5/6 terminal framing bits lead to the same reaction as described
above for the “combined” mode.
Two errors within 4/5/6 multiframing bits lead to the asynchronous state only for the
multiframing. Loss of multiframe alignment is reported via bit FRS0.LMFA. The state
of terminal framing is not influenced.
Now, the resynchronization procedure includes only the search for multiframe
alignment. Multiframe synchronization has been regained after two consecutive
correct multiframe patterns have been received.
PEB 2255
FALC-LH V1.3
Functional Description T1/J1
Data Sheet 146 2000-07
•
Table 36 72-Frame Multiframe Structure (T1/J1)
Frame Number FTFSSignaling Channel
Designation
1
2
3
4
5
6
7
8
9
10
11
12
1
–
0
–
1
–
0
–
1
–
0
–
–
0
–
0
–
0
–
1
–
1
–
1
B
A
13
14
15
16
17
18
19
20
21
22
23
24
1
–
0
–
1
–
0
–
1
–
0
–
–
0
–
0
–
0
–
1
–
1
–
1
B
A
25
26
27
28
·
66
67
68
69
70
71
72
1
–
·
·
1
–
0
–
1
–
0
–
–
D
·
·
–
D
–
D
–
D
–
D
B
A
PEB 2255
FALC-LH V1.3
Functional Description T1/J1
Data Sheet 147 2000-07
5.4.7 Summary of Frame Conditions (T1/J1)
1) In F12 (D4) format bit 1 in frame 12 is excluded from the synchronization process, if FMR0.SRAF =1.
Table 37 Summary Frame Recover/Out of Frame Conditions (T1/J1)
Format Frame Recover Condition Out of Frame Condition
F4only one FT pattern found, optional
forcingonnextavailableFTframing
candidate
2 out of 4/5/6 incorrect FT bits
F12 (D4)
and
F72 (SLC96)
FMR2.SSP =0:
Combined FT +FS framing search:
First searching for FT pattern with
optional forcing on next available
framing candidates and then for 2
consecutive correct FS pattern1).
FMR2.SSP =1:
Separated FT +FS pattern search:
Loss of FT framing at first starts
searching for FT and then for 2
consecutive correct FS pattern1).
Loss of FS framing starts only the
FS pattern1).search.
FMR2.SSP=0:2outof4/5/6
incorrect FT or FS bits
FMR2.SSP=1:
2 out of 4/5/6 incorrect FT bits
search FT and FS framing bits,
2 out of 4/5/6 incorrect FS bits
search only the FS framing.
F24(ESF) FMR2.MCSP/SSP =00:
only one FAS pattern found,
optional forcing on next available
FAS framing candidate with
discarding of all remaining framing
candidates.
FMR2.MCSP/SSP =01:
3 consecutive correct multiframing
found independent of CRC6 errors.
FMR2.MCSP/SSP =10:
choosing multiple framing pattern
step by step, optional forcing on
next available FAS framing pattern
with discarding only of the previous
assumed framing candidate.
FMR2.MCSP/SSP =11:
FAS framing correctly found and
CRC6 check error free.
2 out of 4/5 incorrect FAS bits
or
2 out of 6 incorrect FAS bits per
multiframe
or
4consecutive incorrect
multiframing pattern
PEB 2255
FALC-LH V1.3
Functional Description T1/J1
Data Sheet 148 2000-07
5.5 Additional Functions (T1/J1)
5.5.1 Error Performance Monitoring and Alarm Handling
Alarm Indication Signal: Detection and recovery is flagged by bit FRS0.AIS and
ISR2.AIS. Transmission is enabled via bit FMR1.XAIS.
Loss of Signal: Detection and recovery is flagged by bit FRS0.LOS and ISR2.LOS.
Remote Alarm Indication: Detection and release is flagged by bit FRS0.RRA and
ISR2.RA/RAR. Transmission is enabled via bit FMR4.XRA.
Excessive Zeros: Detection is flagged by bit FRS1.EXZD.
Pulse Density Violation: Detection is flagged by bit FRS1.PDEN and ISR0.PDEN.
Transmit Line Shorted: Detection and release is flagged by bit FRS1.XLS and
ISR1.XLSC.
Transmit Ones Density: Detection and release is flagged by bit FRS1.XLO and
ISR1.XLSC.
•
Table 38 Summary of Alarm Detection and Release (T1/J1)
Alarm Detection Condition Clear Condition
Red Alarm
or
Loss of Signal
(LOS)
no transitions (logical zeros) in a
programmable time interval of 16
to 4096 consecutive pulse
periods
programmable receive input
signal threshold
programmable number of ones
(1-256) in a programmable time
interval of 16 to 4096
consecutive pulse periods. Aone
is a signal with a level above the
programmed threshold.
or optionally
the pulse density is fulfilled and
no more than 15 or 99
contiguous zeros during the
recovery interval are detected.
Blue Alarm
or
Alarm Indication
Signal (AIS)
FMR4.AIS3 =0:
less than 3 zeros in 12 frames or
24frames (ESF),
FMR4.AIS3 =1:
less than 4zeros in 12 frames or
less than 6 zeros in 24frames
(ESF)
active for at leastone multiframe.
FMR4.AIS3 =0:
more than 2 zeros in 12 or 24
frames (ESF),
FMR4.AIS3 =1:
more than 3 zeros in 12 frames
or more than 5 zeros in 24
frames (ESF)
PEB 2255
FALC-LH V1.3
Functional Description T1/J1
Data Sheet 149 2000-07
RRA detection operates in the presence of 10-3 bit error rate.
Yellow Alarm
or
Remote Alarm
(RRA)
RC1.RRAM =0:
bit 2 =0 in 255 consecutive time
slots or
FS bit =1offrame12inF12(D4)
format or
8x1,8x0 in the DL channel (ESF )
RC1.RRAM =1:
bit 2 =0ineverytimeslotper
frame or
FS bit =1offrame12inF12(D4)
format or
8x1,8x0 in the DL channel (ESF )
RC1.RRAM =0:
set conditions no longer
detected.
RC1.RRAM =1:
bit 2 =0 not detected in 3
consecutive frames or
FS bit not detected in 3
consecutive multiframes or
8x1,8x0 not detected for 3 times
inarow(ESF).
Excessive Zeros
(EXZD) more than 7 (B8ZS code) or
more than 15 (AMI code)
contiguous zeros
Latched Status: cleared on read
Pulse Density
Violation
(PDEN)
less than 23 ones received in a
floating time window of 192bits
or
more than 15 consecutive zeros
(see Chapter 5.5.9)
Transmit Line
Short
(XLS)
If XL1 and XL2 are shortened for
at least 32 pulses;pins XL1 and
XL2 are forced into a high
impedance state automatically, if
bit XPM2.DAXLT is reset.
After 32 consecutive pulse
periods the outputs XL1/2 are
activated again and the internal
transmit current limiter is
checked. If a short between XL1/
2 is still existing, the outputs XL1/
2 are switched into high
impedance state again. When
the short disappears pins XL1/2
are activated automatically.
Transmit Ones
Density
(XLO)
32 consecutive zeros in the
transmit data stream on XL1/2 Cleared with each transmitted
pulse
Table 38 Summary of Alarm Detection and Release (T1/J1) (cont’d)
Alarm Detection Condition Clear Condition
Inflqeon
PEB 2255
FALC-LH V1.3
Functional Description T1/J1
Data Sheet 150 2000-07
5.5.2 Auto Modes
• Automatic remote alarm (Yellow Alarm) access
If the receiver has lost its synchronization (FRS0.LFA) a remote alarm (yellow alarm)
can be sent to the distant end automatically, if enabled by bit FMR2.AXRA. In
synchronous state the remote alarm bit is removed.
• Automatic AIS to system interface
In asynchronous state the synchronizer enforces an AIS to the receive system
interface automatically. However, received data may be switched through
transparently if bit FMR2.DAIS is set.
• Automatic clock source switching
In Slave mode (LIM0.MAS =0) the DCO-R synchronizes to the recovered route clock.
In case of Loss of Signal LOS the DCO-R switches to Master mode automatically.
• Automatic freeze signaling:
Updating of the received signaling information is controlled by the freeze signaling
status. Optionally automatic freeze signaling can be disabled by setting bit SIC3.DAF.
5.5.3 Error Counter
The FALC®-LH offers five error counters where each of them has a length of 16 bit. They
record code violations, framing bit errors, CRC6 bit errors, errored blocks and PRBS bit
errors. Each of the error counters is buffered. Updating the buffer is done in two modes:
• one second accumulation
• on demand via handshake with writing to the DEC register
In the one second mode an internal one second timer updates these buffers and reset
the counter to accumulate the error events in the next one second period. The error
counter can not overflow. Error events occurring during reset are not lost.
5.5.4 Errored Second
The FALC®-LH supports the error performance monitoring by detecting the following
alarms or error events in the received data:
framing errors, CRC errors, code violations, loss of frame alignment, loss of signal, alarm
indication signal, receive and transmit slips.
With a programmable interrupt mask register IMR4all these alarms or error events can
generate an Errored Second Interrupt (ISR3.ES) if enabled.
5.5.5 Second Timer
Additionally a one second timer interrupt is generated internally to indicate that the
enabled alarm status bits or the error counters have to be checked. The timing is derived
from RCLK.
Inflqeon
PEB 2255
FALC-LH V1.3
Functional Description T1/J1
Data Sheet 151 2000-07
5.5.6 Clear Channel Capability
For support of common T1 applications, clear channels can be specified via the 3-byte
register bank CCB1 … CCB3. In this mode the contents of selected transmit time slots
are not overwritten by internally or externally sourced bit-robbing and zero code
suppression (B7 stuffing) information. Remote alarm signaling, however, overwrites
cleared channels.
5.5.7 In-Band Loop Generation and Detection
The FALC®-LH generates and detects a framed or unframed in-band loop-up/activate
(00001) and loop-down/deactivate (001) pattern according to ANSI T1. 403 with bit error
rates as high as 1/100. Framed or unframed in-band loop code is selected by
LCR1.FLLB. Replacing the in-band loop codes with transmit data is done by FMR5.XLD/
XLU.
The FALC®-LH also offers the ability generating and detecting of a flexible in-band loop
up - and down pattern (LCR1.LLBP =1). The loop up and loop down pattern is individual
programmable from 2 to 8bit in length (LCR1.LAC1/0 and LCR1.LDC1/0). Programming
of loop codes is done in registers LCR2 and LCR3.
Status and interrupt-status bits inform the user whether a loop-up or loop-down code was
detected.
5.5.8 Transparent Mode
The transparent modes are useful for loopbacks or for routing data unchanged through
the FALC®-LH.
In receive direction, transparency for ternary or dual/single rail unipolar data is achieved
if the receiver is in the synchronous state and FMR5.RTF has been selected. All bits in
F-bit position of the incoming multiframe are forwarded to RDO and inserted in the FS/
DL time slot or in the F-bit position. In asynchronous state the received data may be
transparently switched through if bit FMR2.DAIS is set. Setting of bit LOOP.RTM
disconnects control of the elastic buffer from the receiver. The elastic buffer is now in a
“free running” mode without any possibility to update the time slot assignment to a new
frame position in case of re-synchronization of the receiver. Together with FMR2.DAIS
this function may be used to realize undisturbed transparent reception.
Setting bit FMR4.TM switches the FALC®-LH in transmit transparent mode:
In transmit direction bit 8of the FS/DL time slot from the system highway (XDI) is inserted
in the F-bit position of the outgoing frame. For complete transparency the internal
signaling controller, IDLE code generation, AIS/RA alarm generation, single channel and
payload loop back has to be disabled and “Clear Channels” have to be defined via
registers CCB1…3.
Inflqeon
PEB 2255
FALC-LH V1.3
Functional Description T1/J1
Data Sheet 152 2000-07
5.5.9 Pulse Density Detection
The FALC®-LH examines the receive data stream on the pulse density requirement
which is defined by ANSI T1. 403. More than 15 consecutive zeros or less than 23 ones
in each and every time window of 193 data bits are detected. Violations of these rules
are indicated by setting the status bit FRS1.PDEN and the interrupt status bit
ISR0.PDEN. Generation of the interrupt status may be programmed either with the
detection or with any change of state of the pulse density alarm (GCR.SCI).
5.6 Test Functions (T1/J1)
5.6.1 Pseudo-Random Bit Sequence Generation and Monitor
The FALC®-LH has the ability to generate and monitor a 215-1 and 220-1 pseudo-random
bit sequences (PRBS). The generated PRBS pattern is transmitted optionally inverted or
not to the remote end via pins XL1/2 or XDOP/N. Generating and monitoring of PRBS
pattern is done according to ITU-T O. 151 and TR62411 with maximum 14consecutive
zero restriction.
The PRBS monitor senses the PRBS pattern in the incoming data stream.
Synchronization is done on the inverted and non inverted PRBS pattern. The current
synchronization status is reported in status and interrupt status registers. Enabled by bit
LCR1.EPRM each PRBS bit error increments an error counter (BEC). Synchronization
is reached within 400 ms with a probability of 99.9% and a BER of 1/10 (pattern defined
by ITU-T O.151).
H V i U %
PEB 2255
FALC-LH V1.3
Functional Description T1/J1
Data Sheet 153 2000-07
5.6.2 Remote Loop
In the remote loopback mode the clock and data recovered from the line inputs RL1/2 or
RDIP/RDIN are routed back to the line outputs XL1/2 or XDOP/XDON via the analog or
digital transmitter. As in normal mode they are also processed by the synchronizer and
then sent to the system interface.The remote loopback mode is selected by setting the
respective control bits LIM1.RL+JATT. Received data may be looped with or without the
transmit jitter attenuator (FIFO).
Figure 52 Remote Loop (T1/J1)
ITS09750
RDO
XDI
RCLK
RL1
RL2
XL1
XL2
FIFO
XCLK RCLK
DCO1/2
Framer
Rec.
Framer
Trans. Store
Elast.
Elast.
Store
Recovery
Data
Clock +
MUX
MUX
DCO-R/DCO-X
H A
PEB 2255
FALC-LH V1.3
Functional Description T1/J1
Data Sheet 1542000-07
5.6.3 Payload Loop Back
To perform an effective circuit test a line loop is implemented.
If the payload loopback (FMR2.PLB) is activated the received 192 bits of payload data
is looped back to the transmit direction. The framing bits, CRC6 and DL bits are not
looped, if FMR4.TM =0. They are originated by the FALC®-LH transmitter. If FMR4.TM=
1 the received FS/DL bit is sent transparently back to the line interface. Following pins
are ignored: XDI, XSIG, SCLKX,SYPXand XMFS. All the received data is processed
normally. With bit FMR2.SAIS an AIS can be sent to the system interface via pin RDO.
Figure 53 Payload Loop (T1/J1)
Note: Returned data is not multiframe synchronous.
ITS09748
Clock +
Data Rec.
Framer Elast.
Store
Trans.
Framer
RDO
XDI
RCLK
RL1
RL2
XL1
XL2
Recovery
SCLKX
SCLKR
MUX
AIS-GEN
Elast.
Store
O" Inflqeon
PEB 2255
FALC-LH V1.3
Functional Description T1/J1
Data Sheet 155 2000-07
5.6.4 Local Loop
The local loopback mode, selected by LIM0.LL =1, disconnects the receive lines RL1/2
or RDIP/RDIN from the receiver. Instead of the signals coming from the line the data
provided by system interface are routed through the analog receiver back to the system
interface. The bit stream is transmitted on the line undisturbedly. However, an AIS to the
distant end can be enabled by setting FMR1.XAIS without influencing the data looped
back to the system interface.
Note that enabling the local loop usually invokes an out of frame error until the receiver
can resynchronize to the new framing. The serial codes for transmitter and receiver have
to be identical.
In digital interface NRZmode, a clock must be provided on pin RCLKI(=RL2) to enable
switching into local loop mode.
Figure 54 Local Loop (T1/J1)
ITS09749
RDO
XDI
RCLK
AIS-GEN
RL1
RL2
XL1
XL2
Framer
Rec.
Framer
Trans.
Store
Elast.
Recovery
Data
Clock +
MUX Elast.
Store
H T T F: fl k
PEB 2255
FALC-LH V1.3
Functional Description T1/J1
Data Sheet 156 2000-07
5.6.5 Single Channel Loop Back (loopback of time slots)
The channel loopback is selected via LOOP.ECLB =1.
Each of the 24time slots may be selected for loopback from the system PCM input (XDI)
to the system PCM output (RDO). This loopback is programmed for one time slot at a
time selected by register LOOP. During loopback, an idle channel code programmed in
register IDLE is transmitted to the remote end in the corresponding PCM route time slot.
For the time slot test, sending sequences of test patterns like a 1 kHz check signal
should be avoided. Otherwise, an increased occurrence of slips in the tested time slot
disturbs testing. These slips do not influence the other time slots and the function of the
receive memory. The usage of a quasi-static test pattern is recommended.
Figure 55 Channel Loopback (T1/J1)
ITS09747
RDO
XDI
RCLK
RL1
RL2
XL1
XL2
IDLE Code
Framer
Trans.
Framer
Rec. Store
Elast.
Store
Elast.
MUX
MUX
Recovery
Data
Clock +
Inflqeon
PEB 2255
FALC-LH V1.3
Functional Description T1/J1
Data Sheet 157 2000-07
5.6.6 Alarm Simulation (T1/J1)
Alarm simulation does not affect the normal operation of the device, i.e. all time slots
remain available for transmission. However, possible “real“ alarm conditions are not
reported to the processor or to the remote end when the device is in the alarm simulation
mode.
The alarm simulation is initiated by setting the bit FMR0.SIM. The following alarms are
simulated:
• Loss of Signal (red alarm)
• Alarm Indication Signal AIS (blue alarm)
• Loss of pulse frame
• Remote alarm (yellow alarm) indication
• Receive and transmit slip indication
• Framing error counter
• Code violation counter
• CRC6 error counter
Some of the above indications are only simulated if the FALC®-LH is configured in a
mode where the alarm is applicable.
The alarm simulation is controlled by the value of the Alarm Simulation Counter:
FRS2.ESC which is incremented by setting bit: FMR0.SIM.
Clearing of alarm indications:
• Automatically for LOS, remote (yellow) alarm, AIS, and loss of synchronization or
•User controlled for slips by reading the corresponding interrupt status register ISR3 or
• Error counter have been cleared by reading the corresponding counter registers.
Clearing is only possible at defined counter steps of FRS2.ESC. For complete simulation
(FRS2.ESC =0), eight simulation steps are necessary.
PEB 2255
FALC-LH V1.3
Operational Description E1
Data Sheet 1582000-07
6 Operational Description E1
6.1 Operational Overview E1
The FALC®-LH in principle can be operated in two modes, which are either E1 mode or
T1/J1 mode.
The device is programmable via a microprocessor interface which enables byte or word
access to all control and status registers.
After reset the FALC®-LH must be initialized first. General guidelines for initialization are
described in sections “Device Initialization in E1 Mode” on page 158 and “Device
Initialization in T1/J1 Mode” on page 163
The status registers are read-only and are updated continuously. Normally, the
processor reads the status registers periodically to analyze the alarm status and
signaling data.
6.2 Device Reset E1
The FALC®-LH is forced to the reset state if a high signal is input on pin RES for a
minimum period of 20 µs. During reset the FALC®-LH needs an active clocks on pins
SCLKR, SCLKX,XTAL1 and XTAL3. All output stages except of CLK16M, CLK12M,
CLK8M, CLKX,FSC
,XCLKand RCLKare in a high impedance state, all internal flip-
flops are reset and most of the control registers are initialized with default values.
SIgnals (for example RL1/2 receive line) should not be applied before the device is
powered up.
After reset the device is initialized to E1 operation.
6.3 Device Initialization in E1 Mode
After reset, the FALC®-LH is initialized for doubleframe format with register values listed
in the following table.
Table 39 Initial Values after Reset (E1)
Register Reset Value Meaning
FMR0 00HNRZcoding, no alarm simulation;XL1/2 stay tristate
FMR1
FMR2 00H
00H
PCM 30 – doubleframe format, 4.096 Mbit/s system data
rate, no AIS transmission to remote end, payload loop off.
SIC1
SIC2
SIC3
00H
00H
00H
8.192-MHz system clocking rate, receive buffer 2 frames,
transmit buffer bypass, automatic freeze signaling
eon
PEB 2255
FALC-LH V1.3
Operational Description E1
Data Sheet 1592000-07
E1 Initialization
For a correct start up of the Primary Access Interface a set of parameters specific to the
system and hardware environment must be programmed after reset goes inactive. Both
the basic and the operational parameters must be programmed before the activation
procedure of the PCM line starts. Such procedures are specified in ITU-T and ETSI
recommendations (e.g. fault conditions and consequent actions). Setting optional
parameters primarily makes sense when basic operation via the PCM line is guaranteed.
Table 40 gives an overview of the most important parameters in terms of signals and
control bits which are to be programmed in one of the above steps. The sequence is
recommended but not mandatory. Accordingly, parameters for the basic and operational
LOOP
XSW
XSP
TSWM
00H
40H
00H
00H
Channel loop back and single frame mode are disabled.
All bits of the transmitted service word are cleared (bit 2
excluded). Spare bit values are cleared.
No transparent mode active.
XC0
XC1 00H
9CH
The transmit clock offset is cleared.
Thetransmittimeslotoffsetiscleared.
RC0
RC1
00H
9CH
The receive clock slot offset is cleared;1st channel phase
is active on PCM highway.
The receive time slot offset is cleared.
IDLE
ICB 1 … 400H
00H
Idle channel code is cleared.
Normal operation (no ‘Idle Channel’ selected).
LIM0
LIM1
PCD
PCR
00H
00H
00H
00H
Slave Mode, Local Loop off, CLKX=2.048 MHz active high,
short haul mode, no LOS indication on RCLK
Analog interface selected, Remote Loop off
Pulse Count for LOS Detection cleared
Pulse Count for LOS Recovery cleared
XPM2...0 7BH,03H,00HTransmit Pulse Mask
IMR0...4FFH,FFH,FFH,
FFH,FFH,
All interrupts are disabled
RTR1...4
TTR1...400H,00H,00H,
00H,
No time slots selected
MODE
PRE 00H
00H
Signaling controller disabled
Preamble cleared
RAH1/2
RAL1/2 FDH,FF
H
FFH,FF
H
Compare register for receive address cleared
Table 39 Initial Values after Reset (E1) (cont’d)
Register Reset Value Meaning
PEB 2255
FALC-LH V1.3
Operational Description E1
Data Sheet 160 2000-07
set up, for example, may be programmed simultaneously. The bit FMR1.PMOD should
always be kept low (otherwise T1/J1 mode is selected).
Features like channel loop back, idle channel activation, extensions for signaling
support, alarm simulation, … may be activated later. Transmission of alarms (e.g. AIS,
remote alarm) and control of synchronization in connection with consequent actions to
remote end and internal system depend on the activation procedure selected.
Note: Read access to unused register addresses: value should be ignored.
Write access to unused register addresses: should be avoided, or set to ‘00’hex.
All control registers (except XFIFO, XS1-16, CMDR, DEC) are of type: Read/
Write.
Specific E1 Register Settings
The following is a suggestion for a basic initialization to meet most of the E1
requirements. Depending on different applications and requirement any other
initialization can be used.
Table 40 Initialization Parameters (E1)
Basic Set Up E1
Mode Select
Specification of Line interface and clock
generation
Line interface coding
Loss of Signal detection/recovery
conditions
System interface mode
Transmit offset counters
Receive offset counters
AIS to system interface
FMR1.PMOD =0
LIM0, LIM1, XPM2...0
FMR0.XC1/0, FMR0.RC1/0
PCD, PCR, LIM1, LIM2
FMR1.IMOD
XC0.XCO, XC1.XTO
RC0.RCO, RC1.RTO
FMR2.DAIS/SAIS
Operational Set Up E1
Select framing
Framing additions
Synchronization mode
Signaling mode
FMR2.RFS1/0, FMR1.XFS
RC1.ASY4, RC1.SWD
FMR1.AFR, FMR2.ALMF
XSP, XSW, FMR1.ENSA, XSA8...4,
TSWM, MODE, CCR1, CCR3, PRE,
RAH1/2, RAL1/2
PEB 2255
FALC-LH V1.3
Operational Description E1
Data Sheet 161 2000-07
•
E1 Framer Initialization
The selection of the following modes during the basic initialization supports the ETSI
requirements for E-Bit Access, Remote Alarm and Synchronization (please refer also to
FALC®-LH driver code of the Reference System EASY2255-R1 and application notes)
and helps to reduce the software load. They are very helpful especially to meet
requirements as specified in ETS300 011.
Table 41 Line Interface Initialization (E1)
Register Function
FMR0.XC0
FMR0.RC0
LIM1.DRS
FMR3.CMI
The FALC®-LH supports requirements for the analog line
interface as well as the digital line interface. For the analog line
interface the codes AMI and HDB3 are supported. For the digital
line interface modes (dual or single rail) the FALC®-LH supports
AMI, HDB3, CMI (with and without HDB3 precoding) and NRZ.
PCD =0AHLOS detection after 176 consecutive “zeros” (fulfills G.775 spec).
PCR =15HLOS recovery after 22 “ones” in the PCD interval. (fulfills G.775).
LIM1.RIL2-0 =03HLOS threshold (fulfills G.775;see DC characteristics)
Table 42 Framer Initialization (E1)
Register Function
XSP.AXS=1 ETS300 011 C4.x for instance requires the sending of E-Bits in
TS0 if CRC4errors have been detected. By programming
XSP.AXS=1 the submultiframe status is inserted automatically in
the next outgoing multiframe.
XSP.EBP =1 If the FALC®-LH has reached asynchronous state the E-Bit is
cleared if XSP.EBP =0 and set if XSP.EBP =1. ETS300 011
requires that the E-Bit is set in asynchronous state.
FMR2.AXRA =1 The transmission of RAI via the line interface is done automatically
by the FALC®-LH in case of Loss of Frame Alignment
(FRS0.LFA =1). If basic framing has been reinstalled RAI is
automatically reset.
FMR2.FRS1/2 =10
FMR1.AFR =1In this mode a search of double framing is automatically reinitiated
if no CRC4multiframing could be found within 8ms. Together with
FMR2.AXRA =1 this mode is essential to meet ETS300 011 and
reduces the processor load heavily.
PEB 2255
FALC-LH V1.3
Operational Description E1
Data Sheet 162 2000-07
•
Note: After the device initialization a software reset should be executed by setting
of bits CMDR.XRES/RRES.
FMR2.ALMF =1 The receiver initiates a new basic- and multiframing research if
more than 914CRC4errors have been detected in one second.
FMR2.FRS1/0 =11 In the interworking mode the FALC®-LH stays in double framing
format if no multiframe pattern could be found in a time interval of
400 ms. This is also indicated by a 400 ms interrupt. Additionally
the extended interworking mode (FMR3.EXTIW =1) will activate
after 400 ms the remote alarm (FMR2.AXRA =1) and will still
search the multiframing withoutswitching completely to the double
framing. A complete resynchronization in an 8ms interval is not
initiated.
Table 43 HDLC Controller Initialization (E1)
Register Function
MODE =88
HHDLC Receiver active, no address comparison.
CCR1 =18HEnable Signaling via TS0...31, Interframe Time Fill with
continuous FLAGs.
IMR0.RME =0
IMR0.RPF =0
IMR1.XPR =0
Unmask interrupts for HDLC processor requests.
RTR3.TS16 =1
TTR3.TS16 =1Select TS16 for HDLC data reception and transmission.
Table 44 CAS-CC Initialization (E1)
Register Function
XSP.CASEN =1 Send CAS info stored in the XS1...16 registers.
IMR0.CASC =0 Enable interrupt with any data change in the RS1...16 registers.
Table 42 Framer Initialization (E1) (cont’d)
Register Function
In neon me. ,
PEB 2255
FALC-LH V1.3
Operational Description T1/J1
Data Sheet 163 2000-07
7 Operational Description T1/J1
7.1 Operational Overview T1/J1
The FALC®-LH in principle can be operated in two modes, which are either E1 mode or
T1/J1 mode. There are only minor differences between T1 and J1 mode which are
described in Table 48.
The device is programmable via a microprocessor interface which enables byte or word
access to all control and status registers.
After reset the FALC®-LH must be initialized first. General guidelines for initialization are
described in sections “Device Initialization in E1 Mode” on page 158 and “Device
Initialization in T1/J1 Mode” on page 163
The status registers are read-only and are updated continuously. Normally, the
processor reads the status registers periodically to analyze the alarm status and
signaling data.
7.2 Device Reset T1/J1
The FALC®-LH is forced to the reset state if a high signal is input on pin RES for a
minimum period of 20 µs. During reset the FALC®-LH needs an active clocks on pins
SCLKR, SCLKX,XTAL1 and XTAL3. All output stages except of CLK16M, CLK12M,
CLK8M, CLKX,FSC
,XCLKand RCLKare in a high impedance state, all internal flip-
flops are reset and most of the control registers are initialized with default values.
SIgnals (for example RL1/2 receive line) should not be applied before the device is
powered up.
After reset the device is initialized to E1 operation. Switching to T1/J1 mode is done by
software (FMR1.PMOD =1).
7.3 Device Initialization in T1/J1 Mode
After reset, the FALC®-LH is initialized for E1 doubleframe format. To initialize T1/J1
mode, bit FMR1.PMOD has to be set high. After the internal clocking is settled to T1/
J1mode (takes up to 20 µs), the following register values are initialized:
PEB 2255
FALC-LH V1.3
Operational Description T1/J1
Data Sheet 1642000-07
.
Table 45 Initial Values after reset and FMR1.PMOD =1(T1/J1)
Register Initiated
Value Meaning
FMR0 00HNRZcoding, no alarm simulation;XL1/2 stay tristate
FMR1
FMR2 10H
00H
PCM 24mode, 4.096 Mbit/s system data rate, no AIS
transmission to remote end or system interface, payload
loop off, channel translation mode 0
SIC1
SIC2,
SIC3
00H
00H
00H
8.192-MHz system clocking rate, Receive Buffer 2
Frames, Transmit Buffer bypass, Automatic freeze
signaling, data is active in the first channel phase
LOOP 00HChannel loop back is disabled.
FMR4
FMR5 00H
00H
Remote alarm indication towards remote end disabled.
LFA condition: 2 out of 4framing bits, Non-auto-
synchronization mode, F12 multiframing, internal bit-
robbing access disabled
XC0
XC1 00H
9CH
The transmit clock slot offset is cleared.
The transmit time slot offset is cleared.
RC0
RC1 00H
9CH
The receive clock slot offset is cleared.
The receive time slot offset is cleared.
IDLE
ICB 1 … 300H
00H
Idle channel code is cleared.
Normal operation (no “Idle Channels” selected).
CCB 1 …300
HNormal operation (no clear channel operation).
LIM0
LIM1
PCD
PCR
00H
00H
00H
00H
Slave Mode, Local Loop off, CLKX=2.048 MHz active
high,
short haul mode, no LOS indication on RCLK
Analog interface selected, Remote Loop off
Pulse Count for LOS Detection cleared
Pulse Count for LOS Recovery cleared
XPM2...0 7BH,03H,00HTransmit Pulse Mask
IMR0-4FFHAll interrupts are disabled
RTR1-4
TTR1-400HNo time slots selected
MODE 00HSignaling controller disabled
RAH1/2
RAL1/2 FDH,FFH
FFH,FFH
Compare register for receive address cleared
PEB 2255
FALC-LH V1.3
Operational Description T1/J1
Data Sheet 165 2000-07
T1/J1 Initialization
For a correct start up of the Primary Access Interface a set of parameters specific to the
system and hardware environment must be programmed after pin RES goes inactive
(low). Both the basic and the operational parameters must be programmed before the
activation procedure of the PCM line starts. Such procedures are specified in ITU-T
recommendations (e.g. fault conditions and consequent actions). Setting optional
parameters primarily makes sense when basic operation via the PCM line is guaranteed.
Table 46 gives an overview of the most important parameters in terms of signals and
control bits which are to be programmed in one of the above steps. The sequence is
recommended but not mandatory. Accordingly, parameters for the basic and operational
set up, for example, may be programmed simultaneously. The bit FMR1.PMOD must
always be kept high (otherwise E1 mode is selected).
Features like channel loop back, idle channel activation, clear channel activation,
extensions for signaling support, alarm simulation, … may be activated later.
Transmission of alarms (e.g. AIS, remote alarm) and control of synchronization in
connection with consequent actions to remote end and internal system depend on the
activation procedure selected.
Table 46 Initialization Parameters (T1/J1)
Basic Set Up T1/J1
Mode Select
Specification of Line interface and clock
generation
Line interface coding
Loss of Signal detection/recovery
conditions
System interface mode
Channel translation mode
Transmit offset counters
Receive offset counters
AIS to system interface
FMR1.PMOD =1
LIM0, LIM1, XPM2-0
FMR0.XC1/0, FMR0.RC1/0
PCD, PCR, LIM1, LIM2
FMR1.IMOD
FMR1.CTM
XC0.XCO, XC1.XTO
RC0.RCO, RC1.RTO
FMR2.DAIS/SAIS
Operational Set Up T1/J1
Select framing
Framing additions
Synchronization mode
Signaling mode
FMR4.FM1/0
FMR1.CRC, FMR0.SRAF
FMR4.AUTO, FMR4.SSC1/0,
FMR2.MCSP, FMR2.SSP
FMR1.SIGM, FMR5.EIBR, XC0.BRM,
MODE, CCR1, CCR3, RAH1/2, RAL1/2
PEB 2255
FALC-LH V1.3
Operational Description T1/J1
Data Sheet 166 2000-07
Note: Read access to unused register addresses: value should be ignored.
Write access to unused register addresses: should be avoided, or set to ‘00’hex.
All control registers (except XFIFO, XS1-12, CMDR, DEC) are of type: Read/Write
Specific T1/J1 Initialization
The following is a suggestion for a basic initialization to meet most of the T1/J1
requirements. Depending on different applications and requirements any other
initialization can be used.
Table 47 Line Interface Initialization (T1/J1)
Register Function
FMR0.XC0/1
FMR0.RC0/1
LIM1.DRS
CCB1-3
The FALC®-LH supports requirements for the analog line interface
as well as the digital line interface. For the analog line interface the
codes AMI (with bit 7stuffing) and B8ZS are supported. For the
digital line interface modes (dual or single rail) the FALC®-LH
supports AMI (with bit 7 stuffing) and B8ZS.
PCD =0x0A LOS detection after 176 consecutive “zeros” (fulfills G.775 spec,
Bellcore/AT&T)
PCR =0x15 LOS recovery after 22 “ones” in the PCD interval. (fulfills G.775,
Bellcore/AT&T)
LIM1.RIL2-
0=0x03 LOS threshold (fulfills G.775, see DC characteristics).
GCR.SCI =1 Additional Recovery Interrupts. Help to meet alarm activation and
deactivation conditions in time.
LIM2.LOS2/1 =01 Automatic pulse density check on 15 consecutive zeros for LOS
recovery condition (Bellcore requirement)
Table 48 Framer Initialization (T1/J1)
Register Function
T1 J1
FMR4.SSC1/0 Selection of framing sync conditions
FMR4.FM1/0 Select framing format
FMR2.AXRA =1 The transmission of RAI via the line interface is done automatically
by the FALC®-LH in case of Loss of Frame Alignment
(FRS0.LFA =1). If framing has been reinstalled RAI is
automatically reset
eon
PEB 2255
FALC-LH V1.3
Operational Description T1/J1
Data Sheet 167 2000-07
RCO.SJR1) =1
FMR0.SRAF =0
XSW.XRA =1
Remote alarm handling via DL-
channel according to ITU-T
JG.704using pattern
“1111111111111111”
RCO.SJR1) =0 CRC6calculationwithoutFS/DL
bits
RCO.SJR1) =1 CRC6 calculation including FS/
DL bits
FMR4.AUTO =1 Automatic synchronization in case of definite framing candidate
(FRS0.FSRF).
In case of multiple framing candidates and CRC6 errors different
resynchronization conditions can be programmed via
FMR2.MCSP/SSP.
FMR4.SSC1 =1
FMR4.SSC0 =1
FMR2.MCSP =0
FMR2.SSP =1
Synchronization and
resynchronization conditions,
for details see register
description.
1) Remote alarm handling and CRC6 calculation are commonly selected by bit RCO.SJR
Table 49 Initialization of the HDLC controller (T1/J1)
Register Function
MODE =88
HHDLC Receiver active, No address comparison
CCR1 =18HEnable Signaling via time slot 0...31, Interframe Time Fill with
continuous FLAGs
IMR0.RME =0
IMR0.RPF =0
IMR1.XPR =0
Select interrupts for HDLC processor requests
RTR4.0 =1
TTR4.0 =1Select time slot 24for HDLC data reception and transmission
Table 48 Framer Initialization (T1/J1) (cont’d)
Register Function
T1 J1
PEB 2255
FALC-LH V1.3
Operational Description T1/J1
Data Sheet 1682000-07
Note: After the device initialization a software reset should be executed by setting
of bits CMDR.XRES/RRES.
Table 50 Initialization of the CAS-BR Controller (T1/J1)
Register Function
FMR5.EIBR =1
FMR1.SIGM =1Enable CAS-BR Mode
Send CAS-BR information stored in XS1...12
IMR1.CASE =0
IMR0.RSC =0Enable interrupts which indicate the access to the XS1...12 CAS-
BR registers and any data change in RS1...12
Inflqeon
PEB 2255
FALC-LH V1.3
Signaling Controller Operating Modes
Data Sheet 1692000-07
8 Signaling Controller Operating Modes
The HDLC controller can be programmed to operate in various modes, which are
different in the treatment of the HDLC frame in receive direction. Thus, the receive data
flow and the address recognition features can be performed in a very flexible way, to
satisfy almost any practical requirements.
There are 4different operating modes which can be set via the MODE register.
8.1 HDLC Mode
All frames with valid addresses are forwarded directly via the RFIFO to the system
memory.
Depending on the selected address mode, the FALC®-LH can perform a 1 or 2 byte
address recognition (MODE.MDS0).
If a 2-byte address field is selected, the high address byte is compared with the fixed
value FEH or FCH (group address) as well as with two individually programmable values
in RAH1 and RAH2 registers. According to the ISDN LAPD protocol, bit 1 of the high byte
address is interpreted as command/response bit (C/R) and is excluded from the address
comparison to RAH1.
Similarly, two compare values can be programmed in special registers (RAL1, RAL2) for
the low address byte. A valid address is recognized in case the high and low byte of the
address field correspond to one of the compare values. Thus, the FALC®-LH can be
called (addressed) with 6 different address combinations. HDLC frames with address
fields that do not match any of the address combinations, are ignored by the FALC®-LH.
In case of a 1-byte address, RAL1 and RAL2 are used as compare registers. The HDLC
control field, data in the I-field and an additional status byte are temporarily stored in the
RFIFO. Additional information can also be read from a special register (RSIS).
As defined by the HDLC protocol, the FALC®-LH performs the zero bit insertion/deletion
(bit-stuffing) in the transmit/receive data stream automatically. That means, it is
guaranteed that at least a “0” will appear after 5 consecutive “1”s.
8.1.1 Non-Auto-Mode (MODE.MDS2...1 =01)
Characteristics: address recognition, FLAG - and CRC generation/check, bit-stuffing
All frames with valid addresses are forwarded directly via the RFIFO to the system
memory.
8.1.2 Transparent Mode 1 (MODE.MDS2...0 =101)
Characteristics: address recognition, FLAG - and CRC generation/check, bit-stuffing
Only the high byte of a 2-byte address field is compared with registers RAH1/2. The
whole frame excluding the first address byte is stored in RFIFO.
C" Inflqeon
PEB 2255
FALC-LH V1.3
Signaling Controller Operating Modes
Data Sheet 170 2000-07
8.1.3 Transparent Mode 0 (MODE.MDS2...0 =100)
Characteristics: FLAG and CRC generation/check, bit-stuffing
No address recognition is performed and each frame is stored in the RFIFO.
8.1.4 Receive Data Flow
The following figure gives an overview of the management of the received HDLC frames
in the different operating modes.
Figure 56 HDLC Receive Data Flow of FALC®-LH
F0225
FLAG CTRL FLAGADDR CRCDATA
RSIS
RSIS
RSIS
RSIS
RAH1,2 RAL1,2
2) 2)
RAH1,2
2)
RAH1,2
2)
X
1)
1)
1)
MODE.MDS(2:0)
0 1 1 Non-Auto/16
0 1 0 Non-Auto/8
1 0 1 Transparent 1
1 0 0 Transparent 0
Description of Symbols:
compared with register
stored in FIFO or register
1)
RFIFO
RFIFO
RFIFO
RFIFO
In case of 8-bit address the
control field starts here
1) CRC is optionally stored in RFIFO if CCR3.RCRC =1
2) Address is optionally stored in RFIFO if CCR3.RADD =1
. . Inflqeon
PEB 2255
FALC-LH V1.3
Signaling Controller Operating Modes
Data Sheet 171 2000-07
8.1.5 Transmit Data Flow
The frames can be transmitted as shown below.
Figure 57 HDLC Transmit Data Flow of FALC®-LH
Transmitting a HDLC frame via register CMDR.XHF, the address, the control fields and
the data field have to be entered in the XFIFO.
If CCR3.XCRC is set, the CRC checksum will not be generated internally. The checksum
has to be provided via the transmit FIFO (XFIFO) as the last two bytes. The transmitted
frame is closed automatically with a closing flag only.
The FALC®-LH does not check whether the length of the frame, i.e. the number of bytes
to be transmitted makes sense or not.
8.2 Extended Transparent Mode
Characteristics: fully transparent
In no HDLC mode, fully transparent data transmission/reception without HDLC framing
is performed, i.e. without FLAG generation/recognition, CRC generation/check, or bit-
stuffing. This feature can be profitably used e.g. for:
• Specific protocol variations
• Transmission of a BOM frame
• Test purposes
Data transmission is always performed out of the XFIFO. In transparent mode, the
receive data is shifted into the RFIFO.
CONTROL
(XHF)
Frame
HDLC
Transmit
ADDRESS
FLAG
XFIFO
ADDR CTRL FLAG
DATA
Ι
CHECKRAM
ITD06456
CRC
Inflqeon
PEB 2255
FALC-LH V1.3
Signaling Controller Operating Modes
Data Sheet 172 2000-07
8.3 Signaling Controller Functions
8.3.1 Shared Flags
The closing Flag of a previously transmitted frame simultaneously becomes the opening
Flag of the following frame if there is one to be transmitted. The Shared Flag feature is
enabled by setting bit SFLG in control register CCR1.
8.3.2 Preamble Transmission
If enabled via register CCR3, a programmable 8-bit pattern (defined by register PRE) is
transmitted with a selectable number of repetitions after Interframe Timefill transmission
is stopped and a new frame is ready to be sent.
Zero bit insertion is disabled during preamble transmission. To guarantee correct
function the programmed preamble value should be different to the Receive Address
Byte values. Otherwise the preamble could be detected as valid address with shared
flags.
In BOM mode the MSB of the preamble should be reset in order to achieve a faster
synchronization at the BOM receiver. After the preamble has been sent, the transmitter
inserts one sync byte (FFH) automatically before sending the contents of the transmit
FIFO.
8.3.3 Transparent Transmission and Reception
When programmed in the extended transparent mode via the MODE register
(MDS2...0 =111), the FALC®-LH performs fully transparent data reception without
HDLC framing, i.e. without
• FLAG deletion
• CRC checking
• Bit-stuffing
In order to enable fully transparent data reception, bit MODE.HRAC has to be set and
FFHhas to be written to RAH2.
Received data is always shifted into RFIFO.
Data transmission is always performed out of XFIFO by shifting the contents of XFIFO
directly into the outgoing data stream. Transmission is initiated by setting CMDR.XTF. A
sync byte FFHis automatically sent before the first byte of the XFIFO is transmitted.
8.3.4 Cyclic Transmission (fully transparent)
If the extended transparent mode is selected, the FALC®-LH supports the continuous
transmission of the contents of the transmit FIFO.
Inflqeon
PEB 2255
FALC-LH V1.3
Signaling Controller Operating Modes
Data Sheet 173 2000-07
After having written 1 to 32 bytes to XFIFO, the command XREP and XTF via the CMDR
register (bit 7 …0=‘00100100’ =24H) forces the FALC®-LH to transmit the data stored
in XFIFO repeatedly to the remote end.
Note: The cyclic transmission continues until a reset command (CMDR: SRES) is issued
or with resetting CMDR.XREP, after which continuous ‘1’s are transmitted.
During cyclic transmission the XREP-bit has to be set with every write operation
to CMDR.
8.3.5 CRC ON/OFF Features
As an option in HDLC mode the internal handling of received and transmitted CRC
checksum can be influenced via control bits CCR3.RCRC and CCR3.XCRC.
•ReceiveDirection
The received CRC checksum is always assumed to be in the 2 last bytes of a frame
(CRC-ITU), immediately preceding a closing flag. If CCR3.RCRC is set, the received
CRC checksum is written to RFIFO where it precedes the frame status byte (contents of
register RSIS). The received CRC checksum is additionally checked for correctness. If
HDLC mode is selected, the limits for ‘Valid Frame’ check are modified (refer to
description of bit RSIS.VFR).
• Transmit Direction
If CCR3.XCRC is set, the CRC checksum is not generated internally. The checksum has
to be providedvia the transmit FIFO (XFIFO) as the last two bytes. The transmitted frame
will only be closed automatically with a closing flag.
The FALC®-LH does not check whether the length of the frame, i.e. the number of bytes
to be transmitted makes sense or not.
8.3.6 Receive Address pushed to RFIFO
The address field of received frames can be pushed to the receive FIFO (first one or two
bytes of the frame). This function is useful with the extended address recognition. It is
enabled by setting control bit CCR2.RADD.
8.3.7 HDLC Data Transmission
In transmit direction 2 ×32 byte FIFO buffers are provided. After checking the XFIFO
status by polling bit SIS.XFW or after an interrupt ISR1.XPR (Transmit Pool Ready), up
to 32 bytes may be entered by the CPUto the XFIFO.
The transmission of a frame can be started by issuing an XHF command via the
command register. If enabled, a specified number of preambles (defined by register
PRE) are sent optionally before transmission of the current frame starts. If the transmit
command does not include an end of message indication (CMDR.XME), the FALC®-LH
will repeatedly request for the next data block by means of an XPR interrupt as soon as
End m Message
PEB 2255
FALC-LH V1.3
Signaling Controller Operating Modes
Data Sheet 1742000-07
no more than 32 bytes are stored in the XFIFO, i.e. a 32-byte pool is accessible to the
CPU.
This process is repeated until the CPUindicates the end of message by XME command,
after which frame transmission is finished correctly by appending the CRC and closing
flag sequence. Consecutive frames may be share a flag, or may be transmitted as back-
to-back frames, if service of XFIFO is fast enough.
In case no more data is available in the XFIFO prior to the arrival of XME, the
transmission of the frame is terminated with an abort sequence and the CPUis notified
by interrupt ISR1.XDU. The frame may be aborted by software using CMDR.SRES.
The data transmission sequence from the CPU’s point of view is outlined in Figure 58.
Figure 58 Interrupt Driven Data Transmission (flow diagram)
The activities at both serial and CPUinterface during frame transmission (supposed
frame length =70 bytes) shown in Figure 59.
ITD08565
START
Transmit
Pool Ready
?
XPR Interrupt,
XFW Bit in SIS Register
or =1
Write Data
(up to 32
to XFIFObytes)
Y
Message
End of
?
XTF/XHF
Command
N
Y
N
Command
XTF/XHF
END
+XME
C" Inflqeon ,,,,,,,,,,,,,,,,,,,,,,,,,,
PEB 2255
FALC-LH V1.3
Signaling Controller Operating Modes
Data Sheet 175 2000-07
•
Figure 59 Interrupt Driven Transmission Example
8.3.8 HDLC Data Reception
2×32 byte FIFO buffers are also provided in receive direction. There are different
interrupt indications concerned with the reception of data:
• RPF (Receive Pool Full) interrupt, indicating that a 32-byte block of data can be read
from RFIFO and the received message is not yet complete.
• RME (Receive Message End) interrupt, indicating that the reception of one message
is completed.
The following figure gives an example of a reception sequence, assuming that a “long”
frame (66 bytes) followed by two short frames (6 bytes each) are received.
•
Figure 60 Interrupt Driven Reception Sequence Example
ITD10971
WR XFIFO
32 bytes
System
Interface
Interface
CPU
ALLS
XPR
XHF + XME
6 bytes
WR XFIFO
XPRXPR
XHF 32 bytes
WR XFIFO Command
XHF
Transmit Frame (70 bytes)
32 32 6
R
FALC
ITD10972
RD RFIFO
32 bytes
RMC
Receive Frame 1 (66 bytes)
32 6
RPF RPF
32 2
32 bytes
RD RFIFO
RMC
RME
RD Status
RD2 bytes
RME
RMC
RD6 bytes
RD Status
RMC
RME
RMC
RD Status
RD6 bytes
6
RF2 RF3
FALC
R
Interface
CPU
Interface
System
Inflqeon
PEB 2255
FALC-LH V1.3
Signaling Controller Operating Modes
Data Sheet 176 2000-07
8.3.9 Sabit Access (E1)
The FALC®-LH supports the Sabit signaling of time slot 0 of every other frame asfollows:
• access via registers RSW/XSW
• access via registers RSA8-4/XSA4-8
• capable of storing the information for a complete multiframe
the access via the 64byte deep receive/transmit FIFO of the integrated signaling
controller. This Sabit access gives the opportunity to transmit/receive a transparent bit
stream as well as HDLC frames where the signaling controller automatically processes
the HDLC protocol. Enabling for receive direction is done by resetting of CCR1.EITS=0
and setting of registers XCO.SA4E...8E as required. For transmit direction bits
TSWM.TSA4...8have to be set as required, additionally.
Data written to the XFIFO will subsequently transmit in the Sabit positions defined by
register XC0.SA8E-4E and the corresponding bits of TSWM.TSA8-4. Any combination
of Sabits can be selected. After the data has been sent out completely, “all ones” or
Flags (CCR1.ITF) are transmitted. The continuous transmission of a transparent bit
stream, which is stored in the XFIFO, can be enabled.
With the setting of bit MODE.HRAC the received Sabits can be forwarded to the receive
FIFO.
The access to and from the FIFOs is supported by ISR0.RME/RPF and ISR1.XPR/ALS.
8.3.10 Bit Oriented Message Mode (T1/J1)
The FALC®-LH supports signaling and maintenance functions for T1/J1 - Primary Rate
Interfaces using the Extended Super Frame format. The device supports the DL-channel
protocol for ESF format according to T1.403-1989 ANSI or to AT&TTR54016
specification. The HDLC- and Bit Oriented Message (BOM) -Receiver can be switched
on/off independently. If the FALC®-LH is used for HDLC formats only, the BOM receiver
has to be switched off. If HDLC- and BOM-receiver has been switched on
(MODE.HRAC/BRAC), an automatic switching between HDLC and BOM mode is
enabled. Storing of received DL bit information in the RFIFO of the signaling controller
and transmitting the XFIFO contents in the DL bit positions is enabled by CCR1.EDLX/
EITS =10. After hardware (pin RES =high) or software reset (CMDR.RRES =1) the
FALC®-LH operates in HDLC mode. If eight or more consecutive ones are detected, the
BOM mode is entered. Upon detection of a flag in the data stream, the FALC®-LH
switches back to HDLC-mode. Operating in BOM-mode, the FALC®-LH may receive an
HDLC frame immediately, i.e. without any preceding flags.
In BOM-mode, the following byte format is assumed (the left most bit is received first).
111111110xxxxxx0
The FALC®-LH uses the FFHbyte for synchronization, the next byte is stored in RFIFO
(first bit received: LSB) if it starts and ends with a ‘0’. Bytes starting and ending with a ‘1’
are not stored. If there are no 8consecutive one’s detected within 32 bits, an interrupt
ISR0.ISF is generated. However, byte sampling is not stopped.
Inflqeon 1 11 00. 11 oo / v v 7 ‘ v v ¥_[# 1 1g 1 11 o 1, o *v ’gv v *vi’gvi ¥ # \'#
PEB 2255
FALC-LH V1.3
Signaling Controller Operating Modes
Data Sheet 177 2000-07
Byte sampling in BOM Mode (T1/J1)
a)
b)
Two different BOM reception modes can be programmed (by CCR1.BRM).
10 byte packets: CCR1.BRM =0
After storing 10 bytes in RFIFO the receive status byte marking a BOM frame
(RSIS.HFR) is added as the eleventh byte and an interrupt (ISR0.RME) is generated.
The sampling of data bytes continues and interrupts are generated every 10 bytes until
an HDLC flag is detected.
Continuous reception: CCR1.BRM =1
Interrupts are generated every 32 (16, 4, 2) bytes. After detecting an HDLC flag, byte
sampling is stopped, the receive status byte is stored in RFIFO and an RME interrupt is
generated.
The user may switch between these modes at any time. Byte sampling may be stopped
by deactivating the BOM receiver (MODE.BRAC). In this case the receive status byte is
added, an interrupt is generated and HDLC-mode is entered. Whether the FALC®-LH
operates in HDLC or BOM mode may be checked by reading the Signaling Status
Register (SIS.BOM).
1111 1111 1111 0011 0100 1111 1111 0011 0100 1110 1111 0011 0100 1101 1111
sync not stored new sync 1.byte
stored 1.corrupted
sync 2.byte
stored 2.corrupted
sync
corrupted
sync
1111 1111 0111 0110 1101 1111 0111 0110 1111 1111 0111 0110 0111 1111
sync 1.byte
stored 1.corrupted
sync 2.byte
stored 2.sync 3.byte
stored 3.corrupted
sync
Inflqeon
PEB 2255
FALC-LH V1.3
Signaling Controller Operating Modes
Data Sheet 1782000-07
8.3.10.1 Data Link Access in ESF/F72 Format (T1/J1)
The FALC®-LH supports the DL-channel protocol using the ESF or F72 (SLC96) format
as follows:
• Sampling of DL bits is done on a multiframe basis and stored in the registers RDL1...3.
A receive multiframe begin interrupt is provided to read the received data DL bits. The
contents of registers XDL1...3 is subsequently sent out on the transmit multiframe
basis if it is enabled via FMR1.EDL. A transmit multiframe begin interrupt requests for
writing new information to the DL-bit registers.
• If enabled by CCR1.EDLX/EITS=10, the DL-bit information is stored in the Receive
FIFO of the signaling controller. The DL-bits stored in the XFIFOareinsertedintothe
outgoing data stream. If CCR1.EDLXis cleared, a HDLC- or a transparent- frame can
be sent or received via the RFIFO/XFIFO.
Inflqeon
PEB 2255
FALC-LH V1.3
Data Sheet 1792000-07
Register Description
Due to the different device function in E1 and T1/J1 mode, several registers and register
bits have dedicated functions according to the selected operation mode.
To maintain easy readability this chapter is divided into separate E1 and T1/J1 sections.
Please choose the correct description according to your application (E1 or T1/J1).
eon
PEB 2255
FALC-LH V1.3
E1 Registers
Data Sheet 180 2000-07
9E1Registers
9.1 E1 Control Register Addresses
•
Table 51 E1 Control Register Address Arrangement
Address Register Type Comment Page
00 XFIFO W Transmit FIFO 183
01 XFIFO W Transmit FIFO 183
02 CMDR W Command Register 183
03 MODE R/W Mode Register 185
04RAH1 R/W Receive Address High 1 185
05 RAH2 R/W Receive Address High 2 186
06 RAL1 R/W Receive Address Low 1 186
07 RAL2 R/W Receive Address Low 2 186
08IPC R/W Interrupt Port Configuration 186
09CCR1 R/W Common Configuration Register 1 187
0A CCR3 R/W Common Configuration Register 3 189
0B PRE R/W Preamble Register 190
0C RTR1 R/W Receive Timeslot Register 1 191
0D RTR2 R/W Receive Timeslot Register 2 191
0E RTR3 R/W Receive Timeslot Register 3 191
0F RTR4R/W Receive Timeslot Register 4191
10 TTR1 R/W Transmit Timeslot Register 1 192
11 TTR2 R/W Transmit Timeslot Register 2 192
12 TTR3 R/W Transmit Timeslot Register 3 192
13 TTR4R/W Transmit Timeslot Register 4192
14IMR0 R/W Interrupt Mask Register 0 193
15 IMR1 R/W Interrupt Mask Register 1 193
16 IMR2 R/W Interrupt Mask Register 2 193
17 IMR3 R/W Interrupt Mask Register 3 193
18IMR4R/W Interrupt Mask Register 4193
19IMR5 R/W Interrupt Mask Register 5 193
1A FMR0 R/W Framer Mode Register 0 193
PEB 2255
FALC-LH V1.3
E1 Registers
Data Sheet 181 2000-07
1B FMR1 R/W Framer Mode Register 1 195
1C FMR2 R/W Framer Mode Register 2 197
1D LOOP R/W Channel Loop Back Register 199
1E XSW R/W Transmit Service Word 200
1F XSP R/W Transmit Spare Bits 201
20 XC0 R/W Transmit Control 0 203
21 XC1 R/W Transmit Control 1 203
22 RC0 R/W Receive Control 0 204
23 RC1 R/W Receive Control 1 206
24XPM0 R/W Transmit Pulse Mask 0 207
25 XPM1 R/W Transmit Pulse Mask 1 207
26 XPM2 R/W Transmit Pulse Mask 2 207
27 TSWM R/W Transparent Service Word Mask 208
29IDLE R/W Idle Channel Code 209
2A XSA4R/W Transmit SA4Bit Register 210
2B XSA5 R/W Transmit SA5 Bit Register 210
2C XSA6 R/W Transmit SA6 Bit Register 210
2D XSA7 R/W Transmit SA7 Bit Register 210
2E XSA8R/W Transmit SA8Bit Register 210
2F FMR3 R/W Framer Mode Register 3 210
30 ICB1 R/W Idle Channel Register 1 212
31 ICB2 R/W Idle Channel Register 2 212
32 ICB3 R/W Idle Channel Register 3 212
33 ICB4R/W Idle Channel Register 4212
34LIM0 R/W Line Interface Mode 0 213
35 LIM1 R/W Line Interface Mode 1 214
36 PCD R/W Pulse Count Detection 216
37 PCR R/W Pulse Count Recovery 216
38LIM2 R/W Line Interface Mode 2 217
39LCR1 R/W Loop Code Register 1 218
Table 51 E1 Control Register Address Arrangement (cont’d)
Address Register Type Comment Page
PEB 2255
FALC-LH V1.3
E1 Registers
Data Sheet 182 2000-07
After ‘RESET’ all control registers except the XFIFO and XS1...16 are initialized to
defined values.
Unused bits have to be cleared (set to logical ‘0’).
3A LCR2 R/W Loop Code Register 2 220
3B LCR3 R/W Loop Code Register 3 220
3C SIC1 R/W System Interface Control 1 221
3D SIC2 R/W System Interface Control 2 223
3E LIM3 R/W Line Interface Mode 3 224
40 SIC3 R/W System Interface Control 3 224
60 DEC W Disable Error Counter 225
70 XS1 W Transmit CAS Register 1 226
71 XS2 W Transmit CAS Register 2 226
72 XS3 W Transmit CAS Register 3 226
73 XS4W Transmit CAS Register 4226
74XS5 W Transmit CAS Register 5 226
75 XS6 W Transmit CAS Register 6 226
76 XS7 W Transmit CAS Register 7 226
77 XS8W Transmit CAS Register 8226
78XS9W Transmit CAS Register 9226
79XS10 W Transmit CAS Register 10 226
7A XS11 W Transmit CAS Register 11 226
7B XS12 W Transmit CAS Register 12 226
7C XS13 W Transmit CAS Register 13 226
7D XS14W Transmit CAS Register 14226
7E XS15 W Transmit CAS Register 15 226
7F XS16 W Transmit CAS Register 16 226
Table 51 E1 Control Register Address Arrangement (cont’d)
Address Register Type Comment Page
PEB 2255
FALC-LH V1.3
E1 Registers
Data Sheet 183 2000-07
9.2 Detailed Description of E1 Control Registers
Transmit FIFO (Write)
Writing data to XFIFOcanbedonein8-bit (byte) or 16-bit (word)
access. The LSB is transmitted first.
Up to 32 bytes/16 words of transmit data can be written to the XFIFO
following a XPR (or ALLS) interrupt.
Command Register (Write)
Value after RESET: 00H
RMC… Receive Message Complete
Confirmation from CPUto FALC®-LH that the current frame or data
block has been fetched following a RPF or RME interrupt, thus the
occupied space in the RFIFO can be released.
RRES… Receiver Reset
The receive line interface except the clock and data recovery unit
(DPLL), the DCR-R circuitry, the receive framer, the one second timer
and the receive signaling controller are reset. However the contents
of the control registers is not deleted. RRES has to be given every
time after a configuration change.
XREP… Transmission Repeat
If XREP is set together with XTF (write 24Hto CMDR), the FALC®-LH
repeatedly transmits the contents of the XFIFO (1 … 32 bytes)
without HDLC framing fully transparently, i.e. without FLAG,CRC.
The cyclic transmission is stopped with a SRES command or by
resetting XREP.
Note: During cyclic transmission the XREP-bit has to be set with
every write operation to CMDR.
70
XFIFO XF7 XF0 (00/01)
70
CMDR RMC RRES XREP XRES XHF XTF XME SRES (02)
Inflqeon
PEB 2255
FALC-LH V1.3
E1 Registers
Data Sheet 184 2000-07
XRES… Transmitter Reset
The transmit framer and transmit line interface including DCO-Xare
reset. However, the contents of the control registers is not deleted.
XRES has to be given every time after a configuration change.
XHF… Transmit HDLC Frame
Afterhavingwrittenupto32bytestotheXFIFO, this command
initiates the transmission of a HDLC frame.
XTF… Transmit Transparent Frame
Initiates the transmission of a transparent frame without HDLC
framing.
XME… Transmit Message End
Indicates that the data block written last to the transmit FIFO
completes the current frame. The FALC®-LH can terminate the
transmission operation properly by appending the CRC and the
closing flag sequence to the data.
SRES… Signaling Transmitter Reset
The transmitter of the signaling controller is reset. XFIFO is cleared of
any data and an abort sequence (seven 1's) followed by interframe
time fill is transmitted. In response to SRES a XPR interrupt is
generated.
This command can be used by the CPUto abort a frame currently in
transmission.
Note: The maximum time between writing to the CMDR register and
the execution of the command takes 2.5 periods of the current
system data rate. Therefore, if the CPU operates with a very
high clock rate in comparison with the FALC
®
-LH's clock, it is
recommended that bit SIS.CEC should be checked before
writing to the CMDR register to avoid any loss of commands.
Note: Bits are cleared automatically except of XREP
PEB 2255
FALC-LH V1.3
E1 Registers
Data Sheet 185 2000-07
Mode Register (Read/Write)
Value after RESET: 00H
MDS2...0… Mode Select
The operating mode of the HDLC controller is selected.
000… Reserved
001… Reserved
010… 1 byte address comparison mode (RAL1,2)
011… 2 byte address comparison mode (RAH1,2 and RAL1,2)
100… No address comparison
101… 1 byte address comparison mode (RAH1,2)
110… Reserved
111… No HDLC framing mode
HRAC… HDLC Receiver Active
Switches the HDLC receiver to operational or inoperational state.
0… Receiver inactive
1… Receiver active
Receive Address Byte High Register 1 (Read/Write)
Value after RESET: FDH
In operating modes that provide high byte address recognition, the
high byte of the received address is compared with the individually
programmable values in RAH1 and RAH2.
RAH1…Value of the First Individual High Address Byte
Bit 1 (C/R-bit) is excluded from address comparison.
70
MODE MDS2 MDS1 MDS0 HRAC (03)
70
RAH1 0(04)
C" Inflqeon
PEB 2255
FALC-LH V1.3
E1 Registers
Data Sheet 186 2000-07
Receive Address Byte High Register 2 (Read/Write)
Value after RESET: FFH
RAH2… Value of Second Individual High Address Byte
Receive Address Byte Low Register 1 (Read/Write)
Value after RESET: FFH
RAL1… Value of First Individual Low Address Byte
Receive Address Byte Low Register 2 (Read/Write)
Value after RESET: FFH
RAL2... Value of the second individually programmable low address
byte.
Interrupt Port Configuration (Read/Write)
Value after RESET: 00H
Note: Unused bits have to be cleared.
VIS… Masked Interrupts Visible
0…Masked interrupt status bits are not visible
1…Masked interrupt status bits are visible
70
RAH2 (05)
70
RAL1 (06)
70
RAL2 (07)
70
IPC VIS SCI IC1 IC0 (08)
PEB 2255
FALC-LH V1.3
E1 Registers
Data Sheet 187 2000-07
SCI… Status Change Interrupt
0…Interrupts ISR2.LOS, ISR2.AIS, ISR3.API and ISR3.LMFA16
are generated only on the rising edge of the corresponding status
flag.
1…Interrupts ISR2.LOS, ISR2.AIS, ISR3.API and ISR3.LMFA16
are generated on the rising and falling edge of the corresponding
status flag.
IC1...0… Interrupt Port Configuration
These bits define the function of the interrupt output stage (pin INT):
Common Configuration Register 1 (Read/Write)
Value after RESET: 00H
SFLG… Enable Shared Flags
If this bit is set, the closing flag of a preceding HDLC frame
simultaneously is used as the opening flag of the following frame.
0… Shared flag function disabled
1… Shared flag function enabled
XTS16RA… Transmit Time Slot 16 Remote Alarm
0… Standard operation
1… Sends remote alarm in time slot 16 towards remote end by
setting the Y-bit in CAS multiframe alignment word. This bit is
logically ored with the contents of register XS1.2
IC1 IC0 Function
X
0
1
0
1
1
Open drain output1)
Push/pull output, active low
Push/pull output, active high
1) an external pullup resistor is required at pin INT
70
CCR1 SFLG XTS16RA CASM EITS ITF RFT1 RFT0 (09)
PEB 2255
FALC-LH V1.3
E1 Registers
Data Sheet 188 2000-07
CASM… CAS Synchronization Mode
Determines the synchronization mode of the channel associated
signaling multiframe alignment.
0… Synchronization is done in accordance to ITU-T G. 732
1… Synchronization is established when two consecutively correct
multiframe alignment pattern are found.
EITS… Enable Internal Time Slot 0-31 Signaling
0… Internal signaling in time slots 0-31 defined via registers
RTR1...4or TTR1...4is disabled.
1… Internal signaling in time slots 0-31 defined via registers
RTR1...4or TTR1...4is enabled.
ITF… Interframe Time Fill
Determines the idle (=no data to send) state of the transmit data
coming from the signaling controller.
0… Continuous logical ‘1’ is output
1… Continuous flag sequences are output (‘01111110’ bit patterns)
RFT1...0... RFIFO Threshold Level
The size of the accessible part of RFIFO can be determined by
programming these bits. The number of valid bytes after a RPF
interrupt is given in the following table:
The value of RFT1, 0 can be changed dynamically.
– If reception is not running or
– after the current data block has been read, but before the
command CMDR.RMC is issued (interrupt controlled data
transfer).
RFT1 RFT0 Size of Accessible Part of RFIFO
0
0
1
1
0
1
0
1
32 bytes (RESET value)
16 bytes
4bytes
2bytes
PEB 2255
FALC-LH V1.3
E1 Registers
Data Sheet 189 2000-07
Note: It is seen that changing the value of RFT1, 0 is possible even
during the reception of one frame. The total length of the
received frame can be always read directly in RBCL, RBCH
after a RPF interrupt, except when the threshold is increased
during reception of that frame. The real length can then be
inferred by noting which bit positions in RBCL are reset by a
RMC command (see table below):
Common Configuration Register 3 (Read/Write)
Value after RESET: 00H
Note: Unused bits have to be cleared.
PRE1...0… Number of Preamble Repetitions
If preamble transmission is enabled, the preamble defined by register
PRE is transmitted:
00... 1 time
01... 2 times
10... 4times
11... 8times
EPT… Enable Preamble Transmission
This bit enables transmission of preamble. The preamble is started
after interframe timefill transmission has been stopped and a new
frame is to be transmitted. The preamble consists of an 8-bit pattern
repeated a number of times. The pattern is defined by register PRE,
the number of repetitions is selected by bits PRE0 and PRE1.
Note: The ’Shared Flag’feature is not influenced by preamble transmission.
Zero bit insertion is disabled during preamble transmission.
RFT1 RFT0 Bit Positions in RBCL Reset by a
CMDR.RMC Command
0
0
1
1
0
1
0
1
RBC4.… 0
RBC3 … 0
RBC1,0
RBC0
70
CCR3 PRE1 PRE0 EPT RADD RCRC XCRC (0A)
eon
PEB 2255
FALC-LH V1.3
E1 Registers
Data Sheet 190 2000-07
RADD… Receive Address Pushed to RFIFO
If this bit is set, the received HDLC address information (1 or 2 bytes,
depending on the address mode selected via MODE.MDS0) is
pushed to RFIFO. See Chapter 8.1 on page 169 for detailed
description.
RCRC… Receive CRC ON/OFF
If this bit is set, the received CRC checksum is written to RFIFO
(CRC-ITU-T: 2 bytes). The checksum, consisting of the 2 last bytes in
the received frame, is followed in the RFIFO by the status information
byte (contents of register RSIS). The received CRC checksum is
additionally checked for correctness. If non-auto mode is selected,
the limits for “Valid Frame” check are modified (refer to RSIS.VFR
and to Chapter 8.1 on page 169).
XCRC… Transmit CRC ON/OFF
If this bit is set, the CRC checksum is not generated internally. It has
to be written as the last two bytes in the transmit FIFO (XFIFO). The
transmitted frame is closed automatically with a closing flag.
Note: The FALC
®
-LH does not check whether the length of the
frame, i.e. the number of bytes to be transmitted makes sense
or not.
Preamble Register (Read/Write)
Value after RESET: 00H
PRE7...0… Preamble Register
This register defines the pattern which is sent during preamble
transmission (refer to CCR3). LSB is sent first.
Note: Zero bit insertion is disabled during preamble transmission.
70
PRE (0B)
PEB 2255
FALC-LH V1.3
E1 Registers
Data Sheet 191 2000-07
Receive Timeslot Register 1...4 (Read/Write)
Value after RESET: 00H,00
H,00
H,00
H
TS0…31… Timeslot Register
These bits define the received time slots on the system highway port
RDO to be extracted to RFIFO and marked. Additionally these
registers control the RSIGM marker which can be forced high during
the respective time slots independently of bit CCR1.EITS.
A one in the RTR1...4bits samples the corresponding time slots and
send their data to the RFIFO of the signaling controller if bit
CCR1.EITS is set.
Assignments:
TS0 →time slot 0
...
TS31→time slot 31
0…The corresponding time slot is not extracted and stored into the
RFIFO.
1…The contents of the selected time slot is stored in the RFIFO. This
function becomes active only if bit CCR1.EITS is set.
The corresponding time slot is forced high on marker pin RSIGM.
70
RTR1 TS0 TS1 TS2 TS3 TS4TS5 TS6 TS7 (0C)
RTR2 TS8TS9TS10 TS11 TS12 TS13 TS14TS15 (0D)
RTR3 TS16 TS17 TS18TS19TS20 TS21 TS22 TS23 (0E)
RTR4TS24TS25 TS26 TS27 TS28TS29TS30 TS31 (0F)
PEB 2255
FALC-LH V1.3
E1 Registers
Data Sheet 192 2000-07
Transmit Timeslot Register 1...4 (Read/Write)
Value after RESET: 00H,00
H,00
H,00
H
TS0…31… Transmit Timeslot Register
These bits define the transmit time slots on the system highway to be
inserted. Additionally these registers control the XSIGM marker which
can be forced high during the respective time slots independently of
bit CCR1.EITS.
A one in the TTR1...4bits inserts the corresponding time slot sourced
by the XFIFO in the data received on pin XDI, if bit CCR1.EITS is set.
If SIC3.TTRF is set and CCR1.EITS is cleared insertion of data
received on port XSIGiscontrolledbythisregisters.
Assignments:
TS0 →time slot 0
...
TS31 → time slot 31
0…The selected time slot is not inserted into the outgoing data
stream.
1…The contents of the selected time slot is inserted into the outgoing
data stream from XFIFO. This function becomes active only if bit
CCR1.EITS is set.
The corresponding time slot is forced high on marker pin XSIGM.
70
TTR1 TS0 TS1 TS2 TS3 TS4TS5 TS6 TS7 (10)
TTR2 TS8TS9TS10 TS11 TS12 TS13 TS14TS15 (11)
TTR3 TS16 TS17 TS18TS19TS20 TS21 TS22 TS23 (12)
TTR4TS24TS25 TS26 TS27 TS28TS29TS30 TS31 (13)
PEB 2255
FALC-LH V1.3
E1 Registers
Data Sheet 193 2000-07
Interrupt Mask Register 0...5 (Read/Write)
Value after RESET: FFH,FF
H,FF
H,FF
H,FF
H
IMR0...IMR5... Interrupt Mask Register
Each interrupt source can generate an interrupt signal on port INT
(characteristics of the output stage are defined via register IPC). A ‘1’
in a bit position of IMR0...5 sets the maskactive for the interrupt status
in ISR0...3 and ISR5. Masked interrupt statuses neither generate a
signal on INT, nor are they visible in register GIS. Moreover, they are
– not displayed in the Interrupt Status Register if bit IPC.VIS is cleared
– displayed in the Interrupt Status Register if bit IPC.VIS is set.
Note: After RESET, all interrupts are disabled.
Framer Mode Register 0 (Read/Write)
Value after RESET: 00H
XC1... 0… Transmit Code
Serial code for the transmitter is independent to the receiver.
00... NRZ(optical interface)
01... CMI (1T2B +HDB3),(seeFMR3onpage 210)
10... AMI (ternary or digital dual rail interface)
11... HDB3 Code (ternary or digital dual rail interface)
70
IMR0 RME RFS T8MS RMB CASC CRC4SA6SC RPF (14)
IMR1 LLBSC RDO ALLS XDUXMB XLSC XPR (15)
IMR2 FAR LFA MFAR T400MS AIS LOS RAR RA (16)
IMR3 ES SEC LMFA16 AIS16 RA16 API RSN RSP (17)
IMR4LFA FER CER AIS LOS CVE SLIP EBE (18)
IMR5 XSP XSN (19)
70
FMR0 XC1 XC0 RC1 RC0 EXTD ALM FRS SIM (1A)
Inflqeon
PEB 2255
FALC-LH V1.3
E1 Registers
Data Sheet 194 2000-07
RC1...0… Receive Code
Serial code for the receiver is independent to the transmitter.
00... NRZ(optical interface)
01... CMI (1T2B+HDB3), (optical interface)
10... AMI (ternary or digital dual rail interface)
11... HDB3 Code (ternary or digital dual rail interface)
EXTD… Extended HDB3 Error Detection
Selects error detection mode.
0… Only double violations are detected.
1… Extended code violation detection: 0000 strings are detected
additionally. Thereafter, next increment of Code Violation
Counter CVC is done after receiving additional four zeros.
ALM… Alarm Mode
Selects the AIS alarm detection mode.
0… The AIS alarm is detected according to ETS300233.
Detection: An AIS alarm is detected if the incoming data stream
contains less than 3 zeros within a period of 512 bits and a Loss
of Frame Alignment is indicated.
Recovery: The alarm is cleared if 3 or more zeros within 512
bits are detected or the FAS word is found.
1… The AIS alarm is detected according to ITU-T G.775
Detection: An AIS alarm is detected if the incoming data stream
contains for two consecutive doubleframe periods (1024bits)
less than 3 zeros for each doubleframe period (512 bits).
Recovery: The alarm is cleared if within two consecutive
doubleframe periods 3 or more zeros for each period of 512 bits
are detected.
FRS… Force Resynchronization
A transition from low to high initiates a resynchronization procedure
of the pulse frame and the CRC-multiframe (if enabled via bit
FMR2.RFS1) starting directly after the old framing candidate.
Note:FRS is not reset automatically.
PEB 2255
FALC-LH V1.3
E1 Registers
Data Sheet 195 2000-07
SIM… Alarm Simulation
0… Normal operation.
1… Initiates internal error simulation of AIS, loss of signal, loss of
synchronization, remote alarm, slip, framing errors, CRC
errors, and code violations. The error counters FEC, CVC,
CEC1 are incremented.
Framer Mode Register 1 (Read/Write)
Value after RESET: 00H
MFCS… Multiframe Force Resynchronization
Only valid if CRC multiframe format is selected (FMR2.RFS1/0=10).
A transition from low to high initiates the resynchronization procedure
for CRC-multiframe alignment without influencing doubleframe
synchronous state. In case, “Automatic Force Resynchronization”
(FMR1.AFR) is enabled and multiframe alignment can not be
regained, a new search of doubleframe (and CRC multiframe) is
automatically initiated.
Note:MFCS is not reset automatically.
AFR… Automatic Force Resynchronization
Only valid if CRC multiframe format is selected (FMR2.RFS1/0=10).
If this bit is set, a search of doubleframe alignment is automatically
initiated if two multiframe patterns with a distance of n ×2 ms have
not been found within a time interval of 8ms after doubleframe
alignment has been regained.
ENSA… Enable Sa-Bit Access via Register XSA4...8
0… Normal operation. The Sa-bit information is taken from bits
XSW.XY0…4and written to bits RSW.RY0…4.
1… Sa-bit register access. The Sa-bit information is taken from the
registers XSA4...8. In addition, the received information is
written to registers RSA4...8. Transmitting of the contents of
registers XSA4...8is disabled if one of time slot 0 transparent
modes is enabled (XSP.TT0 or TSWM.SA4...8).
70
FMR1 MFCS AFR ENSA PMOD XFS ECM IMOD XAIS (1B)
Inflqeon
PEB 2255
FALC-LH V1.3
E1 Registers
Data Sheet 196 2000-07
PMOD… PCM Mode
For E1 application this bit must be set low. Switching from E1 to T1 or
vice versa the device needs up to 10 µs to settle up to the internal
clocking.
0… PCM 30 or E1 mode.
1… PCM 24or T1 mode.
XFS… Transmit Framing Select
Selection of the transmit framing format could be done independent
of the receive framing format.
0… Doubleframe format enabled.
1… CRC4-multiframe format enabled.
ECM… Error Counter Mode
The function of the error counters is determined by this bit.
0…Before reading an error counter the corresponding bit in the
Disable Error Counter register (DEC) has to be set. In 8bit
access the low byte of the error counter should always be read
before the high byte. The error counters are reset with the rising
edge of the corresponding bits in the DEC register.
1… Every second the error counters are latched and then
automatically be reset. The latched error counter state should
be read within the next second. Reading the error counter
during updating should be avoided (do not access an error
counter within 2 µs before or after the one-second interrupt
occurs).
IMOD… Select System Interface Mode
0... 4.096Mbit/s
1... 2.048 Mbit/s
XAIS… Transmit AIS Towards Remote End
Sends AIS via ports XL1, XL2, XOID towards the remote end. The
outgoing data stream which could be looped back via the Local Loop
to the system interface is not affected.
eon
PEB 2255
FALC-LH V1.3
E1 Registers
Data Sheet 197 2000-07
Framer Mode Register 2 (Read/Write)
Value after RESET: 00H
RFS1... 0... Receive Framing Select
00… Doubleframe format
01… Doubleframe format
10… CRC4Multiframe format
11… CRC4Multiframe format with modified CRC4Multiframe
alignment algorithm (Interworking according to ITU-T G.706
Annex B). Setting of FMR3.EXTIW changes the reaction after
the 400 ms timeout.
RTM… Receive Transparent Mode
Setting this bit disconnects control of the internal elastic store from the
receiver. The elastic store is now in a “free running” mode without any
possibility to update the time slot assignment to a new frame position
in case of re-synchronization of the receiver. This function can be
used in conjunction with the “disable AIS to system interface” feature
(FMR2.DAIS) to realize undisturbed transparent reception.
This bit should be enabled in case of unframed data reception mode.
After resetting RTM to 0, the elastic buffer is adjusted after the next
resynchronization.
DAIS… Disable AIS to System Interface
0… AIS is automatically inserted into the data stream to RDO if
FALC®-LH is in asynchronous state.
1… Automatic AIS insertion is disabled. Furthermore, AIS insertion
can be initiated by programming bit FMR2.SAIS.
SAIS… Send AIS Towards System Interface
Sends AIS via output RDO towards system interface. This function is
not influenced by bit FMR2.DAIS.
PLB… Payload Loopback
0… Normal operation. Payload loop is disabled.
1... The payload loopback loops the data stream from the receiver
section back to transmitter section. Looped data is output on
pin RDO. Data received on port XDI, XSIG, SYPXand XMFS is
70
FMR2 RFS1 RFS0 RTM DAIS SAIS PLB AXRA ALMF (1C)
Inflqeon
PEB 2255
FALC-LH V1.3
E1 Registers
Data Sheet 198 2000-07
ignored. With XSP.TT0=1 timeslot 0 is also looped. If
XSP.TT0=0 timeslot 0 is generated internally. AIS is sent
immediately on port RDO by setting the FMR2.SAIS bit. It is
recommended to write the actual value of XC1 into this register
once again, because a write access to register XC1 sets the
read/write pointer of the transmit elastic buffer into its optimal
position to ensure a maximum wander compensation (the write
operation forces a slip).
AXRA… Automatic Transmit Remote Alarm
0… Normal operation
1… The Remote Alarm bit is set automatically in the outgoing data
stream if the receiver is in asynchronous state (FRS0.LFA bit is
set). In synchronous state the remote alarm bit is reset.
Additionally in multiframe format FMR2.RFS1=1and
FMR3.EXTIW =1 and the 400 ms timeout has elapsed, the
remote alarm bit is active in the outgoing data stream. In
multiframe synchronous state the outgoing remote alarm bit is
cleared.
ALMF… Automatic Loss of Multiframe
0… Normal operation
1… The receiver searches a new basic framing and multiframing if
more than 914CRC errors have been detected in a time
interval of one second. The internal 914CRC error counter is
reset if the multiframe synchronization is found. Incrementing
the counter is only enabled in the multiframe synchronous
state.
PEB 2255
FALC-LH V1.3
E1 Registers
Data Sheet 199 2000-07
Channel Loop Back Register (Read/Write)
Value after RESET: 00H
SPN… Select Additional Optical Pin Functions
Together with bit LIM3.ESYthe functionality of pin 80 is defined:
Programming of LOOP.SPN and LIM3.ESYand the corresponding
pin function is shown below.
SPN/ESY:
00… function of pin 80XSIG: If SIC3.TTRF =1, transmit data
from the system interface. Internal multiplexing with the XDI
data stream is controlled by XSIGM. No input function defined
for SIC3.TTRF =0.
01… function of pin 80SYNC2: external synchronization input
for the DCO-Xcircuitry
10… function of pin 80ROID:ReceiveOpticalInterfaceData
(Input) and Pin 68:XMFB/XOID Transmit Optical Interface Data
(Output). At the same time data received on pin 2 are ignored,
data on pin XOID (pin 15) are undefined. Transmit data is
clocked off with the positive transition of XCLK. After Reset the
transmit multiframe begin marker is output on pin 68.
11… function of pin 80XSIG: The signaling information from
thetransmitsysteminterfaceisreceivedonpinXSIG. Bit
FMR5.EIBR should be cleared to disable internal signaling
access from registers XS1...16. The signaling information from
the line interface is transmitted on pin RSIG.
SFM… Single Frame Mode
Setting this bit reduces the receive speech memory from two to one
frame length. In this case, clocks SCLKR and RCLKhave to be phase
locked to avoid slip conditions. However, slip detection still works but
without any influence on data transmission.
Note:This mode is not recommended, but possible to be compatible
with FALC
®
54. Newer FALC devices (e.g. FALC
®
56,
QuadFALC
TM
) don’t support this any more.
70
LOOP SPN SFM ECLB CLA4CLA3 CLA2 CLA1 CLA0 (1D)
PEB 2255
FALC-LH V1.3
E1 Registers
Data Sheet 200 2000-07
ECLB… Enable Channel Loop Back
0... Disables the channel loop back.
1... Enables the channel loop back selected by this register.
CLA4...0… Channel Address For Loop Back
CLA =0…31 selects the channel.
During looped back the contents of the assigned outgoing channel on
ports XL1/XDOP/XOID and XL2/XDON is equal to the idle channel
code programmed at register IDLE.
Transmit Service Word Pulseframe (Read/Write)
Value after RESET: 00H
XSIS… Spare Bit For International Use
First bit of the service word. Only significant in doubleframe format. If
not used, this bit should be fixed to ‘1’. If one of the time slot 0
transparent modes is enabled (bit XSP.TT0, or TSWM.TSIS), bit
XSW.XSIS is ignored.
XTM… Transmit Transparent Mode
0…Ports SYPX/XMFS define the frame/multiframe begin on the
transmit system highway. The transmitter is usually synchronized on
this externally sourced frame boundary and generates the FAS bits
according to this framing. Any change of the transmit time slot
assignment or a transmit slip subsequently produces a change of the
FAS bit positions.
1… Disconnects the control of the transmit system interface from the
transmitter. The transmitter is now in a free running mode without any
possibility to update the multiframe position. The framing (FAS bits)
generated by the transmitter are not disturbed (in case of changing
the transmit time slot assignment or transmit slip) by the transmit
system highway unless register XC1 is written. Useful in loop-timed
applications. For correct operation the transmit elastic buffer (2
frames, SIC1.XBS1/0=10) has to be enabled.
70
XSW XSIS XTM XRA XY0XY1XY2XY3XY4 (1E)
eon
PEB 2255
FALC-LH V1.3
E1 Registers
Data Sheet 201 2000-07
XRA… Transmit Remote Alarm
0… Normal operation.
1… Sends remote alarm towards remote end by setting bit 3 of the
service word. If time slot 0 transparent mode is enabled via bit
XSP.TT0 or TSWM.TRA bit is set, bit XSW.XRA is ignored.
XY0…4… Spare Bits For National Use (Y-Bits, Sn-Bits, Sa-Bits)
These bits are inserted in the service word of every other pulseframe
if Sa-bit register access is disabled (FMR1.ENSA =0). If not used,
they should be fixed to ‘1’.
If one of the time slot 0 transparent modes is enabled (bit XSP.TT0 or
TSWM.TSA4...8), bits XSW.XY0…4is ignored.
Transmit Spare Bits (Read/Write)
Value after RESET: 00H
XAP… Transmit Auxiliary Pattern towards Remote End
0… Normal operation.
1… A one in this bit position causes the transmitter to send an
alternating pattern 101010... towards the remote end.
FMR1.XAIS =1 overwrites the alternating pattern by a
continuous one bit stream.
CASEN… Channel Associated Signaling Enable
0… Normal operation.
1… A one in this bit position causes the transmitter to send the CAS
information stored in the XS1...16 registers in the
corresponding time slots.
TT0… Time Slot 0 Transparent Mode
0… Normal operation.
1… All information for time slot 0 on port XDI is inserted in the
outgoing pulseframe. All internal information of the FALC®-LH
(framing, CRC, Sa/Sibit signaling, remote alarm) is ignored.
This function is mainly useful for system test applications (test
70
XSP XAP CASEN TT0 EBP AXSXSIF XS13 XS15 (1F)
Inflqeon
PEB 2255
FALC-LH V1.3
E1 Registers
Data Sheet 202 2000-07
loops). Priority sequence of transparent modes: XSP.TT0 >
TSWM.
EBP… E-Bit Polarity
0… In the basic framing or multiframe asynchronous state the E-bit
is cleared.
1… In the basic framing or multiframe asynchronous state the E-bit
is set.
If automatic transmission of sub-multiframe status is enabled by
setting bit XSP.AXS and the receiver has been lost multiframe
synchronization, the E bit with the programmed polarity is inserted
automatically in Si-bit position of every outgoing CRC multiframe
(under the condition that time slot 0 transparent mode and
transparent Sibit in service word are both disabled).
AXS… Automatic Transmission of Submultiframe Status
Only applicable to CRC multiframe.
0… Normal operation.
1… Information of submultiframe status bits RSP.SI1 and RSP.SI2
is inserted automatically in Si-bit positions of the outgoing CRC
multiframe (RSP.SI1 →Si-bit of frame 13;RSP.SI2 → Si-bit of
frame 15). Contents of XSP.XS13 and XSP.XS15 is ignored. If
one of the time slot 0 transparent modes XSP.TT0 or
TSWM.TSIS is enabled, bit XSP.AXS has no function.
XSIF… Transmit Spare Bit For International Use (FAS Word)
First bit in the FAS word. Only significant in doubleframe format. If not
used, this bit should be fixed to ‘1’. If one of the time slot 0 transparent
modes is enabled (bits XSP.TT0, or TSWM.TSIF), bit XSP.XSIF is
ignored.
XS13… Transmit Spare Bit (Frame 13, CRC-Multiframe)
First bit in the service word of frame 13 for international use. Only
significant in CRC-multiframe format. If not used, this bit should be
fixedto‘1’.TheinformationofXSP.XS13 is shifted into internal
transmission buffer with beginning of the next following transmitted
CRC multiframe.
If automatic transmission of submultiframe status is enabled via bit
XSP.AXS, or, if one of the time slot 0 transparent modes XSP.TT0 or
TSWM.TSIS is enabled, bit XSP.XS13 is ignored.
eon
PEB 2255
FALC-LH V1.3
E1 Registers
Data Sheet 203 2000-07
XS15… Transmit Spare Bit (Frame 15, CRC-Multiframe)
First bit in the service word of frame 15 for international use. Only
significant in CRC-multiframe format. If not used, this bit should be
fixedto‘1’.TheinformationofXSP.XS15 is shifted into internal
transmission buffer with beginning of the next following transmitted
CRC multiframe.
If automatic transmission of submultiframe status is enabled via bit
XSP.AXS, or, if one of the time slot 0 transparent modes XSP.TT0 or
TSWM.TSIF is enabled, bit XSP.XS15 is ignored.
Transmit Control 0 (Read/Write)
Value after RESET: 00H
SA8E...4E SA Bit Signaling Enable
0… Standard operation.
1… By setting this bit it is possible to send/receive a LAPD protocol
in any combination of the SA8...SA4bit positions in the
outgoing/incoming data stream. The on chip signaling
controller has to be configured in the HDLC/LAPD mode. In
transmit direction together with these bits the TSWM.TSA8-4
bits must be set to enable transmission to the remote end
transparently through the FALC®-LH.
XCO2...0… Transmit Clock Slot Offset
Initial value loaded into the transmit bit counter at the trigger edge of
SCLKX when the synchronous pulse on port SYPXis active. Refer to
register XC1. XCO0 must be cleared if SIC1.SXSC is set.
Transmit Control 1 (Read/Write)
Value after RESET: 00H
A write access to this address resets the transmit elastic buffer to its basic starting
position. Therefore, updating the value should only be done when the FALC®-LH is
70
XC0 SA8E SA7E SA6E SA5E SA4EXCO2 XCO1 XCO0 (20)
70
XC1 XCOS XTO5 XTO4XTO3 XTO2 XTO1 XTO0 (21)
PEB 2255
FALC-LH V1.3
E1 Registers
Data Sheet 2042000-07
initialized or when the buffer should be centered. As a consequence a transmit slip
occurs.
XCOS… Transmit Clock Offset Shift
Only valid if SIC1.SXSC =0.
0… The delay T between the beginning of time slot 0 and the initial
edge of SCLKX (after SYPXgoes active) is an even number in
the range of 0 to 1022 SCLKX cycles.
1… The delay T is an odd number in the range of 1 to 1023 SCLKX
cycles.
XTO5...0… Transmit Time Slot Offset
Initial value loaded into the transmit time slot counter at the trigger
edge of SCLKX when the synchronous pulse on port SYPXis active.
Receive Control 0 (Read/Write)
Value after RESET: 00H
RCOS… Receive Clock Offset Shift
0… The delay T between the beginning of time slot 0 and the initial
edge of SCLKR(afterSYPR goes active) is an even number in
the range of 0 to 1022 SCLKRcycles.
1… The delay T is an odd number in the range of 1 to 1023 SCLKR
cycles.
SICS… System Interface Channel Select
Only applicable for PCM highway configuration 8MHz and 4Mbit/s
0… Received data is output on port RDO in the first channel
phase. Data line RDO is tristated in the second channel phase.
Data on pin XDI is sampled in the first channel phase only.
Data on XDI in the second channel phase is ignored.
1… Received data is output on port RDO in the second channel
phase. Data line RDO is tristated in the first channel phase.
Data on pin XDI is sampled in the second channel phase only.
Data on XDI in the first channel phase is ignored.
70
RC0 RCOS SICS CRCI XCRCI RDIS RCO2 RCO1 RCO0 (22)
In neon me. ,
PEB 2255
FALC-LH V1.3
E1 Registers
Data Sheet 205 2000-07
CRCI… Automatic CRC4 Bit Inversion
If set, all CRC bits of one outgoing submultiframe are inverted in case
a CRC error is flagged for the previous received submultiframe. This
function is logically ORed with RC0.XCRCI.
XCRCI… Transmit CRC4 Bit Inversion
If set, the CRC bits in the outgoing data stream are inverted before
transmission. This function is logically ORed with RC0.CRCI.
RDIS… Receive Data Input Sense
Only applicable for dual rail mode (LIM1.DRS =1).
0… Inputs: RDIP, RDIN active low, input ROID is active high
1… Inputs: RDIP, RDIN active high, input ROID is active low
RCO2...0… Receive Clock Slot Offset/Receive Frame Marker Offset
Depending on bit SIC2.SRFSO this bit enables different functions:
Receive Clock-Slot Offset (SIC2.SRFSO =0)
Initial value loaded into the receive bit counter at the trigger edge of
SCLKR when the synchronous pulse on port SYPR is active.
Receive Frame Marker Offset (SIC2.SRFSO =1)
Offset programming of the receive frame marker which is output on
port SYPR. The receive frame marker could be activated during any
bit position of the current frame.
Calculation of the value Xof the “Receive Counter Offset” register
RC1/0 depends on the bit position BP which should be marked and
SCLKR:
X=(2 +2 BP) mod 512, for SCLKR=2.048 MHz.
PEB 2255
FALC-LH V1.3
E1 Registers
Data Sheet 206 2000-07
Receive Control 1 (Read/Write)
Value after RESET: 00H
SWD … Service Word Condition Disable
0… Standard operation. Three or four consecutive incorrect service
words (depending on bit RC1.ASY4) causes loss of
synchronization.
1… Errors in service words have no influence when in synchronous
state. However, they are used for the resynchronization
procedure.
ASY4 … Select Loss of Sync Condition
0… Standard operation. Three consecutive incorrect FAS words or
three consecutive incorrect service words causes loss of
synchronization.
1… Four consecutive incorrect FAS words or four consecutive
incorrect service words causes loss of synchronization. The
service word condition may be disabled via bit RC1.SWD.
RTO5...0… Receive Time Slot Offset/Receive Frame Marker Offset
Depending on bit SIC2.SRFSO this bit enables different functions:
Receive Time Slot Offset (SIC2.SRFSO =0)
Initial value which is loaded into the receive time slot counter at the
trigger edge of SCLKR when the synchronous pulse on port SYPR is
active.
Receive Frame Marker Offset (SIC2.SRFSO =1)
Offset programming of the receive frame marker which is output on
port SYPR. The receive frame marker could be activated during any
bit position of the current frame.
Calculation of the value Xof the “Receive Counter Offset” register
RC1/0 depends on the bit position BP which should be marked and
SCLKR:
X=(2 +2BP)mod512,forSCLKR=2.048 MHz.
70
RC1 SWD ASY4 RTO5 RTO4RTO3 RTO2 RTO1 RTO0 (23)
PEB 2255
FALC-LH V1.3
E1 Registers
Data Sheet 207 2000-07
Transmit Pulse-Mask 0...2 (Read/Write)
Value after RESET: 9CH,03
H,00
H
The transmit pulse shape which is defined in ITU-T G.703 is output on pins XL1 and XL2.
The level of the pulse shape can be programmed via registers XPM2...0tocreatea
custom waveform. In order to get an optimized pulse shape for the external transformers
each pulse shape is internally divided into four sub pulse shapes. In each sub pulse
shape a programmed 5 bit value defines the level of the analog voltage on pins XL1/2.
Together four 5 bit values have to be programmed to form one complete transmit pulse
shape. The four 5 bit values are sent in the following sequence:
XP04-00: First pulse shape level
XP14-10: Second pulse shape level
XP24-20: Third pulse shape level
XP34-30: Fourth pulse shape level
Changing the LSB of each subpulse in registers XPM2...0 changes the amplitude of the
differential voltage on XL1/2 by approximately 110 mV.
Example:120 Ωinterface and wired as shown in Figure 23 on page 79.
XPM04-00: 1DHor 29decimal
XPM14-10: 1DHor 29decimal
XPM24-20: 00H
XPM34-30: 00H
Programming values for XPM0...2: BDH,03
H,00
H
XLHP… Transmit Line High Power
0… Normal operation
1… With thisbit theoutput current capability of the transmit line XL1
and XL2 can be influenced. Connecting low impedances to the
outputs XL1/XL2 this bit should be set to increase the possible
output current. Setting this bit has no influence on the voltage
levels of the pulse shape.
70
XPM0 XP12 XP11 XP10 XP04XP03 XP02 XP01 XP00 (24)
XPM1 XP30 XP24XP23 XP22 XP21 XP20 XP14XP13 (25)
XPM2 XLHP XLT DAXLT XP34XP33 XP32 XP31 (26)
PEB 2255
FALC-LH V1.3
E1 Registers
Data Sheet 2082000-07
XLT… Transmit Line Tristate
0… Normal operation
1… Transmit line XL1/XL2 or XDOP/XDON are switched into high
impedance state. If this bit is set the transmit line monitor status
information is frozen.
DAXLT... Disable Automatic Tristating of XL1/2
0... Normal operation. If a short is detected on pins XL1/2 the
transmit line monitor sets the XL1/2 outputs into a high
impedance state.
1... If a short is detected on XL1/2 pins automatic setting these pins
into a high impedance (by the XL-monitor) state is disabled.
Transparent Service Word Mask (Read/Write)
Value after RESET: 00H
TSWM7...0… Transparent Service Word Mask
TSIS… Transparent Si-Bit in Service Word
0… The Si-Bit is generated internally.
1… The Si-Bit in the service word is taken from port XDI and
transparently passed through the FALC®-LH without any
changes. The internal information of the FALC®-LH (register
XSW) is ignored.
TSIF… Transparent SiBit in FAS Word
0… The Si-Bit is generated internally.
1… The Si-Bit in the FAS word is taken from port XDI and routed
transparently through the FALC®-LH without any changes. The
internal information of the FALC®-LH (register XSW) is
ignored.
70
TSWM TSIS TSIF TRA TSA4TSA5 TSA6 TSA7 TSA8(27)
eon
PEB 2255
FALC-LH V1.3
E1 Registers
Data Sheet 2092000-07
TRA… Transparent Remote Alarm
0… The Remote Alarm Bit is generated internally.
1… The A Bit is taken from port XDI and routed transparently
through the FALC®-LH without any changes. The internal
information of the FALC®-LH (register XSW) is ignored.
TSA4…8... Transparent SA4...8 Bit
0… The SA4...8bits are generated internally.
1… The SA4...8bits are taken from port XDI or from the internal
signaling controller if enabled and transparently passed
through the FALC®-LH without any changes. The internal
information of the FALC®-LH (registers XSW and XSA4...8)is
ignored.
Idle Channel Code Register (Read/Write)
Value after RESET: 00H
IDL7…0… Idle Channel Code
If channel loop back is enabled by programming LOOP.ECLB =1, the
contents of the assigned outgoing channel on ports XL1/XL2 or
XDOP/XDON is set equal to the idle channel code selected by this
register.
Additionally, the specified pattern overwrites the contents of all
channels selected via the idle channel registers ICB1…ICB4.IDL7is
transmitted first.
70
IDLE IDL7 IDL0 (29)
PEB 2255
FALC-LH V1.3
E1 Registers
Data Sheet 210 2000-07
Transmit SA4...8 Register (Read/Write)
Value after RESET: 00H,00
H,00
H,00
H,00
H
XSA8…XSA4… Transmit Sa-Bit Data
The Sa-bit register access is enabled by setting bit FMR1.ENSA =1.
With the transmit multiframe begin an interrupt ISR1.XMB is
generated and the contents of these registers XSA4...8is copied into
a shadow register. The contents is subsequently sent out in the
service words of the next outgoing CRC multiframe (or doubleframes)
if none of the time slot 0 transparent modes is enabled. XS40 is sent
out in bit position 4in frame 1, XS47 in frame 15. The transmit
multiframe begin interrupt XMB request that these registers should be
serviced. If requests for new information are ignored, current contents
is repeated.
Framer Mode Register 3 (Read/Write)
Value after RESET: 00H
XLD… Transmit LLB Down Code
0… Normal operation.
1… A one in this bit position causes the transmitter to replace
normal transmit data with the LLB Down (Deactivate) Code
continuously until this bit is reset. The LLB Down Code is
optionally overwritten by the timeslot 0 depending on bit
70
XSA4XS47XS46XS45XS44 XS43XS42XS41XS40(2A)
XSA5 XS57 XS56 XS55 XS54XS53 XS52 XS51 XS50 (2B)
XSA6 XS67 XS66 XS65 XS64XS63 XS62 XS61 XS60 (2C)
XSA7 XS77 XS76 XS75 XS74XS73 XS72 XS71 XS70 (2D)
XSA8XS87XS86XS85XS84 XS83XS82XS81XS80(2E)
70
FMR3 XLD XLUCMI SA6SYCFRZEXTIW (2F)
In neon me. ,
PEB 2255
FALC-LH V1.3
E1 Registers
Data Sheet 211 2000-07
LCR1.LLBF. For correct operation bit FMR3.XLUmust be
cleared.
XLU… Transmit LLB UP Code
0… Normal operation.
1… A one in this bit position causes the transmitter to replace
normal transmit data with the LLB UP Code continuously until
this bit is reset. The LLB UP Code is overwritten by the timeslot
0 depending on bit LCR1.LLBF. For correct operation bit
FMR3.XLD must be cleared.
CMI… Select CMI Precoding
Only valid if CMI code (FMR0.XC1/0=01) is selected. This bit defines
the CMI precoding and influences only the transmit data and not the
receive data.
0… CMI with HDB3 precoding
1… CMI without HDB3 precoding
SA6SY… Receive SA6 Access Synchronous Mode
Only valid if multiframe format (FMR2.RFS1/0=1x) is selected.
0… The detection of the predefined SA6 bit pattern (referto chapter
SA6 Bit Detection according to ETS 300233) is done
independently of the multiframe synchronous state.
1… The detection of the SA6 bit pattern is done synchronously to
the multiframe.
CFRZ… Enable CAS Freeze Output
This bit selects the function of pin RFSPQ.
0… The receive frame synchronous pulse is output on pin RFSPQ.
1… The synchronous status of the integrated CAS controller
(FRS1.TS16LFA) is output on pin RFSP.IftheCAS
synchronizer lost its synchronization this pin is set high.
EXTIW… Extended CRC4 to Non CRC4 Interworking
Only valid in multiframe format. This bit selects the reaction of the
synchronizer after the 400 ms timeout has been elapsed and starts
transmitting a remote alarm if FMR2.AXRA is set.
0… The CRC4to Non CRC4interworking is done as described in
ITU-T G. 706 Annex B.
PEB 2255
FALC-LH V1.3
E1 Registers
Data Sheet 212 2000-07
1… The interworking is done according to ITU-T G. 706 with the
exception that the synchronizer still searches for the
multiframing even if the 400 ms timer is expired. Switching into
doubleframe format is disabled. If FMR2.AXRA is set the
remote alarm bit is active in the outgoing data stream until the
multiframe is found.
Idle Channel Register (Read/Write)
Value after RESET: 00H,00
H,00
H,00
H
IC0…31… Idle Channel Selection Bits
These bits define the channels (time slots) of the outgoing PCM frame
to be altered.
Assignments:
IC0 →time slot 0
IC1 →time slot 1
...
IC31 → time slot 31
0… Normal operation.
1… Idle channel mode. The contents of the selected time slot is
overwritten by the idle channel code defined via register IDLE.
Note: Although time slot 0 can be selected by bit IC0, its contents is
only altered if the transparent mode is selected (XSP.TT0).
70
ICB1 IC0 IC1 IC2 IC3 IC4IC5 IC6 IC7 (30)
ICB2 IC8IC9IC10 IC11 IC12 IC13 IC14IC15 (31)
ICB3 IC16 IC17 IC18IC19IC20 IC21 IC22 IC23 (32)
ICB4IC24IC25 IC26 IC27 IC28IC29IC30 IC31 (33)
PEB 2255
FALC-LH V1.3
E1 Registers
Data Sheet 213 2000-07
Line Interface Mode 0 (Read/Write)
Value after RESET: 00H
XFB… Transmit Full Bauded Mode
Only applicable for dual rail mode (bit LIM1.DRS =1).
0…Output signals XDOP/XDON are half bauded (normal operation).
1…Output signals XDOP/XDON are full bauded.
Note: If CMI coding is selected (FMR0.XC1/0=01) this bit has to be
cleared.
XDOS… Transmit Data Out Sense
Only applicable for dual rail mode (bit LIM1.DRS =1)
0… Output signals XDOP/XDON are active low. Output XOID is
active high (normal operation).
1… Output signals XDOP/XDON are active high. Output XOID is
active low.
Note: If CMI coding is selected (FMR0.XC1/0=01) this bit has to be
cleared.
SCL1…0… Select Clock Output
00… Output frequency at pin CLKX:2048 kHz active high
01… Output frequency at pin CLKX:2048 kHz active low
10… Output frequency at pin CLKX:4096 kHz active high
11… Output frequency at pin CLKX:4096kHzactivelow
EQON… Receive Equalizer On
0… -10 dB Receiver: short haul mode
1… -43 dB Receiver, long haul mode
ELOS Enable Loss of Signal
0… Normal operation. The extracted receive clock is output via
pin RCLK.
1… In case of loss of signal (FRS0.LOS =1) the RCLKis set high.
If FRS0.LOS =0 the received clock is output via RCLK.
70
LIM0 XFB XDOS SCL1 SCL0 EQON ELOS LL MAS (34)
. . Inflqeon
PEB 2255
FALC-LH V1.3
E1 Registers
Data Sheet 2142000-07
LL… Local Loop
0… Normal operation
1… Local loop active. The local loopback mode disconnects the
receive lines RL1/RL2 or RDIP/RDIN from the receiver. Instead
of the signals coming from the line the data provided by system
interface are routed through the analog receiver back to the
system interface. The unipolar bit stream is transmitted
undisturbedly on the line. Receiver and transmitter coding must
be identical. Operates in analog and digital line interface mode.
In analog line interface mode data is transferred through the
complete analog receiver.
MAS… Master Mode
0… Slave mode
1…Master mode on. Setting this bit the DCO-R circuitry is
frequency synchronized with the clock (2.048 MHz) supplied by
SYNC. If this pin is connected to VSS the DCO-R circuitry is
centered and no receive jitter attenuation is performed. The
generated clocks are stable.
Line Interface Mode 1 (Read/Write)
Value after RESET: 00H
EFSC… Enable Frame Synchronization Pulse
0… The transmit clock is output via pin XCLK.
1… Pin XCLKprovides a 8kHz frame synchronization pulse which
is active high for one 2 MHz cycle (pulse width = 488 ns).
RIL2…0… Receive Input Threshold
Only valid if analog line interface in short haul mode is selected
(LIM0.EQON=0 and LIM1.DRS=0).
Loss of signal is declared if the voltage between pins RL1 and RL2
drops below the limits programmed via bits RIL2...0 and the received
data stream has no transition for a period defined in the PCD register.
The threshold where no signal is declared is programmable by the
RIL2...0 bits, see Table 58 "DC Parameters"on page 336 for detail.
Note: LIM1.RIL(2:0) must be programmed before LIM0.EQON = 1 is set.
70
LIM1 EFSC RIL2 RIL1 RIL0 TCD1 JATT RL DRS (35)
Inflqeon
PEB 2255
FALC-LH V1.3
E1 Registers
Data Sheet 215 2000-07
TCD1… Transmit Clock Generation DCO-X
0… The transmit clock is sourced by the DCO-Xcircuitry, if the
transmit elastic buffer is enabled. Reference clock is XTAL3.
1… The transmit clock is sourced by the DCO-Xcircuitry, if the
transmit elastic buffer is enabled. Reference clock is XTAL1.
DCO-R cannot be used in this configuration.
JATT…RL... Transmit Jitter Attenuator/Remote Loop
00… Normal operation. The transmit jitter attenuator is disabled.
Transmit data bypasses the buffer.
01… Remote Loop active without transmit jitter attenuator enabled.
Transmit data bypasses the buffer.
10… Transmit Slicer active.
FALC54compatibility: Transmit data received on port XDI is
first written into the transmit jitter attenuator and then sent jitter
free on ports XL1/2 or XDOP/N or XOID.
For FALC-LH the same function even with a better support in
case of slips is also provided if bits are set to
SIC1.XBS1/0 =10.
11… Remote Loop and jitter attenuator active. Received data from
pins RL1/2 or RDIP/N or ROID is sent ’jitter free’ on ports XL1/
2orXDOP/N or XOID. The dejittered clock is generated by the
DCO-Xcircuitry.
DRS… Dual Rail Select
0… The ternary interface is selected. Multifunction ports RL1/2 and
XL1/2 become analog in/outputs.
1… The digital dual rail interface is selected. Received data is
latched on multifunction ports RDIP/RDIN while transmit data is
output on pins XDOP/XDON.
eon
PEB 2255
FALC-LH V1.3
E1 Registers
Data Sheet 216 2000-07
Pulse Count Detection Register (Read/Write)
Value after RESET: 00H
PCD7…0… Pulse Count Detection
A LOS alarm is detected if the incoming data stream has no
transitions for a programmable number T consecutive pulse
positions. The number T is programmable via the PCD register and
canbecalculatedasfollows:
T=16 ×(N+1) ;with 0 ≤N≤255.
The maximum time is: 256 x 16 x 488 ns =2 ms. Every detected pulse
resets the internal pulse counter. The counter is clocked with the
receive clock RCLK.
Pulse Count Recovery (Read/Write)
Value after RESET: 00H
PCR7…0… Pulse Count Recovery
A LOS alarm is cleared if a pulse density is detected in the received
bit stream. The number of pulses M which must occur in the
predefined PCD time interval is programmable via the PCR register
and can be calculated as follows:
M=N+1;with 0 ≤N≤255.
The time interval starts with the first detected pulse transition. With
every received pulse a counter is incremented and the actual counter
is compared with the contents of PCR register. If the pulse number is
≥thePCRvaluetheLOSalarmisreset;otherwise the alarm stays
active. In this case the next detected pulse transition starts a new time
interval.
70
PCD PCD7 PCD0 (36)
70
PCR PCR7 PCR0 (37)
PEB 2255
FALC-LH V1.3
E1 Registers
Data Sheet 217 2000-07
Line Interface Mode 2 (Read/Write)
Value after RESET: 00H
DJA2… Digital Jitter Attenuation DCO-X
0… Jitter attenuation of the transmit clock is done using an external
pullable crystal between pins XTAL3/4
1… Jitter attenuation of the transmit clock is done without using an
external pullable crystal between pins XTAL3/4. Only a free
running 16.384-MHz clock has top be provided at XTAL3 (+/-
50 ppm).
DJA1… Digital Jitter Attenuation DCO-R
0… Jitter attenuation of the system/transmit clock is done using an
external pullable crystal between pins XTAL1/2
1… Jitter attenuation of the system/transmit clock is done without
using an external pullable crystal between pins XTAL1/2. Only
a free running 16.384-MHz clock has top be provided at XTAL1
(+/- 50 ppm).
SCF… Select Corner Frequency of DCO-R
Setting this bit reduces the corner frequency of the DCO-R circuit by
the factor of ten to 0.2 Hz.
Note: Reducing the corner frequency of the DCO-R circuitry
increases the synchronization time before the frequencies are
synchronized.
ELT… Enable Loop-Timed
0… normal operation.
1… Transmit clock is generated from the clock supplied by XTAL3/
4which is synchronized with the extracted receive route clock. In this
configuration the transmit elastic buffer has to be enabled. Refer to
register XSW.XTM.
70
LIM2 DJA2 DJA1 SCF ELT LOS2 LOS1 (38)
PEB 2255
FALC-LH V1.3
E1 Registers
Data Sheet 2182000-07
LOS2...1… Loss of Signal Recovery Condition
00… The LOS alarm is cleared if the predefined pulse density
(register PCR) is detected during the time interval which is
defined by register PCD.
01… Additionally to the recovery condition described above a LOS
alarm is only cleared if the pulse density is fulfilled and no more
than 15 contiguous zeros are detected during the recovery
interval. (according to TR-NWT 499).
10… Clearing a LOS alarm is done if the pulse density is fulfilled and
no more than 99 contiguous zeros are detected during the
recovery interval. (according to TR-NWT 820).
11… Not assigned.
Loop Code Register 1 (Read/Write)
Value after RESET: 00H
EPRM… Enable Pseudo Random Bit Sequence Monitor
0… Pseudo random bit sequence (PRBS) monitor is disabled.
1… PRBS monitor is enabled. Setting this bit enables incrementing
the CEC2 error counter with each detected PRBS bit error. With
any change of state of the PRBS internal synchronization
status an interrupt ISR1.LLBSC is generated. The current
status of the PRBS synchronizer is indicated by bit
RSP.LLBAD. The expected PRBS sequence has to be selected
by bit LCR1.LLBP.
The PRBS status signal is output on pin RFSP,if
FMR3.CFRZ=0 and LCR1.EPRM=1. It is set high, if the PRBS
monitor is in synchronous state.
XPRBS… Transmit Pseudo Random Bit Sequence
A one in this bit position enables transmitting of a pseudo random bit
sequence to the remote end. Depending on pit LLBP the PRBS is
generated according to 215-1 or 220-1 with a maximum-14-zero
restriction ( ITU-T O. 151).
70
LCR1 EPRM XPRBS LDC1 LDC0 LAC1 LAC0 FLLB LLBP (39)
Inflqeon
PEB 2255
FALC-LH V1.3
E1 Registers
Data Sheet 2192000-07
LDC1…0... Length Deactivate (Down) Code
These bits defines the length of the user programmable LLB
deactivate code which is programmable in register LCR2.
00… length: 5 bit
01… length: 6 bit
10… length: 7 bit
11… length: 8bit
If a shorter pattern length is required, select a multiple of the required
length and repeat the pattern in LCR2.
LAC1…0... Length Activate (Up) Code
These bits defines the length of the user programmable LLB activate
code which is programmable in register LCR3.
00… length: 5 bit
01… length: 6 bit
10… length: 7 bit
11… length: 8bit
If a shorter pattern length is required, select a multiple of the required
length and repeat the pattern in LCR3.
FLLB… Framed Line Loopback/Invert PRBS
Depending on bit LCR1.XPRBS this bit enables different functions:
LCR1.XPRBS=0:
0… The line loopback code is transmitted including framing bits.
1… The line loopback code is transmitted unframed.
Invert PRBS
LCR1.XPRBS=1:
0… The generated PRBS is transmitted not inverted.
1… The PRBS is transmitted inverted.
PEB 2255
FALC-LH V1.3
E1 Registers
Data Sheet 220 2000-07
LLBP… Line Loopback Pattern
LCR1.XPRBS=0
0… Fixed line loopback code : 001 (loop down) or 00001 (loop up).
1… Enable user programmable line loopback code via register
LCR2/3.
LCR1.XPRBS=1 or LCR1.EPRM =1
0… 215 -1
1… 220 -1
Loop Code Register 2 (Read/Write)
Value after RESET: 00H
LDC7…0… Line Loopback Deactivate Code
If enabled by bit FMR3.XLD the LLB deactivate code is repeated
automatically until the LLB generator is stopped. Transmit data is
overwritten by the LLB code. LDC0 is transmitted last. If the selected
code length is less than 8bit, the leftmost bits of LCR2 are ignored.
For correct operations bit LCR1.XPRBS has to be cleared.
Loop Code Register 3 (Read/Write)
Value after RESET: 00H
LAC7…0… Line Loopback Activate Code
If enabled by bit FMR3.XLUthe LLB activate code is repeated
automatically until the LLB generator is stopped. Transmit data is
overwritten by the LLB code. LAC0 is transmitted last. If the selected
code length is less than 8bit, the leftmost bits of LCR3 are ignored.
For correct operations bit LCR1.XPRBS has to be cleared.
70
LCR2 LDC7 LDC0 (3A)
70
LCR3 LAC7 LAC0 (3B)
eon
PEB 2255
FALC-LH V1.3
E1 Registers
Data Sheet 221 2000-07
System Interface Control 1 (Read/Write)
Value after RESET: 00H
SRSC… Select Receive System Clock
0… expected frequency on pin SCLKR: 8.192MHz
Calculation of delay time T (SCLKR cycles) depends on the
value Xof the “Receive Counter Offset” register RC1/0 and of
the programming of RC0.RCOS.
Delay T is an even number in the range of 0 to 1022:
RCOS =0: X=5−T/2 if
X=517 −T/2 if
Delay T is an odd number in the range of 1 to 1023:
RCOS =1: X=5−(T −1)/2 if
X=517 −(T −1)/2 if
1… expected frequency on pin SCLKR: 2.048 MHz
Calculation of delay time T (SCLKR cycles) depends on the
value Xof the “Receive Counter Offset” register RC1/0:
T=(260 −x/2) mod 256
Delay time T =time between beginning of time slot 0 at RDO
and the initial edge of SCLKRafterSYPR goes active.
If this bit is set FMR1.IMOD must be set also and bit RC0.0
must be cleared.
RBS1...0… Receive Buffer Size
00… buffer size : 2 frames
01… buffer size : 1 frame
10… buffer size : 92bits
11… bypass of receive elastic store
70
SIC1 SRSC RBS1 RBS0 SXSC XBS1 XBS0 (3C)
0T10≤≤
12 T 1022≤≤
1T11≤≤
13 T 1023≤≤
In neon me. ,
PEB 2255
FALC-LH V1.3
E1 Registers
Data Sheet 222 2000-07
SXSC… Select Transmit System Clock
0… expected frequency on pin SCLKX:8.192MHz
Calculation of delay time T (SCLKX cycles) depends on the
value Xof the “Transmit Counter Offset” register XC1/0 and of
the programming of XC1.XCOS:
Delay T is an even number in the range of 0 to 1022:
XCOS =0: X = 498 −T/2 if
X=1010 −T/2 if
Delay T is an odd number in the range of 1 to 1023:
XCOS =1: X = 498 −(T −1)/2 if
X=1010 −(T −1)/2 if
1… expected frequency on pin SCLKX:2.048 MHz
Calculation of delay time T (SCLKX cycles) depends on the
value Xof the “Transmit Counter Offset” register XC1/0:
T=(507 −x/2) mod 256
Delay time T =time between beginning of time slot0 at XDI and
the initial edge of SCLKX after SYPXgoes active.
If this bit is set FMR1.IMOD must be set also and bit XC0.0
must be cleared.
XBS1...0… Transmit Buffer Size
00… By-pass of transmit elastic store
01… buffer size : 1 frame
10… buffer size : 2 frames
11… buffer size : 92bits
0T996≤≤
9
98 T 1022≤≤
1T997≤≤
9
99 T 1023≤≤
PEB 2255
FALC-LH V1.3
E1 Registers
Data Sheet 223 2000-07
System Interface Control 2 (Read/Write)
Value after RESET: 00H
FFS … Force Freeze Signaling
Setting this bit disables updating of the receive signaling buffer and
current signaling information is frozen. After resetting this bit and
receiving a complete superframe updating of the signaling buffer is
started again. The freeze signaling status could be also automatically
generated by detecting the Loss of Signal alarm or a Loss of CAS
Frame Alignment or a receive slip (only if external register access via
RSIG is enabled). This automatic freeze signaling function is logically
ored with this bit.
The current internal freeze signaling status is available in register
SIS.SFS.
SSF … Serial Signaling Format
Only applicable if pin function R/XSIG is selected.
0… Bits 1...4in all time slots except time slots 0 +16 are cleared.
1… Bits 1...4in all time slots except time slots 0 +16 are set high.
SRFSO… Select Receive Frame Sync Output
0… Pin SYPR: Input
1… Pin SYPR: Output
Setting this bit disables the timeslot assigner. With register
RC1/0 the receive frame marker could be activated during any
bit position of the current frame. This marker is active high for
2.048 MHz cycle and is clocked off with the falling edge of
SCLKR or RCLKif the receive elastic store is bypassed.
If no SYPR has been activated since RESET or software reset
CMDR.RES the outputs of the receive system interface
assume an arbitrary alignment.
Calculation of the value Xof the “Receive Counter Offset”
register RC1/0 depends on SCLKR and on the bit position BP
which should be marked:
X=(2 +2BP) mod 512,forSCLKR=2.048 MHz
70
SIC2 FFS SSF SRFSO (3D)
PEB 2255
FALC-LH V1.3
E1 Registers
Data Sheet 2242000-07
Line Interface Mode 3 (Read/Write)
Value after RESET: 00H
CSC… Configure System Clock CLK16M/CLK12M
0… Dejittered XTAL1 or XTAL3 clock is output on CLK16M/
CLK12M.
1… Buffered XTAL1 or XTAL3 clock is output on CLK16M/
CLK12M.
ESY… External Synchronization of DCO-X
Together with bit LOOP.SPN the functionality of pin 80 is defined:
Programming of LOOP.SPN and LIM3.ESYand the corresponding
pin function is shown below.
SPN/ESY:
00… function of pin 80XSIG: If SIC3.TTRF =1, transmit data
from the system interface. No input function defined for
SIC3.TTRF =0.
01… function of pin 80SYNC2: external synchronization input
for the DCO-Xcircuitry.
10… function of pin 80 ROID: Receive Optical Interface Data.
11… function of pin 80XSIG: Transmit signaling input from the
transmit system interface.
System Interface Control 3 (Read/Write)
Value after RESET: 00H
TTRF… TTR Register Function
Setting this bit the function of the TTR1...4registers are changed. A
one in each TTR register forces the XSIGM marker high for the
respective time slot and controls sampling of the time slots provided
on pin XSIG. XSIG is selected by LOOP.SPN =0 and LIM3.ESY=0.
70
LIM3 CSC ESY(3E)
70
SIC3 TTRF DAF (40)
eon
PEB 2255
FALC-LH V1.3
E1 Registers
Data Sheet 225 2000-07
DAF… Disable Automatic Freeze
Valid only if serial signaling access is enabled.
0… Signaling is automatically frozen if one of the following alarms
occurred: Loss of Signal (FRS0.LOS), Loss of CAS Frame
Alignment (FRS1.TS16LFA) or receive slips (ISR3.RSP/N).
1… Automatic freezing of signaling data is disabled. Updating of the
signaling buffer is also done if one of the above described alarm
conditions is active. However, updating of the signaling buffer is
stopped if SIC2.FFS is set.
Disable Error Counter (Write)
Value after RESET: 00H
DCEC3… Disable CRC Error Counter 3
DCEC2… Disable CRC Error Counter 2
DCEC1… Disable CRC Error Counter
DEBC … Disable Errored Block Counter
DCVC… Disable Code Violation Counter
DFEC… Disable Framing Error Counter
These bits are only valid if FMR1.ECM is cleared. They have to be set
before reading the error counters. They are reset automatically if the
corresponding error counter high byte has been read. With the rising
edge of these bits the error counters are latched and then cleared.
70
DEC DCEC3 DCEC2 DCEC1 DEBC DCVC DFEC (60)
PEB 2255
FALC-LH V1.3
E1 Registers
Data Sheet 226 2000-07
Transmit CAS Registers (Write)
Value after RESET: not defined
Transmit CAS Register 1...16
The transmit CAS register access is enabled by setting bit XSP.CASEN =1. Each
register except XS1 contains the CAS bits fortwo time slots. With the transmit multiframe
begin ISR1.XMB the contents of these registers is copied into a shadow register. The
contents is sent out subsequently in the time slots 16 of the outgoing data stream.
Note: If ISR1.XMB is not used and the write access to these registers is done exact in
that moment when this interrupt is generated, data may be lost.
XS1.7 is sent out first and XS16.0 is sent last. The transmit multiframe begin interrupt
(XMB) requests that these registers should be serviced. If requests for new information
are ignored, current contents is repeated. XS1 has to be programmed with the
multiframe pattern. This pattern must always stay low, otherwise the remote end loses its
synchronization. With setting the Y-bit a remote alarm is transmitted to the far end. The
Y-bit is logically ored with bit CCR1.XTS16RA.
The Xbits (Spare bits) should be set if they are not used.
70
XS1 0000XYXX
(70)
XS2 A1 B1 C1 D1 A16 B16 C16 D16 (71)
XS3 A2 B2 C2 D2 A17 B17 C17 D17 (72)
XS4A3 B3 C3 D3 A18B18C18D18(73)
XS5 A4B4C4D4A19B19C19D19(74)
XS6 A5 B5 C5 D5 A20 B20 C20 D20 (75)
XS7 A6 B6 C6 D6 A21 B21 C21 D21 (76)
XS8A7 B7 C7 D7 A22 B22 C22 D22 (77)
XS9A8B8C8D8A23 B23 C23 D23 (78)
XS10 A9B9C9D9A24B24C24D24(79)
XS11 A10 B10 C10 D10 A25 B25 C25 D25 (7A)
XS12 A11 B11 C11 D11 A26 B26 C26 D26 (7B)
XS13 A12 B12 C12 D12 A27 B27 C27 D27 (7C)
XS14A13 B13 C13 D13 A28B28C28D28(7D)
XS15 A14B14C14D14A29B29C29D29(7E)
XS16 A15 B15 C15 D15 A30 B30 C30 D30 (7F)
Inflqeon
PEB 2255
FALC-LH V1.3
E1 Registers
Data Sheet 227 2000-07
If access to these registers is done without control of the interrupt ISR1.XMB the
registers should be written twice to avoid an internal data transfer error.
Note: A software reset (CMDR.XRES) resets these registers.
PEB 2255
FALC-LH V1.3
E1 Registers
Data Sheet 2282000-07
9.3 E1 Status Register Addresses
•
Table 52 E1 Status Register Address Arrangement
Address Register Type Comment Page
00 RFIFO R Receive FIFO 230
01 RFIFO R Receive FIFO 230
4B RES R Receive Equalizer Status 230
4C FRS0 R Framer Receive Status 0 231
4D FRS1 R Framer Receive Status 1 234
4E RSW R Receive Service Word 236
4F RSP R Receive Spare Bits 236
50 FECL R Framing Error Counter Low 238
51 FECH R Framing Error Counter High 238
52 CVCL R Code Violation Counter Low 239
53 CVCH R Code Violation Counter High 239
54CEC1L R CRC Error Counter 1 Low 240
55 CEC1H R CRC Error Counter 1 High 240
56 EBCL R E-Bit Error Counter Low 241
57 EBCH R E-Bit Error Counter High 241
58CEC2L R CRC Error Counter 2 Low 242
59CEC2H R CRC Error Counter 2 High 242
5A CEC3L R CRC Error Counter 3 Low 243
5B CEC3H R CRC Error Counter 3 High 243
5C RSA4R Receive SA4Bit Register 244
5D RSA5 R Receive SA5 Bit Register 244
5E RSA6 R Receive SA6 Bit Register 244
5F RSA7 R Receive SA7 Bit Register 244
60 RSA8R Receive SA8Bit Register 244
61 RSA6S R Receive SA6 Bit Status Register 245
64SIS R Signaling Status Register 246
65 RSIS R Receive Signaling Status Register 247
66 RBCL R Receive Byte Control Low 248
67 RBCH R Receive Byte Control High 249
PEB 2255
FALC-LH V1.3
E1 Registers
Data Sheet 2292000-07
68ISR0 R Interrupt Status Register 0 249
69ISR1 R Interrupt Status Register1 251
6A ISR2 R Interrupt Status Register 2 253
6B ISR3 R Interrupt Status Register 3 254
6C ISR5 R Interrupt Status Register 5 256
6E GIS R Global Interrupt Status 256
6F VSTR R Version Status 256
70 RS1 R Receive CAS Register 1 257
71 RS2 R Receive CAS Register 2 257
72 RS3 R Receive CAS Register 3 257
73 RS4R Receive CAS Register 4257
74RS5 R Receive CAS Register 5 257
75 RS6 R Receive CAS Register 6 257
76 RS7 R Receive CAS Register 7 257
77 RS8R Receive CAS Register 8257
78RS9R Receive CAS Register 9257
79RS10 R Receive CAS Register 10 257
7A RS11 R Receive CAS Register 11 257
7B RS12 R Receive CAS Register 12 257
7C RS13 R Receive CAS Register 13 257
7D RS14R Receive CAS Register 14257
7E RS15 R Receive CAS Register 15 257
7F RS16 R Receive CAS Register 16 257
Table 52 E1 Status Register Address Arrangement (cont’d)
Address Register Type Comment Page
PEB 2255
FALC-LH V1.3
E1 Registers
Data Sheet 230 2000-07
9.4 Detailed Description of E1 Status Registers
Receive FIFO (Read)
Reading data from RFIFO can be done in an 8-bit (byte) or 16-bit (word) access
depending on the selected bus interface mode. The LSB is received first from the serial
interface.
The size of the accessible part of RFIFO is determined by programming the bits
CCR1.RFT 1 … 0 (RFIFO threshold level). It can be reduced from 32 bytes (RESET
value) down to 2 bytes (four values: 32, 16, 4,2bytes).
Data Transfer
Up to 32 bytes/16 words of received data can be read from the RFIFO following an RPF
or an RME interrupt.
RPF Interrupt: A fixed number of bytes/words to be read (32, 16, 4,2bytes).The
message is not yet complete.
RME Interrupt: The message is completely received. The number of valid bytes is
determined by reading the RBCL, RBCH registers.
RFIFO is released by issuing the “Receive Message Complete” command (RMC).
Receive Equalizer Status (Read)
EV1…0... Equalizer Status Valid
These bits informs the user about the current state of the receive
equalization network. Only valid if LIM1.EQON is set.
00… equalizer status not valid, still adapting
01… equalizer status valid
10… equalizer status not valid
11… equalizer status valid but high noise floor
70
RFIFO RF7 RF0 (00/01)
70
RES EV1 EV0 RES4RES3 RES2 RES1 RES0 (4B)
In Ineon mg g. Detechon Recovery
PEB 2255
FALC-LH V1.3
E1 Registers
Data Sheet 231 2000-07
RES4…0... Receive Equalizer Status
The current line attenuation status in steps of about 1.7 dB are
displayed in these bits. Only valid if bits EV1...0 =01 and
LIM1.EQON=1. Accuracy: +/- 2 digit, based on temperature influence
and noise amplitude variations.
00000… attenuation (0 dB)
...
11001… max. attenuation
Framer Receive Status Register 0 (Read)
LOS… Loss of Signal
Detection:
This bit is set when the incoming signal has “no transitions” (analog
interface) or logical zeros (digital interface) in a time interval of T
consecutive pulses, where T is programmable by register PCD.
Total account of consecutive pulses: 16 <T<4096.
Analog interface: The receive signal level where “no transition” is
declared is defined by the programmed value of LIM1.RIL2...0 (short
haul mode only, LIM1.EQON =0).
Recovery:
Analog interface: The bit is reset in short haul mode when the
incoming signal has transitions with signal levels greater than the
programmed receive input level (LIM1.RIL2...0;short haul mode only)
for at least M pulse periods defined by register PCR in the PCD time
interval.
Digital interface: The bit is reset when the incoming data stream
contains at least M ones defined by register PCR in the PCD time
interval.
With the rising edge of this bit an interrupt status bit (ISR2.LOS) is set.
For additional recovery conditions see register LIM2.LOS2...1.
The bit is also set during alarm simulation and reset if FMR0.SIM is
cleared and no alarm condition exists.
70
FRS0 LOS AIS LFA RRA AUXPNMFLMFA (4C)
Inflqeon
PEB 2255
FALC-LH V1.3
E1 Registers
Data Sheet 232 2000-07
AIS… Alarm Indication Signal
The function of this bit is determined by FMR0.ALM.
FMR0.ALM =0: This bit is set when two or less zeros in the
received bit stream are detected in a time interval
of 250 µs and the FALC®-LH is in asynchronous
state (FRS0.LFA =1). The bit is reset when no
alarm condition is detected (according to ETSI
standard).
FMR0.ALM =1: This bit is set when the incoming signal has two or
less Zeros in each of two consecutive double
frame period (512 bits). This bit is cleared when
each of two consecutive doubleframe periods
contain three or more zeros or when the frame
alignment signal FAS has been found. (according
to ITU-T G.775 standard)
The bit is also set during alarm simulation and reset if FMR0.SIM is
cleared and no alarm condition exists.
With the rising edge of this bit an interrupt status bit (ISR2.AIS) is set.
LFA… Loss of Frame Alignment
This bit is set after detecting 3 or 4consecutive incorrect FAS words
or 3 or 4consecutive incorrect service words (can be disabled). With
the rising edge of this bit an interrupt status bit (ISR2.LFA) is set. The
specification of the loss of sync conditions is done via bits RC1.SWD
and RC1.ASY4. After loss of synchronization, the frame aligner
resynchronizes automatically.
The following conditions have to be detected to regain synchronous
state:
– The presence of the correct FAS word in frame n.
– The presence of the correct service word (bit 2 =1) in frame n +1.
– For a second time the presence of a correct FAS word in frame
n+2.
The bit is cleared when synchronization has been regained (directly
after the second correct FAS word of the procedure described above
has been received).
If the CRC-multiframe structure is enabled by setting bit FMR2.RFS1,
multiframe alignment is assumed to be lost if pulse-frame
synchronization has been lost. The resynchronization procedure for
multiframe alignment starts after the bit FRS0.LFA has been cleared.
Inflqeon
PEB 2255
FALC-LH V1.3
E1 Registers
Data Sheet 233 2000-07
Multiframe alignment has been regained if two consecutive CRC-
multiframes have been received without a framing error (refer to
FRS0.LMFA).
The bit is set during alarm simulation and reset if FMR0.SIM is
cleared and no alarm condition exists.
If bit FRS0.LFA is cleared a loss of frame alignment recovery interrupt
status ISR2.FAR is generated.
RRA… Receive Remote Alarm
Set if bit 3 of the received service word is set. An alarm interrupt status
ISR2.RA can be generated if the alarm condition is detected.
FRS0.RRA is cleared when no alarm is detected. At the same time a
remote alarm recovery interrupt status ISR2.RAR is generated.
The bit RSW.RRA has the same function.
Both status and interrupt status bits are set during alarm simulation.
AUXP… Auxiliary Pattern Indication
This bit is set when 254or more ‘10’ are received in a time interval of
250 µs and the frame alignment is lost FRS0.LFA =1. An interrupt
status ISR3.API is generated if this bit is set.
The bit is reset when no auxiliary pattern condition is detected. The
bit is also set during alarm simulation and reset if FMR0.SIM is
cleared and no alarm condition exists.
NMF… No Multiframe Alignment Found
This bit is only valid if the CRC4interworking is selected
(FMR2.RFS1/0 =11). Set if the multiframe pattern could not be
detected in a time interval of 400 ms after the framer has reached the
doubleframe synchronous state. The receiver is then automatically
switched to doubleframe format.
This bit is reset if the basic framing has been lost.
PEB 2255
FALC-LH V1.3
E1 Registers
Data Sheet 2342000-07
LMFA… Loss of Multiframe Alignment
Not used in doubleframe format (FMR2.RFS1 =0). In this case, LMFA
is set.
In CRC-multiframe mode (FMR2.RFS1 =1), this bit is set
– if force resynchronization is initiated by setting bit FMR0.FRS, or
– if multiframe force resynchronization is initiated by setting bit
FMR1.MFCS, or
– if pulseframe alignment has been lost (FRS0.LFA).
It is reset if two CRC-multiframes have been received at an interval of
n×2ms(n=1, 2, 3…) without a framing error.
If bit FRS0.LMFA is cleared a loss of multiframe alignment recovery
interrupt status ISR2.MFAR is generated.
Framer Receive Status Register 1 (Read)
TS16RA… Receive Timeslot 16 Remote Alarm
This bit contains the actual information of the received remote alarm
bit RS1.2 in time slot 16. Setting and resetting of this bit causes an
interrupt status change ISR3.RA16.
TS16LOS… Receive Timeslot 16 Loss of Signal
This bit is set if the incoming TS16 data stream contains always zeros
for at least 16 contiguously received time slots. A one in a time slot 16
resets this bit.
TS16AIS… Receive Timeslot 16 Alarm Indication Signal
The detection of the alarm indication signal in timeslot 16 is according
to ITU-T G.775.
This bit is set if the incoming TS16 contains less than 4zeros in each
of two consecutive TS16 multiframe periods. This bit is cleared if two
consecutive received CAS multiframe periods contains more than 3
zeros or the multiframe pattern was found in each of them. This bit is
cleared if TS0 synchronization is lost.
70
FRS1 TS16RA TS16LOS TS16AIS TS16LFA XLS XLO (4D)
Inflqeon
PEB 2255
FALC-LH V1.3
E1 Registers
Data Sheet 235 2000-07
TS16LFA… Receive Timeslot 16 Loss of Multiframe Alignment
0… The CAS controller is in synchronous state after frame
alignment is accomplished.
1… This bit is set if the framing pattern ‘0000’ in 2 consecutive CAS
multiframes were not found or in all TS16 of the preceding
multiframe all bits were reset. An interrupt ISR3.LMFA16 is
generated.
XLS… Transmit Line Short
Significant only if the ternary line interface is selected by
LIM1.DRS=0.
0… Normal operation. No short is detected.
1… The XL1 and XL2 are shortened for at least 32 pulses. As a
reaction of the short the pins XL1 and XL2 are automatically
forced into a high impedance state if bit XPM2.DAXLT is reset.
After 32 consecutive pulse periods the outputs XL1/2 are
activated again and the internal transmit current limiter is
checked. If a short between XL1/2 is still further active the
outputs XL1/2 are in high impedance state again. When the
short disappears pins XL1/2 are activated automatically and
this bit is reset. With any change of this bit an interrupt
ISR1.XLSC is generated. In case of XPM2.XLT is set this bit is
frozen.
XLO… Transmit Line Open
0… Normal operation
1… This bit is set if at least 32 consecutive zeros were sent via pins
XL1/XL2 or XDOP/XDON. This bit is reset with the first
transmitted pulse. With the rising edge of this bit an interrupt
ISR1.XLSC is set. In case of XPM2.XLT is set this bit is frozen.
PEB 2255
FALC-LH V1.3
E1 Registers
Data Sheet 236 2000-07
Receive Service Word Pulseframe (Read)
RSI… Receive Spare Bit for International Use
First bit of the received service word. It is fixed to one if CRC-
multiframe mode is enabled.
RRA… Receive Remote Alarm
Equivalent to bit FRS0.RRA.
RY0…RY4… Receive Spare Bits for National Use (Y-Bits, Sn-Bits, Sa-Bits)
Receive Spare Bits/Additional Status (Read)
SI1…SI2… Submultiframe Error Indication 1, 2
Not valid if doubleframe format is enabled. In this case, both bits are
set.
When using CRC-multiframe format these bits are set to
0… If multiframe alignment has been lost, or
if the last multiframe has been received with CRC error(s). SI1
flags a CRC error in last sub-multiframe 1, SI2 flags a CRC
error in last sub-multiframe 2.
1… If at multiframe synchronous state last assigned sub-multiframe
has been received without a CRC error.
Both flags are updated with beginning of every received CRC
multiframe.
If automatic transmission of sub-multiframe status is enabled by
setting bit XSP.AXS, above status information is inserted
automatically in Si-bit position of every outgoing CRC multiframe
(under the condition that time slot 0 transparent modes are both
disabled):
SI1 →Si-bit of frame 13, SI2 →Si-bit of frame 15.
70
RSW RSI RRA RY0RY1RY2RY3RY4 (4E)
70
RSP SI1 SI2 LLBDD LLBAD RSIF RS13 RS15 (4F)
Inflqeon
PEB 2255
FALC-LH V1.3
E1 Registers
Data Sheet 237 2000-07
LLBDD… Line Loop Back Deactivation Signal Detected
This bit is set in case the LLB deactivate signal is detected and then
received over a period of more than 25 ms with a bit error rate less
than 1/100. The bit remains set as long as the bit error rate does not
exceed 1/100.
If framing is aligned, the timeslot 0 is not taken into account for the
error rate calculation.
Any change of this bit causes a LLBSC interrupt.
LLBAD… Line Loop Back Activation Signal Detected
Depending on bit LCR1.EPRM the source of this status bit changed.
LCR1.EPRM=0: This bit is set in case the LLB activate signal is
detected and then received over a period of more than 25 ms with a
bit error rate less than 1/100. The bit remains set as long as the bit
error rate does not exceed 1/100.
If framing is aligned, the timeslot 0 is not taken into account for the
error rate calculation.
Any change of this bit causes a LLBSC interrupt.
PRBS Status
LCR1.EPRM=1: The current status of the PRBS synchronizer is
indicated in this bit. It is set high if the synchronous state is reached
even in the presence of a BER 1/10. A data stream containing all
zeros with/without framing bits is also a valid pseudo random bit
sequence. The same applies to an all ones data stream.
RSIF… Receive Spare Bit for International Use (FAS Word)
First bit in FAS-word. Used only in doubleframe format, otherwise
fixed to ‘1’.
RS13… Receive Spare Bit (Frame 13, CRC Multiframe)
First bit in service word of frame 13. Significant only in CRC-
multiframe format, otherwise fixed to ‘0’. This bit is updated with
beginning of every received CRC multiframe.
RS15… Receive Spare Bit (Frame 15, CRC Multiframe)
First bit in service word of frame 15. Significant only in CRC-
multiframe format, otherwise fixed to ‘0’. This bit is updated with
beginning of every received CRC multiframe.
PEB 2255
FALC-LH V1.3
E1 Registers
Data Sheet 2382000-07
Framing Error Counter (Read)
FE15…0… Framing Errors
This 16-bit counter is incremented when a FAS word has been
received with an error.
Framing errors are counted during basic frame synchronous state
only (but even if multiframe synchronous state is not reached yet).
During alarm simulation, the counter is incremented every 250 µsup
to its saturation. The error counter doesn’t roll over.
Clearing and updating the counter is done according to bit
FMR1.ECM.
If this bit is reset the error counter is permanently updated in the
buffer. For correct read access of the error counter bit DEC.DFEC has
to be set. With the rising edge of this bit updating the buffer is stopped
and the error counter is reset. Bit DEC.DFEC is reset automatically
with reading the error counter high byte.
If FMR1.ECM is set every second (interrupt ISR3.SEC) the error
counter is latched and then automatically reset. The latched error
counter state should be read within the next second.
70
FECL FE7 FE0 (50)
70
FECH FE15 FE8(51)
PEB 2255
FALC-LH V1.3
E1 Registers
Data Sheet 2392000-07
Code Violation Counter (Read)
CV15…0… Code Violations
No function if NRZcode has been enabled.
If the HDB3 or the CMI code is selected, the 16-bit counter is
incremented when violations of the HDB3 code are detected. The
error detection mode is determined by programming the bit
FMR0.EXTD.
If simple AMI coding is enabled (FMR0.RC0/1 =10) all bipolar
violations are counted. The error counter doesn’t roll over.
During alarm simulation, the counter is incremented every four bits
received up to its saturation.
Clearing and updating the counter is done according to bit
FMR1.ECM.
If this bit is reset the error counter is permanently updated in the
buffer. For correct read access of the error counter bit DEC.DCVC
has to be set. With the rising edge of this bit updating the buffer is
stopped and the error counter is reset. Bit DEC.DCVC is reset
automatically with reading the error counter high byte.
If FMR1.ECM is set every second (interrupt ISR3.SEC) the error
counter is latched and then automatically reset. The latched error
counter state should be read within the next second.
70
CVCL CV7 CV0 (52)
70
CVCH CV15 CV8(53)
PEB 2255
FALC-LH V1.3
E1 Registers
Data Sheet 240 2000-07
CRCErrorCounter1(Read)
CR15…0… CRC Errors
No function if doubleframe format is selected.
In CRC-multiframe mode, the 16-bit counter is incremented when a
CRC-submultiframe has been received with a CRC error. CRC errors
don’t count during asynchronous state. The error counter doesn’t roll
over.
During alarm simulation, the counter is incremented once per
submultiframe up to its saturation.
Clearing and updating the counter is done according to bit
FMR1.ECM.
If this bit is reset the error counter is permanently updated in the
buffer. For correct read access of the error counter bit DEC.DCEC1
has to be set. With the rising edge of this bit updating the buffer is
stopped and the error counter is reset. Bit DEC.DCEC1 is reset
automatically with reading the error counter high byte.
If FMR1.ECM is set every second (interrupt ISR3.SEC) the error
counter is latched and then automatically reset. The latched error
counter state should be read within the next second.
70
CEC1L CR7 CR0 (54)
70
CEC1H CR15 CR8(55)
PEB 2255
FALC-LH V1.3
E1 Registers
Data Sheet 241 2000-07
E Bit Error Counter (Read)
EB15…0… E-Bit Errors
If doubleframe format is selected, FEBEH/L has no function. If CRC-
multiframe mode is enabled, FEBEH/L works as submultiframe error
indication counter (16 bits) which counts zeros in Si-bit position of
frame 13 and 15 of every received CRC multiframe. The error counter
doesn’t roll over.
During alarm simulation, the counter is incremented once per
submultiframe up to its saturation.
Clearing and updating the counter is done according to bit
FMR1.ECM.
If this bit is reset the error counter is permanently updated in the
buffer. For correct read access of the error counter bit DEC.DEBC
has to be set. With the rising edge of this bit updating the buffer is
stopped and the error counter is reset. Bit DEC.DEBC is reset
automatically with reading the error counter high byte.
If FMR1.ECM is set every second (interrupt ISR3.SEC) the error
counter is latched and then automatically reset. The latched error
counter state should be read within the next second.
70
EBCL EB7 EB0 (56)
70
EBCH EB15 EB8(57)
PEB 2255
FALC-LH V1.3
E1 Registers
Data Sheet 242 2000-07
CRCErrorCounter2(Read)
CC15…0… CRC Error Counter (Reported from TE via Sa6 -Bit)
Depending on bit LCR1.EPRM the error counter increment is
selected:
LCR1.EPRM=0:
If doubleframe format is selected, CEC2H/L has no function. If CRC-
multiframe mode is enabled, CEC2H/L works as SA6 Bit error
indication counter (16 bits) which counts the SA6 Bit sequence 0001
and 0011in every received CRC submultiframe.
Incrementing the counter is only possible in the multiframe
synchronous state FRS0.LMFA =0.
SA6 Bit sequence: SA61, SA62, SA63, SA64=0001 or 0011 where
SA61isreceivedinframe1or9in every multiframe.
Pseudo Random Bit Sequence Error Counter
LCR1.EPRM=1:
This 16-bit counter is incremented with every received PRBS bit error
in the PRBS synchronous state RSP.LLBAD =1. The error counter
doesn’t roll over.
During alarm simulation, the counter is incremented once per
submultiframe up to its saturation.
Clearing and updating the counter is done according to bit
FMR1.ECM.
If this bit is reset the error counter is permanently updated in the
buffer. For correct read access of the error counter bit DEC.DCEC2
has to be set. With the rising edge of this bit updating the buffer is
stopped and the error counter is reset. Bit DEC.DCEC2 is reset
automatically with reading the error counter high byte.
If FMR1.ECM is set every second (interrupt ISR3.SEC) the error
counter is latched and then automatically reset. The latched error
counter state should be read within the next second.
70
CEC2L CC7 CC0 (58)
70
CEC2H CC15 CC8(59)
PEB 2255
FALC-LH V1.3
E1 Registers
Data Sheet 243 2000-07
CRCErrorCounter3(Read)
CE15…0… CRC Error Counter (detected at T Ref. Point via Sa6 -Bit)
If doubleframe format is selected, CEC3H/L has no function. If CRC-
multiframe mode is enabled, CEC3H/L works as SA6 Bit error
indication counter (16 bits) which counts the SA6 Bit sequence 0010
and 0011in every received CRC submultiframe.
Incrementing the counter is only possible in the multiframe
synchronous state FRS0.LMFA =0.
SA6 Bit sequence: SA61, SA62, SA63, SA64=0010 or 0011 where
SA61is received in frame 1 or 9in every multiframe.
Clearing and updating the counter is done according to bit
FMR1.ECM.
During alarm simulation, the counter is incremented once per
multiframe up to its saturation.
If this bit is reset the error counter is permanently updated in the
buffer. For correct read access of the error counter bit DEC.DCEC3
has to be set. With the rising edge of this bit updating the buffer is
stopped and the error counter is reset. Bit DEC.DCEC3 is reset
automatically with reading the error counter high byte.
If FMR1.ECM is set every second (interrupt ISR3.SEC) the error
counter is latched and then automatically reset. The latched error
counter state should be read within the next second.
70
CEC3L CE7 CE0 (5A)
70
CEC3H CE15 CE8(5B)
PEB 2255
FALC-LH V1.3
E1 Registers
Data Sheet 244 2000-07
Receive Sa4-Bit Register (Read)
RS47…40… Receive Sa4-Bit Data (Y-Bits)
RS57…50… Receive Sa5-Bit Data
RS67…60… Receive Sa6-Bit Data
RS77…70… Receive Sa7-Bit Data
RS87…80… Receive Sa8-Bit Data
This register contains the information of the eight SAx bits (x =4...8)
of the previously received CRC multiframe. These registers are
updated with every multiframe begin interrupt ISR0.RMB.
RS40isreceivedinbit-slot4of every service word in frame 1, RS47
in frame 15
RS50 is received in bit-slot 5, time slot 0, frame 1, RS57 in frame 15
RS60 is received in bit-slot 6, time slot 0, frame 1, RS67 in frame 15
RS70 is received in bit-slot 7, time slot 0, frame 1, RS77 in frame 15
RS80isreceivedinbit-slot8,timeslot0,frame1,RS87inframe15
Valid if CRC multiframe format is enabled by setting bits
FMR2.RFS1 =1orFMR2.RFS1/0=01 (Doubleframe format).
70
RSA4RS47RS40(5C)
RSA5 RS57 RS50 (5D)
RSA6 RS67 RS60 (5E)
RSA7 RS77 RS70 (5F)
RSA8RS87RS80(60)
PEB 2255
FALC-LH V1.3
E1 Registers
Data Sheet 245 2000-07
Receive Sa6-Bit Status (Read)
Four consecutive received SA6-bits are checked on the by ETS
300233 defined SA6-bit combinations. The FALC®-LH detects the
following “fixed” SA6-bit combinations:
SA61,SA62,SA63,SA64=1000;1010;1100;1110;1111. All other
possible 4bit combinations are grouped to status “X”.
A valid SA6-bit combination must occur three times in a row. The
corresponding status bit in this register is set. Even if the detected
status is active for a short time the status bit remains active until this
register is read. Reading the register resets all pending status
information.
With any change of state of the SA6-bit combinations an interrupt
status ISR0.SA6SC is generated.
During the basic frame asynchronous state updating of this register
and interrupt status ISR0.SA6SC is disabled. In multiframe format the
detection of the SA6-bit combinations can be done either
synchronous or asynchronous to the submultiframe (FMR3.SA6SY).
In synchronous detection mode updating of register RSA6S is done
in the multiframe synchronous state (FRS0.LMFA=0). In
asynchronous state detection mode updating is independent of the
multiframe synchronous state.
S_X… Receive Sa6-Bit Status_X
If none of the fixed SA6-bit combinations are detected this bit is set.
S_F… Receive Sa6-Bit Status: “1111”
Receive SA6-bit status “1111” is detected for three times in a row in
the SA6-bit positions.
S_E… Receive Sa6-Bit Status: “1110”
Receive SA6-bit status “1110” is detected for three times in a row in
the SA6-bit positions.
S_C… Receive Sa6-Bit Status: “1100”
Receive SA6-bit status “1100” is detected for three times in a row in
the SA6-bit positions.
70
RSA6S S_XS_F S_E S_C S_A S_8(61)
PEB 2255
FALC-LH V1.3
E1 Registers
Data Sheet 246 2000-07
S_A… Receive Sa6-Bit Status: “1010”
Receive SA6-bit status “1010” is detected for three times in a row in
the SA6-bit positions.
S_8… Receive Sa6-Bit Status: “1000”
Receive SA6-bit status “1000” is detected for three times in a row in
the SA6-bit positions.
Signaling Status Register (Read)
XDOV… Transmit Data Overflow
More than 32 bytes have been written to the XFIFO.
This bit is reset by:
– a transmitter reset command XRES
– or when all bytes in the accessible half of the XFIFO have been
moved in the inaccessible half.
XFW… Transmit FIFO Write Enable
DatacanbewrittentotheXFIFO.
XREP… Transmission Repeat
Status indication of CMDR.XREP.
RLI… Receive Line Inactive
Neither FLAGs as Interframe Time Fill nor frames are received via the
signaling timeslot.
CEC… Command Executing
0… No command is currently executed, the CMDR register can be
written to.
1… A command (written previously to CMDR) is currently executed,
no further command can be temporarily written in CMDR
register.
Note: CEC is active at most 2.5 periods of the current system data
rate.
SFS… Status Freeze Signaling
0… freeze signaling status inactive.
1… freeze signaling status active
70
SIS XDOV XFW XREP RLI CEC SFS (64)
PEB 2255
FALC-LH V1.3
E1 Registers
Data Sheet 247 2000-07
Receive Signaling Status Register (Read)
RSIS relates to the last received HDLC frame;it is copied into RFIFO when end-of-frame
is recognized (last byte of each stored frame).
VFR… Valid Frame
Determines whether a valid frame has been received.
1… valid HDLC frame
0… invalid HDLC frame
An invalid frame is either
– a frame which is not an integer number of 8bits (n ×8bits) in length
(e.g.25bits),or
– a frame which is too short taking into account the operation mode
selected via MODE (MDS2...0) and the selection of receive CRC
ON/OFF (CCR3.RCRC) as follows:
•MDS2...0=011 (16 bit Address),
RCRC =0:4bytes;RCRC =1:3-4bytes
•MDS2...0=010 (8bit Address),
RCRC =0:3bytes;RCRC =1:2-3bytes
Note: Shorter frames are not reported.
RDO… Receive Data Overflow
A RFIFO data overflow has occurred during reception of the frame.
Additionally, an interrupt can be generated (refer to ISR1.RDO/
IMR1.RDO).
CRC16… CRC16 Compare/Check
0… CRC check failed;received frame contains errors.
1… CRC check o.k.;received frame is error-free.
RAB… Receive Message Aborted
The received frame was aborted from the transmitting station.
According to the HDLC protocol, this frame must be discarded by the
receiver station.
70
RSIS VFR RDO CRC16 RAB HA1 HA0 LA (65)
eon
PEB 2255
FALC-LH V1.3
E1 Registers
Data Sheet 248 2000-07
HA1...0… High Byte Address Compare
Significant only if 2-byte address mode has been selected.
In operating modes which provide high byte address recognition, the
FALC®-LH compares the high byte of a 2-byte address with the
contents of two individually programmable registers (RAH1, RAH2)
and the fixed values FEHand FCH(broadcast address).
Dependent on the result of this comparison, the following bit
combinations are possible:
00… RAH2 has been recognized
01… Broadcast address has been recognized
10… RAH1 has been recognized C/R =0(bit1)
11… RAH1 has been recognized C/R =1(bit1)
Note: If RAH1, RAH2 contain identical values, a match is indicated
by ‘10’or ‘11’.
LA… Low Byte Address Compare
Significant in HDLC modes only.
The low byte address of a 2-byte address field, or the single address
byte of a 1-byte address field is compared with two registers. (RAL1,
RAL2).
0… RAL2 has been recognized
1… RAL1 has been recognized
Receive Byte Count Low (Read)
Together with RBCH (bits RBC11...8) indicates the length of a
received frame (1…4095bytes).BitsRBC4-0 indicate the number of
valid bytes currently in RFIFO. These registers must be read by the
CPUfollowing an RME interrupt.
70
RBCL RBC7 RBC0 (66)
. . Inflqeon
PEB 2255
FALC-LH V1.3
E1 Registers
Data Sheet 249 2000-07
Received Byte Count High (Read)
OV… Counter Overflow
More than 4095 bytes received.
RBC11...8… Receive Byte Count (most significant bits)
Together with RBCL (bits RBC7…RBC0) indicate the length of the
received frame.
Interrupt Status Register 0 (Read)
Value after RESET: 00H
All bits are reset when ISR0 is read.
If bit IPC.VIS is set, interrupt statuses in ISR0 may be flagged although they are masked
via register IMR0. However, these masked interrupt statuses neither generate a signal
on INT, nor are visible in register GIS.
RME… Receive Message End
One complete message of length less than 32 bytes, or the last part
of a frame at least 32 bytes long is stored in the receive FIFO,
including the status byte.
The complete message length can be determined reading the RBCH,
RBCL registers, the number of bytes currently stored in RFIFO is
given by RBC4...0. Additional information is available in the RSIS
register.
70
RBCH OV RBC11 RBC10 RBC9RBC8(67)
70
ISR0 RME RFS T8MS RMB CASC CRC4SA6SC RPF (68)
Inflqeon
PEB 2255
FALC-LH V1.3
E1 Registers
Data Sheet 250 2000-07
RFS… Receive Frame Start
This is an early receiver interrupt activated after the start of a valid
frame has been detected, i.e. after an address match (in operation
modes providing address recognition), or after the opening flag
(transparent mode 0) is detected, delayed by two bytes. After an RFS
interrupt, the contents of
• RSIS-bits 3...1
is valid and can be read by the CPU.
T8MS… Receive Time Out 8 msec
Only active if multiframing is enabled.
The framer has found the doubleframing (basic framing)
FRS0.LFA =0 and is searching for the multiframing. This interrupt is
set to indicate that no multiframing could be found within a time
window of 8msec. In multiframe synchronous state this interrupt is
not generated. Refer also to Floating multiframe alignment window.
RMB… Receive Multiframe Begin
This bit is set with the beginning of a received CRC multiframe related
to the internal receive line timing.
In CRC multiframe format FMR2.RFS1 =1 or in doubleframe format
FMR2.RFS1...0 =01 this interrupt occurs every 2 msec. If
FMR2.RFS1...0 =00 this interrupt is generated every doubleframe
(512 bits).
CASC… Received CAS Information Changed
This bit is set with the updating of a received CAS multiframe
information in the registers RS1...16. If the last received CAS
information is different to the previous received one, this interrupt is
generated after update has been completed. This interrupt occurs
only in TS0 and TS16 synchronous state. The registers RS1...16
should be read within the next 2 ms otherwise the contents may be
lost.
CRC4… Receive CRC4 Error
0... No CRC4error occurs.
1... The CRC4check of a received submultiframe failed.
SA6SC… Receive SA6-Bit Status Changed
With every change of state of the received SA6-bit combinations this
interrupt is set.
PEB 2255
FALC-LH V1.3
E1 Registers
Data Sheet 251 2000-07
RPF… Receive Pool Full
32 bytes of a frame have arrived in the receive FIFO. The frame is not
yet completely received.
Interrupt Status Register 1 (Read)
All bits are reset when ISR1 is read.
If bit IPC.VIS is set, interrupt statuses in ISR1 may be flagged although they are masked
via register IMR1. However, these masked interrupt statuses neither generate a signal
on INT, nor are visible in register GIS.
LLBSC… Line Loop Back Status Change
Depending on bit LCR1.EPRM the source of this interrupt status
changed:
LCR1.EPRM=0: This bit is set, if the LLB activate signal or the LLB
deactivate signal, respectively is detected over a period of 25 ms with
a bit error rate less than 1/100.
The LLBSC bit is also set, if the current detection status is left, i.e., if
the bit error rate exceeds 1/100.
The actual detection status can be read from the RSP.LLBAD and
RSP.LLBDD, respectively.
PRBS Status Change
LCR1.EPRM=1: With any change of state of the PRBS synchronizer
this bit is set. The current status of the PRBS synchronizer is
indicated in RSP.LLBAD.
RDO… Receive Data Overflow
This interrupt status indicates that the CPUdid not respond fast
enough to an RPF or RME interrupt and that data in RFIFO has been
lost. Even when this interrupt status is generated,the frame continues
to be received when space in the RFIFO is available again.
Note: Whereas the bit RSIS.RDO in the frame status byte indicates whether an overflow
occurred when receiving the frame currently accessed in the RFIFO, the
ISR1.RDO interrupt status is generated as soon as an overflow occurs and does
not necessarily pertain to the frame currently accessed by the processor.
70
ISR1 LLBSC RDO ALLS XDUXMB XLSC XPR (69)
Inflqeon
PEB 2255
FALC-LH V1.3
E1 Registers
Data Sheet 252 2000-07
ALLS… All Sent
This bit is set if the last bit of the current frame has been sent out
completely and XFIFO is empty.
XDU… Transmit Data Underrun
Transmitted frame was terminated with an abort sequence because
no data was available for transmission in XFIFO and no XME was
issued.
Note: Transmitter and XFIFO are reset and deactivated if this
condition occurs. They are re-activated not before this
interrupt status register has been read. Thus, XDU should not
be masked via register IMR1.
XMB… Transmit Multiframe Begin
This bit is set every 2 ms with the beginning of a multiframe
transmission and is related to the internal transmit line interface
timing.
After setting this bit, registers XS1...16 are copied into the transmit
shift registers. The registers XS1...16 are now ready for the next data
and have to be updated;otherwise the contents is retransmitted
during the next multiframe. A wait time of 3µs has to be observed
between reading of XMB =1 and start of reprogramming XS1...16.
XLSC… Transmit Line Status Change
XLSC is set with the rising edge of the bit FRS1.XLO or with any
change of bit FRS1.XLS.
The actual status of the transmit line monitor can be read from the
FRS1.XLS and FRS1.XLO.
XPR… Transmit Pool Ready
A data block of up to 32 bytes can be written to the transmit FIFO.
XPR enables the fastest access to XFIFO. It has to be used for
transmission of long frames, back-to-back frames or frames with
shared flags.
PEB 2255
FALC-LH V1.3
E1 Registers
Data Sheet 253 2000-07
Interrupt Status Register 2 (Read)
All bits are reset when ISR2 is read.
If bit IPC.VIS is set, interrupt statuses in ISR2 may be flagged although they are masked
via register IMR2. However, these masked interrupt statuses neither generate a signal
on INT, nor are visible in register GIS.
FAR… Frame Alignment Recovery
The framer has reached doubleframe synchronization. Set when bit
FSR0.LFA is reset. It is set also after alarm simulation is finished and
the receiver is still synchronous.
LFA… Loss of Frame Alignment
The framer has lost synchronization and bit FRS0.LFA is set. It is set
during alarm simulation.
MFAR… Multiframe Alignment Recovery
Set when the framer has found two CRC-multiframes at an interval of
n×2ms(n=1, 2, 3, …) without a framing error. At the same time bit
FRS0.LMFA is reset.
It is set also after alarm simulation is finished and the receiver is still
synchronous. Only active if CRC-multiframe format is selected.
T400MS… Receive Time Out 400 msec
Only active if multiframing is enabled.
The framer has found the doubleframing (basic framing)
FRS0.LFA =0 and is searching for the multiframing. This interrupt is
set to indicate that no multiframing could be found within a time
window of 400 ms after basic framing has been achieved. In
multiframe synchronous state this interrupt is not generated.
AIS… Alarm Indication Signal
This bit is set when an alarm indication signal is detected and bit
FRS0.AIS is set. It is set during alarm simulation.
If IPC.SCI is set high this interrupt status bit is set with every change
of state of FRS0.AIS.
70
ISR2 FAR LFA MFAR T400MS AIS LOS RAR RA (6A)
eon
PEB 2255
FALC-LH V1.3
E1 Registers
Data Sheet 2542000-07
LOS… Loss of Signal
This bit is set when a loss of signal alarm is detected in the received
bit stream and FRS0.LOS is set. It is set during alarm simulation.
If IPC.SCI is set high this interrupt status bit is set with every change
of state of FRS0.LOS.
RAR… Remote Alarm Recovery
Set if a remote alarm in TS0 is cleared and bit FRS0.RA is reset. It is
set also after alarm simulation is finished and no remote alarm is
detected.
RA… Remote Alarm
Set if a remote alarm in TS0 is detected and bit FRS0.RA is set. It is
set during alarm simulation.
Interrupt Status Register 3 (Read)
All bits are reset when ISR3 is read.
If bit IPC.VIS is set, interrupt statuses in ISR3 may be flagged although they are masked
via register IMR3. However, these masked interrupt statuses neither generate a signal
on INT, nor are visible in register GIS.
ES… Errored Second
This bit is set if at least one enabled interrupt source via IMR4is set
during the time interval of one second. Interrupt sources of IMR4
register:
LFA =Loss of frame alignment detected (FRS0.LFA)
FER =Framing error received
CER=CRC error received
AIS =Alarm indication signal (FRS0.AIS)
LOS =Loss of signal (FRS0.LOS)
CVE=Code violation detected
SLIP=Receive Slip positive/negative detected
EBE =E-Bit error detected (RSP.RS13/15)
SEC… Second Timer
The internal one second timer has expired. The timer is derived from
clock RCLK.
70
ISR3 ES SEC LMFA16 AIS16 RA16 API RSN RSP (6B)
Inflqeon
PEB 2255
FALC-LH V1.3
E1 Registers
Data Sheet 255 2000-07
LMFA16… Loss of Multiframe Alignment TS 16
Multiframe alignment of timeslot 16 has been lost if two consecutive
multiframe pattern are not detected or if in 16 consecutive timeslot 16
all bits are reset.
If register IPC.SCI is high this interrupt status bit is set with every
change of state of FRS1.TS16LFA.
AIS16… Alarm Indication Signal TS 16 Status Change
The alarm indication signal AIS in timeslot 16 for the 64kbit/s channel
associated signaling is detected or cleared. A change in bit
FRS1.TS16AIS sets this interrupt (This bit is set if the incoming TS 16
signal contains less than 4zeros in each of two consecutive TS16-
multiframe periods.).
RA16… Remote Alarm TS 16 Status Change
A change in the remote alarm bit in CAS multiframe alignment word
is detected.
API… Auxiliary Pattern Indication
This bit is set if the auxiliary pattern is detected in the received bit
stream and bit FRS0.AUXPisset.
If register IPC.SCI is high this interrupt status bit is set with every
change of state of FRS0.AUXP.
RSN… Receive Slip Negative
The frequency of the receive route clock is greater than the frequency
of the receive system interface working clock based on 2.048 MHz. It
is set during alarm simulation.
In 2-frame buffer mode a frame is skipped.
RSP… Receive Slip Positive
The frequency of the receive route clock is less than the frequency of
the receive system interface working clock based on 2.048 MHz. It is
set during alarm simulation.
In 2-frame buffer mode a frame is repeated.
PEB 2255
FALC-LH V1.3
E1 Registers
Data Sheet 256 2000-07
Interrupt Status Register 5 (Read)
All bits are reset when ISR5 is read.
If bit IPC.VIS is set, interrupt statuses in ISR4may be flagged although they are masked
via register IMR5. However, these masked interrupt statuses neither generate a signal
on INT, nor are visible in register GIS.
XSP… Transmit Slip Positive
The frequency of the transmit clock is less than the frequency of the
transmit system interface working clock based on 2.048 MHz.
In 2-frame buffer mode a frame is skipped.
XSN… Transmit Slip Negative
The frequency of the transmit clock is greater than the frequency of
the transmit system interface working clock based on 2.048 MHz.
In 2-frame buffer mode a frame is repeated
Global Interrupt Status Register (Read)
Value after RESET: 00H
This status register points to pending interrupts sourced by ISR5 and
ISR3...ISR0.
Version Status Register (Read)
VN7...0… Version Number of Chip
10H…Version 1.1
13H…Version 1.3
70
ISR5 XSP XSN (6C)
70
GIS ISR5 ISR3 ISR2 ISR1 ISR0 (6E)
70
VSTR VN7 VN6 VN5 VN4VN3 VN2 VN1 VN0 (6F)
PEB 2255
FALC-LH V1.3
E1 Registers
Data Sheet 257 2000-07
Receive CAS Registers (Read)
Value after RESET: not defined
Receive CAS Register 1...16
Each register except RS1 contains the received CAS bits for two time slots. The received
CAS multiframe is compared with the previously received one. If the contents changed
a CAS multiframe changed interrupt (ISR0.CASC) is generated and informs the user that
a new multiframe has to be read within the next 2 ms. If requests for reading the RS1...16
register are ignored, the received data may be lost. RS1 contains frame 0 of the CAS
multiframe. MSB is received first.
70
RS1 0000XYXX (70)
RS2 A1 B1 C1 D1 A16 B16 C16 D16 (71)
RS3 A2 B2 C2 D2 A17 B17 C17 D17 (72)
RS4A3 B3 C3 D3 A18B18C18D18(73)
RS5 A4B4C4D4A19B19C19D19(74)
RS6 A5 B5 C5 D5 A20 B20 C20 D20 (75)
RS7 A6 B6 C6 D6 A21 B21 C21 D21 (76)
RS8A7 B7 C7 D7 A22 B22 C22 D22 (77)
RS9A8B8C8D8A23 B23 C23 D23 (78)
RS10 A9B9C9D9A24B24C24D24(79)
RS11 A10 B10 C10 D10 A25 B25 C25 D25 (7A)
RS12 A11 B11 C11 D11 A26 B26 C26 D26 (7B)
RS13 A12 B12 C12 D12 A27 B27 C27 D27 (7C)
RS14A13 B13 C13 D13 A28B28C28D28(7D)
RS15 A14B14C14D14A29B29C29D29(7E)
RS16 A15 B15 C15 D15 A30 B30 C30 D30 (7F)
eon
PEB 2255
FALC-LH V1.3
T1/J1 Registers
Data Sheet 2582000-07
10 T1/J1 Registers
10.1 T1/J1 Control Register Addresses
•
Table 53 T1/J1 Control Register Address Arrangement
Address Register Type Comment Page
00 XFIFO W Transmit FIFO 261
01 XFIFO W Transmit FIFO 261
02 CMDR W Command Register 261
03 MODE R/W Mode Register 263
04RAH1 R/W Receive Address High 1 264
05 RAH2 R/W Receive Address High 2 264
06 RAL1 R/W Receive Address Low 1 264
07 RAL2 R/W Receive Address Low 2 265
08IPC R/W Interrupt Port Configuration 265
09CCR1 R/W Common Configuration Register 1 266
0A CCR3 R/W Common Configuration Register 3 268
0B PRE R/W Preamble Register 269
0C RTR1 R/W Receive Timeslot Register 1 270
0D RTR2 R/W Receive Timeslot Register 2 270
0E RTR3 R/W Receive Timeslot Register 3 270
0F RTR4R/W Receive Timeslot Register 4270
10 TTR1 R/W Transmit Timeslot Register 1 271
11 TTR2 R/W Transmit Timeslot Register 2 271
12 TTR3 R/W Transmit Timeslot Register 3 271
13 TTR4R/W Transmit Timeslot Register 4271
14IMR0 R/W Interrupt Mask Register 0 272
15 IMR1 R/W Interrupt Mask Register 1 272
16 IMR2 R/W Interrupt Mask Register 2 272
17 IMR3 R/W Interrupt Mask Register 3 272
18IMR4R/W Interrupt Mask Register 4272
19IMR5 R/W Interrupt Mask Register 5 272
1A FMR0 R/W Framer Mode Register 0 272
PEB 2255
FALC-LH V1.3
T1/J1 Registers
Data Sheet 2592000-07
1B FMR1 R/W Framer Mode Register 1 274
1C FMR2 R/W Framer Mode Register 2 276
1D LOOP R/W Channel Loop Back Register 278
1E FMR4R/W Framer Mode Register 4279
1F FMR5 R/W Framer Mode Register 5 281
20 XC0 R/W Transmit Control 0 283
21 XC1 R/W Transmit Control 1 284
22 RC0 R/W Receive Control 0 284
23 RC1 R/W Receive Control 1 286
24XPM0 R/W Transmit Pulse Mask 0 288
25 XPM1 R/W Transmit Pulse Mask 1 288
26 XPM2 R/W Transmit Pulse Mask 2 288
29IDLE R/W Idle Channel Code 289
2A XDL1 R/W Transmit DL-Bit Register 1 290
2B XDL2 R/W Transmit DL-Bit Register 2 290
2C XDL3 R/W Transmit DL-Bit Register 3 290
2D CCB1 R/W Clear Channel Register 1 290
2E CCB2 R/W Clear Channel Register 2 290
2F CCB3 R/W Clear Channel Register 3 290
30 ICB1 R/W Idle Channel Register 1 291
31 ICB2 R/W Idle Channel Register 2 291
32 ICB3 R/W Idle Channel Register 3 291
34LIM0 R/W Line Interface Mode 0 291
35 LIM1 R/W Line Interface Mode 1 293
36 PCD R/W Pulse Count Detection 294
37 PCR R/W Pulse Count Recovery 295
38LIM2 R/W Line Interface Register 2 295
39LCR1 R/W Loop Code Register 1 297
3A LCR2 R/W Loop Code Register 2 299
3B LCR3 R/W Loop Code Register 3 299
Table 53 T1/J1 Control Register Address Arrangement (cont’d)
Address Register Type Comment Page
eon
PEB 2255
FALC-LH V1.3
T1/J1 Registers
Data Sheet 260 2000-07
After ‘RESET’ all control registers except the XFIFO and XS1...12 are initialized to
defined values.
Unused bits have to be cleared (set to logical ‘0’).
3C SIC1 R/W System Interface Control 1 300
3D SIC2 R/W System Interface Control 2 301
3E LIM3 R/W Line Interface Register 3 302
40 SIC3 R/W System Interface Control 3 303
60 DEC W Disable Error Counter 304
70 XS1 W Transmit Signaling Register 1 305
71 XS2 W Transmit Signaling Register 2 305
72 XS3 W Transmit Signaling Register 3 305
73 XS4W Transmit Signaling Register 4305
74XS5 W Transmit Signaling Register 5 305
75 XS6 W Transmit Signaling Register 6 305
76 XS7 W Transmit Signaling Register 7 305
77 XS8W Transmit Signaling Register 8305
78XS9W Transmit Signaling Register 9305
79XS10 W Transmit Signaling Register 10 305
7A XS11 W Transmit Signaling Register 11 305
7B XS12 W Transmit Signaling Register 12 305
Table 53 T1/J1 Control Register Address Arrangement (cont’d)
Address Register Type Comment Page
PEB 2255
FALC-LH V1.3
T1/J1 Registers
Data Sheet 261 2000-07
10.2 Detailed Description of T1/J1 Control Registers
Transmit FIFO (Write)
Writing data to XFIFOcanbedonein8-bit (byte) or 16-bit (word) access. The LSB is
transmitted first.
Up to 32 bytes/16 words of transmit data can be written to the XFIFO following an XPR
(or ALLS) interrupt.
Command Register (Write)
Value after RESET: 00H
RMC… Receive Message Complete
Confirmation from CPUto FALC®-LH that the current frame or data
block has been fetched following an RPF or RME interrupt, thus the
occupied space in the RFIFO can be released.
RRES… Receiver Reset
The receive line interface except the clock and data recovery unit
(DPLL), the receive framer, the one second timer and the receive
signaling controller are reset. However the contents of the control
registers is not deleted. Receiver reset shall be done after every new
device initialization.
XREP… Transmission Repeat
If XREP is set together with XTF (write 24H to CMDR), the FALC®-LH
repeatedly transmits the contents of the XFIFO (1…32 bytes) without
HDLC framing fully transparently, i.e. without FLAG,CRC.
The cyclic transmission is stopped with an SRES command or by
resetting XREP.
Note:During cyclic transmission the XREP-bit has to be set with every
write operation to CMDR.
70
XFIFO XF7 XF0 (00/01)
70
CMDR RMC RRES XREP XRES XHF XTF XME SRES (02)
Inflqeon
PEB 2255
FALC-LH V1.3
T1/J1 Registers
Data Sheet 262 2000-07
XRES… Transmitter Reset
The transmit framer and transmit line interface excluding the pulse
shaper is reset. However the contents of the control registers is not
deleted. Transmitter reset shall be done after every new device
initialization.
XHF… Transmit HDLC Frame
Afterhavingwrittenupto32bytestotheXFIFO, this command
initiates the transmission of a HDLC frame.
XTF… Transmit Transparent Frame
Initiates the transmission of a transparent frame without HDLC
framing.
XME… Transmit Message End
Indicates that the data block written last to the transmit FIFO
completes the current frame. The FALC®-LH can terminate the
transmission operation properly by appending the CRC and the
closing flag sequence to the data.
SRES… Signaling Transmitter Reset
The transmitter of the signaling controller is reset. XFIFO is cleared of
any data and an abort sequence (seven 1’s) followed by interframe
time fill is transmitted. In response to XRES an XPR interrupt is
generated. Signaling transmitter reset shall be done after every new
device initialization.
This command can also be used by the CPUto abort a frame
currently in transmission.
Note: The maximum time between writing to the CMDR register and
the execution of the command takes 2.5 periods of the current
system data rate. Therefore, if the CPU operates with a very
high clock rate in comparison with the FALC
®
-LH's clock, it is
recommended that bit SIS.CEC should be checked before
writing to the CMDR register to avoid any loss of commands.
All bits except XREP are cleared automatically.
PEB 2255
FALC-LH V1.3
T1/J1 Registers
Data Sheet 263 2000-07
Mode Register (Read/Write)
Value after RESET: 00H
MDS2...0… Mode Select
The operating mode of the HDLC controller is selected.
000…Reserved
001…Reserved
010…1 byte address comparison mode (RAL1, 2)
011…2 byte address comparison mode (RAH1, 2 and RAL1, 2)
100…No address comparison
101…1 byte address comparison mode (RAH1, 2)
110…Reserved
111…No HDLC framing mode 1
BRAC… BOM Receiver Active
Switches the BOM receiver to operational or inoperational state.
0…Receiver inactive
1…Receiver active
HRAC… HDLC Receiver Active
Switches the HDLC receiver to operational or inoperational state.
0…Receiver inactive
1…Receiver active
70
MODE MDS2 MDS1 MDS0 BRAC HRAC (03)
C" Inflqeon
PEB 2255
FALC-LH V1.3
T1/J1 Registers
Data Sheet 2642000-07
Receive Address Byte High Register 1 (Read/Write)
Value after RESET: FDH
In operating modes that provide high byte address recognition, the high byte of the
received address is compared with the individually programmable values in RAH1 and
RAH2.
RAH1…Value of the First Individual High Address Byte
Bit 1 (C/R-bit) is excluded from address comparison.
Receive Address Byte High Register 2 (Read/Write)
Value after RESET: FFH
RAH2… Value of Second Individual High Address Byte
Receive Address Byte Low Register 1 (Read/Write)
Value after RESET: FFH
RAL1… Value of First Individual Low Address Byte
710
RAH1 0(04)
70
RAH2 (05)
70
RAL1 (06)
C" Inflqeon
PEB 2255
FALC-LH V1.3
T1/J1 Registers
Data Sheet 265 2000-07
Receive Address Byte Low Register 2 (Read/Write)
Value after RESET: FFH
RAL2... Value of the second individually programmable low address
byte.
Interrupt Port Configuration (Read/Write)
Value after RESET: 01H
Unused bits have to be cleared.
VIS… Masked Interrupts Visible
0…Masked interrupt status bits are not visible
1…Masked interrupt status bits are visible
SCI… Status Change Interrupt
0…Interrupts ISR2.LOS, ISR2.AIS and ISR0.PDEN is generated
only on the rising edge of the corresponding status flag.
1…Interrupts ISR2.LOS, ISR2.AIS and ISR0.PDEN is generated
on the rising and falling edge of the corresponding status flag.
IC1...0… Interrupt Port Configuration
These bits define the function of the interrupt output stage (pin INT):
70
RAL2 (07)
70
IPC VIS SCI IC1 IC0 (08)
IOC1 IOC0 Function
X
0
1
0
1
1
Open drain output1)
Push/pull output, active low
Push/pull output, active high
1) an external pullup resistor is required at pin INT
PEB 2255
FALC-LH V1.3
T1/J1 Registers
Data Sheet 266 2000-07
Common Configuration Register 1 (Read/Write)
Value after RESET: 00H
SFLG… Enable Shared Flags
If this bit is set, the closing flag of a preceding HDLC frame
simultaneously is used as the opening flag of the following frame.
0… Shared flag function disabled
1… Shared flag function enabled
BRM… BOM Receive Mode (significant in BOM mode only)
0…10 byte packets
1…Continuous reception
EDLX… Enable DL Bit Access via the Transmit FIFO
A one in this bit position enables the internal DL-bit access via the
receive/transmit FIFO of the signaling controller. FMR1.EDL has to be
cleared.
EITS… Enable Internal Time Slot 0-31 Signaling
0… Internal signaling in time slots 0-31 defined via registers
RTR1...4or TTR1...4is disabled.
1… Internal signaling in time slots 0-31 defined via registers
RTR1...4or TTR1...4is enabled.
ITF… Interframe Time Fill
Determines the idle (=no data to send) state of the transmit data
coming from the signaling controller.
0…Continuous logical ‘1’ is output
1…Continuous FLAG sequences are output (‘01111110’ bit
patterns)
RFT1...0… RFIFO Threshold Level
The size of the accessible part of RFIFO can be determined by
programming these bits. The number of valid bytes after an RPF
interrupt is given in the following table:
70
CCR1 SFLG BRM EDLXEITS ITF RFT1 RFT0 (09)
PEB 2255
FALC-LH V1.3
T1/J1 Registers
Data Sheet 267 2000-07
The value of RFT 1,0 can be changed dynamically
– If reception is not running or
– after the current data block has been read, but before the command
CMDR.RMC is issued (interrupt controlled data transfer).
Note:It is seen that changing the value of RFT1,0 is possible even
during the reception of one frame. The total length of the
received frame can be always read directly in RBCL, RBCH
after an RPF interrupt, except when the threshold is increased
during reception of that frame. The real length can then be
inferred by noting which bit positions in RBCL are reset by an
RMC command (see table below):
RFT1 RFT0 Size of Accessible Part of RFIFO
0
0
1
1
0
1
0
1
32 bytes (RESET value)
16 bytes
4bytes
2bytes
RFT1 RFT0 Bit Positions in RBCL Reset by a
CMDR.RMC Command
0
0
1
1
0
1
0
1
RBC4.…0
RBC3 …0
RBC1,0
RBC0
PEB 2255
FALC-LH V1.3
T1/J1 Registers
Data Sheet 2682000-07
Common Configuration Register 3 (Read/Write)
Value after RESET: 00H
Unused bits have to be cleared.
PRE1...0… Number of Preamble Repetitions
If preamble transmission is enabled, the preamble defined by register
PRE is transmitted:
00... 1 time
01... 2 times
10... 4times
11... 8times
EPT… Enable Preamble Transmission
This bit enables transmission of preamble. The preamble is started
after interframe timefill transmission has been stopped and a new
frame is to be transmitted. The preamble consists of an 8-bit pattern
repeated a number of times. The pattern is defined by register PRE,
the number of repetitions is selected by bits PRE0 and PRE1.
Note: The ’Shared Flag’feature is not influenced by preamble transmission.
Zero bit insertion is disabled during preamble transmission.
RADD… Receive Address Pushed to RFIFO
If this bit is set, the received HDLC address information (1 or 2 bytes,
depending on the address mode selected via MODE.MDS0) is
pushed to RFIFO. See Chapter 8.1 on page 169 for detailed
description.
RCRC… Receive CRC ON/OFF
If this bit is set, the received CRC checksum is written to RFIFO
(CRC-ITU-T: 2 bytes). The checksum, consisting of the 2 last bytes in
the received frame, is followed in the RFIFO by the status information
byte (contents of register RSIS). The received CRC checksum is
additionally checked for correctness. If non-auto mode is selected,
the limits for “Valid Frame” check are modified (refer to RSIS.VFR and
to Chapter 8.1 on page 169).
70
CCR3 PRE1 PRE0 EPT RADD RCRC XCRC (0A)
PEB 2255
FALC-LH V1.3
T1/J1 Registers
Data Sheet 2692000-07
XCRC… Transmit CRC ON/OFF
If this bit is set, the CRC checksum is not generated internally. It has
to be written as the last two bytes in the transmit FIFO (XFIFO). The
transmitted frame is closed automatically with a closing flag.
Note: The FALC
®
-LH does not check whether the length of the
frame, i.e. the number of bytes to be transmitted makes sense
or not.
Preamble Register (Read/Write)
Value after RESET: 00H
PRE0...7… Preamble Register
This register defines the pattern which is sent during preamble
transmission (refer to CCR3). LSB is sent first.
Note: Zero bit insertion is disabled during preamble transmission.
70
PRE (0B)
PEB 2255
FALC-LH V1.3
T1/J1 Registers
Data Sheet 270 2000-07
Receive Timeslot Register 1...4 (Read/Write)
Value after RESET: 00H,00
H,00
H,00
H
TS0…TS31… Timeslot Register
These bits define the received time slots on the system highway port
RDO to be extracted. Additionally these registers control the RSIGM
marker which can be forced high during the respective time slots
independently of bit CCR1.EITS.
A one in the RTR1...4bits samples the corresponding time slot in the
RFIFO of the signaling controller, if bit CCR1.EITS is set.
Assignments:
SIC1.SRSC =0:(SCLKR=8.192MHz)
TS0 →time slot 0
…
TS31 →time slot 31
SIC1.SRSC =1:(SCLKR=1.544 MHz)
TS0 →time slot 1
…
TS23 →time slot 24
0…normal operation.
1… The contents of the selected time slot is stored in the RFIFO.
Although the idle time slots can be selected. This function is activated,
if bit CCR1.EITS is set.
The corresponding time slot is forced high on pin RSIGM.
70
RTR1 TS0 TS1 TS2 TS3 TS4TS5 TS6 TS7 (0C)
RTR2 TS8TS9TS10 TS11 TS12 TS13 TS14TS15 (0D)
RTR3 TS16 TS17 TS18TS19TS20 TS21 TS22 TS23 (0E)
RTR4TS24TS25 TS26 TS27 TS28TS29TS30 TS31 (0F)
PEB 2255
FALC-LH V1.3
T1/J1 Registers
Data Sheet 271 2000-07
Transmit Timeslot Register 1...4 (Read/Write)
Value after RESET: 00H,00
H,00
H,00
H
TS0…TS31… Transmit Timeslot Register
These bits define the transmit time slots on the system highway to be
inserted. Additionally these registers control the XSIGM marker which
can be forced high during the respective time slots independently of
bit CCR1.EITS.
A one in the TTR1...4bits inserts the corresponding time slot sourced
by the XFIFO in the data received on pin XDI, if bit CCR1.EITS is set.
If SIC3.TTRF is set and CCR1.EDLX/EITS=00, insertion of data
received on port XSIGiscontrolledbythisregisters.
Assignments:
SIC1.SRSC =0:(SCLKR=8.192MHz)
TS0 →time slot 0
…
TS31 →time slot 31
SIC1.SRSC =1:(SCLKR=1.544 MHz)
TS0 →time slot 1
…
TS23 →time slot 24
0…normal operation
1… The contents of the selected time slot is inserted into the
outgoing data stream from XFIFO.This function is activated only, if bit
CCR1.EITS is set.
The corresponding time slot is forced high on marker pin XSIGM.
70
TTR1 TS0 TS1 TS2 TS3 TS4TS5 TS6 TS7 (10)
TTR2 TS8TS9TS10 TS11 TS12 TS13 TS14TS15 (11)
TTR3 TS16 TS17 TS18TS19TS20 TS21 TS22 TS23 (12)
TTR4TS24TS25 TS26 TS27 TS28TS29TS30 TS31 (13)
PEB 2255
FALC-LH V1.3
T1/J1 Registers
Data Sheet 272 2000-07
Interrupt Mask Register 0...5
Value after RESET: FFH,FF
H,FF
H,FF
H,FFH
IMR0...5... Interrupt Mask Register
Each interrupt source can generate an interrupt signal on port INT
(characteristics of the output stage are defined via register IPC). A ‘1’
in a bit position of IMR0…5 sets the mask active for the interrupt
status in ISR0…3 and ISR5. Masked interrupt statuses neither
generate a signal on INT, nor are they visible in register GIS.
Moreover, they are
– not displayed in the Interrupt Status Register if bit IPC.VIS is
cleared
– displayed in the Interrupt Status Register if bit IPC.VIS is set.
After RESET, all interrupts are disabled.
Framer Mode Register 0 (Read/Write)
Value after RESET: 00H
XC1…0… Transmit Code
Serial code transmitter is independent to the receiver.
00… NRZ(optical interface)
01… Not assigned
70
IMR0 RME RFS ISF RMB RSC CRC6 PDEN RPF (14)
IMR1 CASE RDO ALLS XDUXMB XLSC XPR (15)
IMR2 FAR LFA MFAR LMFA AIS LOS RAR RA (16)
IMR3 ES SEC XSLP LLBSC RSN RSP (17)
IMR4LFA FER CER AIS LOS CVE SLIP (18)
IMR5 XSP XSN (19)
70
FMR0 XC1 XC0 RC1 RC0 FRS SRAF EXLS SIM (1A)
Inflqeon
PEB 2255
FALC-LH V1.3
T1/J1 Registers
Data Sheet 273 2000-07
10…AMI coding with Zero Code Suppression (ZCS, B7-Stuffing).
Disabling of the ZCS is done by activating the clear channel
mode via register CCB1...3. (ternary or digital interface)
11…B8ZS Code (ternary or digital dual rail interface)
RC1…0… Receive Code
Serial code receiver is independent to the transmitter.
00… NRZ(optical interface)
01… Not assigned
10… AMI coding (ternary or digital dual rail interface)
11… B8ZS Code (ternary or digital dual rail interface)
FRS… Force Resynchronization
A transition from low to high forces the frame aligner to execute a
resynchronization of the pulse frame. In the asynchronous state, a
new frame position is assumed at the next candidate if there is one.
Otherwise, a new frame search with the meaning of a general reset is
started. In the synchronous state this bit has the same meaning as bit
FMR0.EXLS except if FMR2.MCSP=1. This bit is not reset
automatically.
SRAF… Select Remote (Yellow) Alarm Format for F12 and ESF Format
0… F12: bit2 =0 in every channel. ESF: pattern
‘1111 1111 0000 0000…’ in data link channel.
1… F12: FS bit of frame 12. ESF: bit2 =0 in every channel
EXLS… External Loss Of Frame
With a low to high transition a new frame search is started. This has
the meaning of a general reset of the internal frame alignment unit.
Synchronous state is reached only if there is one definite framing
candidate. In the case of multiple candidates, the setting of the bit
FMR0.FRS forces the receiver to lock onto the next available framing
position. This bit is not reset automatically.
SIM… Alarm Simulation
Setting/resetting this bit initiates internal error simulation of: AIS (blue
alarm), loss of signal (red alarm), loss of frame alignment, remote
(yellow) alarm, slip, framing errors, CRC errors, code violations. The
error counters FEC, CVC, CEC, EBC are incremented.
The selection of simulated alarms is done via the error simulation
counter: FRS2.ESC2...0 which are incremented with each setting of
bit FMR0.SIM. For complete checking of the alarm indications eight
PEB 2255
FALC-LH V1.3
T1/J1 Registers
Data Sheet 2742000-07
simulation steps are necessary (FRS2.ESC2...0 =0 after a complete
simulation).
Framer Mode Register 1 (Read/Write)
Value after RESET: 00H
CTM… Channel Translation Mode
0… Channel translation mode 0
1… Channel translation mode 1
See Table 26 on page 113 for details.
SIGM… Select Signaling Mode
0… Normal operation (no bit-robbing).
1… CAS Bit-robbing mode selected
Note: Bit FMR5.EIBR has also to be set, if bit-robbing mode is to be used.
EDL… Enable DL-Bit Access via Register XDL1...3
Only applicable in F4,F24or F72 frame format.
0… Normal operation. The DL-bits are taken from system highway
or if enabled via CCR1.EDLXfrom the XFIFO of the signaling
controller.
1… DL-bit register access. The DL-bit information is taken from the
registers XDL1...3 and overwrites the DL-bits received at the
system highway (pin XDI) or the internal XFIFO of the signaling
controller. However, transmitting contents of registers XDL1...3
is disabled if transparent mode is enabled (FMR4.TM).
PMOD… PCM Mode
For T1/J1 applications this bit must be set high. Switching into T1/J1
mode the device needs up to 10 µs to settle up to the internal
clocking.
0… PCM 30 or E1 mode.
1… PCM 24or T1/J1 mode.
70
FMR1 CTM SIGM EDL PMOD CRC ECM IMOD XAIS (1B)
Inflqeon
PEB 2255
FALC-LH V1.3
T1/J1 Registers
Data Sheet 275 2000-07
CRC… Enable CRC6
This bit is only significant when using the ESF format.
0…CRC6 check/generation disabled. For transmit direction, all
CRC bit positions are set.
1…CRC6 check/generation enabled.
ECM… Error Counter Mode
The function of the error counters (FEC,CEC,CVC,EBC) is
determined by this bit.
0…Before reading an error counter the corresponding bit in the
Disable Error Counter register (DEC) has to be set. In 8bit
access the low byte of the error counter should always be read
before the high byte. The error counters are reset with the rising
edge of the corresponding bits in the DEC register.
1… Every second the error counter is latched and then
automatically be reset. The latched error counter state should
be read within the next second. Reading the error counter
during updating should be avoided (do not access an error
counter within 2 µs before or after the one-second interrupt
occurs).
IMOD… System Interface Mode
0…4.096Mbit/s
1…2.048 Mbit/s or 1.544 Mbit/s
This bit has to be set if SIC1.SRSC or SIC1.SXSC are set.
XAIS… Transmit AIS Towards Remote End
Sends AIS (blue alarm) via ports: XL1, XL2 towards the remote end.
If Local Loop Mode is enabled the transmitted data is looped back to
the system internal highway without any changes.
PEB 2255
FALC-LH V1.3
T1/J1 Registers
Data Sheet 276 2000-07
Framer Mode Register 2 (Read/Write)
Value after RESET: 00H
MCSP… Multiple Candidates Synchronization Procedure
SSP… Select Synchronization/Resynchronization Procedure
Together with bit FMR2.SSP the synchronization mode of the receive
framer is defined:
MCSP/SSP:
00… F12/72 format:
Specified number of errors in both FT framing and FS framing
lead to loss of sync (FRS0.LFA is set). In the case of FS bit
framing errors, bit FRS0.LMFA is set additionally. A complete
new synchronization procedure is initiated to regain pulseframe
alignment and then multiframe alignment.
F24:
normal operation: synchronization is achieved only on
verification the framing pattern.
01… F12/72:
Specified number of errors in FT framing has the same effect
as above. Specified number of errors in FS framing only
initiates a new search for multiframe alignment without
influencing pulseframe synchronous state (FRS0.LMFA is set).
F24:
Synchronous state is reached when three consecutive
multiframe pattern are correctly found independent of the
occurrence of CRC6 errors.
10… F24:
A one enables a synchronization mode which is able to choose
multiple framing pattern candidates step by step. I.e. if in
synchronous state the CRC error counter indicates that the
synchronization might have been based on an alias framing
pattern, setting of FMR0.FRS leads to synchronization on the
next candidate available. However, only the previously
assumed candidate is discarded in the internal framing pattern
memory. The latter procedure can be repeated until the
70
FMR2 MCSP SSP DAIS SAIS PLB AXRA EXZE(1C)
n neon m m5: ,
PEB 2255
FALC-LH V1.3
T1/J1 Registers
Data Sheet 277 2000-07
framer has locked on the right pattern (no extensive CRC
errors). Therefor bit FMR1.CRC must be set.
11… F24:
Synchronization is achieved on verification of the framing
pattern and the CRC6 bits. Synchronous state is reached when
framing pattern and CRC6 checksum are correctly found. For
correct operation the CRC check must be enabled by setting bit
FMR1.CRC6.
DAIS… Disable AIS to System Interface
0… AIS is automatically inserted into the data stream to RDO if
FALC®-LH is in asynchronous state.
1… Automatic AIS insertion is disabled. Furthermore, AIS insertion
can be initiated by programming bit FMR2.SAIS.
SAIS… Send AIS Towards System Interface
Sends AIS (blue alarm) via output RDO towards system interface.
This function is not influenced by bit FMR2.DAIS.
PLB… Payload Loop Back
0…Normal operation. Payload loop is disabled.
1… The payload loopback loops the data stream from the receiver
section back to transmitter section. Looped data is output on
pin RDO. Data received on port XDI, XSIG, SYPXand XMFS
are ignored. With FMR4.TM=1all193 bits per frame are looped
back. If FMR4.TM=0 the DL- or FS- or CRC-bits are generated
internally. AIS is sent immediately on port RDO by setting the
FMR2.SAIS bit. During payload loop is active the receive time
slot offset (registers RC1...0) should not be changed. It is
recommended to write the actual value of XC1 into this register
once again, because a write access to register XC1 sets the
read/write pointer of the transmit elastic buffer into its optimal
position to ensure a maximum wander compensation (the write
operation forces a slip).
AXRA… Automatic Transmit Remote Alarm
0…Normal operation
1… The remote alarm (yellow alarm) bit is set automatically in the
outgoing data stream if the receiver is in asynchronous state
(FRS0.LFA bit is set). In synchronous state the remote alarm bit
is reset.
PEB 2255
FALC-LH V1.3
T1/J1 Registers
Data Sheet 2782000-07
EXZE… Excessive Zeros Detection Enable
Selects error detection mode in the bipolar receive bit stream.
0… Only bipolar violations are detected.
1… Bipolar violations and zero strings of 8or more contiguous
zeros in B8ZS code or more than 15 contiguous zeros in AMI
code are detected additionally and counted in the code violation
counter CVC.
Channel Loop Back Register (Read/Write)
Value after RESET: 00H
SPN… Select Additional Optical Pin Functions
Together with bit LIM3.ESYthe functionality of pin 80 is defined:
Programming of LOOP.SPN and LIM3.ESYand the corresponding
pin function is shown below.
SPN/ESY:
00… function of pin 80XSIG: If SIC3.TTRF =1, transmit data
from the system interface. Internal multiplexing with the XDI
data stream is controlled by XSIGM. No input function defined
for SIC3.TTRF =0.
01… function of pin 80SYNC2: external synchronization input
for the DCO-Xcircuitry
10… function of pin 80ROID:ReceiveOpticalInterfaceData
(Input) and Pin 68:XMFB/XOID Transmit Optical Interface Data
(Output). At the same time data received on pin 2 are ignored,
data on pin XOID (pin 15) are undefined. Transmit data is
clocked off with the positive transition of XCLK. After Reset the
transmit multiframe begin marker is output on pin 68.
11… function of pin 80XSIG: The signaling information from
thetransmitsysteminterfaceisreceivedonpinXSIG. Bit
FMR5.EIBR should be cleared to disable internal signaling
access from registers XS1...12. The signaling information from
the line interface is transmitted on pin RSIG.
70
LOOP SPN RTM ECLB CLA4CLA3 CLA2 CLA1 CLA0 (1D)
PEB 2255
FALC-LH V1.3
T1/J1 Registers
Data Sheet 2792000-07
RTM… Receive Transparent Mode
Setting this bit disconnects control of the internal elastic store from the
receiver. The elastic store is now in a “free running” mode without any
possibility to update the time slot assignment to a new frame position
in case of re-synchronization of the receiver. This function can be
used in conjunction with the “disable AIS to system interface” feature
(FMR2.DAIS) to realize undisturbed transparent reception.
This bit should be enabled in case of unframed data reception mode.
After resetting RTM to 0, the elastic buffer is adjusted after the next
resynchronization.
ECLB… Enable Channel Loop Back
0… Disables the channel loop back.
1… Enables the channel loop back selected by this register.
CLA4…0… Channel Address For Loop Back
CLA =1…24selects the channel.
During loop back, the contents of the associated outgoing channel on
ports XL1/XDOP/XOID and XL2/XDON is equal to the idle channel
code programmed in register IDLE.
Framer Mode Register 4 (Read/Write)
Value after RESET: 00H
AIS3… Select AIS Condition
0… AIS (blue alarm) is indicated (FRS0.AIS) when two or less
zeros in the received bit stream are detected in a time interval
of 12 frames (F4, F12, F72) or 24frames (ESF).
1… AIS (blue alarm) detection is only enabled when FALC®-LH is
in asynchronous state. The alarm is indicated (FRS0.AIS) when
– three or less zeros within a time interval of 12 frames (F4,
F12, F72), or
– five or less zeros within a time interval of 24frames (ESF)
are detected in the received bit stream.
70
FMR4AIS3 TM XRA SSC1 SSC0 AUTO FM1 FM0 (1E)
Inflqeon
PEB 2255
FALC-LH V1.3
T1/J1 Registers
Data Sheet 280 2000-07
TM… Transparent Mode
Setting this bit enables the transparent mode:
In transmit direction bit 8of every FS/DL time slot from the system
internal highway (XDI) is inserted in the F-bit position of the outgoing
frame. Internal framing generation, insertion of CRC and DL data is
disabled.
In receive direction the framing bit is also forwarded to RDO and
inserted into the FS/DL time slot. Bit RDCF (bit 1 of FS/DL time slot)
indicates a DL bit.
XRA… Transmit Remote Alarm (Yellow Alarm)
If high, remote alarm is sent via PCM route. Clearing the bit removes
the remote alarm pattern. Remote alarm indication depends on the
multiframe structure as follows:
F4:bit2=0 in every speech channel
F12: FMR0.SRAF =0: bit2 =0 in every speech channel
FMR0.SRAF =1:FS-bitofframe12isforcedto‘1’
ESF: FMR0.SRAF =0:
pattern ‘1111111100000000 11111111000…’
in data link channel
FMR0.SRAF =1: bit2 =0 in every speech channel
F72: bit2 =0 in every speech channel
SSC1...0… Select Sync Conditions
Loss of Frame Alignment (FRS0.LFA or opt. FRS0.LMFA) is declared
if
00 =2 out of 4framing bits
01 =2 out of 5 framing bits
10 =2 out of 6 framing bits in F4/12/72 format
10 =2 out of 6 framing bits per multiframe period in ESF format
11 =4consecutive multiframe pattern in ESF format
are incorrect. It depends on the selected multiframe format and
optionally on bit FMR2.SSP which framing bits are observed:
F4:FTbits→FRS0.LFA
F12, F72: SSP =0: FT bits →FRS0.LFA: FS bits →FRS0.LFA
and FRS0.LMFA SSP =1:FT →FRS0.LFA
FS →FRS0.LMFA
ESF: ESF framing bits →FRS0.LFA
PEB 2255
FALC-LH V1.3
T1/J1 Registers
Data Sheet 281 2000-07
AUTO… Enable Auto Resynchronization
0… The receiver does not resynchronize automatically. Starting a
new synchronization procedure is possible via the bits:
FMR0.EXLS or FMR0.FRS.
1… Auto-resynchronization is enabled.
FM1…0… Select Frame Mode
FM =0: 12-frame multiframe format (F12, D3/4)
FM =1: 4-frame multiframe format (F4)
FM =2: 24-frame multiframe format (ESF)
FM =3: 72-frame multiframe format (F72, remote switch mode)
Framer Mode Register 5 (Read/Write)
Value after RESET: 00H
SRS… Signaling Register SIze
Valid in F12/F72 frame format only
0… Signaling access is done via registers RS/XS1...6
1… Signaling access is done via increased register bank RS/
XS1...12
EIBR… Enable Internal Bit-Robbing Access
0… Normal operation (no bit-robbing).
1… CAS Bit-robbing mode selected
Note: Bit FMR1.SIGM has also to be set, if bit-robbing mode is to be used.
XLD… Transmit Line Loopback (LLB) Down Code
0… Normal operation.
1… A one in this bit position causes the transmitter to replace
normal transmit data with the LLB down (deactivate) code
continuously until this bit is reset. The LLB down code is
optionally overwritten by the framing/DL/CRC bits. For correct
operation bit FMR5.XLUmust be cleared
70
FMR5 SRS EIBR XLD XLUSRO XTM RTF (1F)
Inflqeon
PEB 2255
FALC-LH V1.3
T1/J1 Registers
Data Sheet 282 2000-07
XLU… Transmit LLB UP Code
0… Normal operation.
1… A one in this bit position causes the transmitter to replace
normal transmit data with the LLB UP (activate) Code
continuously until this bit is reset. The LLB UP Code is
optionally overwritten by the framing/DL/CRC bits. For correct
operation bit FMR5.XLD must be cleared.
SRO… Signaling Register Organization
Valid in F12/F72 and ESF frame format only
0… Signaling access via registers RS/XS1...12 is done without
reordering of ABCD bits.
1… Signaling access via registers RS/XS1...12 is done with
reordering of ABCD bits.
For details see description of registers XS1...12 on page 305 and
RS1...12 on page 333
XTM… Transmit Transparent Mode
Valid if loop-timed mode is enabled (LIM2.ELT =1).
0…Ports SYPX/XMFS define the frame/multiframe begin on the
transmit system highway. The transmitter is usually synchronized on
this externally sourced frame boundary and generates the FAS bits
according to this framing. Any change of the transmit time slot
assignment or a transmit slip subsequently produces a change of the
FAS bit positions.
1… Disconnects the control of the transmit system interface from the
transmitter. The transmitter is now in a free running mode without any
possibility to update the multiframe position. The framing (FAS bits)
generated by the transmitter is not disturbed (in case of changing the
transmit time slot assignment or transmit slip) by the transmit system
highway unless register XC1 is written. Useful in loop-timed
applications. For correct operation the transmit elastic buffer (2
frames, SIC1.XBS1/0=10) has to be enabled
RTF… Receive Transparent Forwarding
Setting this bit all 193 bits per frame of the incoming multiframe are
forwarded to pin RDO transparently. In asynchronous state the
received data may be transparently switched through if bit
FMR2.DAIS is set.
PEB 2255
FALC-LH V1.3
T1/J1 Registers
Data Sheet 283 2000-07
Transmit Control 0 (Read/Write)
Value after RESET: 00H
BRM… Enable Bit-Robbing Marker
A one in this bit marks the robbed bit positions on the system highway.
RSIGM marks the receive and XSIGM marks the transmit robbed bits.
For correct operation bit FMR1.SIGM must be set.
MFBS… Enable pure Multiframe Begin Signals
Valid only if ESF or F72 format is selected.
If set, signals RMFB and XMFB indicate only the multiframe begin.
Additional pulses (every 12 frames) are disabled.
SFRZ… Select Freeze Output
0… Signal RFSP is output on port RFSP/FREEZS
1… Freeze status signal is output on port RFSP/FREEZS
XCO2…XCO0… Transmit Clock Slot Offset
Initial value loaded into the transmit bit counter at the trigger edge of
SCLKX when the synchronous pulse on port SYPXis active. Setting
of SIC1.SXSC enforces programming the offset values in the range
of0to192 bits with XCO0 always cleared.
70
XC0 BRM MFBS SFRZXCO2 XCO1 XCO0 (20)
PEB 2255
FALC-LH V1.3
T1/J1 Registers
Data Sheet 284 2000-07
Transmit Control 1 (Read/Write)
Value after RESET: 00H
A write access to this address resets the transmit elastic buffer to its
basic starting position. Therefore, updating of the value should only
be done when the FALC®-LH is initialized or when the buffer should
be centered. As a consequence a transmit slip occurs.
XCOS… Transmit Clock Offset Shift
Valid only if SIC1.SXSC =0
0… The delay T between the beginning of time slot 0 and the initial
edge of SCLKX (after SYPXgoes active) is an even number in the
range of 0 to 1022 SCLKX cycles.
1… The delay T is an odd number in the range of 1 to 1023 SCLKX
cycles.
XTO5…XTO0… Transmit Time Slot Offset
Initial value loaded into the transmit bit counter at the trigger edge of
SCLKX when the synchronous pulse on port SYPXis active. Setting
of SIC1.SXSC enforces programming the offset values in the range
of0to192bits.
Receive Control 0 (Read/Write)
Value after RESET: 00H
RCOS… Receive Clock Offset
Valid only if SIC1.SXSC =0
0…The delay T between the beginning of time slot 0 and the initial
edge of SCLKR(afterSYPXgoes active) is an even number in the
range of 0 to 1022 SCLKX cycles.
1… The delay T is an odd number in the range of 1 to 1023 SCLKX
cycles.
70
XC1 XCOS XTO5 XTO4XTO3 XTO2 XTO1 XTO0 (21)
70
RC0 RCOS SICS CRCI XCRCI RDIS RCO2 RCO1 RCO0 (22)
Inflqeon
PEB 2255
FALC-LH V1.3
T1/J1 Registers
Data Sheet 285 2000-07
SICS… System Interface Channel Select
Applicable only if bit FMR1.IMOD (4-MHz system interface) is
cleared.
0…Received data is output on port RDO in the first channel phase.
Data in the second channel phase is tristated.
Data on pin XDI is sampled in the first channel phase only. Data in the
second channel phase is ignored.
1…Received data is output on port RDO in the second channel
phase. Data in the first channel phase is tristated.
Data on pin XDI is sampled in the second channel phase only. Data
in the first channel phase is ignored.
CRCI… Automatic CRC6 Bit Inversion
If set, all CRC bits of one outgoing extended multiframe are inverted
in case a CRC error is flagged for the previous received multiframe.
This function is logically ORed with RC0.XCRCI.
XCRCI… Transmit CRC6 Bit Inversion
If set, the CRC bits in the outgoing data stream are inverted before
transmission. This function is logically ORed with RC0.CRCI.
RDIS… Receive Data Input Sense
Only applicable for dual rail mode (LIM1.DRS =1).
0…Inputs: RDIP, RDIN active low, input ROID is active high
1…Inputs: RDIP, RDIN active high, input ROID is active low
RCO2…RCO0… Receive Offset/Receive Frame Marker Offset
Depending on bit SIC2.SRFSO this bit enables different functions:
Receive Clock-Slot Offset (SIC2.SRFSO =0)
Initial value loaded into the receive bit counter at the trigger edge of
SCLKR when the synchronous pulse on port SYPR is active. Setting
of SIC1.SRSC enforces programming the offset values in a range of
0to192 bits with RCO0 always cleared.
Receive Frame Marker Offset (SIC2.SRFSO =1)
Offset programming of the receive frame marker which is output on
port SYPR. The receive frame marker could be activated during any
bit position of the current frame.
Calculation of the value Xof the “Receive Counter Offset” register
RC1/0 depends on the bit position BP which should be marked and
SCLKR: X=(2BP) mod 386,forSCLKR=1.544 MHz
PEB 2255
FALC-LH V1.3
T1/J1 Registers
Data Sheet 286 2000-07
Receive Control 1 (Read/Write)
Value after RESET: 00H
SJR… Select Japanese ITU-T Requirements for ESF format
0…Alarm handling and CRC6 generation/checking is done
according ITU-T G. 704+706
1…Alarm handling and CRC6 generation/checking is done
according ITU-T JG. 704+706
See Table 48 "Framer Initialization (T1/J1)"on page 166 for more
details.
RRAM… Receive Remote Alarm Mode
The conditions for remote (yellow) alarm (FRS0.RRA) detection can
be selected via this bit to allow detection even in the presence of
BER 10**-3:
RRAM =0
Detection
F4:bit2=0 in every speech channel per frame.
F12: FMR0.SRAF =0: bit2 =0 in every speech channel per frame.
FMR0.SRAF =1: S-bit of frame 12 is forced to ‘1’
ESF: FMR0.SRAF =0: pattern ‘1111 1111 0000 0000…’ in data
link channel
FMR0.SRAF =1: bit2 =0 in every speech channel
F72: bit2 =0 in every speech channel per frame.
Release
The alarm is reset when above conditions are no longer detected.
RRAM =1
Detection
F4:bit2=0 in 255 consecutive speech channels.
F12: FMR0.SRAF =0: bit 2 =0 in 255 consecutive speech
channels.
FMR0.SRAF =1: S-bit of frame 12 is forced to ‘1’
ESF: FMR0.SRAF =0: pattern ‘1111 1111 0000 0000…’ in data
link channel
FMR0.SRAF =1: bit 2 =0 in 255 consecutive speech
channels
F72: bit 2 =0 in 255 consecutive speech channels.
70
RC1 SJR RRAM RTO5 RTO4RTO3 RTO2 RTO1 RTO0 (23)
Inflqeon
PEB 2255
FALC-LH V1.3
T1/J1 Registers
Data Sheet 287 2000-07
Release:
Depending on the selected multiframe format the alarm is reset when
FALC-LH does not detect
– the ‘bit 2 =0’ condition for three consecutive pulse frames
(all formats if selected),
– the ‘FS bit’ condition for three consecutive multiframes (F12),
– the ‘DL pattern’ for three times in a row (ESF).
RTO5…RTO0… Receive Time-Slot Offset/Receive Frame Marker Offset
Depending on bit SIC2.SRFSO this bit enables different functions:
Receive Time-Slot Offset (SIC2.SRFSO =0)
Initial value which is loaded into the receive time-slot counter at the
trigger edge of SCLKR when the synchronous pulse on port SYPR is
active. Setting of SIC1.SRSC enforces programming the offset values
inarangeof0to192bits.
Receive Frame Marker Offset (SIC2.SRFSO =1)
Offset programming of the receive frame marker which is output on
port SYPR. The receive frame marker could be activated during any
bit position of the current frame.
Calculation of the value Xof the “Receive Counter Offset” register
RC1/0 depends on the bit position BP which should be marked and
SCLKR:
X=(2BP) mod 386,forSCLKR=1.544 MHz
C" Inflqeon
PEB 2255
FALC-LH V1.3
T1/J1 Registers
Data Sheet 288 2000-07
Transmit Pulse-Mask 2…0 (Read/Write)
Value after RESET: 9CH,03
H,00
H
The transmit pulse shape which is defined in ANSI T1. 102 is output on pins XL1 and
XL2. The level of the pulse shape can be programmed via registers XPM2...0 to create
a custom waveform. In order to get an optimized pulse shape for the external
transformers each pulse shape is divided internally into four sub pulse shapes. In each
sub pulse shape a programmed 5 bit value defines the level ofthe analog voltage on pins
XL1/2. Together four 5 bit values have to be programmed to form one complete transmit
pulse shape.The four 5 bit values are sent in the following sequence:
XP04-00: First pulse shape level
XP14-10: Second pulse shape level
XP24-20: Third pulse shape level
XP34-30: Fourth pulse shape level
Changing the LSB of each subpulse in registers XPM2...0 changes the amplitude of the
differential voltage on XL1/2 by approximately 110 mV.
The XPM-values in the following table are based on simulations. They are valid for the
following external circuitry: transformer ratio: 1: ;cable: PULB 22AWG (100 Ω);serial
resistors: 5 Ω. Adjustment of these coefficients may be necessary for other external
conditions.
70
XPM0 XP12 XP11 XP10 XP04XP03 XP02 XP01 XP00 (24)
XPM1 XP30 XP24XP23 XP22 XP21 XP20 XP14XP13 (25)
XPM2 XLHP XLT DAXLT XP34XP33 XP32 XP31 (26)
Table 54 Pulse Shaper Programming (T1/J1)
Range in
mRange in
ft. XPM0 XPM1 XPM2 XP04-
XP00 XP14-
XP10 XP24-
XP20 XP34-
XP30
hexadecimal decimal
0...40 0...133 199B01252463
40...81 133...266 5B 9F01272673
81...122 266...399 7D AB 01 2927 10 3
122...162 399...533 7F B7 01 31 27 13 3
162...200 533...655 5F BB 01 31 26 143
2
PEB 2255
FALC-LH V1.3
T1/J1 Registers
Data Sheet 289 2000-07
XLHP… Transmit Line High Power
With this bit the output current capability of transmit lines XL1/XL2 is
increased. According to the DC characteristics, this bit has to be set,
if an output current of more than 60 mA is required.
0… Output current low
1… output current high
For absolute values see DC Characteristics.
XLT... Transmit Line Tristate
0…Normal operation
1…Transmit line XL1/XL2 or XDOP/XDON are switched into high
impedance state. If this bit is set the transmit line monitor status
information is frozen.
DAXLT... Disable Automatic Tristating of XL1/2
0... Normal operation. If a short is detected on pins XL1/2 the
transmit line monitor sets the XL1/2 outputs into a high
impedance state.
1... If a short is detected on pins XL1/2 an automatic setting these
pins into a high impedance state (by the XL-monitor) is
disabled.
Idle Channel Code Register (Read/Write)
Value after RESET: 00H
IDL7…IDL0… Idle Channel Code
If channel loop back is enabled by programming the register
LOOP.ECLB =1, the contents of the assigned outgoing channel on
ports XL1/XL2 respective XDOP/XDON is set equal to the idle
channel code selected by this register.
Additionally, the specified pattern overwrites the contents of all
channels of the outgoing PCM frame selected via the idle channel
registers ICB1…ICB3. IDL7 is transmitted first.
70
IDLE IDL7 IDL0 (29)
PEB 2255
FALC-LH V1.3
T1/J1 Registers
Data Sheet 290 2000-07
Transmit DL-Bit Register 1...3 (Read/Write)
Value after RESET: 00H,00
H,00
H
XDL1…XDL3… Transmit FS/DL-Bit Data
The DL-bit register access is enabled by setting bits FMR1.EDL =1.
With the transmit multiframe begin an interrupt ISR1.XMB is
generated and the contents of these registers XDL1...3 is copied into
a shadow register. The contents is sent out subsequently in the data
stream of the next outgoing multiframe if no transparent mode is
enabled. XDL10 is sent out first.
In F4frame format only XDL10...11 are transmitted. In F24frame
format XDL10...23 are shifted out. In F72 frame format XDL10...37
are transmitted.
The transmit multiframe begin interrupt (XMB) requests that these
registers should be serviced. If requests for new information are
ignored, current contents is repeated.
Clear Channel Register (Read/Write)
Value after RESET: 00H,00
H,00
H
CH1…CH24… Channel Selection Bits
0… Normal operation. Bit-robbing information and Zero Code
Suppression (ZCS, B7 stuffing) may change contents of the
selected speech/data channel if assigned modes are enabled
via bits FMR5.EIBR and FMR0.XC1/0.
1… Clear channel mode. Contents of selected speech/data
channel is not overwritten by internal or external bit-robbing and
70
XDL1 XDL17 XDL16 XDL15 XDL14XDL13 XDL12 XDL11 XDL10 (2A)
XDL2 XDL27 XDL26 XDL25 XDL24XDL23 XDL22 XDL21 XDL20 (2B)
XDL3 XDL37 XDL36 XDL35 XDL34XDL33 XDL32 XDL31 XDL30 (2C)
70
CCB1 CH1 CH2 CH3 CH4CH5 CH6 CH7 CH8(2D)
CCB2 CH9CH10 CH11 CH12 CH13 CH14CH15 CH16 (2E)
CCB3 CH17 CH18CH19CH20 CH21 CH22 CH23 CH24(2F)
C" Inflqeon
PEB 2255
FALC-LH V1.3
T1/J1 Registers
Data Sheet 291 2000-07
ZCS information. Transmission of channel assigned signaling
and control of pulse density is applied by the user.
Idle Channel Register (Read/Write)
Value after RESET: 00H,00
H,00
H,00
H
IC1…IC24… Idle Channel Selection Bits
These bits define the channels (time slots) of the outgoing PCM frame
to be altered.
0… Normal operation.
1… Idle channel mode. The contents of the selected channel is
overwritten by the idle channel code defined via register IDLE.
Line Interface Mode 0 (Read/Write)
Value after RESET: 00H
XFB… Transmit Full Bauded Mode
Only applicable for dual rail mode (bit LIM1.DRS =1).
0…Output signals XDOP/XDON are half bauded (normal operation).
1…Output signals XDOP/XDON are full bauded.
XDOS… Transmit Data Out Sense
Only applicable for dual rail mode (bit LIM1.DRS =1)
0… Output signals XDOP/XDON are active low. Output XOID is
active high (normal operation).
1… Output signals XDOP/XDON are active high. Output XOID is
active low.
70
ICB1 IC1 IC2 IC3 IC4IC5 IC6 IC7 IC8(30)
ICB2 IC9IC10 IC11 IC12 IC13 IC14IC15 IC16 (31)
ICB3 IC17 IC18IC19IC20 IC21 IC22 IC23 IC24(32)
70
LIM0 XFB XDOS SCL1 SCL0 EQON ELOS LL MAS (34)
Inflqeon
PEB 2255
FALC-LH V1.3
T1/J1 Registers
Data Sheet 292 2000-07
SCL1...0… Select Clock Output
00… Output frequency on pin CLKX is 2048 kHz active high.
01… Output frequency on pin CLKX is 2048 kHz active low.
10… Output frequency on pin CLKX is 4096 kHz active high.
11… Output frequency on pin CLKX is 4096 kHz active low.
EQON… Receive Equalizer On
0… -10 dB Receiver: short haul mode
1… -36 dB Receiver: long haul mode
ELOS… Enable Loss of Signal
0… Normal operation, the extracted receive clock is output on pin
RCLK
1… During of loss of signal (FRS0.LOS =1) output RCLKis set
high.
LL… Local Loop
0…Normal operation
1…Local loop active. The local loopback mode disconnects the
receive lines RL1/RL2 (RDIP/RDIN, respectively) from the
receiver. Data provided by system interface is routed back to
the system interface. The transmitted data is not affected.
Receiver and transmitter coding must be identical. Operates in
analog and digital line interface mode. In analog line interface
mode data is looped through the complete analog receiver.
MAS… Master Mode
0…Slave mode
1…Master mode on. If this bit is set and the SYNC pin is connected
to VSS the FALC-LH works as a master for the system. The
internal DCO’s of the jitter attenuator are centered and the
system clocks which are output via CLK8M/CLKX are stable
(divided from the DCO frequencies). If a clock (1.544 MHz or
2.048 MHz) is detected at the SYNC pin the FALC-LH
synchronizes automatically to this clock. The production
tolerance is approximately ±30 ppm of the crystal frequency if
CLoad =15 pF.
PEB 2255
FALC-LH V1.3
T1/J1 Registers
Data Sheet 293 2000-07
Line Interface Mode 1 (Read/Write)
Value after RESET: 00H
EFSC… Enable Frame Synchronization Pulse
0… The transmit clock is output on pin XCLK
1… Pin XCLKprovides an 8kHz frame synchronization pulse which
is active for one 2.048-MHz cycle (488 ns)
RIL2…RIL0… Receive Input Threshold
Only valid if analog line interface and short haul mode is selected
(LIM1.DRS=0 and LIM1.EQON =0).
No signal is declared if the voltage between pins RL1 and RL2 drops
below the limits programmed via bits RIL2...0 and the received data
stream has no transition for a period defined in the PCD register.
The threshold where no signal is declared is programmable via the
RIL2...0 bits. See Table 58 "DC Parameters"on page 336 for
details.
Note: LIM1.RIL(2:0) must be programmed before LIM0.EQON = 1 is set.
DCOC …DCO-R and DCO-XControl
0… 1.544-MHz reference clock for the DCO-R/DCO-Xcircuitry
provided on pin SYNC/SYNC2.
1… 2.048-MHz reference clock for the DCO-R/DCO-Xcircuitry
provided on pin SYNC/SYNC2.
70
LIM1 EFSC RIL2 RIL1 RIL0 DCOC JATT RL DRS (35)
PEB 2255
FALC-LH V1.3
T1/J1 Registers
Data Sheet 294 2000-07
JATT…RL... Transmit Jitter Attenuator/Remote Loop
00 =Normal operation. The transmit jitter attenuator is disabled.
Transmit data bypasses the buffer.
01 =Remote Loop active without transmit jitter attenuator enabled.
Transmit data bypasses the buffer.
10 =not assigned
11 =Remote Loop and jitter attenuator active. Received data from
pins RL1/2 or RDIP/N or ROID is sent ’jitter free’ on ports XL1/
2orXDOP/N or XOID. The dejittered clock is generated by the
DCO-Xcircuitry.
DRS… DualRailSelect
0=The ternary interface is selected. Multifunction ports RL1/2 and
XL1/2 become analog in/outputs.
1=The digital dual rail interface is selected. Received data is
latched on multifunction ports RDIP/RDIN while transmit data is
output on pins XDOP/XDON.
Pulse Count Detection Register (Read/Write)
Value after RESET: 00H
PCD7…PCD0… Pulse Count Detection
A LOS alarm (red alarm) is detected if the incoming data stream has
no transitions for a programmable number T consecutive pulse
positions. The number T is programmable via the PCD register and
canbecalculatedasfollows:
T=16(N+1) ;with 0 ≤N≤255.
The maximum time is: 256 ×16 ×648 ns =2.65 ms. Every detected
pulse resets the internal pulse counter. The counter is clocked with
the receive clock RCLK.
70
PCD PCD7 PCD0 (36)
PEB 2255
FALC-LH V1.3
T1/J1 Registers
Data Sheet 295 2000-07
Pulse Count Recovery (Read/Write)
Value after RESET: 00H
PCR7…PCR0… Pulse Count Recovery
A LOS alarm (red alarm) is cleared if a pulse density is detected in the
received bit stream.The number of pulses M which must occur in the
predefined PCD time interval is programmable via the PCR register
and can be calculated as follows:
M=N+1;with 0 ≤N≤255.
The time interval starts with the first detected pulse transition. With
every received pulse a counter is incremented and the actual counter
is compared with the contents of PCR register. If the pulse number is
≥the PCR value the LOS alarm is reset otherwise the alarm stays
active. In this case the next detected pulse transition starts a new time
interval. An additional Loss of Signal recovery condition may be
selected by register LIM2.LOS2...1.
Line Interface Mode 2 (Read/Write)
Value after RESET: 00H
LBO2...LBO1… Line Build-Out
In long haul applications LIM0.EQON =1 a transmit filter can be
optionally placed on the transmit path to attenuate the data on pins
XL1/2. Selecting the transmitter attenuation is possible in steps of 7.5
dB@772kHzwhichisaccordingtoFCC68or ANSI T1. 403.
To meet the line build-out defined by ANSI T1.403 registers XPM2...0
should be programmed as follows:
00… 0 dB
01… -7.5 dB -->XPM2...0 =20H,02
H,11
H
10… -15 dB -->XPM2...0 =20H,01
H,8EH
11… -22.5 dB -->XPM2...0 =20H,01
H,09H
70
PCR PCR7 PCR0 (37)
70
LIM2 LBO2 LBO1 DJA2 DJA1 SCF ELT LOS2 LOS1 (38)
Inflqeon
PEB 2255
FALC-LH V1.3
T1/J1 Registers
Data Sheet 296 2000-07
DJA2… Digital Jitter Attenuation DCO-X
0… Jitter attenuation of the transmit clock is done using an external
pullable crystal between pins XTAL3/4
1… Jitter attenuation of the transmit clock is done without using an
external pullable crystal between pins XTAL3/4. Only a free
running 12.352-MHz clock has top be provided at XTAL3 (+/-
50 ppm).
DJA1… Digital Jitter Attenuation DCO-R
0… Jitter attenuation of the system/transmit clock is done using an
external pullable crystal between pins XTAL1/2
1… Jitter attenuation of the system/transmit clock is done without
using an external pullable crystal between pins XTAL1/2. Only
a free running 16.384-MHzclockhastopbeprovidedatXTAL1.
SCF… Select Corner Frequency of DCO-R
Setting this bit reduces the corner frequency of the DCO-R circuit by
the factor of ten to 0.6 Hz.
Reducing the corner frequency of the DCO-R circuitry increases the
synchronization time before the frequencies are synchronized.
ELT… Enable Loop-Timed
0… normal operation
1… Transmit clock is generated from the clock supplied by XTAL3
which is synchronized with the extracted receive route clock. In this
configuration the transmit elastic buffer has to be enabled. Refer to
register FMR5.XTM. For correct operation of loop timed the remote
loop (bit LIM1.RL =0) must be inactive.
LOS2...1… Loss of Signal Recovery condition
00… The LOS alarm is cleared if the predefined pulse density
(register PCR) is detected during the time interval which is
defined by register PCD.
01… Additionally to the recovery condition described above a LOS
alarm is only cleared if the pulse density is fulfilled and no more
than 15 contiguous zeros are detected during the recovery
interval. (according to TR-NWT 499).
10… Clearing of a LOS alarm is done if the pulse density is fulfilled
andnomorethan99 contiguous zeroes are detected during the
recovery interval (according to TR-NWT 820).
11… not assigned
PEB 2255
FALC-LH V1.3
T1/J1 Registers
Data Sheet 297 2000-07
Loop Code Register 1 (Read/Write)
Value after RESET: 00H
EPRM… Enable Pseudo Random Bit Sequence Monitor
0… Pseudo random bit sequence (PRBS) monitor is disabled.
1… PRBS monitor is enabled. Setting this bit enables incrementing
the CEC2 error counter with each detected PRBS bit error. With
any change of state of the PRBS internal synchronization
status an interrupt ISR1.LLBSC is generated. The current
status of the PRBS synchronizer is indicated by bit
FRS1.LLBAD. The expected PRBS sequence has to be
selected by bit LCR1.LLBP.
The PRBS status signal is output on pin RFSP,ifXC0.SFRZ=1
and LCR1.EPRM=1. It is set high, if the PRBS monitor is in
synchronous state.
XPRBS… Transmit Pseudo Random Bit Sequence
A one in this bit position enables transmitting of a pseudo random bit
sequence to the remote end. Depending on pit LLBP the PRBS is
generated according to 215 -1 or 220-1 ( ITU-T O. 151).
LDC1…0... Length Deactivate (Down) Code
These bits defines the length of the LLB deactivate code which is
programmable in register LCR2.
00… length: 5 bit
01… length: 6 bit
10… length: 7 bit
11… length: 8bit
If a shorter pattern length is required, select a multiple of the required
length and repeat the pattern in LCR2.
70
LCR1 EPRM XPRBS LDC1 LDC0 LAC1 LAC0 FLLB LLBP (39)
Inflqeon
PEB 2255
FALC-LH V1.3
T1/J1 Registers
Data Sheet 298 2000-07
LAC1…0... Length Activate (Up) Code
These bits defines the length of the LLB activate code which is
programmable in register LCR3.
00… length: 5 bit
01… length: 6 bit
10… length: 7 bit
11… length: 8bit
If a shorter pattern length is required, select a multiple of the required
length and repeat the pattern in LCR3.
FLLB… Framed Line Loopback/Invert PRBS
Depending on bit LCR1.XPRBS this bit enables different functions:
LCR1.XPRBS=0:
0… The line loopback code is transmitted including framing bits.
LLB code overwrites the FS/DL bits.
1… The line loopback code is transmitted unframed. LLB code
does not overwrite the FS/DL bits.
Invert PRBS
LCR1.XPRBS=1:
0… The generated PRBS is transmitted not inverted.
1… The PRBS is transmitted inverted.
LLBP… Line Loopback Pattern
LCR1.XPRBS=0
0… Fixed line loopback code according to ANSI T1. 403
(001 =loop down or 00001 =loop up).
1… Enable user programmable line loopback code via register
LCR2/3.
LCR1.XPRBS=1 or LCR1.EPRM =1
0… 215 -1
1… 220 -1
PEB 2255
FALC-LH V1.3
T1/J1 Registers
Data Sheet 299 2000-07
Loop Code Register 2 (Read/Write)
Value after RESET: 00H
LDC7…LDC0… Line Loopback Deactivate Code
If enabled by bit FMR5.XLD the LLB deactivate code is repeated
automatically until the LLB generator is stopped. Transmit data is
overwritten by the LLB code. LDC0 is transmitted last. If the selected
code length is less than 8bit, the leftmost bits of LCR2 are ignored.
For correct operations bit LCR1.XPRBS has to be cleared.
Loop Code Register 3 (Read/Write)
Value after RESET: 00H
LAC7…LAC0… Line Loopback Activate Code
If enabled by bit FMR5.XLUthe LLB activate code is repeated
automatically until the LLB generator is stopped. Transmit data is
overwritten by the LLB code. LAC0 is transmitted last. If the selected
code length is less than 8bit, the leftmost bits of LCR3 are ignored.
For correct operations bit LCR1.XPRBS has to be cleared.
70
LCR2 LDC7 LDC0 (3A)
70
LCR3 LAC7 LAC0 (3B)
PEB 2255
FALC-LH V1.3
T1/J1 Registers
Data Sheet 300 2000-07
System Interface Control 1 (Read/Write)
Value after RESET: 00H
SRSC… Select Receive System Clock
0… Input frequency on pin SCLKR: 8.192MHz
Calculation of delay time T (SCLKR cycles) depends on the
value Xof the “Receive Counter Offset” register RC1/0 and of
the programming of RC0.RCOS.
Delay T is an even number in the range of 0 to 1022:
RCOS =0: X=5−T/2 if
X=517 −T/2 if
Delay T is an odd number in the range of 1 to 1023:
RCOS =1: X=5−(T −1)/2 if
X= 517 −(T −1)/2 if
1… Input frequency on pin SCLKR: 1.544 MHz
Calculation of delay time T (SCLKR cycles) depends on the
value Xof the “Receive Counter Offset” register RC1/0:
T=(196-x/2)mod193
Delay time T =time between beginning of time-slot 0 at RDO
and the initial edge of SCLKRafterSYPR goes active.
If this bit is set FMR1.IMOD must be set also and bit RC0.0
should be cleared.
RBS1…0… Receive Buffer Size
00… Buffer size: 2 frames
01… Buffer size: 1 frame
10… Buffer size: 92bits
11… Bypass of receive elastic store
70
SIC1 SRSC RBS1 RBS0 SXSC XBS1 XBS0 (3C)
0T10≤≤
12 T 1022≤≤
1T11≤≤
13 T 1023≤≤
PEB 2255
FALC-LH V1.3
T1/J1 Registers
Data Sheet 301 2000-07
SXSC… Select Transmit System Clock
0… Input frequency on pin SCLKX:8.192MHz
Calculation of delay time T (SCLKX cycles) depends on the
value Xof the “Transmit Counter Offset” register XC1/0 and of
the programming of XC1.XCOS:
Delay T is an even number in the range of 0 to 1022:
XCOS =0: X = 498 -T/2 if
X=1010 - T/2 if
Delay T is an odd number in the range of 1 to 1023:
XCOS =1: X = 498-(T-1)/2 if
X=1010 - (T-1)/2 if
1… input frequency on pin SCLKX:1.544 MHz
Calculation of delay time T (SCLKX cycles) depends on the
value Xof the “Transmit Counter Offset” register XC1/0:
T=(380 −x/2) mod 193
Delay time T =time between beginning of time-slot 0 at XDI
and the initial edge of SCLKX after SYPXgoes active.
If this bit is set FMR1.IMOD must be set also and bit XC0.0
should be cleared.
XBS1…0… Transmit Buffer Size
00… By-pass of transmit elastic store (SCLKX=1.544 MHz) or
1 frame (SCLKX = 8.192MHz)
01… Buffer size: 1 frame
10… Buffer size: 2 frames
11… Buffer size: 92bits
System Interface Control 2 (Read/Write)
Value after RESET: 00H
FFS… Force Freeze Signaling
Setting this bit disables updating of the receive signaling buffer and
current signaling information is frozen. After resetting this bit and
receiving a complete superframe updating of the signaling buffer is
70
SIC2 FFS SSF SRFSO (3D)
0T996≤≤
9
98 T 1022≤≤
1T997≤≤
9
99 T 1023≤≤
PEB 2255
FALC-LH V1.3
T1/J1 Registers
Data Sheet 302 2000-07
started again. The freeze signaling status could be also automatically
generated by detecting the Loss of Signal alarm or a Loss of Frame
Alignment or a receive slip (only if external register access via RSIG
is enabled). This automatic freeze signaling function is logically ored
with this bit.
The current internal freeze signaling status is available in register
SIS.SFS.
SSF… Serial Signaling Format
Only applicable if pin function R/XSIG is selected.
0… Bits 1...4in all time-slots except time-slot 0 +16 are cleared.
1… Bits 1...4in all time-slots except time-slot 0 +16 are set high.
SRFSO… Select Receive Frame Sync Output
0… Pin SYPR: Input
1… Pin SYPR: Output
Setting this bit disables the timeslot assigner. With register RC1/0 the
receive frame marker could be activated during any bit position of the
current frame. This marker is active high for one 1.544-MHz cycle and
is clocked off with the falling edge of SCLKR or RCLKif the receive
elastic store is bypassed. If no SYPR has been activated since
RESET or software reset CMDR.RES the outputs of the receive
system interface assumes an arbitrary alignment.
Calculation of the value Xof the “Receive Counter Offset” register
RC1/0 depends on SCLKR and on the bit position BP which should
be marked:
X=(2BP) mod 386,forSCLKR=1.544 MHz
Line Interface Mode 3 (Read/Write)
Value after RESET: 00H
CSC… Configure System Clock CLK16M/CLK12M
0… Dejittered XTAL1 or XTAL3 clock is output on CLK16M/
CLK12M.
1… Buffered XTAL1 or XTAL3 clock is output on CLK16M/
CLK12M.
70
LIM3 CSC ESY(3E)
PEB 2255
FALC-LH V1.3
T1/J1 Registers
Data Sheet 303 2000-07
ESY… External Synchronization of DCO2
Together with bit LOOP.SPN the functionality of pin 80 is defined:
Programming of LOOP.SPN and LIM3.ESYand the corresponding
pin function is shown below.
SPN/ESY:
00… function of pin 80XSIG: If SIC3.TTRF =1, transmit data
from the system interface. No input function defined for
SIC3.TTRF =0.
01… function of pin 80SYNC2: external synchronization input
for the DCO-Xcircuitry.
10… function of pin 80 ROID: Receive Optical Interface Data.
11… function of pin 80XSIG: Transmit signaling input from the
transmit system interface.
System Interface Control 3(Read/Write)
Value after RESET: 00H
TTRF… TTR Register Function
Setting this bit the function of the TTR1...4registers are changed. A
one in each TTR register forces the XSIGM marker high for the
respective time slot and controls sampling of the time slots provided
by pin XSIG. XSIG is selected by LOOP.SPN =0 and LIM3.ESY=0.
DAF… Disable Automatic Freeze
Significant only if the serial signaling access is enabled.
0… Signaling is automatically frozen if one of the following alarms
occurred: Loss of Signal (FRS0.LOS), Loss of Frame
Alignment (FRS0.LFA), or receive slips (ISR3.RSP/N).
1… Automatic freezing of signaling data is disabled. Updating of the
signaling buffer is also done if one of the above described alarm
conditions is active. However, updating of the signaling buffer is
stopped if SIC2.FFS is set.
70
SIC3 TTRF DAF (40)
PEB 2255
FALC-LH V1.3
T1/J1 Registers
Data Sheet 3042000-07
Disable Error Counter (Write)
Value after RESET: 00H
DBEC… Disable PRBS Bit Error Counter
Only valid if LCR1.EPRM=1 and FMR1.ECM are reset.
DCEC… Disable CRC Error Counter
DEBC… Disable Errored Block Counter
DCVC… Disable Code Violation Counter
DFEC… Disable Framing Error Counter
These bits are only valid if FMR1.ECM is cleared. They have to be set
before reading the error counters. They are reset automatically if the
corresponding error counter high byte has been read. With the rising
edge of these bits the error counters are latched and then cleared.
70
DEC DBEC DCEC DEBC DCVC DFEC (60)
PEB 2255
FALC-LH V1.3
T1/J1 Registers
Data Sheet 305 2000-07
Transmit Signaling Registers (Write)
Value after RESET: not defined
FMR5.SRO =0, FMR5.SRS =1
70
XS1 A8A7 A6 A5 A4A3 A2 A1 (70)
XS2 A16 A15 A14A13 A12 A11 A10 A9(71)
XS3 A24A23 A22 A21 A20 A19A18A17 (72)
XS4B8B7 B6 B5 B4B3 B2 B1 (73)
XS5 B16 B15 B14B13 B12 B11 B10 B9(74)
XS6 B24B23 B22 B21 B20 B19B18B17 (75)
XS7 A/C8A/C7 A/C6 A/C5 A/C4A/C3 A/C2 A/C1 (76)
XS8A/C16 A/C15 A/C14A/C13 A/C12 A/C11 A/C10 A/C9(77)
XS9A/C24A/C23 A/C22 A/C21 A/C20 A/C19A/C18A/C17 (78)
XS10 B/D8B/D7 B/D6 B/D5 B/D4B/D3 B/D2 B/D1 (79)
XS11 B/D16 B/D15 B/D14B/D13 B/D12 B/D11 B/D10 B/D9(7A)
XS12 B/D24B/D23 B/D22 B/D21 B/D20 B/D19B/D18B/D17 (7B)
FMR5.SRO =1, FMR5.SRS =1
70
XS1 A1 B1 C1/A2 D1/B2 A2/A3 B2/B3 C2/A4D2/B4(70)
XS2 A3/A5 B3/B5 C3/A6 D3/B6 A4/A7 B4/B7 C4/A8D4/B8(71)
XS3 A5/A9B5/B9C5/A10 D5/B10 A6/A11 B6/B11 C6/A12 D6/B12 (72)
XS4A7/A13 B7/B13 C7/A14D7/B14A8/A15 B8/B15 C8/A16 D8/B16 (73)
XS5 A9/A17 B9/B17 C9/A18D9/B18A10/A19B10/B19C10/A20 D10/B20 (74)
XS6 A11/A21 B11/B21 C11/A22 D11/B22 A12/A23 B12/B23 C12/A24D12/B24(75)
XS7 A13/A1 B13/B1 C13/A2 D13/B2 A14/A3 B14/B3 C14/A4D14/B4(76)
XS8A15/A5 B15/B5 C15/A6 D15/B6 A16/A7 B16/B7 C16/A8D16/B8(77)
XS9A17/A9B17/B9C17/A10 D17/B10 A18/A11 B18/B11 C18/A12 D18/B12 (78)
XS10 A19/A13 B19/B13 C19/A14D19/B14A20/A15 B20/B15 C20/A16 D20/B16 (79)
XS11 A21/A17 B21/B17 C21/A18D21/B18A22/A19B22/B19C22/A20 D22/B20 (7A)
XS12 A23/A21 B23/B21 C23/A22 D23/B22 A24/A23 B24/B23 C24/A24D24/B24(7B)
Inflqeon
PEB 2255
FALC-LH V1.3
T1/J1 Registers
Data Sheet 306 2000-07
Transmit Signaling Register 1...12
The transmit signaling register access is enabled by setting bit FMR5.EIBR =1. Each
register contains the bit-robbing information for 8DS0 channels.
Starting with XMB (transmit multiframe begin), the contents of these registers is copied
into a shadow register bank. Upon completion, CAS empty interrupt ISR1.CASE is set.
The contents of the shadow registers is sent out subsequently in the corresponding bit
positions of the next outgoing multiframe. The transmit CAS empty interrupt ISR1.CASE
requests that these registers should be serviced within the next 3 ms before the next
multiframe begin. If requests for new information are ignored, current contents is
repeated.
If access to XS1...12 registers is done without control of the interrupt ISR1.CASE and the
write access to these registers is done exact in that moment when this interrupt is
generated, data may be lost.
Note: A software reset (CMDR.XRES) resets these registers.
PEB 2255
FALC-LH V1.3
T1/J1 Registers
Data Sheet 307 2000-07
10.3 T1/J1 Status Register Addresses
•
Table 55 T1/J1 Status Register Address Arrangement
Address Register Type Comment Page
00 RFIFO R Receive FIFO 309
01 RFIFO R Receive FIFO 309
4B RES R Receive Equalizer Status 309
4C FRS0 R Framer Receive Status 0 310
4D FRS1 R Framer Receive Status 1 312
4E FRS2 R Framer Receive Status 2 314
4F FRS3 R Framer Receive Status 3 315
50 FECL R Framing Error Counter Low 316
51 FECH R Framing Error Counter High 316
52 CVCL R Code Violation Counter Low 317
53 CVCH R Code Violation Counter High 317
54CECL R CRC Error Counter Low 318
55 CECH R CRC Error Counter High 318
56 EBCL R Errored Block Counter Low 319
57 EBCH R Errored Block Counter High 319
58BECL R Bit Error Counter Low 320
59BECH R Bit Error Counter High 320
5C RDL1 R Receive DL-Bit Register 1 321
5D RDL2 R Receive DL-Bit Register 2 321
5E RDL3 R Receive DL-Bit Register 3 321
64SIS R Signaling Status Register 322
65 RSIS R Receive Signaling Status Register 323
66 RBCL R Receive Byte Control Low 325
67 RBCH R Receive Byte Control High 325
68ISR0 R Interrupt Status Register 0 325
69ISR1 R Interrupt Status Register1 327
6A ISR2 R Interrupt Status Register 2 328
6B ISR3 R Interrupt Status Register 3 330
6C ISR5 R Interrupt Status Register 5 331
PEB 2255
FALC-LH V1.3
T1/J1 Registers
Data Sheet 3082000-07
6E GIS R Global Interrupt Status 332
6F VSTR R Version Status 332
70 RS1 R Receive Signaling Register 1 333
71 RS2 R Receive Signaling Register 2 333
72 RS3 R Receive Signaling Register 3 333
73 RS4R Receive Signaling Register 4333
74RS5 R Receive Signaling Register 5 333
75 RS6 R Receive Signaling Register 6 333
76 RS7 R Receive Signaling Register 7 333
77 RS8R Receive Signaling Register 8333
78RS9R Receive Signaling Register 9333
79RS10 R Receive Signaling Register 10 333
7A RS11 R Receive Signaling Register 11 333
7B RS12 R Receive Signaling Register 12 333
Table 55 T1/J1 Status Register Address Arrangement (cont’d)
Address Register Type Comment Page
PEB 2255
FALC-LH V1.3
T1/J1 Registers
Data Sheet 3092000-07
10.4 Detailed Description of T1/J1 Status Registers
Receive FIFO (Read)
Reading data from RFIFO can be done in an 8-bit (byte) or 16-bit (word) access
depending on the selected bus interface mode. The LSB is received first from the serial
interface.
The size of the accessible part of RFIFO is determined by programming the bits
CCR1.RFT1…0 (RFIFO threshold level). It can be reduced from 32 bytes (RESET value)
down to 2 bytes (four values: 32, 16, 4,2bytes).
Data Transfer
Up to 32 bytes/16 words of received data can be read from the RFIFO following a RPF
or a RME interrupt.
RPF Interrupt: A fixed number of bytes/words to be read (32, 16, 4,2bytes).The
message is not yet complete.
RME Interrupt: The message is completely received. The number of valid bytes is
determined by reading the RBCL, RBCH registers.
RFIFO is released by issuing the “Receive Message Complete” command (RMC).
Receive Equalizer Status (Read)
EV1…0... Equalizer Status Valid
These bits informs the user about the current state of the receive
equalization network. Only valid if LIM1.EQON is set.
00… equalizer status not valid, still adapting
01… equalizer status valid
10… equalizer status not valid
11… equalizer status valid but high noise floor
70
RFIFO RF7 RF0 (00/01)
70
RES EV1 EV0 RES4RES3 RES2 RES1 RES0 (4B)
O" Inflqeon
PEB 2255
FALC-LH V1.3
T1/J1 Registers
Data Sheet 310 2000-07
RES4…0... Receive Equalizer Status
The current line attenuation status in steps of about 1.4dB are
displayed in these bits. Only valid if bits EV1/0 =01 and
LIM1.EQON=1.
Accuracy: +/- 2 digit, based on temperature influence and noise
amplitude variations.
00000… attenuation: 0 dB
...
11001… max. attenuation: -36 dB
Framer Receive Status Register 0 (Read)
LOS… Loss of Signal (Red Alarm)
Detection:
This bit is set when the incoming signal has „no transitions“ (analog
interface) or logical zeros (dig. interface) in a time interval of T
consecutive pulses, where T is programmable via PCD register:
Total account of consecutive pulses: 16 <T<4096.
Analog interface: The receive signal level where “no transition” is
declared is defined by the programmed value of LIM1.RIL2...0.
Recovery:
Analog interface: The bit is reset in short haul mode when the
incoming signal has transitions with signal levels greater than the
programmed receive input level (LIM1.RIL2...0) for at least M pulse
periods defined by register PCR in the PCD time interval. In long haul
mode additionally bit RES.6 must be set for at least 250µsec.
Digital interface: The bit is reset when the incoming data stream
contains at least M ones defined by register PCR in the PCD time
interval.
With the rising edge of this bit an interrupt status bit (ISR2.LOS) is set.
For additionally recovery conditions refer also to register LIM2.LOS1.
The bit is set during alarm simulation and reset if FRS2.ESC =0, 3,
4, 6,7 and no alarm condition exists.
70
FRS0 LOS AIS LFA RRA LMFA FSRF (4C)
Inflqeon
PEB 2255
FALC-LH V1.3
T1/J1 Registers
Data Sheet 311 2000-07
AIS… Alarm Indication Signal (Blue Alarm)
This bit is set when the conditions defined by bit FMR4.AIS3 are
detected. The flag stays active for at least one multiframe.
With the rising edge of this bit an interrupt status bit (ISR2.AIS) is set.
It is reset with the beginning of the next following multiframe if no
alarm condition is detected.
The bit is set during alarm simulation and reset if FRS2.ESC =0, 3,
4, 7 and no alarm condition exists.
LFA… Loss of Frame Alignment
The flag is set if pulseframe synchronization has been lost. The
conditions are specified via bit FMR4.SSC1/0. Setting this bit causes
an interrupt (ISR2.LFA).
The flag is cleared when synchronization has been regained.
Additionally interrupt status ISR2.FAR is set with clearing this bit.
RRA… Receive Remote Alarm (Yellow Alarm)
The flag is set after detecting remote alarm (yellow alarm). Conditions
for setting/resetting are defined by bit RC0.RRAM.
With the rising edge of this bit an interrupt status bit ISR2.RA is set.
With the falling edge of this bit an interrupt status bit ISR2.RAR is set.
The bit is set during alarm simulation and reset if FRS2.ESC =0, 3,
4,5,7 and no alarm condition exists.
LMFA… Loss of Multiframe Alignment
Set in F12 or F72 format when 2 out of 4-(or 5 or 6) multiframe
alignment patterns are incorrect or if LFA (loss of basic frame
alignment) is detected.
Additionally the interrupt status bit ISR2.LMFA is set.
Cleared after multiframe synchronization has been regained. With the
falling edge of this bit an interrupt status bit ISR2.MFAR is generated.
FSRF… Frame Search Restart Flag
Toggles when no framing candidate (pulse framing or multiframing) is
found and a new frame search is started.
PEB 2255
FALC-LH V1.3
T1/J1 Registers
Data Sheet 312 2000-07
Framer Receive Status Register 1 (Read)
EXZD… Excessive Zeros Detected
Significant only if excessive zeros detection is enabled
(FMR2.EXZE=1).
Set after detecting of more than 7 (B8ZS code) or more than 15 (AMI
code) contiguous zeros in the received bit stream. This bit is cleared
when read.
PDEN… Pulse Density Violation Detected
The pulse density of the received data stream is below the
requirement defined by ANSI T1. 403 or more than 15 consecutive
zeros are detected. With the violation of the pulse density this bit is
set and remains active until the pulse density requirement is fulfilled
for 23 consecutive ’1’ pulses.
Additionally an interrupt status ISR0.PDEN is generated with the
rising edge of PDEN.
LLBDD… Line Loop Back Deactivation Signal Detected
This bit is set in case the LLB deactivate signal is detected and then
received over a period of more than 33,16 ms with a bit error rate less
than 1/100. The bit remains set as long as the bit error rate does not
exceed 1/100.
If framing is aligned, the first bit position of any frame is not taken into
account for the error rate calculation.
Any change of this bit causes a LLBSC interrupt.
LLBAD… Line Loopback Activation Signal Detected/PRBS Status
Depending on bit LCR1.EPRM the source of this status bit changed.
LCR1.EPRM=0: This bit is set in case the LLB activate signal is
detected and then received over a period of more than 33,16 ms with
a bit error rate less than 1/100. The bit remains set as long as the bit
error rate does not exceed 1/100.
If framing is aligned, the first bit position of any frame is not taken into
account for the error rate calculation.
Any change of this bit causes a LLBSC interrupt.
70
FRS1 EXZDPDEN LLBDDLLBAD XLS XLO (4D)
Inflqeon
PEB 2255
FALC-LH V1.3
T1/J1 Registers
Data Sheet 313 2000-07
PRBS Status
LCR1.EPRM=1: The current status of the PRBS synchronizer is
indicated in this bit. It is set high if the synchronous state is reached
even in the presence of a BER 1/10. A data stream containing all
zeros with/without framing bits is also a valid pseudo random bit
sequence. The same applies to an all ones data stream, if PRBS data
inversion is selected.
XLS… Transmit Line Short
Significant only if the ternary line interface is selected by
LIM1.DRS=0.
0… Normal operation. No short is detected.
1… The XL1 and XL2 are shortened for at least 32 pulses. As a
reaction of the short the pins XL1 and XL2 are automatically
forced into a high impedance state if bit XPM2.DAXLT is reset.
After 32 consecutive pulse periods the outputs XL1/2 are
activated again and the internal transmit current limiter is
checked. If a short between XL1/2 is still further active the
outputs XL1/2 are in high impedance state again. When the
short disappears pins XL1/2 are activated automatically and
this bit is reset. With any change of this bit an interrupt
ISR1.XLSC is generated. In case of XPM2.XLT is set this bit is
frozen.
Pins XL1M and XL2M have to be connected to XL1 and XL2,
respectively.
XLO… Transmit Line Open
0… Normal operation
1… This bit is set if at least 32 consecutive zeros were sent via pins
XL1/XL2 respective XDOP/XDON. This bit is reset with the first
transmitted pulse. With the rising edge of this bit an interrupt
ISR1.XLSC is set. In case of XPM2.XLT is set this bit is frozen.
eon
PEB 2255
FALC-LH V1.3
T1/J1 Registers
Data Sheet 3142000-07
Framer Receive Status Register 2 (Read)
ESC2…ESC0… Error Simulation Counter
This three-bit counter is incremented by setting bit FMR0.SIM. The
state of the counter determines the function to be tested:
For complete checking of the alarm indications, eight simulation steps
are necessary (FRS2.ESC =0 after a complete simulation).
Some of these alarm indications are simulated only if the FALC®-LH is configured in the
appropriate mode. At simulation steps 0, 3, 4, and 7 pending status flags are reset
automatically and clearing of the error counters and interrupt status registers ISR0...3
should be done. Incrementing the simulation counter should not be done at time intervals
shorter than 1.5 ms (F4, F12, F72) or 3 ms (ESF). Otherwise, reactions of initiated
simulations may occur at later steps.
70
FRS2 ESC2 ESC1 ESC0 (4E)
Tested Alarms ESC2 … 0 =01234567
LFA x x
LMFA x x
RRA (bit2 =0) x
RRA (S-bit frame 12) x
RRA (DL-pattern) x
LOS x x x
EBC (F12,F72) x x
EBC (only ESF) x x x x
AIS x x x x
FEC x x
CVC x x x
CEC (only ESF) x x x x
SLPP x
SLPN x
XSLP x x x x
PEB 2255
FALC-LH V1.3
T1/J1 Registers
Data Sheet 315 2000-07
Framer Receive Status Register 3 (Read)
FEH5…0… F-Bit Error History
The bits are set if errors occur in the corresponding framing bit
locations. They are updated once per superframe (ESF format) or
every six frames (other framing formats).
Organization:
Note:All error history bits corresponding to FS bits substituted by data
link information are fixed to ‘0’.
70
FRS3 FEH5 FEH4FEH3 FEH2 FEH1 FEH0 (4F)
ESF Others
FEH5:FAS(24) FT (6 or 12)
FEH4:FAS(20) FT (5 or 11)
FEH3:FAS(16) FT (4or 10)
FEH2:FAS(12) FT (3 or 9)
FEH1:FAS(8)FT(2or8)
FEH0:FAS(4)FT(1or7)
PEB 2255
FALC-LH V1.3
T1/J1 Registers
Data Sheet 316 2000-07
Framing Error Counter (Read)
FE15…0… Framing Errors
This 16-bit counter is incremented when incorrect FT and FS bits in
F4, F12 and F72 format or incorrect FAS bits in ESF format are
received.
Framing errors are counted during basic frame synchronous state
only (but even if multiframe synchronous state is not reached yet).
The error counter doesn’t roll over. During alarm simulation, the
counter is incremented twice.
Clearing and updating the counter is done according to bit
FMR1.ECM.
If this bit is reset the error counter is permanently updated in the
buffer. For correct read access of the error counter bit DEC.DFEC has
to be set. With the rising edge of this bit updating the buffer is stopped
and the error counter is reset. Bit DEC.DFEC is reset automatically
with reading the error counter high byte.
If FMR1.ECM is set every second (interrupt ISR3.SEC) the error
counter is latched and then automatically reset. The latched error
counter state should be read within the next second.
70
FECL FE7 FE0 (50)
70
FECH FE15 FE8(51)
PEB 2255
FALC-LH V1.3
T1/J1 Registers
Data Sheet 317 2000-07
Code Violation Counter (Read)
CV15…0… Code Violations
No function if NRZcode has been enabled.
If the B8ZS code (bit FMR0.RC1/0 =11) is selected, the 16-bit
counter is incremented by detecting violations which are not due to
zero substitution. If FMR2.EXZE is set, additionally excessive zero
strings (more than 7 contiguous zeros) are detected and counted.
If simple AMI coding is enabled (FMR0.RC0/1 =10) all bipolar
violations are counted. If FMR2.EXZE is set, additionally excessive
zero strings (more than 15 contiguous zeros) are detected and
counted. The error counter doesn’t roll over.
During alarm simulation, the counter is incremented continuously with
every second received bit.
Clearing and updating the counter is done according to bit
FMR1.ECM.
If this bit is reset the error counter is permanently updated in the
buffer. For correct read access of the error counter bit DEC.DCVC
has to be set. With the rising edge of this bit updating the buffer is
stopped and the error counter is reset. Bit DEC.DCVC is reset
automatically with reading the error counter high byte.
If FMR1.ECM is set every second (interrupt ISR3.SEC) the error
counter is latched and then automatically reset. The latched error
counter state should be read within the next second.
70
CVCL CV7 CV0 (52)
70
CVCH CV15 CV8(53)
PEB 2255
FALC-LH V1.3
T1/J1 Registers
Data Sheet 3182000-07
CRCErrorCounter(Read)
CR15…0… CRC Errors
No function if CRC6 procedure or ESF format are disabled.
In ESF mode, the 16-bit counter is incremented when a multiframe
has been received with a CRC error. CRC errors are not counted
during asynchronous state. The error counter doesn’t roll over.
During alarm simulation, the counter is incremented once per
multiframe.
Clearing and updating the counter is done according to bit
FMR1.ECM.
If this bit is reset the error counter is permanently updated in the
buffer. For correct read access of the error counter bit DEC.DCEC
has to be set. With the rising edge of this bit updating the buffer is
stopped and the error counter is reset. Bit DEC.DCEC is reset
automatically with reading the error counter high byte.
If FMR1.ECM is set every second (interrupt ISR3.SEC) the error
counter is latched and then automatically reset. The latched error
counter state should be read within the next second.
70
CECL CR7 CR0 (54)
70
CECH CR15 CR8(55)
PEB 2255
FALC-LH V1.3
T1/J1 Registers
Data Sheet 3192000-07
Errored Block Counter (Read)
EBC15…0… Errored Block Counter
In ESF format this 16-bit counter is incremented once per multiframe
if a multiframe has been received with a CRC error or an errored
frame alignment has been detected. CRC and framing errors are not
counted during asynchronous state. The error counter doesn’t roll
over.
In F4/12/72 format an errored block contain 4/12or72frames.
Incrementing is done once per multiframe if framing errors has been
detected.
During alarm simulation, the counter is incremented in ESF format
once per multiframe and in F4/12/72 format only one time.
Clearing and updating the counter is done according to bit
FMR1.ECM.
If this bit is reset the error counter is permanently updated in the
buffer. For correct read access of the error counter bit DEC.DEBC
has to be set. With the rising edge of this bit updating the buffer is
stopped and the error counter is reset. Bit DEC.DEBC is reset
automatically with reading the error counter high byte.
If FMR1.ECM is set every second (interrupt ISR3.SEC) the error
counter is latched and then automatically reset. The latched error
counter state should be read within the next second.
70
EBCL EBC7 EBC0 (56)
70
EBCH EBC15 EBC8(57)
PEB 2255
FALC-LH V1.3
T1/J1 Registers
Data Sheet 320 2000-07
Bit Error Counter (Read)
BEC15…0… Bit Error Counter
If the PRBS monitor is enabled by LCR1.EPRM=1 this 16-bit counter
is incremented with every received PRBS bit error in the PRBS
synchronous state FRS1.LLBAD=1. The error counter doesn’t roll
over.
During alarm simulation, the counter is incremented continuously with
every second received bit.
Clearing and updating the counter is done according to bit
FMR1.ECM.
If this bit is reset the error counter is permanently updated in the
buffer. For correct read access of the PRBS bit error counter bit
DEC.DBEC has to be set. With the rising edge of this bit updating the
buffer is stopped and the error counter is reset. Bit DEC.DBEC is
reset automatically with reading the error counter high byte.
If FMR1.ECM is set every second (interrupt ISR3.SEC) the error
counter is latched and then automatically reset. The latched error
counter state should be read within the next second.
70
BECL BEC7 BEC0 (58)
70
BECH BEC15 BEC8(59)
PEB 2255
FALC-LH V1.3
T1/J1 Registers
Data Sheet 321 2000-07
Receive DL-Bit Register 1 (Read)
RDL17…10… Receive DL-Bit
Only valid if F12, F24or F72 format is enabled.
The received FS/DL-Bits are shifted into this register. RDL10 is
received in frame 1 and RDL17 in frame 15, if F24format is enabled.
RDL10 is received in frame 26 and RDL17 in frame 40, if F72 format
is enabled.
In F12 format the FS-Bits of a complete multiframe is stored in this
register. RDL10 is received in frame 2 and RDL15 in frame 12.
This register is updated with every receive multiframe begin interrupt
ISR0.RMB.
Receive DL-Bit Register 2 (Read)
RDL27…20… Receive DL-Bit
Only valid if F24or F72 format is enabled.
The received DL-Bits are shifted into this register. RDL20 is received
in frame 17 and RDL23 in frame 23, if F24format is enabled. RDL20
is received in frame 42 and RDL27 in frame 56, if F72 format is
enabled.
This register is updated with every receive multiframe begin interrupt
ISR0.RMB.
Receive DL-Bit Register 3 (Read)
RDL37…30… Receive DL-Bit
Only valid if F72 format is enabled.
The received DL-Bits are shifted into this register. RDL30 is received
in frame 58and RDL37 in frame 72, if F72 format is enabled.
70
RDL1 RDL17 RDL16 RDL15 RDL14RDL13 RDL12 RDL11 RDL10 (5C)
70
RDL2 RDL27 RDL26 RDL25 RDL24RDL23 RDL22 RDL21 RDL20 (5D)
70
RDL3 RDL37 RDL30 (5E)
PEB 2255
FALC-LH V1.3
T1/J1 Registers
Data Sheet 322 2000-07
This register is updated with every receive multiframe begin interrupt
ISR0.RMB.
Signaling Status Register (Read)
XDOV… Transmit Data Overflow
More than 32 bytes have been written to the XFIFO.
This bit is reset by:
– a transmitter reset command XRES or
– whenall bytes in the accessible half of the XFIFO have been moved
in the inaccessible half.
XFW… Transmit FIFO Write Enable
DatacanbewrittentotheXFIFO.
XREP… Transmission Repeat
Status indication of CMDR.XREP.
RLI… Receive Line Inactive
Neither FLAGs as Interframe Time Fill nor frames are received via the
signaling timeslot.
CEC… Command Executing
0…No command is currently executed, the CMDR register can be
written to.
1…A command (written previously to CMDR) is currently
executed, no further command can be temporarily written in
CMDR register.
Note: CEC is active at most 2.5 periods of the current system data
rate.
SFS… Status Freeze Signaling
0… freeze signaling status inactive.
1… freeze signaling status active.
70
SIS XDOV XFW XREP RLI CEC SFS BOM (64)
PEB 2255
FALC-LH V1.3
T1/J1 Registers
Data Sheet 323 2000-07
BOM… Bit Oriented Message
Significant only in ESF frame format and auto switching mode is
enabled.
0… HDLC mode
1… BOM mode
Receive Signaling Status Register (Read)
RSIS relates to the last received HDLC or BOM frame;it is copied into RFIFO when end-
of-frame is recognized (last byte of each stored frame).
VFR… Valid Frame
Determines whether a valid frame has been received.
1…valid HDLC frame
0…invalid HDLC frame
An invalid frame is either
– a frame which is not an integer number of 8bits (n ×8bits) in length
(e.g.25bits),or
– a frame which is too short taking into account the operation mode
selected via MODE (MDS2...0) and the selection of receive CRC
ON/OFF (CCR3.RCRC) as follows:
•MDS2...0=011 (16 bit Address),
RCRC =0:4bytes;RCRC =1:3-4bytes
•MDS2...0=010 (8bit Address),
RCRC =0:3bytes;RCRC =1:2-3bytes
Note:Shorter frames are not reported.
RDO… Receive Data Overflow
A data overflow has occurred during reception of the frame.
Additionally, an interrupt can be generated
(refer to ISR1.RDO/IMR1.RDO).
CRC16… CRC16 Compare/Check
0…CRC check failed;received frame contains errors.
1…CRC check o.k.;received frame is error-free.
70
RSIS VFR RDO CRC16 RAB HA1 HA0 HFR LA (65)
Inflqeon
PEB 2255
FALC-LH V1.3
T1/J1 Registers
Data Sheet 3242000-07
RAB… Receive Message Aborted
The received frame was aborted from the transmitting station.
According to the HDLC protocol, this frame must be discarded by the
receiver station.
HA1...0… High Byte Address Compare
Significant only if 2-byte address mode has been selected.
In operating modes which provide high byte address recognition, the
FALC®-LH compares the high byte of a 2-byte address with the
contents of two individually programmable registers (RAH1, RAH2)
and the fixed values FEHand FCH(broadcast address).
Dependent on the result of this comparison, the following bit
combinations are possible (SS7 support not active):
00… RAH2 has been recognized
01… Broadcast address has been recognized
10… RAH1 has been recognized C/R =0(bit1)
11… RAH1 has been recognized C/R =1(bit1)
Note: If RAH1, RAH2 contain identical values, a match is indicated
by ‘10’or ‘11’.
HFR … HDLC Frame Format
0…A BOM frame was received.
1…A HDLC frame was received.
Note: Bits RSIS.7...2 and RSIS.0 are not valid with a BOM frame. This means, if HFR=0,
all other bits of RSIS have to be ignored
LA … Low Byte Address Compare
Significant in HDLC modes only.
The low byte address of a 2-byte address field, or the single address
byte of a 1-byte address field is compared with two registers. (RAL1,
RAL2).
0…RAL2 has been recognized
1…RAL1 has been recognized
PEB 2255
FALC-LH V1.3
T1/J1 Registers
Data Sheet 325 2000-07
Receive Byte Count Low (Read)
Together with RBCH (bits RBC11...8), indicates the length of a received frame (1…4095
bytes). Bits RBC4...0 indicate the number of valid bytes currently in RFIFO. These
registers must be read by the CPUfollowing a RME interrupt.
Received Byte Count High (Read)
OV… Counter Overflow
More than 4095 bytes received.
RBC11...8…Receive Byte Count (most significant bits)
Together with RBCL (bits RBC7...0) indicate the length of the
received frame.
Interrupt Status Register 0 (Read)
Value after RESET: 00H
All bits are reset when ISR0 is read.
If bit IPC.VIS is set, interrupt statuses in ISR0 may be flagged although they are masked
via register IMR0. However, these masked interrupt statuses neither generate a signal
on INT, nor are visible in register GIS.
RME… Receive Message End
One complete message of length less than 32 bytes, or the last part
of a frame at least 32 bytes long is stored in the receive FIFO,
including the status byte.
70
RBCL RBC7 RBC0 (66)
70
RBCH OV RBC11 RBC10 RBC9RBC8(67)
70
ISR0 RME RFS ISF RMB RSC CRC6 PDEN RPF (68)
Inflqeon
PEB 2255
FALC-LH V1.3
T1/J1 Registers
Data Sheet 326 2000-07
The complete message length can be determined reading the RBCH,
RBCL registers, the number of bytes currently stored in RFIFO is
given by RBC4...0. Additional information is available in the RSIS
register.
RFS… Receive Frame Start
This is an early receiver interrupt activated after the start of a valid
frame has been detected, i.e. after an address match (in operation
modes providing address recognition), or after the opening flag
(transparent mode 0) is detected, delayed by two bytes. After an RFS
interrupt, the contents of RSIS.3...1 is valid and can be read by the
CPU.
ISF… Incorrect Sync Format
The FALC®-LH could not detect eight consecutive one’s within 32 bits
in BOM mode. Only valid if BOM receiver has been activated.
RMB… Receive Multiframe Begin
This bit is set with the beginning of a received multiframe of the
receive line timing.
RSC… Received Signaling Information Changed
This interrupt bit is set during each multiframe in which signaling
information on at least one channel changes its value from the
previous multiframe. This interrupt only occurs in the synchronous
state. The registers RS1...6/RS1...12 should be read within the next
3 ms otherwise the contents may be lost.
CRC6… Receive CRC6 Error
0… No CRC6 error occurs.
1… The CRC6 check of a received multiframe failed.
PDEN… Pulse Density Violation
The pulse density violation of the received data stream defined by
ANSI T1. 403 is violated. More than 15 consecutive zeros or less than
N ones in each and every time window of 8×(N+1) data bits (N=23)
are detected. If IPC.SCI is set high this interrupt status bit is activated
with every change of state of FRS1.PDEN.
RPF… Receive Pool Full
32 bytes of a frame have arrived in the receive FIFO. The frame is not
yet received completely.
PEB 2255
FALC-LH V1.3
T1/J1 Registers
Data Sheet 327 2000-07
Interrupt Status Register 1 (Read)
All bits are reset when ISR1 is read.
If bit IPC.VIS is set, interrupt statuses in ISR1 may be flagged although they are masked
via register IMR1. However, these masked interrupt statuses neither generate a signal
on INT, nor are visible in register GIS.
CASE… Transmit CAS Register Empty
In ESF format this bit is set with the beginning of a transmitted
multiframe related to the internal transmitter timing.
In F12 format this bit is set with the beginning of a transmitted
multiframe,ifbitFMR5.SRS=0. If FMR5.SRS =1, this bit is set at
every second multiframe begin.
In F72 format this interrupt occurs every 12/24frames (FMR5.SRS =
0/1) to inform the user that new bit-robbing data has to be written to
XS1...6 registers (see Table 36 "72-Frame Multiframe Structure
(T1/J1)"on page 146).
RDO… Receive Data Overflow
This interrupt status indicates that the CPUdid not respond fast
enough to an RPF or RME interrupt and that data in RFIFO has been
lost. Even when this interrupt status is generated,the frame continues
to be received when space in the RFIFO is available again.
Note:Whereas the bit RSIS.RDO in the frame status byte indicates
whether an overflow occurred when receiving the frame
currently accessed in the RFIFO, the ISR1.RDO interrupt
status is generated as soon as an overflow occurs and does
not necessarily pertain to the frame currently accessed by the
processor.
ALLS… All Sent
This bit is set if the last bit of the current frame has been sent out
completely and XFIFO is empty.
70
ISR1 CASE RDO ALLS XDUXMB XLSC XPR (69)
PEB 2255
FALC-LH V1.3
T1/J1 Registers
Data Sheet 3282000-07
XDU… Transmit Data Underrun
Transmitted frame was terminated with an abort sequence because
no data was available for transmission in XFIFO and no XME was
issued.
Note: Transmitter and XFIFO are reset and deactivated if this
condition occurs. They are re-activated not before this
interrupt status register has been read. Thus, XDU should not
be masked via register IMR1.
XMB… Transmit Multiframe Begin
This bit is set with the beginning of a transmitted multiframe related to
the internal transmit line interface timing.
XLSC… Transmit Line Status Change
XLSC is set with the rising edge of the bit FRS1.XLO or with any
change of bit FRS1.XLS.
The actual status of the transmit line monitor can be read from the
FRS1.XLS and FRS1.XLO.
XPR… Transmit Pool Ready
A data block of up to 32 bytes can be written to the transmit FIFO.
XPR enables the fastest access to XFIFO. It has to be used for
transmission of long frames, back-to-back frames or frames with
shared flags.
Interrupt Status Register 2 (Read)
All bits are reset when ISR2 is read.
If bit PIC.VIS is set, interrupt statuses in ISR2 may be flagged although they are masked
via register IMR2. However, these masked interrupt statuses neither generate a signal
on INT, nor are visible in register GIS.
FAR… Frame Alignment Recovery
The framer has reached synchronization. Set with the falling edge of
bit FSR0.LFA.
It is set also after alarm simulation is finished and the receiver is still
synchronous.
70
ISR2 FAR LFA MFAR LMFA AIS LOS RAR RA (6A)
Inflqeon
PEB 2255
FALC-LH V1.3
T1/J1 Registers
Data Sheet 3292000-07
LFA… Loss of Frame Alignment
The framer has lost synchronization and bit FRS0.LFA is set.
It is set during alarm simulation.
MFAR… Multiframe Alignment Recovery
Set when the framer has reached multiframe alignment in F12 or F72
format. With the negative transition of bit FRS0.LMFA this bit is set. It
is set during alarm simulation.
LMFA… Loss of Multiframe Alignment
Set when the framer has lost the multiframe alignment in F12 or F72
format. With the positive transition of bit FRS0.LMFA this bit is set. It
is set during alarm simulation.
AIS… Alarm Indication Signal (Blue Alarm)
This bit is set when an alarm indication signal is detected and bit
FRS0.AIS is set. If IPC.SCI is set high this interrupt status bit is
activated with every change of state of FRS0.AIS.
It is set during alarm simulation.
LOS… Loss of Signal (Red Alarm)
This bit is set when a loss of signal alarm is detected in the received
data stream and FRS0.LOS is set. If IPC.SCI is set high this interrupt
status bit is activated with every change of state of FRS0.LOS.
It is set during alarm simulation.
RAR… Remote Alarm Recovery
Set if a remote alarm (yellow alarm) is cleared and bit FRS0.RRA is
reset. It is set also after alarm simulation is finished and no remote
alarm is detected.
RA… Remote Alarm
A remote alarm (yellow alarm) is detected. Set with the rising edge of
bit FRS0.RRA. It is set during alarm simulation.
PEB 2255
FALC-LH V1.3
T1/J1 Registers
Data Sheet 330 2000-07
Interrupt Status Register 3 (Read)
All bits are reset when ISR3 is read.
If bit IPC.VIS is set, interrupt statuses in ISR3 may be flagged although they are masked
via register IMR3. However, these masked interrupt statuses neither generate a signal
on INT, nor are visible in register GIS.
ES… Errored Second
This bit is set if at least one enabled interrupt source via ESM is set
during the time interval of one second. Interrupt sources of ESM
register:
LFA =Loss of frame alignment detected
FER =Framing error received
CER=CRC error received
AIS =Alarm indication signal (blue alarm)
LOS =Loss of signal (red alarm)
CVE=Code violation detected
SLIP=Transmit Slip or Receive Slip positive/negative detected
SEC… Second Timer
The internal one second timer has expired. The timer is derived from
clock RCLK.
XSLP… Transmit Slip Indication
Only valid if register SIC1.XBS1/0 =01.
A one in this bit position indicates that there is an error in the host
clock system. If the wander of the transmit route clock, which normally
is phase locked to a common submultiple of the system clock
(SCLKX), is too great, data transmission errors occur. In that case,
the transmit speech memory has to be reset to its start position by
writing the initial value to the transmit time-slot counter XC1.XTO.
LLBSC… Line Loop Back Status Change/PRBS Status Change
Depending on bit LCR1.EPRM the source of this interrupt status
changed:
LCR1.EPRM=0: This bit is set, if the LLB activate signal or the LLB
deactivate signal respective is detected over a period of 33,16 ms
with a bit error rate less than 1/100.
70
ISR3 ES SEC XSLP LLBSC RSN RSP (6B)
eon
PEB 2255
FALC-LH V1.3
T1/J1 Registers
Data Sheet 331 2000-07
The LLBSC bit is also set, if the current detection status is left, i.e., if
the bit error rate exceeds 1/100.
The actual detection status can be read from the FRS1.LLBAD and
FRS1.LLBDD, respectively.
PRBS Status Change
LCR1.EPRM=1: With any change of state of the PRBS synchronizer
this bit is set. The current status of the PRBS synchronizer is
indicated in FRS1.LLBAD.
RSN… Receive Slip Negative
The frequency of the receive route clock is greater than the frequency
of the receive system interface working clock based on 1.544 MHz. It
is set during alarm simulation.
In 2-frame buffer mode a frame is skipped.
RSP… Receive Slip Positive
The frequency of the receive route clock is less than the frequency of
the receive system interface working clock based on 1.544 MHz. It is
set during alarm simulation.
In 2-frame buffer mode a frame is repeated.
Interrupt Status Register 4 (Read)
All bits are reset when ISR5 is read.
If bit IPC.VIS is set, interrupt statuses in ISR5 may be flagged although they are masked
via register IMR5. However, these masked interrupt statuses neither generate a signal
on INT, nor are visible in register GIS.
XSP… Transmit Slip Positive
The frequency of the transmit clock is less than the frequency of the
transmit system interface working clock based on 1.544 MHz. After a
slip has performed writing of register XC1 is not necessary.
In 2-frame buffer mode a frame is repeated.
70
ISR5 XSP XSN (6C)
PEB 2255
FALC-LH V1.3
T1/J1 Registers
Data Sheet 332 2000-07
XSN… Transmit Slip Negative
The frequency of the transmit clock is greater than the frequency of
the transmit system interface working clock based on 1.544 MHz.
After a slip has performed writing of register XC1 is not necessary.
In 2-frame buffer mode a frame is skipped.
Global Interrupt Status Register (Read)
Value after RESET: 00H
This status register points to pending interrupts sourced by ISR5, 3...0.
Version Status Register (Read)
VN7...0… Version Number of Chip
10H…Version 1.1
13H…Version 1.3
70
GIS ISR5 ISR3 ISR2 ISR1 ISR0 (6E)
70
VSTR VN7 VN0 (6F)
PEB 2255
FALC-LH V1.3
T1/J1 Registers
Data Sheet 333 2000-07
Receive Signaling Registers (Read)
Value after RESET: not defined
FMR5.SRO =0
70
RS1 A8A7 A6 A5 A4A3 A2 A1 (70)
RS2 A16 A15 A14A13 A12 A11 A10 A9(71)
RS3 A24A23 A22 A21 A20 A19A18A17 (72)
RS4B8B7 B6 B5 B4B3 B2 B1 (73)
RS5 B16 B15 B14B13 B12 B11 B10 B9(74)
RS6 B24B23 B22 B21 B20 B19B18B17 (75)
RS7 A/C8A/C7 A/C6 A/C5 A/C4A/C3 A/C2 A/C1 (76)
RS8A/C16 A/C15 A/C14A/C13 A/C12 A/C11 A/C10 A/C9(77)
RS9A/C24A/C23 A/C22 A/C21 A/C20 A/C19A/C18A/C17 (78)
RS10 B/D8B/D7 B/D6 B/D5 B/D4B/D3 B/D2 B/D1 (79)
RS11 B/D16 B/D15 B/D14B/D13 B/D12 B/D11 B/D10 B/D9(7A)
RS12 B/D24B/D23 B/D22 B/D21 B/D20 B/D19B/D18B/D17 (7B)
FMR5.SRO =1
70
RS1 A1 B1 C1/A2 D1/B2 A2/A3 B2/B3 C2/A4D2/B4(70)
RS2 A3/A5 B3/B5 C3/A6 D3/B6 A4/A7 B4/B7 C4/A8D4/B8(71)
RS3 A5/A9B5/B9C5/A10 D5/B10 A6/A11 B6/B11 C6/A12 D6/B12 (72)
RS4A7/A13 B7/B13 C7/A14D7/B14A8/A15 B8/B15 C8/A16 D8/B16 (73)
RS5 A9/A17 B9/B17 C9/A18D9/B18A10/A19B10/B19C10/A20 D10/B20 (74)
RS6 A11/A21 B11/B21 C11/A22 D11/B22 A12/A23 B12/B23 C12/A24D12/B24(75)
RS7 A13/A1 B13/B1 C13/A2 D13/B2 A14/A3 B14/B3 C14/A4D14/B4(76)
RS8A15/A5 B15/B5 C15/A6 D15/B6 A16/A7 B16/B7 C16/A8D16/B8(77)
RS9A17/A9B17/B9C17/A10 D17/B10 A18/A11 B18/B11 C18/A12 D18/B12 (78)
RS10 A19/A13 B19/B13 C19/A14D19/B14A20/A15 B20/B15 C20/A16 D20/B16 (79)
RS11 A21/A17 B21/B17 C21/A18D21/B18A22/A19B22/B19C22/A20 D22/B20 (7A)
RS12 A23/A21 B23/B21 C23/A22 D23/B22 A24/A23 B24/B23 C24/A24D24/B24(7B)
Inflqeon
PEB 2255
FALC-LH V1.3
T1/J1 Registers
Data Sheet 3342000-07
Receive Signaling Register 1...12
Each register contains the received bit-robbing information for 8DS0 channels. The
received robbed-bit signaling information of a complete ESF multiframe is compared with
the previously received one. In F12/72 frame format the received signaling information of
every 24frames are compared with the previously received 24frames. If the contents
changed a receive signaling change interrupt ISR0.RSC is generated and informs the
user that a new multiframe has to be read within the next 3 ms. Received data is stored
in registers RS1...12. RS1.7 is received in channel 1 frame 1 and RS12.0 in channel 24
frame 24(ESF).
If requests for reading the RS1...12 registers is ignored the received data may be lost.
Additionally a receive signaling data change pointer indicates an update of register
RS1...12. Refer also to register RSP1/2.
Access to RS1...12 registers is only valid if the serial receive signaling access on the
system highway is disabled.
PEB 2255
FALC-LH V1.3
Electrical Characteristics
Data Sheet 335 2000-07
11 Electrical Characteristics
11.1 Absolute Maximum Ratings
Note: Stresses above those listed here may cause permanent damage to the
device. Exposure to absolute maximum rating conditions for extended
periods may affect device reliability.
11.2 Operating Range
Note: In the operating range, the functions given in the circuit description are fulfilled.
V
DD
,V
DDR
and V
DDX
have to be connected to the same voltage level,
V
SS
,V
SSR
and V
SSX
have to be connected to ground level.
Table 56 Maximum Ratings
Parameter Symbol Limit Values Unit
Ambient temperature under bias TA–40to85°C
Storage temperature Tstg –65to150 °C
IC supply voltage (digital) VDD –0.4to 6.5 V
IC supply voltage receive (analog) VDDR –0.4to 6.5 V
IC supply voltage transmit (analog) VDDX–0.4to 6.5 V
Voltage on any pin with respect to ground VS–0.4to 6.5 V
ESD robustness1)
HBM: 1.5 kΩ, 100 pF
1) According to MIL-Std 883D, method 3015.7 and ESD Ass. Standard EOS/ESD-5.1-1993.
VESD,HBM 1000 V
Table 57 Power Supply Range
Parameter Symbol Limit Values Unit Test Condition
min. max.
Ambient temperature TA-4085°C
Supply voltages VDD
VDDR
VDDX
4.75 5.25 V 1)
1) Voltage ripple on analog supply less than 50 mV
Ground VSS
VSSR
VSSX
00V
PEB 2255
FALC-LH V1.3
Electrical Characteristics
Data Sheet 336 2000-07
11.3 DC Characteristics
Table 58 DC Parameters
Parameter Symbol Limit Values Unit Notes
min. max.
Input low voltage VIL –0.40.8V1)
Input high voltage VIH 2.0 VDD+0.4V1)
Output low voltage VOL 0.45VIOL =+2mA1)
Output high voltage VOH1 2.4VIOH =-400µA1)
VOH2 VDD -0.5 V IOH =- 100µA1)
Input low voltage XTAL VXTALIL –0.41.0 V
Input high voltage XTAL VXTALIH 3.5 VDD+0.4V
Average power
supply current
(Analog line interface)
IDDE1
IDDT1
165
165
mA
mA
E1 application2)
T1 application3)
Average power
supply current
(Digital line interface)
IDD 85mA
Input leakage current IIL11 1µAVIN =V
DD4)
IIL12 1µAVIN =V
SS 4)
IIL21 1µAVIN =V
DD5)
IIL12 250 µAVIN =V
SS 5)
IILX15 µAVSS <VIN <V
DD
XTAL measured
against VSS
Output leakage current IOZ1µAVOUT=tristate1)
VSS <Vmeas <V
DD
measured against
VDD and VSS
Transmitter output
impedance RX3ΩXPM2.XLT=0
(active mode)
applies to XL1and
XL26)
6000 ΩXPM2.XLT=1
(tristate mode)
applies to XL1and
XL26)
'5 Inflneon m "we .. Apphes m an pm: except anamg pms RLX, xLx, XTALX‘ XLMX
PEB 2255
FALC-LH V1.3
Electrical Characteristics
Data Sheet 337 2000-07
Transmitter output current IXE1 60 mA XL1, XL2 ;XLHP=0
IXT1 75 mA XL1, XL2;XLHP=1
Differentialpeakvoltageof
amark
(between XL1 and XL2)
VX03.6V
Transmit Line Monitor
Level VXM0.5 1 V voltage between
XL1M and XL2M
Receiver differential peak
voltage of a mark
(between RL1 and RL2)
VRVDD +5%VRL1,RL2
Receiver input impedance ZR50
(typical value) kΩ6)
Receiver sensitivity SRSH 010dBRL1,RL2
LIM0.EQON=0
(short haul)
Receiver sensitivity SRLHE1 043dBRL1,RL2
LIM0.EQON=1
(E1, long haul)
Receiver sensitivity SRLHT1 036dBRL1,RL2
LIM0.EQON=1(T1,
long haul)
Receiver input threshold VRTH 55
(typical value) %6)
Loss of signal (LOS)
detection limit in short haul
mode
VLOSSH 1.2
1.0
0.8
0.5
0.4
0.2
not assigned
not assigned
(typical values)
V RIL2-0 =000
RIL2-0 =001
RIL2-0 =010
RIL2-0 =011
RIL2-0 =100
RIL2-0 =101
RIL2-0 =110
RIL2-0 =111
7)
1) Applies to all pins except analog pins RLx, XLx, XTALx, XLMx
2) Wiring conditions and external circuit configuration according to Figure 23 on page 79;
values of registers XPM2-0 =BDH,03
H,00
H
Table 58 DC Parameters (cont’d)
Parameter Symbol Limit Values Unit Notes
min. max.
Infineon “News Q. va‘ues or regws‘evs XPMH = 9a, 27”. o2H Apphes m a” pms except RCLK, smc TDI ms. TCK mu m2, xu >
PEB 2255
FALC-LH V1.3
Electrical Characteristics
Data Sheet 3382000-07
Note: Typical characteristics specify mean values expected over the production spread.
If not specified otherwise, typical characteristics apply at
T
A
=25
°
C and 5.0V
supply voltage.
3) Wiring conditions and external circuit configuration according to Figure 49 on page 134;
values of registers XPM2-0 =9FH,27
H,02
H
4)Applies to all pins except RCLK,SYNC, TDI, TMS, TCK, RL1, RL2, XL1, XL2
5) Applies to pins SYNC, TDI, TMS, TCKonly
6) Parameter not tested in production
7) Differential input voltage between pins RL1 and RL2;depends on programming of register LIM1.RIL2-0
C" Inflqeon W TT
PEB 2255
FALC-LH V1.3
Electrical Characteristics
Data Sheet 3392000-07
11.4 AC Characteristics
11.4.1 Recommended Oscillator Circuits
•
Figure 61 Crystal Oscillator Circuit (master/slave mode)
•
Figure 62 External Oscillator Circuit (master mode)
11.4.2 XTAL Clock Timing
Figure 63 XTAL External Clock Timing
Table 59 XTAL Timing Parameter Values
No. Parameter Limit Values Unit Condition
min. typ. max.
61 Clock Period 61 ns XTAL1, XTAL3
81XTAL3
XTAL1(3)
XTAL2(4)
C
L
T1: 16.384 (12.352) MHz
E1: 16.384 MHz
C
L
F0032
XTAL1(3)
XTAL2(4)
External Oscillator Signal
T1: 16.384 (12.352) MHz
E1: 16.384 MHz
N.C.
F0033
ITT06478
XTAL3
62 61
XTAL1 3.5 V
0.8 V
63
'5 Inflneon m "we .. mmmu 9 Tim reqmremems mireerunmng mode
PEB 2255
FALC-LH V1.3
Electrical Characteristics
Data Sheet 340 2000-07
•
Figure 64 External Pullable Crystal Tuning Range
Note: 12.352-MHz or 16.384-MHz crystal specified for C
L
=15 pF
62 Clock High Phase 20 ns XTAL1, XTAL3
25 XTAL3
63 Clock Low Phase 20 ns XTAL1, XTAL3
25 XTAL3
Clock accuracy 321) ppm XTAL1, XTAL3
Motional Capacitance C125 fF XTAL1, XTAL3
Shunt Capacitance C07pF XTAL1, XTAL3
Load Capacitance CL2) 15 pF XTAL1, XTAL3
Resonance Resistance Rr40ΩXTAL1, XTAL3
1) to fulfill E1/T1/J1 requirements in free running mode
2) This value includes the capacitance of the external capacitor plus all parasitic capacitances. The value for the
external capacitor has to be chosen depending on the printed circuit board layout. A typical value is 10 pF with
5 pF parasitic capacitance.
Table 59 XTAL Timing Parameter Values (cont’d)
No. Parameter Limit Values Unit Condition
min. typ. max.
ITD08571
7.5
-250
Load Capacitance
0
f
f
0
f
-
-200
-150
-100
-50
0
50
100
150
ppm
250
10 12.5 15 17.5 20 22.5 pF 27.5
| 7?? x$ H 7W
PEB 2255
FALC-LH V1.3
Electrical Characteristics
Data Sheet 341 2000-07
11.4.3 JTAG Boundary Scan Interface
Figure 65 JTAG Boundary Scan Timing
•
Identification Register : 32 bit;Version: 4H;Part Number: 42H, Manufacturer: 083H
Table 60 JTAG Boundary Scan Timing Parameter Values
No. Parameter Limit Values Unit
min. max.
80TCKperiod 250 ns
81TCKhigh time 80ns
82TCKlow time 80ns
83TMSsetuptime 40ns
84 TMS hold time 40ns
85TDIsetuptime 40ns
86 TDI hold time 40ns
87 TDO valid delay 100 ns
ITT06481
81 82
80
TCK
TMS
TDO
TDI
84
83
85 86
87
f :1 Hw
PEB 2255
FALC-LH V1.3
Electrical Characteristics
Data Sheet 342 2000-07
11.4.4 Reset
Figure 66 Reset Timing
11.4.5 Microprocessor Interface
11.4.5.1 Intel Bus Interface Mode
Figure 67 Intel Non-Multiplexed Address Timing
Table 61 Reset Timing Parameter Values
No. Parameter Limit Values Unit
min. max.
88 RES pulse width high 201)
1) after power supply and input clocks are stable
µs
RES
88
F0035
WR
RD
CS
...
BHE
A6 A0
1323A
ITT06468
PEB 2255
FALC-LH V1.3
Electrical Characteristics
Data Sheet 343 2000-07
Figure 68 Intel Multiplexed Address Timing
Figure 69 Intel Read Cycle Timing
WR
RD 3
CS
ALE
BHE
A6...A0
46
17
5
3A
ITT06469
7A
CS
ITT06470
RD
8 9
12
WR
FloatFloat
11
11A
10
D0...
(D15...D8)
D7
PEB 2255
FALC-LH V1.3
Electrical Characteristics
Data Sheet 344 2000-07
Figure 70 Intel Write Cycle Timing
Table 62 Intel Bus Interface Timing Parameter Values
No. Parameter Limit Values Unit
min. max.
1 Address Ax1),BHEsetup time 15 ns
2 Address Ax1),BHEhold time 0 ns
3CS
setup time 0 ns
3A CS hold time 0 ns
4Address, BHE stable before ALE inactive 20 ns
5 Address, BHE hold after ALE inactive 10 ns
6 ALE pulse width 30 ns
7 Address latch setup time before command
active 0ns
7A ALE to command inactive delay 30 ns
8RD pulse width 100 ns
9RD control interval 80ns
10 Data valid after RD active 95ns
11 Data hold after RD inactive 10 ns
11A RD inactive to data bus tristate2) 30 ns
12 WR to RD or RD to WR control interval 80ns
13 WR pulse width 60 ns
14WR control interval 50 ns
D8)
D7 D0...
(D15...
16
ITT06471
WR
RD
CS
15
13 14
12
eon Ax racers Ia addvess hnes AD m A8
PEB 2255
FALC-LH V1.3
Electrical Characteristics
Data Sheet 345 2000-07
11.4.5.2 Motorola Bus Interface Mode
•
Figure 71 Motorola Read Cycle Timing
15 Data stable before WR inactive 30 ns
16 Data hold after WR inactive 10 ns
1) Ax refers to address lines A0 to A6
2) typical value, not tested in production
Table 62 Intel Bus Interface Timing Parameter Values (cont’d)
No. Parameter Limit Values Unit
min. max.
BLE
A6
17
19
18
19A
22 23
2120
CS
RW
DS
D7
(D15
ITT06472
2524 25A
Float Float
...
......
A0
D0
D8)
PEB 2255
FALC-LH V1.3
Electrical Characteristics
Data Sheet 346 2000-07
•
Figure 72 Motorola Write Cycle Timing
Table 63 Motorola Bus Interface Timing Parameter Values
No. Parameter Limit Values Unit
min. max.
17 Address, BLE, setup time before DS active 15 ns
18Address, BLE, hold after DS inactive 0 ns
19CS active before DS active 0 ns
19ACS
hold after DS inactive 0 ns
20 RW stable before DS active 10 ns
21 RW hold after DS inactive 0 ns
22 DS pulse width (read access) 100 ns
22A DS pulse width (write access) 60 ns
23 DS control interval 80ns
24Data valid after DS active (read access) 95ns
25 Data hold after DS inactive (read access) 10 ns
25A DS inactive to databus tristate (read
access)1)
1) typical value, not tested in production
30 ns
26 Data stable before DS active (write access) 30 ns
27 Data hold after DS inactive (write access) 10 ns
DS
...
D0
(D15
D7... D8)
26
RW
CS
A0A6
BHE
...
20
19
17
22A
27
ITT06473
21
19A
18
23
PEB 2255
FALC-LH V1.3
Electrical Characteristics
Data Sheet 347 2000-07
11.4.6 Line Interface
Figure 73 Timing of Dual Rail Optical Interface
Table 64 Dual Rail Optical Interface Parameter Values
No. Parameter Limit Values Unit
E1 T1
min. typ. max. min. typ. max.
30 RCLKI clock period 488 648 ns
31 RCLKI clock period low 180240ns
32 RCLKI clock period high 180240ns
33 ROID setup 50 50 ns
34ROID hold 50 50 ns
35 XCLKclock period 488 648 ns
36 XCLKclock period low
XCLKclock period low3) 190
150 230
200 ns
37 XCLKclock period high
XCLKclock period high3) 190
150 230
200 ns
1T2B Coding
XDON
XDOP/
XOID/
XOID
1)
1)
38
38A
XCLK
ROID
RCLKI
37
32
35
33
36
34
30 31
ITT06475
1) CMI Coding
PEB 2255
FALC-LH V1.3
Electrical Characteristics
Data Sheet 348 2000-07
•
Figure 74 Receive Clock and RFSP/FREEZSTiming
•
38XOID delay1)
XDOP/XDON delay2) 60 60 ns
1) NRZcoding
2) HDB3/AMI/B8ZS coding
3) depends on input RCLKI in optical interface and remote loop without transmit jitter attenuator enabled
(LIM1.JATT/RL=01).
Table 65 Receive Clock and RFSP/FREEZS Timing Parameter Values
No. Parameter Limit Values Unit
E1 T1
min. typ. max. min. typ. max.
39RCLKclock period 488 648 ns
40 RCLKclock low 180240ns
41 RCLKclock high 180240ns
Table 64 Dual Rail Optical Interface Parameter Values (cont’d)
No. Parameter Limit Values Unit
ITT06476
4343
~
~
42 42
4041 39
RCLK
RFSP
FREEZS
SCLKR
1)
PCM24: if bit XCO
1)
.
SFRZ is set HIGH
CFRZ is set HIGH
.
if bit FRM3.PCM30:
PEB 2255
FALC-LH V1.3
Electrical Characteristics
Data Sheet 349 2000-07
42RFSPdelay 70 70 ns
43FREEZS delay1) 9595ns
1) T1 using register accessed CAS and XCO.SFRZ=1orE1/T1/J1usingserialCAS
Table 65 Receive Clock and RFSP/FREEZSTiming(cont’d)Parameter Values
No. Parameter Limit Values Unit
E1 T1
min. typ. max. min. typ. max.
_:_’ * :flJfim e a_$_r _/_\ ——<: fwwl/m="">
PEB 2255
FALC-LH V1.3
Electrical Characteristics
Data Sheet 350 2000-07
11.4.7 System Interface
•
Figure 75 System Interface Timing
XC1
Sample Edge Bit
During Payload Loop is active SCLKR is switched internally on SCLKX
Valid in PCM30 mode and
Valid if FMR2
3)
XCLK
XSIGM
DLX
XMFB
2)
1)
3)
SCLKR
XMFS
8192
SYPX
XDI
kHz
2)
JATT/RLLIM1
.
= "00" Example:
75
PLB
.
"0"=
76
75
~
~
76
~
~~
~
73 74
"0"
"1"
RDO
FMR1
SCLKX
RMFB
DLR
RSIGM
1)
IMOD
.
=
RDO
FMR1
SYPR
IMOD
.
=
8192
SCLKR
kHz
65
67
72
71
~
~
~
~
66
72
~
~~
~
~
~
65
67 66
XC03E= H03= H
"1")
(FMR2 PLB =
68
69
.
70
ITT06479
68 70
0 of XDI
71A
69
Trigger Edge
O" Inflqeon ¢¢¢ ¢¢—C)—C)—i)— —C)—C)—C)—C)— i¢¢¢¢$¢¢ Pfl :3:
PEB 2255
FALC-LH V1.3
Electrical Characteristics
Data Sheet 351 2000-07
•
Figure 76 XMFS Timing
•
Figure 77 XMFS Timing (cont’d.)
•
Table 66 System Interface Timing Parameter Values
No. Parameter Limit Values Unit
min. typ. max.
65 SCLKX/SCLKR period 122 ns
66 SCLKX/SCLKRlow(8.192MHz) 40ns
SCLKX/SCLKRlow(1.544/2.048 MHz) 120 ns
SCLKX
Data at XDI
2
Data at XDI
4
8192
Time-Slot
1.b 2.b 3.b 4.b 7.b 8.b 1.b
1.b 2.b 3.b 4.b 5.b 6.b 7.b 8.b 1.b
XMFS
Frame
ITT06480
1 of Multiframe
0 Time-Slot 31
Frame 2
Mbit/s-Mode
kHz
77 79
78
Mbit/s-Mode
7877
inactive active high
SCLKX
XMFS
79
F0058
In Ineon mg .. nm ‘es‘ed m pvoducuon
PEB 2255
FALC-LH V1.3
Electrical Characteristics
Data Sheet 352 2000-07
67 SCLKX/SCLKRhigh(8.192MHz) 40ns
SCLKX/SCLKRhigh(1.544/2.048 MHz) 120 ns
68SYPX/SYPR inactive setup time 2 ×
T65
ns
69SYPX/SYPR setup time 5 ns
70 SYPX/SYPR hold time 50 ns
71 RDO delay1) 10 105 ns
71A RDO to high impedance1)2) 10 105 ns
72 RSIGM, RMFB, DLR marker delay 105 ns
73 XDI setup time 5 ns
74XDI hold time 50 ns
75 XSIGM, XMFB, DLXmarker delay 105 ns
76 XCLKdelay 105 ns
77 XMFS setup time 5 ns
78XMFS hold time 50 ns
79XMFS inactive time1) 4×
T65
ns
1) not tested in production
2) FMR1.IMOD =0
Table 66 System Interface Timing Parameter Values (cont’d)
No. Parameter Limit Values Unit
PEB 2255
FALC-LH V1.3
Electrical Characteristics
Data Sheet 353 2000-07
•X
Figure 78 System Clock Timing
ITT10534
CLK
CLKX
FSC
CLK
57
58 59
5554
53
16M
12M
51 52
50
8MCLK
49
48
47
45
44
46
CLKX
CLKX
CLKX
4)
3)
2)
1)
LIM0.SCL1/0 = "10"
1)
2)
LIM0.SCL1/0 = "11" LIM0.SCL1/0 = "01"
4)
3)
LIM0.SCL1/0 = "00" LIM1.EFSC = "1"
5)
XCLK/FSC
5)
56 56
PEB 2255
FALC-LH V1.3
Electrical Characteristics
Data Sheet 3542000-07
•
Table 67 System Clock Timing Parameter Values
No. Parameter Limit Values Unit
min. typ. max.
44 CLK16M period 61 ns
45CLK16M low 20 ns
46CLK16M high 20 ns
47CLK8M period 122 ns
48 CLK8Mlow 45ns
49 CLK8Mhigh 45ns
50 CLKX period 4MHz 244 ns
51 CLKX low 4MHz 100 ns
52 CLKX high 4MHz 100 ns
53 CLKX period2MHz 488 ns
54CLKX low 2 MHz 220 ns
55 CLKX high 2 MHz 220 ns
56 FSC, FSC,CLK8M, CLKX delay 50 ns
57 CLK12M period (T1/J1) 81ns
CLK12M period (E1) 61 ns
58CLK12M low (T1/J1) 25 ns
CLK12M low (E1) 20 ns
59CLK12M high (T1/J1) 25 ns
CLK12M high (E1) 20 ns
[ Numma‘ Pu‘ss ———‘I w“: l I l
PEB 2255
FALC-LH V1.3
Electrical Characteristics
Data Sheet 355 2000-07
11.4.8 Pulse Templates - Transmitter
11.4.8.1 Pulse Template E1
•
Figure 79 Pulse Shape at Transmitter Output for E1 Applications
ITD00573
10 % 10 %
%10 10 %
%1010 %
20 %
269 ns
(244 + 25)
(244 - 50)
ns194
219 ns
(244 - 25)
ns244
(244 + 244)
ns488
%0
50 %
%V=100
Nominal Pulse
%2020 %
PEB 2255
FALC-LH V1.3
Electrical Characteristics
Data Sheet 356 2000-07
11.4.8.2 Pulse Template T1
Figure 80 T1 Pulse Shape
•
Table 68 T1 Pulse Template (ANSI T1.102)
Maximum Curve Minimum Curve
Time [ns] Level [%]1)
1) 100 %value must be in the range of 2.4V and 3.6 V;tested at 0 ft. and 655 ft.
Time [ns] Level [%]
050-5
2505350-5
325 8035050
325 115 400 95
425 115 500 95
500 105 600 90
675 105 650 50
725 -7 650 -45
1100 5 800 -45
1250 5 925 -20
1100 -5
1250 -5
ITD00574
%100=V
50%
0
-50%
0 250 500 750 1000 ns
t
Normalized Amplitude
Infineon m "we .. Nut ‘es'ed m producmn 680 pF are vecommended yams lav best penomance m cvystaHess made
PEB 2255
FALC-LH V1.3
Electrical Characteristics
Data Sheet 357 2000-07
11.5 Capacitances
Table 69 Capacitances
Parameter Symbol Limit Values Unit Notes
min. max.
Input capacitance1)
1) Not tested in production.
CIN 5 10 pF all except XLxM,
XTALx, REFR
Output capacitance1) COUT815 pF all except XLx,
XTALx
Output capacitance1) COUT820 pF XLx
Reference voltage
blocking capacitance1) CREFR 6802)
2) 680 pF are recommended value for best performance in crystal-less mode.
5000 pF REFR only;
including external
parasitics3)
3) External wiring must be as short as possible.
K Inflneon “News Q. Nm tested m Drodummn
PEB 2255
FALC-LH V1.3
Electrical Characteristics
Data Sheet 3582000-07
11.6 Package Characteristics
•
Figure 81 Thermal Behavior of Package
•
Table 70 Package Characteristic Values
Parameter Symbol Limit Values Unit Notes
min. typ. max.
Thermal Resistance Rthja1)
1) Rthja =(Tjunction -T
ambient)/Power
Not tested in production.
47K/W single layer PCB,
no convection
Rthjc2)
2) Rthjc =(Tjunction -T
case)/Power
Not tested in production.
9K/W
Junction Temperature Rj125 °C
F0051
. . Inflqeon
PEB 2255
FALC-LH V1.3
Electrical Characteristics
Data Sheet 3592000-07
11.7 Test Configuration
Figure 82 Input/Output Waveforms for AC Testing
•
Typical characteristics are mean values expected over the production spread. If not
specified otherwise, typical characteristics apply at TA=25°C and VDD =5.0V.
Table 71 AC Test Conditions
Parameter Symbol Test
Values Unit Notes
Load Capacitance CL50 pF
Input Voltage high VIH 2.4V all except RLx.y
Input Voltage low VIL 0.4V all except RLx.y
Test Voltage high VTH 2.0 V all except XLx.y
Test Voltage low VTL 0.8V all except XLx.y
Timing Test
Points
V
TH
V
TL
Device
under
Test C
L
Test Levels
V
IH
V
IL
Drive Levels
F0067
El IFEEE] 4x IEZIEEEIIJ 4x Dummlmmuwmnvmlwmmmuzmwuu
PEB 2255
FALC-LH V1.3
Package Outlines
Data Sheet 360 2000-07
12 Package Outlines
P-MQFP-80-1
(Plastic Metric Quad Flat Package)
SMD =Surface Mounted Device
Sorts of Packing
Package outlines for tubes, trays etc. are contained in our
Data Book “Package Information”. Dimensions in mm
H
PEB 2255
FALC-LH V1.3
Appendix
Data Sheet 361 2000-07
13 Appendix
13.1 Protection Circuitry
ThedesigninFigure 83 is a suggestion how to build up a generic E1/T1/J1 platform
which is able to meet protection requirements according to Bellcore TR-NWT-1089,FCC
Part68,UL1459. With the selection of the appropriate components the same circuitry is
also able to handle the return loss and impedance to ground requirements of ETSI.
Figure 83 Protection Circuitry
F0129
P0080SA
2xP1800SC
R4
R3
R5
FALC
®
RL1
RL2
XL1
XL2
P0080SA
2xP1800SC
R1
R2
1:1
1:2.4
F1250T
F1250T
RJ45
F1250T
F1250T
F0128
F1250T
F1250T
2xP1800SC
R2
R3
R3
RJ45
FALC
®
RL1
RL2
XL1
XL2
F1250T
F1250T
2xP1800SC
R1
R1
1:1
1:2.4
V
DD
V
SS
V
DD
V
SS
http www eommm/lalc
PEB 2255
FALC-LH V1.3
Appendix
Data Sheet 362 2000-07
13.2 Application Notes
Several application notes and technical documentation provide additional information.
Online access to supporting information is available on the internet page:
http://www.infineon.com/falc
On the same page you find as well the
Boundary Scan File for FALC®-LH Version 1.3 (BSDL File)
13.3 Software Support
The following software package is provided together with the FALC®-LH Reference
System EASY2255-R1:
• E1 and T1 driver functions supporting different ETSI and Bellcore requirements
including HDLC and and CAS signaling
• LAPD Signaling Software
• FDL Signaling Software
• Boundary Scan File for FALC®-LH V1.3
• IBIS Model for FALC®-LH V1.3
• Gerber Files for EASY2255-R1
• External Line Front End Calculator
The ’External Line Front End Calculator’ provides an easy method to optimize the
external components depending on the selected application type. Calculation results are
traced an can be stored in a file or printed out for documentation. The tool runs under a
Win9x/NT environment.
A screenshot of the program is shown in Figure 84 below.
'5 Inflneon m "me E. BEE rmmnwm Emma .hcmw Dmunanct pm. N hast! m um’. w M namkxmeadama‘ My smwummmmm cmcummn Hui: m “7 mm film" when” m m mm mm "mm Wampum rmcmwsmuan ruminlsnnuni mm r FALcsa r mm w: v mm mm“ F mam: IZLI ”was n mum v r nuanuu ‘5 v1 ‘ J r umuu uaw rnammus‘ mum. hm! mun ’7‘ 41 mm“. 317 a MUM] 1AM m Mm y—“ mm mm: mm mm Wm sm‘ mm y—W mm“ mm2 2 h M, >425 v mm, mm W m, awn/m2 131 mm W‘ g \ml ‘ 2‘ mm. Wm. WM. 36 v M 5”” "“‘ Hub meau.‘ m w WWWW.mmmmwm.mmw.mswww.mmmWW“ (Wm mes 5m. mm! m v u R, , mm M," ‘37 a m m m mam '7 ‘ \qu 5‘ m“ mm
PEB 2255
FALC-LH V1.3
Appendix
Data Sheet 363 2000-07

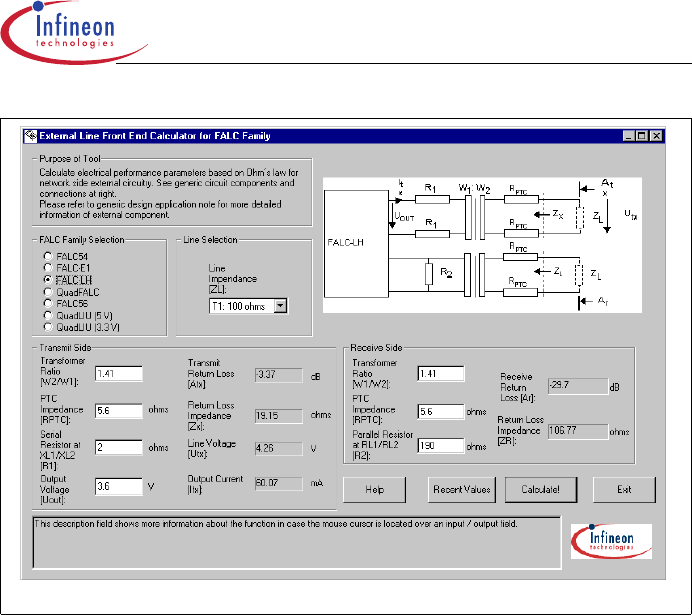

Figure 84 External Line Frontend Calculator
F0228
Inflqeon
PEB 2255
FALC-LH V1.3
Appendix
Data Sheet 3642000-07
13.4 Differences to Version PEB 2255 V1.1
The main feature improvements are:
• Crystal-less jitter attenuation (optionally)
• Serial CAS signaling access on the PCM highway (optionally)
• Additional CAS-BR register organization (for T1)
• Additional transmit data input for fractional E1/T1/J1
• selectable receiver transparent mode
• Additional synchronization mode according to NTT requirements (for J1)
• External reference clock for DCO-X(DCO2) circuitry (SYNC2 pin)
• Optional transmit clock sourced by DCO-R (DCO1) circuitry (for E1)
• Software reset for DCO-R and DCO-X(DCO1 and DCO2)
• Enhanced loop-timed mode (optionally)
• Version register code changed from 10Hto 13H
• Boundary Scan version register changed from 1Hto 4H(same part number)
• Boundary Scan file changed due to additional pin functions
For a detailed description of differences to the previous version see the actual version of
PEB 2255 Version 1.3/Delta Sheet.
All erratas described in ’PEB 2255 Version 1.1/Errata Sheet’ have been fixed.
Erratas described in ’PEB 2255 Version 1.3/Errata Sheet’ have not been fixed.
Due to compatibility with future products, the following naming conventions have been
changed:
’DCO-1’ to ’DCO-R’ and ’DCO-2’ to ’DCO-X’
Inflqeon
PEB 2255
FALC-LH V1.3
Glossary
Data Sheet 365 2000-07
14 Glossary
A/D Analog to digital
ADC Analog to digital converter
AIS Alarm indication signal (blue alarm)
AGC Automatic gain control
ALOS Analog loss of signal
AMI Alternate mark inversion
ANSI American National Standards Institute
ATM Asynchronous transfer mode
AUXP Auxiliary pattern
B8ZS Line coding to avoid too long strings of consecutive ’0’
BER Bit error rate
BFA Basic frame alignment
BOM Bit orientated message
Bellcore Bell Communications Research
BPV Bipolar violation
BSN Backward sequence number
CAS Channel associated signaling
CAS-BR Channel associated signaling - bit robbing
CAS-CC Channel associated signaling - common channel
CCS Common channel signaling
CMI coded mark inversion code (also known as 1T2B code)
CR Command/Response (special bit in PPR)
CRC Cyclic redundancy check
CSUChannel service unit
CVC Code violation counter
DCO Digitally controlled oscillator
DL Digital loop
DPLL Digitally controlled phase locked loop
DS1 Digital signal level 1
EA Extended address (special bit in PPR)
Inflqeon
PEB 2255
FALC-LH V1.3
Glossary
Data Sheet 366 2000-07
ESD Electrostatic discharge
EASYEvaluation system for FALC products
ESF Extended superframe (F24)format
EQEqualizer
ETSI European Telecommunication Standards Institute
FALC®Framing and line interface component
FAS Frame alignment sequence
FCC US Federal Communication Commission
FCS Frame check sequence (used in PPR)
FISUFill in signaling unit
FPS Framing pattern sequence
FSN Forward sequence number
HBM Human body model for ESD classification
HDB3 High density bipolar of order 3
HDLC High level data link control
IBIS I/O buffer information specification (ANSI/EIA-656)
IBL In band loop (=LLB)
ISDN Integrated services digital network
ITUInternational Telecommunications Group
JATT Jitter attenuator
JTAG Joined Test Action Group
LAPD Link access procedure on D-channel
LBO Line build out
LCV Line code violation
LIULine interface unit
LFA Loss of frame alignment
LL Local loop
LLB Line loop back (=IBL)
LOS Loss of signal (red alarm)
LSB Least significant bit
LSSULink status signaling unit
MF Multiframe
Inflqeon
PEB 2255
FALC-LH V1.3
Glossary
Data Sheet 367 2000-07
MSB Most significant bit
MSUMessage signaling unit
NRZNon return to zero signal
PDV Pulse density violation
PLB Payload loop back
PLL Phase locked loop
PMQFP Plastic metric quad flat pack (device package)
PPR Periodical performance report
PRBS Pseudo random binary sequence
PTQFP Plastic thin metric quad flat pack (device package)
RAI Remote alarm indication (yellow alarm)
RL Remote loop
SAPI Service access point identifier (special octet in PPR)
SF Superframe
Sidactor Overvoltage protection device for transmission lines
TAP Test access port
TEI Terminal endpoint identifier (special octet in PPR)
UIUnit interval
ZCS Zero code suppression
Inflqeon
PEB 2255
FALC-LH V1.3
Data Sheet 3682000-07
Index
A
Address Bus 25
Address Latch Enable 25
AFR 195
AIS 193, 231, 253, 272, 310, 328
AIS16 193, 254
AIS3 279
Alarm Handling 93, 148
Alarm Simulation 101, 157
ALE 25
ALLS 193, 251, 272, 327
ALM 193
ALMF 197
API 193, 254
Application Notes 362
Applications 20, 22
ASY4 206
ATM 22
AUTO 279
AUXP231
AXRA 197, 276
AXS201
B
Bit Oriented Message 116, 176
Bit Robbing 115, 116, 129
BOM 116, 176, 322
Boundary Scan 44, 52, 341, 362
BRAC 263
BRM 266, 283
Bus High Enable 27
Bus Low Enable 27
C
CAS 66, 68, 76, 115, 116, 129, 161
CASC 68,193, 249
CASE 272, 327
CASEN 201
CC 242
CE 243
CEC 246, 322
CER 193, 272
CFRZ210
CH 290
Channel Translation Mode 113
Chip Select 25
CLA 199,278
Clear Channel 130, 134,151
Clock and Data Recovery 55, 103
Clock Synchronization 33, 34
Clocking Unit 54
CMI 210
CR 240
CRC16 247, 323
CRC4193, 249
CRC6 144, 272, 274,325
CRCI 204,284
CRC-Multiframe 86
Crystal Connection 32
CSC 58, 106, 224, 302
CTM 274
CV 239
CVE 193, 272
D
D4137, 140
DAF 224, 303
DAIS 197, 276
Data Bus 25, 26
Data Bus Width 26
Data Link Access 116, 130, 178
Data Link Bit Receive 35
Data Link Bit Transmit 41
Data Strobe 26
DAXLT 207, 288
DBEC 304
DCEC 225, 304
DCO-1 364
DCO-2 364
DCOC 293
DCO-R 58,59
DCO-X61
DCVC 225, 304
Inflqeon
PEB 2255
FALC-LH V1.3
Data Sheet 3692000-07
DEBC 225, 304
DFEC 225, 304
DJA1 58, 106, 217, 295
DJA2 217, 295
DL-channel 116, 130
Doubleframe Format 83
DRS 54,80, 102, 214,293
E
EASY2255-R1 362
EBE 193
EBP 201
ECLB 199,278
ECM 195, 274
EDL 274
EDLX266
EFSC 214,293
EIBR 281
EITS 266
Elastic Buffer 63, 77, 111, 131
ELOS 213, 291
ELT 61, 217, 295
ENSA 195
EPRM 218,297
EPT 268
EQON 54, 55, 102, 213, 291
Error Counter 95, 150
ES 193, 254, 272, 330
ESC 314
ESD 335
ESF 137, 142
ESY224, 302
EV 55, 230, 309
EXLS 272
EXTD 193
EXTIW 210
EXZD312
EXZE276
F
F12 137, 138
F24137, 142
F4137, 140
F72 137, 138,178
FALC-LH V1.1 57, 105
FAR 193, 253, 272, 328
FAS 67
FEH 315
FER 193, 272
FFS 223, 301
FIFO Structure 49
FLLB 218,297
FM0 279
FM1 279
FMR0 54, 102
FMR1 67
Frame Aligner 19
Frame Synchronization Pulse 33
Framer 82, 110, 137
Freeze Signaling 36
FRS 193, 272
FSRF 310
G
Gerber Files 362
GIS 50
H
H100 17
HA0 247, 323
HA1 247, 323
HDLC 66, 76, 115, 129, 161, 169
HFR 323
H-MVIP 17
HRAC 185, 263
I
IBIS Model 362
IC 212, 291
IC0 186, 265
IC1 186, 265
IDL 209,289
IMOD 195, 274
In-Band Loop 95, 151
Initialization in E1 Mode 158
Initialization in T1 / J1 Mode 163
Inflqeon
PEB 2255
FALC-LH V1.3
Data Sheet 370 2000-07
INT 50
Interface Mode 26
Interrupt 27
Interrupt Interface 50
Interrupt Status Registers 51
IPC 51
ISF 272, 325
ISR 50, 256, 332
ISR0 68
ISR3 65
ITF 266
IWE822
J
JATT 214,293
Jitter 58, 61, 105, 109
Jitter Tolerance 108
JTAG 44
L
LA 247, 323
LAC 220, 299
LAC0 218,297
LAC1 218,297
LAPD 66, 76, 115, 129, 362
LBO1 295
LBO2 295
LDC 220, 299
LDC0 218,297
LDC1 218,297
LFA 193, 231, 253, 272, 310, 328
LIM0 54, 55, 58, 102
LIM1 80
LIM2 58, 61, 106
LIM3 58, 106
Line Build-Out 135
Line Coding 55, 103
Line Interface 18,28,30,347
Line Receiver 28,29
LL 213, 291
LLBAD 236, 312
LLBDD 236, 312
LLBP 218,297
LLBSC 193, 251, 272, 330
LMFA 231, 272, 310, 328
LMFA16 193, 254
Local Loop 99,155
LOOP 54, 102
LOS 57, 105, 193, 231, 253, 272, 310, 328,
337
LOS1 217, 295
LOS2 217, 295
Loss of Signal 57, 104
M
MAS 58, 213, 291
MCSP 276
MDS 185, 263
MFAR 193, 253, 272, 328
MFBS 283
MFCS 195
Microprocessor Interface 20, 47, 342
N
NMF 231
O
OV 249
P
Payload Loop 98, 154
PCM24137
PDEN 272, 312, 325
PEB 2255 V1.1 364
Performance Monitoring 88,93, 148
PLB 197, 276
PMOD 195, 274
Power Supply 43
PRBS Monitor Status 36
PRE 268
Preamble 172
Protection 361
Pseudo-Random Bit Sequence 97, 152
P-TQFP-144-8360
Pulse Density 152
Pulse Shaper 80, 135
Inflqeon
PEB 2255
FALC-LH V1.3
Data Sheet 371 2000-07
Pulse Template 355, 356
R
RA 193, 253, 272, 328
RA16 193, 254
RAB 247, 323
RADD 268
RAR 193, 253, 272, 328
RBC 248,249
RBS 64, 112
RBS0 221, 300
RBS1 221, 300
RC 193
RC0 69, 272
RC1 54, 102, 272
RCO0 204,284
RCO1 204,284
RCO2 204,284
RCOS 204,284
RCRC 268
RDIS 204,284
RDL3T1 321
RDO 193, 247, 251, 272, 323, 327
Read Enable 26
Read/Write Enable 26
Receive Clock 34
Receive Clock Input 29
Receive Data Input Negative 29
Receive Data Input Positive 28
ReceiveDataOut35
Receive Equalization Network 55, 103
Receive Frame Marker 37
Receive Frame Synchronous Pulse 36
Receive Line Attenuation Indication 55,
103
Receive Line Interface 54,102
Receive Multiframe Begin 38
Receive Optical Interface Data 28
Receive Signaling Data 35
Receive Signaling Marker 38
Receiver Configuration 56
Reference Resistance 44
Reference System 362
Register Addresses 180, 228,258, 307
Remote Alarm 144
Remote Loop 97, 153
RES 55
Reset 43, 158, 163, 342
RFIFO 47
RFS 193, 249, 272, 325
RFS0 197
RFS1 197
RFT0 266
RFT1 266
RIL 214,293
RL 214,293
RLI 246, 322
RMB 193, 249, 272, 325
RMC 183, 261
RME 193, 249, 272, 325
RPF 193, 249, 272, 325
RRA 231, 236, 310
RRAM 286
RRES 183, 261
RS13 236
RS15 236
RSC 272, 325
RSI 236
RSIF 236
RSN 65, 193, 254, 272, 330
RSP 65, 193, 254, 272, 330
RTF 281
RTM 197, 278
RTO 206, 286
RY236
S
S_8245
S_A 245
S_C 245
S_E 245
S_F 245
S_X245
Sa bit Access 66, 76, 176
SA4E203
SA5E 203
Inflqeon
PEB 2255
FALC-LH V1.3
Data Sheet 372 2000-07
SA6E 203
SA6SC 193, 249
SA6SY210
SA7E 203
SA8E 203
SAIS 67, 197, 276
SCF 58, 217, 295
SCI 186, 265
SCL0 213, 291
SCL1 213, 291
SDLC 115
SEC 193, 254, 272, 330
Second Timer 95, 150
SF 140
SFLG 266
SFM 199
SFRZ283
SFS 246, 322
Shared Flags 172
SI 236
SICS 69,204,284
SIGM 274
Signaling Controller 19, 66, 76, 115, 129
Signaling Software 362
SIM 193, 272
Single Channel Loop 100, 156
SJR 286
SLC96 137, 144
SLIP 193, 272
Software 362
SPN 54, 102, 199,278
SRAF 272
SRES 183, 261
SRFSO 223, 301
SRO 281
SRS 281
SRSC 221, 300
SSC0 279
SSC1 279
SSF 223, 301
SSP 276
Supply voltage 335
SWD 206
SXSC 221, 300
Synchronous Pulse Receive 37
Synchronous Pulse Transmit 40
System Clock 33
System Clock Receive 37
System Clock Transmit 40
System Interface 69, 116
T
T400MS 193, 253
T8MS 193, 249
TCD1 214
Test Access Port 52
Time-Slot Assigner 72, 121
TM 279
TRA 208
Transmit Clock 32
Transmit Data In 40
Transmit Data Output Negative 31
Transmit Data Output Positive 30
Transmit Line 30
Transmit Line Interface 79,134
Transmit Line Monitor 31, 80, 136
Transmit Multiframe Begin 39
Transmit Multiframe Synchronization 42
Transmit Optical Interface Data 30, 39
Transmit Path 123
Transmit Signaling Data 41
Transmit Signaling Marker 42
Transmitter 78,133
Transmitter Configuration 79
Transparent Mode 171
TS 270, 271
TS16AIS 234
TS16LFA 234
TS16LOS 234
TS16RA 234
TSA 208
TSIF 208
TSIS 208
TT0 201
TTRF 224,303
Inflqeon
PEB 2255
FALC-LH V1.3
Data Sheet 373 2000-07
V
Version Status Register 332
VFR 247, 323
VIS 51, 186, 265
VN 256, 332
W
Write Enable 26
X
XAIS 195, 274
XAP 201
XBS0 300
XBS1 221, 300
XC193
XC0 272
XC1 272
XCO0 203, 283
XCO1 203, 283
XCO2 203, 283
XCOS 203, 284
XCRC 268
XCRCI 204,284
XDOS 213, 291
XDOV 246, 322
XDU193, 251, 272, 327
XFB 213, 291
XFIFO 47
XFS 195
XFW 246, 322
XHF 183, 261
XLD 210, 281
XLHP 207, 288
XLO 234, 312
XLS 234,312
XLSC 193, 251, 272, 327
XLT 207, 288
XLU210, 281
XMB 193, 251, 272, 327
XME 183, 261
XP 207, 288
XPR 193, 251, 272, 327
XPRBS 218,297
XRA 200, 279
XREP 183, 246, 261, 322
XRES 183, 261
XS210
XS13 201
XS15 201
XSIF 201
XSIS 200
XSLP 272, 330
XSN 193, 256, 272, 331
XSP 193, 256, 272, 331
XSW 76
XTF 183, 261
XTM 200, 281
XTO 203, 284
XY 200
