SPD08-Slide7

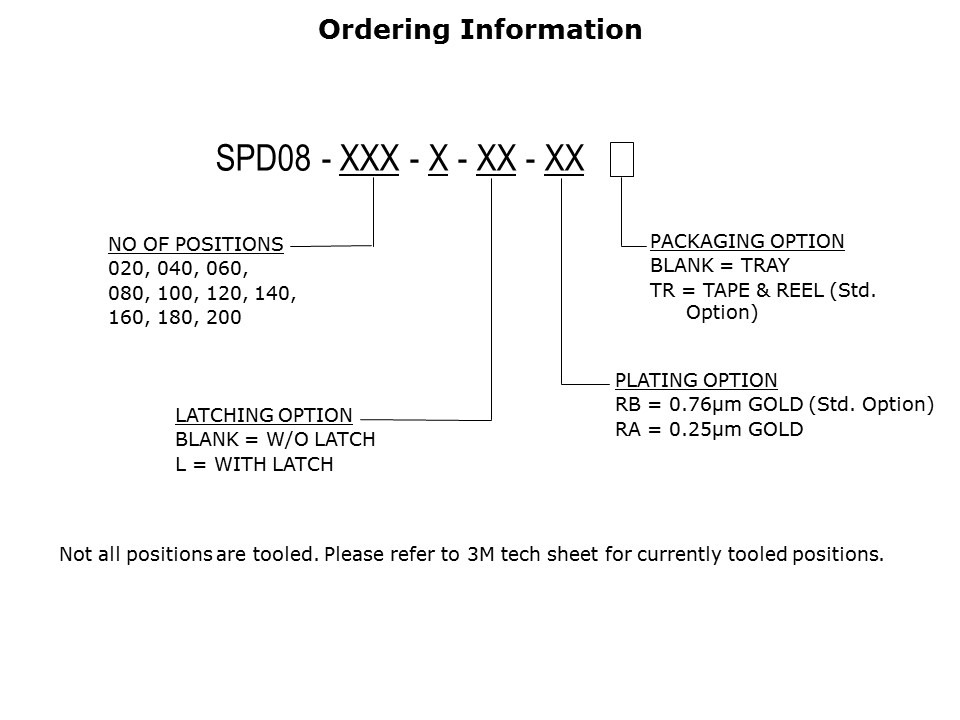

3M™ High-Speed Card-Edge Connector SPD08 Series is available in a wide number of sizes, from 20 to 200 positions in increments. In addition, 3M offers several design choices: two gold plating options, a choice of with or without latches, and finally, pick from two types of packaging to meet the manufacturing process needs. The next few slides will show the 3M High-Speed Card-Edge Connector under test conditions and how the product performed.

PTM Published on: 2013-01-03
