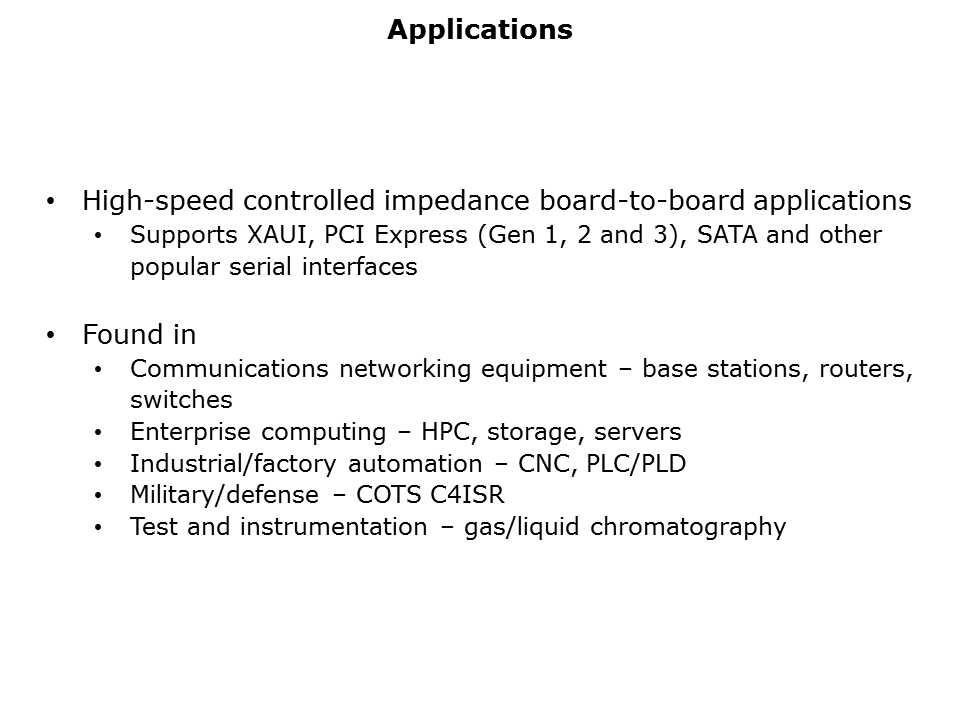

SPD08-Slide6

3M™ High-Speed Card-Edge Connector is designed to work in high-speed controlled impedance applications. It supports some of the most popular high-performance serial interfaces – from 10 Gigabit Attachment Unit Interface to PCI Express Gen 3, to Serial ATA computer bus, and more. 3M’s new SPD08 Series connector is suitable for board stacking applications found in equipment for communications networking, such as routers and switches, as well as enterprise computing, industrial, military and test equipment.

PTM Published on: 2013-01-03
