ELUM-Slide5

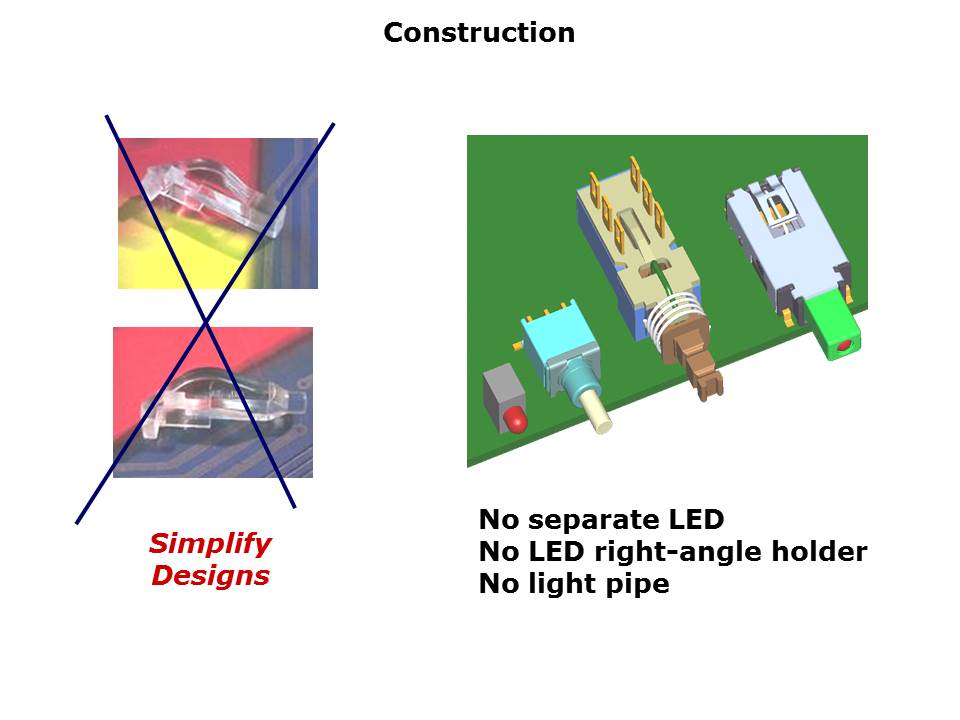

The ELUM™ is available in momentary or latching, SMT or Thru-Hole, with or without illumination, and is only 5.54 mm above the printed circuit board. The built in indicator removes the need for separate LED and light pipes on the printed circuit board. This robust design simplifies component integration and prevents mechanical misalignment with the panel or system casing. Special LED colors and customized caps can be used to achieve specific visual renderings.

PTM Published on: 2011-10-20
