CCPE-Slide7

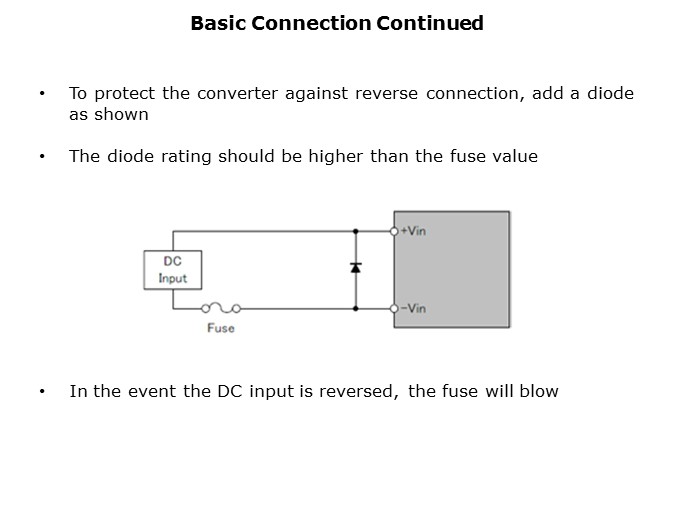

If there is a possibility that the DC input could be reversed, it is recommended that a diode be connected as shown across the converter input terminals. The diode current rating should be sufficient to blow the external fuse. If the DC input is reversed, the fuse will blow, protecting the CC-P-E converter.
