CCPE-Slide13

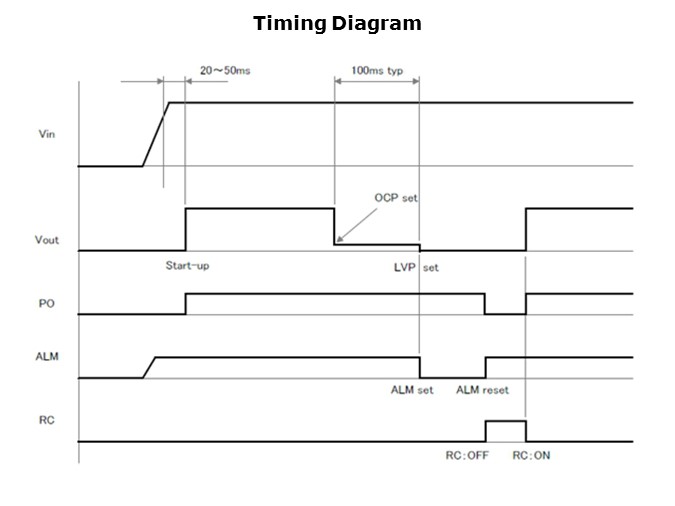

Shown here is the timing diagram on the operation of the various functions of the CC-P-E converter. It also demonstrates the OCP (over-current protection) shutting down the output voltage and the use of the remote ON/OFF (RC terminal) to reset the converter.
