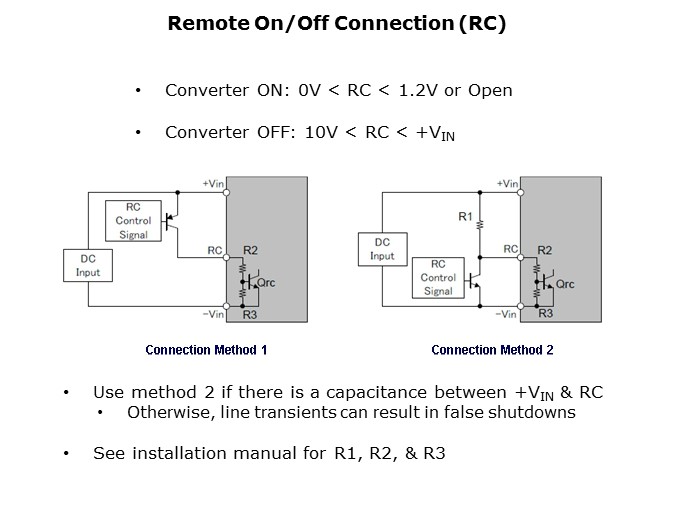

The remote ON/OFF function can be used to electronically turn the CC-P-E ON and OFF. To turn the converter ON, either connect the RC terminal to –Vin or leave open circuit. To turn the converter OFF, apply a voltage of more than 10V with respect to the –Vin terminal, or connect to the +Vin terminal. If there is capacitance in the remote ON/OFF circuit, use connection method two to avoid line transients falsely shutting down the converter.
PTM Published on: 2010-11-23
