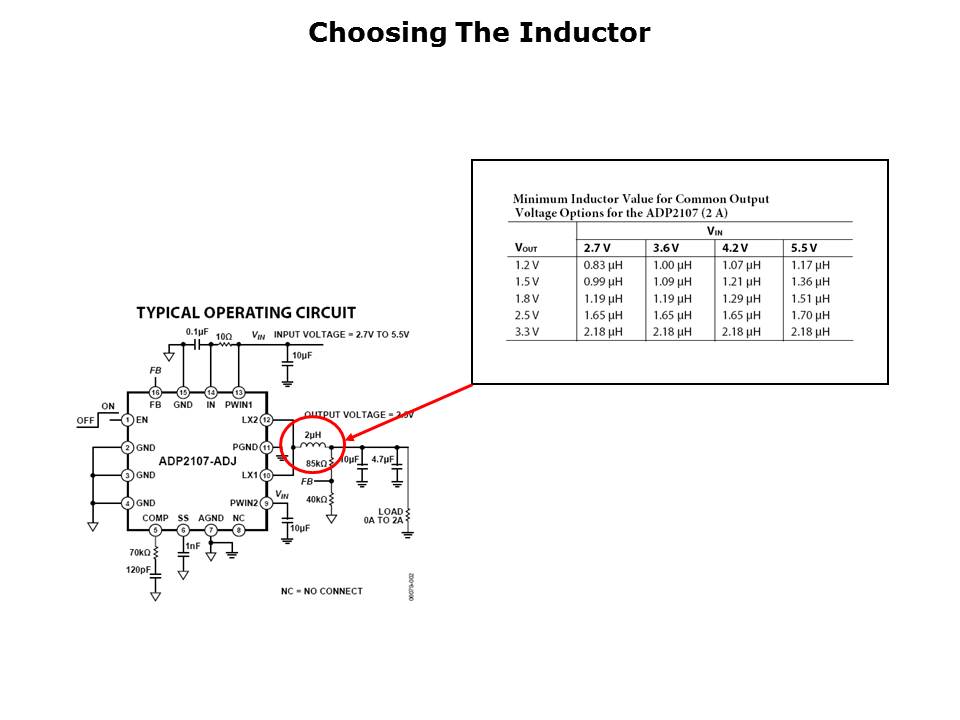

The high switching frequency of the ADP210x allows for minimal output voltage ripple even with small inductors. The sizing of the inductor is a trade-off between efficiency and transient response in that a smaller inductor leads to larger inductor current ripple which provides excellent transient response but degrades efficiency. A list of minimum inductor values is provided here for common input/output voltage pairs.
PTM Published on: 2008-01-22
