MTC-Slide3

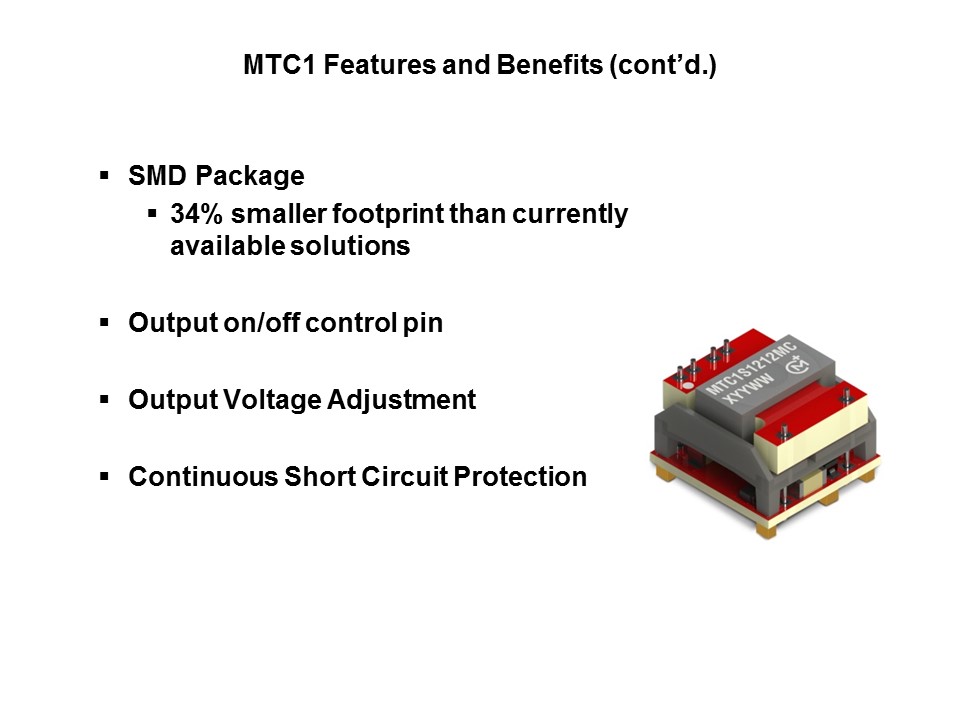

The MTC1 series occupies 34% less PCB area than currently available solutions, reducing required PCB area in space critical applications. The MTC1 series includes an application power saving remote on/off pin, a typical application circuit is shown in the product series datasheet. The MTC1 series output voltage adjustment pin allows output voltage adjustment by ±10%, by the addition of a single external resistor. Resistor value calculations are shown in the MTC1 series product datasheet. All models are fully and continuously protected against short circuit.

PTM Published on: 2015-08-17
