AP-Slide11

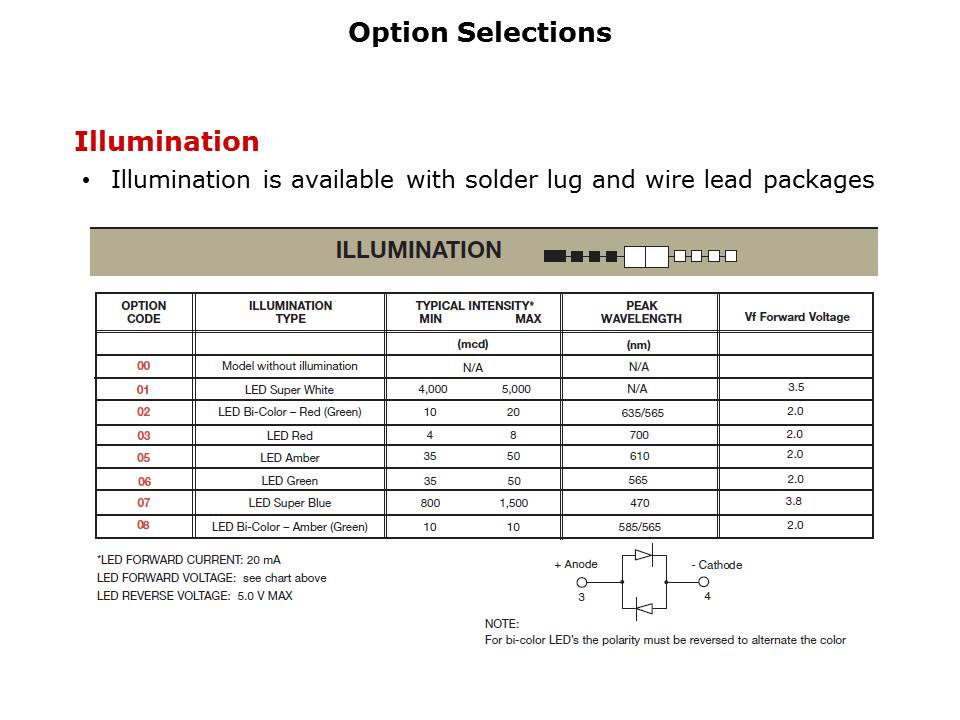

The illumination option is available in the solder lug and wire lead packages. Due to heat concerns during processing, illumination is not available with the PCB terminal version. As indicated in the notes, to alternate the color of the bi-color LED options, the polarity must be reversed.

PTM Published on: 2011-01-04
