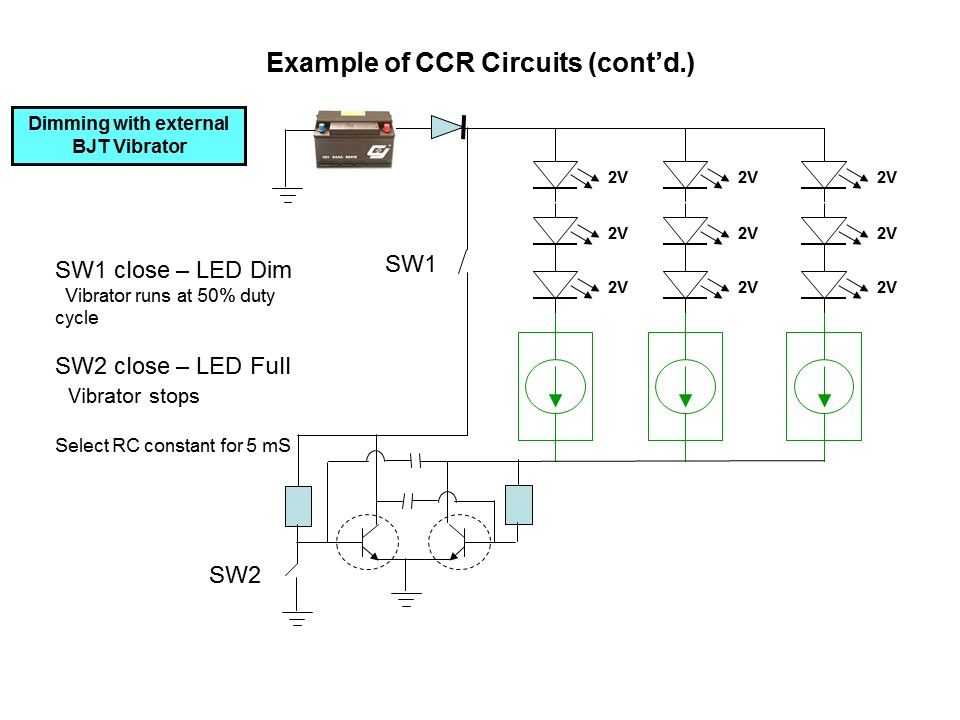

A simple dimming circuit can be configured by adding a second BJT to create an Astable Multi-vibrator. When switch 1 is closed, the multi-vibrator runs with a 50% duty cycle. Switch 2 stops the multi-vibrator and the LEDs operate at full intensity.
PTM Published on: 2011-11-03
