LTC3807-Slide5

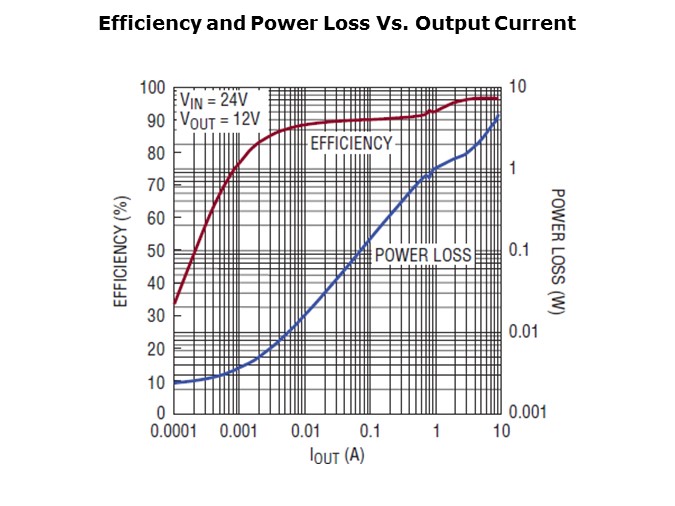

The slide shows the efficiency and power loss of the previous schematic. Notice that an efficiency of up to 96% can be achieved, while the power loss is still manageable.
