GCT

USB4235-03-C 16-pin Vertical USB Type-C® Connector

The GCT USB4235-03-C connector with in-line shell stakes has a profile of only 6.5 mm above the PCB

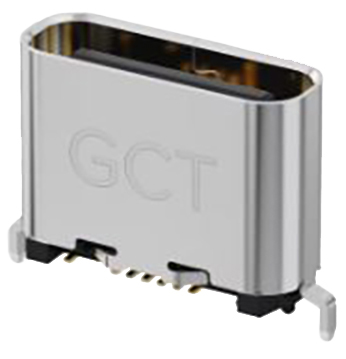

Image of GCT USB4235-03-C 16-pin Vertical USB Type-C® ConnectorThe GCT USB4235 connector reduces the required PCB width by utilizing in-line shell stakes for exceptional strength. This 16-pin vertical USB Type-C connector has a profile of only 6.5 mm above the PCB. Despite its compact size, this connector is equipped with all the standard GCT performance features, including 240 W Power Delivery and 20,000 mating cycles.

Features
  • Vertical 16-pin for USB2.0 applications
  • In-line through-hole shell stakes
  • Dual location pegs
  • 6.5 mm profile
  • 240 W (48 V at 5 A) rated
  • 20K mating cycles
Applications
  • Gaming consoles
  • Audio and video equipment
  • Portable electronics
  • Wearables
  • Health and fitness devices

USB4235-03-C 16-pin Vertical USB Type-C® Connector

ImageManufacturer Part NumberDescriptionAvailable QuantityPriceView Details
USB 2.0 Type C Receptacle, 16PinUSB4235-03-CUSB 2.0 Type C Receptacle, 16Pin1287 - Immediate$0.75View Details
Published: 2024-10-10
