Bourns Inc.

High-Current Common Mode Chokes - SRF3225TP Series

Bourns’ common mode chokes offer high impedance to suppress EMI

Image of Bourns High-Current Common Mode Chokes – SRF3225TP SeriesBourns’ chip-type, high-current common mode chokes are compatible with high-density portable devices and are ideal for power line noise countermeasures and EMI suppression in a variety of electronic devices. The SRF3225TP series is designed to achieve a high current rating of up to 2 A with impedance values ranging from 500 Ω to 1,000 Ω. The operating temperature range is from -40°C to +105°C.

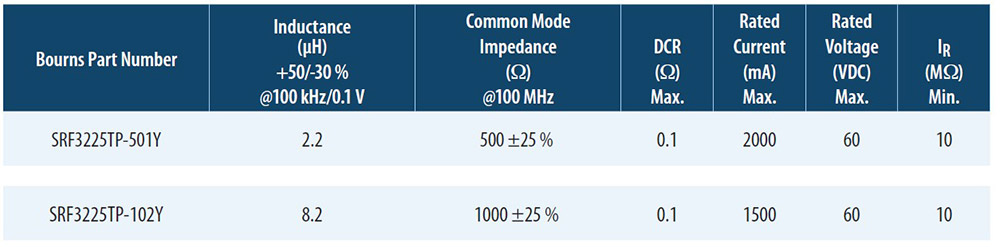

SRF3225TP Series Selection Chart - Click to Enlarge

    Image of Bourns High-Current Common Mode Chokes – SRF3225TP Series - Selection Chart
Features
  • Shielded construction for low radiation
  • High current
  • Compact size
Applications
  • DC power lines
  • EMI suppression
  • Noise filters

SRF3225TP Series Common Mode Chokes

ImageManufacturer Part NumberDescriptionDC Resistance (DCR) (Max)Available QuantityPriceView Details
CMC 8.2UH 1.5A 2LN 1 KOHM SMDSRF3225TP-102YCMC 8.2UH 1.5A 2LN 1 KOHM SMD100mOhm21 - Immediate$0.40View Details
CMC 2.2UH 2A 2LN 500 OHM SMDSRF3225TP-501YCMC 2.2UH 2A 2LN 500 OHM SMD100mOhm18 - Immediate$0.40View Details
Published: 2024-03-20
