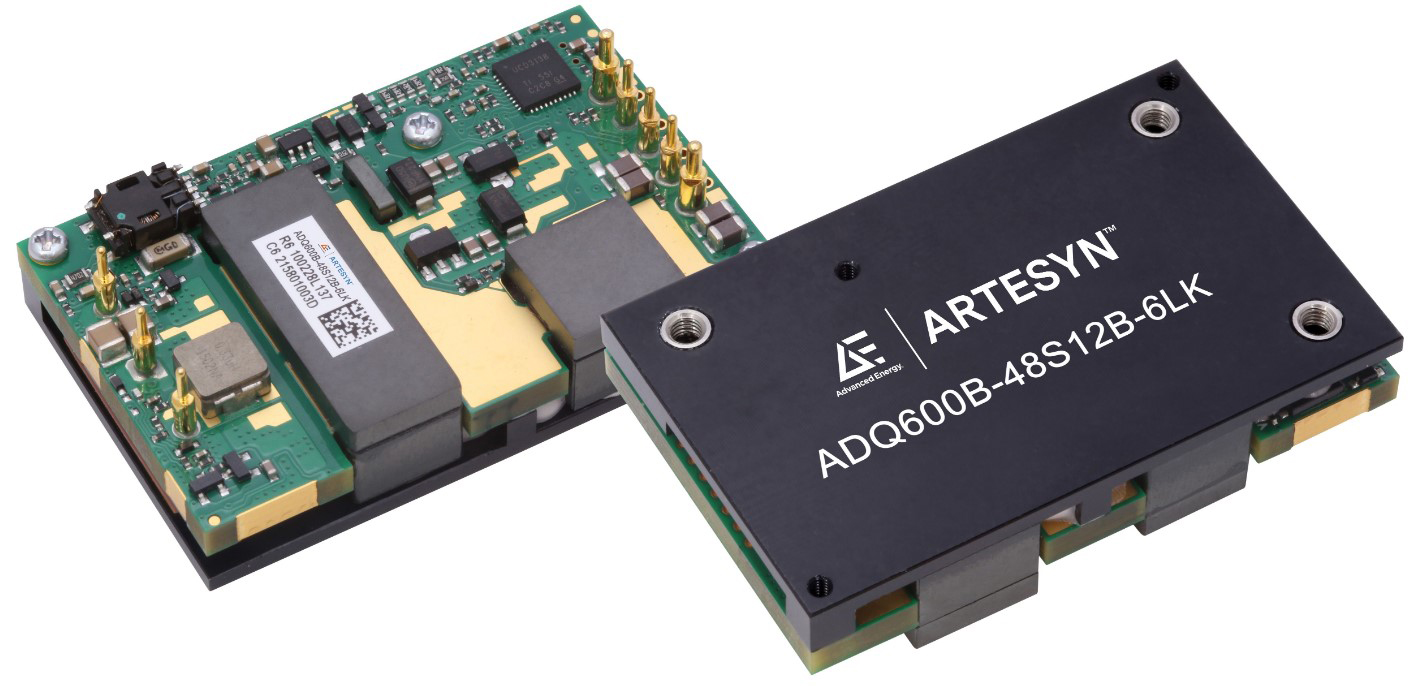

ADQ600B Series Quarter-Brick DC/DC Converters

ARTESYN/Advanced Energy's ADQ600B series of 600 W quarter-brick isolated DC/DC converters produce a single fully regulated 12 V output and deliver up to 50 A output current, with no minimum load requirement, from an input range of 36 V to 75 V. They are designed for use with 48 V supplies in computing and server applications as well as communications equipment. Offering an efficiency of typically 95.5% at full load, the converters operate at a temperature range of -40°C to +85°C, making them an ideal choice for a distributed power architecture supplying power to non-isolated converters. The series also offers both digital and analog interface monitoring and controlling features for voltage, current, and temperature settings.

Features

• Input voltage 36 V_DC to 75 V_DC
• Output voltage 12 V
• Output current 50 A
• Isolation 1500 V_DC
• Mechanical footprint: analog standard, 8-pin, 1/4-brick, DOSA-compatible
• Insulation: basic insulation
• Mechanical footprint: digital PMBus interface DOSA-compatible
• Mechanical baseplate construction
