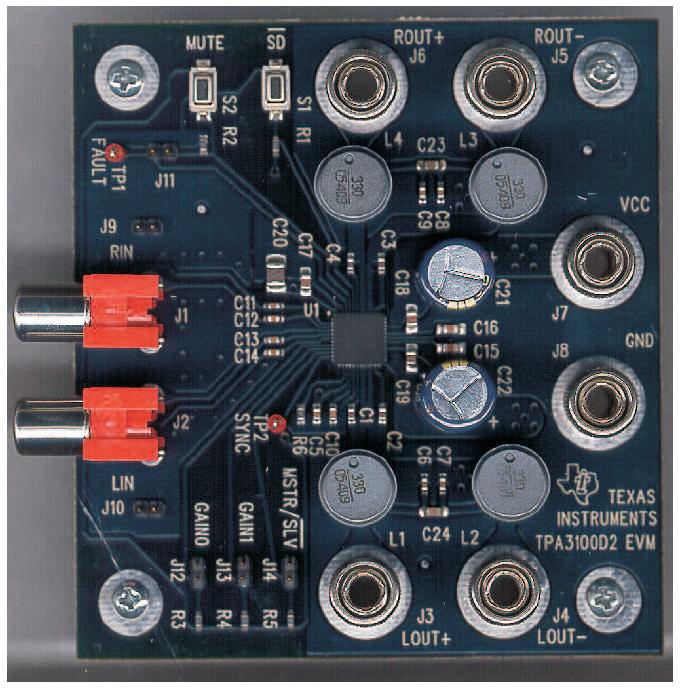

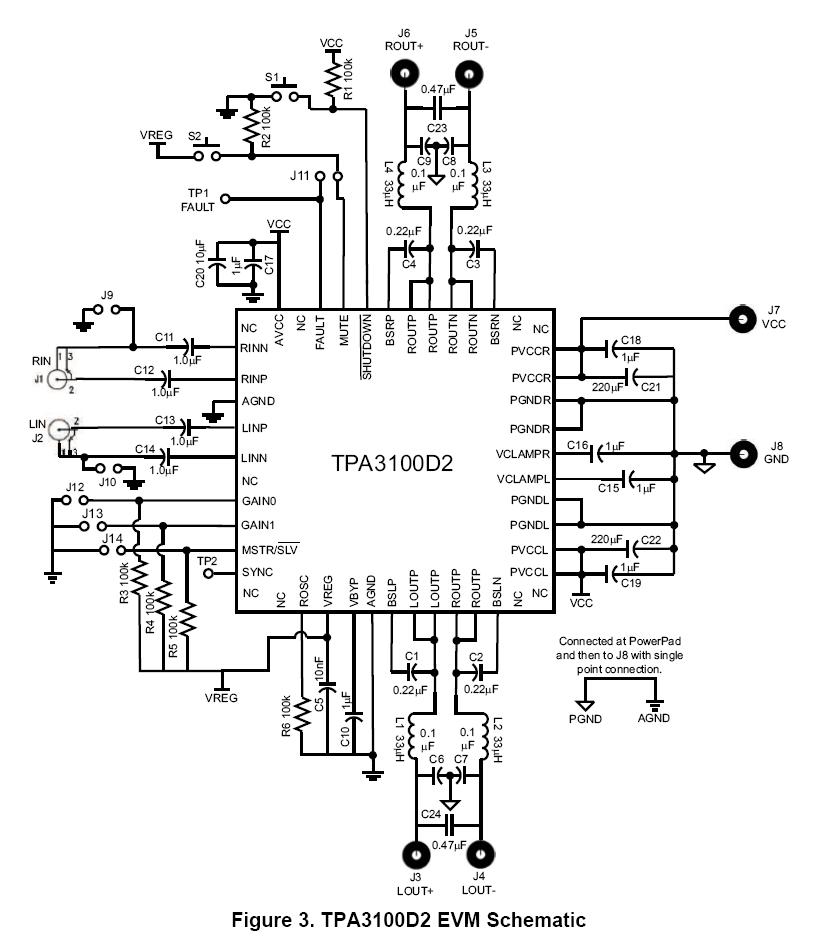

The TPA3100D2 evaluation module consists of a single 20-W, class-D, stereo audio power amplifier complete with a small number of external components mounted on a circuit board that can be used to directly drive a speaker with an external analog audio source as the input.
| Manufacturer | Texas Instruments |
|---|---|
| Category | Audio Amplifiers |
| Eval Board Part Number | 296-21138-ND |
| Eval Board Supplier | Texas Instruments |
| Eval Board |
Board not Stocked
|
| Amplifier Type |
Class D
|
| Number of Outputs |
Stereo
|
| Output Power (RMS) @ Load |
20 W @ 8 Ω
|
| Voltage In |
10 ~ 26 V
|

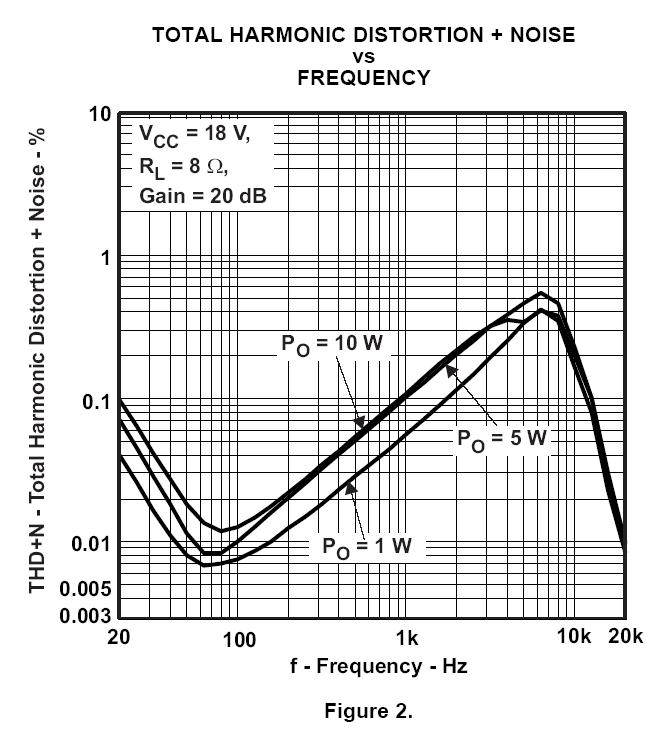

| THD+N (1kHz) @ Conditions |
< 0.1% @ 10 W (8 Ω, 18 V)
|
| Features |
Digital Gain
Mute Short Circuit Protection Shutdown, Enable, Standby Synchronizable Thermal Protection |
| Efficiency @ Conditions |

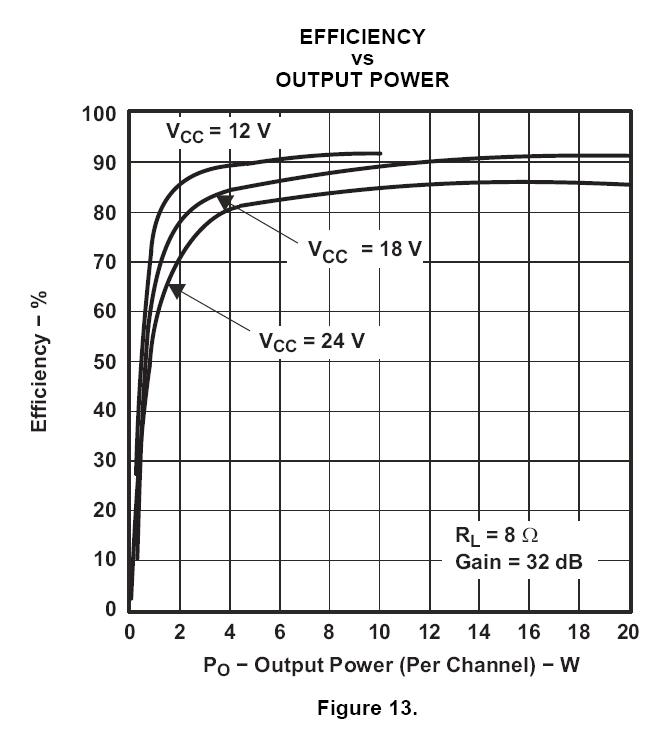

>85%, 24V in, 8 Ω @ 4 ~ 20 W
>85%, 18V in, 8 Ω @ 3 ~ 20 W |
| Standby Current [Typical] | |
| Quiescent Current [Typical] |
18 mA
|
| Component Count + Extras |
35 + 23
|
| Application / Target Market |
LCD TV / Monitor
|
| Design Author |
Texas Instruments
|
| Main I.C. Base Part |
TPA3100D2
|
| Quiescent Current [Maximum] |
22.5 mA
|
| Standby Current [Maximum] |
200 µA
|
| Date Created By Author | |
| Date Added To Library | 2011-03 |
