ADP2114-EVALZ: 2x 0.8 ~ 3.3V @ 2A, 2.75 ~ 5.5V in

Summary

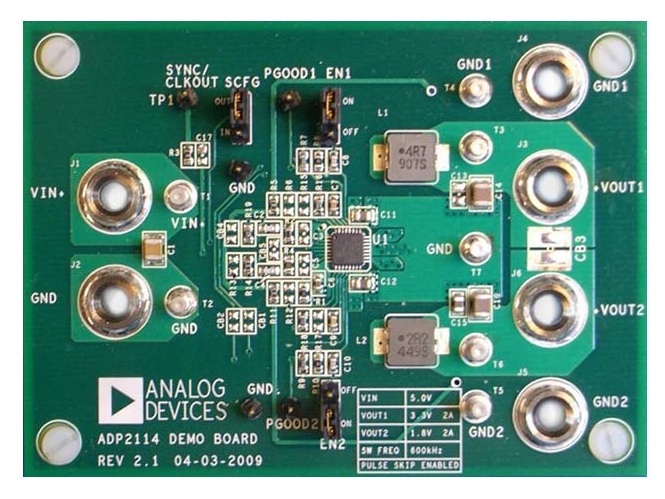

The ADP2114 evaluation (demo) board is a complete, dual, step-down, dc-to-dc converter design based on the ADP2114, a configurable, dual 2 A/single 4 A, synchronous step-down, DC-to-DC regulator.

The ADP2114 is a versatile step-down switching regulator that satisfies a wide range of user point-of-load requirements. The two PWM channels are 180° phase shifted and provide ±1.5% accurate regulated output voltages. For more details, see the ADP2114 data sheet.

The ADP2114 evaluation board comes in two versions: the ADP2114-EVALZ with 3.3 V at 2 A and 1.8 V at 2 A outputs, switching frequency set to 600 kHz, and pulse skip enabled, and the ADP2114-2PH-EVALZ with interleaved 1.2 V at 4 A single output, switching frequency set to 1.2 MHz, and forced PWM mode.

If needed, the ADP2114 evaluation board output voltages and configuration can be modified by changing the values of the appropriate passive components and changing the links. The ambient temperature operation range is from −40°C to +85°C.

Specifications

Manufacturer	Analog Devices Inc.
Category	AC/DC and DC/DC Conversion
Sub-Category	DC/DC SMPS - Multi Output
Eval Board Part Number	ADP2114-EVALZ-ND
Eval Board Supplier	Analog Devices Inc.
Eval Board	Normally In Stock
Topology	Step Down
Outputs and Type	2 Non-Isolated
Voltage Out: Highest Current First	1.8V, 3.3V
Current Out	2A per Channel
Voltage In	2.75 ~ 5.5 V

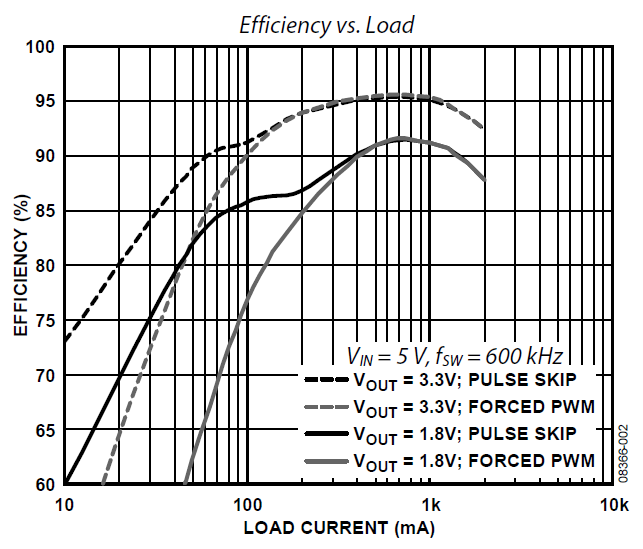

Efficiency @ Conditions	>90%, 5V in, 3.3V @ 0.1 ~ 1.1 A >80%, 5V in, 1.8V @ 0.2 ~ 1.1 A
Voltage Out Range	0.6 ~ 3.3 V
Features	Current Limit (Adj. or Fixed) Over Current Protection PFM or PWM Power Good Output Shutdown, Enable, Standby Soft Start Synchronizable Thermal Protection Under Voltage Protection, Brown-Out Voltage Reference
Switching Frequency	600 kHz
Standby Current [Typical]	1 µA
Quiescent Current [Typical]	3 mA
Component Count + Extras	30 + 46
Internal Switch	Yes
Design Author	Analog Devices
Application / Target Market	Medical Point of Load (PoL) Power: Industrial Power Telecom
Standby Current [Maximum]	10 µA
Quiescent Current [Maximum]	4 mA
Main I.C. Base Part	ADP2114
Date Created By Author	2009-07
Date Added To Library	2013-10
