Name: NC4FD-L-1
Brand: Neutrik Americas, Inc.
SKU: 6473-NC4FD-L-1-ND
Price: 11.232 EUR
Availability: InStock

New at DigiKey

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

NC4FD-L-1
DigiKey Part Number	6473-NC4FD-L-1-ND
Manufacturer	Neutrik Americas, Inc.
Manufacturer Product Number	NC4FD-L-1
Description	RECEPTACLE DL1 SERIES 4 PIN FEMA
Manufacturer Standard Lead Time	1 Weeks
Customer Reference
Detailed Description	4 Position Circular Connector Receptacle, Female Sockets Solder Cup

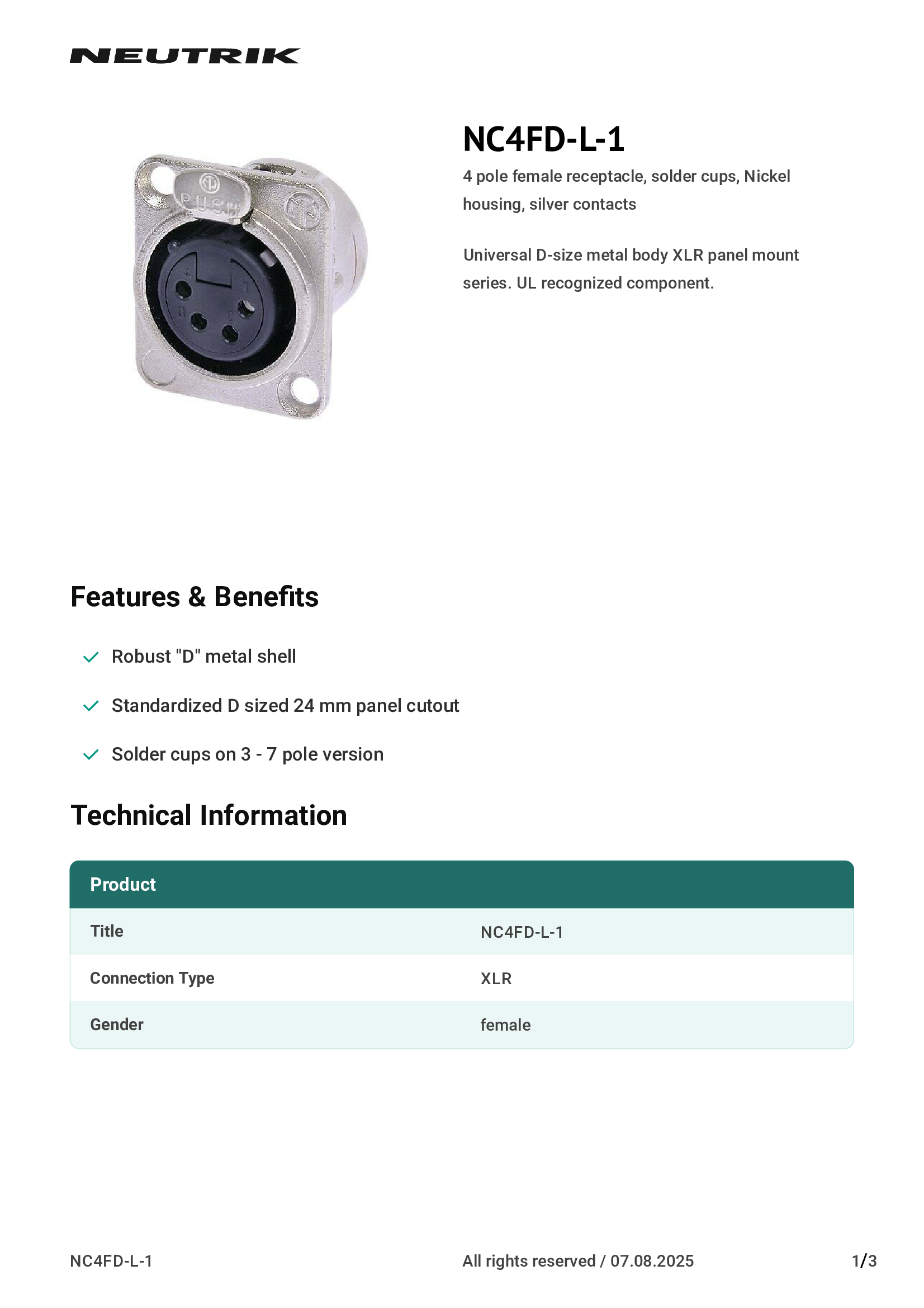

Datasheet	Datasheet

Product Attributes

Filter Similar Products

Show Empty Attributes

Category Connectors, Interconnects Circular Connectors Circular Connector Assemblies	Shell Material Zinc Die Cast
Mfr Neutrik Americas, Inc.	Shell Finish Nickel
Series DL	Contact Finish - Mating Silver
Packaging Box	Color Silver
Part Status Active	Ingress Protection IP40
Connector Type Receptacle, Female Sockets	Material Flammability Rating UL94 V-0
Number of Positions 4	Features Ground
Shell Size - Insert XLR	Shielding Unshielded
Mounting Type Free Hanging (In-Line); Panel Mount	Current Rating (Amps) 10A
Mounting Feature Flange	Voltage Rating 50V
Termination Solder Cup	Operating Temperature -30°C ~ 80°C
Fastening Type Latch Lock	Contact Material Brass
Orientation N (Normal)	Contact Finish Thickness - Mating 78.7µin (2.00µm)
Primary Material Metal	Insert Material Polyamide (PA66), Nylon 6/6

Report Product Information Error

Documents & Media

Environmental & Export Classifications

Additional Resources

In-Stock: 100

Check for Additional Incoming Stock

Quantity

All prices are in EUR

Box

Manufacturers Standard Package

Unit Price without VAT:	€9.36000
Unit Price with VAT:	€11.23200

NC4FD-L-1
