Microchip Technology’s PIC32MK family of microcontrollers offer a wide range of communications peripherals combined with a rich feature set of high performance analog motor control functions. These devices combine 32-bit, 120 MHz performance with up to 1 MB of Flash memory and a rich peripheral set targeting applications such as industrial Internet of Things (IoT), motor control, industrial controls, and multi-channel CAN applications. The PIC32MK family also has a rich ecosystem of development tools, integrated development environments, and third-party partners. Microchip’s families of 32-bit microcontrollers accelerate a vast array of embedded designs ranging from secured IoT applications to general-purpose embedded control. These microcontrollers are fully compatible with Microchip’s MPLAB® X integrated development environment, MPLAB Harmony, and MPLAB Code Configurator (MCC) tools.
The PIC32MK GP connectivity development kit, DM320106, offers a low-cost solution for developers looking to build projects with the PIC32MK series of devices, featuring a rich assortment of CAN, USB, ADC, and GPIO type inputs. This board also includes a Soloman Systech SSD1963 graphics driver and 30-pin connector to enable graphics applications with available LCD panels.
| Key features |
|
DM320106 board features |
- MIPS32® microAptiv™ 32-bit core
- Floating point and DSP extensions support
- Up to 1 MB of dual-panel live update Flash and 256 KB RAM
- 4 KB EEPROM
- Up to 4 CAN 2.0
- Up to 2 full speed USB
- Up to 6 UART modules
- Up to 6 SPI ports
|
|
- 4 CAN 2.0 ports with transceivers, 2 supporting DB9 type connectors
- Dual full speed USB supporting simultaneous host and/or device, including a USB-C hardware compatible connector
- Dual mikroBUS™ click headers supporting the wide array of click boards™
- 1 XC32 header for supporting microchip add-on modules for audio and Bluetooth
- 30-pin general IO header for analog and digital signal connections
|

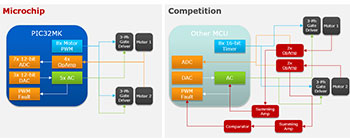

| Motor control integration including |
- 4 CAN 2.0 ports with transceivers, 2 supporting DB9 type connectors
- Dual full speed USB supporting simultaneous host and/or device, including a USB-C hardware compatible connector
- Dual mikroBUS click headers supporting the wide array of click boards
- 1 XC32 header for supporting Microchip add-on modules for audio and Bluetooth
- 30-pin general IO header for analog and digital signal connections
|
|
|
