MAX34407EWE+, SMBus, 4-Channel, Wide Dynamic Range Power Accumulator

Analog Devices' MAX34407EWE+ power accumulator enables code optimization to minimize power consumption in portable platforms

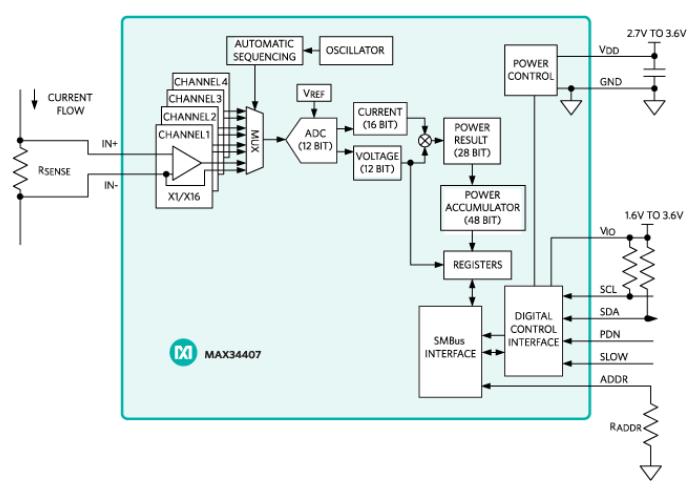

 Image of Analog Devices' MAX34407EWE+ Power AccumulatorAnalog Devices' MAX34407 is a voltage and current monitor that is specialized for determining power consumption. This device has a wide dynamic range that allows it to accurately measure power in systems that consume small to large amounts of power. The device is configured with a standard I2C/SMBus serial interface, as well as it being monitored. The unidirectional current sensor offers precision high-side operation with a low full-scale sense voltage. The device automatically collects the current-sense and voltage samples. The samples are then multiplied to obtain a power value and the power values are then accumulated. Upon a command from the host, the device transfers the accumulated power samples as well as the accumulation count to a set of registers that the host can access. This transfer occurs without missing a sample and allows the host to retrieve the data not in real time, but at any time interval.

Features
  • High-integration solution minimizes parts count, PCB space, and BOM cost
    • Wide current common-mode range of 2.5 V to 15 V
    • Low full-scale, current-sense voltage of 100 mV
    • I2C/SMBus interface
    • Temperature range: -40°C to 85°C
    • Small, 2.285 mm x 2.185 mm footprint WLP package with sixteen bumps at a 0.5 mm pitch
  • Minimizes processor overhead with autonomous operation
    • Per channel, 48-bit power accumulators capture 17 minutes of data at 1,024 samples per second
    • Per channel, 12-bit voltage registers
  • Enables code optimization to minimize power consumption in portable platforms
    • Four power monitors with wide 66 dB dynamic range
    • Measures both current and voltage
    • Low power consumption
    • Slow mode for reduced power consumption
    • Power-down mode
  • Ease-of-development
    • Evaluation kit with advanced GUI available (MAX34407EVKIT#)
    • Windows driver available

MAX34407EWE+ Power Accumulator

ImageManufacturer Part NumberDescriptionVoltage - InputCurrent - OutputOperating TemperatureAvailable QuantityPriceView Details
IC CURRENT MONITOR 15% 16WLPMAX34407EWE+TIC CURRENT MONITOR 15% 16WLP16V (Max)--40°C ~ 85°C2448 - Immediate
110000 - Factory Stock		$8.86View Details
Published: 2016-09-16
