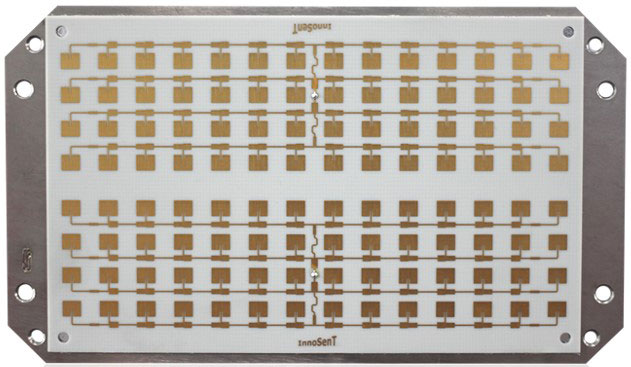

IVS-979 Radar Sensor

InnoSenT's IVS-979 is the perfect fit for various traffic applications, such as traffic monitoring, section control, speed enforcement, and traffic statistics. The device provides information to derive velocity, distance, and movement directions within a focused field of view. Therefore, it is a good fit for a per lane detector application. The sensor provides a special RF-design for maximum sensitivity in long-range applications.

The IVS-979 operates within the 24 GHz ISM band and comes with advanced SiGe MMIC technology for high sensitivity. This K-band VCO (voltage controlled oscillator) transceiver can be operated in FMCW (frequency modulated continuous wave) or FSK (frequency shift keying) mode.

Another smart feature is the 1/x divider output, which is direct down-converted feedback from the current transmit frequency that can be used for VCO tuning slope linearization and temperature compensation.
