            NLM0010/NLM0011 NFC Configuration ICs
                    Infineon’s NFC-PWM series solves LED current setting challenges, and increases LED driver market value


Image of Infineon Technologies' NLM0011 NFC Configuration IC with Integrated CLO Infineon’s NLM0010 and NLM0011 are two dual-mode NFC configuration ICs with pulse width modulation (PWM) output primarily designed for LED applications to enable NFC programming. The NLM0011 is an NFC configuration IC with an integrated constant lumen output (CLO) function. Both ICs come with advanced features such as operating-time counting and on/off counting. For the customer, there is no need to invest extra efforts to enable these, neither to develop firmware nor to integrate a microcontroller. The NFC-PWM series makes adaptation to existing designs easy.

The NLM0011 operates in two modes: configuration mode (passive) and lighting mode (active). In configuration mode, where the LED driver is not powered (no V_CC applied to the NFC IC), the NFC IC is powered by the RF field sent from the NFC reader. Parameters stored in the non-volatile memory (NVM) can be configured wirelessly via the NFC interface. In lighting mode, as soon as the LED driver is under power (V_CC applied to the NFC IC), a PWM output is generated according to the stored PWM parameters. During the active mode, the NFC interface is disabled.

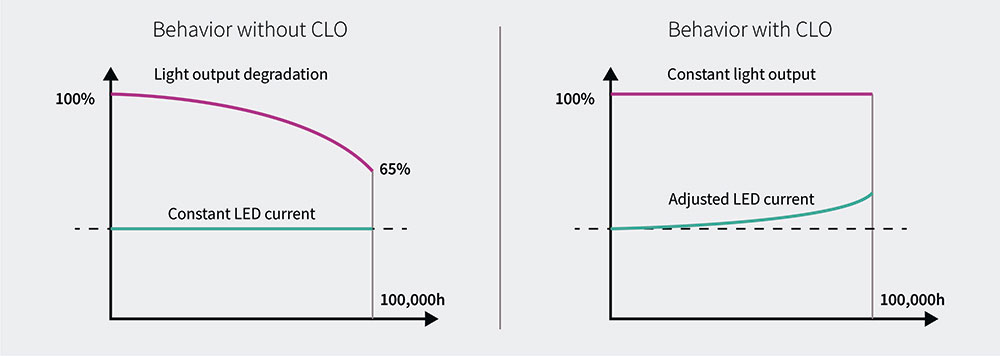

Graph (click for larger view)

Applications

LED lighting

Resources

User Manual: User manual evaluation kit for NLM0011/NLM0010
Whitepaper: NFC programming in lighting

Application Note: LED power supply current configuration using NLM0011/NLM0010
Product Brief: NLM0010/NLM0011 dual-mode NFC configuration ICs with pulse width modulation (PWM) output

Features

NLM0011 is an NFC configuration IC with build-in CLO and on/off counting functions
NLM0010 does not have the CLO functions
NFC contactless interface based on ISO/IEC 15963 standard
1x highly stable PWM output with fixed 2.8 V amplitude and configurable duty cycle between 0% and 100% with ±0.1% accuracy
NVM including UID and 20 bytes free memory for user data
CLO with 8 configurable reference points (NLM0011)

On/off counting and integrated operation-time counter (OTC)
Internal voltage regulator (LDO) to avoid the influence of unstable voltage supply
Effortless integration into existing designs to replace the plug-in resistor current-configuration concept
Compatible with the MD-SIG NFC programming specification and verified with MD-SIG certified NFC readers

Evaluation Kit for NLM0011

Evaluation Kit Contents:
- NFC board 3 V to 5 V (DK_NLM_02)
- NFC board 5 V to 25 V (DK_NLM_01)
- Demo board (DK_NLM_03) exchangeable with customer board
- Exclusive access to high-quality board-related technical details and tools not available elsewhere
- USB cable (A to micro B)
Features:
- NFC antenna for programming or reading the EEPROM of NLM0011 in passive mode
- Low-pass filter (optional) for smoothing the pulsed voltage
- LDO for adjusting the input voltage to 5 V
- 4-pol connector for connecting the demo or customer board including V_CC, GND, PWM, and PWM filtered

Benefits:
- Fast demonstration and evaluation via smartphone and provided mobile app
- No additional hardware needed for demonstration and evaluation purposes, and no full system for application software development
- Demo board exchangeable with customer board allowing to test the NLM0011 directly on the customer’s board
- Two NFC boards (3 V to 5 V and 5 V to 25 V) are supplied to respond to differences in V_CC
Infineon component:
- Dual-mode NFC wireless configuration IC (NLM0011)
