ERP Power

PDB Series 260 W Programmable LED Drivers

Go outdoors with ERP Power's 260 W PDB series of programmable power for street light, area light, and horticulture applications

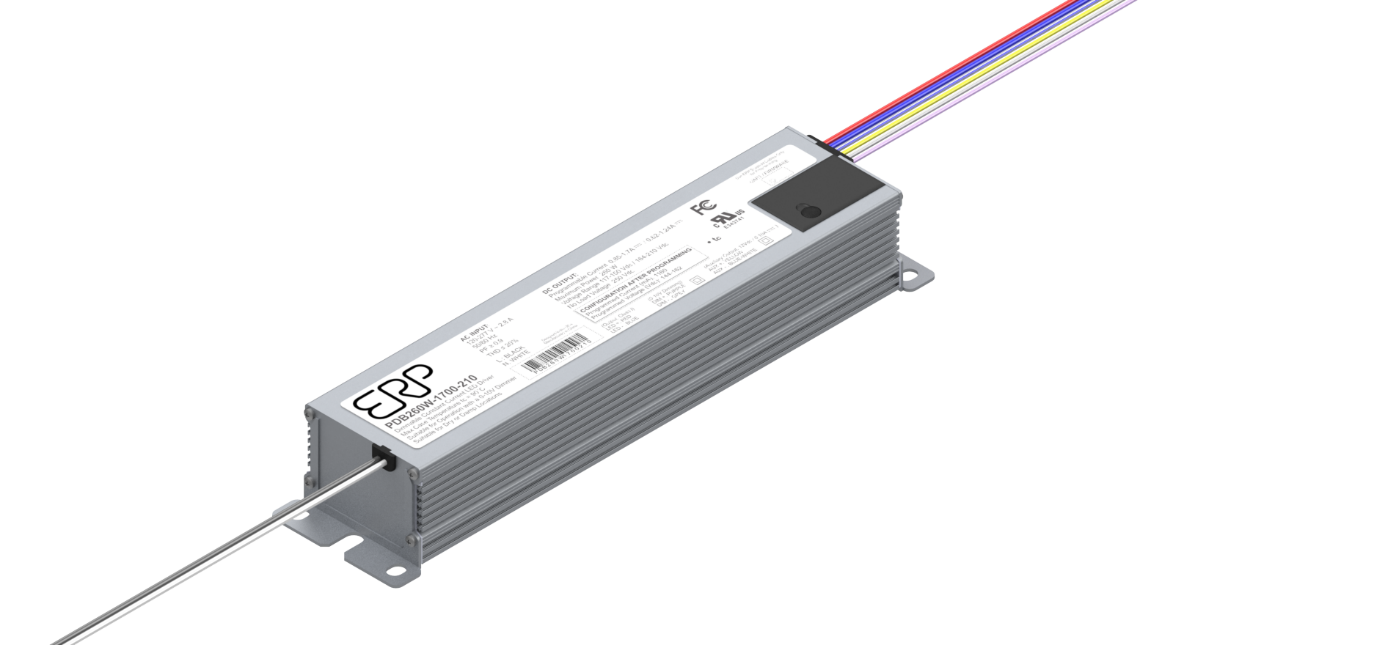

Image of ERP Power's PDB Series LED DriversERP Power's PDB series programmable LED drivers are targeted for deployment in area, floodlight, parking garage, roadway, tunnel, and other outdoor lighting fixtures. In a typical street lighting application, a single ERP driver can replace market alternatives that require two drivers. The ERP single-driver approach requires up to 60% less space at less than one half the cost. Constant current output is high-efficiency and fully programmable from 150 W to 260 W in a wide range of output currents and voltages while maintaining efficiency of 93% from 50% to 100% of load. ERP drivers are designed in California and built to last with a 5-year limited warranty.

Features
  • Programmable:
    • Current: 100% to 50% in each voltage range
    • Output voltage range selection
    • Datalog read: SKU, S/N, lot code, hours of operation, FW rev., fault events: power failure, transients (short or surge), thermal events
  • Non-linear 0 V to10 V dimming profile with dim-to-off (10 V to 9.1 V = 100%, 1.5 V to 0.6 V = 1%, <0.6 V = dim-to-off)
  • Auxiliary output 12 V/100 mA
  • Dual output voltage range
  • IP66-rated case with silicone-based potting
  • Surge protection:
    • Combination wave IEC61000-4-5: 4 kV line-to-line/4 kV line-to-earth (higher surge is available upon request)
    • 2.5 kV ring wave: ANSI/IEEE c62.41.1-2002 and c62.41.2-2002 category A
  • 90°C maximum case hot spot temperature
  • Complies with ENERGY STAR® luminaire specification and Design Light Consortium® (DLC) technical requirements
  • UL Class P
  • Worldwide safety approvals
Applications

  • Area lighting
  • Commercial lighting
  • High bay applications

  • Horticulture applications
  • Outdoor LED lights
  • Street lights

PDB Series

ImageManufacturer Part NumberDescriptionAvailable QuantityPriceView Details
120 TO 277 VAC, 93% EFFICIENCY,PDB260W-1700-210120 TO 277 VAC, 93% EFFICIENCY,0 - Immediate$73.43View Details
LED DRIVER CC AC/DC 120-277V 430PDB260W-0860-400LED DRIVER CC AC/DC 120-277V 4300 - ImmediateSee Page for PricingView Details
LED DRIVER CC AC/DC 120-277V 650PDB260W-1300-280LED DRIVER CC AC/DC 120-277V 6500 - Immediate$64.65View Details
Published: 2018-08-24
