            CSU2000AP Series 2000 W Power Supplies
                    ARTESYN / Advanced Energy's CRPS-type power supplies deliver a main output of 12 VDC and a standby output of 12 VDC

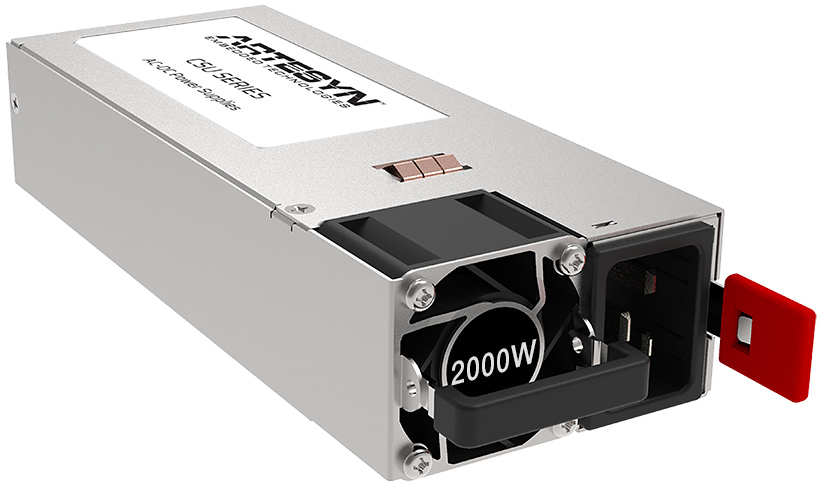

ARTESYN / Advanced Energy's CSU2000AP series power supplies are housed in a 1U high rack-mount enclosure measuring just 2.89 inches x 7.28 inches (73.5 mm x 185.0 mm). Power-switching technology and high-density component packaging techniques enable a significantly narrower and shorter form factor than similarly rated earlier-generation power supplies, freeing up valuable system space. This form factor conforms to the standard market's common redundant power supplies.

These CSU2000AP power supplies are fully digital and compatible with Advanced Energy's universal PMBus® graphical user interface (GUI), allowing control via an integral I²C interface using the industry-standard PMBus communications protocol. The power supply delivers a main output of 12 V_DC and a standby output of 12 V_DC that can deliver 163.9 A and 3.5 A, respectively.

Features

12 V housekeeping
EN61000 immunity
High efficiency (94% at 230 V_AC) 50% load
IEC C14 AC inlet and IEC C20 AC inlet options available
Input range: 90 V_AC to 264 V_AC
Input frequency: 47 Hz to 63 Hz
Hold-up time: 11 ms
Power factor >0.98 at 50% load
Input range: 165 V_DC to 320 V_DC
Output power: 2000 W continuous
Output ripple: 120 mV_p-p
Load sharing active load sharing with 5.0% at full load

EMI Class A
Hotswap
Internal OR-ing
Low iTHD
N+N redundant
Variable speed smart fan
Efficiency platinum level
Remote on/off active low
Protection: overvoltage protection (OVP), overcurrent protection (OCP), short circuit, and overtemperature protection (OTP)
Power good active high
Alert active low

Applications

Routing/switching
Rack/blade servers

Storage
