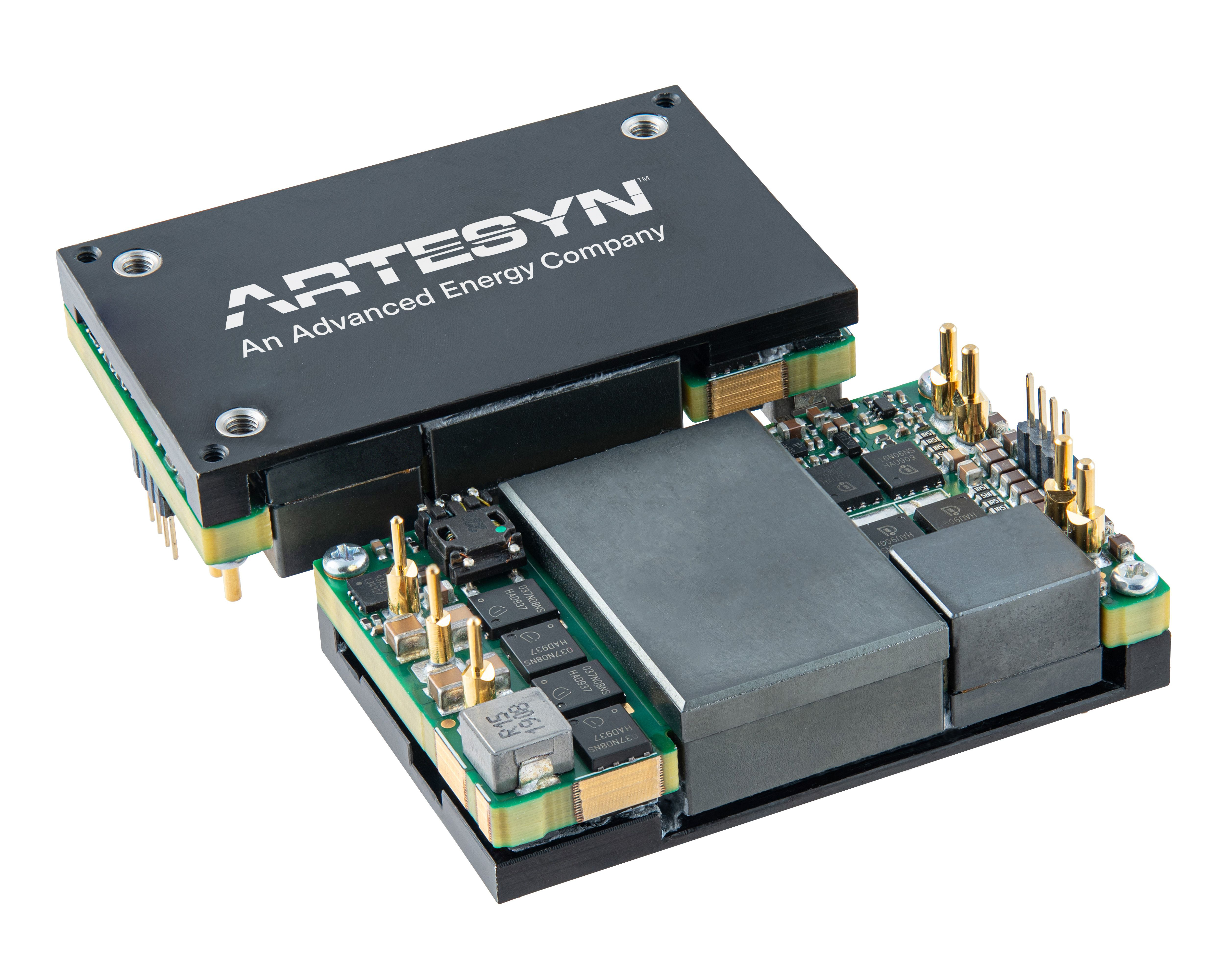

            BDQ1300/BCQ1300 Series DC-DC Converters
                    ARTESYN's BDQ1300/BCQ1300 series quarter-brick DC-DC converters have no minimum load requirement


ARTESYN / Advanced Energy's BDQ1300 and BCQ1300 series quarter-brick isolated DC-DC converters produce a single 12 V nominal output. Rated at 1300 W, these converters can deliver up to 107 A output current and have no minimum load requirement. Both the BDQ1300 and BCQ1300 have an input voltage range of 40 V to 60 V. They are primarily designed for standard 48 V supplies in computing and server applications and regulated 48 V supplies in communications equipment.

Features

Output current: 107 A
Output power: 1300 W
Output voltage: 12 V nominal
Input range: 40 V_DC to 60 V_DC
Input current: 38 A max
Isolation: input-to-output 800 V_DC

Mechanical size: standard 1/4 brick
Efficiency: >97%
Safety: IEC62368 compliant
Enable function: Negative enable
Control: PMBus compatible
Mechanical construction: single PCB with baseplate

Applications

Routing/switching
Rack/blade servers
Storage
