            ADL8104 Low Noise Amplifier
                    Analog Devices' ADL8104 is a wideband, high linearity, 0.4 GHz to 7.5 GHz low noise amplifier


Image of Analog Devices' ADL8104 Low Noise Amplifier ADI's ADL8104 is a gallium arsenide (GaAs), monolithic microwave integrated circuit (MMIC), pseudomorphic high electron mobility transistor (pHEMT), low noise, wideband, high linearity amplifier that operates from 0.4 GHz to 7.5 GHz.

The ADL8104 provides typical gain of 15 dB at 0.6 GHz to 6 GHz and 3.5 dB typical noise figure at 0.4 GHz to 6 GHz. It provides 20 dBm typical output power for 1 dB compression (OP1dB) at 0.6 GHz to 6 GHz and typical output third-order intercept (OIP3) of 32 dBm at 0.6 GHz to 6 GHz, requiring only 150 mA from a 5 V drain supply voltage. The low noise amplifier has a high output second-order intercept (OIP2) of 52 dBm typical at 0.6 GHz to 6 GHz, making the ADL8104 suitable for military and test instrumentation applications.

The ADL8104 also features inputs and outputs that are internally matched to 50 Ω. The RFIN and RFOUT pins are internally AC-coupled and the bias inductor is also integrated, making the ADL8104 ideal for surface-mounted technology (SMT)-based, high-density applications.

Block Diagrams and Graphs

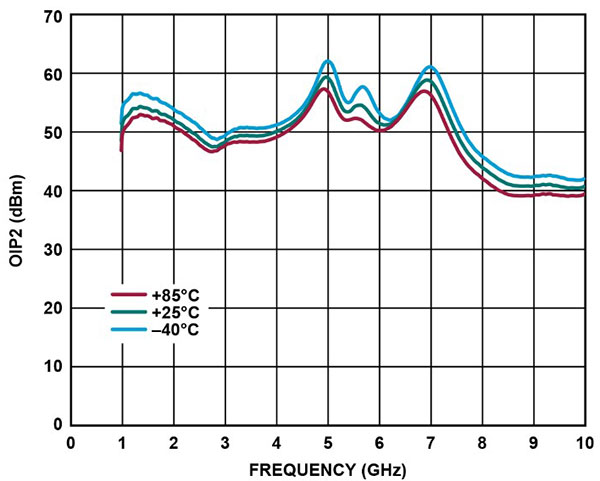

OIP2 vs. Frequency for Various Temperatures, 1 GHz to 10 GHz, VDD = 5 V, IDQ = 150 mA, RBIAS = 90.9 Ω, POUT per Tone = 5 dBm - Click to Enlarge

Image of Analog Devices’ OIP2 vs. Frequency for Various Temperatures, 1 GHz to 10 GHz, VDD = 5 V, IDQ = 150 mA, RBIAS = 90.9 Ω, POUT per Tone = 5 dBm

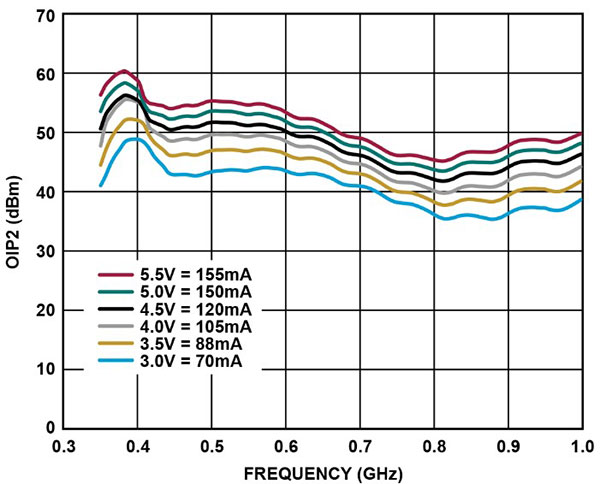

OIP2 vs. Frequency for Various VDD and IDQ Values, 0.35 GHz to 1 GHz, RBIAS = 90.9 Ω, POUT per Tone = 5 dBm - Click to Enlarge

Image of Analog Devices’ OIP2 vs. Frequency for Various VDD and IDQ Values, 0.35 GHz to 1 GHz, RBIAS = 90.9 Ω, POUT per Tone = 5 dBm

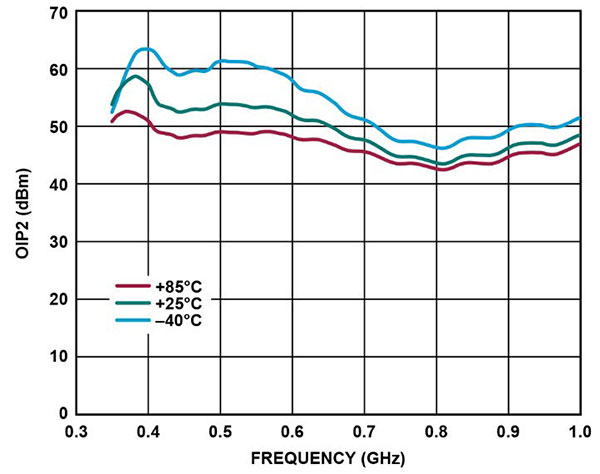

OIP2 vs. Frequency for Various Temperatures, 0.35 GHz to 1 GHz, VDD = 5 V, IDQ = 150 mA, RBIAS = 90.9 Ω, POUT per Tone = 5 dBm - Click to Enlarge

Image of Analog Devices’ OIP2 vs. Frequency for Various Temperatures, 0.35 GHz to 1 GHz, VDD = 5 V, IDQ = 150 mA, RBIAS = 90.9 Ω, POUT per Tone = 5 dBm

Features

Single positive supply (self-biased)
High OIP2: 52 dBm typical at 0.6 GHz to 7.5 GHz
High gain: 15 dB typical at 0.6 GHz to 6 GHz

High OIP3: 32 dBm typical
Low noise figure: 3.5 dB typical at 0.4 GHz to 6 GHz
RoHS compliant, 3 mm x 3 mm, 16-lead LFCSP

Applications

Test instrumentation

Military communications

Evaluation Board

	Image	Manufacturer Part Number	Description	Available Quantity	Price	View Details
		ADL8104-EVALZ	ADL8104 EVAL BOARD	0 - Immediate	$663.77	View Details
