S-19630AB Zero-Drift Dual Amplifier for Automotive Use

ABLIC's S-19630AB is an automotive zero-drift dual amplifier ideal for high-accuracy automotive systems

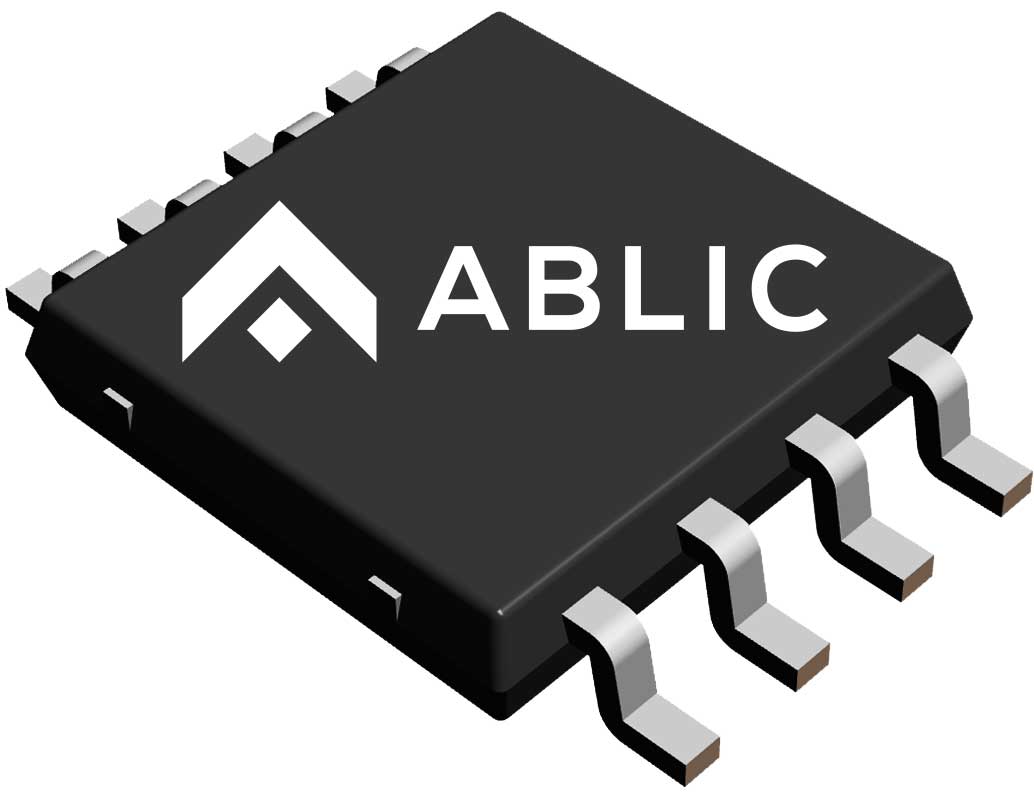

Image of Ablic's S-19630AB Zero-Drift Dual Amplifier for Automotive Use ABLIC's S-19630AB is a zero-drift operational amplifier with rail-to-rail input and output that uses chopper-stabilizing techniques to provide low input offset voltage. It is a dual operational amplifier (two circuits) suitable for applications requiring less offset voltage and ideal for systems requiring highly accurate current detection, such as linear solenoids.

The S-19630AB has the advantage of a zero-drift amplifier with a wide operating voltage range of 4.0 V to 36 V. Its low offset voltage is approximately 1/100 of that of a bipolar amplifier. The low offset voltage drift (temperature dependency of offset voltage) is approximately 1/10 of an amplifier whose offset voltage has been corrected by trimming and approximately 1/100 of a bipolar amplifier. The S-19630AB's high withstand voltage operation of 36 V and rail-to-rail input enable direct connection to the battery for high-side current detection.

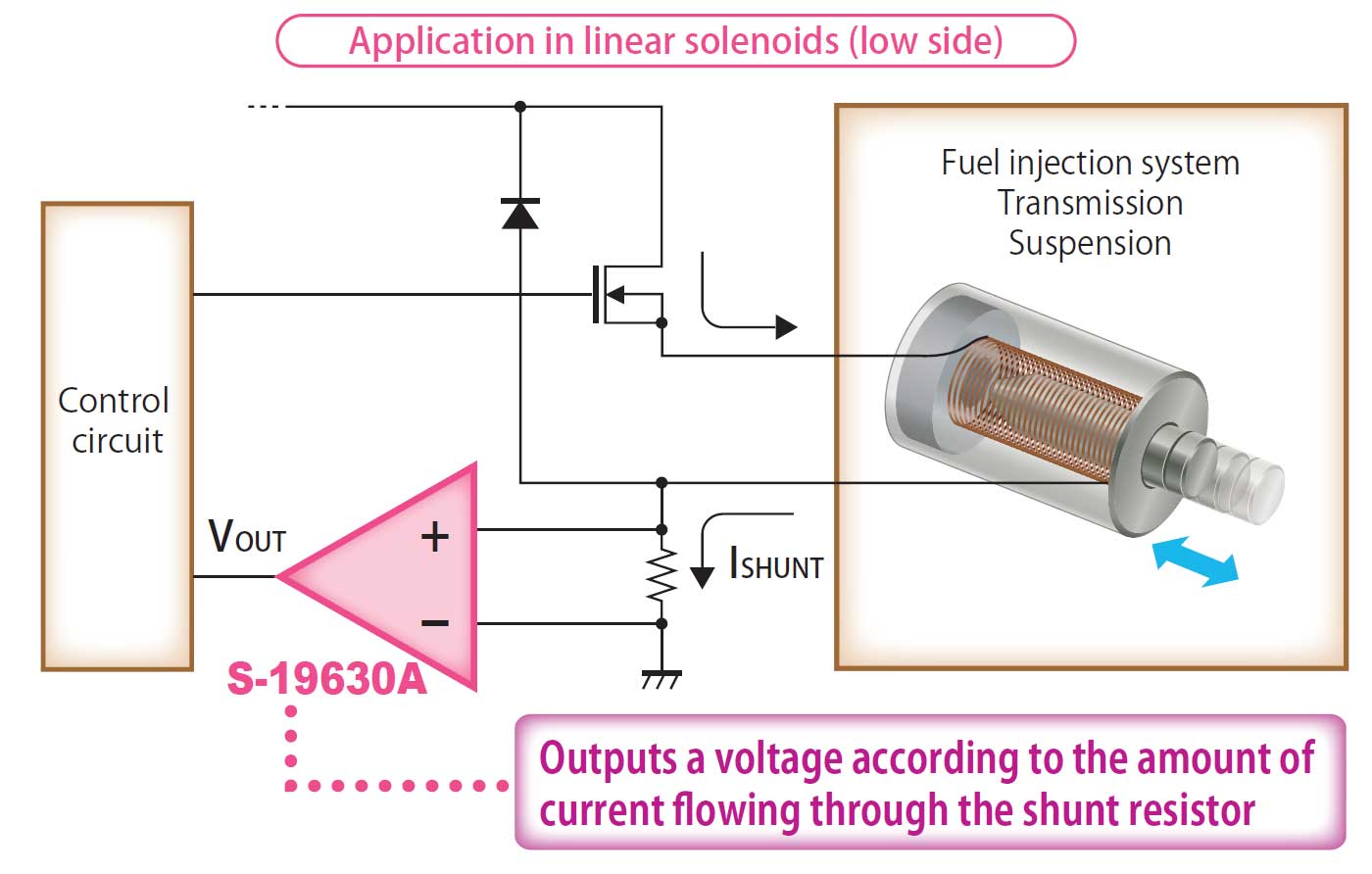

Circuit Connection Example

Image of Ablic's S-19630AB Circuit Connection Example

Features
  • Low input offset voltage
    • VIO = +50 μV max. (TA = -40°C to +125°C)
  • Low input offset voltage drift
    • ΔVIO/ΔTA = ±25 nV/°C typ., ±120 nV/°C max. (VDD = 30.0 V)
  • Operation power supply voltage range
    • VDD = 4.0 V to 36.0 V
  • Low current consumption (per circuit)
    • IDD = 250 μA typ.
  • Low input noise voltage
    • VNOISE_pp = 0.8 μVPP typ. (f = 0.1 Hz to 10 Hz)
  • Low input noise voltage density
    • VNOISE = 25 nV/√Hz typ. (f = 1 kHz)
  • Built-in output current limit circuit
    • Overcurrent limit when output pin is short-circuited
  • Internal phase compensation
    • No external parts required
  • Rail-to-rail input and output
  • Operation temperature range
    • TA = -40°C to +125°C
  • Lead-free (Sn 100%), halogen-free
  • AEC-Q100 qualified
  • Package: TMSOP-8
Applications
  • High-accuracy current detection
  • Various sensor interfaces
  • Strain gauge amplifier

S-19630AB Zero-Drift Dual Amplifier

ImageManufacturer Part NumberDescriptionNumber of CircuitsOutput TypeSlew RateAvailable QuantityPriceView Details
IC OPAMP ZERO-DRIFT 2CIRC 8TMSOPS-19630AB0A-K8T2UIC OPAMP ZERO-DRIFT 2CIRC 8TMSOP2Rail-to-Rail0.45V/µs4166 - Immediate$3.12View Details
