17.81 CLEAR
Front Or
Rear View
Side View
FEATURES
• Heavy duty, 16-gauge steel, 19” rack mount - table top cabinet.
• Choice of three depths - 17.5” (444 mm), 24.5” (622 mm) and 31.5” (800 mm).
• Panel rails are infinititely adjustable (front to back), round hole punched for 10-32 clip-nuts to full EIA
hole centers (5/8-5/8-1/2 inch spacing).
• Includes two pairs of rails (for rear support of heavier equipment or shelves), rubber feet, black ABS plastic handles, a
starter pack of 10-32 clip nuts & matching 1421ABK black screws.
• Supplied unassembled (four cabinet pieces & four rails), shipped in a flat pack container for shipping ease and
protection.
• Simple assembly using one bolt in each corner to lock the sides to the top and bottom (hardware included).
• Overall width 21” (533 mm).
• Overall height 2” (51 mm) additional over panel height.
• Recommended maximum weight (RCHS1902824 tested) - 800 pounds (364 kg).
• Front & back lip is .585” (14 mm) so usable depth is reduced by 1.17” (30 mm).
• Rugged textured powder paint finish.
• Stocked in Black & Light Gray (RAL7035)
Heavy Duty (RCHS Series)
Light Gray (Textured)
For complete drawing information link
here to our website covering this series.
17.5” (444 mm) Deep
Part Number Panel Height Overall Dimensions Number
of Clip
Nuts
Included
Weight
Black Textured Light Gray Textured Inches Units Height Width Depth
RCHS1900817BK1 RCHS1900817LG1 8.75 5U 10.75” (273 mm) 21.0” (533 mm) 17.5” (444 mm) 8 38# (17.3 kg)
RCHS1901017BK1 RCHS1901017LG1 10.50 6U 12.50” (318 mm) 21.0” (533 mm) 17.5” (444 mm) 16 40# (18.2 kg)
RCHS1901417BK1 RCHS1901417LG1 14.00 8U 16.00” (406 mm) 21.0” (533 mm) 17.5” (444 mm) 16 42# (19.1 kg)
RCHS1901717BK1 RCHS1901717LG1 17.50 10U 19.50” (495 mm) 21.0” (533 mm) 17.5” (444 mm) 16 46# (20.9 kg)
RCHS1902217BK1 RCHS1902217LG1 22.75 13U 24.75” (629 mm) 21.0” (533 mm) 17.5” (444 mm) 16 54# (24.5 kg)
RCHS1902817BK1 RCHS1902817LG1 28.00 16U 30.00” (762 mm) 21.0” (533 mm) 17.5” (444 mm) 16 60# (27.3 kg)
._.mU_m Hon mw
7
EUROPE
Basingstoke, UK 01256 812812
AUSTRALIA
Queenstown SA, Australia 61-8-8240-2244
CANADA
Guelph, Ontario (519) 822-2960
St. Laurent, Quebec (514) 343-9010
USA
Cheektowaga, NY (716) 630-7030 ©
www.hammondmfg.com
Heavy Duty (RCHS Series)
UNIVERSAL ACCESSORIES
• Rack panels Page 82
• Ventilated rack panels Page 84
• Panel mount doors & chassis Page 86
• Shelves & slides Page 87
• Drawers Page 93
• Cable management Page 94
• Cooling Page 97
• Rack mount outlet strips Page 102
• Hardware Page 119
• Visit our web site for our most recent accessories
24.5” (622 mm) Deep
Part Number Panel Height Overall Dimensions Number
of Clip
Nuts
Included
Weight
Black Textured Light Gray Textured Inches Units Height Width Depth
RCHS1901024BK1 RCHS1901024LG1 10.50 6U 12.50” (318 mm) 21.0” (533 mm) 24.5” (622 mm) 16 54# (24.5 kg)
RCHS1901424BK1 RCHS1901424LG1 14.00 8U 16.00” (406 mm) 21.0” (533 mm) 24.5” (622 mm) 16 56# (25.5 kg)
RCHS1901724BK1 RCHS1901724LG1 17.50 10U 19.50” (495 mm) 21.0” (533 mm) 24.5” (622 mm) 16 60# (27.3 kg)
RCHS1902224BK1 RCHS1902224LG1 22.75 13U 24.75” (629 mm) 21.0” (533 mm) 24.5” (622 mm) 16 68# (30.9 kg)
RCHS1902824BK1 RCHS1902824LG1 28.00 16U 30.00” (762 mm) 21.0” (533 mm) 24.5” (622 mm) 16 76# (35.5 kg)
31.5” (800 mm) Deep
Part Number Panel Height Overall Dimensions Number
of Clip
Nuts
Included
Weight
Black Textured Light Gray Textured Inches Units Height Width Depth
RCHS1901031BK1 RCHS1901031LG1 10.50 6U 12.50” (318 mm) 21.0” (533 mm) 31.5” (800 mm) 16 64# (29.1 kg)
RCHS1901431BK1 RCHS1901431LG1 14.00 8U 16.00” (406 mm) 21.0” (533 mm) 31.5” (800 mm) 16 68# (30.9 kg)
RCHS1901731BK1 RCHS1901731LG1 17.50 10U 19.50” (495 mm) 21.0” (533 mm) 31.5” (800 mm) 16 74# (33.6 kg)
RCHS1902231BK1 RCHS1902231LG1 22.75 13U 24.75” (629 mm) 21.0” (533 mm) 31.5” (800 mm) 16 82# (37.3 kg)
RCHS1902831BK1 RCHS1902831LG1 28.00 16U 30.00” (762 mm) 21.0” (533 mm) 31.5” (800 mm) 16 92# (41.8 kg)

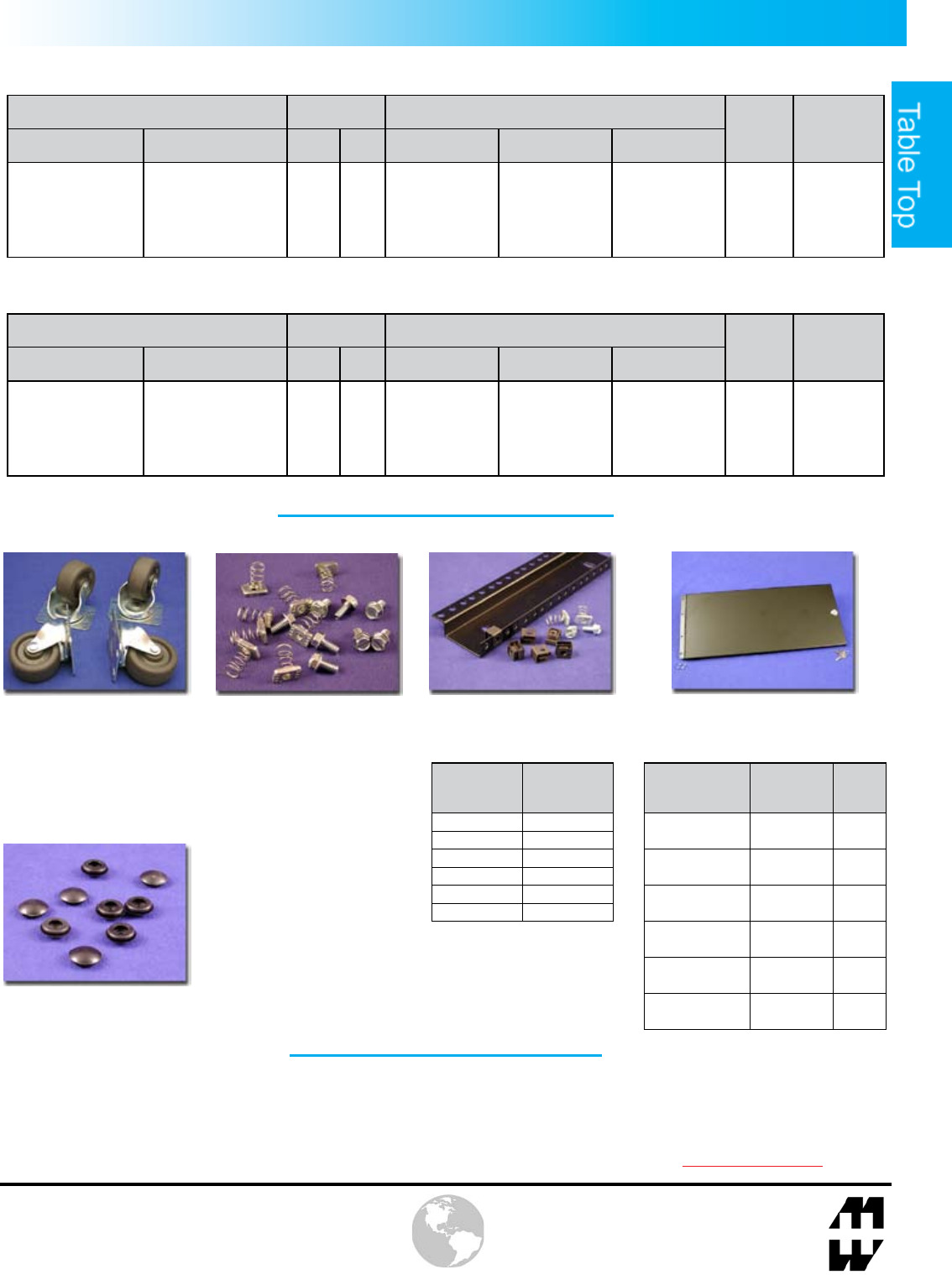

RCHS SERIES ACCESSORIES
Casters Locking DoorsExtra Panel RailsExtra Spring Nuts
Extra Rubber Feet
Part Number Color
For
Panel
Height
RCHD1908BK1 Black 8.75”
(5U)
RCHD1908LG1 Light Gray
RCHD1910BK1 Black 10.5”
(6U)
RCHD1910LG1 Light Gray
RCHD1914BK1 Black 14.0”
(8U)
RCHD1914LG1 Light Gray
RCHD1917BK1 Black 17.5”
(10U)
RCHD1917LG1 Light Gray
RCHD1922BK1 Black 22.75”
(13U)
RCHD1922LG1 Light Gray
RCHD1928BK1 Black 28.0”
(16U)
RCHD1928LG1 Light Gray
Part Number
For
Panel
Height
RCHR1908 8.75” (5U)
RCHR1910 10.5” (6U)
RCHR1914 14.0” (8U)
RCHR1917 17.5” (10U)
RCHR1922 22.75” (13U)
RCHR1928 28.0” (16U)
• Set of four (4).
• Weight capacity 600# (273
kg).
• Includes mounting hardware.
• Part Number 1425PHD
• Set of eight (8), spring nuts
and bolts.
• 1/4” X 20 hardware for
horizontal struts.
• Part Number 1421SN
• Package of 20 rubber feet
• Part Number 1421RC24
• Sold in pairs.
• Includes strut mounting
hardware.
• Black clip nuts not included.
• 16 ga. steel door.
• Includes mounting hardware and two
(2) keys.
• Hinge mounts on either right or left.
