LM4040
PRECISION MICROPOWER SHUNT VOLTAGE REFERENCES
Description
The LM4040 is a family of bandgap circuits designed to achieve
precision micro-power voltage references of 2.5V, 3.0V, 3.3V, 4.096V,
and 5.0V. The devices are available in 0.2% B-grade, 0.5% C-grade,
and 1% D-grade initial tolerances.
They are available in small outline SOT23 surface mount packages,
which are ideal for applications where space is at a premium.
Excellent performance is maintained over the 60µA to 15mA
operating current range with a typical temperature coefficient of only
20ppm/°C. The device is
designed to be highly tolerant of capacitive
loads, which maintains excellent stability.
This device
offers a pin for pin compatible alternative to the LM4040
voltage reference.
Features
• Small Package: SOT23
SC70-5 Variants Are End of Life (EOL)
• No Output Capacitor Required
• Output Voltage Tolerance
LM4040B: ±0.2% at +25°C
LM4040C : ±0.5% at +25°C
LM4040D: ±1% at +25°C
• Low Output Noise
• (10Hz to 10kHz) 45µVRMS
• Wide Operating Current Range 60µA to 15mA
• Extended Temperature Range -40°C to +125°C
• Low Temperature Coefficient 100 ppm/°C (max)
• Green Molding in Small Package SOT23
• Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
• Halogen and Antimony Free. “Green” Device (Note 3)
• An Automotive-Compliant Part is Available Under Separate
Datasheet (LM4040Q)
Applications
• Battery Powered Equipment
• Precision Power Supplies
• Portable Instrumentation
• Portable Communications Devices
• Notebook and Palmtop Computers
• Data Acquisition Systems
Pin Assignments
(Top View)
* Pin 3 must be left floating or connected to pin 2
SOT23
* Pin 2 must be left floating or connected to pin 1.
** SC70-5 variants are End of Life (EOL).
Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS), 2011/65/EU (RoHS 2) & 2015/863/EU (RoHS 3) compliant.
2. See https://www.diodes.com/quality/lead-free/ for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and
Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
Anode
*
Cathode
N/C
N/C
1
2
3
4
5
LM4040 H5 (SC70-5)
Top View
* Pin 2 must be left floating or connected to pin 1
(Top View)
SC70-5**
LM4040
Document number: DS33195 Rev. 8 - 2
1 of 16
www.diodes.com
August 2019
© Diodes Incorporated
a LM4040 Absolute Maximum Ratings Parameter Package Thermal Data A n Recommended Operating Conditions Parameter Min Max Unit Electrical Characteristics Conditions LM4040 LM4040 LM4040 TA B Limits C Limits D Limits Reverse Breakdown Veitage iR : mouA +25°c 2.5 7 7 v +25% :5 :12 :25 4010 +85% :21 :29 :49 40 lo +125°C :30 :38 :63 +25% 45 60 60 65 4010 +85% 65 65 70 40 lo +125°C 68 68 73 IR : iDmA :20 7 7 7 IR:imA :15 1100 1100 1150 IR : mow-x :15 7 7 7 +25% 03 0,8 0 8 Lo 4010 +85% 1,0 1 0 1,2 40 lo +125°C 1,0 10 12 +25% 25 6,0 6 0 8,0 4010 +85% 80 8 0 10.0 40 lo +125°C 8,0 8 0 10.0 | = imA, f IAC - (MIR IR : mow-x iDHz < l="">< 10khz="" vr="" long="" term="" stability="" (non="" cumuiative)="" i:="" moor-ire,="" ir="" :100pa="" 120="" 7="" 7="" 7="" ppm="" szr="" thermai="" hysteresis="" at="" :="" 40%="" m="" +125°c="" 0.08="" 7="" 7="" 7="" %="" or="">
LM4040
Absolute Maximum Ratings (Voltages to Anode Unless Otherwise Stated)
Parameter
Rating
Unit
Continuous Reverse Current 20 mA
Continuous Forward Current
10
mA
Operating Junction Temperature
-40 to +150
°C
Storage Temperature
-55 to +150
°C
Caution: Stresses greater than the Absolute Maximum Ratings specified above, may cause permanent damage to the device. These are stress ratings
only; functional operation of the device at conditions between maximum recommended operating conditions and absolute maximum ratings is not
implied. Device reliability may be affected by exposure to absolute maximum rating conditions for extended periods of time.
(Semiconductor devices are ESD sensitive and may be damaged by exposure to ESD events. Suitable ESD precautions should be taken when handling
and transporting these devices.)
Unless otherwise stated voltages specified are relative to the Anode pin.
Package Thermal Data
Package θJA PDIS
TA = +25°C, TJ = +125°C
SOT23 380°C/W 330mW
Recommended Operating Conditions
Parameter
Min
Max
Unit
Reverse Current
0.06
15
mA
Operating Ambient Temperature Range
-40
+125
°C
Electrical Characteristics (Test conditions: TA = +25°C, unless otherwise specified.)
LM4040-25
Symbol Parameter
Conditions
Typ
LM4040
B Limits
LM4040
C Limits
LM4040
D Limits
Unit
—
TA
VREF
Reverse Breakdown Voltage
IR = 100µA
+25°C
2.5
—
—
—
V
Reverse Breakdown Voltage Tolerance IR = 100µA
+25°C
—
±5
±12
±25
mV
-40 to +85°C
±21
±29
±49
-40 to +125°C
±30
±38
±63
IRMIN Minimum Operating Current —
+25°C
45
60
60
65
µA
-40 to +85°C
—
65
65
70
-40 to +125°C
68
68
73
ΔVR/ΔT Average Reverse Breakdown Voltage
Temperature Coefficient
IR = 10mA
-40 to +125°C
±20
—
—
—
ppm/°C
IR = 1mA
±15
±100
±100
±150
IR = 100µA
±15
—
—
—
ΔVR/ΔIR Reverse Breakdown Change with
Current
IRMIN ≤ IR
≤ 1mA
+25°C
0.3
0.8
0.8
1.0
mV
-40 to +85°C
—
1.0
1.0
1.2
-40 to +125°C
1.0
1.0
1.2
1mA ≤ IR
≤ 15mA
+25°C
2.5
6.0
6.0
8.0
-40 to +85°C
—
8.0
8.0
10.0
-40 to +125°C
8.0
8.0
10.0
ZR Dynamic Output Impedance
I
R
= 1mA, f = 120Hz
IAC = 0.1IR
0.3 0.8 0.9 1.1 Ω
en Noise Voltage IR = 100µA
10Hz < f < 10kHz
35 — — — µVRMS
VR
Long Term Stability (Non Cumulative)
t = 1000Hrs, IR = 100µA
120
—
—
—
ppm
VHYST
Thermal Hysteresis
ΔT = -40°C to +125°C
0.08
—
—
—
%
LM4040
Document number: DS33195 Rev. 8 - 2
2 of 16
www.diodes.com
August 2019
© Diodes Incorporated
LM4040 Electrical Characteristics Conditions LM4040 LM4040 LM4040 7 1A 5 Limits c Limiis n Limiis Reverse Breakdown Voltage is : 1000A +25°C 3.0 7 7 7 v +25°C :6 :15 :30 .40 to +85°C :26 :34 :59 .40 lo 425°C 37 :45 :75 +25°C 47 e2 e2 e7 .40 to +85°C e7 e7 72 .40 lo 425°C 70 7o 75 cm :20 7 7 7 Is rnA :15 1100 1100 :150 Is : 1000A :15 7 7 7 +25°C 0.4 0.0 0.0 i.0 4010 +85°C 1.1 1.1 1.3 -40 lo +125”C 1.1 1.1 1.3 +25°C 2.7 6.0 6.0 8.0 .40 to +85°C 9.0 9.0 11 0 .40 lo 425°C 9.0 9.0 110 l : 1mA,f lAc : 0.1m is : 1000A 1on <><10khz vs="" long="" term="" stability="" (nan-cumulative)="" i:="" 1000hrs,="" is="" :100ua="" 120="" 7="" 7="" 7="" 00m="" vwst="" tnerrnai="" hysteresus="" at="" :="" 40°c="" to="" 425°c="" 0.08="" 7="" 7="" 7="" %="" electrical="" characteristics="" )="" lm4040-33="" or="" average="" reverse="" breakdown="" vollage="" reverse="" breakdown="" change="" wrin="" conditions="" ir="" :1ma.1="120HZ.IAC" :="" r="">
LM4040

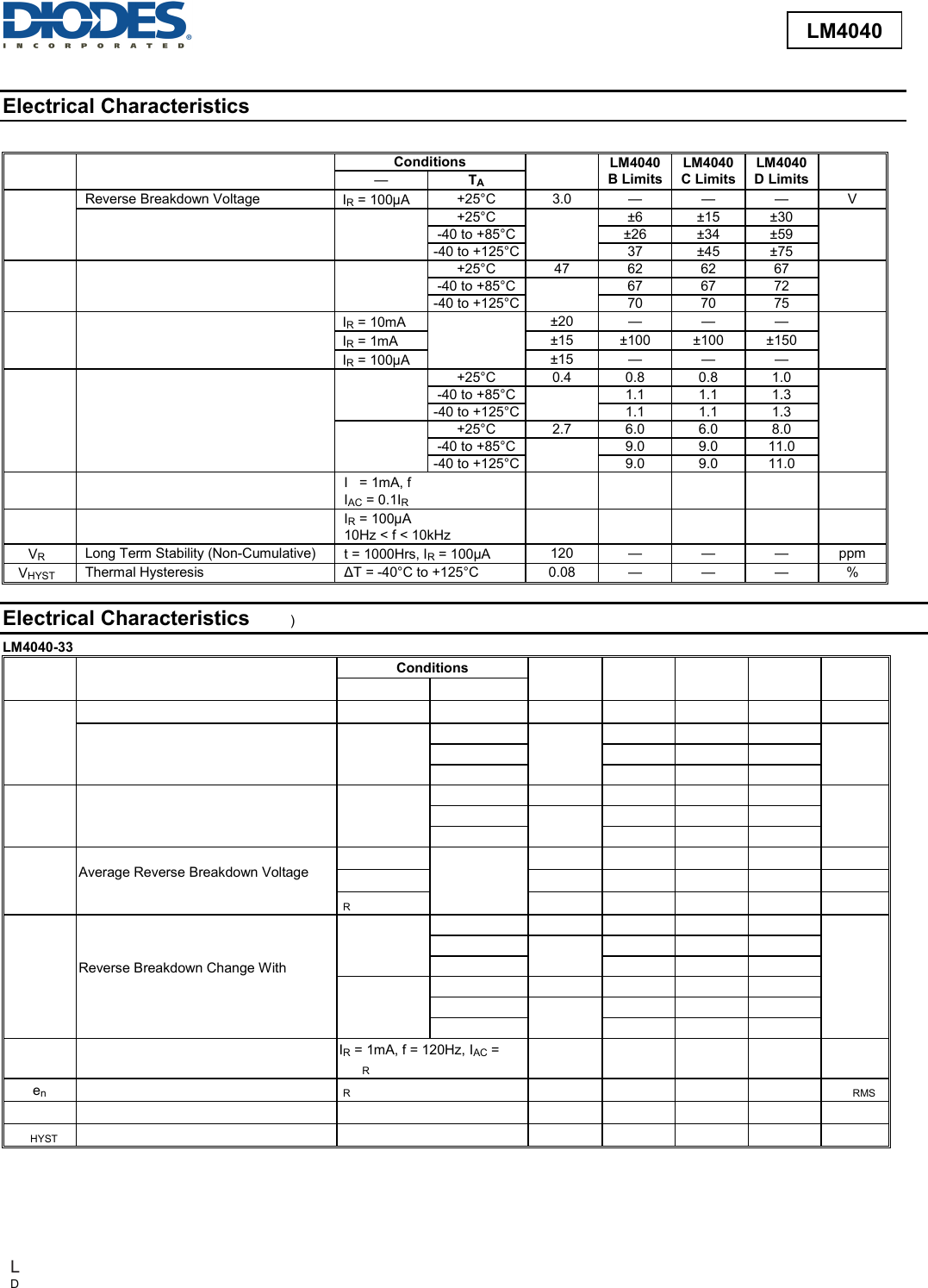

Electrical Characteristics (continued) (Test conditions: TA = +25°C, unless otherwise specified.)
LM4040-30
Symbol Parameter
Conditions
Typ
LM4040
B Limits
LM4040
C Limits
LM4040
D Limits
Unit
—
TA
VREF
Reverse Breakdown Voltage
IR = 100µA
+25°C
3.0
—
—
—
V
Reverse Breakdown Voltage Tolerance IR = 100µA
+25°C
—
±6
±15
±30
mV
-40 to +85°C
±26
±34
±59
-40 to +125°C
37
±45
±75
IRMIN Minimum Operating Current —
+25°C
47
62
62
67
µA
-40 to +85°C
—
67
67
72
-40 to +125°C
70
70
75
ΔVR/ΔT Average Reverse Breakdown Voltage
Temperature Coefficient
IR = 10mA
-40 to +125°C
±20
—
—
—
ppm/°C
IR = 1mA
±15
±100
±100
±150
IR = 100µA
±15
—
—
—
ΔVR/ΔIR Reverse Breakdown Change with
Current
IRMIN ≤ IR
≤ 1mA
+25°C
0.4
0.8
0.8
1.0
mV
-40 to +85°C
—
1.1
1.1
1.3
-40 to +125°C
1.1
1.1
1.3
1mA ≤ IR
≤ 15mA
+25°C
2.7
6.0
6.0
8.0
-40 to +85°C
—
9.0
9.0
11.0
-40 to +125°C
9.0
9.0
11.0
ZR Dynamic Output Impedance IR = 1mA, f = 120Hz
IAC = 0.1IR
0.4 0.9 0.9 1.2 Ω
en Noise Voltage
I
R
= 100µA
10Hz < f < 10kHz
35 — — — µVRMS
VR
Long Term Stability (Non-Cumulative)
t = 1000Hrs, IR = 100µA
120
—
—
—
ppm
VHYST
Thermal Hysteresis
ΔT = -40°C to +125°C
0.08
—
—
—
%
Electrical Characteristics (cont.) (@TA = +25°C, unless otherwise specified.)
LM4040-33
Symbol Parameter
Conditions
Typ B Limits C Limits D Limits Units
-
TA
VREF
Reverse Breakdown Voltage
IR = 100µA
+25°C 3.3 V
Reverse Breakdown Voltage Tolerance IR = 100µA
+25°C
—
±6.6
±16.5
±33
mV
-40 to +85°C
±28
±38
±65
-40 to +125°C
±40
±50
±83
IRMIN Minimum Operating Current —
+25°C
47
62
62
67
µA
-40 to +85°C
—
67
67
72
-40 to +125°C
70
70
75
ΔVR/ΔT Average Reverse Breakdown Voltage
Temperature Coefficient
IR = 10mA
-40 to +125°C
±20
—
—
—
—
IR = 1mA
±15 ±100 ±100 ±150 ppm/°C
IR = 100µA
±15 —
ΔVR/ΔIR Reverse Breakdown Change With
Current
IRMIN IR
< 1mA
+25°C
0.4
0.8
0.8
1
mV
-40 to +85°C
—
1.1
1.1
1.3
-40 to +125°C
1.1
1.1
1.3
1mA < IR
< 15mA
+25°C
2.7
6
6
8
-40 to +85°C
—
9.0
9
11
-40 to +125°C
9.0
9
11
ZR Dynamic Output Impedance IR = 1mA, f = 120Hz, IAC =
0.1IR
0.4 0.9 0.9 1.2 Ω
en
Noise Voltage
IR = 100µA, 10Hz < f < 10kHz
35
—
—
—
µVRMS
VR Long Term Stability (Non-Cumulative) t = 1000Hrs, IR = 100µA 120 — — — ppm
VHYST Thermal Hysteresis ΔT = -40°C to = +125°C 0.08 — — — %
LM4040
Document number: DS33195 Rev. 8 - 2
3 of 16
www.diodes.com
August 2019
© Diodes Incorporated
a LM4040 Electrical Characteristics ) LM4040-41 Conditions Average Reverse Breakdown Vollage Reverse Breakdown Change wmn IR :imA.1=120HZ. AC R Electrical Characteristics LM4040 LM4040 LM4040 B Limits c Limits 0 Limits 7 TA Reverse Breakdown Voltage IR : 1000A +25°c 5.0 7 7 v +25°c :10 :25 :50 .4010 +a5°c :43 :58 :99 .40 lo 425%: :60 :75 :125 +25°C 54 74 74 79 .4010 +a5°c an an 05 .40 lo 425%: 83 83 88 (MA :30 7 7 IR» mA :20 em ems :150 IR : 1000A :20 7 7 +25°c 0.5 1.0 1.0 1.3 -4010 +85°C 1.4 1.4 1.8 -40 lo +125”C 1.4 1.4 1.8 +25°c 3.5 8.0 8.0 10 0 .4010 +a5°c 120 120 150 -40lo+125”C 120 120 150 l : 1mA,f lAc 0.1m 1R : 1000A 1on <><10khz vr="" long="" term="" stability="" (nan-cumulative)="" t:="" mom-ire,="" lr="" :100ua="" 120="" 7="" 7="" 00m="" vevgt="" tnermai="" hysteresus="" at="40ic" to="" ”25°c="" 008="" 7="" 7="" %="" or="">
LM4040

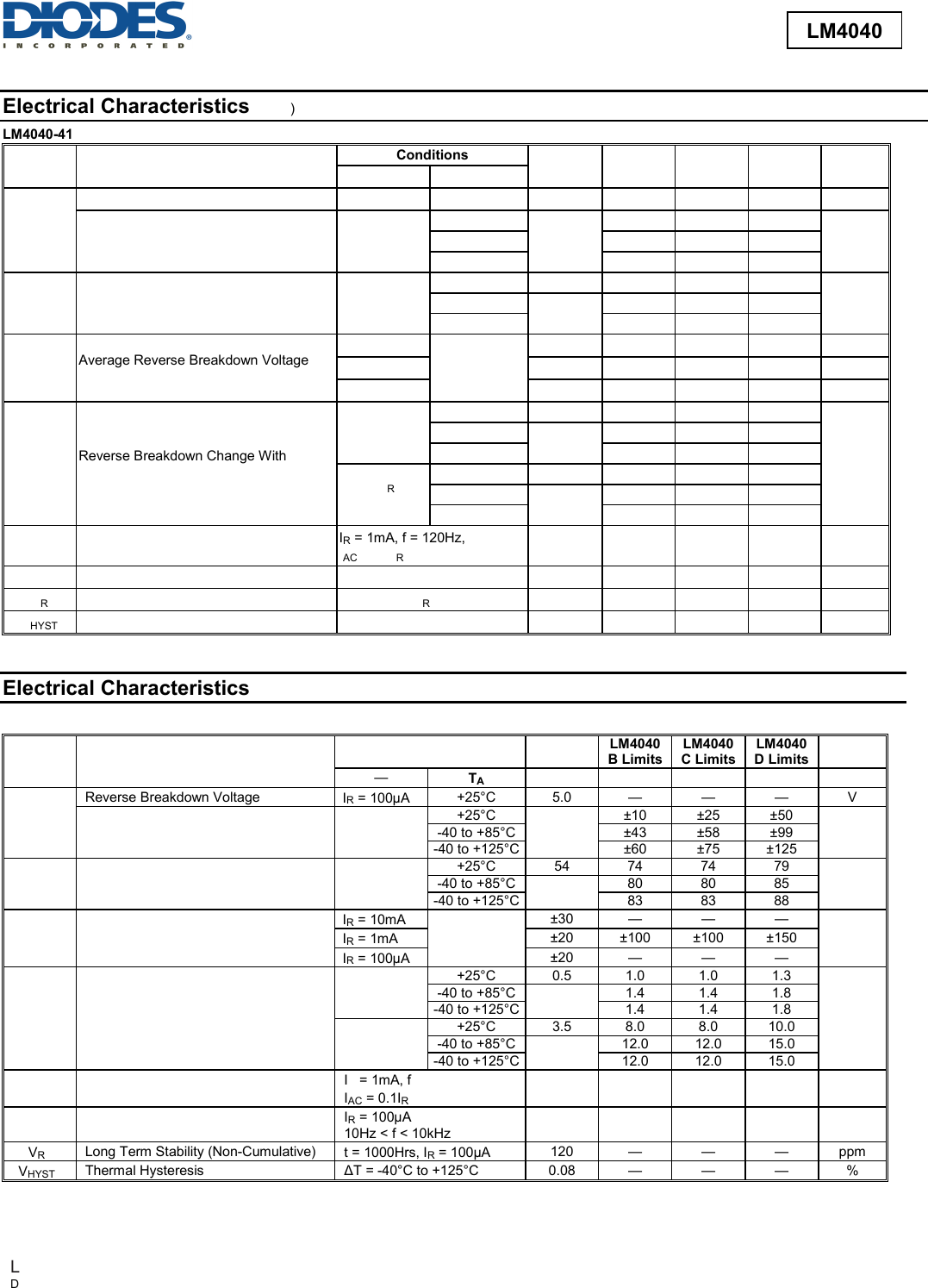

Electrical Characteristics (cont.) (@TA = +25°C, unless otherwise specified.)
LM4040-41
Symbol Parameter
Conditions
Typ B Limits C Limits D Limits Units
T
A
VREF
Reverse Breakdown Voltage I
R
= 100µA +25°C 4.096 — — — V
Reverse Breakdown Voltage Tolerance IR = 100µA
+25°C
—
±8.2
±20
±41
mV -40 to +85°C ±35 ±47 ±81
-40 to +125°C ±49 ±60 ±102
IRMIN Minimum Operating Current —
+25°C 50 83 83 83
µA
-40 to +85°C
—
88
88
88
-40 to +125°C
88
88
88
ΔVR/ΔT Average Reverse Breakdown Voltage
Temperature Coefficient
IR = 10mA
-40 to +125°C
±30
—
—
—
—
I
R
= 1mA ±20 ±100 ±100 ±150 ppm/°C
I
R
= 100µA ±20 — — — —
ΔVR/ΔIR Reverse Breakdown Change With
Current
IRMIN IR
< 1mA
+25°C
0.5
0.9
0.9
1.2
mV
-40 to +85°C — 1.2 1.2 1.5
-40 to +125°C 1.2 1.2 1.5
1mA < IR
< 15mA
+25°C 3 7 7 9
-40 to +85°C
—
10
10
13
-40 to +125°C
10
10
13
ZR Dynamic Output Impedance IR = 1mA, f = 120Hz,
IAC = 0.1IR
0.5 1 1 1.3 Ω
en
Noise Voltage
IR = 100µA, 10Hz < f < 10kHz
64
—
—
—
µVRMS
VR
Long Term Stability (Non-Cumulative)
t = 1000Hrs, IR = 100µA
120 — — — ppm
VHYST
Thermal Hysteresis ΔT = -40°C to = +125°C 0.08 80 %
Electrical Characteristics (cont.) (Test conditions: TA = +25°C, unless otherwise specified.)
LM4040-50
Symbol Parameter Conditions Typ
LM4040
B Limits
LM4040
C Limits
LM4040
D Limits
Units
—
TA
VREF
Reverse Breakdown Voltage
IR = 100µA
+25°C
5.0
—
—
—
V
Reverse Breakdown Voltage Tolerance IR = 100µA
+25°C
—
±10
±25
±50
mV
-40 to +85°C
±43
±58
±99
-40 to +125°C
±60
±75
±125
IRMIN Minimum Operating Current —
+25°C
54
74
74
79
µA
-40 to +85°C
—
80
80
85
-40 to +125°C
83
83
88
ΔVR/ΔT Average Reverse Breakdown Voltage
Temperature Coefficient
IR = 10mA
-40 to +125°C
±30
—
—
—
ppm/°C
IR = 1mA
±20
±100
±100
±150
IR = 100µA
±20
—
—
—
ΔVR/ΔIR Reverse Breakdown Change with
Current
IRMIN ≤ IR
≤ 1mA
+25°C
0.5
1.0
1.0
1.3
mV
-40 to +85°C
—
1.4
1.4
1.8
-40 to +125°C
1.4
1.4
1.8
1mA ≤ IR
≤ 15mA
+25°C
3.5
8.0
8.0
10.0
-40 to +85°C
—
12.0
12.0
15.0
-40 to +125°C
12.0
12.0
15.0
ZR Dynamic Output Impedance
I
R
= 1mA, f = 120Hz
IAC = 0.1IR
0.5 1.1 1.1 1.5 Ω
en Noise Voltage IR = 100µA
10Hz < f < 10kHz
80 — — — µVRMS
VR
Long Term Stability (Non-Cumulative)
t = 1000Hrs, IR = 100µA
120
—
—
—
ppm
VHYST
Thermal Hysteresis
ΔT = -40°C to +125°C
0.08
—
—
—
%
LM4040
Document number: DS33195 Rev. 8 - 2
4 of 16
www.diodes.com
August 2019
© Diodes Incorporated
LM4040 Typical Characte ol— 1.00 0.75 0.50 0.25 0.00 AVm (M 0 25 0.50 0 75 4 aa 410 715 710 5 10 35 50 55 an 95 110125 F 1%) n r] 00 Temperature (-0) LM4040-25 / rx =100uA 4:0 725710 5 20 35 50 65 80 95110125 Temperalure(°C) LM4040—33 -40 -25 ~10 5 20 35 50 55 so 55 110125 Temperature 1°C) LM4040-50 cs — Reference Voltage Temperature Coefficient at 100pA 1.00 400 4w 725 710 5 20 35 50 65 30 95 110125 Temperature (”C) LM4040-30 " “25 IK :1000A 4 00 ~40 -25 40 5 20 35 50 65 50 95110125 Temperature (“0) LM4040-41
LM4040
Typical Characteristics – Reference Voltage Temperature Coefficient at 100µA
LM4040-25
LM4040-30
LM4040-33
LM4040-41
LM4040-50
LM4040
Document number: DS33195 Rev. 8 - 2
5 of 16
www.diodes.com
August 2019
© Diodes Incorporated
LM4040 Typical Characte 100 075 Avm we) 3% E e 70 so -0 75 71,00 -40 -25 -10 5 20 35 50 65 so 55 no 125 Temperature (°C) LM4D40-25 100 075 050 025 Was; (“/a) a B ,u 25 In = 1mA en so -u 75 -1 on 40-25-10 5 20 35 50 65 so 95110125 Temperalure (”C) LM4040-33 100 075 050 A025 % mean 4% 70,50 4: 75 71 no 740 725 710 S 20 35 50 65 80 55 110115 Temperature (°C) LM4040-50 Ul— cs — Reference Voltage Temperafure Coefficient at 1mA 1'00 40 -25 >10 5 20 35 SD 65 30 95 110125 Temperature (°CD LM4040~30 1 DD 0 75 D 50 IR = 1mA -1 0|] 40-25-10 5 20 35 50 65 80 95110125 Temperamre (“(2) LM4D40—41
LM4040
Typical Characteristics – Reference Voltage Temperature Coefficient at 1mA
LM4040-25
LM4040-30
LM4040-33
LM4040-41
LM4040-50
LM4040
Document number: DS33195 Rev. 8 - 2
6 of 16
www.diodes.com
August 2019
© Diodes Incorporated
LM4040 Typical Characte cs — Reverse Characfieristics 500 3 3 P z u: n: n: 3 o u: w n: u: > u: n: 5m) Am) H 300 § T. : 25‘c ; 2m) 2 E mo g u o m Q Am) u: a 1'2“” ‘ -300 «no 7500 4 u 1 2 a 4 VA REVERSE VOLTAGE (V) LM4040—33 2 5 >— z m n: n: :> o m u) n: m > m n: LM4040-50 Ol— , REVERSE CURRENT (uA) IR REVERSE CURRENT (uA) 500 0 VRV LM4040-30 500 400 300 200 100 'rA = we mfg" coo oooo 600 ,1 o 1 2 3 4 5 VR REVERSE VOLTAGE (V) LM4040-41
LM4040

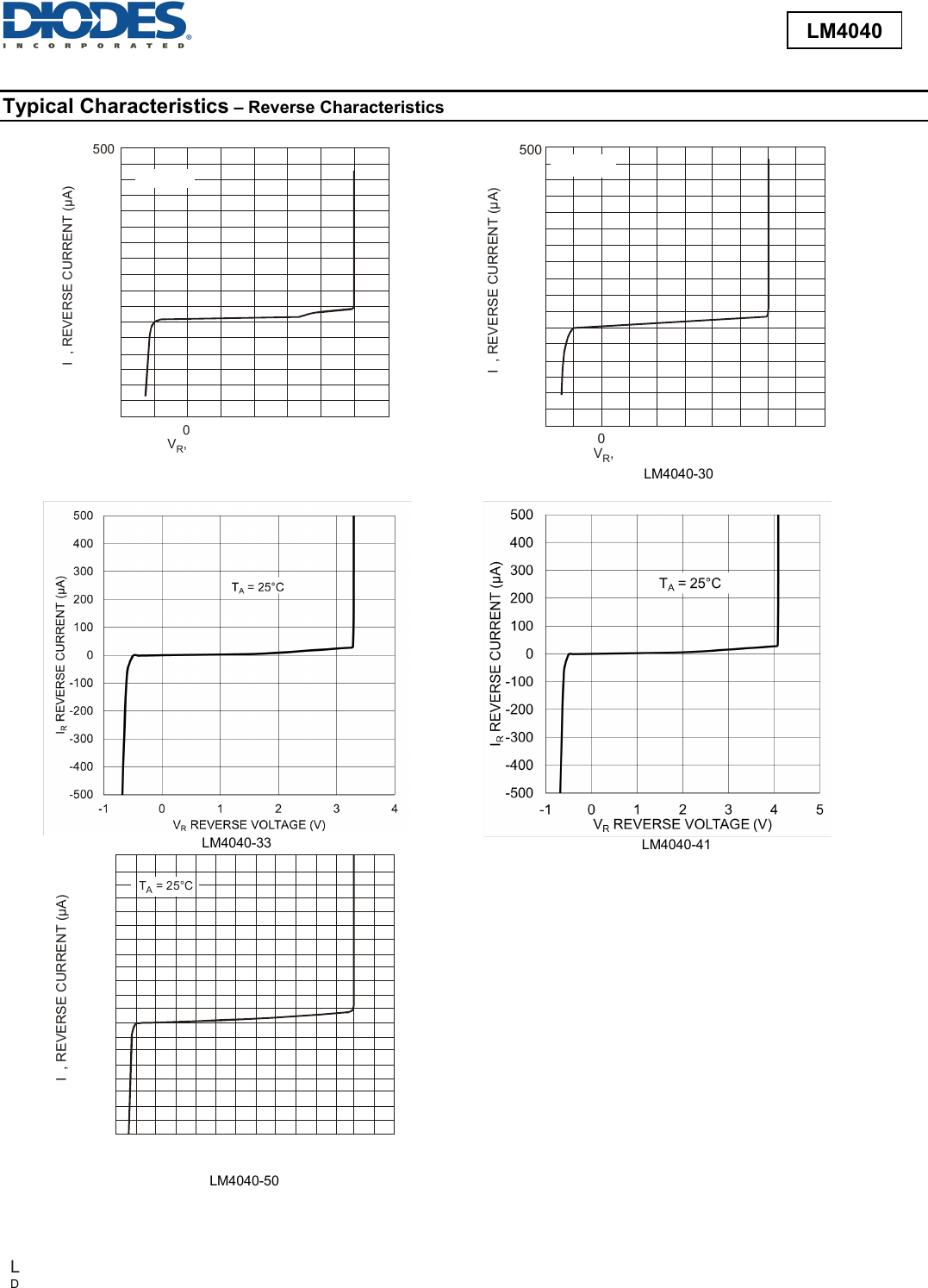

Typical Characteristics – Reverse Characteristics
LM4040-25
LM4040-30
LM4040-33
LM4040-41
LM4040-50
12 3
-1 0
V , REVERSE VOLTAGE (V)
R
I, REVERSE CURRENT (µA)
R
500
400
-200
-300
0
-100
200
100
300
T = 25°C
A
1 2 4
-1 0
V , REVERSE VOLTAGE (V)
R
I , REVERSE CURRENT (µA)
R
500
400
-200
-300
0
-100
200
100
300
3
T = 25°C
A
1 2 3-1 0
V , REVERSE VOLTAGE (V)
R
I , REVERSE CURRENT (µA)
R
500
400
-200
-300
0
-100
200
100
300
T = 25°C
A
4 5 6
-400
LM4040
Document number: DS33195 Rev. 8 - 2
7 of 16
www.diodes.com
August 2019
© Diodes Incorporated
LM4040 Typical Characte cs LMAOADQ Reference Impedance Ol— 1mm 5; m 0100 Z <( a="" m="" n.="" e="" w="" 10="" u="" z="" m="" ix="" e="" m="" 1="" ec="" rx‘f="" 01="" frequency="" (hzp="" lm4040-25="" 1000="" \r="" :="" 100m="" 100="" cl="" :="" ‘="" uhf="" mum="" 10="" 2;,="" reference="" impedance="" ((2)="" d1="" frequency="" (hz)="" lmaoao-so="" 1="" 000="" 100="" 10="" zr‘="" reference="" \mpedance="" (n)="" 01="" fr="" ue="" vh2)="" lm4040-50="" 9)="" z="" ,="" reference="" impedance="" (9)="" z="" ‘="" reference="" impedance="" (="" z="" ,="" reference="" impedance="" ($1)="" 100="" 100="" 100="" ‘="" fr="" y="" hz="" lm4040-25="" :2l="" :1="" cu:="" tammy"="" 1o="" 1="" fr="" ue="" v="" hz)="" lmaoau-ao="" ’="" cl="1" an;="" tarramm="" 10="" 1="" fr="" ue="" yhz)="" lmavo-so="" '="">
LM4040
Typical Characteristics LM4040Q Reference Impedance
LM4040-25
LM4040-25
LM4040-30
LM4040-30
LM4040-50
LM4040-50
10k 100k 1M100 1k
FREQUENCY (Hz)
T = 25°C
I = 100µA
A
R
C = 0
L
C = 1.0µF
Tantalum
L
T = 25°C
I = 1mA
A
R
10k 100k 1M100 1k
Z , REFERENCE IMPEDANCE ( )
R
Ω
100
0.01
0.1
1
10
C = 0
L
C = 1.0µF
Tantalum
L
FREQUENCY (Hz)
f
10k 100k 1M100 1k
FREQUENCY (Hz)
T = 25°C
I = 100µA
A
R
C = 0
L
C = 1.0µF
Tantalum
L
10k 100k 1M100 1k
Z , REFERENCE IMPEDANCE ( )
R
Ω
100
0.01
0.1
1
10
FREQUENCY (Hz)
Rf I d F
10k 100k 1M100 1k
FREQUENCY (Hz)
Rf I d F
10k 100k 1M100 1k
Z, REFERENCE IMPEDANCE ( )
RΩ
100
0.1
1
10
FREQUENCY (Hz)
Rf I d F
LM4040
Document number: DS33195 Rev. 8 - 2
8 of 16
www.diodes.com
August 2019
© Diodes Incorporated
LM4040 Typical Characteristics LM404oQ Noise Characteristics Cl— 500 1200 LM4040-25 IR : 10mm LM4040-50 650 LMAMO-SO
LM4040
Typical Characteristics LM4040Q Noise Characteristics
LM4040-25
LM4040-30
LM4040-50
12 3
-1 0
FREQUENCY (Hz)
Noise Voltage vs. Frequency
T = 25°C
I = 100µA
A
R
NOISE (nV/ Hz)√
500
480
340
300
380
360
440
420
460
400
320
1k 10k 100k10 100
FREQUENCY (Hz)
Noise Voltage vs. Frequency
NOISE (nV/ Hz)√
650
450
550
600
500
400
1k 10k 100k10 100
FREQUENCY (Hz)
Noise Voltage vs. Frequency
NOISE (nV/ Hz)√
1200
600
400
1000
800
LM4040
Document number: DS33195 Rev. 8 - 2
9 of 16
www.diodes.com
August 2019
© Diodes Incorporated
LM404O Start Up Characteristics LM40400 Short Pulse or— INPUT I: OUTPUT VOLTAGE (v) v) 1 INPUT & OUTPUT VOLTAGE mm and cum vdme (V7 1 23‘55 TIME tusy Shun Pulse Response LM4040-25 mm 7 2 a A 5 s 7 a a «o Y‘mews) 5mm mi. mm. LM4040—33 , ‘Lm r.=2s~c, P Rfaam mun 4 2 3 : 5 5 7 s 9 1o TIME (us) Shun Pmse Rssncnse LM4040-50 E 35 E 94 F E ,_a 2 o .52 E 2' n 012345675910 TTMEKUSI m mm mm: LM4040-30 so W. so in) 0mm :3 gs.) 520 E gm m. 0123A587391a Mews) 5m me name LM4040-41
LM4040
Start Up Characteristics LM4040Q Short Pulse
LM4040-25
LM4040-30
LM4040-33
LM4040-41
LM4040-50
LM4040
Document number: DS33195 Rev. 8 - 2
10 of 16
www.diodes.com
August 2019
© Diodes Incorporated
LM4040 Start Up Characteristics LM404OQ Long Pulse Ol— 93 input TA: 25‘": Rs = 30k Amubm Input and Output Voltage (V) o 0.0 200v 40.0.1 eoou amp 1000.: Time (5) Long Pulse Response LM404o—25 so 50 mm Y.=25‘C RA=3Dk0 §m E g 30 am. 5 2» 3 M? an a m 20 an m so W m so an we mum long Pulse Response LM4040—33 3 Input 3 m Input and Oulpul Voltage (V) a) no 200“ 49m; 600;; soon 1000;; Time (5) Long Pulse Response LM4040-50 Mmbmmd Dd Input and Output Voltage (V) 00 200” 400i] 600” 800p 1000” Time (5) Long Pulse Response LM4040~30 an m 50 L=25~c “mm §m E g 30 § 2» 3 M? an a m 20 an m 50 W m so so we mm», Lung Pulse Response LMAMD-M
LM4040

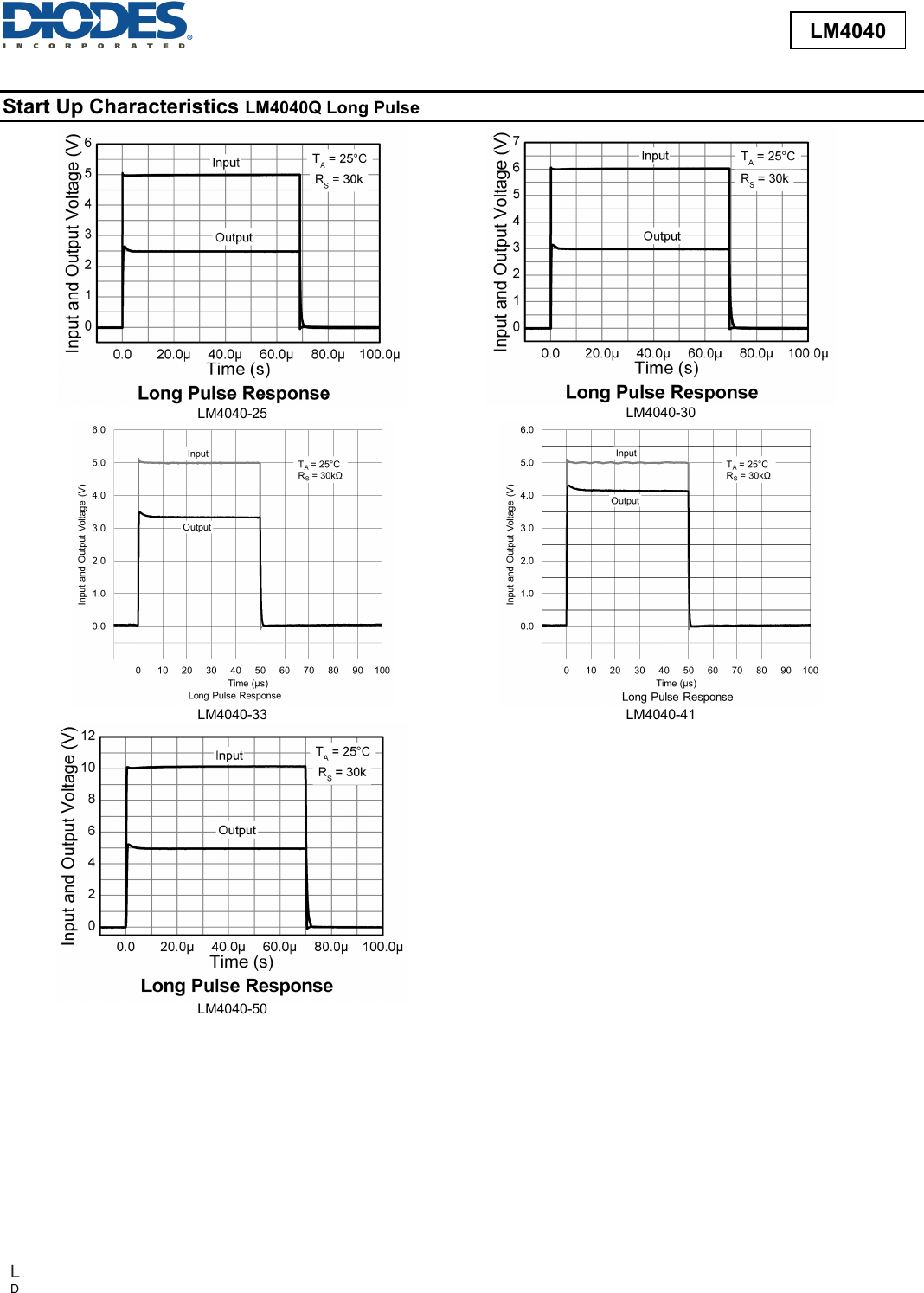

Start Up Characteristics LM4040Q Long Pulse
LM4040-25
LM4040-30
LM4040-33
LM4040-41
LM4040-50
LM4040
Document number: DS33195 Rev. 8 - 2
11 of 16
www.diodes.com
August 2019
© Diodes Incorporated
LM4040 Application Information LM4040, FR; Ol— \lt \F: + IL Figure 1 Va
LM4040
Application Information
In a conventional shunt regulator application (Figure 1), an external series resistor (RS) is connected between the supply voltage, VS, and the
LM4040.
Figure 1
RS determines the current that flows through the load (IL) and the LM4040 (IR). Because load current and supply voltage
can vary, RS should be small enough to supply at least the minimum acceptable IR to the LM4040 even when the supply
voltage is at its minimum and the load current is at its maximum value. When the supply voltage is at its maximum and IL
is at its minimum, RS should be large enough so that the current flowing through the LM4040 is less than 15mA.
RS is determined by the supply voltage, (VS), the load and operating current, (IL and IR), and the LM4040’s reverse
breakdown voltage, VR.
RL
RS
SII
VV
R+
−
=
Printed Circuit Board Layout Considerations
The LM4040 device in the SOT23 package has the die attached to pin 3, which results in an electrical contact between
pin 2 and pin 3. Therefore, pin 3 of the SOT23 package must be left floating or connected to pin 2.
LM4040
Document number: DS33195 Rev. 8 - 2
12 of 16
www.diodes.com
August 2019
© Diodes Incorporated
LM4040 Ordering Information LM4040 X XX X TA T— Reference . Tolerance Voltage Package Packing B : i 0.2% 25 : 2.5 F: 50123 TA: 7" Tape 8| Reel C: i0.5% 30 : 3.0 D:i1.0% 33:3.3 41 : 4.096 50 : 5.0 per Reel Marking Information (1) sons LMADAO-ZS. LM4040-30. L (Top Vwew) _l:|_ RXX LMADAO-ZS. LM4040-41 (Top View] I X x x K E X or M4040-50 Pan Number Idsmificalion Coda LMAOAOBZSFTA RZE LM4040530FTA R35 LMAOAOBSOFTA RSE LM4040025FTA R20 LM4040030 FTA R30 LM4040050 FTA R50 LMAOAODZSFTA R2D LMAOAODSO FTA RED LMAOADDSO FTA RSD Part Number Identification Coda LMAomaasFTA 353 LM4040E|41 FTA 451 LMADAOCBSFTA 303 LMAOAOCM FTA 401 LM4040D33FTA 303 LM4040D41FTA 4m
LM4040
Ordering Information
Part Number +25°C Tol
Voltage
(V)
Status
(Note 4)
Package
(Note 5)
Identification
Code
Reel
Size
Tape
Width
Quantity
per Reel
LM4040B25FTA
0.2%
2.5 Full Production SOT23 R2B 7”, 180mm 8mm 3000
LM4040B30FTA
3.0
Full Production
SOT23
R3B
7”, 180mm
8mm
3000
LM4040B33FTA
3.3
Full Production
SOT23
3B3
7”, 180mm
8mm
3000
LM4040B41FTA
4.096
Full Production
SOT23
4B1
7”, 180mm
8mm
3000
LM4040B50FTA 5.0 Full Production SOT23 R5B 7”, 180mm 8mm 3000
LM4040C25FTA
0.5%
2.5
Full Production
SOT23
R2C
7”, 180mm
8mm
3000
LM4040C30FTA
3.0
Full Production
SOT23
R3C
7”, 180mm
8mm
3000
LM4040C33FTA
3.3
Full Production
SOT23
3C3
7”, 180mm
8mm
3000
LM4040C41FTA
4.096
Full Production
SOT23
4C1
7”, 180mm
8mm
3000
LM4040C50FTA
5.0
Full Production
SOT23
R5C
7”, 180mm
8mm
3000
LM4040D25FTA
1%
2.5
Full Production
SOT23
R2D
7”, 180mm
8mm
3000
LM4040D30FTA
3.0
Full Production
SOT23
R3D
7”, 180mm
8mm
3000
LM4040D33FTA 3.3 Full Production SOT23 3D3 7”, 180mm 8mm 3000
LM4040D41FTA
4.096
Full Production
SOT23
4D1
7”, 180mm
8mm
3000
LM4040D50FTA
5.0
Full Production
SOT23
R5D
7”, 180mm
8mm
3000
See LM4040Q datasheet for Automotive-compliant versions with AEC-Q100 qualification.
Notes: 4. SC70-5 (H5 package code) options are End Of Life (EOL). Package information can be found at end of datasheet.
5. Package dimensions and pad layout can be found on our website at http://www.diodes.com/package-outlines.html.
Marking Information
(1) SOT23
LM4040-25, LM4040-30, LM4040-50
RXX : Identification Code
Part Number
Identification Code
LM4040B25FTA
R2B
LM4040B30FTA
R3B
LM4040B50FTA
R5B
LM4040C25FTA
R2C
LM4040C30FTA
R3C
LM4040C50FTA
R5C
LM4040D25FTA
R2D
LM4040D30FTA
R3D
LM4040D50FTA
R5D
LM4040-33, LM4040-41
XXX : Identification code
Y : Year : 0~9
W : Week: A~Z : 1~26 week;
a~z : 27~52 week; z represents
52 and 53 week
X : Internal code
Part Number
Identification Code
LM4040B33FTA
3B3
LM4040B41FTA
4B1
LM4040C33FTA
3C3
LM4040C41FTA
4C1
LM4040D33FTA
3D3
LM4040D41FTA
4D1
LM4040
Document number: DS33195 Rev. 8 - 2
13 of 16
www.diodes.com
August 2019
© Diodes Incorporated
ms. LM4040 Package Outline Dimensions $0123 Gm sons {—1—1—1— 025 Dim Min Max Typ i i i A 0.37 0.51 0 40 1 1 1 r i 1 \ B 1.20 1.40 1 30 c 2.30 2.50 2 40 i M f // D 0.39 1.03 0.915 _ . F 0.45 0.50 0.535 W . . U G 1.73 2.05 1 83 m H 2.30 3.00 2 00 i i J 0013 0.10 005 i 1 K 0300 1.00 0.975 77777 17.7., K1 0.903 1.10 1.025 i i L 0.45 0.51 0 55 i 1 ‘ 1 L1 0.25 0.55 040 ,LLI 1 LLI M 0085 0.150 0.110 0 a 0” 8° .. F i b” All Dimensions in mm Suggested Pad Layout $0123 oi- Dimensions Value (in mm) c 2.0 x 03 x1 1 35 v 0.9 Y1 2,9
LM4040

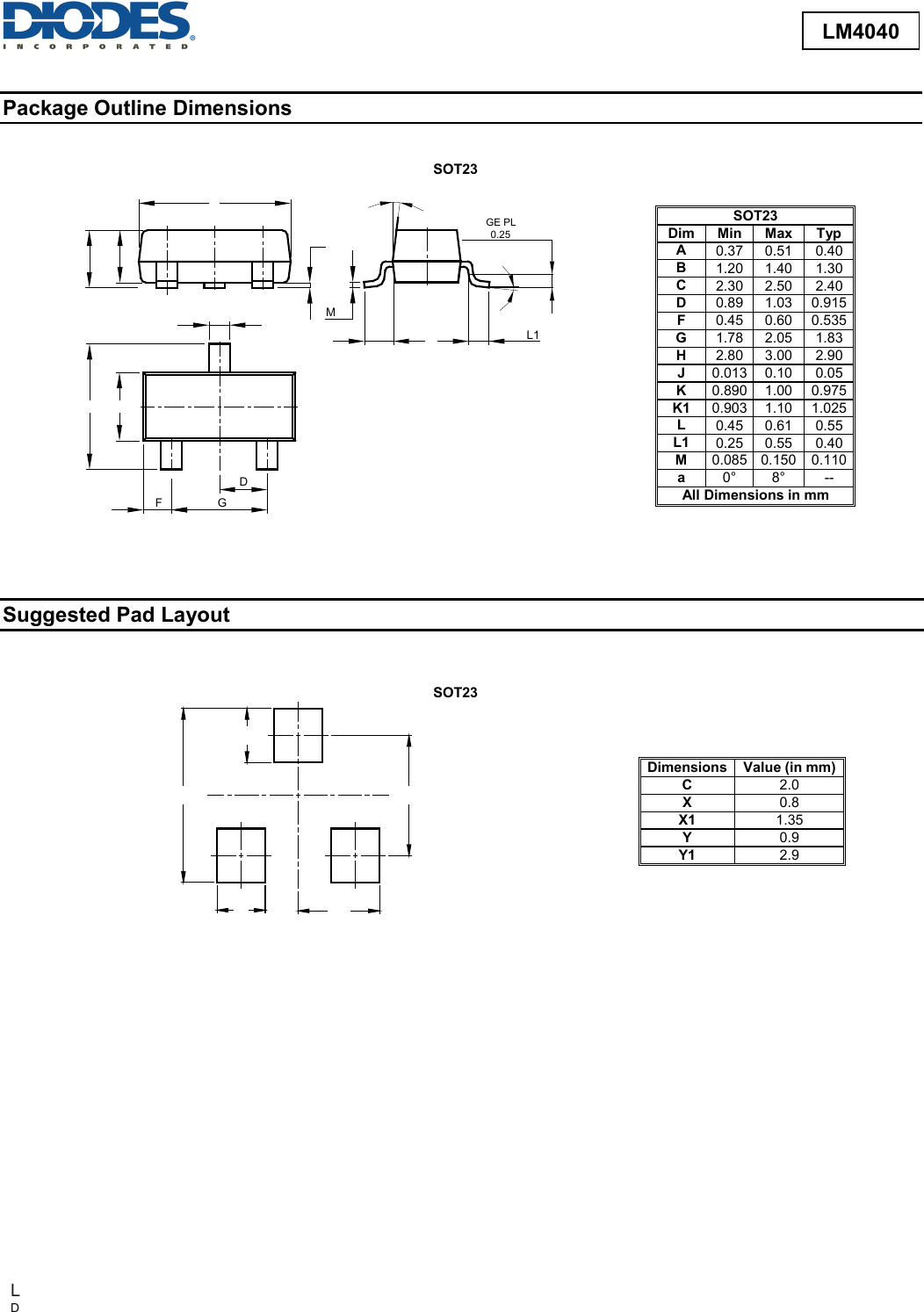

Package Outline Dimensions
Please see http://www.diodes.com/package-outlines.html for the latest version.
SOT23
SOT23
Dim
Min
Max
Typ
A
0.37
0.51
0.40
B
1.20
1.40
1.30
C
2.30
2.50
2.40
D
0.89
1.03
0.915
F
0.45
0.60
0.535
G
1.78
2.05
1.83
H
2.80
3.00
2.90
J
0.013
0.10
0.05
K
0.890
1.00
0.975
K1
0.903
1.10
1.025
L
0.45
0.61
0.55
L1
0.25
0.55
0.40
M
0.085
0.150
0.110
a
0°
8°
--
All Dimensions in mm
Suggested Pad Layout
Please see http://www.diodes.com/package-outlines.html for the latest version.
SOT23
Dimensions
Value (in mm)
C
2.0
X
0.8
X1
1.35
Y
0.9
Y1
2.9
J
K1 K
L1
GAUGE PLANE
0.25
H
L
M
All 7°
A
CB
D
G
F
a
X
Y
Y1 C
X1
LM4040
Document number: DS33195 Rev. 8 - 2
14 of 16
www.diodes.com
August 2019
© Diodes Incorporated
a LM4040 SC70-5 (H5) End of Life Options 1V) per Reel Marking Information , Pan Number Idemincanon Code (mp V'ew] LM4040025H5TA R23 El El LM4040030H5TA RSB LM4040050H5TA R53 LM4040025H5TA R20 RXX LM4040030H5TA R30 LM4040050H5TA R50 LM4040D25H5TA RZD LMAOAODSOHSTA R3D LM4040D50H5TA RSD ns 5 a 7L 7 , ' Dim. Min. Max. Typ. ' ‘ A 1.1 0.0 - 1 A1 0.1 . . E E1 A2 1 0.8 - l b 0.3 0.15 - \ \ c 0 25 0.08 . H H H . D 2,00 05:: 1 “x E 2,10 05:: n C El 1,25 05:: ~ A ' e 0,55 05:: 1 e1 1.30 05:: T “2 i“ L 0 46 0.26 - j a” 0 a - Ol—
LM4040
SC70-5 (H5) End of Life Options
Part Number +25°C Tol
Voltage
(V)
Status
(Note 4)
Package
(Note 5)
Identification
Code
Reel
Size
Tape
Width
Quantity
per Reel
LM4040B25H5TA
0.2%
2.5
End of Life
SC70-5
R2B
7”, 180mm
8mm
3000
LM4040B30H5TA
3.0
End of Life
SC70-5
R3B
7”, 180mm
8mm
3000
LM4040B50H5TA 5.0 End of Life SC70-5 R5B 7”, 180mm 8mm 3000
LM4040C25H5TA
0.5%
2.5
End of Life
SC70-5
R2C
7”, 180mm
8mm
3000
LM4040C30H5TA
3.0
End of Life
SC70-5
R3C
7”, 180mm
8mm
3000
LM4040C50H5TA
5.0
End of Life
SC70-5
R5C
7”, 180mm
8mm
3000
LM4040D25H5TA
1%
2.5
End of Life
SC70-5
R2D
7”, 180mm
8mm
3000
LM4040D30H5TA
3.0
End of Life
SC70-5
R3D
7”, 180mm
8mm
3000
LM4040D50H5TA
5.0
End of Life
SC70-5
R5D
7”, 180mm
8mm
3000
Marking Information
RXX : Identification code
Part Number
Identification Code
LM4040B25H5TA
R2B
LM4040B30H5TA
R3B
LM4040B50H5TA
R5B
LM4040C25H5TA
R2C
LM4040C30H5TA
R3C
LM4040C50H5TA
R5C
LM4040D25H5TA
R2D
LM4040D30H5TA
R3D
LM4040D50H5TA
R5D
Package Outline Dimensions
Dim.
Min.
Max.
Typ.
A
1.1
0.8
-
A1
0.1
-
-
A2
1
0.8
-
b
0.3
0.15
-
C
0.25
0.08
-
D
2.00 BSC
E
2.10 BSC
E1
1.25 BSC
e
0.65 BSC
e1
1.30 BSC
L
0.46
0.26
-
a°
0
8
-
LM4040
Document number: DS33195 Rev. 8 - 2
15 of 16
www.diodes.com
August 2019
© Diodes Incorporated
LM4040 Ol—
LM4040
IMPORTANT NOTICE
DIODES INCORPORATED MAKES NO WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, WITH REGARDS TO THIS DOCUMENT,
INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE
(AND THEIR EQUIVALENTS UNDER THE LAWS OF ANY JURISDICTION).
Diodes Incorporated and its subsidiaries reserve the right to make modifications, enhancements, improvements, corrections or other changes
without further notice to this document and any product described herein. Diodes Incorporated does not assume any liability arising out of the
application or use of this document or any product described herein; neither does Diodes Incorporated convey any license under its patent or
trademark rights, nor the rights of others. Any Customer or user of this document or products described herein in such applications shall assume
all risks of such use and will agree to hold Diodes Incorporated and all the companies whose products are represented on Diodes Incorporated
website, harmless against all damages.
Diodes Incorporated does not warrant or accept any liability whatsoever in respect of any products purchased through unauthorized sales channel.
Should Customers purchase or use Diodes Incorporated products for any unintended or unauthorized application, Customers shall indemnify and
hold Diodes Incorporated and its representatives harmless against all claims, damages, expenses, and attorney fees arising out of, directly or
indirectly, any claim of personal injury or death associated with such unintended or unauthorized application.
Products described herein may be covered by one or more United States, international or foreign patents pending. Product names and markings
noted herein may also be covered by one or more United States, international or foreign trademarks.
This document is written in English but may be translated into multiple languages for reference. Only the English version of this document is the
final and determinative format released by Diodes Incorporated.
LIFE SUPPORT
Diodes Incorporated products are specifically not authorized for use as critical components in life support devices or systems without the express
written approval of the Chief Executive Officer of Diodes Incorporated. As used herein:
A. Life support devices or systems are devices or systems which:
1. are intended to implant into the body, or
2. support or sustain life and whose failure to perform when properly used in accordance with instructions for use provided in the
labeling can be reasonably expected to result in significant injury to the user.
B. A critical component is any component in a life support device or system whose failure to perform can be reasonably expected to cause the
failure of the life support device or to affect its safety or effectiveness.
Customers represent that they have all necessary expertise in the safety and regulatory ramifications of their life support devices or systems, and
acknowledge and agree that they are solely responsible for all legal, regulatory and safety-related requirements concerning their products and any
use of Diodes Incorporated products in such safety-critical, life support devices or systems, notwithstanding any devices- or systems-related
information or support that may be provided by Diodes Incorporated. Further, Customers must fully indemnify Diodes Incorporated and its
representatives against any damages arising out of the use of Diodes Incorporated products in such safety-critical, life support devices or systems.
Copyright © 2019, Diodes Incorporated
www.diodes.com
LM4040
Document number: DS33195 Rev. 8 - 2
16 of 16
www.diodes.com
August 2019
© Diodes Incorporated
