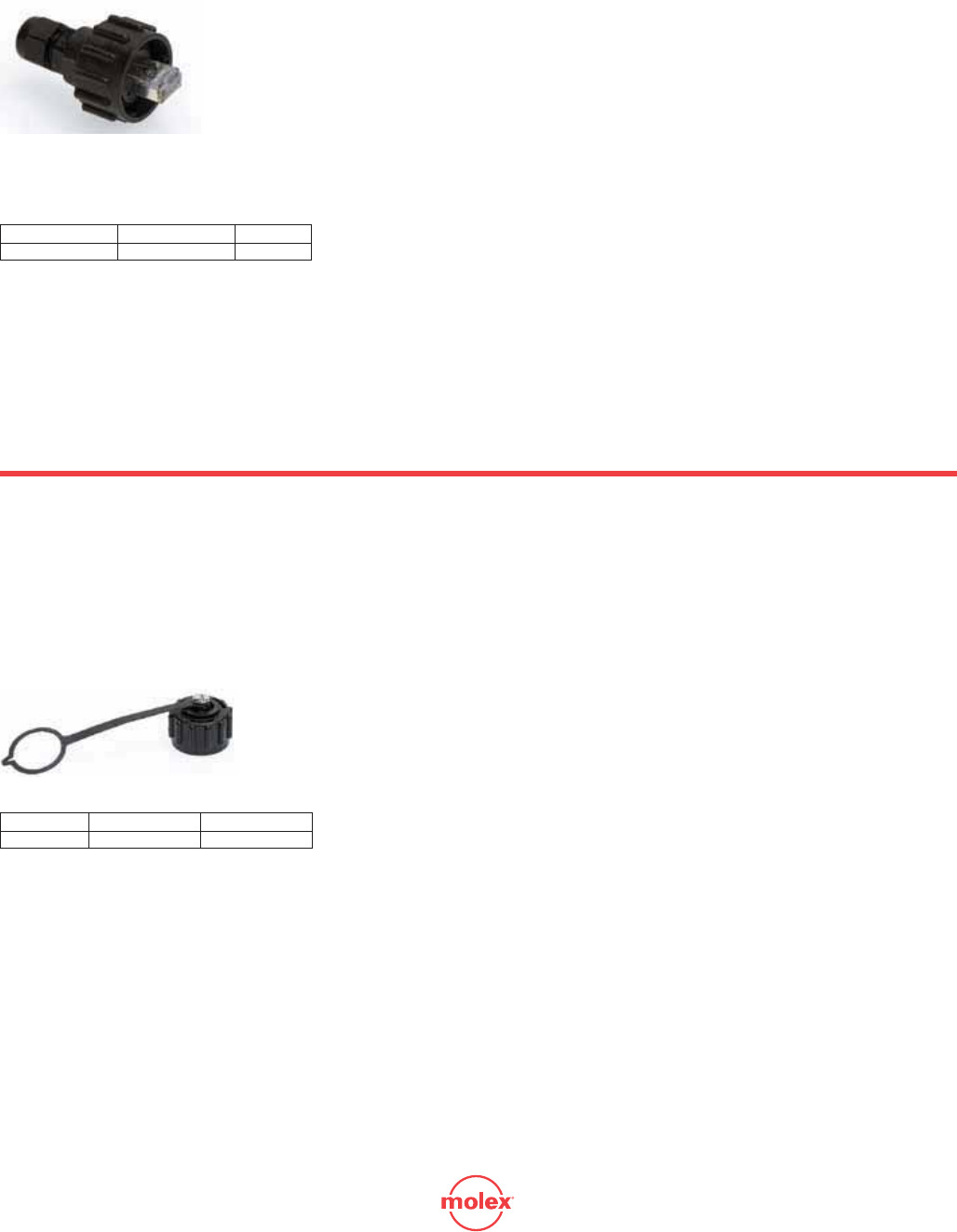

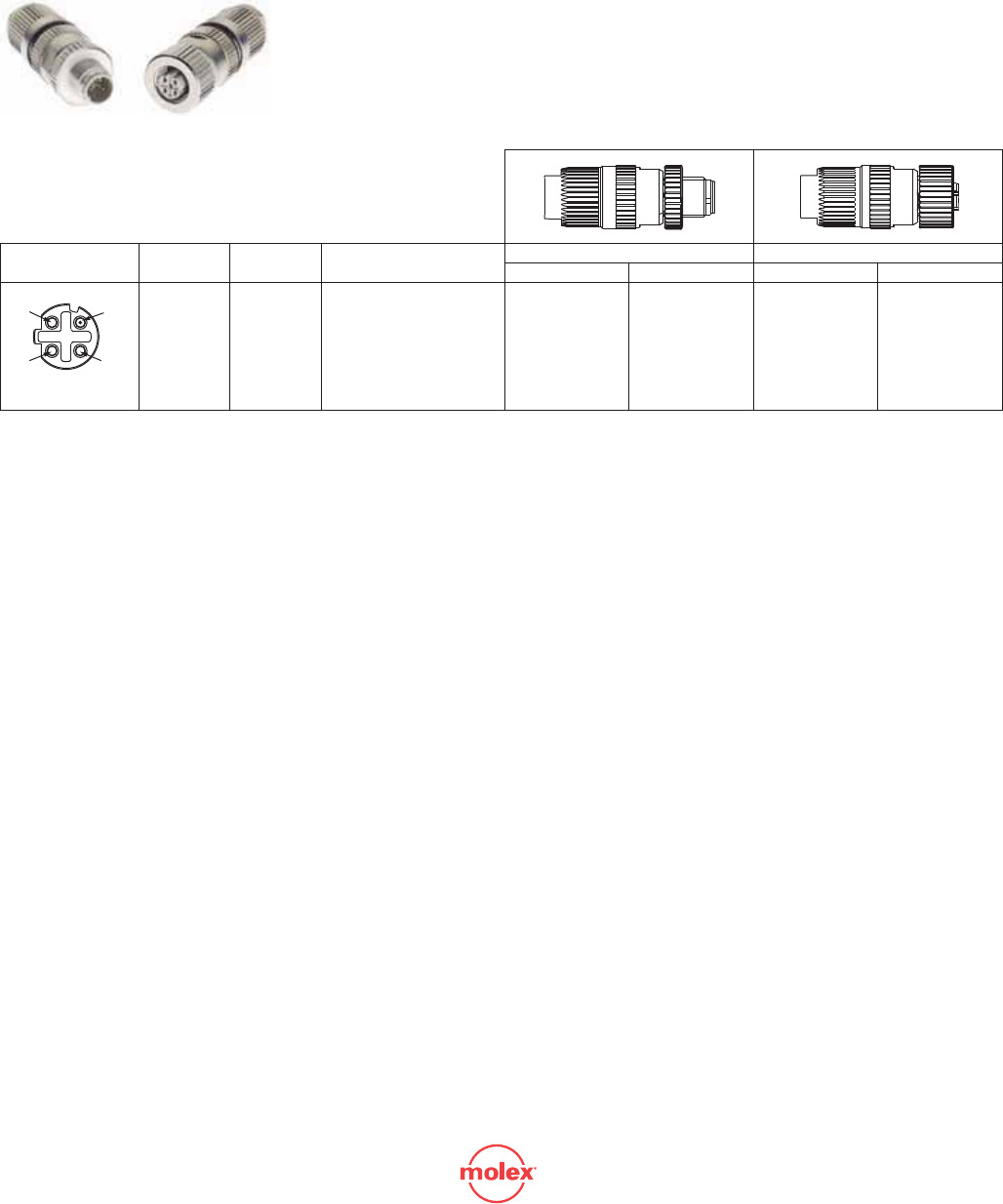

Field-Attachable Connector

Brad® ethernet products provide solutions that enable the world’s most popular Local Area

Network to be reliably utilized on the factory ﬂoor or in harsh commercial environments.

The Brad line offers a large choice of products including physical media, IP67 I/O mod-

ules, unmanaged and managed switches, powerful network interfaces, industrial gateways

and protocol development kits to connect the most popular Ethernet industrial networks

and ﬁeldbuses. Brad Ethernet products give the user a complete communication and

connectivity solution to design a large scope of industrial applications—PC-Based control,

supervision, data storage, protocol bridging, etc.—to suit all industry sectors.

Brad Ethernet

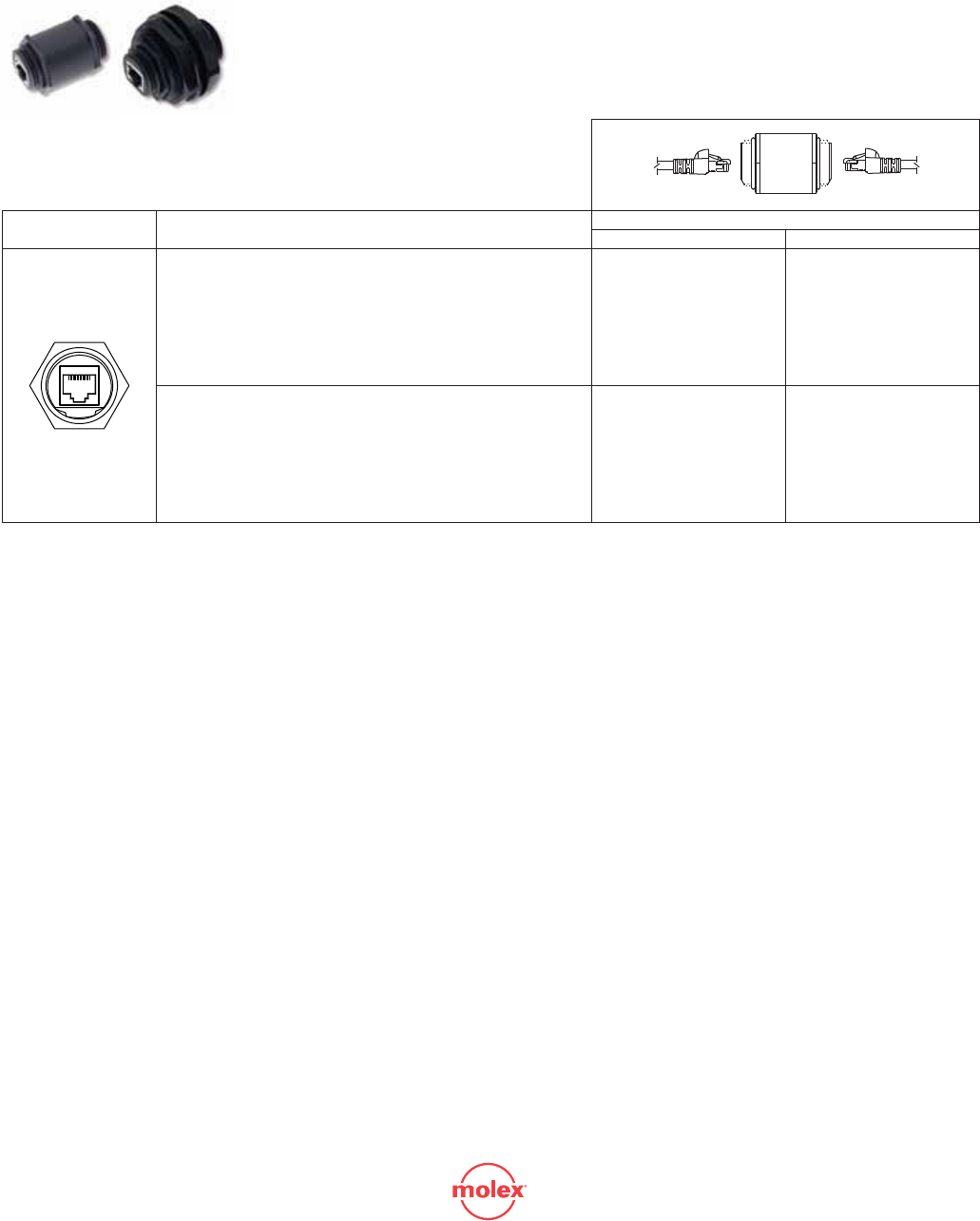

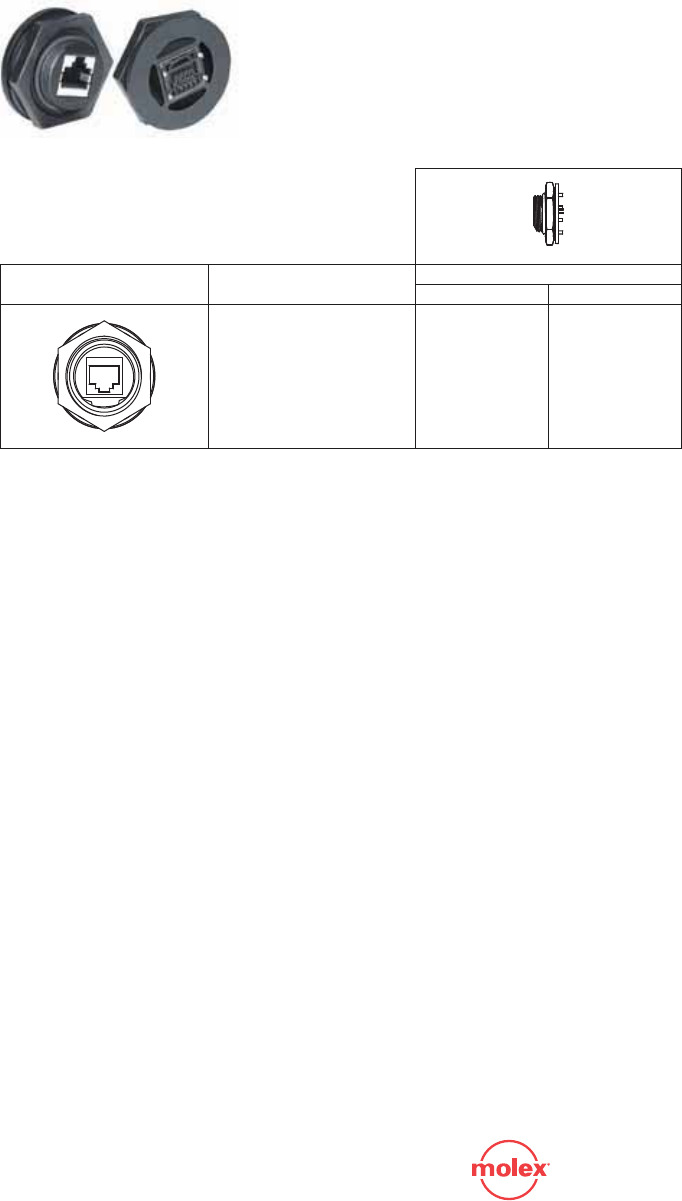

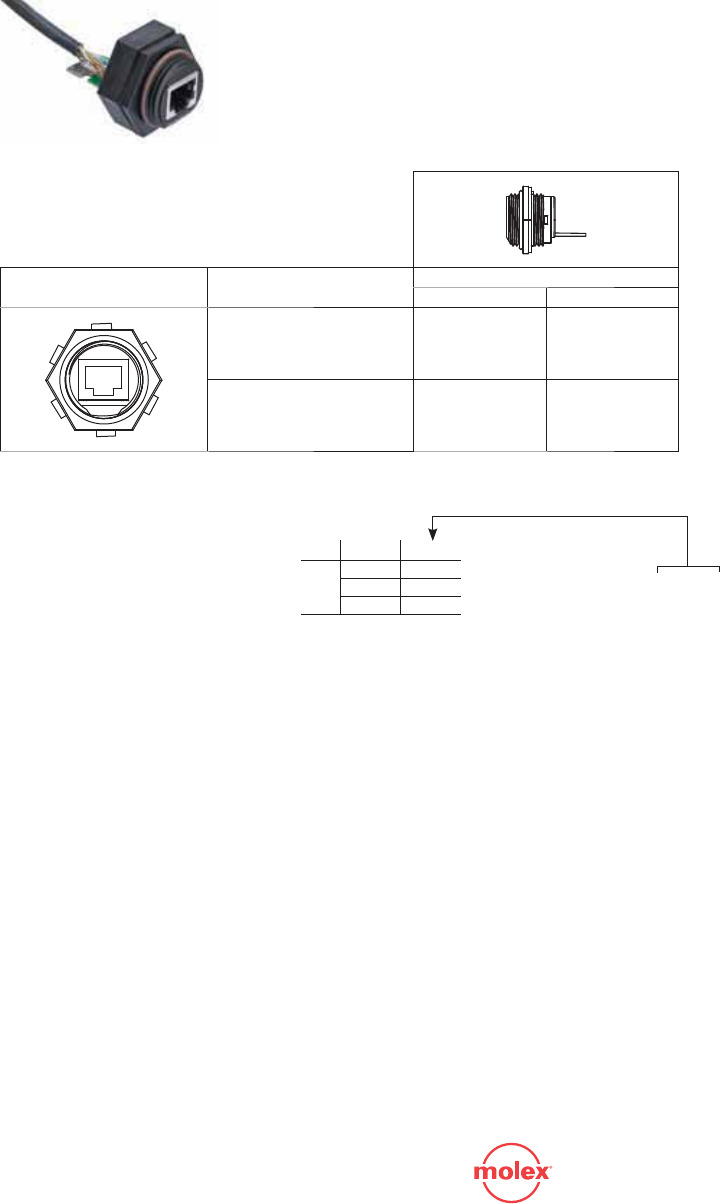

Bulkhead Pass-Thru Receptacle

Router

Firewall

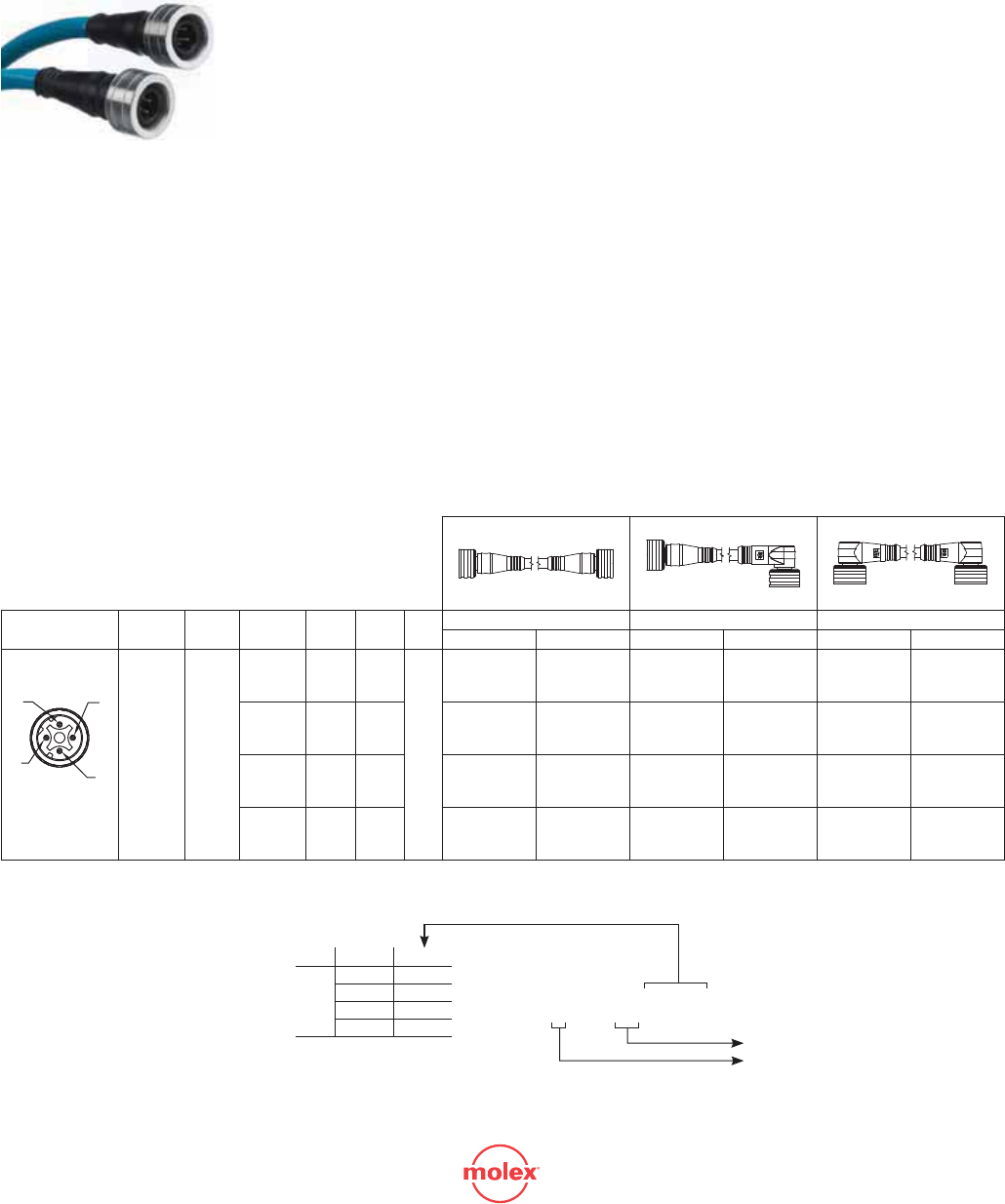

M12 Ultra-Lock®

Cordset

In-Cabinet IP20

Block I/O

Production

Database

Machine-Mount

IP67 I/O Module

Network

Interface Card

Micro Cordset

HMI

Product contained in cabinet

Internet

Gateway

www.molex.com

334

Brad® Ethernet Software

Development Kit for

PROFINET IO

112106

IO-Controller and IO-Device

Features and Beneﬁts

• Master and slave protocol stacks can address both

controller (master) or device (slave) manufacturers who

want to implement PROFINET networks

• Brad stacks have no hardware and OS dependencies and

can be easily implemented on a large range of hardware

system platforms or software operating systems

• Sample applications with source codes are provided and

can be quickly and easily implemented

• Brad stacks are successfully tested with PNO conformance

test tools

• Molex can provide stack training, technical support

and engineering development for both hardware and

software design

Description

• PROFINET IO Class-A/Class-B (RT Class-1, RT Class-2)

• Portable on any real time or not operating systems

implementing multithread (Windows, VxWorks, Linux,

QNX, ThreadX, eCOS, etc)

• Hardware: Compatible with 32-bit microprocessors

• Multiplatform (Intel, ARM, PowerPC, Fido, Texas DSP, etc)

• Support of Intel and Motorola formats

• Consistent IO data access through shared memory

(configurable or automatic) or messaging access (API)

Conformance

• Conforms to PROFINET IO specifications v2.2

• Molex is an active member of PROFINET technical

working groups

Included Hardware/Software

PROFINET IO—Controller Stack

• Supported Services: Context management, configuration,

IO data, alarm, and diagnostic

• Manage up to 128 IO-Devices

• Cyclic Data Exchange: Up to 1440 Input bytes and

1440 Output bytes per IO-Device slot

• IP Device Configuration: DCP or Local

• LLDP (PROFINET MIB)

• SDK initialization via XML file

• CD Deliverable: Single product line licensing (with

royalties), ANSI C source code, electronic documentation,

application samples

PROFINET I0 Device Stack

• IO Data: Up to 1440 Input bytes and 1440 Output bytes

per IO-Device slot

• GSD File: Yes

• IP Device Configuration: DCP or Local

• LLDP (PROFINET MIB)

• Allows design of fixed and modular device

OEM Engineering Console

• Generate IO-Controller stack configuration files

(XML format)

• Automatic IO-Device network detection including

module configuration

• GSD device library management

• IO-Device commissioning (Set Name, Device

blinking, etc.)

• Integrated diagnostic

• Windows 32-bit (XP,Vista)

• OEM customization

• USB dongle protection

MRP Client/Manager Stack

• Manage media redundancy for Ethernet ring topology

according PROFINET Class-B

• CD Deliverable: Single product line licensing (no royalty),

ANSI C source code, electronic documentation

• Does not include PNO MRP patent

Ordering Information

Engineering No. Standard Order No. Description

SDK-PFN-DEV 112106-5001 PROFINET IO-Device Software Development Kit

SDK-PFN-DEV-UPD 112106-5002 PROFINET IO-Device SDK Maintenance Update

SDK-PFN-CON 112106-5005 PROFINET IO-Controller Software Development Kit—1 License Fee included

SDK-PFN-CON-UPD 112106-5006 PROFINET IO-Controller SDK Maintenance Update

SDK-PFN-CON-L 112106-5010 PROFINET IO-Controller License Fee

SDK-PFN-CON-CNF-U 112106-5012 PROFINET IO-Controller OEM Configuration Console, USB Dongle, 1 license

SDK-PFN-MRP 112106-5007 Client/Manager Media Redundancy Protocol SDK for PROFINET IO

Support/Training Information

Engineering No. Standard Order No. Description

SDK-PFN-EDS 860000-0142 Engineering Development Support for PROFINET stack

SDK-PFN-TRN 860000-0144 Training Support for PROFINET stack

www.molex.com 335

Brad® Ethernet Software

Development Kit for

EtherNet/IP

112106

Scanner and Adapter

Features and Beneﬁts

• Master and slave protocol stacks can address both

controller (master) or device (slave) manufacturers who

want to implement EtherNet/IP networks

• Brad stacks have no hardware and OS dependencies and

can be easily implemented on a large range of hardware

system platforms or software operating systems

• Sample applications with source codes are provided and

can be quickly and easily implemented

• Brad stacks are successfully tested with ODVA

conformance test tools

• Molex can provide stack training, technical support

and engineering development for both hardware and

software design

Description

• Portable on any real time or not operating systems

implementing multithread (Windows, VxWorks, Linux,

QNX, ThreadX, eCOS, etc)

• Hardware: Compatible with 32-bit microprocessors

• Multi platform (Intel, ARM, PowerPC, etc)

• Support of Intel and Motorola formats

• Consistent process data image access through messaging

access (API)

Conformance

• Conforms to ODVA specifications v1.4 and CIP v3.3

• Fully compatible with EtherNet/IP Conformance Test

Suite Version A7

• Molex is an active member of ODVA technical working

groups

Included Hardware/Software

EtherNet/IP Scanner and Adapter

• CIP Features:

- IO messaging (process data)

- Explicit messaging (configuration/diagnostic)

• Supported Objects according to CIP Standard

- Identity Object

- Message Router Object

- Assembly Object

- Connection Manager Object

- Connection Configuration Object

- TCP/IP Interface Object

- Ethernet Link Object

• Stack Resolution: Timing resolution in microseconds

• Application Watchdog

• Rack Optimization for best performances with PointIO

and FlexIO devices

• CD Deliverable: single product line licensing (with

royalties), ANSI C source code, electronic documentation,

application samples

EtherNet/IP Adapter

• CIP Features:

- IO messaging (process data)

- Explicit messaging (configuration/diagnostic)

• Supported Objects according to CIP Standard

- Identity Object

- Message Router Object

- Assembly Object

- Connection Manager Object

- Connection Configuration Object

- TCP/IP Interface Object

- Ethernet Link Object

• Stack Resolution: Timing resolution in microseconds

• Application Watchdog

• Generic EDS file

• CD Deliverable: single product line licensing (no

royalty), ANSI C source code, electronic documentation,

application samples

OEM Engineering Console

• Generate EtherNet/IP stack configuration files

• Automatic EtherNet/IP network detection including

module configuration

• ESD device library management

• Device commissioning

• Integrated diagnostic

• Windows 32-bit (XP,Vista)

• OEM customization

• USB dongle protection

Ordering Information

Engineering No. Standard Order No. Description

SDK-EIP-ADP 112106-0000 EtherNet/IP Adapter Software Development Kit

SDK-EIP-ADP-UPD 112106-5000 EtherNet/IP Adapter SDK Maintenance Update

SDK-EIP-SCA 112106-5003 EtherNet/IP Scanner/Adapter Software Development Kit—1 License Fee included

SDK-EIP-SCA-UPD 112106-5004 EtherNet/IP Scanner/Adapter SDK Maintenance Update

SDK-EIP-SCA-L 112106-5009 EtherNet/IP Scanner/Adapter License Fee

SDK-EIP-CON-CNF-U 112106-5011 EtherNet/IP Scanner OEM Configuration Console, USB Dongle, 1 license

Support/Training Information

Engineering No. Standard Order No. Description

SDK-EIP-EDS 860000-0141 Engineering Development Support for EtherNet/IP stack

SDK-EIP-TRN 860000-0143 Training Support for EtherNet/IP stack

www.molex.com

336

Brad®

Windows Compatible Explicit

Messaging Driver for

EtherNet/IP

112106

EtherNet/IP EM Driver

Features and Beneﬁts

• Fastest and easiest solution to implement EtherNet/

IP Explicit Messaging communication on PC-based systems

• User friendly library, no EtherNet/IP knowledge required

• Typical applications:

- Engineering tool

- Commissioning console

- Diagnostic and Monitoring tools

- HMI/Scada applications

- Custom software

Description

• EIP_Driver provides an Application Programming

Interface (API) that simply send/receive buffer of

data on the network with remote EtherNet/IP EM

Server devices

• The EIP_Driver manages the complete CIP communication

(connection/reconnection, etc) so the developer needs no

special expertise in the EtherNet/IP protocol.

Included Hardware/Software

• Send and receive explicit messages

• Client mode (Server mode on request)

- Supports connected and unconnected messages

- Supports synchronous and asynchronous modes

• Support of ListIdentify service to detect all EtherNet/IP

stations connected to the network

• DLL library for Windows 32-bit (Seven/XP/Vista)

- Designed to be used in multi-threaded applications

- Several applications can use the EIP_Driver simultaneously

• DLL library can be statically or dynamically linked with

the target application

• CD Deliverable: single product line licensing (no

royalty), ANSI C source code, electronic documentation,

application samples

Conformance

• Fully compatible with EtherNet/IP Conformance Test Suite

Version A7

• Molex is an active member of ODVA (Open DeviceNet®

Vendor Association) technical working groups

Brad®

Windows Compatible

Multi-Slave Driver for

PROFINET

112027

PROFINET Multi IO-Device

Features and Beneﬁts

• Connect a PC under Windows to PROFINET controller

• Use standard Ethernet card

• Support PROFINET IO Real-Time communication

• Support multi-slave functionnality on single PC by using

multiple Ethnernet ports

• Typical applications:

- HMI/Operator panel

- Workbench

- IO simulation

Description

• Conform to PROFINET IO v2.2 specifications

• Support up to 32 IO-Device connections in a single PC

• Support PROFINET Alarms

• Engineering Tools:

- Configuration console

- Test and diagnostic tools

• Includes Windows Library (DLL)

• Windows (32-bit): Seven, 2008 Server, Windows Vista,

2003 Server, Windows XP®

Included Hardware/Software

• IO Data: Up to 1440 Input bytes and 1440 Output bytes

per IO-Device slot

• Automatic generation of GSD file based on user

configuration ready to use in PROFINET I/O-Controller

engineering software

• Allows design of fixed and modular device

• IP Device configuration: DCP or Local

• Software Protection

Conformance

• Conform to PNO conformance test tool (PN Tester)

• Molex is an active member of PROFINET technical

working groups

Engineering No. Standard Order No. Description

DRL-EPN-SWF-S 112027-5007 Windows PROFINET Multi IO-Device Driver, Software protection key

Engineering No. Standard Order No. Description

SDK-EIP-EML 112106-5008 EtherNet/IP Explicit Messaging DLL library, Client mode

www.molex.com 337

Brad® Direct-Link®

Windows Compatible

Protocol Drivers

112027

Ethernet TCP/IP and Serial

Features and Beneﬁts

• Direct-Link™ SW1000 provides data acquisition between

Windows PC-based applications and industrial devices

connected to Ethernet TCP/IP

• Economic solution; well suited for embedded and light

architecture (laptop, panel PC, MMI)

• 100% software solution; use PC COM port or integrated

Ethernet interface (3COM, NE2000)

• Wide variety of open and vendor specific industrial

protocols

• 1000 tags, full tags and Siemens (S5, S7, TI) versions

Description

• Based on Windows TCP/IP socket

• All Ethernet protocols can run simultaneously

• All Ethernet protocols can run Client and Server modes

• Database (32 Kbits, 32 Kwords) for Server mode to

exchange data with applications

Included Hardware/Software

• Engineering Tools:

- Engineering console

- Test and diagnostic tools

• Compatible Data Servers:

- OPC DA v3.0, 2.05 and 1.0a

- Wonderware® DAServer (XP only)

- Wonderware I/O (SuiteLink/FastDDE) (XP only)

• Includes Development Libraries

• Windows Compatibility (32-bit and 64-bit): Seven,

2008 Server, Windows Vista®, 2003 Server, Windows XP®

• Software or Dongle (Parallel or USB) Protection

Compatible Protocols

Ethernet TCP/IP

• Altus® Alnet II (AL200x, webgate); Client/Server

• Alstom® SRTP (C80-35, C80-75); Client/Server

• Allen-Bradley® Logix5000 (ControlLogix and FlexLogix);

Client/Server

• GE Fanuc® SRTP ( C90-30, C90-70); Client/Server

• Mitsubishi® Melsec (A and Q); Client/Server

• Omron® FINS (C, CV, CS); Client/Server

• Schneider® Modbus TCP and UDP; Client/Server

• Schneider® UNI-TE (Premium and Micro); Client/Server

• Siemens® Industrial Ethernet (S5, S7, TI); Client/Server

Serial

• Modbus Master (ASCII and RTU)

• Modbus Slave (ASCII and RTU)

• GE Fanuc® SNPX Master (90-xx and 80-xx Series)

• Schneider® Uni-Telway Slave (TSX 7 Series)

• Siemens® AS511 Master (Simatic S5 Series)

• Siemens® PPI/PPI+ Master (Simatic S7-200 Series)

• Siemens® Ti-Dir Master (Simatic TI-505 Series)

Engineering No. Standard Order No. Description

DRL-ALL-SWL-S 112027-0005 SW1000 software drivers, 1000 tags, Software key protection.

DRL-ALL-SWF-S 112027-0002 SW1000 software drivers, Full tags, Software key protection.

DRL-SIE-SWF-S 112027-5014 SW1000 for Siemens (S5, S7, TI), Full tags, Software key protection.

DRL-ALL-SWL-P 112027-0004 SW1000 software drivers, 1000 tags, Parallel dongle protection

DRL-ALL-SWF-P 112027-0001 SW1000 software drivers, Full tags, Parallel dongle protection

DRL-SIE-SWF-P 112027-5013 SW1000 for Siemens (S5, S7, TI), Full tags, Software key protection.

DRL-ALL-SWL-U 112027-0006 SW1000 software drivers, 1000 tags, USB dongle protection

DRL-ALL-SWF-U 112027-0003 SW1000 software drivers, Full tags, USB dongle protection

DRL-SIE-SWF-U 112027-5015 SW1000 for Siemens (S5, S7, TI), Full tags, Software key protection.

DRL-UPG-SWF 112027-0010 SW1000 upgrade from 1000 tags to Full tags

m nu on.» wan-u: on .— Iu-nhn m m um... m) can sun—aw. me. man u me. u). m». A 4 molex \_/

www.molex.com

338

Brad® applicom®

Network Interface Card

112000

Industrial Ethernet

Features and Beneﬁts

• Fast data acquisition between PC-based applications and

industrial devices connected to Ethernet TCP/IP

• On board co-processor eliminates data bottlenecks,

ensuring delivery of time critical information

• All protocols are included

• Best choice for Supervision/HMI/SCADA applications

• Equipment redundancy via OPC server

• Combo offer:

- Ethernet + PROFIBUS (1.5 Mbps)

- Ethernet + Serial (38.4 Kbps)

Description

• Engineering Tools:

- Engineering console

- Test and diagnostic tools

• Compatible Data Servers:

- OPC DA v3.0

- Wonderware® DAServer (XP only)

- Wonderware IO (SuiteLink/FastDDE) (XP only)

• Includes Development Libraries

• Supported OS:

- Windows (32-bit and 64-bit): Seven, 2008 Server,

Windows Vista®, 2003 Server, Windows XP®/

XP Embedded

- Others: Linux, VxWorks, RTX VenturCom

Included Hardware/Software

• Bus Format

- PCI Universal bus 3.3V/5V (PCI-X compatible)

- PCI Express 1x

• Hardware plug and play

• AMD SC520

• 16 Mb SDRAM

• 4 Mb Flash Memory

• One Ethernet port

- Fast Ethernet 10/100 Mbps, auto negotiating

- Base-T (RJ45), 4 leds (Rx, Tx, Link, 10/100)

Compatible Protocols

Ethernet TCP/IP (Client/Server modes)

• Altus® Alnet II (AL 200x, Webgate)

• Alstom® SRTP (C80-35, C80-75)

• Allen-Bradley® EtherNet/IP(PCCC)

(Logix, PLC-5 and SLC 500)

• GE Fanuc® SRTP (90-30, 90-70)

• Mitsubishi® Melsec (A, Q)

• Omron® FINS (C, CV, CS)

• Schneider Electric® Open Modbus TCP

• Schneider Electric® UNI-TE (Premium and Micro)

• Siemens® Industrial Ethernet (S5, S7, TI)

• UDP Send/Receive (Free messaging)

Ethernet ISO

• Schneider Electric® Ethway

• Siemens® Industrial Ethernet ISO (S5, S7, TF and TI)

Conformance

• RoHS compliant

• CE

• OPC certified

• Rockwell Encompass™

• Schneider Collaborative

Engineering No. Standard Order No. Description

APP-ETH-PCU-C 112000-0005 PCU2000ETH PCI Network Interface Card for Ethernet

APP-ETH-PCIE 112000-5026 PCIE2000ETH PCI Express Network Interface Card for Ethernet

APP-EPB-PCU-C 112000-0001 PCU2000ETH PCI Network Interface Card for Ethernet + Profibus

APP-EPB-PCIE 112000-5028 PCIE2000ETH PCI Express Network Interface Card for Ethernet + Profibus

APP-ESR-PCU-C 112000-0003 PCU2000ETH PCI Network Interface Card for Ethernet + Serial

APP-ESR-PCIE 112000-5027 PCIE2000ETH PCI Express Network Interface Card for Ethernet + Serial

w—h-nh— “pod—u 1 is; ! mum “mi ' [EEEWT gm (it)

www.molex.com 339

Brad® applicom®

Network Interface Card

112000

Ethernet Fieldbus

Features and Beneﬁts

• Deterministic data acquisition for real time PC-based

control applications

• On board co-processor eliminates data bottlenecks,

ensuring delivery of time critical information

• Very Easy-to-Use; no knowledge of protocol required

• Remote Access via TCP/IP connection; to able

configuration and diagnostic when using real time OS

(VxWorks, QNX, etc)

Description

• Auto mapping of IO in card DPRAM

• IO exchange up to 14 Kbytes

• Hardware and software Watchdog

• Auto-Boot (Configuration stored in Flash)

• Engineering Tools:

- Engineering console with automatic test and

diagnostic tools

• Compabtible Data Servers:

- OPC DA v3.0, 2.05 and 1.0a

- Wonderware® DAServer

- Wonderware IO (SuiteLink/FastDDE)

• Includes Development Libraries

• Supported OS:

- Windows (32-bit and 64-bit): Seven, 2008 Server,

Windows Vista®, 2003 Server, Windows XP®/

XP Embedded

- Others: Linux, VxWorks, RTX VenturCom

Included Hardware/Software

• PCI Universal bus 3.3V/5V (PCI-X compatible)

• Hardware plug and play

• AMD SC520

• 16 Mb SDRAM; 4 Mb Flash Memory

• 1 Digital Input + 1 Digital Output

• 1 Ethernet port

- Fast Ethernet 10/100 Mbps, auto negotiating

- Base-T (RJ45), 4 LEDs (Rx, Tx, Link, 10/100)

Compatible Protocols

Modbus TCP and UDP

• Client mode

• Up to 127 simultaneous devices

EtherNET/IP

• Scanner and adapter

• Explicit messaging (Client/Server)

• Up to 128 simultaneous CIP connections

• EtherNet/IP Devices supported: Generic and Rockwell IO

through EDS files (FlexIO, CompactLogix, etc)

• IP address settings configurable via the console or DHCP/

BOOTP server

• Client DNS Supported

PROFINET IO-Controller

• RT Class-1

• Up to 127 IO-Devices; max. IO size 14K

• Cyclic Data Exchange (IO); up to 1437 In and 1437 Out

per device

• Acyclic Data Exchange (for Configuration + Diagnostic)

• Minimum cycle time 1 ms

• Alarm handling

• IP Address manager

• Commissioning tool (set name, set IP address, device

blinking, etc)

PROFINET IO-Device

• RT Class-1

• Up to 1437 In and 1437 Out; 1 slot for Inputs + 1 slot

for Outputs

• Instructions and Maintenance 0, 1, 2, 3

• 1x Record for user custom diagnostics

• Process- and Diagnostic Alarm

• GSD file

Conformance

• RoHS compliant

• CE

• OPC certified

• ODVA conformance tested

• Rockwell Encompass™

Engineering No. Order No Description

DRL-EMB-PCU 112000-5029 PCU-ETHIO PCI Network Interface Card for Modbus TCP/IP

DRL-EMB-PCIE 112000-5034 PCU-ETHIO PCI Express Network Interface Card for Modbus TCP/IP

DRL-EIP-PCU 112000-5030 PCU-ETHIO PCI Network Interface Card for EtherNet/IP

DRL-EIP-PCIE 112000-5033 PCU-ETHIO PCI Express Network Interface Card for EtherNet/IP

DRL-EPN-PCU 112000-5031 PCU-ETHIO PCI Network Interface Card for PROFINET IO

DRL-EPN-PCIE 112000-5032 PCU-ETHIO PCI Express Network Interface Card for PROFINET IO

Configuration Console Device Diagnostics

' “=3: Emnmpm m... ~— — (3%)

www.molex.com

340

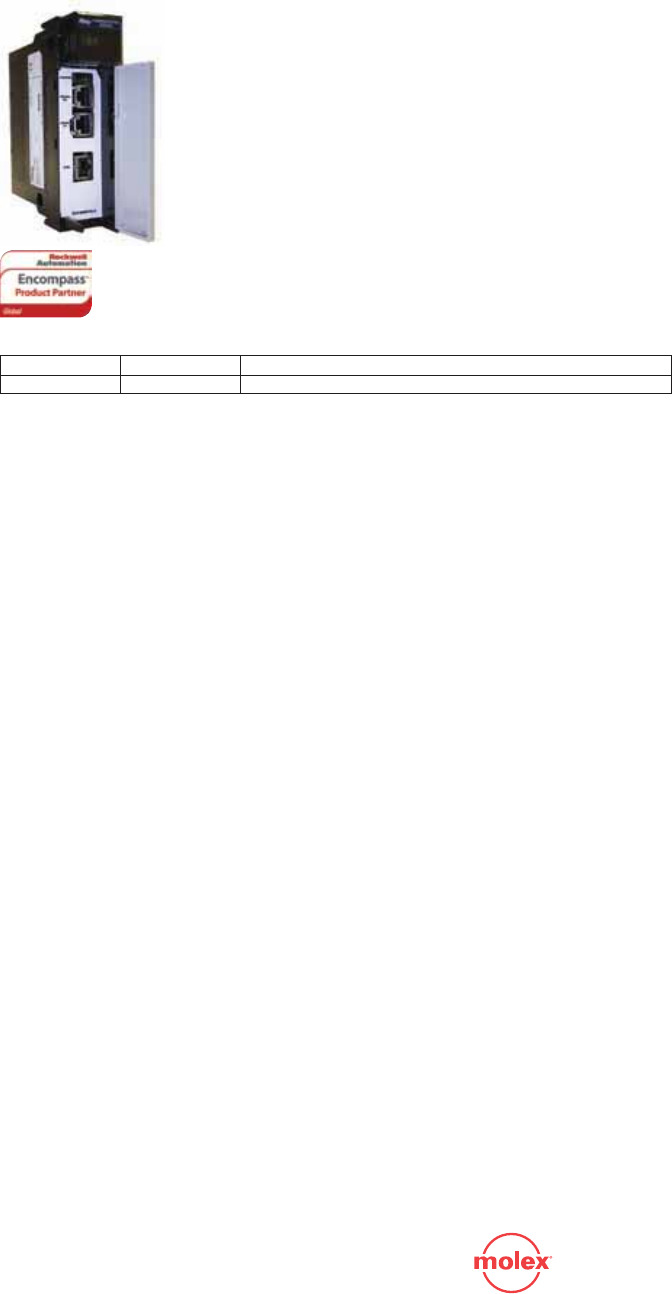

Brad® SST™

Communication Module for

Rockwell ControlLogix

112073

Modbus TCP and Serial

Features and Beneﬁts

• Connects your Allen-Bradley® ControlLogix to a Modbus

Ethernet or Serial network

• Direct IO Mapping, no Ladder Logic to write for

configuration and data transfer between module and

CLX processor

• Fully integrated into the Rockwell® Automation

environment

• User-friendly configuration tool with intuitive graphical

interface

Description

• RLL support: remote configuration and monitoring via

RSLinx

• Add-On-Profile for Rockwell® RSLogix5000

• USB port for user configuration and firware upgrade

• Engineering console simplified user configuration and

diagnostic

• Support multiple modules in a chassis

• Support Local and Remote chassis

• Easy diagnostics: Built-in LEDs and 4 characters display

Included Hardware/Software

• 128 MB of onboard memory

• 8 MB of flash memory (user configuration data and

firmware)

• CPU Data exchange:

- 496 Inputs bytes + 496 Output bytes

- 32.000 Words Registers (CIP messaging)

• Type A, USB 2 and 1.1 compatible

• Communication Ports

- 1x Ethernet, 10/100 Mbps, RJ45

- 2x Serial, 110 bps to 115.2 kbps, RS232/RS485/

RS422, RJ45 (DB9 male supplied cable)

Compatible Protocols

• Modbus Master (RTU or ASCII)

• Modbus Slave (RTU or ASCII)

• Modbus TCP and UDP Client and Server

Conformance

• RoHS compliant

• CE, UL, cUL

• Class 1 Div 2

• Rockwell Encompass™

Engineering No. Standard Order No. Description

SST-ESR2-CLX-RLL 112073-0001 Modbus communication module for Rockwell ControlLogix

(3+)

www.molex.com 341

Brad® applicom®

Industrial Multi-Protocol

Gateway

112034

Ethernet, Serial and PROFIBUS

Features and Beneﬁts

• Allows simultaneous communication between industrial

devices using up to 20 different Ethernet TCP/IP,

PROFIBUS and Serial protocols

• Typical architectures: data translator, data concentrator,

Industrial firewall

• No programming, just configuring (tools included)

• Supports unsolicited data exchange from Client device

Description

• Real-Time data exchange through internal database

(32 Kbits/32 Kwords)

• Upload/Download configuration and diagnostic through

Remote TCP/IP

• Up to 128 PLCs on Ethernet TCP and 126 PROFIBUS devices

• Full management of Read/Write cyclic access through

word status commands

• Engineering Tools:

- Configuration console

- Test and diagnostic tools

Included Hardware/Software

• RAM 32 Mbytes; Flash Disk 32 Mbytes

• Diagnostic LEDs

• Communication Ports

- 1x Serial, 2400 bps up to 115.2 Kbps,

RS485/422 (2-wire or 4-wire), DB9 male

- 1x Ethernet, 10/100 Mbps, RJ45

- 1x PROFIBUS, 9.6 Kbps up to 12 Mbps, DB9 female

• Embedded 6 Digital Inputs/2 Digital Outputs

• Desktop or DIN Rail mounting

Compatible Protocols

• Ethernet TCP/IP (Client/Server modes)

- Altus® Alnet II (AL 200x, Webgate)

- Alstom® SRTP (C80-35, C80-75)

- Allen-Bradley® EtherNet/IP (Logix, PLC-5 and SLC 500)

- GE Fanuc® SRTP (90-30, 90-70)

- Mitsubishi® Melsec (A, Q)

- Omron® FINS (C, CV, CS)

- Schneider Electric® Open Modbus TCP and UDP

- Schneider Electric® Uni-TE (Premium and Micro)

- Siemens® Industrial Ethernet (S5, S7, TI)

• PROFIBUS

- DP-V0 Master

- DP-V0 Slave

- S7/MPI Client

- FDL S5 Client

• Serial

- Allen-Bradley® DF1 Master

- GE Fanuc® SNP-X Master

- Modbus Master/Slave (ASCII and RTU)

- Schneider Electric® Uni-Telway Slave

- Siemens® AS511 Master

- Siemens® TI-Dir Master

Conformance

• RoHS compliant

• CE

Engineering No. Standard Order No. Description

APP-ESP-GTW 112034-0001 Ethernet to PROFIBUS/Ethernet/Serial Gateway

APP-ESR-GTW 112034-0002 Ethernet to Ethernet/Serial Gateway

PROFIBUS

National Instruments

ALSTON

Schneider Electric

Siemens

Rockwell Automation

Omron

GE Fanuc

Mitsubishi Electric

Altus

www.molex.com

342

Brad® HarshIO 600

112095

Digital IP67 IO module

Features and Beneﬁts

• Reliable solution for connecting industrial controllers to

IO devices in harsh duty environments.

• Accepts M12 threaded connectors or Brad Ultra-Lock®

Push-Pull connection system

• Standard hole housing pattern allows for

interchangeability with popular IO modules

• User configurable versions; user can set up each digital

channel as either an input or output

• Scrolling 4 characters and visible LEDs provide

maintenance personnel with the ability to easily

determine IO, module and network status

Description

• Rated IP67 for harsh environments

• Designed for direct machine mount applications

• Sixteen digital input/output per module

• Supports PNP and NPN input devices

• IP addressing via BootP, DHCP or static (through web

interface, push button and PLC Scanner command)

• Built-in 2-port Ethernet switch for daisy chain topology

• Configurable IO capability (through webinterface and PLC

Scanner commands)

• Watchdog with output reply state

• Built-in web server for remote configuration and

diagnostics

Compatible Protocols

• Modbus TCP and UDP Server

• EtherNet/IP Adapter

• PROFINET IO-Device

Conformance

• IP67 according to IEC 60529

• NEMA 6P

• Vibration: MIL-STD-202F, method 204D, condition A

• Mechanical Shock: MIL-STD-202F, method 213B,

condition B

• Thermal Shock: MIL-STD-1344A

• CE, UL, cUL

• RoHS compliant

• ODVA certified

• PNO certified

Included Hardware/Software

• IO Configurations:

- 16 inputs

- 14 inputs + 2 outputs

- 12 inputs + 4 outputs

- 8 inputs + 8 outputs

- Universal

- User configurable

• IO Connectors: 8x M12 ports, Ultra-Lock® M12 female

5-pole, internally threaded

• Ethernet Connectors: Ultra-Lock M12 female, 4-pole

D-coded acting as a switch, crossover capability

• Power Connectors:

- Power In—Male Mini-Change®

, 4- or 5-pole

- Power Out—Female Mini-Change, 4- or 5-pole

• Power Requirements:

- Module Input Power—24V DC

- Module Output Power—24V DC, 2.0A max. per

channel, 8.0A max. per module

• Communication Rate: 10/100 Mbps auto-sensing,

auto-crossing, half/full duplex

• Input Type:

- Compatible with dry contact and PNP or NPN 3-wire

switches.

- Electronic short circuit protection

• Input Delay: 2.5ms default or configurable (through web

interface and PLC Scanner commands)

• Input Device Supply: 200mA per port at 25°C

• Output Load Current: 2.0A max. per channel, electronic

short circuit protection

• Maximum Switching Frequency: 200 Hz

• Housing Dimensions:

60.00mm (2.36") by 220.00mm (8.66") by 20.00mm

(.78")

• Mounting Dimensions:

- 37.50mm (1.48") horizontal on centers

- 210.00mm (8.27") vertical on centers

- Center hole

• Operating Temperature: -25 to +70°C

• Storage Temperature: -40 to +85°C

Modbus TCP

Engineering No. Standard Order No. No. of Power Pins IO Conﬁguration Input Channel Type

Input Output

TCDEM-8D0N-D1U 112095-0007 5 16 NPN

TCDEM-8C2N-D1U 112095-0005 5 14 2 NPN

TCDEM-8B4N-D1U 112095-0003 5 12 4 NPN

TCDEM-888N-D1U 112095-0001 5 8 8 NPN

TCDEM-8D0P-D1U 112095-0008 5 16 PNP

TCDEM-8C2P-D1U 112095-0006 5 14 2 PNP

TCDEM-8B4P-D1U 112095-0004 5 12 4 PNP

TCDEM-888P-D1U 112095-0002 5 8 8 PNP

TCDEM-8YYX-D1U 112095-0009 5 16 User Configurable User Configurable

TCDEM-8D0N-DYU 112095-5021 4 16 NPN

TCDEM-8C2N-DYU 112095-5022 4 14 2 NPN

TCDEM-8B4N-DYU 112095-5023 4 12 4 NPN

TCDEM-888N-DYU 112095-5024 4 8 8 NPN

TCDEM-8D0P-DYU 112095-5025 4 16 PNP

TCDEM-8C2P-DYU 112095-5026 4 14 2 PNP

TCDEM-8B4P-DYU 112095-5027 4 12 4 PNP

TCDEM-888P-DYU 112095-5028 4 8 8 PNP

TCDEM-8YYX-DYU 112095-5038 4 16 User Configurable User Configurable

www.molex.com 343

EtherNet/IP

Engineering No. Standard Order No. No. of Power Pins IO Conﬁguration Input Channel Type

Input Output

TCDEI-8D0N-D1U 112095-5003 5 16 NPN

TCDEI-8C2N-D1U 112095-5004 5 14 2 NPN

TCDEI-8B4N-D1U 112095-5005 5 12 4 NPN

TCDEI-888N-D1U 112095-5006 5 8 8 NPN

TCDEI-8D0P-D1U 112095-5007 5 16 PNP

TCDEI-8C2P-D1U 112095-5008 5 14 2 PNP

TCDEI-8B4P-D1U 112095-5009 5 12 4 PNP

TCDEI-888P-D1U 112095-5010 5 8 8 PNP

TCDEI-8YYX-D1U 112095-5011 5 16 User Configurable User Configurable

TCDEI-8D0N-DYU 112095-5012 4 16 NPN

TCDEI-8C2N-DYU 112095-5013 4 14 2 NPN

TCDEI-8B4N-DYU 112095-5014 4 12 4 NPN

TCDEI-888N-DYU 112095-5015 4 8 8 NPN

TCDEI-8D0P-DYU 112095-5016 4 16 PNP

TCDEI-8C2P-DYU 112095-5017 4 14 2 PNP

TCDEI-8B4P-DYU 112095-5018 4 12 4 PNP

TCDEI-888P-DYU 112095-5019 4 8 8 PNP

TCDEI-8YYX-DYU 112095-5020 4 16 User Configurable User Configurable

PROFINET I0

Engineering No. Standard Order No. No. of Power Pins IO Conﬁguration Input Channel Type

Input Output

TCDEP-8D0N-D1U 112095-5029 5 16 NPN

TCDEP-8C2N-D1U 112095-5030 5 14 2 NPN

TCDEP-8B4N-D1U 112095-5031 5 12 4 NPN

TCDEP-888N-D1U 112095-5032 5 8 8 NPN

TCDEP-8D0P-D1U 112095-5033 5 16 PNP

TCDEP-8C2P-D1U 112095-5034 5 14 2 PNP

TCDEP-8B4P-D1U 112095-5035 5 12 4 PNP

TCDEP-888P-D1U 112095-5036 5 8 8 PNP

TCDEP-8YYX-D1U 112095-5037 5 16 User Configurable User Configurable

www.molex.com

344

Brad® Direct-Link®

Harsh Duty

Ethernet Switches

112115/112105

Series 750 (5-port) and

780 (8-port)

As our world becomes more connected, an increasing

number of manufacturers and installers are specifying

Ethernet devices for their harsh applications. The Brad

family of rugged connectivity products is a leading product

line provider of Ethernet infrastructure for Molex.

The Molex Direct-Link, harsh-duty, Ethernet switches

have been developed to allow customers to convert from

traditional in-cabinet to on-machine mounting, moving the

switch closer to the machine and thereby reducing cabling.

The Molex Ultra-Lock® system of connectors and cordsets

complete the Direct-Link Harsh-Duty Switches line.

Available in 5-port and 8-port versions, the Molex durable

switches with push/pull connectors save cabling and reduce

installation time and cost compared with existing cabinet

installations. They provide easier system maintenance

and produce a seal when connected regardless of labor

skill. The connections are tested to IP69K ratings to ensure

operation through dust, pressure-wash and immersion in

water. Mechanical keying and radial seals eliminate the risk

for operator error commonly found in other systems.

Narrow dimensions are sized to fit standard machine

extrusions for easy mounting. Auto-learning features make

each unit truly plug-and-play, suitable for both the novice

and expert in network setup.

Operating temperature ratings of -20 to +75°C ensure

that networks linked using the harsh-duty switches can run

in extreme environments. Coupled with Class 1, Division 2

certification these switches can also be used in Oil and Gas,

Mining and utility applications.

Features and Beneﬁts

• Ultra-Lock® Connection system—faster, simpler and

more secure connections than any other system on

the market

• NEMA 6 and IP69k rated environmental Protection—

withstands dust, pressure-wash and submersion in water

• Class 1, Division 2 rated—suitable for Oil and Gas

markets where hazardous gases may be present

• Operating temperature -20 to +75°C enables installation

in extreme temperature applications

• 30mm and 60mm formats with standard hole patterns—

allows use of standard machine extrusion members

• Auto-learning with no software or configuration

required—plug-and-play capabilities means less-skilled

labor is able to install systems

Characteristics and Performance

Switch Type: Unmanaged (Store and Forward)

Ports: 10BaseT/100BaseTx M12

Latency (10Mb): 16μs + frame time

Latency (100Mb): 5μs + frame time

Duplex Operation: Full or half

Mounting: Screw mount

Power Input: Redundant input terminals

Input Power: 2.0W max. (DRL-750), 2.4W max. (DRL-78x)

Voltage: 9-36VDC (continuous)

Isolation: 1500 VRMS 1 minute

Dimensions: 176 x 30 x 34 (DRL-750)

220 x 60 x 37 (DRL-78x)

Weight: 230g (DRL-750)

580g (DRL-7Bx)

Environmental

Humidity: 5–95% RH non condensing

References

Vibration: 7g (IEC68-2-29)

Shock: 50g (IEC68-2-29)

Electrical Safety: EN61010-1 (IEC61010)

EMI Emissions: FCC part 15, ICES 003,

EN55011 Class A (DRL-78x),

Class B (DRL-750)

EMC Immunity: EN61326, EN61000-4-4,

EN61000-4-5,

EN61000-4-2;

8Kv contact/16Kv Air (DRL-750)

4Kv contact/8Kv Air (DRL-78x)

UL: File number pending

Hazardous Rating: Class 1, Division 2 certification

Physical

Operating Temperature: -20 to +75°C

Storage Temperature: -40 to +85°C

Engineering No. Standard Order No. Description Ports Power

DRL-750 112111-5001 IP67 Fast Ethernet Unmanaged Switch 5 M12

DRL-780 112105-5002 IP67 Fast Ethernet Unmanaged Switch 8 Mini-Change® (5-pin)

DRL-781 112105-5004 IP67 Fast Ethernet Unmanaged Switch 8 Mini-Change (4-pin)

www.molex.com 345

Brad® Common Industrial

Protocol (CIP*) Safety

Software Kit (Stack)

112115/112116/112117

DeviceNet and EtherNet/IP* Stack

Development Kits

Molex demonstrates market leadership with the

comprehensive CIP* Safety Stack software solution, allowing

industrial-device manufacturers to embed CIP Safety Stack

technology quickly and economically within their products

Common Industrial Protocol (CIP) Safety is a protocol

extension developed by the ODVA. The CIP Safety protocol

offers a set of highly-integrated safety services which

leverage the underlying communications stacks of the

standard CIP networks to transport data from a source to a

destination. CIP Safety allows end-users to implement safety

systems in a more integrated, cost-effective manner. The

Molex CIP Safety Software Kit (also called Stack) is offered

as a tool kit, with the stack provided as modular “C” code

that is pre-tested. The software allows a manufacturer of

intelligent industrial products to implement the necessary

safety-application layer that enables products to comply with

the CIP Safety specification (Edition 2.1) from ODVA. The CIP

Safety Stack is available for both DeviceNet* and EtherNet/

IP*, and both are endorsed by Rockwell Automation under

the Value Added Design Partner program.

The CIP Safety Stack is approved by TUV for SIL3

applications and it has been conformance tested using the

ODVA Conformance Test. Molex can support customers

that request assistance with design implementation and/or

guidance through TUV approval.

Features and Beneﬁts

• Meets IEC 61508, SIL3 ensuring international market

acceptance

• Approved by TUV and tested by ODVA means a high-quality

solution for minimal project risk and faster time-to-market

• Pre-tested modular ANSI C code is easy to compile using

standard compilers; faster time-to-market

• Molex engineers can support protocol-integration requests

minimizing investment required for in-house resources

• Designed for use with other Molex/Brad offerings:

Hardware (DN4 network interface cards), Software

(DeviceNet or EtherNet/IP software stacks) which results

in a complete CIP communication solution

Speciﬁcations

• ANSI C code is provided for the safety portion of the Stack

(Compliant with CIP Safety Specification 2.1)

• ANSI C code for black-channel components (NET_CTRL_IO)

• Interface specification for high-integrity and black-

channel environments

• Safety integration manual (including safety

measure requirements)

• Optionally, modified standard CIP stacks (software/

firmware) for DeviceNet (Slave) or EtherNet/IP (Adapter)

• Optionally, ANSI C code for the Platform Adaptation

Layers (both safety and non-safety)

• Documentation required by certification bodies (TÜV, ODVA)

• Support during certification process of vendor’s

final product

Markets and Applications

• Industrial Device Manufacturers

- I/O blocks

- Valves

- Drives

- Complex machines (OEM)

• End-Users

- Automotive

- Consumer goods

- Heavy industries

Engineering No. Standard Order No. Device Type Network Description

SDK-DNS-SAF 112115-0001

Slave DeviceNet

Stack Development Kit (Standard Source Code)

SDK-DNS-SAF-O 112115-0002 Stack Development Kit (Source Code Obfuscation†)

SDK-DNS-SAF-L 112116-0001 Royalty (per device)

SDK-EIP-ADP-SAF 112117-0001

Adapter EtherNet/IP

Stack Development Kit (Standard Source Code)

SDK-EIP-ADP-SAF-O 112117-0002 Stack Development Kit (Source Code Obfuscation†)

SDK-EIP-ADP-SAF-L 112116-0002 Royalty (per device)

SDK-DEP-SAP-SAF 112115-0003 Slave and Adapter DeviceNet and

EtherNet/IP

Stack Development Kit (Standard Source Code)

SDK-DEP-SAP-SAF-O 112115-0004 Stack Development Kit (Source Code Obfuscation†)

SDK-CIP-EDS-SAF 112115-0005 N/A N/A Engineering Support

*CIP, DeviceNet and EtherNet/IP are trademarks of ODVA, Inc.

†Note: Source code obfuscation means that the “C” code is protected, but the compiler can process it.

*CIP Safety Software Stack Concept for a Slave (Adapter) Application

www.molex.com

346

Brad® Direct-Link®

In-Cabinet Ethernet Switches

112036

Series 200 and 300

A complete line of industrial Ethernet switches for managed

or unmanaged applications.

Features and Beneﬁts

• 5-, 8- and 9-port configurations support both Copper and

fiber wiring

• Unique ergonomic design with DIN rail or panel mount

option using a dual-clip system for quick and easy

installation

• Small footprint in IP30 industrial package

• Supports all standard IEEE 802.3 protocols

• Redundant, dual-DC power inputs

Series 200—Unmanaged Switches

• Direct-Link Industrial Ethernet unmanaged switches

provide enhanced performance allowing you to achieve

real-time deterministic operation of your Ethernet network

• Plug-and-play—no configuration required

• Best value for reducing network collisions

Series 300—Managed Switches

• Direct-Link Industrial Ethernet managed switches offer

many features to meet your network management and

diagnostic needs

• Advanced Network Management

- Rapid Spanning Tree Protocol (RSTP) for fault-tolerant loops

- VLAN (port and tag based) for traffic segregation

- Message filtering to stop multi-cast storms

(IGMP snooping)

- Priority queuing for real-time performance (QoS)

- Web-browser interface

• Comprehensive Network Diagnostics

- RMON and port mirroring

- SNMP agent v1, v2 and v3 (for extra security)

Speciﬁcations

Ethernet protocols supported:

IEEE 802.3 protocols (IEEE 802.3, 802.3u, 802.3x)

10/100BaseT(x) Ports: Shielded RJ45

Auto-negotiating:

10/100 Mbps auto-negotiation

UL Approval:

- UL 508 (E205563)

- UL 1604 (E314891)

Class 1, Div 2

Group A, B, C, D hazardous locations

Auto-crossover (Auto-mdi/mdi-x): Supported on all ports

Flow Control: Half or full duplex

Ethernet Isolation: 1500 VRMS 1 minute

Forwarding Mode: Store and forward

Latency (Typical): 5 usec (time to route a message from one

port to another internally at 100 Mps)

MAC Addresses: 1K or 2K

Address Learning: Automatic

Illegal Frames: Dropped per 802.3

Late Collisions: Dropped after 512 bit times

Supply Voltage: 10–30V DC

Power Consumption (Typical): 2–5 W (dependent on model)

Power Saving: Automatic

Mounting: DIN rail or panel direct

Dimensions: Height—142.24mm (5.60")

Depth—102.36mm (4.03")

Width— 5-port: 27.18mm (1.07")

8- and 9-port: 38.74mm (1.525")

Environmental

Humidity: 5 to 95% (non-condensing)

Certiﬁcation

Vibration: IEC68-2-6

Electrical Safety: EN61010-1

EMI Emissions: FCC part 15, ICES 003, EN55011 (Class A)

EMC Immunity: EN61326

Packaging: IP30 protection

Physical

Operating Temperature: -10 to +60°C

Storage Temperature: -40 to +85°C

Engineering No. Standard Order No. Product Description

DRL-241-MSC 112036-0006 Industrial 5-port Ethernet switch, unmanaged, 4 RJ-45, 1 fiber, multi-mode, SC connector

DRL-241-MST 112036-0007 Industrial 5-port Ethernet switch, unmanaged, 4 RJ-45, 1 fiber multi-mode, ST connector

DRL-250 112036-0010 Industrial 5-port Ethernet switch, unmanaged, 5 RJ-45

DRL-280 112036-0011 Industrial 8-port Ethernet switch, unmanaged, 8 RJ-45

DRL-281-MST 112036-0013 Industrial 9-port Ethernet switch, unmanaged, 8 RJ-45, 1 fiber multi-mode, ST connector

DRL-332-MSC 112036-0016 Industrial 5-port Web-managed Ethernet switch, 3 RJ-45, 2 fiber, multi-mode, SC connector

DRL-332-MST 112036-0017 Industrial 5-port Web-managed Ethernet switch, 3 RJ-45, 2 fiber, multi-mode, ST connector

DRL-350 112036-0020 Industrial 5-port Ethernet switch, managed, 5 RJ-45, redundant power supply

DRL-362-MSC 112036-0021 Industrial 8-port Web-managed Ethernet switch, 6 RJ-45, 2 fiber, multi-mode, SC connector

DRL-362-MST 112036-0022 Industrial 8-port Web-managed Ethernet switch, 6 RJ-45, 2 fiber, multi-mode, ST connector

DRL-362-SSC 112036-0023 Industrial 8-port Web-managed Ethernet switch, 6 RJ-45, 2 fiber, single-mode, SC connector

DRL-380 112036-0025 Industrial 8-port Ethernet switch, managed, 8 RJ-45

DRL-3F0 112036-0026 Industrial 16-port Ethernet Switch, RJ-45, Managed, Redundant Power

DRL-3H0 112036-1127 Industrial 18-port Ethernet Switch, RJ-45, Managed, Redundant Power

www.molex.com 347

Industrial Ethernet

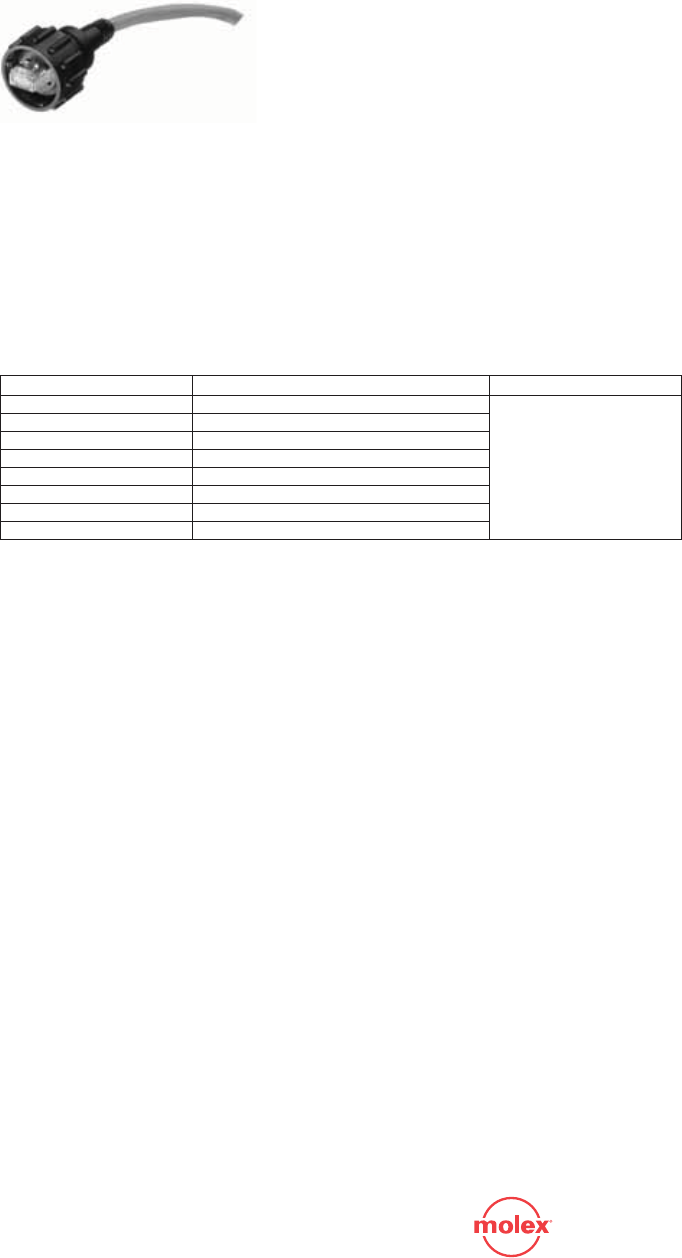

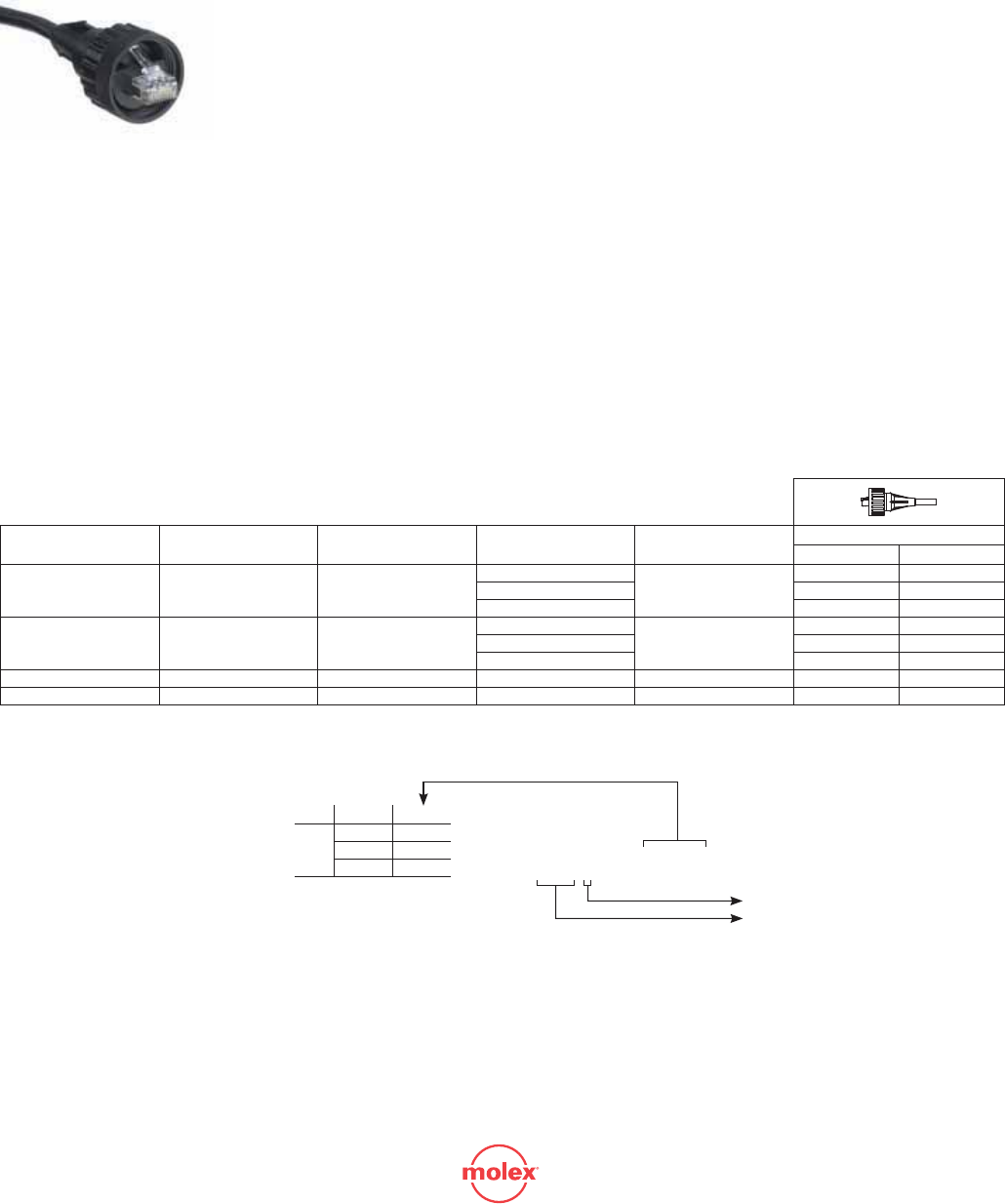

Brad® RJ-Lnxx® RJ-45

Single-Ended Cordsets

130050

Male, Pigtail

Straight

Features and Beneﬁts

• RJ-45 plug, combined with industrially proven form factor

provides a secure robust connection that protects against

the effects of vibration and accidental disconnection

• Category 5e compliant

• Several cable options available

ENS—Solid Core Cable

Physical

Cable: Solid core

Conductors: 24 AWG solid bare Copper,

0.020" (0.510 mm)

Insulation: 0.009" (0.229 mm) of Cellular Polyethylene

0.04" (1.00mm) nominal diameter

Pair: Two insulated conductors twisted together, lay lengths

varied between pairs to minimize cross talk

Core: Four pairs cabled together

Binder: Polyester tape, 20% overlay minimum

Shield: Aluminum/Polyester tape, 20% overlay minimum

Drain Wire: 24 AWG stranded (7/32") Tin-plated Copper

Jacket:

Black Polyurethane 0.025" (.635 mm) nominal thickness

Operating Temperature: -20 to +80°C

Wiring Sequence: Choice of TIA/EIA, 568A/B, or 10 Base-T

Electrical at 20°C

TIA/EIA Rating: Category 5e

ENP—Kevlar Wrapped Cable

Physical

Cable: Proplex Kevlar wrapped

Conductors: 26 AWG stranded bare Copper

Insulation: Color coded HFFR, halogen free,

0.035" (0.90mm) nominal diameter

Pair: Cabled with Kevlar strength member and tape wrapped

Core: Four pairs cabled together

Shield: Inner—Aluminum mylar, 100% coverage

Outer—Tinned Copper

Operating Temperature: -70 to +105°C

Jacket: Black Urethane 0.059" (1.50mm) nominal thickness

Diameter: 0.287" (7.30 mm) nominal

Wiring Sequence: Choice of TIA/EIA, 568A/B, or 10 Base-T

Electrical at 20°C

TIA/EIA Rating: Category 5

Male Straight Single-Ended

Cable Type Cable Jacket Wiring Length Engineering No. Standard Order No.

Shielded Stranded Proplex™

Kevlar* Wrapped (ENP) PUR 10 Base-T (4 wire) 1.0m ENP1305M010 130050-0105

Shielded Solid Core (ENS) PVC 568A (8 wire) 1.0m ENS2305M010 130050-0392

568B (8 wire) ENS3305M010 130050-0436

Length Code

Meters

2M020

5M050

10 M100

Configuration Code†

Build-a-Part Number ENP1305M010

Wiring Option

Cable Option

†Once an engineering number is created using the configuration code, consult Molex tech support for information regarding any part numbers.

Note: Sales drawings for all standard order numbers are available on molex.com

*Kevlar is a trademark of DuPont

so ur‘ so ur‘ H

www.molex.com

348

Cable Type Cable Jacket Wire Size

AWG Wiring Length Male Straight-to-Male Straight

Engineering No. Standard Order No.

Shielded Stranded Proplex™ Kevlar

Wrapped (ENP) PUR With Kevlar Wrap 26

10 Base-T (4 wire)

1.0m

ENP1335M010 130050-0107

568A (8 wire) ENP2335M010 130050-0150

568B (8 wire) ENP3335M010 130050-0457

Shielded Solid Core (ENS) PUR 24

10 Base-T (4 wire)

1.0m

ENS1335M010 130050-0324

568A (8 wire) ENS2335M010 130050-0394

568B (8 wire) ENS3335M010 130050-0503

Shielded Solid Core (ENV) PUR 24 568B (8 wire) 1.0m ENV3335M010 130050-0512

Unshielded Stranded (ENQ) PVC 24 568B (8 wire) 1.0m ENQ3335M010 130050-0507

Note: Sales drawings for all standard order numbers are available on molex.com

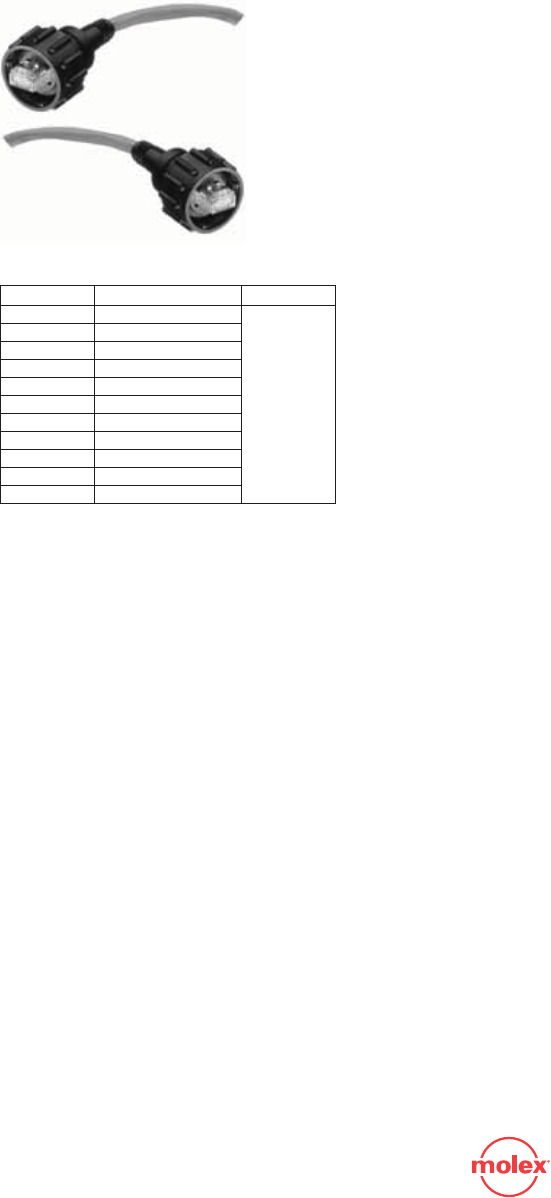

Industrial Ethernet

Brad® RJ-Lnxx RJ-45

Double-Ended Cordsets

130050

Male-Male Straight

Standard RJ-45

Features and Beneﬁts

• RJ-45 plug, combined with industrially proven form factor

provides a secure robust connection that protects against

the effects of vibration and accidental disconnection

• Category 5e compliant

• Several cable options available

ENS—Shielded Solid Core Cable

Physical

Cable: Solid core

Conductors: 24 AWG solid bare Copper, 0.020" (0.510mm)

Insulation: 0.009" (0.229mm) of cellular polyethylene

0.04" (1.0mm) nominal diameter

Pair: Two insulated conductors twisted together, lay lengths

varied between pairs to minimize cross talk

Core: Four pairs cabled together

Binder: Polyester tape, 20% overlay minimum

Shield: Aluminum/polyester tape, 20% overlay minimum

Drain Wire: 24 AWG stranded (7/32") Tin-plated Copper

Jacket: Black polyurethane 0.025" (.635mm) nominal

thickness

Operating Temperature: -20 to +80°C

Diameter: 0.245" (6.223mm) nominal

TIA/EIA Rating: Category 5e

ENQ—Unshielded Stranded Cable

Physical

Cable: Stranded

Conductors: 24 AWG stranded tinned Copper

Insulation: Polyolefin 0.037" (0.94mm) nominal diameter

Pair: Two insulated conductors twisted together, lay lengths

varied between pairs to minimize cross talk

Core: Four pairs cabled together

Binder: Polyester tape, 20% overlay minimum

Operating Temperature: -20 to +80°C

Jacket: PVC 0.025" (0.635mm) nominal thickness

Diameter: 0.220" (5.588mm) nominal

TIA/EIA Rating: Category 5e

ENP—Shielded Standard Proplex™

Kevlar Wrapped Cable

Physical

Cable: Proplex Kevlar wrapped

Conductors: 26 AWG stranded bare Copper

Insulation: Color coded HFFR, halogen free,

0.035" (0.90mm) nominal diameter

Pair: Cabled with Kevlar strength member and tape wrapped

Core: Four pairs cabled together

Shield: Inner—Aluminum mylar, 100% coverage

Outer—Tinned Copper braid, 80% coverage

Operating Temperature: -70 to +105°C

Jacket: Black urethane 0.059" (1.5mm) nominal thickness

Diameter: 0.287" (7.3mm) nominal

TIA/EIA Rating: Category 5e

ENV—Shielded Solid Core

Physical

Cable: Solid core

Conductors: 24 AWG solid bare Copper, 0.020" (0.510mm)

Insulation: Polyethylene, 0.042" (1.07mm) nominal diameter

Pair: Two insulated conductors twisted together, lay lengths

varied between pairs to minimize cross talk

Core: Four pairs cabled together

Binder: Polyester tape, 20% overlay minimum

Shield: Aluminum/polyester tape

Drain Wire: 24 AWG Tin Copper matt polyurethane

Jacket: Black Polyurethane UV stable, 0.0244" (0.620mm)

nominal thickness

Diameter: 0.244" (6.200mm) nominal

Operating Temperature: -20 to 60°C

Wiring Sequence: Choice of TIA/EIA 568A/B or 10 Base-T

TIA/EIA Rating: Category 5e

Length Code

Meters

2M020

5M050

10 M100

Configuration Code*

Build-a-Part Number ENP1335M010

Wiring Option

Cable Option

*Once an engineering number is created using the configuration code, consult Molex tech support for information regarding any part numbers.

www.molex.com 349

Industrial Ethernet

Brad® Standard

RJ-45 to RJ-45

Cable Assembly

Unshielded PVC

130048

Male Plug-to-Male Plug

Straight-Wired

Features and Beneﬁts

• RJ-45 plug combined with industrially proven form factor

provides a secure robust connection that protects against

the effects of vibration and accidental disconnection

• Category 5e compliant

Reference Information

UL File No.: E200650

Physical

RJ-45 Plug: Clear Polycarbonate

Boot: PVC

Operating Temperature: -20 to +75°C

Environmental

Protection: IP20

Cable

03—Unshielded PVC

Conductors: 24 AWG stranded tinned Copper wire

Pair: Two pair UTP patch cable

Outside Diameter: 0.250" (5.60mm) nominal

Jacket Material: Teal PVC

Cable Properties: Sun and oil resistant

Inner Material Insulation: HDPE

Certification: UL type CMR, Cec C(UL) type CMR

TIA/EIA Rating: Category 5e

Operating Temperature: -40 to +75°C

Male Straight-to-Male Straight

Wiring Cable Type Cable Jacket Wire Size AWG Length Engineering No. Standard Order No.

10 Base-T (4 wire) Unshielded Stranded PVC 4/24 1.0m (3.28') E66A06003M010 130048-0031

Note: Sales drawings for all standard order numbers are available on molex.com

Length Code

Meters

2M020

5M050

10 M100

Configuration Code*

Build-a-Part Number E66A06003M010

Cable Option

Wiring Option

*Once an engineering number is created using the configuration code, consult Molex tech support for information regarding any part numbers.

www.molex.com

350

Cable Type Cable Jacket Wire Size

AWG Wiring Length Male Straight

Engineering No. Standard Order No.

Shielded Stranded Proplex™ Kevlar

Wrapped (ENP) PUR Kevlar Wrapped 26

10 Base-T (4 wire)

1.0m

ENP1105M010 130050-0071

568A (8 wire) ENP2105M010 130050-0112

568B (8 wire) ENP3105M010 130050-0162

Shielded Solid Core (ENS) PUR 24

10 Base-T (4 wire)

1.0m

ENS1105M010 130050-0277

568A (8 wire) ENS2105M010 130050-0328

568B (8 wire) ENS3105M010 130050-0408

Shielded Solid Core (ENV) PUR 24 568B (8 wire) 1.0m ENV3105M010 130050-8023

Unshielded Stranded (ENQ) PVC 24 568B (8 wire) 1.0m ENQ3105M010 130050-0506

Note: Sales drawings for all standard order numbers are available on molex.com

*Kevlar is a trademark of DuPont

Industrial Ethernet

Brad® RJ-Lnxx® RJ-45

Single-Ended Cordsets

130050

Threaded

Male

Straight

Features and Beneﬁts

• RJ-45 plug, combined with industrially proven form

factor provides a secure robust connection that

protects against the effects of vibration and accidental

disconnection

• Category 5e compliant

• Several cable options available

• Achieves IEC IP67 rates seal when mated with an

RJ-Lnxx® receptacle

ENS—Shielded Solid Core Cable

Physical

Cable: Solid Core

Conductors: 24 AWG solid bare Copper, 0.020" (0.510mm)

Insulation: 0.009" (0.229mm) of cellular polyethylene

0.04" (1.0mm) nominal diameter

Pair: Two insulated conductors twisted together, lay lengths

varied between pairs to minimize cross talk

Core: Four pairs cabled together

Binder: Polyester tape, 20% overlay minimum

Shield: Aluminum/Polyester tape, 20% overlay minimum

Drain Wire: 24 AWG stranded (7/32") Tin-plated Copper

Jacket: Black Polyurethane 0.025" (.635mm) nominal

thickness

Operating Temperature: -20 to +80°C

Diameter: 0.245" (6.223mm) nominal

TIA/EIA Rating: Category 5e

ENQ—Unshielded Stranded Cable

Physical

Cable: Stranded

Conductors: 24 AWG stranded tinned Copper

Insulation: Polyolefin 0.037" (0.94mm) nominal diameter

Pair: Two insulated conductors twisted together, lay lengths

varied between pairs to minimize cross talk

Core: Four pairs cabled together

Binder: Polyester tape, 20% overlay minimum

Operating Temperature: -20 to +80°C

Jacket: PVC 0.025" (0.635mm) nominal thickness

Diameter: 0.220" (5.588mm) nominal

TIA/EIA Rating: Category 5e

ENP—Shielded Standard Proplex™ Kevlar*

Wrapped Cable

Physical

Cable: Proplex Kevlar wrapped

Conductors: 26 AWG stranded bare Copper

Insulation: Color coded HFFR, Halogen free, 0.035"

(0.90mm) nominal diameter

Pair: Cabled with Kevlar strength member and tape wrapped

Core: Four pairs cabled together

Shield: Inner—Aluminum Mylar, 100% coverage

Outer—Tinned Copper braid, 80% coverage

Operating Temperature: -70 to +105°C

Jacket: Black Urethane 0.059" (1.50mm) nominal thickness

Diameter: 0.287" (7.30mm) nominal

TIA/EIA Rating: Category 5e

ENV—Shielded Solid Core

Physical

Cable: Solid core

Conductors: 24 AWG solid bare Copper, 0.020" (0.510mm)

Insulation: Polyethylene, 0.042" (1.07mm) nominal diameter

Pair: Two insulated conductors twisted together, lay lengths

varied between pairs to minimize cross talk

Core: Four pairs cabled together

Binder: Polyester tape, 20% overlay minimum

Shield: Aluminum/Polyester tape

Drain Wire: 24 AWG Tin Copper matt Polyurethane

Jacket: Black Polyurethane UV stable, 0.0244" (0.620mm)

nominal thickness

Diameter: 0.244" (6.200mm) nominal

Operating Temperature: -20 to 60°C

Wiring Sequence: Choice of TIA/EIA 568A/B or 10 Base-T

TIA/EIA Rating: Category 5e

Length Code

Meters

2M020

5M050

10 M100

Configuration Code†

Build-a-Part Number ENP1105M010

Wiring

Cable Code

†Once an engineering number is created using the configuration code, consult Molex tech support for information regarding any part numbers.

www.molex.com 351

RJ-Lnxx-to-RJ-45 RJ-Lnxx RJ-45 Male, Double-Ended

Cable Type Cable Jacket Wire Size

AWG Wiring Length Male Straight Industrial-to-Industrial Male Straight Industrial-to-Standard

Engineering No. Standard Order No. Engineering No. Standard Order No.

Shielded Stranded Proplex™

Kevlar Wrapped (ENP) PUR Kevlar Wrapped 26

10 Base-T (4 wire)

1.0m

ENP1115M010 130050-0076 ENP1135M010 130050-0093

568A (8 wire) ENP2115M010 130050-0122 ENP2135M010 130050-0140

568B (8 wire) ENP3115M010 130050-0170 ENP3135M010 130050-8036

Shielded Solid Core (ENS) PUR 24

10 Base-T (4 wire)

1.0m

ENS1115M010 130050-0284

568A (8 wire) ENS2115M010 130050-0336 ENS2135M010 130050-0371

568B (8 wire) ENS3115M010 130050-0412 ENS3135M010 130050-0429

Shielded Solid Core (ENV) PUR 24 568B (8 wire) 1.0m ENV3115M010 130050-8025 ENV3135M010 130050-8029

Unshielded Stranded (ENQ) PVC 24 568B (8 wire) 1.0m ENQ3115M010 130050-0251 ENQ3135M010 130050-0262

Note: Sales drawings for all standard order numbers are available on molex.com

*Kevlar is a trademark of DuPont

Industrial Ethernet

Brad® RJ-Lnxx® RJ-45

Double-Ended Cordsets

130050

Threaded

Male-Male Straight

RJ-45 (Industrial)-to-

RJ-45 (Industrial) and

RJ-45 (Industrial)-to-

RJ-45 (Standard)

Features and Beneﬁts

• RJ-45 plug, combined with industrially proven form

factor provides a secure robust connection that

protects against the effects of vibration and accidental

disconnection

• Category 5e compliant

• Several cable options available

• Achieves IEC IP67 rates seal when mated with an

RJ-Lnxx® receptacle

ENS—Shielded Solid Core Cable

Physical

Cable: Solid Core

Conductors: 24 AWG solid bare Copper, 0.020" (0.510mm)

Insulation: 0.009" (0.229mm) of cellular polyethylene

0.04" (1.0mm) nominal diameter

Pair: Two insulated conductors twisted together, lay lengths

varied between pairs to minimize cross talk

Core: Four pairs cabled together

Binder: Polyester tape, 20% overlay minimum

Shield: Aluminum/Polyester tape, 20% overlay minimum

Drain Wire: 24 AWG stranded (7/32") Tin-plated Copper

Jacket: Black Polyurethane 0.025" (.635mm) nominal

thickness

Operating Temperature: -20 to +80°C

Diameter: 0.245" (6.223mm) nominal

TIA/EIA Rating: Category 5e

ENQ—Unshielded Stranded Cable

Physical

Cable: Stranded

Conductors: 24 AWG stranded tinned Copper

Insulation: Polyolefin 0.037" (0.94mm) nominal diameter

Pair: Two insulated conductors twisted together, lay lengths

varied between pairs to minimize cross talk

Core: Four pairs cabled together

Binder: Polyester tape, 20% overlay minimum

Operating Temperature: -20 to +80°C

Jacket: PVC 0.025" (0.635mm) nominal thickness

Diameter: 0.220" (5.588mm) nominal

TIA/EIA Rating: Category 5e

ENP—Shielded Standard Proplex™

Kevlar* Wrapped Cable

Physical

Cable: Proplex Kevlar wrapped

Conductors: 26 AWG stranded bare Copper

Insulation: Color coded HFFR, Halogen free, 0.035"

(0.90mm) nominal diameter

Pair: Cabled with Kevlar strength member and tape wrapped

Core: Four pairs cabled together

Shield: Inner—Aluminum Mylar, 100% coverage

Outer—Tinned Copper Braid: 80% coverage

Operating Temperature: -70 to +105°C

Jacket: Black Urethane 0.059" (1.5mm) nominal thickness

Diameter: 0.287" (7.3mm) nominal

TIA/EIA Rating: Category 5e

ENV—Shielded Solid Core

Physical

Cable: Solid core

Conductors: 24 AWG solid bare Copper, 0.020" (0.510mm)

Insulation: Polyethylene, 0.042" (1.07mm) nominal diameter

Pair: Two insulated conductors twisted together, lay lengths

varied between pairs to minimize cross talk

Core: Four pairs cabled together

Binder: Polyester tape, 20% overlay minimum

Shield: Aluminum/Polyester tape

Drain Wire: 24 AWG Tin Copper matt Polyurethane

Jacket: Black Polyurethane UV stable, 0.0244" (0.620mm)

nominal thickness

Diameter: 0.244" (6.200mm) nominal

Operating Temperature: -20 to 60°C

Wiring Sequence: Choice of TIA/EIA 568A/B or 10 Base-T

TIA/EIA Rating: Category 5e

Length Code

Meters

2M020

5M050

10 M100

Configuration Code†

Build-a-Part Number ENP1115M010

Wiring Option

Cable Option

†Once an engineering number is created using the configuration code, consult Molex tech support for information regarding any part numbers.

www.molex.com

352

Industrial Ethernet

Brad® RJ-Lnxx® RJ-45

Sealed Receptacles

130053/130055

Female

Panel Mount

External Thread

Straight

Features and Beneﬁts

• Simple field termination of cable using a standard

punchdown tool

• Category 5e compliant

• Can be used with TIA 568A or 568B wiring sequences

• Color-coded block simplifies field wiring

• Achieves IEC IP67 rated seal when mated with RJ-Lnxx

cordset—but also compatible with commercial RJ-45

patch cords

Environmental

Protection: IEC IP67

TIA/EIA Rating: Category 5e compliant

Physical

O-Ring Material: Viton

Insert Material: Acrylonitrile-Butadiene-Styrene (ABS)

Overmold Material: Polyurethane

Coupling Nut Material: Acrylonitrile-Butadiene-Styrene (ABS)

Shell Material: Acrylonitrile-Butadiene-Styrene (ABS)

Knockout Hole: 1.063

Thread Size: UNC 1"—14

Panel Thickness: .125" maximum with gasket,

.187" maximum without gasket,

.062" minimum

Operating Temperature: -20 to +80°C

Return Loss: 5 dB at 100 MHz

RJ-45 Jack

Plating: 50 μm of Gold over 100 μm of Nickel

Current Rating: 1.5A

Voltage Rating: 125V DC

Face View Description Female Straight

Engineering No. Standard Order No.

RJ-45 Receptacle W/110

Punchdown Termination ENDR2FB5 130053-0002

Note: Sales drawings for all standard order numbers are available on molex.com

www.molex.com 353

Industrial Ethernet

Brad® RJ-Lnxx® RJ-45

Sealed Receptacles

130053/130055

Male

Straight

Panel Mount

External Thread

Features and Beneﬁts

• Ideal for OEMs looking to incorporate a sealed, robust

connection into their field device

• Category 5 compliant

• Short depths for space constrained applications

• Achieves IEC IP67 rated seal when mated with an

RJ-Lnxx cordset—but also compatible with commercial

RJ-45 patch cords

Environmental

Protection: IEC IP67

TIA/EIA Rating: Category 5 compliant

Physical

O-Ring Material: Viton

Insert Material: Acrylonitrile-Butadiene-Styrene (ABS)

Overmold Material: Polyurethane

Coupling Nut Material: Acrylonitrile-Butadiene-Styrene (ABS)

Shell Material: Acrylonitrile-Butadiene-Styrene (ABS)

Knockout Hole: 1.063

Thread Size: UNC 1"—14

Panel Thickness: .125" maximum with gasket,

.187" maximum without gasket,

.062" minimum

Operating Temperature: -20 to +80°C

Return Loss: 5 dB at 100 MHz

RJ-45 Jack

Plating: 50 μm of Gold over 100 μm of Nickel

Current Rating: 1.5A

Voltage Rating: 125V DC

Face View Description Female Straight

Engineering No. Standard Order No.

Direct PC Board Mount Receptacle ENPR1FF5 130053-0004

Note: Sales drawings for all standard order numbers are available on molex.com

www.molex.com

354

Industrial Ethernet

Brad® RJ-Lnxx® RJ-45

Sealed Receptacles

130053/130055

Female, Male

Straight

Panel Mount

External Thread

Features and Beneﬁts

• Highly flexible solution for OEMs or end users looking

to incorporate a sealed, robust receptacle into their field

device or control panel

• Achieves IEC IP67 rated seal when mated with RJ-Lnxx

cordset—but also compatible with commercial RJ-45

patch cords

Environmental

Protection: IEC IP67

TIA/EIA Rating: Not rated as additional customer

termination is required

Physical

O-Ring Material: Viton

Insert Material: Acrylonitrile-Butadiene-Styrene (ABS)

Overmold Material: Polyurethane

Coupling Nut Material: Acrylonitrile-Butadiene-Styrene (ABS)

Shell Material: Acrylonitrile-Butadiene-Styrene (ABS)

Knockout Hole: 1.063

Thread Size: UNC 1"—14

Panel Thickness: .125" maximum with gasket,

.187" maximum without gasket,

.062" minimum

Operating Temperature: -20 to +80°C

Return Loss: 5 dB at 100 MHz

RJ-45 Jack

Plating: 50 μm of Gold over 100 μm of Nickel

Current Rating: 1.5A

Voltage Rating: 125V DC

Face View Description Female Straight

Engineering No. Standard Order No.

Receptacle with PC Board ENSR1FB5 130055-0016

Receptacle with PC and 12" of Cable

(10 Base-T) ENSR1FB5M010 130055-0020

Note: Sales drawings for all standard order numbers are available on molex.com

Length Code

Meters

2M020

5M050

10 M100

Configuration Code*

Build-a-Part Number ENSR1FB5M010

*Once an engineering number is created using the configuration code, consult Molex tech support for information regarding any part numbers.

www.molex.com 355

Industrial Ethernet

Brad® RJ-Lnxx® RJ-45

Sealed Receptacles

130055/130058

Female

Bulkhead Pass-Through

Straight

External Thread

Features and Beneﬁts

• Easy method for bringing an Ethernet connection in from

a harsh environment to an industrial enclosure

• Category 5e compliant

• Achieves IEC IP67 rated seal when mated with RJ-Lnxx

cordset—but also compatible with commercial RJ-45

patch cords

Environmental

Protection: IEC IP67

TIA/EIA Rating: Category 5e

Physical

O-Ring Material: Viton

Insert Material: ABS

Overmold Material: Polyurethane

Coupling Nut Material: ABS

Shell Material: ABS

Knockout Hole: 1.063

Thread Size: UNC 1"—14"

Panel Thickness: .125" max. with gasket,

.187" max. without gasket,

.062" min.

Operating Temperature: -20 to +80°C

Return Loss: 5 dB at 100 Mhz

RJ-45 Jack

Plating: 50 μm of Gold over 100 μm of Nickel

Current Rating: 1.5A

Voltage Rating: 125V DC

RJ-11 Jack

Plating: 50 μm of Gold over 100 μm of Nickel

Current Rating: 1.5A

Voltage Rating: 125V DC

Length Code

Meters

2M020

5M050

10 M100

Configuration Code*

Build-a-Part Number

ENSP1F5M010

*Once an engineering number is created using the configuration code, consult Molex tech support for information regarding any part numbers.

Face View Description Female Straight

Engineering No. Standard Order No.

RJ-11 Bulkhead Pass-Through Receptacles with

Backside Jack ENSP6F5 130055-0014

RJ-11 Bulkhead Pass-Through Receptacles with 12"

Male RJ-45 Patch Cord ENSP1F5M010 130055-0005

RJ-11 Bulkhead Pass-Through Receptacles with

Backside Jack ENSP1F5 130055-0001

Note: Sales drawings for all standard order numbers are available on molex.com

(3%)

www.molex.com

356

Industrial Ethernet

Brad® RJ-Lnxx® RJ-45

Sealed Receptalces

130058

Threaded Interconnect

Features and Beneﬁts

• Allows either molded or field attachable male connectors

to be mated together, extending overall system length

• Two M40 nylon lock nuts and threaded barrel allow

the interconnected to be positively fixed to a panel or

enclosure wall

Face View

(Female) Description Female Straight

Engineering No. Standard Order No.

In-Line—Interconnect RJBG16821 130058-0057

Threaded—Interconnect RJBG16821 130058-0059

(it)

www.molex.com 357

Description Engineering No. Standard

Order No.

RJ-45 Connector (for Stranded Cable) ENQAM315 130057-0001

RJ-45 Connector (for Solid Cable) ENSAM315 130057-0003

Note: Sales drawings for all standard order numbers are available on molex.com

Industrial Ethernet

Brad® RJ-Lnxx®

RJ-45 Sealed

Field Attachable

Connectors

130057

Female

Straight

Features and Beneﬁts

• Create an industrial Ethernet cordset in the field using

standard crimp tools

• Achieves IEC IP67 rated seal when mated with an RJ-Lnxx

receptacle

Physical

O-Ring Material: Viton

Insert Material: Acrylonitrile-Butadiene-Styrene (ABS)

Overmold Material: Polyurethane

Coupling Nut Material: Acrylonitrile-Butadiene-Styrene (ABS)

Shell Material: Acrylonitrile-Butadiene-Styrene (ABS)

Thread Size: UNC 1.00–14.00"

Operating Temperature: -20 to +80°C

Environmental

Protection: IEC IP67

Industrial Ethernet

Brad® RJ-Lnxx®

RJ-45 Sealed

Accessories

130058

Female, Male

Closure Caps

Features and Beneﬁts

• Attaches to RJ-Lnxx receptacles to provide an IEC IP65

rated seal for instances when a cordset is not mated

Physical

Material: Protective Cap—PA6 Nylon GF (UV Stabilized)

Lanyard—EPDM Rubber

Thread Size: UNC 1.00–14.00"

Operating Temperature: -20 to +80°C

Environmental

Protection: IEC IP65 (65-0300), IP67 (67-0300)

Type Description Female Male

Engineering No. Standard Order No. Engineering No. Standard Order No.

Cap IP65 Rated 65-0300 130058-0033 65-0301 130058-0034

Cap and Lanyard IP67 Rated 67-0300 130058-0035 67-0301 130058-0036

Note: Sales drawings for all standard order numbers are available on molex.com

www.molex.com

358

Industrial Ethernet

Brad® Sealed RJ-45

Overmolded

Single-Ended Cordsets

84702

Bayonet Style RJ-45 Plug

Features and Benefits

• One sealing surface reduces chance of failure

• IP67 and NEMA 6P ratings ensure cable assemblies

for water and dust tight functional integrity

• Bayonet style latching provides audible and tactile

confirmation of positive mating

• Category 5e specified provides high data transmission

speeds

• Overmolded cable assemblies allow for faster

installation

Reference Information

Packaging: Bag

Mates With: 84700 and 84702

Designed In: Inches

Electrical

Voltage: 150V AC

Current: 1.5A

Contact Resistance: 20 milliohms max.

Dielectric Withstanding Voltage:

Adjacent Contacts—1000V AC

Contacts to Ground—1500V AC

Insulation Resistance: 500 Megohms min.

Type: Category 5e

Transmission Performance: Category 5e

RJ-45 Connection Interface: TIA/EIA-568-B

Shielding Effectiveness: 20 dB min.

Mechanical

Durability: 200 mating cycles min.

Coupling Ring Destructive Torque: 2.26Nm (20 in. lb) or

Physical

Overmolded Body: PVC, black

Coupling Ring: PBT, black

Holder: PBT, black

Wedge: PBT, black

Gasket Seal: Nitrile, black

Contact: Phosphor Bronze

Plating: Contact Area—1.27μm (50μ") Gold

Underplating—Nickel

Operating Temperature: -40 to +85°C

Standard Order No. Length Lead-free

84702-3001 0.30m (1.00')

Yes

84702-3003 0.91m (3.00')

84702-3006 1.83m (6.00')

84702-3009 2.74m (9.000')

84702-3012 3.66m (12.00')

84702-3020 6.10m (20.00')

84702-3050 15.20m (50.00')

84702-3100 30.50m (100.00')

www.molex.com 359

Industrial Ethernet

Brad® Sealed RJ-45

Overmolded

Double-Ended Cordsets

84702

Bayonet Style RJ-45

Plug-to-Bayonet Style

RJ-45 Plug

Features and Benefits

• One sealing surface reduces chance of failure

• IP67 and NEMA 6P ratings ensure cable assemblies

are water and dust tight for functional integrity

• Bayonet style latching provides audible and tactile

confirmation of positive mating

• Category 5e specified provides high data transmission

speeds

• Overmolded cable assemblies allow for faster

installation

Reference Information

Packaging: Bag

Mates With: 84700 and 84702

Designed In: Inches

Electrical

Voltage: 150V AC

Current: 1.5A

Contact Resistance: 20 milliohms max.

Dielectric Withstanding Voltage:

Adjacent Contacts—1000V AC

Contacts to Ground—1500V AC

Insulation Resistance: 500 Megohms min.

Transmission Performance: Category 5e

RJ-45 Connection Interface: TIA/EIA-568-B

Shielding Effectiveness: 20 dB min.

Mechanical

Durability: 200 mating cycles min.

Coupling Ring Destructive Torque: 2.26Nm (20 in. lb) or

Physical

Overmolded Body: PVC, black

Coupling Ring: PBT, black

Holder: PBT, black

Wedge: PBT, black

Gasket Seal: Nitrile, black

Contact: Phosphor Bronze

Plating: Contact Area—1.27μm (50μ") Gold

Underplating—Nickel

Operating Temperature: -40 to +85°C

Order No. Length Lead-free

84702-1001 0.30m (1.00')

Yes

84702-1003 0.91m (3.00')

84702-1006 1.83m (6.00')

84702-1007 2.13m (7.00')

84702-1009 2.74m (9.000')

84702-1010 3.00m (10.00')

84702-1012 3.66m (12.00')

84702-1015 4.57m (15.00')

84702-1020 6.10m (20.00')

84702-1021 6.40m (21.00')

84702-1030 9.14m (30.00')

www.molex.com

360

Industrial Ethernet

Brad® Sealed RJ-45

Overmolded Double-Ended

Cordsets

84702

Bayonet Style RJ-45

Plug-to-Standard RJ-45 Plug

Features and Benefits

• One sealing surface reduces chance of failure

• IP67 and NEMA 6P ratings ensure cable assemblies

are water and dust tight for functional integrity

• Bayonet style latching provides audible and tactile

confirmation of positive mating

• Category 5e specified provides high data transmission

speeds

• Overmolded cable assemblies allow for faster

installation

Reference Information

Packaging: Bag

Mates With: 84700 and 84702

Designed In: Inches

Electrical

Voltage: 150V AC

Current: 1.5A

Contact Resistance: 20 milliohms max.

Dielectric Withstanding Voltage:

Adjacent Contacts—1000V AC

Contacts to Ground—1500V AC

Insulation Resistance: 500 Megohms min.

Transmission Performance: Category 5e

RJ-45 Connection Interface: TIA/EIA-568-B

Shielding Effectiveness: 20 dB min.

Mechanical

Durability: 200 mating cycles min.

Coupling Ring Destructive Torque: 2.26Nm (20 in. lb)

or more

Physical

Overmolded Body: PVC, black

Coupling Ring: PBT, black

Holder: PBT, black

Wedge: PBT, black

Gasket Seal: Nitrile, black

Contact: Phosphor Bronze

Plating: Contact Area—1.27μm (50μ") Gold

Underplating—Nickel

Operating Temperature: -40 to +85°C

Order No. Length Lead-free

84702-2001 0.30m (1.00')

Yes

84702-2003 0.91m (3.00')

84702-2006 1.83m (6.00')

84702-2007 2.13m (7.00')

84702-2009 2.74m (9.000')

84702-2010 3.00m (10.00')

84702-2012 3.66m (12.00')

84702-2015 4.57m (15.00')

84702-2020 6.10m (20.00')

84702-2021 6.40m (21.00')

84702-2030 9.14m (30.00')

www.molex.com 361

Industrial Ethernet

Brad® Sealed RJ-45

Receptacles

84702

Bayonet Style

PCB Mount and

Punchdown Panel Mount

PCB Mount Punchdown Panel Mount

Features and Beneﬁts

• One sealing surface reduces chance of failure

• Bayonet style latching provides audible and tactile

confirmation of positive mating

• Punchdown version supports simple IDC termination

Reference Information

Packaging: Bag

Mates With: 84700 and 84702

Designed In: Inches

Electrical

Voltage: 150V AC

Current: 1.5A

Contact Resistance: 20 milliohms max.

Dielectric Withstanding Voltage:

Adjacent Contacts—1000V AC

Contacts to Ground—1500V AC

Insulation Resistance: 500 Megohms min.

Transmission Performance: Category 5e

RJ-45 Connection Interface: TIA/EIA-568-B

Shielding Effectiveness: 20 dB min.

Mechanical

Durability: 200 mating cycles min.

Lock Nut Destructive Torque: 2.71Nm (24 in. lb)

Physical

Receptacle Housing: PBT, black

Lock Nut: Polyamide 6/6, black

Panel Gasket: Neoprene, black

Punchdown Block: Thermoplastic, white

Wire Range (Punchdown Receptacle):

22 to 26 AWG solid and stranded, limiting outside

diameter 1.40mm (.055")

Operating Temperature: -40 to +85°C

Standard Order No. Description Lead-free

84702-0005 PCB Mount Receptacle

Yes

84702-0006 Punchdown Panel Mount Receptacle

84702-0007 PCB Mount Receptacle, Potted

84702-0008 Punchdown Panel Mount Receptacle, Potted

84702-0009 Punchdown with 100 Ohm Resistors

Industrial Ethernet

Brad® Sealed RJ-45

Bulkhead Pass-Through

Receptacle

84700

Bayonet Style

Panel Mount

Features and Benefits

• Back-to-back RJ-45 pass-through brings ethernet

connectivity into a control cabinet and eliminates

need for conduit entry

• Bayonet style latching provides audible and tactile

confirmation of positive mating

• Meets ODVA/EtherNet™ IP specification

Reference Information

Packaging: Bag

Designed in: Inches

Mates With: 84700 and 84702

Waterproof: Meets requirements of IP67 and NEMA 6P

for water tightness

Electrical

Voltage: 150V AC

Current: 1.5A

Contact Resistance: 20 milliohms max.

Insulation Resistance: 500 Megohms min.

Transmission Performance: Category 5e

RJ-45 Connection Interface: TIA/EIA-568-B

Shielding Effectiveness: 20 dB min.

Return Loss: 5 dB at 100MHz

Mechanical

Durability: 500 mating cycles min.

Physical

Receptacle Housing: PBT, black

Panel Gasket: Neoprene, black

Lock Nut: Steel

Plating: Lock Nut—Zinc

Operating Temperature: -40 to +85°C

Standard Order No. Description Lead-free

84700-0001 Panel Mount Receptacle Yes

* EtherNet IP and DeviceNet are trademarks of the Open DeviceNet Vendor Association.

www.molex.com

362

Industrial Ethernet

Brad® Sealed RJ-45

Field Wireable Connectors

84700

Features and Beneﬁts

• One sealing surface reduces chance of failure

• IP67 and NEMA 6P ratings ensure cable assemblies

are water and dust tight for functional integrity

• Bayonet style latching provides audible and tactile

confirmation of positive mating

• Superior strain relief

• Easy termination allows custom length cable to be

made in the field

• Compatible with shielded and unshielded cable

• Meets ODVA/EtherNet™ IP* specification

Reference Information

Packaging: Bag

Mates With: 84700 and 84702

Designed In: Inches

Waterproof: Meets requirements of IP67 and NEMA

6P for water tightness

Electrical

Voltage: 56.5V DC

150V RMS AC (ringing voltage only)

Current: 1.5A at 25°C (77°F)

Contact Resistance: 20 milliohms max.

Insulation Resistance: 500 Megohms min.

Transmission Performance: Category 5e

RJ-45 Connection Interface: TIA/EIA-568-B

Shielding Effectiveness: 20 dB min.

Mechanical

Durability: 500 mating cycles min.

Physical

Coupling Ring: PBT, black

O-Ring: Nitrile

Gasket Seal: Nitrile, black

Plug Holder: PBT, black

Retainer Wedge: PBT, black

Wire Gauge: 24 AWG (stranded or solid conductors)

Operating Temperature: -40 to +85°C

Cable Seal Assembly: Polyamide, TPE Gland, black

Standard Order No. Description Lead-free

84700-0002 Field Attachable Plug Yes

*EtherNet IP is a trademark of the Open DeviceNet Vendor Association.

Industrial Ethernet

Brad® Sealed RJ-45

Tethered Dust Cap

84700

Bayonet Style

Features and Benefits

• One sealing surface means less likelihood of failure

• Attachable tether so cap never gets lost

• Maintains IP67 and NEMA 6P ratings for functional

integrity when connector is not mated

• IP67 and NEMA 6P ratings ensure cable assemblies

are water and dust tight for functional integrity

Reference Information

Packaging: Bag

Use With: 84700, 84702, 84729, 84730

Designed In: Inches

Physical

Dust Cap: PBT, black

Tether: PE or PP, black

Gasket Seal: Nitrile, black

Screw: Brass, #8-32

Plating: Screw—Nickel

Operating Temperature: -40 to +85°C

Standard Order No. Description Lead-free

84700-0003 Dust Cover Yes

IO (E7)

www.molex.com 363

Industrial Ethernet

Brad® Micro-Change® (M12)

Single-Ended Cordsets

130048

Male

Threaded

Features and Beneﬁts

• Familiar, proven M12 form factor provides

robust connection

• Category 5e compliant

• IP67 rated, perfect for harsh industrial environments

• D-Code to ensure proper alignment/mating

Reference Information

UL File No.: E200650

Cables

03—Unshielded PVC

Conductors: 24 AWG stranded tinned Copper wire

Pair: Two pair UTP patch cable

Outside Diameter: 0.250" (5.6mm) nominal

Jacket Material: Teal PVC

Cable Properties: Sun and oil resistant

Inner Material Insulation: HDPE

Certification: UL Type CMR, CEC C(UL) Type CMR

TIA/EIA Rating: Category 5e

Operating Temperature: -40 to 75°C

05—Shielded TPE

Conductors: 22 AWG stranded tinned Copper wire

Pair: Two pair UTP patch cable

Outside Diameter: 0.236" (5.90mm) nominal

Jacket Material: Teal TPE

Cable Properties: Sun and oil resistant

Inner Material Insulation: HDPE

Shield Type: Foil shield, 100% coverage,

25% minimum overlap

Flex Rating: Trailing cable, 5 million bending cycles

Certification: UL Type CMR, CEC C(UL) Type CMR

TIA/EIA Rating: Category 5e

Operating Temperature: -20 to 75°C

10—Shielded PUR

Conductors: 22 AWG stranded tinned wire

Pair: Two pair UTP patch cable

Outside Diameter: 0.255" (6.50mm) nominal

Jacket Material: Green PUR

Cable Properties: Sun resistant

Inner Material Insulation: FRNC

Shield Type: Foil Shield—100% coverage

Braid Shield—85% coverage

Flex Rating: Trailing cable, 5 million bending cycles

Certification: UL Listed CMX

TIA/EIA Rating: Category 5e

Operating Temperature: -40 to 70°C

15—Shielded PVC

Conductors: 26 AWG stranded tinned Copper wire

Pair: Two pair UTP patch cable

Outside Diameter: 0.236" (5.99mm) nominal

Jacket Material: Teal PVC

Cable Properties: Sun and oil resistant

Inner Material Insulation: Foamed polypropylene

Shield Type: Foil shield, 100% coverage, 25% min. overlap

Certification: UL Type CMR, CEC C(UL) type CMR

TIA/EIA Rating: Category 5e

Operating Temperature: -20 to 75°C

Length Code

Meters

2M020

5M050

10 M100

Configuration Code*

Build-a-Part Number E10A00610M010

*Once an engineering number is created using the configuration code, consult Molex tech support for information regarding any part numbers.

Cable Options

Face View Max. Current

per Contact Max. Voltage Cable Type Cable Jacket Wire Size

AWG Length Engineering No. Standard

Order No. Engineering No. Standard

Order No.

1 - Orange (TD+)

2 - Blue (RD+)

3 - Orange/White (TD-)

4 - Blue/White (TD-)

4 Pole

1.5A 30V

Unshielded PVC 24

1.0m (3.37')

E10A00603M010 130048-0038 E10A00703M010 130048-0062

Shielded PVC 22 E10A00610M010 130048-0046 E10A00710M010 130048-0070

Shielded PUR 24 E10A00615M010 130048-0054 E10A00715M010 130048-0078

Shielded High-Flex

TPE 26

E10A00605M010 120108-0186

Shielded High-Flex E10A00705M010 120108-0187

Note: Sales drawings for all standard order numbers are available on molex.com

.r man: mm" Ilﬂllliimrquig gnaw-a ( 5'9 (3%)

www.molex.com

364

Industrial Ethernet

Brad® Micro-Change® (M12)

Double-Ended Cordsets

120049/120108/130048

Male-to-Male

Straight, Right Angle

Threaded

Features and Beneﬁts

• Familiar, proven M12 form factor provides robust

connection

• Category 5e compliant

• D-Coded to ensure proper alignment/mating

• IP67 rated for harsh environments

Reference Information

UL File No.: E200650

Physical

Connector Body: PUR

O-Ring: Viton

Coupling Nut: Nickel-plated Brass

Contacts: Copper alloy with Gold over Nickel plating

Environmental

Protection: IP67

NEMA Rating: NEMA 6

Operating Temperature: -20 to +75°C

Cables

03—Unshielded PVC

Conductors: 24 AWG stranded tinned Copper wire

Pair: Two pair UTP patch cable

Outside Diameter: 0.250" (5.6mm) nominal

Jacket Material: Teal PVC

Cable Properties: Sun and oil resistant

Inner Material Insulation: HDPE

Certification: UL Type CMR, CEC C (UL) Type CMR

TIA/EIA Rating: Category 5e

Operating Temperature: -40 to +75° C

04—Unshielded TPE

Conductors: 24 AWG stranded tinned Copper wire

Pair: Two pair UTP patch cable

Outside Diameter: 0.210" (5.3mm) nominal

Jacket Material: Teal TPE

Cable Properties: Sun, oil and weld slag resistant

Inner Material Insulation: HDPE

Flex Rating: rolling band and torsional flex, 10 million cycles

Certification: UL Type CMX, CEC C (UL) Type CMR

TIA/EIA Rating: Category 5e

Operating Temperature: -20 to +75° C

10—Unshielded PUR

Conductors: 22 AWG stranded tinned Copper wire

Pair: Two pair UTP patch cable

Outside Diameter: 0.255" (6.5mm) nominal

Jacket Material: Green PUR

Cable Properties: Sun and oil resistant

Inner Material Insulation: FRNC

Sheild Type: Foil Sheild—100% Coverage

Braid Sheild—85% Coverage

Flex Rating: Trailing cable, 5 million bending cycles

Certification: UL Listed CMX

TIA/EIA Rating: Category 5e

Operating Temperature: -40 to +70° C

05—Shielded TPE

Conductors: 26 AWG stranded tinned Copper wire

Pair: Two pair UTP patch cable

Outside Diameter: 0.236" (5.99mm) nominal

Jacket Material: Teal TPE

Cable Properties: Sun and oil resistant

Inner Material Insulation: HDPE

Shield Type: Foil shield, 100% coverage,

25% minimum overlap

Certification: UL Type CMR, CEC C(UL) Type CMR

TIA/EIA Rating: Category 5e

Operating Temperature: -20 to +75° C

15—Shielded PVC

Conductors: 26 AWG stranded tinned Copper wire

Pair: Two pair UTP patch cable

Outside Diameter: 0.236" (5.99mm) nominal

Jacket Material: Teal PVC

Cable Properties: Sun and oil resistant

Inner Material Insulation: Foamed polypropylene

Shield Type: Foil shield, 100% coverage,

25% minimum overlap

Certification: UL Type CMR, CEC C(UL) Type CMR

TIA/EIA Rating: Category 5e

Operating Temperature: -20 to +75° C

Face View Max. Current

Per Contact

Max.

Voltage Cable Type Cable

Jacket

Wire Size

AWG Length

Male Straight-to-Male Straight Male Straight-to-Male Right Angle Male Right Angle-to-Male Right Angle

Engineering No. Standard

Order No. Engineering No. Standard

Order No.

4 Pole

1 - Yellow (TD+) 4 - Blue (RD-)

2 - White (RD+) 5 - D-Code

3 - Orange (TD-)

1.5A 30V

Unshielded PVC 24

1.0 m

E11A06003M010 130048-0088 E11A06203M010 130048-0137 E11A06303M010 130048-0161

Unshielded

High Flex TPE 24 E11A06004M010 130048-0095 E11A06304M010 120108-0167

Shielded PUR 22 E11A06010M010 130048-0114 E11A06210M010 130048-0145 E11A06310M010 130048-0170

Shielded PVC 26 E11A06015M010 130048-0122 E11A06215M010 130048-0153 E11A06315M010 130048-0179

Shielded TPE 26 E11A06005M010 120108-0188 E11A06205M010 120108-0189 E11A06305M010 120108-0174

Note: Sales drawings for all standard order numbers are available on molex.com

Length Code

Meters

2M020

5M050

10 M100

Configuration Code*

Build-a-Part Number E11A06003M010

Cable Option

Wiring Option

WMﬂhﬂEﬂmﬁﬂm 9) “<9, a="" molex‘="" v="">

www.molex.com 365

Face View Max. Current

Per Contact

Max.

Voltage Cable Type Cable Jacke Wire Size

AWG Length Female Straight-to-Male Straight

Engineering No. Standard Order No.

4 Pole

1 - Yellow (TD+) 4 - Blue (RD-)

2 - White (RD+) 5 - D-Code

3 - Orange (TD-)

1.5A 30V

Unshielded PVC 24

1.0 m

E11B03003M002 130048-0193

Shielded PVC 26 E11B03015M002 130048-0195

Note: Sales drawings for all standard order numbers are available on molex.com

Industrial Ethernet

Brad® Micro-Change® (M12)

Double-Ended Cordsets

130048

Female-to-Male

Straight

Threaded

Features and Beneﬁts

• Familiar, proven M12 form factor provides robust

connection

• Category 5e compliant

• D-Coded to ensure proper alignment/mating

• IP67 rated for harsh environments

Reference Information

UL File No.: E200650

Physical

Connector Body: PUR

O-Ring: Viton

Coupling Nut: Nickel-plated Brass

Contacts: Copper alloy with Gold over Nickel plating

Environmental

Protection: IP67

NEMA Rating: NEMA 6

Operating Temperature: -20 to 75°C

Cables

03—Unshielded PVC

Conductors: 24 AWG stranded tinned Copper wire

Pair: Two pair UTP patch cable

Outside Diameter: 0.250" (5.6mm) nominal

Jacket Material: Teal PVC

Cable Properties: Sun and oil resistant

Inner Material Insulation: HDPE

Certification: UL Type CMR, CEC C(UL) Type CMR

TIA/EIA Rating: Category 5e

Operating Temperature: -40 to +75°C

15—Shielded PVC

Conductors: 26 AWG stranded tinned Copper wire

Pair: Two pair UTP patch cable

Outside Diameter: 0.236" (5.99mm) nominal

Jacket Material: Teal PVC

Cable Properties: Sun and oil resistant

Inner Material Insulation: Foamed Polypropylene

Shield Type: Foil Shield, 100% coverage, 25% min. overlap

Certification: UL Type CMR, CEC C(UL) Type CMR

TIA/EIA Rating: Category 5e

Operating Temperature: -20 to +75°C

Length Code

Meters

1M010

2M020

5M050

10 M100

Configuration Code*

Build-a-Part Number E11B03003M002

Cable Option

Wiring Option

www.molex.com

366

Face View Max. Current

Per Contact

Max.

Voltage Cable Type Cable Jacket Wire Size

AWG Length Female Straight-to-Male Straight

Engineering No. Standard Order No.

4 Pole

1 - Yellow (TD+) 4 - Blue (RD-)

2 - White (RD+) 5 - D-Code

3 - Orange (TD-)

1.5A 30V Unshielded PVC 24 1.0 m E16A03003M010 130048-0197

Note: Sales drawings for all standard order numbers are available on molex.com

Industrial Ethernet

Brad® Micro-Change®-to-

RJ-45 Standard Plug

Double-Ended Cordsets

130048

Female-to-Male

Straight

Threaded to RJ-45

Features and Beneﬁts

• Familiar, proven M12 form factor provides robust

connection

• Category 5e compliant

• D-Coded to ensure proper alignment/mating

• IP67 rated for harsh environments

Connectors

M12

Reference Information

UL File No.: E200650

Physical

Connector Body: PUR

O-Ring: Viton

Coupling Nut: Nickel-plated Brass

Contacts: Copper alloy with Gold over Nickel plating

Operating Temperature: -25 to +75°C

Environmental

Protection: IP67

NEMA Rating: NEMA 6

RJ-45

Reference Information

UL File No.: E200650

Physical

RJ-45 Plug: Polycarbonate, clear

Boot: PVC

Operating Temperature: -20 to +75°C

Environmental

Protection: IP20

Cables

03—Unshielded PVC

Conductors: 24 AWG stranded tinned Copper wire

Pair: Two pair UTP Patch cable

Outside Diameter: 0.250" (5.6 mm) nominal

Jacket Material: Teal PVC

Cable Properties: Sun and oil resistant

Inner Material Insulation: HDPE

Certification: UL Type CMR, CEC C(UL) Type CMR

TIA/EIA Rating: Category 5e

Operating Temperature: -40 to +75°C

Length Code

Meters

2M020

5M050

10 M100

Configuration Code*

Build-a-Part Number E16A03003M010

Cable Option

Wiring Option

www.molex.com 367

Industrial Ethernet

Brad® Micro-Change® (M12)

Field Attachable Connectors

130047

Female, Male

Straight

Threaded

Features and Beneﬁts

• Fast field termination without special tooling

• D-Code to ensure proper alignment/mating

Mechanical

Coupling Nut: Zinc diecast

Shell Material: Zinc diecast

Contacts: Gold-plated Palladium Nickel

Cable

22 to 24 AWG

0.25 to 0.34mm2

Cable Diameter: 5.50 to 7.20mm

Environmental

Protection: IP67

Physical

Operating Temperature: -25 to +85°C

Poles

(Female View)

Max. Current

per Contact Max. Voltage Cable Diameter Range Male Straight Female Straight

Engineering No. Standard Order No. Engineering No. Standard Order No.

4 Pole

1 - Yellow (TD+) 3 - Orange (TD-)

2 - White (RD+) 4 - Blue (RD-)

4.0A 32V 5.50-7.20mm E1AS06-52 130047-0018 E1AS00-52 130047-0017

Note: Sales drawings for all standard order numbers are available on molex.com

gmmg

www.molex.com

368

Industrial Ethernet

Brad® Ultra-Lock® (M12)

Double-Ended Cordsets

120108

Male-to-Male

Straight, Right Angle

Push-to-Lock

Features and Beneﬁts

• Push-to-Lock technology assures fast, reliable connections

every time

• Reliable performance in high vibration environments due

to positive locking mechanism

• Ideal for wash-down and temporary submersion

applications due to improved sealing design

• Ergonomic push to lock mechanisms reduce fatigue and

user errors when a high number of connections need to

be made

• Category 5e compliant

• D-Code to ensure proper alignment/mating

• IP67/68/69K rated for harsh environments

Refernce Information

UL File No.: E200650

Physical

Connector Body: PUR

O-Ring: Viton

Coupling Nut: Nickel-plated Brass

Contacts: Copper alloy with Gold over Nickel plating

Operating Temperature: -20 to +75°C

Environmental

Protection: IP67/ P68/IP69K

NEMA Rating: NEMA 6

Cables

03—Unshielded PVC

Conductors: 24 AWG stranded tinned Copper wire

Pair: Two pair UTP patch cable

Outside Diameter: 0.250" (5.60mm) nominal

Jacket Material: Teal PVC

Cable Properties: Sun and oil resistant

Inner Material Insulation: HDPE

Certification: UL type CMR, CEC C(UL) type CMR

TIA/EIA Rating: Category 5e

Operating Temperature: -40 to +75°C

04—Unshielded TPE

Conductors: 24 AWG stranded tinned Copper wire

Pair: Two pair UTP patch cable

Outside Diameter: 0.210" (5.30mm) nominal

Jacket Material: Teal TPE

Cable Properties: Sun, oil and weld slag resistant

Inner Material Insulation: HDPE

Flex Rating: Rolling band and torsional flex, 10 million cycles

Certification: UL type CMX, CEC C(UL) type CMR

TIA/EIA Rating: Category 5e

Operating Temperature: -20 to +75°C

10—Shielded PUR

Conductors: 22 AWG stranded tinned wire

Pair: Two pair UTP patch cable

Outside Diameter: 0.255" (6.50mm) nominal

Jacket Material: Green PUR

Cable Properties: Sun resistant

Inner Material Insulation: FRNC

Shield Type: Foil Shield—100% coverage

Braid Shield—85% coverage

Flex Rating: Trailing cable, 5 million bending cycles

Certification: UL Listed CMX

TIA/EIA Rating: Category 5e

Operating Temperature: -40 to 70° C

15—Shielded PVC

Conductors: 26 AWG stranded tinned copper wire

Pair: Two pair UTP patch cable

Outside Diameter: 0.236" (5.99mm) nominal

Jacket Material: Teal PVC

Cable Properties: Sun and oil resistant

Inner Material Insulation: Foamed polypropylene

Shield Type: Foil shield, 100% coverage, 25% min. overlap

Certification: UL type CMR, CEC C(UL) type CMR

TIA/EIA Rating: Category 5e

Operating Temperature: -20 to +75°C

Face View

(Male)

Max. Current

per Contact

Max.

Voltage Cable Type Cable

Jacket

Wire Size

AWG Length Male Straight-to-Male Straight Male Straight-to-Male Right Angle Male Right Angle-to-Male Right Angle

Engineering No. Standard Order No. Engineering No. Standard Order No. Engineering No. Standard Order No.

1 - White/Orange 3 - Orange

2 - White/Green 4 - Green

1.5A 30V

Unshielded PVC 24

1.0m

EWWA06003M010 120108-0066 EWWA06203M010 120108-0074 EWWA06303M010 120108-0082

Unshielded

High Flex TPE 24 EWWA06304M010 120108-5020

Shielded PUR 22 EWWA06010M010 120108-0090 EWWA06210M010 120108-0098 EWWA06310M010 120108-0106

Shielded PVC 26 EWWA06015M010 120108-0042 EWWA06215M010 120108-0050 EWWA06315M010 120108-0058

Note: Sales drawings for all standard order numbers are available on molex.com

Length Code

Meters

1M010

2M020

5M050

10 M100

Configuration Code*

Build-a-Part Number EWWA06003M010

Cable Option

Wiring Option

*Once an engineering number is created using the configuration code, consult Molex tech support for information regarding any part numbers.

‘rro

www.molex.com 369

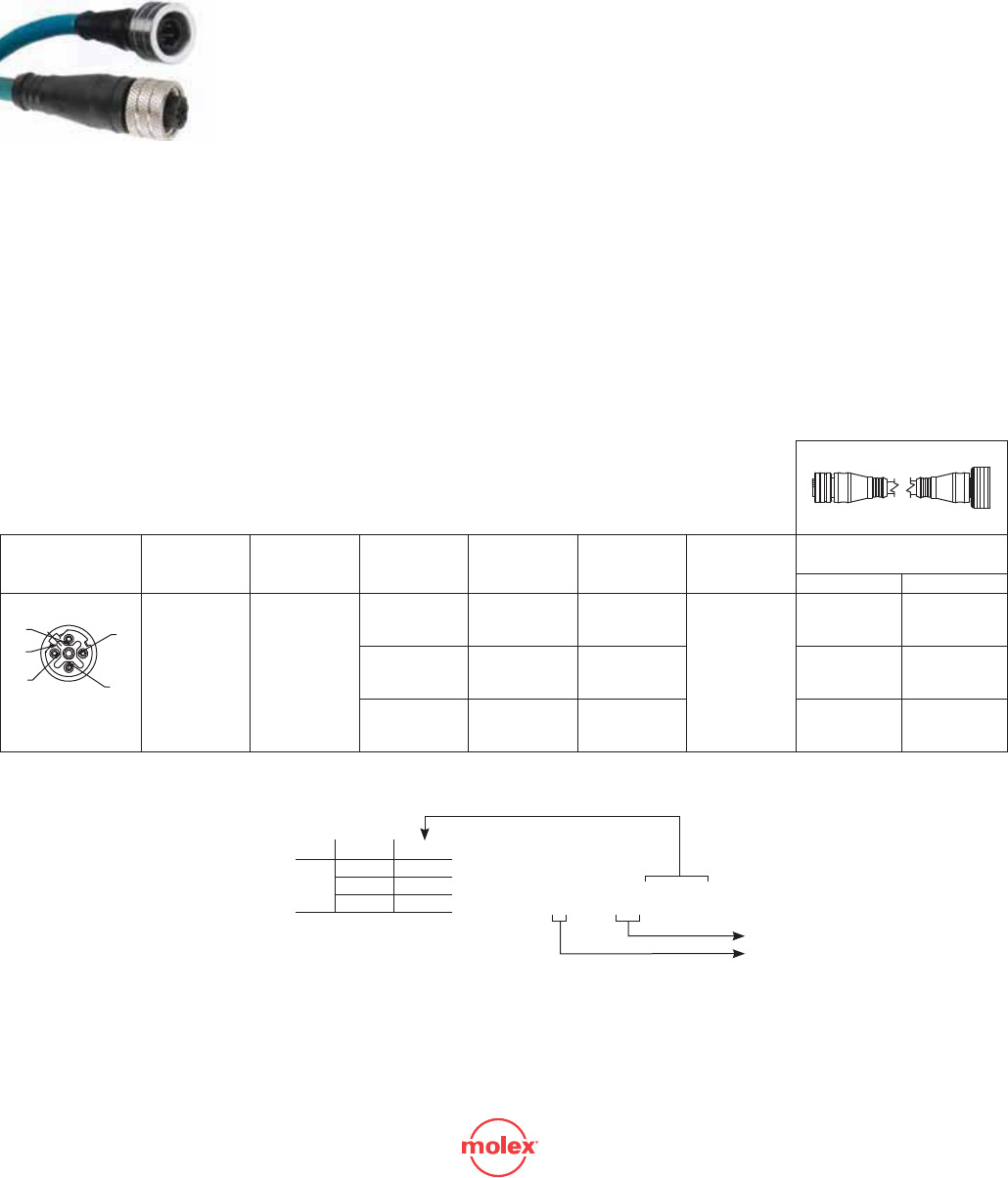

Industrial Ethernet

Brad® Ultra-Lock® (M12)

Double-Ended Cordset

130048

Female-to-Male

Straight

Push-to-Lock

Crossover-Wired

Features and Beneﬁts

• Brad M12 Micro-Change® Threaded to Push-to-Lock

Ultra-Lock® technology assures fast, reliable connections

every time

• Reliable performance in high vibration environments due

to positive locking mechanism

• Ergonomic push to lock mechanisms reduce fatigue and

user errors when a high number of connections need to

be made

• Category 5e compliant

• D-Code to ensure proper alignment/mating

• IP67 rated for harsh environments

Reference Information

UL File No.: E200650

Physical

Connector Body: PUR

O-Ring: Viton

Coupling Nut: Nickel-plated Brass

Contacts: Copper alloy with Gold over Nickel plating

Operating Temperature: -20 to +75°C

Environmental

Protection: IP67

NEMA Rating: NEMA 6

Cables

03—Unshielded PVC

Conductors: 24 AWG stranded tinned Copper wire

Pair: Two pair UTP patch cable

Outside Diameter: 0.250" (5.60mm) nominal

Jacket Material: Teal PVC

Cable Properties: Sun and oil resistant

Inner Material Insulation: HDPE

Certification: UL type CMR, CEC C(UL) type CMR

TIA/EIA Rating: Category 5e

Operating Temperature: -40 to +75°C

10—Shielded PUR

Conductors: 22 AWG stranded tinned wire

Pair: Two pair UTP patch cable

Outside Diameter: 0.255" (6.50mm) nominal

Jacket Material: Green PUR

Cable Properties: Sun resistant

Inner Material Insulation: FRNC

Shield Type: Foil Shield—100% coverage

Braid Shield—85% coverage

Flex Rating: Trailing cable, 5 million bending cycles

Certification: UL Listed CMX

TIA/EIA Rating: Category 5e

Operating Temperature: -40 to +70°C

15—Shielded PVC

Conductors: 26 AWG stranded tinned Copper wire

Pair: Two pair UTP patch cable

Outside Diameter: 0.236" (5.99 mm) nominal

Jacket Material: Teal PVC

Cable Properties: Sun and oil resistant

Inner Material Insulation: Foamed polypropylene

Shield Type: Foil Shield, 100% coverage, 25% min. overlap

Certification: UL type CMR, CEC C(UL) type CMR

TIA/EIA Rating: Category 5e

Operating Temperature: -20 to +75°C

Face View Max. Current

per Contact Max. Voltage Cable Type Cable Jacket Wire Size

AWG Length

M12 Micro-Change Female Straight-to-

M12 Ultra-Lock Male Straight

Engineering No. Standard Order No.

4 Pole

1 - Yellow (TD+) 4 - Blue (RD-)

2 - White (RD+) 5 - D-Code

3 - Orange (TD-)

1.5A 30V

Unshielded PVC 24

1.0m

E1WB03003M002 130048-0207

Shielded PUR 22 E1WB03010M002 130048-0208

Shielded PVC 26 E1WB03015M002 130048-0209

Note: Sales drawings for all standard order numbers are available on molex.com

Length Code

Meters

2M020

5M050

10 M100

Configuration Code*

Build-a-Part Number E1WB03003M002

Cable Option

Wiring Option

*Once an engineering number is created using the configuration code, consult Molex tech support for information regarding any part numbers.

www.molex.com

370

Conﬁguration Front-Panel Mount/

PG9 with 50.00mm Wire Leads

Front-Panel Mount/

M16 with 50.00mm Wire Leads

Back-Panel Mount/

M16 with 50.00mm Wire Leads

Wire Type PVC Leads, UL 1061

Wire Size (AWG) 22 AWG

Length 0.5m

Pole

(Female View)

Max. Current per

Contact Max. Voltage Engineering No. Standard Order No. Engineering No. Standard Order No. Engineering No. Standard Order No.

4 Pole

1 - Yellow (TD+) 4 - Blue (RD-)

2 - White (RD+) 5 - D-Code

3 - Orange (TD-)

1.5A 125V ERWAAJ3000C050 120109-0004 ERWAAU3000C050 120109-5001 ERWAAU7000C050 120109-5002

Note: Sales drawings for all standard order numbers are available on molex.com

Industrial Ethernet

Brad® Ultra-Lock® (M12)

Receptacles

120109

Female

Front Panel Mount

Back Panel Mount

Internal Thread

Features and Beneﬁts

• Mates with both threaded M12 and Ultra-Lock®

M12 cordsets

• Category 5e compliant

• IP67 rated, perfect for harsh industrial environments

• D-Code to ensure proper alignment/mating

Reference Information

UL File No.: E200650

Physical

Shell: Nickel-plated Brass

Insert: PUR

Conductors: Brass Gold plated/Bronze selective Gold plated

O-Ring: Viton

Operating Temperature: -20 to +80°C

Environmental

Protection: IP67

NEMA Rating: NEMA 6

Length Code

Centimeters 5C050

Meters

0.3 M003

1M010

2M020

Configuration Code*

Build-a-Part Number

ERWAAJ3000C050

*Once an engineering number is created using the configuration code, consult Molex tech support for information regarding any part numbers.

(E7)

www.molex.com 371

Industrial Ethernet

Brad® Ultra-Lock® (M12)

Receptacles

120109

Female

Back Panel Mount

Front Panel Mount

Features and Beneﬁts

• Mates with both threaded M12 and Brad Ultra-Lock®

M12 cordsets

• Category 5e compliant

• IP67 rated, perfect for harsh industrial environments

• D-Coded to ensure proper alignment/mating

Mechanical

Shell: Nickel-plated Brass

Insert: PUR

Conductors: Brass Gold plated/Bronze selective Gold plated

O-Ring: Viton

Electrical

TIA/EIA Rating: Category 5e

Environmental

Protection: IP67

NEMA Rating: NEMA 6

Conﬁguration Front Panel Mount, PG9 Thread Front Panel Mount, M16 Thread Back-Panel Mount, M16 Thread

PCB Mount PCB Mount PCB Mount

Poles Max. Current per

Contact Max. Voltage Engineering No. Standard Order No. Engineering No. Standard Order No. Engineering No. Standard Order No.

4 Pole

1 - Yellow (TD+) 4 - Blue (RD-)

2 - White (RD+) 5 - D-Code

3 - Orange (TD-)

1.5A 125V ERWD2J30 120109-5003 ERWD2U30 120109-5004 ERWD2U70 120109-5005

Note: Sales drawings for all standard order numbers are available on molex.com

www.molex.com

372

Industrial Ethernet

Brad® Ultra-Lock® (M12)

Receptacles

120109

Female

Straight

Back Panel Mount

Features and Beneﬁts

• Mates with both threaded M12 and Ultra-Lock®

M12 cordsets

• Category 5e compliant

• IP67 rated, perfect for harsh industrial environments

• D-Coded to ensure proper alignment/mating

Mechanical

Shell: Nickel-plated Brass

Insert: PUR

Conductors: Brass Gold plated/Bronze selective Gold plated

Electrical

TIA/EIA Rating: Category 5e

Environmental

Protection: IP67

NEMA Rating: NEMA 6

Straight, Back Panel Mount

Poles Max. Current per Contact Max. Voltage Engineering No. Standard Order No.

4 Pole

1 - Yellow (TD+)

2 - White (RD+)

3 - Orange (TD-)

4 - Blue (RD-)

D-code



1.5A 125V

ERWAAJ4002M002 130054-0012

ERWAAJ4002M020 130054-0013

Note: Sales drawings for all standard order numbers are available on molex.com

Length Code

Centimeters 200 C200

Meters

2M020

5M050

10 M100

Configuration Code*

Build-a-Part Number ERWAAU3000C200

*Once an engineering number is created using the configuration code, consult Molex tech support for information regarding any part numbers.

(ix ZMHSEE (it)

www.molex.com 373

Industrial Ethernet

Brad® Ultra-Lock® (M12)

Double-Ended Receptacles

120109

M12 Panel Mount Female

Receptacle-to-RJ-45 Male Plug

Features and Beneﬁts

• Mates with both threaded M12 and Ultra-Lock

M12 cordsets

• Category 5e compliant

• IP67 rated, perfect for harsh industrial environments

• D-Coded to ensure proper alignment/mating

Reference Information

UL File No.: E200650

Mechanical

Shell: Nickel-plated Brass

Insert: Nylon

Conductors: Brass Gold plated/Bronze selective Gold plated

O-Ring: Viton

Cable: PVC Jacket

Electrical

TIA/EIA Rating: Category 5E

Environmental

Protection: IP67

Pole

(Female View) Max. Current per Contact Max. Voltage Straight, Back Panel Mount, M16 Thread

Engineering No. Standard Order No.

1 - (TD+) 3 - (TD-)

2 - (RD+) 4 - (RD-)

1.5A 125V ERWPAU7003M006 120109-0005

Note: Sales drawings for all standard order numbers are available on molex.com

Length Code

Meters

2M020

5M050

10 M100

Configuration Code*

Build-a-Part Number

ERWPAU7003M006

*Once an engineering number is created using the configuration code, consult Molex tech support for information regarding any part numbers.

[um @

www.molex.com

374

Industrial Ethernet

Brad® Micro-Change® (M12)

Bulkhead

Pass-Through Adapters

130054

Female Straight,

Female Straight-to-Right Angle

Threaded

Back Panel Mount

Features and Beneﬁts

• Mates with both threaded M12 and (M12) cordsets

• Category 5e compliant

• IP67 rated, perfect for harsh industrial environments

• D-Coded to ensure proper alignment/mating

Mechanical

Shell: Nickel-plated Brass

Insert: PUR

Conductors: Brass Gold plated/Bronze selective Gold plated

O-Ring: Viton

Electrical

Voltage Rating: 215V

Current: 4.0A

TIA/EIA Rating: Category 5e

Environmental

Protection: IP67

M12-to-RJ-45 Adapter with M16 Mounting Thread

Poles Female Straight Female-Straight-to-Right Angle

Engineering No. Standard Order No. Engineering No. Standard Order No.

4 Pole

1 - Yellow (TD+)

2 - White (RD+)

3 - Orange (TD-)

4 - Blue (RD-)

1 (TD+)

D-Code

2 (RD+)

3 (TD-)

4 (RD-)

ER1PADAPTER 130054-0009 ER1PADAPTER90 130054-0010

Note: Sales drawings for all standard order numbers are available on molex.com

Products related to this Datasheet

CONN MOD COUPLER 8P8C TO 8P8C

1300550001

CONN CAP FOR MODULAR RJ45 JACK

1300580035

CONN MOD PLUG 8P8C SHIELDED

1300570003

CONN MOD COUPLER 8P8C TO 8P8C

1300580059

CONN MOD ADAPTER 8P8C TO PCB

1300550016
