MDDW
October 2008 © Ledil Oy
LEDIL Standard Optics for
CREE LEDs
Ledil Oy, Tehdaskatu 13, 24100 SALO, Finland
www.ledil.com
O
DEM
October 2008 © Ledil Oy
Lenses for XR-E and XR-C
CRS
– Specially designed for Cree XR-E and XR-C
– Lens material optical grade PC with high UV and temperature
resistance (130°C/220°F). Allows use of high current and
temperature conditions
– Very even color distribution over the whole beam angle
– Integrated holder. Fastening to heat sink with a PU foam adhesive
tape of automotive grade
– Compact dimensions 21.6 x 21.6 mm.
LENS TYPE ORDERING CODE FWHM
CRS real spot CRS-RS, FA10303 ±6°
CRS smooth spot CRS-SS, FA10328 ±7°
CRS diffuser CRS-D, FA10304 ±7°
CRS medium CRS-M, FA10305 ±14°
CRS wide CRS-W, FA10343 ±30°
CRS oval CRS-O, FA10306 ±6°x ±24°
CRS-RS CRS-SS CRS-D
CRS-M CRS-W CRS-O
October 2008 © Ledil Oy
Lenses for XR-E and XR-C

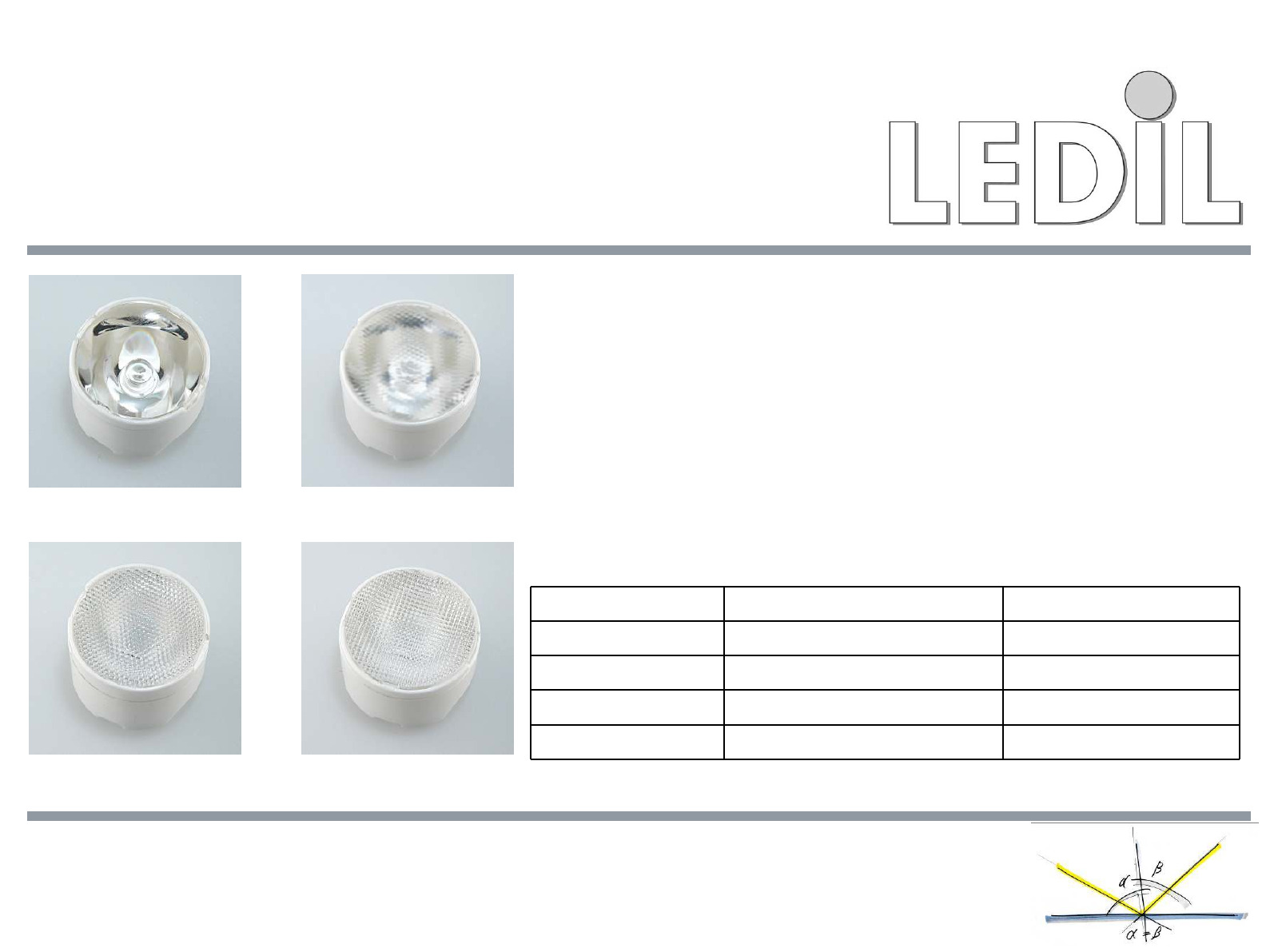

LC1
LENS TYPE ORDERING CODE FWHM
LC1 real spot LC1-RS FA10454 ±3°
LC1 diffuser LC1-D F 10627 ±5°
LC1 medium LC1-M FA10452 ±14°
LC1 Rectangular LC1-REC FA10511 ±11°x ±21°
– Specially designed for Cree XR-E and XR-C
– Lens material optical grade PMMA with high UV
and temperature resistance (105°C/220°F).
Allows use of high current and temperature
conditions
– Very even color distribution over the whole beam
angle
– Holder to be glued to PCB first, then assemble
lens. Parts delivered separately
– Compact dimensions D=21.6 mm.
LC1-M LC1-REC
LC1-DLC1-RS
October 2008 © Ledil Oy
Lenses for XR-E and XR-C
LC1-TAPE
LENS TYPE ORDERING CODE FWHM
LC1 real spot LC1-TAPE-RS FA10653 ±3°
LC1 diffuser LC1-TAPE-D FA 10655 ±5°
LC1 medium LC1-TAPE-M FA10652 ±14°
LC1 Rectangular LC1-TAPE-REC FA10654 ±11°x ±21°
– Specially designed for Cree XR-E and XR-C
– Lens material optical grade PMMA with high UV
and temperature resistance (105°C/220°F).
Allows use of high current and temperature
conditions
– Very even color distribution over the whole beam
angle
– Integrated holder WITH TAPE, parts assembled
together
– Compact dimensions D=21.6 mm.
LC1-TAPE-RECLC1-TAPE-M
LC1-TAPE-RS LC1-TAPE-D
October 2008 © Ledil Oy
Lenses for XR-E and XR-C
ROCKET
ROCKET-M
ROCKET-W
LENS ORDERING CODE FWHM
ROCKET smooth spot ROCKET-SS, C10324 ±4°
ROCKET medium ROCKET-M, C10250 ±13°
ROCKET wide ROCKET-W, C10406 ±19°
ROCKET oval ROCKET-O, C10325 ±3°x
20°
ROCKET-SS
ROCKET-O
– Designed for Cree XR-E and XR-C
– Lens material optical grade PMMA with
high UV and temperature resistance
(105°C/220 °F)
– No lens holder. Fastening to PCB with a PU
foam tape of automotive grade
– Diameter 26 mm (approximately 1”)
ROCKET-SSROCKET-SS ROCKET-M
ROCKET-SS ROCKET-M
ROCKET-SS
ROCKET-W
ROCKET-M
ROCKET-SS
ROCKET-O ROCKET-W
ROCKET-M
ROCKET-SS
ROCKET-O ROCKET-W
ROCKET-M
ROCKET-SS
DDW
M
October 2008 © Ledil Oy
Lenses for XR-E and XR-C LEDs

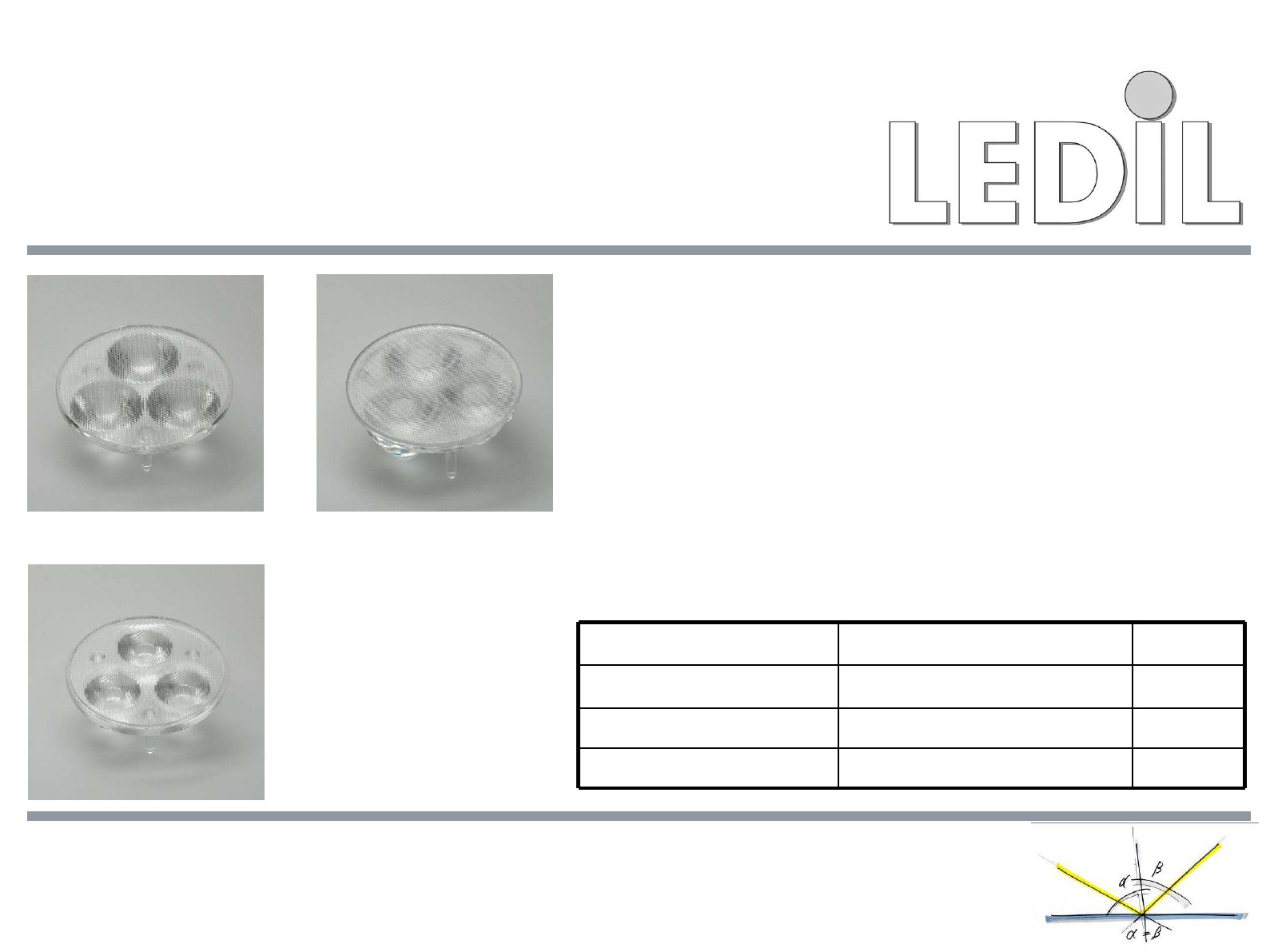

ROCKET-3
– Specially designed for Cree XR-E and XR-C
– Lens material optical grade PMMA with high UV and temperature
resistance (105°C/220°F). Very even color distribution over the
whole beam angle
– Compact dimensions of a MR16 fixture, D = 50 mm
– NO sub lenses used; every lens is one molding only
LENS ORDERING CODE FWHM
ROCKET-3 smooth spot ROCKET-3-SS, C10366 ±5°
ROCKET-3 medium ROCKET-3-M, C10367 ±10°
ROCKET-3 wide ROCKET-3-W, C10365 ±25°
ROCKET-3-SS ROCKET-3-M
ROCKET-3-W
am
October 2008 © Ledil Oy
Lenses for XR-E and XR-C
CUTE-3
– Specially designed for Cree XR-E and XR-C
– Lens material optical grade PMMA with high UV
and temperature resistance (105°C/220°F).
Very even color distribution over the whole beam
angle
– Compact dimensions of a MR11 fixture, D = 35
mm
– NO sub lenses used; every lens is one molding
only
LENS ORDERING CODE FWHM
CUTE-3 smooth spot CUTE-3-SS, C10428 ±6°
CUTE-3 medium CUTE-3-M, C10427 ±10°
October 2008 © Ledil Oy
Lenses for XR-E and XR-C

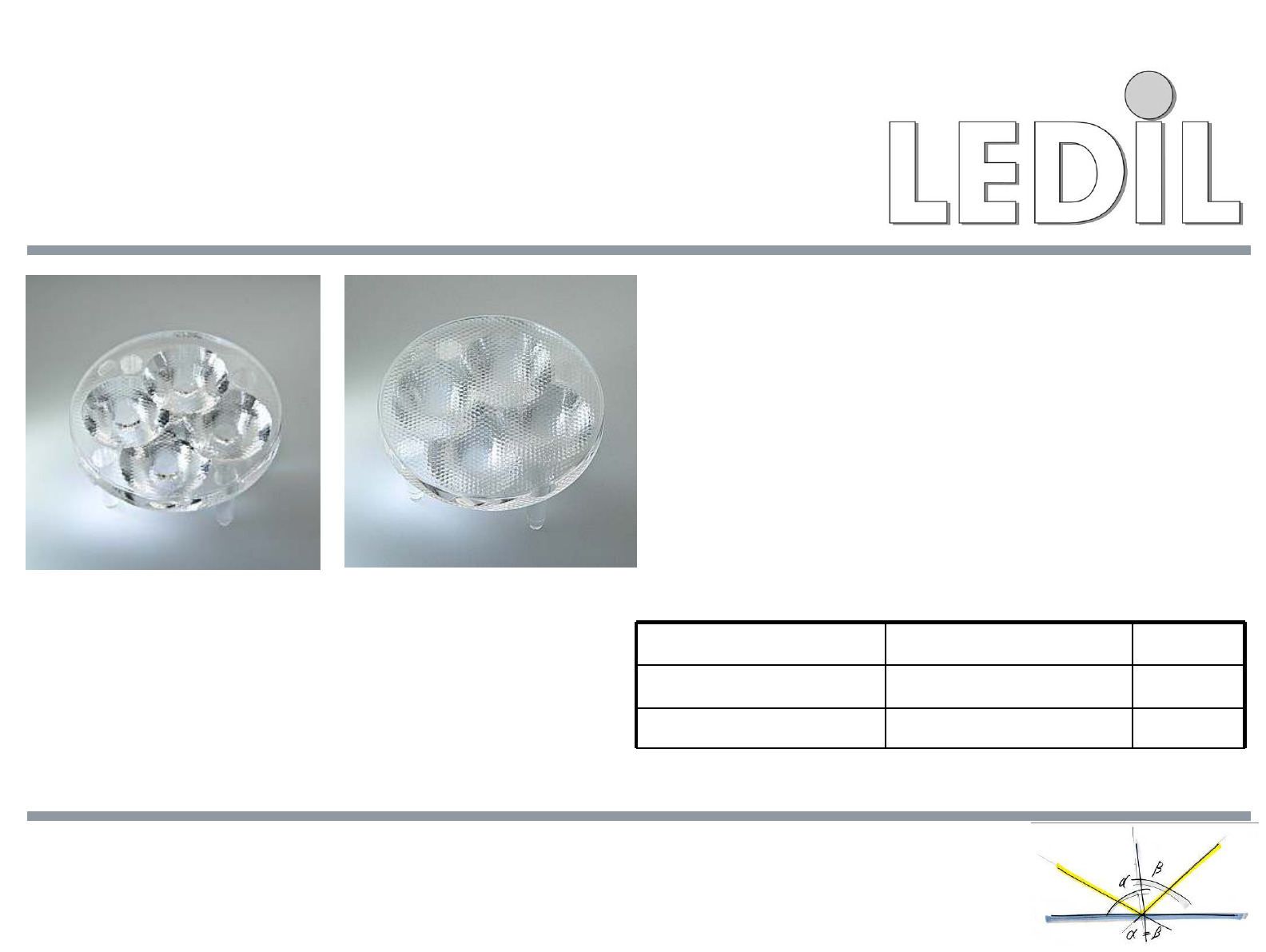

CUTE-4
– Specially designed for Cree XR-E and XR-C
– Lens material optical grade PMMA with high UV
and temperature resistance (105°C/220°F).
Very even color distribution over the whole beam
angle
– Compact dimensions of a MR11 fixture, D = 35
mm
– NO sub lenses used; every lens is one molding
only
LENS ORDERING CODE FWHM
CUTE-4 smooth spot CUTE-4-SS, C10446 ±6°
CUTE-4 medium CUTE-4-M, C10447 ±9°
CUTE-4-SS CUTE-4-M
G LEW. 2007
@fil
October 2008 © Ledil Oy
Lenses for Dragon
FLARE-C series
– Lens designed for Cree Xlamp XR, XR-C and XR-E
– Lens material optical grade PMMA with high UV and temperature
resistance (105°C/220°F). Allows use of high current and
temperature conditions
– Best available optical efficiency
– Fastening to PCB & heat sink with 2 screws (and TAPE, in that version)
– LED can be assembled parallel or perpendicular to the x,y axis (to
turn the light distribution by 90°)
– Compact dimensions 23 x 25 mm. Square form enables easy build of
a line without any gaps between lenses
– Especially suitable for Beacon and other 360°solutions and in linear
solutions with high evenness requirements
LENS TYPE ORDERING CODE FWHM
FLARE-C FLARE-C, C10402 ±4°x ±45°
FLARE-C with TAPE FLARE-C-TAPE, C10563 ±4°x ±45°
FLARE-C Diffused FLARE-C-DIFF, C10527 ±6°x ±42°
O
[EM
October 2008 © Ledil Oy
Lenses for XP-E and XP-C
LXP (TAPE)
LENS TYPE ORDERING CODE FWHM
LXP real spot LXP-RS FA10661 ±3°
LXP diffuser LXP-D FA 10663 ±5°
LXP medium LXP-M FA10660 ±13°
LXP rectangular LXP-REC FA10662 ±11°x ±21°
– Specially designed for Cree XP-E and XP-C
– Lens material optical grade PMMA with high UV
and temperature resistance (105°C/220°F).
Allows use of high current and temperature
conditions
– Very even color distribution over the whole beam
angle
– Integrated holder WITH TAPE, parts assembled
together
– Compact dimensions D=21.6 mm.
[EM
M
October 2008 © Ledil Oy
Lenses for XR-E and XR-C
CXP
– Specially designed for Cree XP-E and XP-C
– Lens material optical grade PC with high UV and temperature
resistance (130°C/220°F). Allows use of high current and
temperature conditions
– Very even color distribution over the whole beam angle
– Integrated holder. Fastening to heat sink with a PU foam adhesive
tape of automotive grade
– Compact dimensions 21.6 x 21.6 mm.
LENS TYPE ORDERING CODE FWHM
CXP real spot CXP-RS, FA10668 ±3°
CXP smooth spot CXP-SS, FA10667 ±5°
CXP diffuser CXP-D, FA10666 ±9°
CXP medium CXP-M, FA10665 ±15°
CXP wide CXP-W, FA10708 ±30°
CXP oval CXP-O, FA10669 ±6°x ±22°
October 2008 © Ledil Oy
Lenses for XP-E and XP-C
LISA-XP
LENS TYPE ORDERING CODE FWHM
LISA-XP1 smooth spot LISA-XP1-SS, CA10641 ±9°
– Specially designed for XP-E and XP-C
– Lens material optical grade PMMA with high UV
and temperature resistance (105°C/220°F).
Allows use of high current and temperature
conditions
– Very even color distribution over the whole beam
angle
– Integrated holder. Fastening to PCB using
appropriate glue
– Compact dimensions D=10.8 mm.
O
[EM
October 2008 © Ledil Oy
Lenses for XP-E and XP-C
TINA-XP
LENS TYPE ORDERING CODE FWHM
TINA XP diffuser TINA-XP-D, FA10580 Ca. ±7°
TINA XP medium TINA-XP-M, FA10581 Ca. ±15°
– Specially designed for Cree XP-E and XP-C
– Lens material optical grade PMMA with high UV and
temperature resistance (105°C/220°F). Allows use of
high current and temperature conditions
– Very even color distribution over the whole beam angle
– Fastening to PCB by adhesive tape
– Compact dimensions D=16 mm, h=10.5 mm (max)
@fifl
October 2008 © Ledil Oy
Lenses for XR-E and XR-C
TWIDDLE
LENS TYPE ORDERING CODE FWHM
TWIDDLE XR spot TWIDDLE-XR-S, FA10740 Ca. ±7°
TWIDDLEXR medium TWIDDLE-XR-M, FA10741 Ca. ±15°
TWIDDLE XR wide TWIDDLE-XR-W, FA10742 ±30°
–REVOLUTIONARY
ADJUSTABLE LENS
free tilting by ±
±±
±15°
°°
°
– Specially designed for XR-E
and XR-C
– Very even color distribution
over the whole beam angle
– Double lens system with
holder and tape
– Compact dimensions D=22
mm, h=15 mm (max)
October 2008 © Ledil Oy
Lenses for MC-E
LM1
LENS TYPE ORDERING CODE FWHM
LM1 diffuser LM1-D F10630 ±10°
LM1 medium LM1-M FA10614 ±13°
LM1 Rectangular LM1-REC FA10615 ±19 x ±12°
– Specially designed for Cree MC-E LEDs
– Lens material optical grade PMMA with high UV
and temperature resistance (105°C/220°F).
Allows use of high current and temperature
conditions
– Very even color distribution over the whole beam
angle
– Holder to be glued to PCB first, then assemble
lens. Parts delivered separately
– Compact dimensions D=21.6 mm.
LM1-M
LM1-REC
LM1-D
October 2008 © Ledil Oy
Lenses for MC-E
RGBx
LENS TYPE ORDERING CODE FWHM
RGBX RGBX, C10548 N/A
– Specially designed for Cree MC-E LEDs
– Lens material optical grade PMMA with high UV
and temperature resistance (130°C/280°F).
Allows use of high current and temperature
conditions
– Very even color distribution over the whole beam
angle
– Integrated holder.
– Dimensions D=27.96 mm, h=25.09 mm.
O
[EM
October 2008 © Ledil Oy
Lenses for MC-E
CMC
– Specially designed for MC-E LEDs
– Lens material optical grade PC with high UV and temperature
resistance (130°C/220°F). Allows use of high current and
temperature conditions
– Very even color distribution over the whole beam angle
– Integrated holder. Fastening to heat sink with a PU foam adhesive
tape of automotive grade
– Compact dimensions 21.6 x 21.6 mm.
LENS TYPE ORDERING CODE FWHM
CMC real spot CMC-RS, FA10674 N/A
CMC smooth spot CMC-SS, FA10672 N/A
CMC medium CMC-M, FA10671 N/A
CMC diffuser CMC-D, FA10672 N/A
CMC oval CMC-O, FA10675 N/A
CMC wide CMC-W, FA10714 N/A
DEW
M
October 2008 © Ledil Oy
Lenses for MC-E LEDs
ROCKET-3-MC
– Specially designed for MC-E LEDs
– Lens material optical grade PMMA with high UV and temperature
resistance (105°C/220°F). Very even color distribution over the
whole beam angle
– Compact dimensions of a MR16 fixture, D = 50 mm
– NO sub lenses used; every lens is one molding only
LENS ORDERING CODE FWHM
ROCKET-3 smooth spot ROCKET-3-MC-SS, C10681 N/A
ROCKET-3 medium ROCKET-3-MC-M, C10681 N/A
ROCKET-3 wide ROCKET-3-MC-W, C10683 N/A
@fifl
October 2008 © Ledil Oy
Reflectors for MC-E
BOOM
LENS TYPE ORDERING CODE FWHM
BOOM-MC Spot BOOM-MC-SS, C10569 ±10°
BOOM-MC Medium BOOM-MC-M, C10570 ±19°
BOOM-MC Wide BOOM-MC-W, C10571 ±24°
– Specially designed for MC-E LEDs
– Material optical ABS, vacuum coated with
aluminum and protected with lacquer
– Very even color distribution over the whole beam
angle
– Dimensions D=22.22 mm, height 13.54 mm.
October 2008 © Ledil Oy
Lenses for MC-E
EVA
LENS TYPE ORDERING CODE FWHM
EVA-SS Smooth Spot EVA-SS, C10684 N/A
EVA-M Medium EVA-M, C10685 N/A
EVA-W Wide EVA-W, C10686 N/A
– Specially designed for MC-E LEDs
– Standard MR11 size for replacing halogen lamps
– Material optical grade PMMA, with high UV and
temperature resistance (130°C/280°F). Allows
use of high current and temperature conditions
– Special care taken to make a uniform white or
warm white illumination. Lenses work
– well with other colors
, too.
Dimensions D=35 mm,
height 16.4 mm.

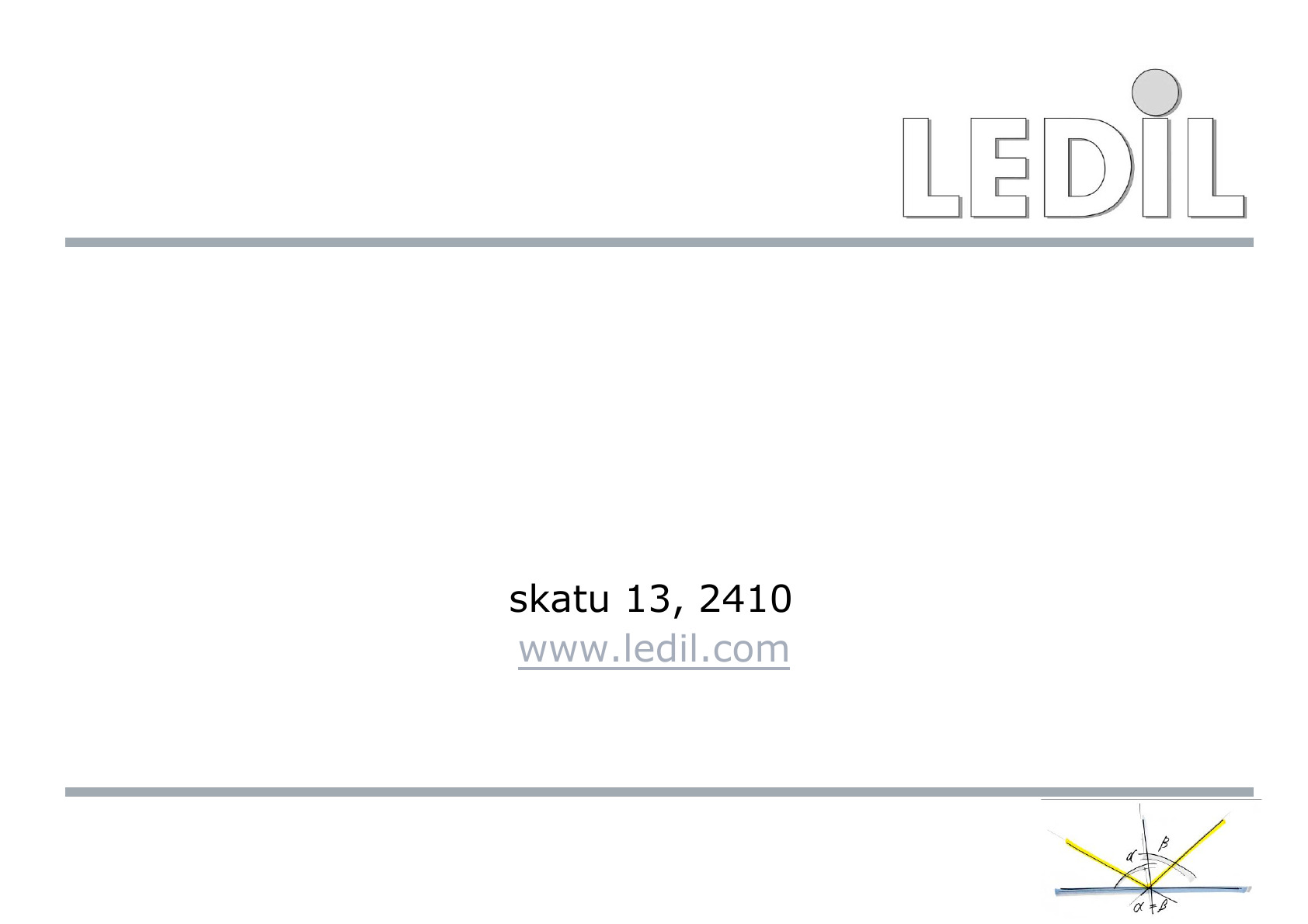

skatu 13, 2410
www.|edi|.com
0
[EM
or‘fl
September 2008 © Ledil Oy
LEDIL Standard Optics for
Osram LEDs
Ledil Oy, Tehdaskatu 13, 24100 SALO, Finland
www.ledil.com
MDDM
September 2008 © Ledil Oy
Lenses for Dragon/Dragon+
OSS
– Specially designed for Osram Dragon and Dragon+
– Lens material optical grade PC with high UV and temperature
resistance (130°C/220°F). Allows use of high current and temperature
conditions
– Very even color distribution over the whole beam angle
– Integrated holder. Fastening to heat sink with a PU foam adhesive
tape of automotive grade
– Compact dimensions 21.6 x 21.6 mm.
LENS TYPE ORDERING CODE FWHM
OSS real spot OSS-RS, FA10299 ±3°
OSS smooth spot OSS-SS, FA10327 ±7°
OSS diffuser OSS-D, FA10300 ±6°
OSS medium OSS-M, FA10301 ±15°
OSS wide OSS-W, FA10342 ±30°
OSS oval OSS-O, FA10302 ±6° x ±24°
OSS-RS OSS-SS OSS-D
OSS-M OSS-W OSS-O
MDDM
September 2008 © Ledil Oy
Lenses for Dragon/Dragon+
LO2
LENS TYPE ORDERING CODE FWHM
LO2 real spot LO2-RS FA10751 ±3°
LO2 diffuser LO2-D FA10753 ±5°
LO2 medium LO2-M FA10750 ±15°
LO2 Rectangular LO2-REC FA10752 ±15° x ±25°
– Specially designed for Osram Dragon and
Dragon+
– Lens material optical grade PMMA with high UV
and temperature resistance (105°C/220°F). Allows
use of high current and temperature conditions
– Very even color distribution over the whole beam
angle
– Integrated holder WITH TAPE
– Compact dimensions D=21.6 mm.
[EM
M
September 2008 © Ledil Oy
Lenses for Dragon/Dragon+
TITANUM
TITANUM-M
TITANUM-W
LENS ORDERING CODE FWHM
TITANUM smooth spot TITANUM-SS, C10318 ±7°
TITANUM medium TITANUM-M, C10252 ±13°
TITANUM wide TITANUM-W, C10244 ±35°
TITANUM oval TITANUM-O, C10319 ±3° x ±18°
TITANUM-SS
TITANUM-O
– Designed for Osram Dragon and Dragon+
– Lens material optical grade PMMA with
high UV and temperature resistance
(105°C/220 °F)
– No lens holder. Fastening to PCB with a PU
foam tape of automotive grade
– Diameter 26 mm (approximately 1”)
MDDW
September 2008 © Ledil Oy
Lenses for Dragon/Dragon+
TITANUM-3
– Specially designed for Osram Dragon and Dragon
– Lens material optical grade PMMA with high UV and temperature
resistance (105°C/220°F). Very even color distribution over the whole
beam angle
– Compact dimensions of a MR16 fixture, D = 50 mm
– Sub lens used to create a soft beam medium lens
LENS ORDERING CODE FWHM
TITANUM-3 spot TITANUM-3-S, C10268 ±5°
TITANUM-3 medium TITANUM-3-M-SUB, CA10374 ±15°
TITANUM-3-S TITANUM-3-M
[EM
M
September 2008 © Ledil Oy
Lenses for Dragon/Dragon+
PLATINUM-3
– Specially designed for Osram Dragon and Dragon+
– Lens material optical grade PMMA with high UV and temperature
resistance (105°C/220°F). Very even color distribution over the whole
beam angle
– Compact dimensions of a MR16 fixture, D = 50 mm
– NO sub lenses used; every lens is one molding only
LENS ORDERING CODE FWHM
PLATINUM-3 smooth spot PLATINUM-3-SS, C10366 ±7°
PLATINUM-3 medium PLATINUM-3-M, C10367 ±10°
PLATINUM-3 wide PLATINUM-3-W, C10365 ±25°
PLATINUM-3-SS PLATINUM-3-M
PLATINUM-3-W
September 2008 © Ledil Oy
Lenses for Dragon+
PLATINUM-4
– Specially designed for Dragon+
– Lens material optical grade PMMA with high UV
and temperature resistance (105°C/220°F). Very
even color distribution over the whole beam
angle
– Compact dimensions of a MR16 fixture, D = 50
mm
– NO sub lenses used; every lens is one molding
only
LENS ORDERING CODE FWHM
PLATINUM-4 smooth spot PLATINUM-4-OS, C10704 ±7°
PLATINUM-4 medium PLATINUM-4-OM, C10703 ±10°
PLATINUM-4 wide PLATINUM-4-OW, C10705 ±25°
September 2008 © Ledil Oy
Lenses for Dragon+
CUTE-3-O+
– Specially designed for Osram Dragon+
– Lens material optical grade PMMA with high UV
and temperature resistance (105°C/220°F). Very
even color distribution over the whole beam
angle
– Compact dimensions of a MR11 fixture, D = 35
mm
– NO sub lenses used; every lens is one molding
only
LENS ORDERING CODE FWHM
CUTE-3-O+ smooth spot CUTE-3-O+S, C10710 ±6°
CUTE-3-O+ medium CUTE-3-O+M, C10711 ±10°
CUTE-3-O+ wide CUTE-3-O+W, C10712 ±25°
MDDW
September 2008 © Ledil Oy
Lenses for Dragon
OSR-5-M
– Specially designed for Osram Platinum Dragon series of LEDs
– Lens material optical grade PMMA with high UV and temperature
resistance (105°C/220°F). Allows use of high current and temperature
conditions
– Very even color distribution over the whole beam angle
– Compact dimensions MR11, D=35 mm.
LENS TYPE ORDERING CODE FWHM
OSR-5 medium OSR-5-M, C10472 ±13°
MDDW
September 2008 © Ledil Oy
Lenses for Dragon
LISA-O
LENS TYPE ORDERING CODE FWHM
LISA O1 medium LISA-O1-SS, CA10444 ±10°
– Specially designed for Osram Dragon
– Lens material optical grade PMMA with high UV
and temperature resistance (105°C/220°F). Allows
use of high current and temperature conditions
– Very even color distribution over the whole beam
angle
– Integrated holder. Fastening LED package by
snap hooks, no glue needed
– Compact dimensions D=10.8 mm.
MDDM
Am,
September 2008 © Ledil Oy
Lenses for Dragon/Dragon+
TINA
LENS TYPE ORDERING CODE FWHM
TINA O+ smooth spot TINA-O+SS, FA10642 Ca. ±7°
TINA O+ medium TINA-O+M, FA10643 Ca. ±15°
TINA O+ wide TINA-O+W, C10449 ±36°
– Specially designed for Osram Dragon/Dragon+
– Lens material optical grade PMMA with high UV and
temperature resistance (105°C/220°F). Allows use of high
current and temperature conditions
– Very even color distribution over the whole beam angle
– W-version: integrated holder. Fastening LED package by
snap hooks, no glue needed. SS nad M versions: holder
and tape
– Compact dimensions D=16 mm, h=10.5 mm (max)
MDDM
&E§
September 2008 © Ledil Oy
Lenses for Dragon/Dragon+
TWIDDLE
LENS TYPE ORDERING CODE FWHM
TWIDDLE O+ spot TWIDDLE-O+S, FA10740 Ca. ±7°
TWIDDLE O+ medium TWIDDLE-O+M, FA10741 Ca. ±15°
TWIDDLE O+ wide TWIDDLE-O+W, FA10742 ±30°
– REVOLUTIONARY ADJUSTABLE LENS
free tilting by ±15°
– Specially designed for Osram Dragon/Dragon+
– Very even color distribution over the whole beam
angle
– Double lens system with holder and tape
– Compact dimensions D=22 mm, h=15 mm (max)
MDDW
September 2008 © Ledil Oy
Lenses for Ostar
LEDILSTAR
LENS TYPE ORDERING CODE FWHM
LEDILSTAR Lighting Spot LEDILSTAR-L-S, C10265 ±8°
LEDILSTAR Lighting Wide LEDILSTAR-L-W, C10266 ±18°
LEDILSTAR Projection Spot LEDILSTAR-P-S, C10271 ±6°
LEDILSTAR Projection Sub lens LEDILSTAR-P-SUB, CA10317 ±7°
LEDILSTAR Projection Wide LEDILSTAR-P-W, C10270 ±16°
– Specially designed for Ostar
– Lens material optical grade PC with high UV and
temperature resistance (130°C/280°F). Allows use
of high current and temperature conditions
– Very even color distribution over the whole beam
angle
– Integrated holder. Fastening to heat sink 2 screws
– Dimensions D=35 mm, h=24.6 mm.
O
[EM
September 2008 © Ledil Oy
Lenses for Ostar SMT
RGBx
LENS TYPE ORDERING CODE FWHM
RGBX Smooth Spot RGBX-OSMT-SS, C10542 ±8°
RGBX Medium RGBX-OSMT-M, CA 10766 ±18°
RGBX Oval RGBX-OSMT-O, CA 10767 ±8° x ±25°
– Specially designed for Ostar SMT
– Lens material optical grade PMMA with high UV
and temperature resistance (130°C/280°F). Allows
use of high current and temperature conditions
– Very even color distribution over the whole beam
angle
– Integrated holder.
– Dimensions D=29 mm, h=18 mm.
MDDW
September 2008 © Ledil Oy
Lenses for Ostar
CAT
LENS TYPE ORDERING CODE FWHM
CAT CAT, C10410 ±60°
– Specially designed for Ostar and streetlighting
– Lens material optical grade PMMA with high UV
and temperature resistance (105°C/220°F). Allows
use of high current and temperature conditions
– Very even color distribution over the whole beam
angle
– Integrated holder. Fastening LED package by 2
screws
– Dimensions 31 X 27 X 23 mm.
0
[EM
September 2008 © Ledil Oy
Lenses for Ostar
NATALIE
LENS TYPE ORDERING CODE FWHM
NATALIE NATALIE, C10267 ±9°
– Specially designed for Ostar
– Lens material optical grade PMMA with high UV
and temperature resistance (105°C/220°F). Allows
use of high current and temperature conditions
– Very even color distribution over the whole beam
angle
– Dimensions D=35 mm, height 6 mm.
@fil
September 2008 © Ledil Oy
Reflectors for Ostar
BOOMERANG
LENS TYPE ORDERING CODE FWHM
BOOMERANG BOOMERANG, C10437 ±14° x ±15°
– Specially designed for Ostar
– Material optical ABS, vacuum coated with
aluminum and protected with lacquer
– Very even color distribution over the whole beam
angle
– Dimensions D=20 mm, height 15.5 mm.
Products related to this Datasheet
LENS CLR DIFFUSER ADHESIVE TAPE
LENS CLEAR MEDIUM ADHESIVE TAPE
LENS CLEAR SPOT ADHESIVE TAPE
LENS CLEAR SPOT ADHESIVE TAPE
