CM4 Series

600W Conduction Cooled

Modular Power Supply

CM4 Series 1

www.emea.tdk-lambda.com/cm4

Features Benefits

 •Conductioncooled •Noaudiblenoise

 •Wideoutputadjustment •Suitsnon-standardvoltages

 •Compact4x7inchsize •Spacesavinginendequipment

 •MIL-STD-461Fcompliant •SuitableforCOTSapplications

 •5yearwarranty •Lowcostofownership

 •Externalvoltagecontrol •Remoteprogrammingofvoltageandcurrent

Specification

Model CM4 Series

 Outputpower(1) W 425W 600W(750Wfor5s) 

 Inputvoltage Vac 85-264Vac 120-264Vac 

 Frequency - 47-63Hz(Contactfactoryforoperationon400Hz)  

 Inputfuses - 8A/250VacHBCFastacting(notuseraccessible)inbothLiveandNeutrallines 

 Inputcurrentat120Vac,600Wload A 6A  

 Inrushcurrent - <20Aat25and264Vac(coldstart) 

 Leakagecurrent A 200µAmaximumat264Vac63Hz 

 Powerfactor - 0.99typical 

 Holdup ms Typically20ms  

 Overtemperatureprotection - Alloutputsareturnedoff.Afterunitcoolsdown,recycleACortoggleglobalremoteon/off 

 Cooling - Conduction,convectionorforcedair  

 Standbypowerconsumption W Lessthan1Wwithglobalon/offactivated  

 Noloadpowerconsumption W 10to21W  

 Efficiency - Upto90%(seeapplicationnoteonwebsite)  

Isolation -

 Inputtooutput - Reinforced:2xMOPPs(3rdedition60601),4kVac  

 Inputtoearth - Basic:1xMOPP1.5kVac  

 Outputtoearth - 500Vdc  

 Outputtooutput - 500Vdc  

General -

 Weight g 650+100foreachoutputmodulefitted  

 Size(LxWxH) mm 177.8x101.6x41  

 Warranty yrs 5  

Notes: (1)Converterandmodulepowermustbede-ratedby2.5%forevery3voltsbelow120Vac,downtoaminimumof85Vac

,QGXVWULDO 7HVW &RPP

%URDGFDVW

5HQHZDEOH

&RWV

0HGLFDO

TDK-Lambda How To Create A Product Description Bias Voltage .8 5 5.2 Volts Bias Cunent 1 Amps AC_0K Voltage L I4 .03 .1I5. Volts AC_0K Current 10 mA Power Good V0 0 .1 0.3 Volts Power Good C 0 50 mA Tsns Voltage T 0 .4 5 Volts Tsns Cunent 100 MA lnttihit Voltage Low input level/High input leve [2. .Blb‘ Volts Inhibit Current 10k input impedance. All slots 1 IM

CM4 Series

How To Create A Product Description

TheextensiverangeofoutputmodulesandoptionsmakeitpossibletoachievealmostanycombinationofVoltsandAmps.

YoucancreateyourownCMconfigurationonlineathttps://config.emea.tdk-lambda.com/.Thismethodchecksyourconfigurationandofferstheoptimum

solution.Alternatively,youcandothismanuallybyusingtheguidebelow.

1.SelectOutputModulesfromthetable,basedonoutputvoltageandcurrent.Ensurethatthemaximumnumberofslotsdoesnotexceed4  

2.ForanS1modulesetat5V,S2setat12V,S3setat24VandaS4setat48V,pleaseusethefollowingnomenclaturestyle:CM45S112S224S348S4

3.ContactTDK-Lambdatovalidateconfiguration

Output Modules

Module Slots used Module Output Voltage Output Voltage Output Voltage Maximum Maximum Maximum

Name Minimum Vnominal Maximum Output Current Output Peak Power (5 sec)

S1 1 - 1.5V 5V 7.5V 25A 125W 187.5W

 Z1 2 2xS1inparallel 1.5V 5V 7.5V 50A 250W 375W

 ZA 3 3xS1inparallel 1.5V 5V 7.5V 75A 375W 562.5W

 ZN 4 4xS1inparallel 1.5V 5V 7.5V 100A 500W 750W

 Y1 2 2xS1inseries 3V 10V 15V 25A 250W 375W

 HA 4 4xS1inseries/parallel 3V 10V 15V 50A 500W 750W

 S2 1 - 4.5V 12V 15V 15A 150W 225W

 Z2 2 2xS2inparallel 4.5V 12V 15V 30A 300W 450W

 YA 3 3xS1inseries 4.5V 15V 22.5V 25A 375W 562.5W

 ZB 3 3xS2inparallel 4.5V 12V 15V 45A 450W 675W

 ZP 4 4xS2inparallel 4.5V 12V 15V 60A 600W 750W

 YN 4 4xS1inseries 6V 20V 30V 25A 500W 750W

 S3 1 - 9V 24V 30V 7.5A 150W 225W

 Y2 2 2xS2inseries 9V 24V 30V 15A 300W 450W

 ZC 3 3xS3inparallel 9V 24V 30V 22.5A 450W 675W

 HB 4 4xS2inseries/parallel 9V 24V 30V 30A 600W 750W

 ZQ 4 4xS3inparallel 9V 24V 30V 30A 600W 750W

 YB 3 3xS2inseries 13.5V 36V 45V 15A 450W 675W

 S4 1 - 18V 48V 58V 3.75A 150W 217.5W

 Y3 2 2xS3inseries 18V 48V 60V 7.5A 300W 450W

 ZD 3 3xS4inparallel 18V 48V 58V 11.25A 450W 652.5W

 ZR 4 4xS4inparallel 18V 48V 58V 15A 600W 750W

 YP 4 4xS2inseries 18V 48V 60V 15A 600W 750W

 YC 3 3xS3inseries 27V 72V 90V 7.5A 450W 675W

 Y4 2 2xS4inseries 36V 96V 116V 3.75A 300W 435W

 YQ 4 4xS3inseries 36V 96V 120V 7.5A 600W 750W

 YD 3 3xS4inseries 54V 144V 174V 3.75A 450W 652.5W

 YR 4 4xS4inseries 72V 192V 232V 3.75A 600W 750W

GlobalSignalsSpecifications

Parameter Details Minimum Typical Maximum Units

BiasVoltage  4.8 5 5.2 Volts

BiasCurrent    1 Amps

AC_OKVoltage Lowoutputlevel/Highoutputlevel 0/4.8 0.03/5 0.1/5.2 Volts

AC_OKCurrent    10 mA

PowerGoodVoltage Opencollectoroutput.Lowoutputlevel.Allslots.Absolutemaximum=6V 0.1  0.3 Volts

PowerGoodCurrent Opencollectoroutput.Currentsinkonly.Allslots   50 mA

TsnsVoltage Typicalat0°Cinternaltemperature,19.5mV/°C 0 0.4 5 Volts

TsnsCurrent    100 uA

InhibitVoltage Lowinputlevel/Highinputlevel.Allslots 0/2.5  0.8/6 Volts

InhibitCurrent 10kinputimpedence.Allslots   1 mA

TDK-Lambda ‘ Environment (see installation manual for more details) - Conduction Cooling 650 600 A 550 5. 5°“ — Ambient — Bastplate - 450 2 400 f: 350 Derate input module puwer at2.5% per 3. 300 degree calsiusabove we '5 250 g 200 5 150 name output undue power a. current at 2.5% per degree oelsius above £55 100 so 0 ~40 4|] -2D 40 D 10 20 30 40 5|) SD 70 80 9!] 1m) 110 Tomporamn (Cabins) Environment (see installation manual for more details) - Forced Air Cooling 550 coo 550 500 450 4m 350 210V 300 . '5’" 250 Oriental-on A 2% Airﬂow X axis 1 10° (ISM/s or mum — lmlsov 20mm 50 mud Output Pomer) — 1 Sin/x0! mm — zm/sovM‘KllFM o 40-35450-25-2045-10 ‘5 o 5 to 15 20 25 so 35 «7 45 so 55 so 55 7a 15 Arnhilnl rump-mumcmiun) Environment (see installation manual for more details) - Convection Cooling 650 600 550 500 450 m 120v.ms 350 Orienlatinn EIF 300 250 200 5!. n, u, m, n. 1A, In .50 All other modules mo _ — — 51,v1,VA,VN,1|,mermnmmalbeatsmk 5., — — — lllolhe' modulendlh wllanalheatslnl o and Outauler (W) 4045-30-25-20-15-10 5 n 5 to 15 20 25 an 35 an 45 so 55 so 55 7o 75 Ambient Tmpanlun (cum-1

CM4 Series 3

Environment (see installation manual for more details) - Conduction Cooling

Environment (see installation manual for more details) - Forced Air Cooling

Environment (see installation manual for more details) - Convection Cooling

Applyappropriatederatingtoconverterandmodulesforbothambientandbaseplatetemperatures

OrientationA

OrientationE OrientationF

Note 1: Toensurereliability,componenttemperaturesmustbemaintainedbelowrecommendedlevelsintheendapplication.

  TheSystemcoolingsectionoftheusermanualshouldbereviewedindetailandtemperaturesverifiedintheendapplication

See Note 1:

TDK-Lambda Speciﬁcation

CM4 Series

Specification

Note: Actual ratings must be determined in the user application

Humidity(noncondensing)  5-95%RH

Altitude  Operational:3000m,storage:5000m

Shock EN60068-2-27 30g18msoperating,MIL-STD-810G:Method516.6,ProcedureIV 

  EN60068-2-6 Sine,10–500Hz,3axes,1oct/min.,10cycleseachaxis 

  EN60068-2-64 Random,5–500Hz,3axes,30min. 

Vibration MIL-STD-810G Method514.6,ProcedureI(GeneralVibration) 

   Category4(Trucks&Trailers,Compositewheeledvehicle),Figure514.6C-3.

   Category7(Aircraft,Jetcargo),Figure514.6C-5Generalexposure

   Category24,(All,Minimumintegrity)Figure514.6E-1 

Thermalshock(nonoperating) MIL-STD-810G Method503.5ProcedureI-C.Multi-cycle.3shocks-51to+85oC 

Emissions

Radiatedelectricfield EN55011/32 ClassB 

Radiatedelectricfield,30Hz-18GHz MIL-STD-461F RE102(Ground,Fixed)whenmountedinanenclosure 

Conductedemissions EN55011/32 FCCpart15,CISPR22/11,ClassB

HarmonicDistortion(PFC) IEC61000-3-2 

Flicker&Fluctuation IEC61000-3-3 

Immunity

Electrostaticdischarge IEC61000-4-2 Testlevel4:15kVair,8kVcontact,IEC60601-1-2:2014

RadiatedRFEMfields IEC61000-4-3 TestLevel3:(10V/m,80MHz-2.7GHz)sinewaveAM80%1kHz 

ProximityfieldsfromRF IEC61000-4-3 TestlevelsasperIEC60601-1-2:2014Table9

Radiatedsusceptibility,electricfield MIL-STD-461F RS1032MHzto40GHz,20V

Conductedsusceptibility MIL-STD-461F CS115 

SurgeIEC61000-4-5  TestLevel3:1kVL-N,2kVL-E.AsperIEC60601-1-2:2014 

Conductedsusceptibility MIL-STD-461F CS116 

Shipboardelectricpower,voltagespike MIL-STD-1399 “SECTION300A,Type1,115V60Hzsinglephase“ 

ConducteddisturbancesinducedbyRFfields IEC61000-4-6 TestLevel3:10V,0.15to80MHzsinewaveAM80%1kHz 

Conductedsusceptibility,powerleads MIL-STD-461F CS101,30Hz-150kHz

Conductedsusceptibility,Bulkcableinjection MIL-STD-461F CS114,10kHzto200MHz 

PowerFrequencyMagneticFields IEC61000-4-8 Testlevel4:30A/m50Hz 

Radiatedsusceptibility,Magneticfield MIL-STD-461F RS101 

VoltageDips IEC61000-4-11 0%10ms,0%20ms,70%0.5s(CriterionA)

   40%200mS(CriterionAat240VandCriterionCat100V)

VoltageSagImmunity SEMI-F47-0706 0%20mS,70%0.5s,80%1s,80%10s,90%continuous(CriterionA)

   50%200mS(CriterionAat240VandCriterionCat100V) 

   CriterionAisachievedforfullpowerwhenVin>=160V 

   CriterionAisachievedatallinputvoltageswhenPout<=350W

Voltageinterruptions IEC61000-4-11 0%250/300cycleasperIEC60601-1-2:2014(CriterionC)

AircraftElectricPowerCharacteristic MIL-STD-704F SAC102,104,105,109,110(MIL-HDBK-704-2) 

   SXF102,104,105,109,110(MIL-HDBK-704-6) 

  IEC/UL/CSA/EN62368-1,60950-1   

   IEC/EN60601-1,UL/CSA60601-1,ANSI/AAMIES60601-1  

Safetycertifications/accreditations  CAN/CSA-C22.2No60601-1CEMark

   ManufacturedunderthecontrolofISO9001andISO13485

   (includingriskmanagement) 

Global signals

Globalbiassupply  4.8-5.2V1A 

AC_OKsignal  Opencollector,highonfail 

GlobalDCpowergood  Opencollector,highonfailifanymoduleis<90%ofsetvoltage 

Globalinhibit/enable  Turnsofforonallmodulesandtheconverter

Internaltemperaturesensor  0to~3Vsignalproportionatetoconvertertransformertemperature

TDK-Lambda Output Specification 52 V 5V siyprcai. as m 0% of voliag .1% oi sei Vnom, u iacior Yes on 2 i 45 i o i i i u n i i1 i Module ViiHA ‘ ver3 v3 ‘ v4 ai. as ma fvoliag oi sei om, u acior Yes on 2 i i i 35 o i i i i1 P i i i Module VA VB VC VD Vnom Adjusimeni ra Tum on me cai. as ma Turn on rise irme 0% uivoi Tum on oversho oi sei v Ripple and nois , using Voltage seiiing acior Remoie sense Yes Minimum load on Temperaiure co 2 Load reguiaiion 00 Line reguiaiiun 35 Cross regulairon o Maximum iransieni devr i i i 2 Transieni recovery iime u p Over vuiiage proieciion 28 i i i 8 Over curreni proieciion 105 » 125% Shun crrcuri proieciiun Hiccup wiih auto recovery Over iemperaiure proieciron All ouipuis are iumed oii. After unii cools down‘ recycie AC or ioggle giohai remoie on/oii

CM4 Series 5

OutputSpecification

Module S1 S2 S3 S4

Vnom 5V 12V 24V 48V

Adjustmentrange 1.5-7.5V 4.5-15V 9-30V 18-58V

Turnontime   2stypical,3smaximum  

Turnonrisetime <3.5ms(withresistiveload)to90%ofvoltage,monotonicriseabove10% 

Turnonovershoot   <0.1%ofsetvoltage  

Rippleandnoise  1%pk-pkofVnom,using20MHzbandwidth  

Voltagesettingaccuracy   +/-0.5%offactorysetvoltage  

Remotesense   Yes  

Minimumload   None  

Temperaturecoefficient   +/-0.02%/˚C

Loadregulation(0-100%change) +/-50mV +/-100mV +/-150mV +/-300mV

Lineregulation  +/-0.1%ofVnomforan85-264Vacinputchange

Crossregulation   +/-0.2%ofVnom  

Maximumtransientdeviation(25-75%change) 1Vat1A/µs 1.5Vat0.5A/µs 3Vat0.25A/µs 3Vat0.25A/µs

Transientrecoverytime 100µsrecoverytowithin10%oftheoutputvoltagesetpoint 

Overvoltageprotection(typical) 9.5V 18V 36V 66V

Overcurrentprotection   105-125%  

Shortcircuitprotection   Hiccupwithautorecovery  

Overtemperatureprotection Alloutputsareturnedoff.Afterunitcoolsdown,recycleACortoggleglobalremoteon/off

Module Y1/HA Y2/HB Y3 Y4

Vnom 10V 24V 48V 96V

Adjustmentrange 3-15V 9-30V 18-60V 36-116V

Turnontime   2stypical,3smaximum  

Turnonrisetime <3.5ms(withresistiveload)to90%ofvoltage,monotonicriseabove10%  

Turnonovershoot   <0.1%ofsetvoltage  

Rippleandnoise  1%pk-pkofVnom,using20MHzbandwidth  

Voltagesettingaccuracy   +/-0.5%offactorysetvoltage  

Remotesense   Yes  

Minimumload   None  

Temperaturecoefficient   +/-0.02%/˚C

Loadregulation(0-100%change) +/-100mV +/-200mV +/-300mV +/-600mV

Lineregulation  +/-0.1%ofVnomforan85-264Vacinputchange 

Crossregulation   +/-0.2%ofVnom  

Maximumtransientdeviation(25-75%change) 2Vat1A/µs 3Vat0.5A/µs 6Vat0.25A/µs 6Vat0.25A/µs

Transientrecoverytime 100µsrecoverytowithin10%oftheoutputvoltagesetpoint

Overvoltageprotection(typical) 19V 36V 72V 132V

Overcurrentprotection   105-125%  

Shortcircuitprotection   Hiccupwithautorecovery  

Overtemperatureprotection Alloutputsareturnedoff.Afterunitcoolsdown,recycleACortoggleglobalremoteon/off

Module YA YB YC YD

Vnom 15V 36V 72V 144V

Adjustmentrange 4.5-22.5V 13.5-45V 27-90V 54-174V

Turnontime 2stypical,3smaximum  

Turnonrisetime <3.5ms(withresistiveload)to90%ofvoltage,monotonicriseabove10% 

Turnonovershoot <0.1%ofsetvoltage  

Rippleandnoise 1%pk-pkofVnom,using20MHzbandwidth  

Voltagesettingaccuracy +/-0.5%offactorysetvoltage  

Remotesense Yes  

Minimumload None  

Temperaturecoefficient +/-0.02%/˚C

Loadregulation(0-100%change) +/-150mV +/-300mV +/-450mV +/-900mV

Lineregulation +/-0.1%ofVnomforan85-264Vacinputchange  

Crossregulation +/-0.2%ofVnom  

Maximumtransientdeviation(25-75%change) 3Vat1A/µs 4.5Vat0.5A/µs 9Vat0.25A/µs 9Vat0.25A/µs

Transientrecoverytime  100µsrecoverytowithin10%oftheoutputvoltagesetpoint 

Overvoltageprotection(typical) 28.5V 54V 108V 198V

Overcurrentprotection  105-125%  

Shortcircuitprotection  Hiccupwithautorecovery  

Overtemperatureprotection Alloutputsareturnedoff.Afterunitcoolsdown,recycleACortoggleglobalremoteon/off

TDK-Lambda Output Specification continued Output signal, programming & bias supply

CM4 Series

OutputSpecificationcontinued

Module YN YP YQ YR

Vnom 20V 48V 96V 192V

Adjustmentrange 6-30V 18-60V 36-120V 72-232V

Turnontime 2stypical,3smaximum  

Turnonrisetime <3.5ms(withresistiveload)to90%ofvoltage,monotonicriseabove10% 

Turnonovershoot <0.1%ofsetvoltage  

Rippleandnoise 1%pk-pkofVnom,using20MHzbandwidth  

Voltagesettingaccuracy +/-0.5%offactorysetvoltage  

Remotesense Yes  

Minimumload None  

Temperaturecoefficient +/-0.02%/˚C

Loadregulation(0-100%change) +/-200mV +/-400mV +/-600mV +/-1200mV

Lineregulation +/-0.1%ofVnomforan85-264Vacinputchange  

Crossregulation +/-0.2%ofVnom  

Maximumtransientdeviation(25-75%change) 1Vat1A/µs 1.5Vat0.5A/µs 3Vat0.25A/µs 3Vat0.25A/µs

Transientrecoverytime  100µsrecoverytowithin10%oftheoutputvoltagesetpoint

Overvoltageprotection(typical) 38V 72V 144V 264V

Overcurrentprotection  105-125%  

Shortcircuitprotection  Hiccupwithautorecovery  

Overtemperatureprotection Alloutputsareturnedoff.Afterunitcoolsdown,recycleACortoggleglobalremoteon/off

Module Z1/ZA/ZN Z2/ZB/ZP ZC/ZQ ZD/ZR

Vnom 5V 12V 24V 48V

Adjustmentrange 1.5-7.5V 4.5-15V 9-30V 18-58V

Turnontime 2stypical,3smaximum  

Turnonrisetime <3.5ms(withresistiveload)to90%ofvoltage,monotonicriseabove10% 

Turnonovershoot <0.1%ofsetvoltage  

Rippleandnoise 1%pk-pkofVnom,using20MHzbandwidth  

Voltagesettingaccuracy +/-0.5%offactorysetvoltage  

Remotesense Yes  

Minimumload None  

Temperaturecoefficient +/-0.02%/˚C

Loadregulation(0-100%change) +/-50mV +/-100mV +/-150mV +/-300mV

Lineregulation +/-0.1%ofVnomforan85-264Vacinputchange  

Crossregulation +/-0.2%ofVnom  

Maximumtransientdeviation(25-75%change) 1Vat1A/µs 1.5Vat0.5A/µs 3Vat0.25A/µs 3Vat0.25A/µs

Transientrecoverytime  100µsrecoverytowithin10%oftheoutputvoltagesetpoint

Overvoltageprotection(typical) 9.5V 18V 36V 66V

Overcurrentprotection  105-125%  

Shortcircuitprotection  Hiccupwithautorecovery  

Overtemperatureprotection Alloutputsareturnedoff.Afterunitcoolsdown,recycleACortoggleglobalremoteon/off

Output signal, programming & bias supply

Modulegoodthreshold Opencollector,offwhenoutputisbelow90%ofsetpoint

Currentmonitor TheoutputcurrentofthemodulecanbemeasuredusingtheICONTROLsignal

RemoteVoltageProgramming(S&Zmodulesonly) Adjuststhemodulesetvoltageby0%to131.5%withexternal0-5V

RemoteCurrentProgramming(S&Zmodulesonly) Adjuststhemodulecurrentlimitpointby0%to100%withexternal0to4.5V

Currentshareaccuracy +/-5%forloads>20%ofrating

Localbiassupply +4.2-5.V10mA

TDK-Lambda Outline Drawing 0M4 Series 09 ca 09 09 ﬂ w—(ﬂ S ( h o

CM4 Series 7

Outline Drawing CM4 Series

Screws

Location Details Penetration Torque

BaseplateMount:M1–M6 Holediameter=5.00mm 4mmBaseplatethickness 0.55NM

 OutputModuleConnection M4 - 0.5NM

 InputModuleConnection 6-32 - 0.8NM

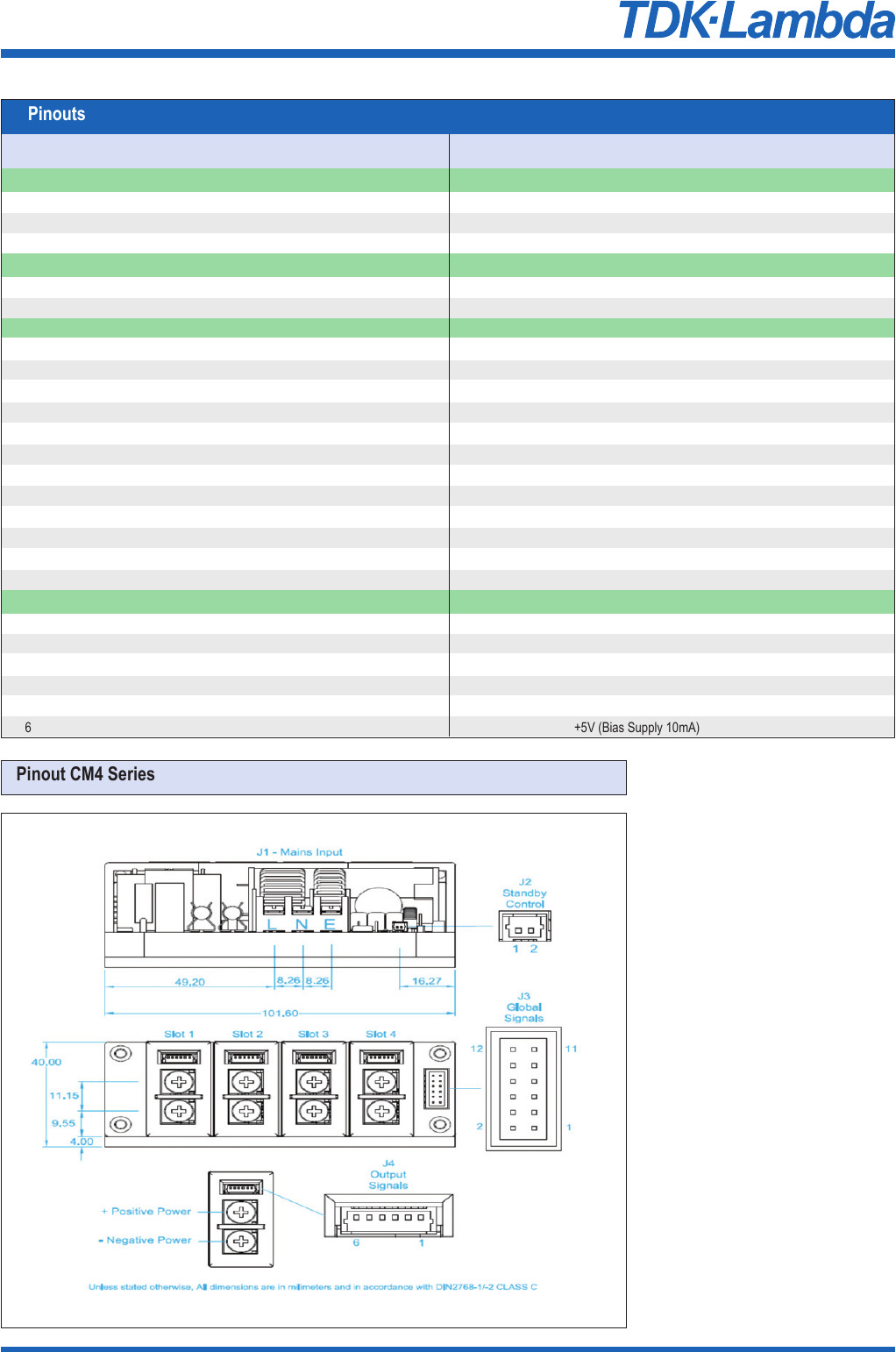

TDK-Lambda s +5v [Bias Supply 10m) Pinout 6M4 Series n V Mums mm 5.,” 5m 5.,” “To“ © a a a a ML© . . ‘ r J4 m m sea: mummy, [9 x {Dunn} Mummy- [9 s , m“. "3..., waH. A. “ﬂaw“... .n yummy. and n nmﬂnnm m unznln .1 um. L

CM4 Series

Pinouts

Circuit Details

J1 – Mains Input

 1  Live

 2  Neutral

 3  Earth

J2 – Standby control

 1  Standbycontrolnegative

 2  Standbycontrolpositive

J3 – Global Signals

1 Slot 4 - Power Good

 2  Slot4-Inhibit

 3  Slot3-PowerGood

 4  Slot3-Inhibit

 5  Slot2-PowerGood

 6  Slot2-Inhibit

 7  Slot1-PowerGood

 8  Slot1-Inhibit

 9  Temperaturesense(TSNS)

 10  ACOK

 11  +5V(BiasSupply1A)

 12  COM

J4 – Output Signals

 1  -Sense

 2  +Sense

 3  COM

 4  IControl

 5  VControl

 6  +5V(BiasSupply10mA)

Pinout CM4 Series

TDK-Lambda

CM4 Series 9

Mating Connectors

Ref. Details Manufacturer Housing Terminal

J1-MainsInput 3Pin,Barrier,6-32SteelScrews,0.8Nmor7Lb-InTorque(1)  

J2-Standbycontrol 2Pin,1.25mm,withFrictionLock,28-30AWG MOLEX 510210200 500588000

J3-GlobalSignals 12Pin,2mm,withFrictionLock,24-30AWG,WIRETOBOARD MOLEX 511101260 503948051

 12Pin,2mm,withFrictionLock,24-30AWG,IDTCABLETOBOARD MOLEX 875681273

J4-OutputSignals 6PIN,1.25mm,withFrictionLock,28-30AWG MOLEX 510210600 500588000

OutputPower Positive/Negative,M4terminal,useappropriatelyratedcrimpterminal

Notes:

1.Cable14-18AWG,300V,16A,105°C,useappropriatelyratedcrimpterminal.

2.Directequivalentsmaybeusedforanyconnectorparts.

3.Allcablesmustberated105°Cmin,equivalenttoUL1015

TDK-Lambda :EEE E .- Ezg E Em DEE ﬁzﬁ K K a n = EiﬂE-i% = n E- l: BEE—EI— E— I: DIIEE-E “5 ﬂ. IiimE—

www.emea.lambda.tdk.com

TDK-Lambda France SAS

3 Avenue du Canada

Parc Technopolis

Bâtiment Sigma

91940 les Ulis

France

Tel: +33 1 60 12 71 65

Fax: +33 1 60 12 71 66

france@fr.tdk-lambda.com

www.emea.lambda.tdk.com/fr

Italy Sales Office

Via Giacomo Matteotti 62

20092 Cinisello Balsamo (MI)

Italy

Tel: +39 02 61 29 38 63

Fax: +39 02 61 29 09 00

info.italia@it.tdk-lambda.com

www.emea.lambda.tdk.com/it

Netherlands

info@nl.tdk-lambda.com

www.emea.lambda.tdk.com/nl

TDK-Lambda Germany GmbH

Karl-Bold-Strasse 40

77855 Achern

Germany

Tel: +49 7841 666 0

Fax: +49 7841 5000

info.germany@de.tdk-lambda.com

www.emea.lambda.tdk.com/de

Austria Sales Office

Aredstrasse 22

2544 Leobersdorf

Austria

Tel: +43 2256 655 84

Fax: +43 2256 645 12

info@at.tdk-lambda.com

www.emea.lambda.tdk.com/at

Switzerland Sales Office

Eichtalstrasse 55

8634 Hombrechtikon

Switzerland

Tel: +41 44 850 53 53

Fax: +41 44 850 53 50

info@ch.tdk-lambda.com

www.emea.lambda.tdk.com/ch

Nordic Sales Office

Haderslevvej 36B

DK-6000 Kolding

Denmark

Tel: +45 8853 8086

info@dk.tdk-lambda.com

www.emea.lambda.tdk.com/dk

TDK-Lambda UK Ltd.

Kingsley Avenue

Ilfracombe

Devon EX34 8ES

United Kingdom

Tel: +44 (0) 12 71 85 66 66

Fax: +44 (0) 12 71 86 48 94

info@uk.tdk-lambda.com

www.emea.lambda.tdk.com/uk

TDK-Lambda Ltd.

1 Alexander Yanai

Segula

Petah-Tikva

Israel

Tel: +9 723 902 4333

Fax: +9 723 902 4777

info@tdk-lambda.co.il

www.emea.lambda.tdk.com/il

C.I.S.

Commercial Support:

Tel: +7 (495) 665 2627

Technical Support:

Tel: +7 (812) 658 0463

info@tdk-lambda.ru

www.emea.lambda.tdk.com/ru

Local Distribution

CM4260414-6Oct20

CM4 Series

Foradditionalinformation,pleasevisit

https://product.tdk.com/en/power/

Products related to this Datasheet

AC/DC CONVERTER 12V 500W

CM412ZP

AC/DC CONVERTER 28V 500W

CM424ZC

AC/DC CONVERTER 28V 500W

CM428ZQ

AC/DC CONVERTER 24V 500W

CM448YP
