Data Sheet

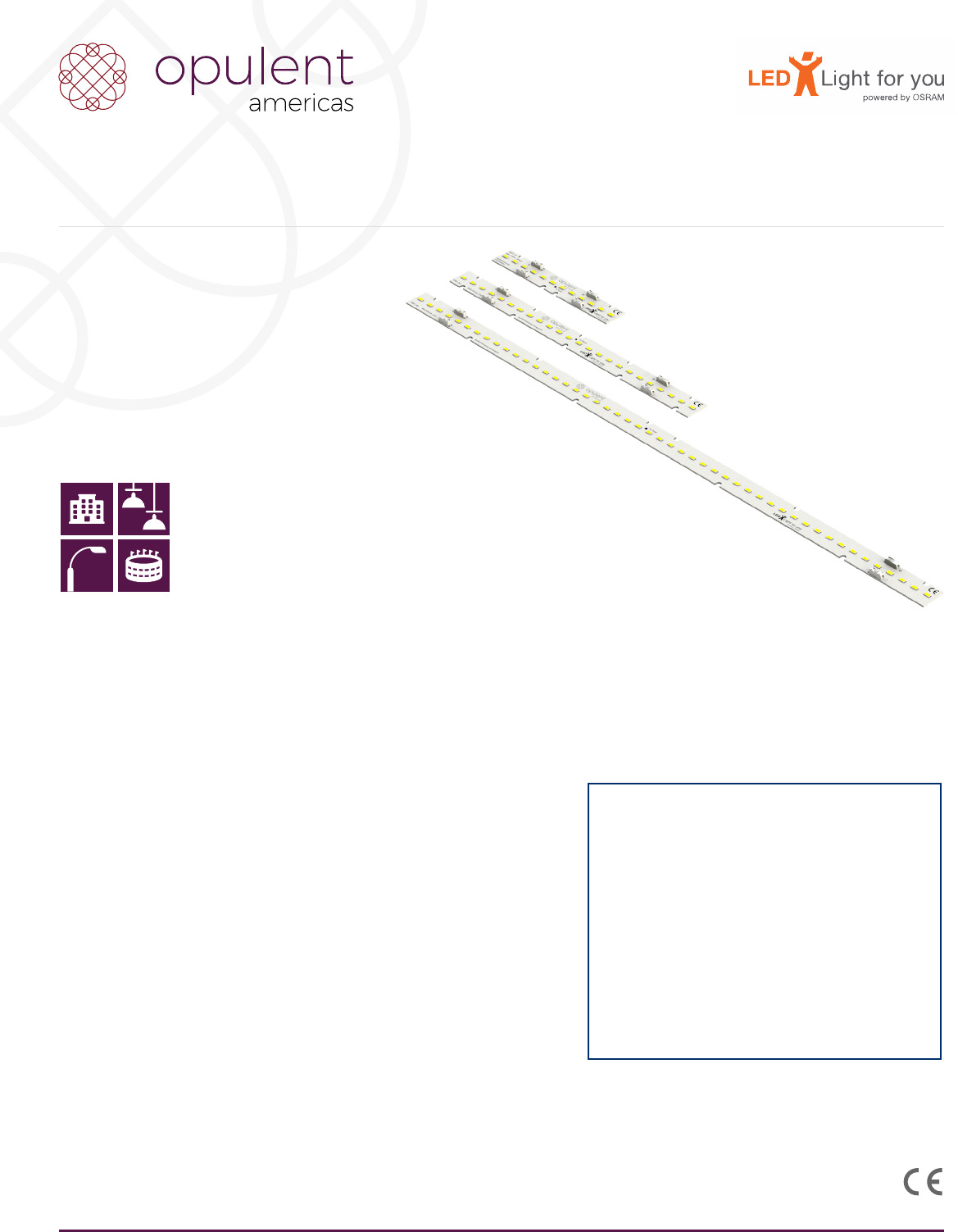

Linear LED Modules

Simplify Your Next Lighting Design

Introducing Opulent Americas OSRAM linear LED modules for

indoor office, industry and retail area lighting fixtures. The modules

come in 5.5”, 11”, 22” configurations that are ideal for panel or

linear lights. They are also flexible enough to support a range of

specialty indoor applications. Designed to Zhaga standards, Opulent

America’s modules are easy to integrate into existing designs and

can be quickly upgraded as LED performance improves.

Lean & Fast. Made Smarter.

High efficacy – Up to 187 lumens per watt with

the ability to achieve DLC certification

Flexible design – 5.5”, 11”, 22” lengths that can

be seamlessly connected end-to-end

Long life – backed by a 5 year warranty with

50,000 hours (L90 lifetime)

Easy to integrate – designed to Zhaga dimensions

and screw hole specifications

Quick production – push terminals for quick and simple wiring

Superior Performance With Flexible Options

• 80 CRI is standard with custom CRI options available

• Private label or custom designs

• Adhesive tape can be added for rapid installation

• Pair with a standard driver for a complete light engine

Custom Solutions

Opulent Americas operates facilities globally with ISO certifications

for the LED lighting, automotive and medical industries. Our North

Carolina based office provides quick engineering & sales support

with an R&D lab for prototype development and custom solutions.

Our in-house global manufacturing capabilities allow for both

building in the United States as well as overseas at scale.

Primary Applications

Indoor lighting

-Office

-Industry

-Retail

Architectural

Specialty

About Opulent Americas

Opulent Americas accelerates the adoption

of LED technology through simple, modular

products and custom designs. Through

30 years of experience, state of the art

manufacturing, full traceability and advanced

quality controls, Opulent offers leading solid

state lighting components, modules and

custom solutions. Opulent customers get to

market faster, with less resources, at lower

costs. Visit opulent-americas.com for more

information.

Built with OSRAM LEDs for high efficacy and cost optimization

Last Modified: 04/30/18

RoHS

Version 1.0

For support on our LED Modules, visit Opulent-Americas.com/support

Linear LED Modules from Opulent Americas

Order Code Formatting

Electrical Characteristics

Part Number

Forward Voltage (v) Typical Thermal Resistance -

Junction to Solder Point (K/W) RTh J-HS

Typical Maximum

SSB1-12x 34.4 38.4 20

SSB1-24x 34.4 38.4 20

SSB1-48x 34.4 38.4 20

SPB1-12x 33.5 38.4 12

SPB1-24x 33.5 38.4 12

SPB1-48x 33.5 38.4 12

Intended for connection to a class 2 power source with a maximum operating voltage of 50 Vdc

Maximum Ratings

Part Number DC Current (A) Tsp Temp (

°C)

Power (W)

SXB1-12x .150 105 5.8

SXB1-24x .300 105 10.5

SXB1-48x .600 105 23.0

Board Material Properties

Property Value Unit

Thickness .059 in

Construction FR4 -

Temperature 130 °C

Flame Rating V-0 -

Copper Thickness 1 oz

Series -LED

Count

LED

Code -Color

Temperature

Color Rendering

Index -Internal

Code

SSB1 - Economy Linear

LED PCB Assembly 12 - 12 LEDs F01 - Duris

E5 LED 30 - 3000K 70 - 70 CRI XX

SPB1 - Performance Linear

LED PCB Assembly 24 - 24 LEDs 40 - 4000K 80 - 80 CRI

48 - 48 LEDs 50 - 5000K 90 - 90 CRI

Linear LED Modules from Opulent Product Selection Table - 55” Linear Module 1:4 SOTlvu \< 2x="" 5:="" +="" ()9="" ,="" 1="" l="" l="" ,,="" 77+="" ,="" 7="" 7="" -+="" k)="" +w="" g="" o="" u="" enf="" w="" q="" (q="" a="" ifﬂib—ejpab—b—bvb—eﬂglaim—eblrﬂi="" 22="" .="" l="" w-="" -="" ‘="" ‘="" —--—="" rm="" ,="" 7="" (+1="" -“-e“’ff”’“.l°'-’£="" l="" 7="" l="" l="" ‘="" h="" 6‘)="" typ="" tc="" pomt="">l l‘ M / 3 ‘ ’ LED Spdung s m , , , , m ' + New 5% opulent

For support on our LED Modules, visit Opulent-Americas.com/support

Linear LED Modules from Opulent Americas

Product Selection Table - 5.5” Linear Module

Series Part Number CCT CRI

Luminous Flux (lm) Efficacy

Nominal

(lm/W)

Watts (W)

Nominal

100mA

Max

150mA Nominal Max

Economy

SSB1-12F01-2780-00 2700K >80 545 720 156 3.5 5.4

SSB1-12F01-3080-00 3000K >80 570 755 164 3.5 5.4

SSB1-12F01-3580-00 3500K >80 570 755 164 3.5 5.4

SSB1-12F01-4080-00 4000K >80 596 790 172 3.5 5.4

SSB1-12F01-5080-00 5000K >80 596 790 172 3.5 5.4

SSB1-12F01-5780-00 5700K >80 596 790 172 3.5 5.4

Performance

SPB1-12F01-2780-00 2700K >80 570 800 164 3.5 5.4

SPB1-12F01-3080-00 3000K >80 596 840 172 3.5 5.4

SPB1-12F01-3580-00 3500K >80 622 877 179 3.5 5.4

SPB1-12F01-4080-00 4000K >80 622 877 179 3.5 5.4

SPB1-12F01-5080-00 5000K >80 648 914 187 3.5 5.4

SPB1-12F01-5780-00 5700K >80 648 914 187 3.5 5.4

(1) Opulent Americas may ship modules in flux bins higher than the values specified by the order code without advance notice. Shipments will always adhere to the

chromaticity bin restrictions specified by the order code.

(2) Nominal Values @ Tj = 50°C

(3) Maximum Values @ Tj = 65°C

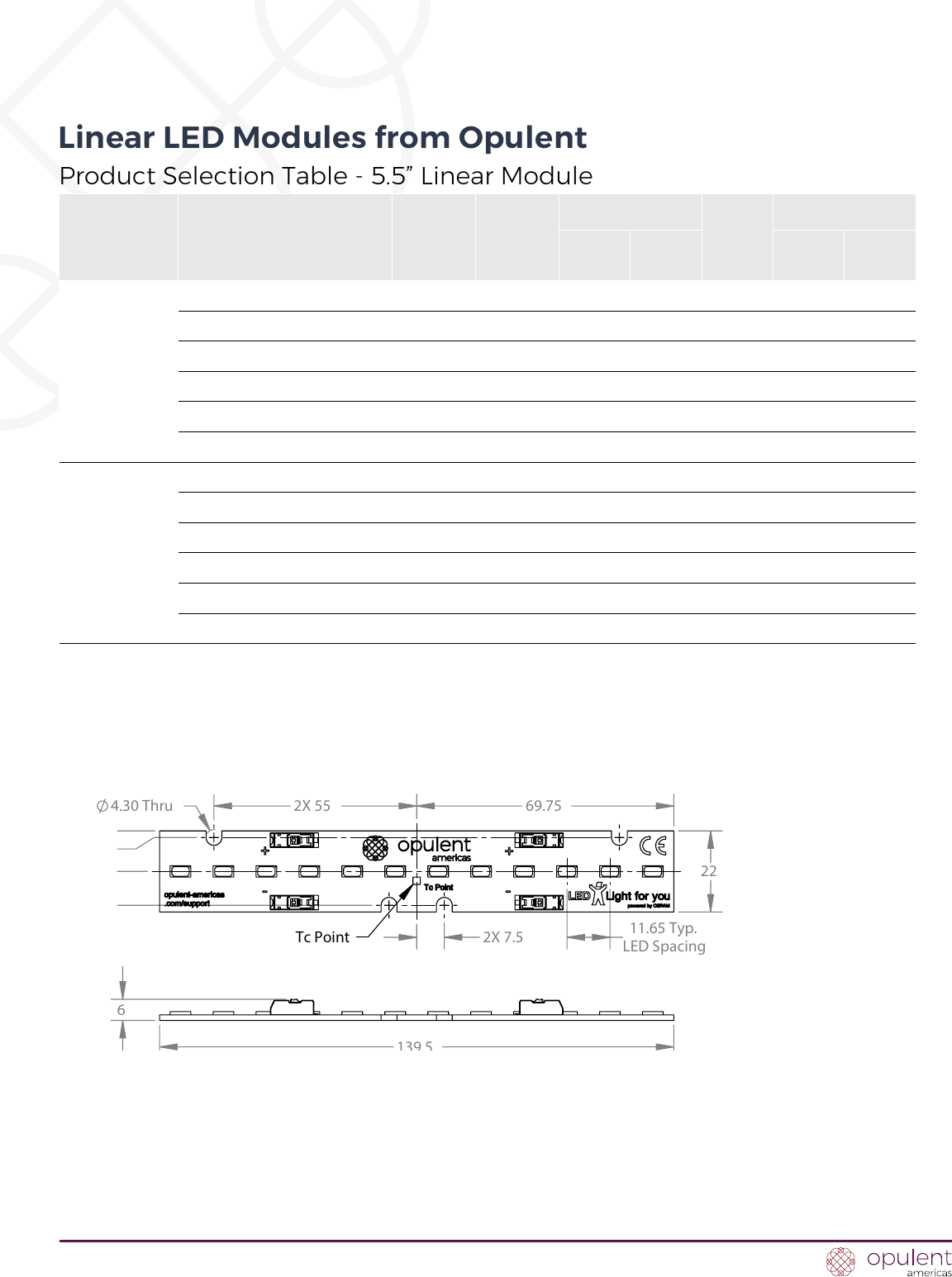

Mechanical Dimensions

2X 55

2X 7.5

69.75

4.30 Thru

11.65 Typ.

LED Spacing

1.8

20.2

Tc Point

139.5

1. Four Poke-In Connectors accept 18-24 AWG solid or stranded wire

2. Recommended Mounting Hardware: 4x M3-.5 Socket Head Cap Screws

Linear LED Modules from Opulent Product Selection Table -11” Linear Module < ‘5‘="" a=""> x .:T v ,1: Sp‘Lml 11:5: 4:, m ‘ TCPDlnt ‘ 5"," Jim W opulent .... W ,H n. u vgg , , $Ela—aig—agiaé E—EE—B—ErB—d497 .t _ A? ,‘l‘ mﬂmmum T -m , g, l \ , ‘ . ‘ ‘ U“ 5131 Wu W! » ‘ ,,,,, M 1', m m

For support on our LED Modules, visit Opulent-Americas.com/support

Linear LED Modules from Opulent Americas

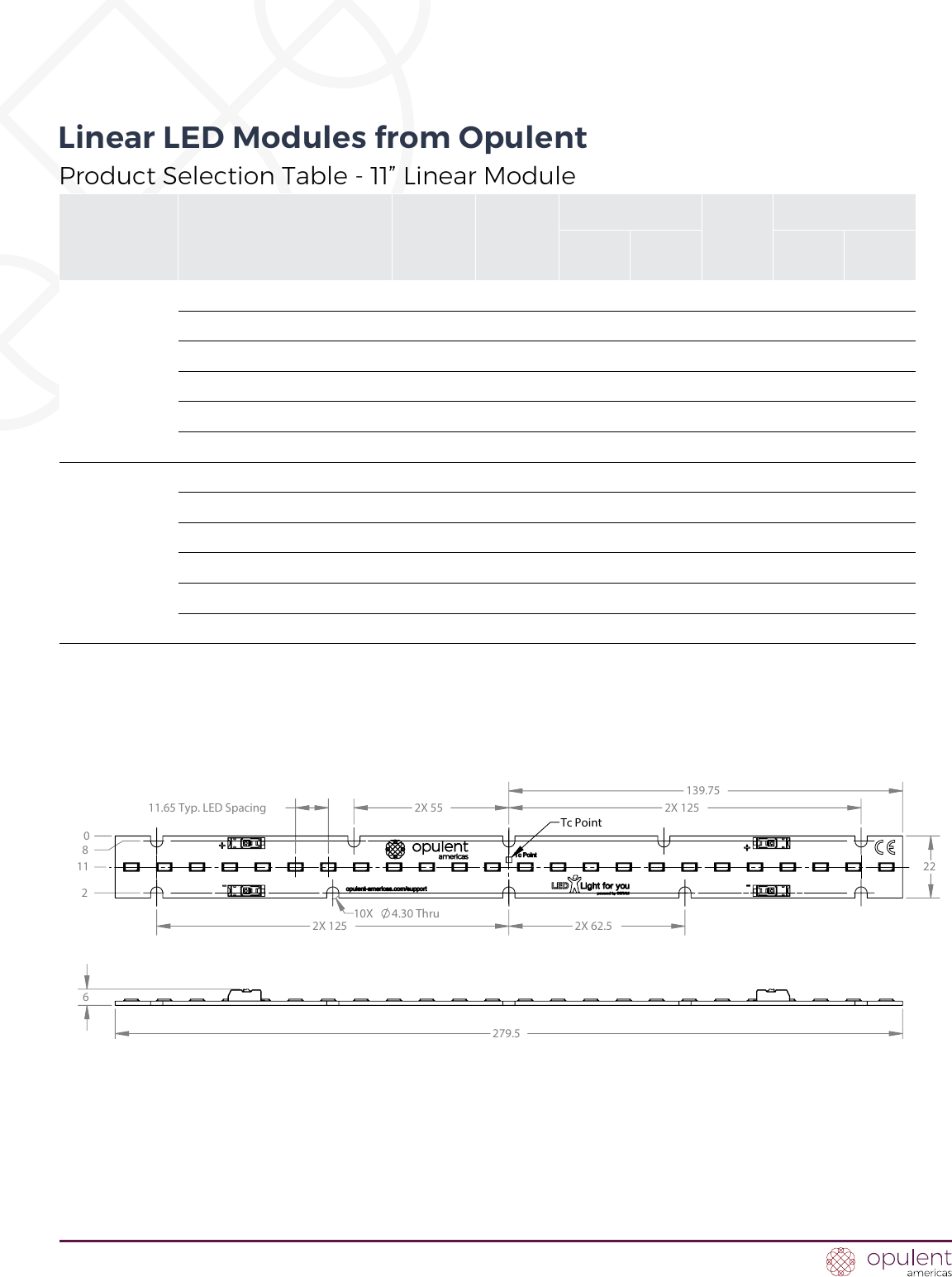

Mechanical Dimensions

10X

4.30 Thru

2X 55 2X 125

2X 62.5 2X 125

139.75

11.65 Typ. LED Spacing

1.8

20.2

Tc Point

279.5

1. Four Poke-In Connectors accept 18-24 AWG solid or stranded wire

2. Recommended Mounting Hardware: 10x M3-.5 Socket Head Cap Screws

Product Selection Table - 11” Linear Module

Series Part Number CCT CRI

Luminous Flux (lm) Efficacy

Nominal

(lm/W)

Watts (W)

Nominal

200mA

Max

300mA Nominal Max

Economy

SSB1-24F01-2780-00 2700K >80 1090 1440 156 6.9 10.7

SSB1-24F01-3080-00 3000K >80 1140 1510 164 6.9 10.7

SSB1-24F01-3580-00 3500K >80 1140 1510 164 6.9 10.7

SSB1-24F01-4080-00 4000K >80 1192 1580 172 6.9 10.7

SSB1-24F01-5080-00 5000K >80 1192 1580 172 6.9 10.7

SSB1-24F01-5780-00 5700K >80 1192 1580 172 6.9 10.7

Performance

SPB1-24F01-2780-00 2700K >80 1140 1600 164 6.9 10.7

SPB1-24F01-3080-00 3000K >80 1192 1680 172 6.9 10.7

SPB1-24F01-3580-00 3500K >80 1244 1754 179 6.9 10.7

SPB1-24F01-4080-00 4000K >80 1244 1754 179 6.9 10.7

SPB1-24F01-5080-00 5000K >80 1296 1828 187 6.9 10.7

SPB1-24F01-5780-00 5700K >80 1296 1828 187 6.9 10.7

(1) Opulent Americas may ship modules in flux bins higher than the values specified by the order code without advance notice. Shipments will always adhere to the

chromaticity bin restrictions specified by the order code.

(2) Nominal Values @ Tj = 50°C

(3) Maximum Values @ Tj = 65°C

Linear LED Modules from Opulent Product Selection Table - 22" Linear Module

For support on our LED Modules, visit Opulent-Americas.com/support

Linear LED Modules from Opulent Americas

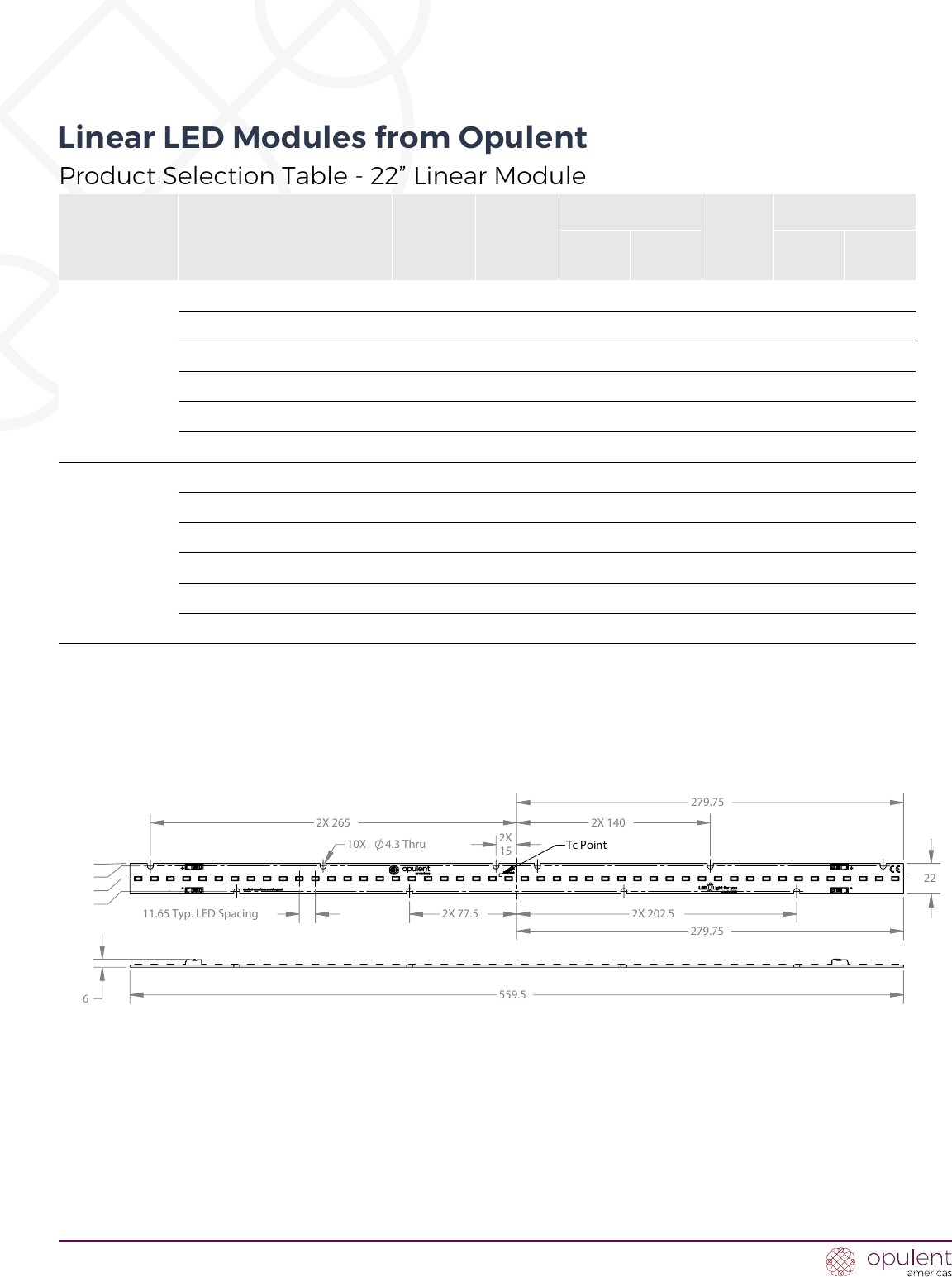

Mechanical Dimensions

2X 77.5

2X 202.5

2X 140 2X 265

279.75

10X

4.3 Thru

11.65 Typ. LED Spacing

1.8

20.2

Tc Point

559.5

1. Four Poke-In Connectors accept 18-24 AWG solid or stranded wire

2. Recommended Mounting Hardware: 10x M3-.5 Socket Head Cap Screws

Product Selection Table - 22” Linear Module

Series Part Number CCT CRI

Luminous Flux (lm) Efficacy

Nominal

(lm/W)

Watts (W)

Nominal

400mA

Max

600mA Nominal Max

Economy

SSB1-48F01-2780-00 2700K >80 2180 2880 156 14.0 21.4

SSB1-48F01-3080-00 3000K >80 2280 3020 164 14.0 21.4

SSB1-48F01-3580-00 3500K >80 2280 3020 164 14.0 21.4

SSB1-48F01-4080-00 4000K >80 2384 3160 172 14.0 21.4

SSB1-48F01-5080-00 5000K >80 2384 3160 172 14.0 21.4

SSB1-48F01-5780-00 5700K >80 2384 3160 172 14.0 21.4

Performance

SPB1-48F01-2780-00 2700K >80 2280 3200 164 14.0 21.4

SPB1-48F01-3080-00 3000K >80 2384 3360 172 14.0 21.4

SPB1-48F01-3580-00 3500K >80 2488 3508 179 14.0 21.4

SPB1-48F01-4080-00 4000K >80 2488 3508 179 14.0 21.4

SPB1-48F01-5080-00 5000K >80 2592 3656 187 14.0 21.4

SPB1-48F01-5780-00 5700K >80 2592 3656 187 14.0 21.4

(1) Opulent Americas may ship modules in flux bins higher than the values specified by the order code without advance notice. Shipments will always adhere to the

chromaticity bin restrictions specified by the order code.

(2) Nominal Values @ Tj = 50°C

(3) Maximum Values @ Tj = 65°C

x 0‘8 \ 0‘6 ‘ on L 350 \ w * 1 l 500 L [nm] 5% OWJSQE

For support on our LED Modules, visit Opulent-Americas.com/support

Φrel = f (λ); TS = 25 °C; IF = 65 mA

Linear LED Modules from Opulent Americas

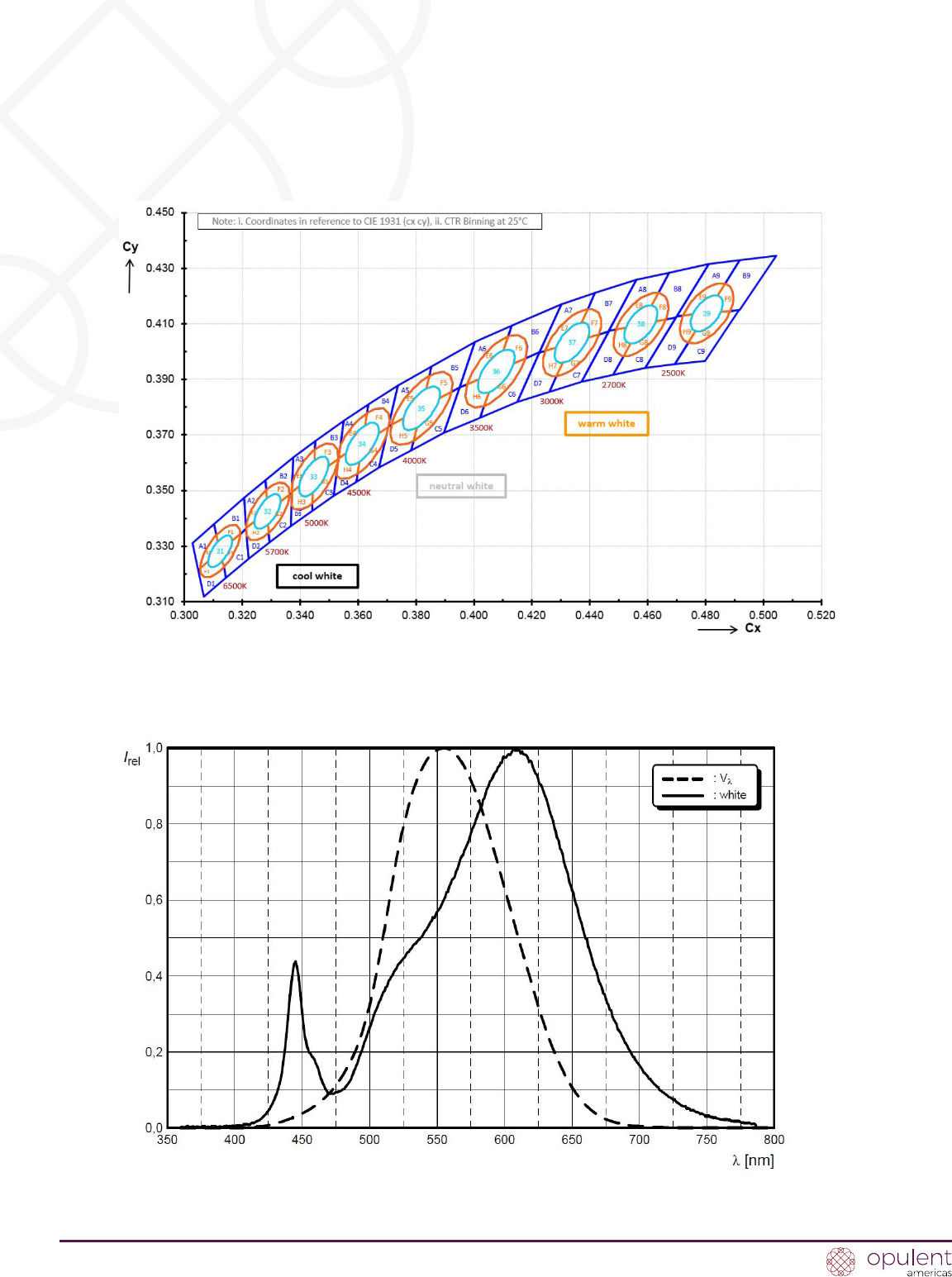

Standard White Chromaticity Regions

Relative Spectral Emission

.10" D” 10” 20” 30° 40° 50” GB” 70" 80° 90’ was W I mA — Fl 1 / «(65mm 2‘5 / wee / 140 2‘0 120 1‘5 1CD an 10 so / 4D I 05 20 10 2,652] 23 23 3,0 $13.15 & “9 6° 6° 9° 0° \DQ 63° 39 V; [V] I;[mA] 5% opulent

For support on our LED Modules, visit Opulent-Americas.com/support

Linear LED Modules from Opulent Americas

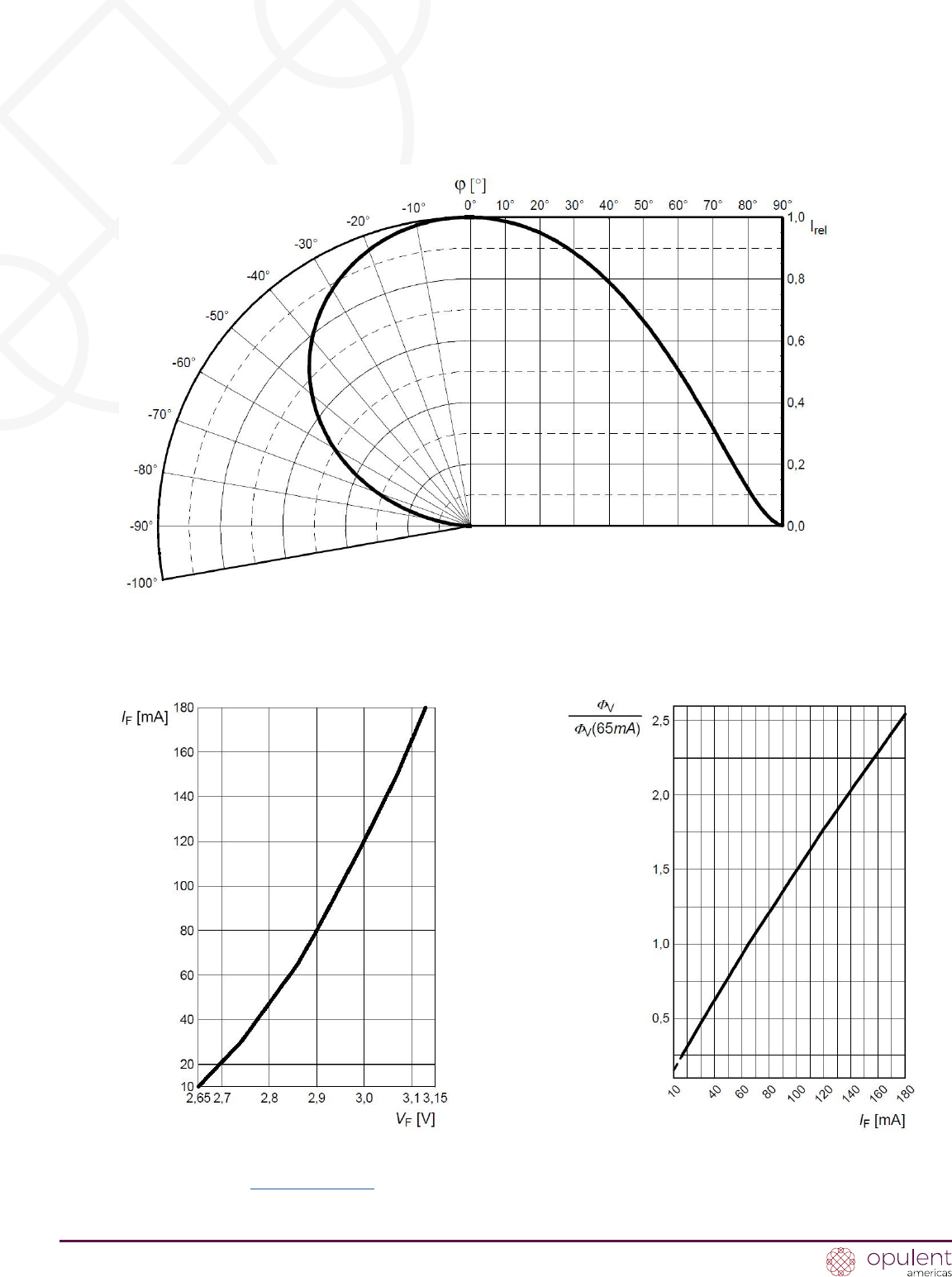

Radiation Characteristics

Forward Current

Irel = f (Φ); TS = 25 °C

IF = f (VF); TS = 25 °C

Relative Luminous Flux

ΦV/ΦV(65 mA) = f(IF); TS = 25 °C

LED Specifications

See OSRAM Datasheet at www.osram.com for more LED Specifications
