CS5212

Low Voltage Synchronous

Buck Controller

The CS5212 is a low voltage synchronous buck controller. It

contains all required circuitry for a synchronous buck converter using

external N−Channel MOSFETs. High current internal gate drivers are

capable of driving high gate capacitance of low RDS(on) NFETs for

better efficiency. The V2t control architecture is used to achieve

unmatched transient response, the best overall regulation and the

simplest loop compensation.

Additionally, the CS5212 provides overcurrent protection,

undervoltage lockout, soft−start, built−in adaptive non−overlap, and

an adjustable fixed frequency range of 150 kHz to 750 kHz, which

gives the designer more flexibility to make efficiency and component

size trade offs. The CS5212 will also operate over a 3.1 V to 7.0 V

range using either single or dual input voltage.

Features

•Switching Regulator Controller

−N−Channel Synchronous Buck Design

−V2 Control Topology

−200 ns Transient Response

−Programmable Fixed Frequency of 150 kHz−750 kHz

−1.0 V 1.5% Internal Reference

−Lossless Inductor Sensing Overcurrent Protection

−Hiccup Mode Short Circuit Protection

−Programmable Soft−Start

−40 ns GATE Rise and Fall Times (3.3 nF Load)

−70 ns Adaptive FET Nonoverlap Time

−Differential Remote Sense Capability

−Available in Industrial and Commerical Temperature Grades

•System Power Management

−3.3 V Operation

−Undervoltage Lockout

−On/Off Control Through Use of the COMP Pin

•Pb−Free Packages are Available*

*For additional information on our Pb−Free strategy and soldering details, please

download the ON Semiconductor Soldering and Mounting Techniques

Reference Manual, SOLDERRM/D.

MARKING DIAGRAM

CS5212x = Device Code

x = E or G

A = Assembly Location

WL = Wafer Lot

Y = Year

WW = Work Week

G=Pb−Free Package

GATE(L)

PGND

SGND

VFB

GATE(H)

IS+

IS−

ROSC

VCC

PIN CONNECTIONS

BST

LGND

VFFB

COMP

SOIC−14

D SUFFIX

CASE 751A

See detailed ordering and shipping information in the package

dimensions section on page 12 of this data sheet.

ORDERING INFORMATION

http://onsemi.com

CS5212x

AWLYWWG

mo nF/10 V on 0.1 uF U1 GATE(H) as‘r LGND 14 PGND GATE(L) Vc IS+ 13 12 GN2 GND 11 VF“ csszuz VFE \s— COMP vac SGND ROSC m 9 a hllp://onsemi.com 2

CS5212

http://onsemi.com

C16

0.1 mF

GATE(H)

BST

LGND

VFFB

VFB

COMP

SGND

PGND

GATE(L)

IS+

IS−

VCC

ROSC

CS5212

GN2

GND

0.1 mF

TP4

COMP

TP5

BST

C11

0.1 mF

51 k

0.47 mF

C19

1.0 mF

TP3

GATE(L)

TP2

GATE(H)

TP1

SWNODE

VIN

3.3 V

BAT54S + + +

C6 C7 C8 100 mF/10 V × 3

4.7 k

R13

C15

470 pF

2.9 mH

6.5 mR

ETQP6F2R9LB VOUT

GND

0.1 mF

4.7 k

TP6

SENSE+

TP7

SENSE−

1.0 k 1%

680 pF

1.5 k 1%

TBD*

BAT54S

0.1 mF

C22

0.1 mF

*Refer to Rpullup Value Selection section for value needed.

C9 +

C10

100 mF/10

× 2

C20 +

C21

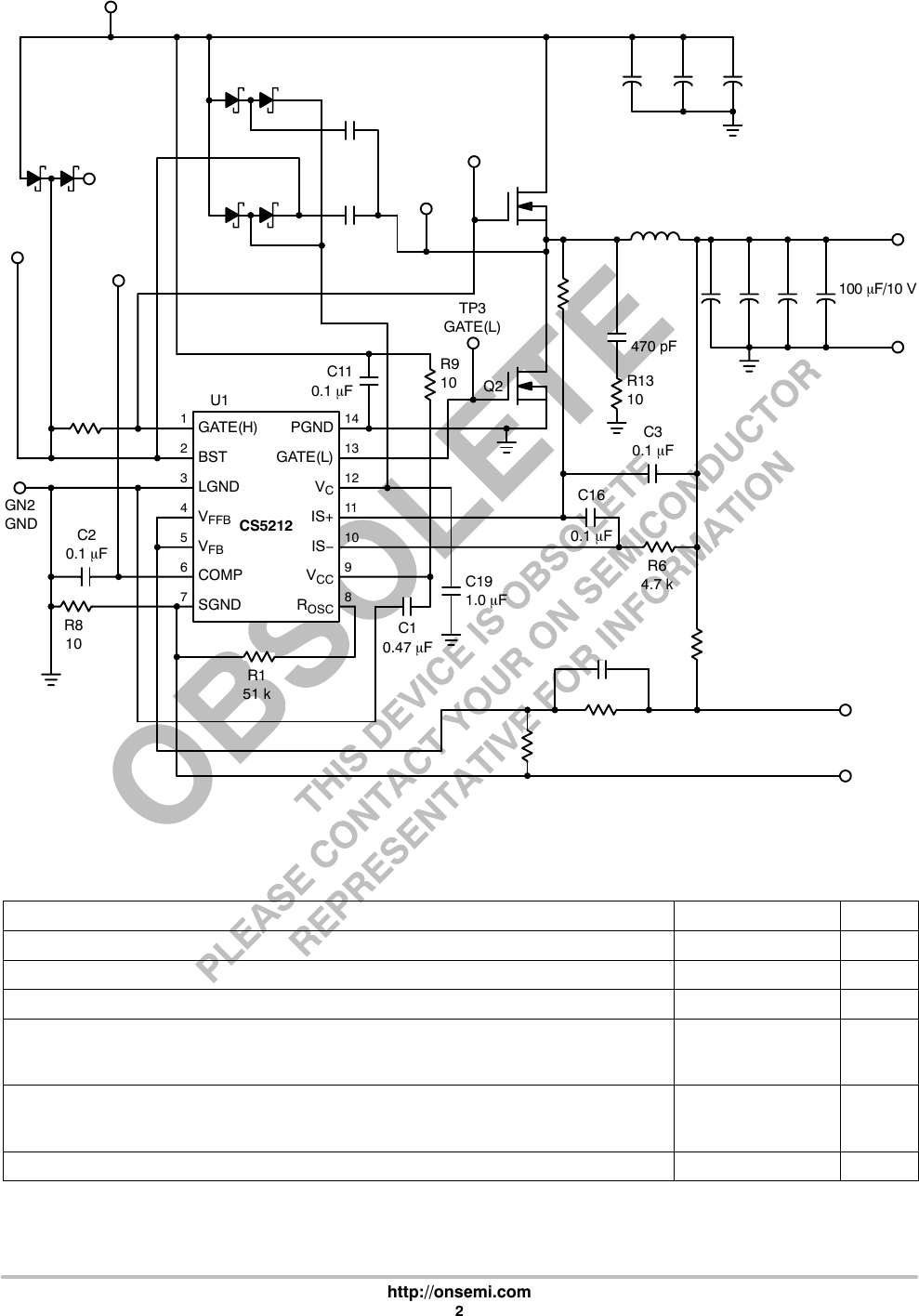

Figure 1. Application Diagram, 3.3 V to 1.5 V/8.0 A Converter with Differential Remote Sense

MAXIMUM RATINGS

Rating Value Unit

Operating Junction Temperature, TJ150 °C

Lead Temperature Soldering: Reflow: (SMD styles only) (Note 1) 230 peak °C

Storage Temperature Range, TS−65 to +150 °C

Package Thermal Resistance:

Junction−to−Case, RqJC

Junction−to−Ambient, RqJA

125

°C/W

ESD Susceptibility:

Human Body Model

Machine Model

2.0

200

JEDEC Moisture Sensitivity 1−

Stresses exceeding Maximum Ratings may damage the device. Maximum Ratings are stress ratings only. Functional operation above the

Recommended Operating Conditions is not implied. Extended exposure to stresses above the Recommended Operating Conditions may affect

device reliability.

1. 60 second maximum above 183°C.

CS5212

http://onsemi.com

MAXIMUM RATINGS

Pin Name Pin Symbol VMAX VMIN ISOURCE ISINK

IC Power Input VCC 6.0 V −0.3 V N/A 50 mA DC

Power input for the low side driver VC16 V −0.3 V N/A 1.5 A Peak,

200 mA DC

Power Supply input for the high side driver BST 20 V −0.3 V N/A 1.5 A Peak,

200 mA DC

Compensation Capacitor COMP 6.0 V −0.3 V 1.0 mA 1.0 mA

Voltage Feedback Input VFB 6.0 V −0.3 V 1.0 mA 1.0 mA

Oscillator Resistor ROSC 6.0 V −0.3 V 1.0 mA 1.0 mA

Fast Feedback Input VFFB 6.0 V −0.3 V 1.0 mA 1.0 mA

High−Side FET Driver GATE(H) 20 V −0.3 V

−2.0 V for 50 ns

1.5 A Peak,

200 mA DC

1.5 A Peak,

200 mA DC

Low−Side FET Driver GATE(L) 16 V −0.3 V

−2.0 V for 50 ns

1.5 A Peak,

200 mA DC

1.5 A Peak,

200 mA DC

Positive Current Sense IS+ 6.0 V −0.3 V 1.0 mA 1.0 mA

Negative Current Sense IS−6.0 V −0.3 V 1.0 mA 1.0 mA

Power Ground PGND 0.3 V −0.3 V 1.5 A Peak,

200 mA DC

N/A

Logic Ground LGND 0 V 0 V 100 mA N/A

Sense Ground SGND 0.3 V −0.3 V 1.0 mA 1.0 mA

ELECTRICAL CHARACTERISTICS (−40°C < TA < 85°C (CS5212E); 0°C < TA < 70°C (CS5212G); −40°C < TJ < 125°C; 3.1 V < VCC <

3.5 V; 3.1 V < VC < 7.0 V; 4.5 V < BST < 20 V; CGATE(H) = CGATE(L) = 3.3 nF; ROSC = 51 k; CCOMP = 0.1 mF, unless otherwise specified.)

Characteristic Test Conditions Min Typ Max Unit

Error Amplifier

VFB Bias Current VFB = 0 V −0.1 1.0 mA

COMP Source Current VFB = 0.8 V 15 30 60 mA

COMP SINK Current VFB = 1.2 V 15 30 60 mA

Open Loop Gain − − 98 −dB

Unity Gain Bandwidth C = 0.1 mF−50 −kHz

PSRR @ 1.0 kHz − − 70 −dB

Output Transconductance − − 32 −mmho

Output Impedance − − 2.5 −MW

Reference Voltage −0.1 V < SGND < 0.1 V,

COMP = VFB, Measure VFB to SGND

0.977 0.992 1.007 V

COMP Max Voltage VFB = 0.8 V 2.5 3.0 −V

COMP Min Voltage VFB = 1.2 V −0.1 0.2 V

GATE(H) and GATE(L)

High Voltage (AC) GATE(L)

GATE(H)

0.5 nF < CGATE(H) = CGATE(L) < 10 nF (Note 2)

VC − 0.5

BST − 0.5

−

Low Voltage (AC) GATE(L) or GATE(H)

0.5 nF < CGATE(H); CGATE(L) < 10 nF (Note 2)

− − 0.5 V

Rise Time VC = BST = 7.0 V, Measure:

0.7 V < GATE(L) < 6.3 V,

0.7 V < GATE(H) < 6.3 V

−40 80 ns

Fall Time VC = BST = 7.0 V, Measure:

0.7 V < GATE(L) < 6.3 V,

0.7 V < GATE(H) < 6.3 V

−40 80 ns

2. GBD.

CS5212

http://onsemi.com

ELECTRICAL CHARACTERISTICS (−40°C < TA < 85°C (CS5212E); 0°C < TA < 70°C (CS5212G); −40°C < TJ < 125°C; 3.1 V < VCC <

3.5 V; 3.1 V < VC < 7.0 V; 4.5 V < BST < 20 V; CGATE(H) = CGATE(L) = 3.3 nF; ROSC = 51 k; CCOMP = 0.1 mF, unless otherwise specified.)

Characteristic UnitMaxTypMinTest Conditions

GATE(H) and GATE(L)

GATE(H) to GATE(L) Delay GATE(H) < 2.0 V, GATE(L) > 2.0 V 40 70 110 ns

GATE(L) to GATE(H) Delay GATE(L) < 2.0 V, GATE(H) > 2.0 V 40 70 110 ns

GATE(H)/(L) Pulldown Resistance to PGND 20 50 115 KW

Overcurrent Protection

OVC Comparator Offset Voltage 0 V < IS+ < VCC, 0 V < IS− < VCC 54 60 66 mV

IS+ Bias Current 0 V < IS+ < VCC −1.0 0.1 1.0 mA

IS− Bias Current 0 V < IS− < VCC −1.0 0.1 1.0 mA

COMP Discharge Threshold −0.20 0.25 0.30 V

COMP Discharge Current in OVC

Fault Mode

COMP = 1.0 V 2.0 5.0 8.0 mA

PWM Comparator

Transient Response COMP = 0 − 1.5 V, VFFB, 20 mV overdrive −100 200 ns

PWM Comparator Offset VFB = VFFB = 0 V;

Increase COMP until GATE(H) starts switching

0.35 0.40 0.45 V

Artificial Ramp Duty Cycle = 90% 40 70 100 mV

VFFB Bias Current VFFB = 0 V −0.1 1.0 mA

VFFB Input Range (Note 3) − − 1.1 V

Minimum Pulse Width − − − 200 ns

Oscillator

Switching Frequency ROSC = 18 k 600 750 900 kHz

Switching Frequency ROSC = 51 k 240 300 360 kHz

Switching Frequency ROSC = 115 k 120 150 180 kHz

ROSC Voltage −1.21 1.25 1.29 V

General Electrical Specifications

VCC Supply Current COMP = 0 V (no switching) −5.0 8.0 mA

BST/VC Supply Current COMP = 0 V (no switching) −2.0 3.0 mA

Start Threshold GATE(H) Switching, COMP Charging 2.7 2.8 2.9 V

Stop Threshold GATE(H) Not Switching, COMP Not Charging 2.6 2.7 2.8 V

Hysteresis Start−Stop 75 100 125 mV

Sense Ground Current (Note 4) −0.15 1.00 mA

3. GBD.

4. Recommended maximum operating voltage between the three grounds is 200 mV.

CS5212

http://onsemi.com

PACKAGE PIN DESCRIPTION

PIN NO. PIN SYMBOL FUNCTION

1 GATE(H) High Side Switch FET driver pin. Capable of delivering peak currents of 1.0 A.

2 BST Power supply input for the high side driver.

3 LGND Reference ground. All control circuits are referenced to this pin. IC substrate connection.

4 VFFB Input for the PWM comparator.

5 VFB Error amplifier input.

6 COMP Error Amp output. PWM Comparator reference input. A capacitor to LGND provides error amp

compensation.

7 SGND Internal reference is connected to this ground. Connect directly at the load for ground remote sensing.

8 ROSC A resistor from this pin to SGND sets switching frequency.

9 VCC Input Power Supply Pin. It supplies power to control circuitry. A 0.1 mF Decoupling cap is

recommended.

10 IS−Negative input for overcurrent comparator.

11 IS+ Positive input for overcurrent comparator.

12 VCPower supply input for the low side driver.

13 GATE(L) Low Side Synchronous FET driver pin. Capable of delivering peak currents of 1.0 A.

14 PGND High Current ground for the GATE(H) and GATE(L) pins.

UVLO

Comparator

5.0 mA

GATE(L)

GATE(H)

−

PGND

ROSC

BST

Fault

PWM FF

COMP Discharge COMP

0.25 V

PWM Comparator

ART Ramp OSC

ROSC

0.5 V

Error Amp

1.0 V

100 % DC

Comparator

VSTART

Comparator

60 mV

0.8 V

UVLO

LGND

VCC

IS−

IS+

SGND

VFB

COMP

VFFB

Figure 2. Block Diagram

Reset Dominant

Set Dominant

CS5212

http://onsemi.com

THEORY OF OPERATION

The CS5212 is a synchronous, programmable

fixed−frequency, low−voltage buck controller using the V2

control method. It also provides overcurrent protection,

undervoltage lockout, soft−start and built−in adaptive

non−overlap.

V2 Control Method

The V2 method of control uses a ramp signal generated by

the ESR of the output capacitors. This ramp is proportional

to the AC current through the main inductor and is offset by

the value of the DC output voltage. This control scheme

inherently compensates for variations in either line or load

conditions, since the ramp signal is generated from the

output voltage itself. This control scheme differs from

traditional techniques such as voltage mode, which

generates an artificial ramp, and current mode, which

generates a ramp from inductor current.

−

Ramp Signal

Error Signal

Error Amplifier

COMP

GATE(L)

GATE(H)

Output

Voltage

Feedback

PWM Comparator

Figure 3. V2 Control Block Diagram

Reference

Voltage

As illustrated in Figure 3, the output voltage is used to

generate both the error signal and the ramp signal. Since the

ramp signal is simply the output voltage, it is affected by any

change in the output regardless of the origin of the change.

The ramp signal also contains the DC portion of the output

voltage, which allows the control circuit to drive the main

switch to 0% or 100% duty cycle as required.

A change in line voltage changes the current ramp in the

inductor, affecting the ramp signal, which causes the V2

control scheme to compensate the duty cycle. Since the

change in the inductor current modifies the ramp signal, as

in current mode control, the V2 control scheme has the same

advantages in line transient response.

A change in load current will have an effect on the output

voltage, altering the ramp signal. A load step immediately

changes the state of the comparator output, which controls

the main switch. Load transient response is determined only

by the comparator response time and the transition speed of

the main switch. The reaction time to an output load step has

no relation to the crossover frequency of the error signal

loop, compared to traditional control methods.

The error signal loop can have a low crossover frequency,

since transient response is handled by the ramp signal loop.

The main purpose of this “slow” feedback loop is to provide

DC accuracy. Noise immunity is significantly improved,

because the error amplifier bandwidth can be rolled off at a

low frequency. Enhanced noise immunity improves remote

sensing of the output voltage, since the noise associated with

long feedback traces can be effectively filtered.

Line and load regulations are drastically improved

because there are two independent voltage loops. A voltage

mode controller relies on a change in the error signal to

compensate for a deviation in either line or load voltage.

This change in the error signal causes the output voltage to

change corresponding to the gain of the error amplifier,

which is normally specified as line and load regulation. A

current mode controller maintains fixed error signal under

deviation in the line voltage, since the slope of the ramp

signal changes, but still relies on a change in the error signal

for a deviation in load. The V2 method of control maintains

a fixed error signal for both line and load variations, since

both line and load affect the ramp signal.

Constant Frequency Operation

The CS5212 uses a constant frequency, trailing edge

modulation architecture for generating PWM signal. During

normal operation, the oscillator generates a narrow pulse at

the beginning of each switching cycle to turn on the main

switch. The main switch will be turned off when the ramp

signal intersects with the output of the error amplifier

(COMP pin voltage). Therefore, the switch duty cycle can

be modified to regulate the output voltage to the desired

value as line and load conditions change.

The major advantage of constant frequency operation is

that the component selections, especially the magnetic

component design, become very easy. The oscillator

frequency of CS5212 is programmable from 150 kHz to

750 kHz using an external resistor connected from the ROSC

pin to ground.

Startup

If there are no fault conditions and the fault latch is reset,

the error amplifier will start charging the COMP pin

capacitor after the CS5212 is powered up. The output of the

error amplifier (COMP voltage) will ramp up linearly. The

COMP capacitance and the source current of the error

amplifier determine the slew rate of COMP voltage. The

output of the error amplifier is connected internally to the

inverting input of the PWM comparator and it is compared

with the VFFB pin voltage plus 0.5 V offset at the

non−inverting input of the PWM comparator. Since VFFB

voltage is zero before the startup, the PWM comparator

output will stay high until the COMP pin voltage hits 0.5 V.

There is no switching action while the PWM comparator

output is high.

After the COMP voltage exceeds the 0.5 V offset, the

output of PWM comparator toggles and releases the PWM

latch. The narrow pulse generated by the oscillator at the

CS5212

http://onsemi.com

beginning of the next oscillator cycle will set the latch so that

the main switch can be turned on and the regulator output

voltage ramps up. When the output voltage achieves a level

set by the COMP voltage, the main switch will be turned off.

The V2 control loop will adjust the main switch duty cycle

as required to ensure the regulator output voltage tracks the

COMP voltage. Since the COMP voltage increases

gradually, the soft−start can be achieved. The start−up

period ends when the output voltage reaches the level set by

the external resistor divider.

Output Enable

Since there can be no switching until the COMP pin

exceeds the 0.5 V offset built into the PWM comparator, the

COMP pin can also be used for an enable function. Hold the

COMP pin below 0.4 V with an open collector circuit to

disable the output. When the COMP pin is released to enable

startup, the user must ensure there is no leakage current from

the enable circuit into COMP. During normal operation the

COMP output is driven with only 5.0 mA to 30 mA internally.

Hiccup Mode Overcurrent Protection

Under normal load conditions, the voltage across the IS+

and IS− pins is less than the 60 mV overcurrent threshold. If

the threshold is exceeded, the overcurrent fault latch is set,

the high side gate driver is forced low, and the COMP pin is

discharged with 5.0 mA. There is no switching until the

COMP voltage drops below a 0.25 V threshold. Then, the

fault latch is cleared and a soft−start is initiated. The low

effective duty cycle during hiccup overcurrent greatly

reduces component stress for an extended fault.

Inductor Current Sensing

Besides using a current sense resistor to sense inductor

current, CS5212 provides the users with the possibility of

using loss−less inductor sensing technique. This sensing

technique utilizes the Equivalent Series Resistance (ESR) of

the inductor to sense the current. The output current is

sensed through an RC network in parallel with the inductor

as shown in Figure 4. The voltage across the small capacitor

is then fed to the OC comparator.

IS−IS+

VIN

Figure 4. Inductor Current Sensing

If the values of R and C are chosen such that:

RL+RC

Then the voltage across the capacitor C will be:

VC+RLIL

Therefore, if the time constant of the RC network is equal

to that of the inductor, the voltage across the capacitor is

proportional to the inductor current by a factor of the

inductor ESR. In practice, the user should ensure that under

all component tolerances, the RC time constant is larger than

the L/R time constant. This will keep the high frequency

gain for VC(s)/IL(s) less than the low frequency gain, and

avoid unnecessary OCP tripping during short duration

overcurrent situations.

Compared with conventional resistor sensing, the

inductor ESR current sensing technique is lossless, but is not

as accurate due to variation in the ESR from inductor to

inductor and over temperature. For typical inductor ESR, the

0.39%/°C positive temperature coefficient will reduce the

current limit at high temperature, and will help prevent

thermal runaway, but will force an increased design target at

room temperature. This technique can be more accurate than

using a PCB trace, since PCB copper thickness can vary

10−20%, compared to 1% variation in wire diameter

thickness typical of inductors.

Remote Voltage Sensing

The CS5212 has the capability to sense the voltage when

the load is located far away from the regulator. The SGND

pin is dedicated to the differential remote sensing. The

negative remote sense line is connected to SGND pin

directly, while the positive remote sense line is usually

connected to the top of the feedback voltage divider. To

prevent over−voltage condition caused by open remote

sense lines, the divider should also be locally connected to

the output of the regulator through a low value resistor. That

resistor is used to compensate for the voltage drop across the

output power cables.

CS5212

http://onsemi.com

APPLICATIONS INFORMATION

APPLICATIONS AND COMPONENT SELECTION

Inductor Component Selection

The output inductor may be the most critical component

in the converter because it will directly effect the choice of

other components and dictate both the steady−state and

transient performance of the converter. When selecting an

inductor the designer must consider factors such as DC

current, peak current, output voltage ripple, core material,

magnetic saturation, temperature, physical size, and cost

(usually the primary concern).

In general, the output inductance value should be as low

and physically small as possible to provide the best transient

response and minimum cost. If a large inductance value is

used, the converter will not respond quickly to rapid changes

in the load current. On the other hand, too low an inductance

value will result in very large ripple currents in the power

components (MOSFETs, capacitors, etc) resulting in

increased dissipation and lower converter efficiency. Also,

increased ripple currents will force the designer to use

higher rated MOSFETs, oversize the thermal solution, and

use more, higher rated input and output capacitors − the

converter cost will be adversely effected.

One method of calculating an output inductor value is to

size the inductor to produce a specified maximum ripple

current in the inductor. Lower ripple currents will result in

less core and MOSFET losses and higher converter

efficiency. The following equation may be used to calculate

the minimum inductor value to produce a given maximum

ripple current (α ⋅IO,MAX). The inductor value calculated by

this equation is a minimum because values less than this will

produce more ripple current than desired. Conversely,

higher inductor values will result in less than the maximum

ripple current.

LoMIN +(Vin *Vout) @Voutń(a@IO,MAX @Vin @fSW)

α is the ripple current as a percentage of the maximum

output current (α = 0.15 for ±15%, α = 0.25 for ±25%, etc)

and fsw is the switching frequency. If the minimum inductor

value is used, the inductor current will swing ± α/2% about

Iout. Therefore, the inductor must be designed or selected

such that it will not saturate with a peak current of (1 + α/2)

⋅IO,MAX.

Power dissipation in the inductor can now be calculated

from the RMS current level. The RMS of the AC component

of the inductor is given by the following relationship:

IAC +IPP

where IPP = α ⋅IO,MAX.

The total IRMS of the current will be calculated from:

IRMS +IOUT2)IAC2

The power dissipation for the inductor can be determined

from:

P+IRMS2 RL

Input Capacitor Selection and Considerations

The input capacitor is used to reduce the current surges

caused by conduction of current of the top pass transistor

charging the PWM inductor.

The input current is pulsing at the switching frequency

going from 0 to peak current in the inductor. The duty factor

will be a function of the ratio of the input to output voltage

and of the efficiency.

DF +VO

VI 1

Eff

The RMS value of the ripple into the input capacitors can

now be calculated:

IIN(RMS) +IOUT DF *DF2

The input RMS is maximum at 50% DF, so selection of the

possible duty factor closest to 50% will give the worst case

dissipation in the capacitors. The power dissipation of the

input capacitors can be calculated by multiplying the square

of the RMS current by the ESR of the capacitor.

Output Capacitor

The output capacitor filters output inductor ripple current

and provides low impedance for load current changes. The

effect of the capacitance for handling the power supply

induced ripple will be discussed here. Effects of load

transient behavior can be considered separately.

The principle consideration for the output capacitor is the

ripple current induced by the switches through the inductor.

This ripple current was calculated as IAC in the above

discussion of the inductor. This ripple component will

induce heating in the capacitor by a factor of the RMS

current squared multiplied by the ESR of the output

capacitor section. It will also create output ripple voltage.

The ripple voltage will be a vector summation of the ripple

current times the ESR of the capacitor, plus the ripple current

integrating in the capacitor, and the rate of change in current

times the total series inductance of the capacitor and

connections.

The inductor ripple current acting against the ESR of the

output capacitor is the major contributor to the output ripple

voltage. This fact can be used as a criterion to select the

output capacitor.

VPP +IPP CESR

The power dissipation in the output capacitor can be

calculated from:

P+IAC2 CESR

where:

IAC = AC RMS of the inductor

CESR = Effective series resistance of the output capacitor

network.

MOSFET & Heatsink Selection

Power dissipation, package size, and thermal solution

drive MOSFET selection. To adequately size the heat sink,

CS5212

http://onsemi.com

the design must first predict the MOSFET power dissipation.

Once the dissipation is known, the heat sink thermal

impedance can be calculated to prevent the specified

maximum case or junction temperatures from being exceeded

at the highest ambient temperature. Power dissipation has two

primary contributors: conduction losses and switching losses.

The control or upper MOSFET will display both switching

and conduction losses. The synchronous or lower MOSFET

will exhibit only conduction losses because it switches into

nearly zero voltage. However, the body diode in the

synchronous MOSFET will suffer diode losses during the

non−overlap time of the gate drivers.

For the upper or control MOSFET, the power dissipation

can be approximated from:

PD,CONTROL +(IRMS,CNTL2@RDS(on))

)(ILo,MAX @QswitchńIg@VIN @fSW)

)(Qossń2@VIN @fSW))(VIN @QRR @fSW)

The first term represents the conduction or IR losses when

the MOSFET is ON while the second term represents the

switching losses. The third term is the losses associated with

the control and synchronous MOSFET output charge when

the control MOSFET turns ON. The output losses are caused

by both the control and synchronous MOSFET but are

dissipated only in the control FET. The fourth term is the loss

due to the reverse recovery time of the body diode in the

synchronous MOSFET. The first two terms are usually

adequate to predict the majority of the losses.

Where IRMS,CNTL is the RMS value of the trapezoidal

current in the control MOSFET:

IRMS,CNTL +D

Ǹ@[(ILo,MAX2)ILo,MAX @ILo,MIN

)ILo,MIN2)ń3]1ń2

ILo,MAX is the maximum output inductor current:

ILo,MAX +IO,MAXń2)DILoń2

ILo,MIN is the minimum output inductor current:

ILo,MIN +IO,MAXń2*DILoń2

IO,MAX is the maximum converter output current.

D is the duty cycle of the converter:

D+VOUTńVIN

DILo is the peak−to−peak ripple current in the output

inductor of value Lo:

DILo +(VIN *VOUT)@Dń(Lo @fSW)

RDS(on) is the ON resistance of the MOSFET at the

applied gate drive voltage.

Qswitch is the post gate threshold portion of the

gate−to−source charge plus the gate−to−drain charge. This

may be specified in the data sheet or approximated from the

gate−charge curve as shown in the Figure 5.

Qswitch +Qgs2 )Qgd

VGATE

VDRAIN

QGD

QGS2

QGS1

VGS_TH

Figure 5. MOSFET Switching Characteristics

Ig is the output current from the gate driver IC.

VIN is the input voltage to the converter.

fsw is the switching frequency of the converter.

QG is the MOSFET total gate charge to obtain RDS(on).

Commonly specified in the data sheet.

Vg is the gate drive voltage.

QRR is the reverse recovery charge of the lower MOSFET.

Qoss is the MOSFET output charge specified in the data

sheet.

For the lower or synchronous MOSFET, the power

dissipation can be approximated from:

PD,SYNCH +(IRMS,SYNCH2@RDS(on))

)(Vfdiode @IO,MAXń2@t_nonoverlap @fSW)

The first term represents the conduction or IR losses when

the MOSFET is ON and the second term represents the diode

losses that occur during the gate non−overlap time.

All terms were defined in the previous discussion for the

control MOSFET with the exception of:

IRMS,SYNCH +1*D

@[(ILo,MAX2)ILo,MAX @ILo,MIN )ILo,MIN2)ń3]1ń2

where:

Vfdiode is the forward voltage of the MOSFET’s intrinsic

diode at the converter output current.

t_nonoverlap is the non−overlap time between the upper

and lower gate drivers to prevent cross conduction. This

time is usually specified in the data sheet for the control

IC.

When the MOSFET power dissipations are known, the

designer can calculate the required thermal impedance to

maintain a specified junction temperature at the worst case

ambient operating temperature

qTt(TJ*TA)ńPD

where;

qT is the total thermal impedance (qJC + qSA).

qJC is the junction−to−case thermal impedance of the

MOSFET.

so“ start V

CS5212

http://onsemi.com

qSA is the sink−to−ambient thermal impedance of the

heatsink assuming direct mounting of the MOSFET (no

thermal “pad” is used).

TJ is the specified maximum allowed junction

temperature.

TA is the worst case ambient operating temperature.

For TO−220 and TO−263 packages, standard FR−4

copper clad circuit boards will have approximate thermal

resistances (qSA) as shown below:

Pad Size

(in2/mm2)

Single−Sided

1 oz. Copper

0.5/323 60−65°C/W

0.75/484 55−60°C/W

1.0/645 50−55°C/W

1.5/968 45−50°C/W

2.0/1290 38−42°C/W

2.5/1612 33−37°C/W

As with any power design, proper laboratory testing should

be performed to insure the design will dissipate the required

power under worst case operating conditions. Variables

considered during testing should include maximum ambient

temperature, minimum airflow, maximum input voltage,

maximum loading, and component variations (i.e. worst case

MOSFET RDS(on)). Also, the inductors and capacitors share

the MOSFET’s heatsinks and will add heat and raise the

temperature of the circuit board and MOSFET. For any new

design, its advisable to have as much heatsink area as possible

– all too often new designs are found to be too hot and require

re−design to add heatsinking.

Compensation Capacitor Selection

The nominal output current capability of the error amp is

30 mA. This current charging the capacitor on the COMP pin

is used as soft−start for the converter. The COMP pin is

going to ramp up to a voltage level that is within 70 mV of

what VFFB is going to be when in regulation. This is the

voltage that will determine the soft−start. Therefore, the

COMP capacitor can be established by the following

relationship:

C+30 mA soft start

VFFB(REG)

where:

soft−start = output ramp−up time

VFFB(REG) = VFFB voltage when in regulation

30 mA = COMP output current, typ.

The COMP output current range is given in the data sheet

and will affect the ramp−up time. The value of the capacitor

on the COMP pin will have an effect on the loop response

and the transient response of the converter. Transient

response can be enhanced by the addition of a parallel

combination of a resistor and capacitor between the COMP

pin and the comp capacitor.

ROSC Selection

The switching frequency is programmed by selecting the

resistor connected between the ROSC pin and SGND (pin 7).

The grounded side of this resistor should be directly

connected to the SGND pin, without any other currents

flowing between the bottom of the resistor and the pin. Also,

avoid running any noisy signals under the resistor, since

injected noise could cause frequency jitter. The graph in

Figure 6 shows the required resistance to program the

frequency. Below 500 kHz, the following formula is

accurate:

R+17544ńfSW *4kW

where fSW is the switching frequency in kHz.

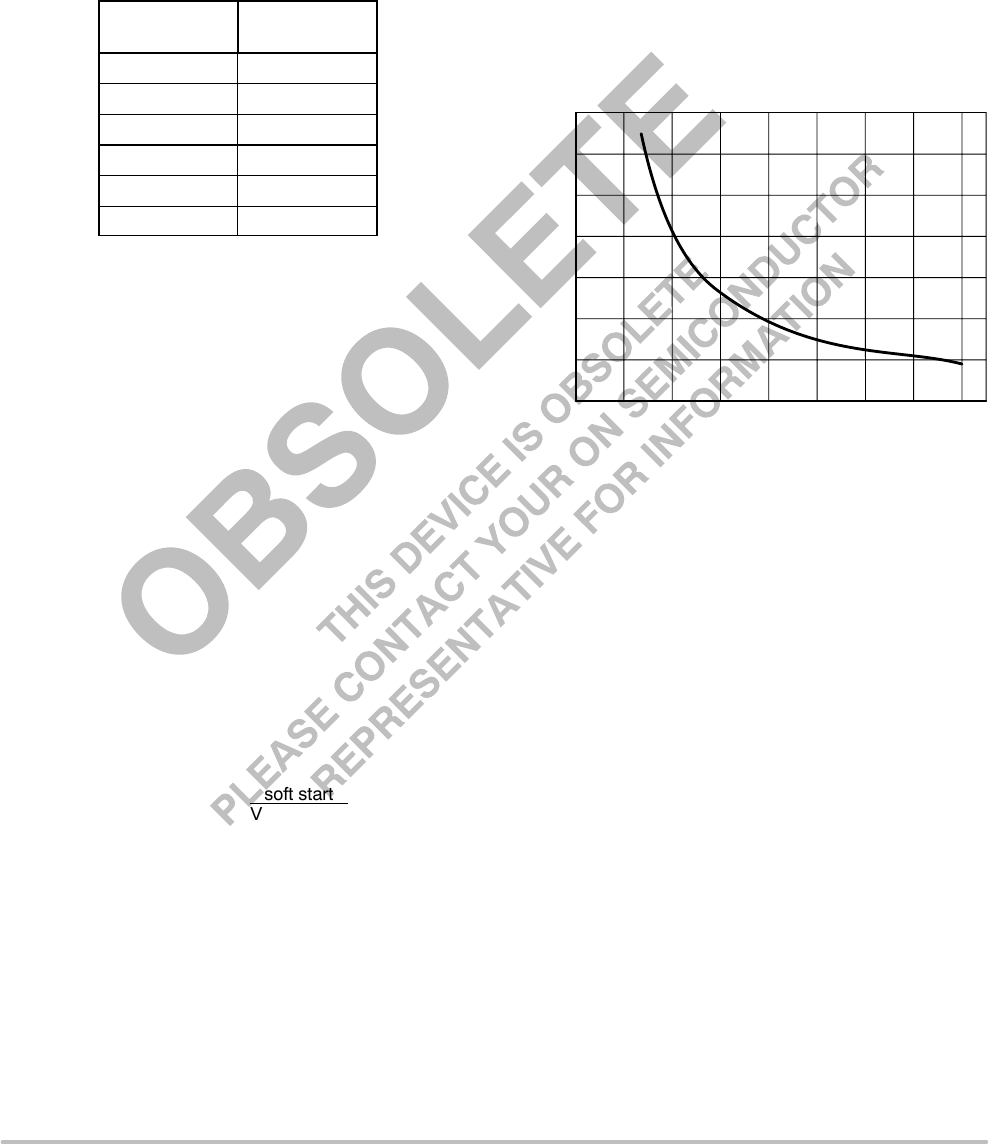

Figure 6. Frequency vs. ROSC

Resistance (kW)

Frequency (kHz)

100

120

140

100 200 300 400 500 600 700 800

Differential Remote Sense Operation

The ability to implement fully differential remote sense is

provided by the CS5212. The positive remote sense is

implemented by bringing the output remote sense

connection to the positive load connection. A low value

resistor is connected from Vout to the feedback point at the

regulator to provide feedback in the instance when the

remote sense point is not connected.

The negative remote sense connection is provided by

connecting the SGND of the CS5212 to the negative of the

load return. Again, a low value resistor should be connected

between SGND and LGND at the regulator to provide

feedback in the instance when the remote sense point is not

connected. The maximum voltage differential between the

three grounds for this part is 200 mV.

Feedback Divider Selection

The feedback voltage measured at VFB during normal

regulation will be 1.0 V. This voltage is compared to an

internal 1.0 V reference and is used to regulate the output

voltage. The bias current into the error amplifier is 1.0 mA

max, so select the resistor values so that this current does not

add an excessive offset voltage.

02 = (sz 7 VFB) >< ton/(r1="">< vramp)="" c1="" is="" used="" as="" a="" byp="" ,s="" capacitor="" and="" its="" value="" should="" be="" equal="" to="" or="" greater="" than="" (2.="" sz="" rt="" 01="" vffe="" (:2="" r2="" 1.0="" k="" t="" vfe="" figure="" 7.="" small="" rc="" filter="" providing="" the="" proper="" voltage="" ramp="" at="" the="" begin="" ng="" oi="" each="" oanime="" cycle="" maximum="" frequency="" operation="" the="" minimum="" pulse="" width="" may="" limit="" the="" maximum="" operating="" frequency.="" the="" duty="" factor,="" given="" by="" the="" output/input="" voltage="" ratio,="" multiplied="" by="" the="" period="" determines="" the="" pulse="" width="" during="" nnnnai="" operation.="" this="" pulse="" width="" must="" be="" greater="" than="" 2110="" ns,="" or="" duty="" cycle="" jitter="" could="" become="" exc="" 'c.="" for="" low="" pulse="" widths="" below="" 300115,="" external="" slope="" compensation="" should="" be="" added="" to="" the="" vffb="" pin="" to="" inere="" .-e="" the="" pwm="" ramp="" signal="" and="" imprtwc="" stability.="" 51)="" mv="" of="" added="" ramp="" at="" the="" vffb="" pin="" is="" typically="" enough.="" http://onsemi.com="" 11="" figure="" 8.="" cu="">

CS5212

http://onsemi.com

VFFB Feedback Selection

To take full advantage of the V2 control scheme, a small

amount of output ripple must be fed back to the VFFB pin,

typically 50 mV. For most application, this requirement is

simple to achieve and the VFFB can be connected directly to

the VFB pin. There are some application that have to meet

stringent load transient requirements. One of the key factor in

achieving tight dynamic voltage regulation is low ESR. Low

ESR at the regulator output results in low output voltage

ripple. This situation could result in increase noise sensitivity

and a potential for loop instability. In applications where the

output ripple is not sufficient, the performance of the CS5212

can be improved by adding a fixed amount external ramp

compensation to the VFFB pin. Refer to Figure 7, the amount

of ramp at the VFFB pin depends on the switch node Voltage,

Feedback Voltage, R1 and C2.

Vramp +(Vsw *VFB) tonń(R1 C2)

where:

Vramp = amount of ramp needed;

Vsw = switch note voltage;

VFB = voltage feedback, 1 V;

ton = switch on−time.

To minimize the lost in efficiency R1 resistance should be

large, typically 100 k or larger. With R1 chosen, C2 can be

determined by the following;

C2 +(Vsw *VFB) tonń(R1 Vramp)

C1 is used as a bypass capacitor and its value should be

equal to or greater than C2.

Figure 7. Small RC Filter Providing the Proper Voltage

Ramp at the Beginning of Each On−Time Cycle

Vsw

1.0 k

VFFB

VFB

Maximum Frequency Operation

The minimum pulse width may limit the maximum

operating frequency. The duty factor, given by the

output/input voltage ratio, multiplied by the period

determines the pulse width during normal operation. This

pulse width must be greater than 200 ns, or duty cycle jitter

could become excessive. For low pulse widths below 300 ns,

external slope compensation should be added to the VFFB pin

to increase the PWM ramp signal and improve stability.

50 mV of added ramp at the VFFB pin is typically enough.

Current Sense Component Selection

The current limit threshold is set by sensing a 60 mV

voltage differential between the IS+ and IS− pins. Referring

to Figure 8, the time constant of the R2,C1 filter should be set

larger than the L/R1 time constant under worst case

tolerances, to prevent overshoot in the sensed voltage and

tripping the current limit too low. Resistor R3 of value equal

to R2 is added for bias current cancellation. R2 and R3 should

not be made too large, to reduce errors from bias current

offsets. For typical L/R time constants, a 0.1 mF capacitor for

C1 will allow R2 to be between 1.0 k and 10 kW.

The current limit without R4 and R5, which are optional,

is given by 60 mV/R1, where R1 is the internal resistance of

the inductor, obtained from the manufacturer. The addition of

R5 can be used to decrease the current limit to a value given

by:

ILIM +(60 mV *(VOUT R3ń(R3 )R5))ńR1

where VOUT is the output voltage.

Similiarly, omitting R5 and adding R4 will increase the

current limit to a value given by:

ILIM +60 mVńR1 (1 )R2ńR4)

Essentially, R4 or R5 are used to increase or decrease the

inductor voltage drop which corresponds to 60 mV at the IS+

and IS− pins.

Figure 8. Current Limit

IS−

IS+

60 mV Trip

R1L1

VOUT

Switching

Node

Boost Component Selection for Upper and Lower

FET Gate Drive

The boost (BST) pin provides for application of a higher

voltage to drive the upper FET. This voltage may be provided

by a fixed higher voltage or it may be generated with a boost

capacitor and charging diodes, as shown in Figure 1. The

voltage in the boost configuration would be the summation of

the voltage from the charging diodes and the output voltage

swing. Care must be taken to keep the peak voltage with

respect to ground less than 20 V peak. The capacitor value

should be ten times larger than the capacitance of the top FET.

The boost circuit requires a modification to achieve startup.

See Rpullup Selection for boost circuit startup.

(cm xr )

CS5212

http://onsemi.com

Rpullup Value Selection for Boost Circuit Startup

The CS5212 application circuit incorporates a pullup

resistor, R7, into the boost circuitry. This resistor is essential

to achieving startup of the boost circuit. At startup, the

GATE(H) output may be limited to 0.8 V, due to internal Vbe

drops. Until the boost circuitry charges up, the GATE(H)

output cannot provide sufficient Vgs to turn on the MOSFET.

A resistor from GATE(H) to BST allows bypassing of the

GATE(H) driver until the boost circuitry is charged. The time

constant, set by the pullup resistor and the Cin of the top

MOSFET, must be fast enough to turn on the MOSFET

during the switching period. The following equation is used

to determine Rpullup:

Rpullup t1

(Cin fSW)

where fSW is the switching frequency.

Choosing components according to this equation will

insure that approximately 63% of the boost voltage will be

applied to GATE(H) within one switching period. To start

charge pumping, the control MOSFET must pull up the

switching node above 0.6 V, two Schottky drops, which will

allow VC voltage to increase. Therefore, the voltage applied

by GATE(H) must be 0.6 V greater than Vth of the top FET.

Both high− and low−side switches must be sublogic level

MOSFETs with RDS(on) specified at 2.5 Vgs in order to

ensure proper up.

ORDERING INFORMATION

Device

Operating

Temperature Range Package Shipping†

CS5212ED14

−40°C < TA < 85°C

SOIC−14 55 Units / Rail

CS5212ED14G SOIC−14

(Pb−Free)

55 Units / Rail

CS5212EDR14 SOIC−14 2500 / Tape & Reel

CS5212EDR14G SOIC−14

(Pb−Free)

2500 / Tape & Reel

CS5212GD14

0°C < TA < 70°C

SOIC−14 55 Units / Rail

CS5212GD14G SOIC−14

(Pb−Free)

55 Units / Rail

CS5212GDR14 SOIC−14 2500 / Tape & Reel

CS5212GDR14G SOIC−14

(Pb−Free)

2500 / Tape & Reel

†For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging

Specifications Brochure, BRD8011/D.

H’H’H’T’H’H’H 0 ‘ ‘ %3 l-ala Q1: H, ,ILLHJLHi, A p 1% J L m“ L ‘A T 1L7 ’ ’ ’ T7 K \/T e—I-I 0N Semxcanducmv and m anypmﬁum havem Smut:

CS5212

http://onsemi.com

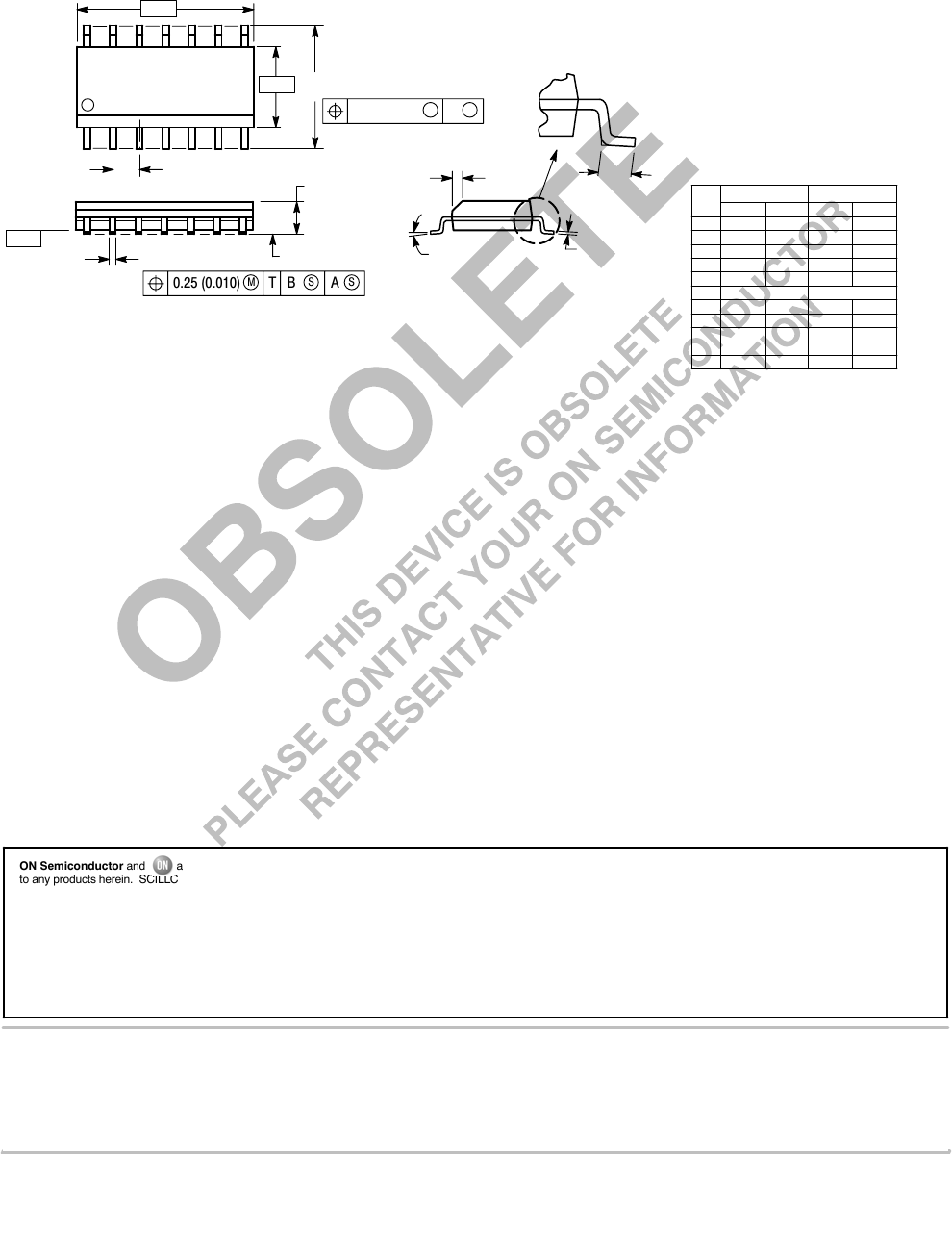

PACKAGE DIMENSIONS

SOIC−14

D SUFFIX

CASE 751A−03

ISSUE G

NOTES:

1. DIMENSIONING AND TOLERANCING PER

ANSI Y14.5M, 1982.

2. CONTROLLING DIMENSION: MILLIMETER.

3. DIMENSIONS A AND B DO NOT INCLUDE

MOLD PROTRUSION.

4. MAXIMUM MOLD PROTRUSION 0.15 (0.006)

PER SIDE.

5. DIMENSION D DOES NOT INCLUDE

DAMBAR PROTRUSION. ALLOWABLE

DAMBAR PROTRUSION SHALL BE 0.127

(0.005) TOTAL IN EXCESS OF THE D

DIMENSION AT MAXIMUM MATERIAL

CONDITION.

−A−

−B−

P7 PL

14 8

0.25 (0.010) B M

0.25 (0.010) A S

−T−

RX 45

SEATING

PLANE D14 PL K

DIM MIN MAX MIN MAX

INCHESMILLIMETERS

A8.55 8.75 0.337 0.344

B3.80 4.00 0.150 0.157

C1.35 1.75 0.054 0.068

D0.35 0.49 0.014 0.019

F0.40 1.25 0.016 0.049

G1.27 BSC 0.050 BSC

J0.19 0.25 0.008 0.009

K0.10 0.25 0.004 0.009

M0 7 0 7

P5.80 6.20 0.228 0.244

R0.25 0.50 0.010 0.019

__ __

ON Semiconductor and are registered trademarks of Semiconductor Components Industries, LLC (SCILLC). SCILLC reserves the right to make changes without further notice

to any products herein. SCILLC makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose, nor does SCILLC assume any liability

arising out of the application or use of any product or circuit, and specifically disclaims any and all liability, including without limitation special, consequential or incidental damages.

“Typical” parameters which may be provided in SCILLC data sheets and/or specifications can and do vary in different applications and actual performance may vary over time. All

operating parameters, including “Typicals” must be validated for each customer application by customer’s technical experts. SCILLC does not convey any license under its patent rights

nor the rights of others. SCILLC products are not designed, intended, or authorized for use as components in systems intended for surgical implant into the body, or other applications

intended to support or sustain life, or for any other application in which the failure of the SCILLC product could create a situation where personal injury or death may occur. Should

Buyer purchase or use SCILLC products for any such unintended or unauthorized application, Buyer shall indemnify and hold SCILLC and its officers, employees, subsidiaries, affiliates,

and distributors harmless against all claims, costs, damages, and expenses, and reasonable attorney fees arising out of, directly or indirectly, any claim of personal injury or death

associated with such unintended or unauthorized use, even if such claim alleges that SCILLC was negligent regarding the design or manufacture of the part. SCILLC is an Equal

Opportunity/Affirmative Action Employer. This literature is subject to all applicable copyright laws and is not for resale in any manner.

PUBLICATION ORDERING INFORMATION

N. American Technical Support: 800−282−9855 Toll Free

USA/Canada

Europe, Middle East and Africa Technical Support:

Phone: 421 33 790 2910

Japan Customer Focus Center

Phone: 81−3−5773−3850

CS5212/D

LITERATURE FULFILLMENT:

Literature Distribution Center for ON Semiconductor

P.O. Box 5163, Denver, Colorado 80217 USA

Phone: 303−675−2175 or 800−344−3860 Toll Free USA/Canada

Fax: 303−675−2176 or 800−344−3867 Toll Free USA/Canada

Email: orderlit@onsemi.com

ON Semiconductor Website: www.onsemi.com

Order Literature: http://www.onsemi.com/orderlit

For additional information, please contact your local

Sales Representative

V2 is a trademark of Switch Power, Inc.

Products related to this Datasheet

IC REG CTRLR BUCK 14SOIC

CS5212EDR14

IC REG CTRLR BUCK 14SOIC

CS5212GDR14

IC REG CTRLR BUCK 14SOIC

CS5212EDR14

IC REG CTRLR BUCK 14SOIC

CS5212GDR14
