Standard
Board Level
Heat Sink Catalog
89-27 Access Road, Norwood, MA 02062 USA | T: 781.769. 2800 | ats-hq@qats.com | www.qats.com
R16_0920
Standard Board Level Heat Sinks
» PC Board Level Standard Heat Sinks
» Standard for TO220s, TO-3s, TO-5s, TO-126s, TO-127s, TO-202s, TO-218s
» Aluminum anodized material with solderable tabs or aluminum tin plated,
copper tin plated
» Clips, Nuts, or Thermal pad optional
STAMPED STANDARD HEAT SINKS
TL ‘*120 91 _I fl
89-27 Access Road, Norwood, MA 02062 USA | T: 781.769. 2800 | ats-hq@qats.com | www.qats.com
R16_0920

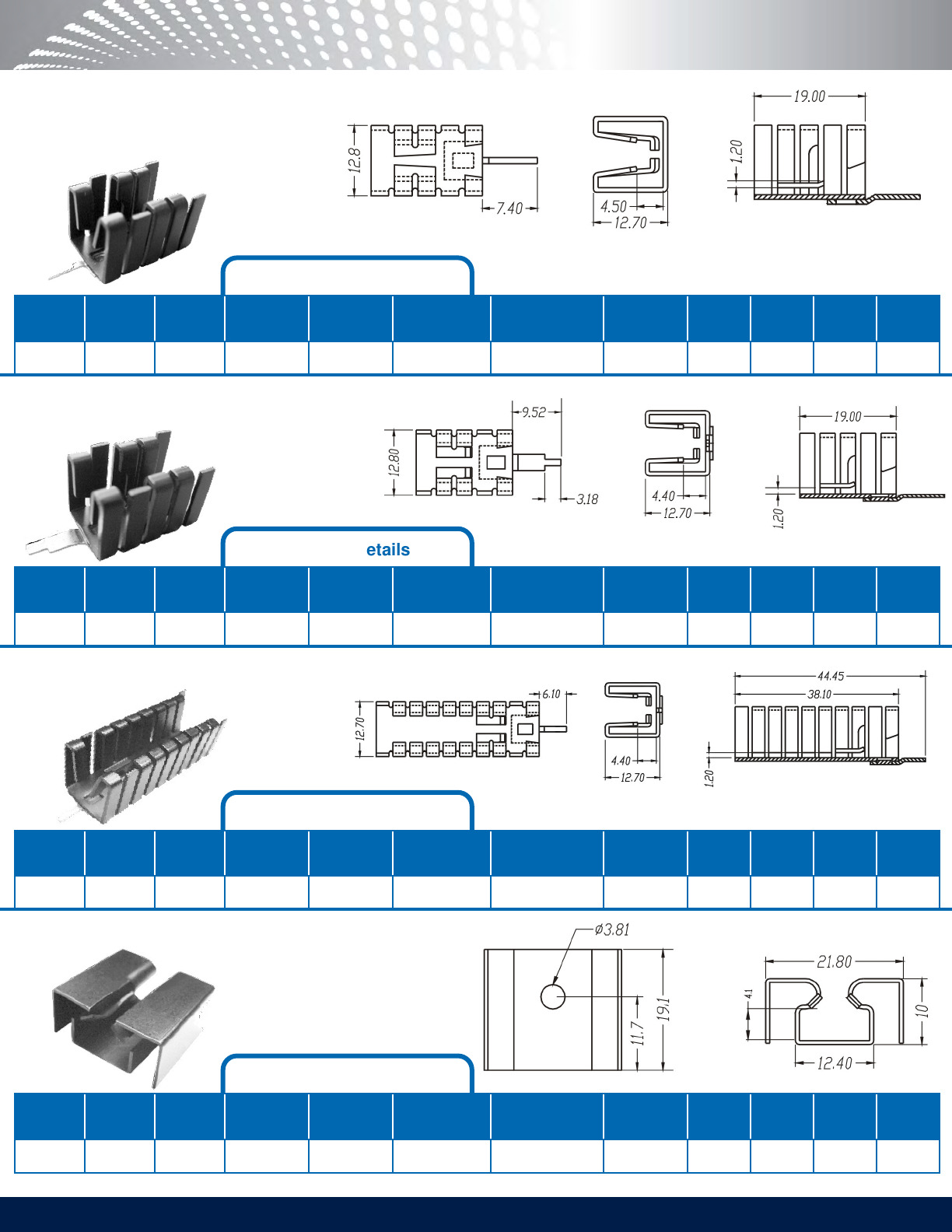

Standard Board Level Heat Sinks

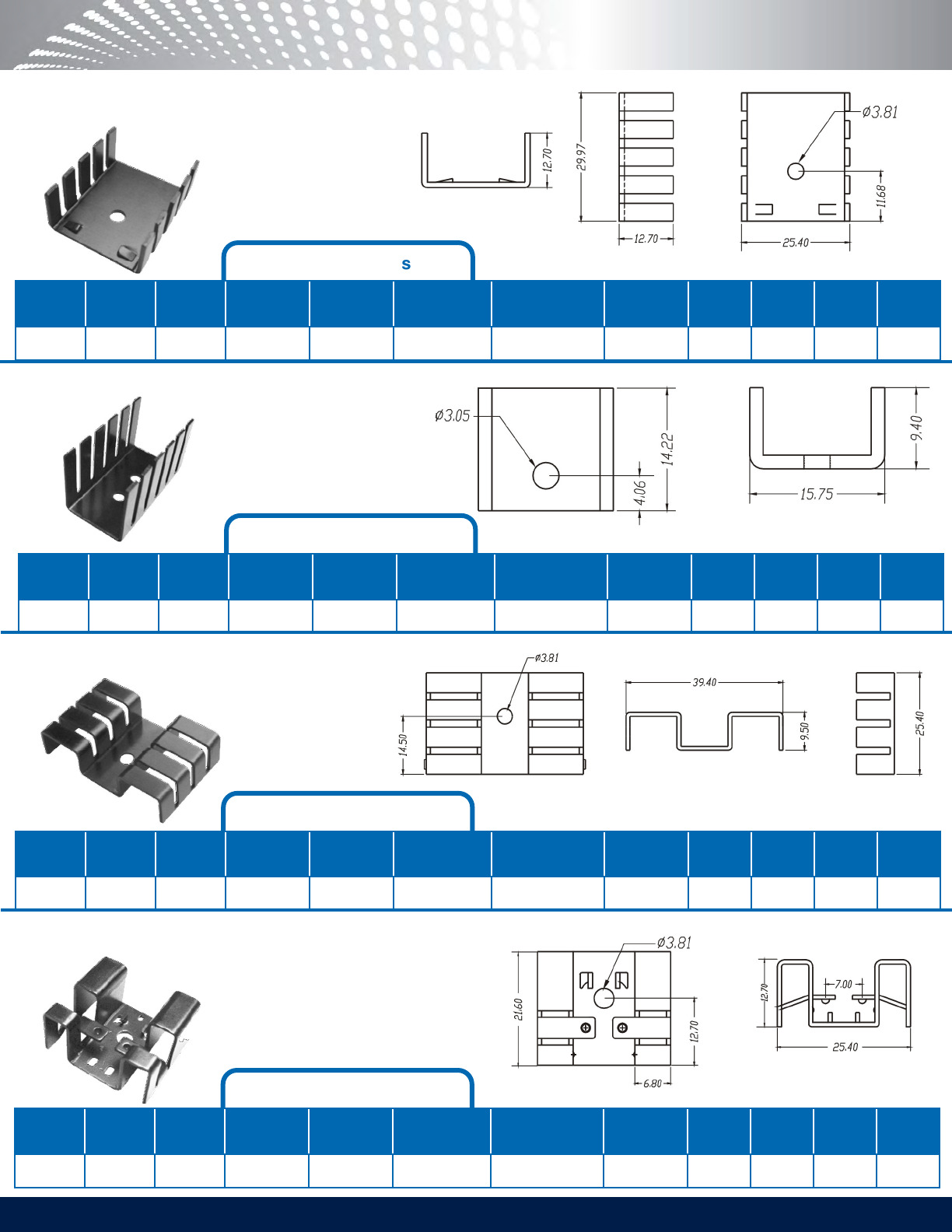

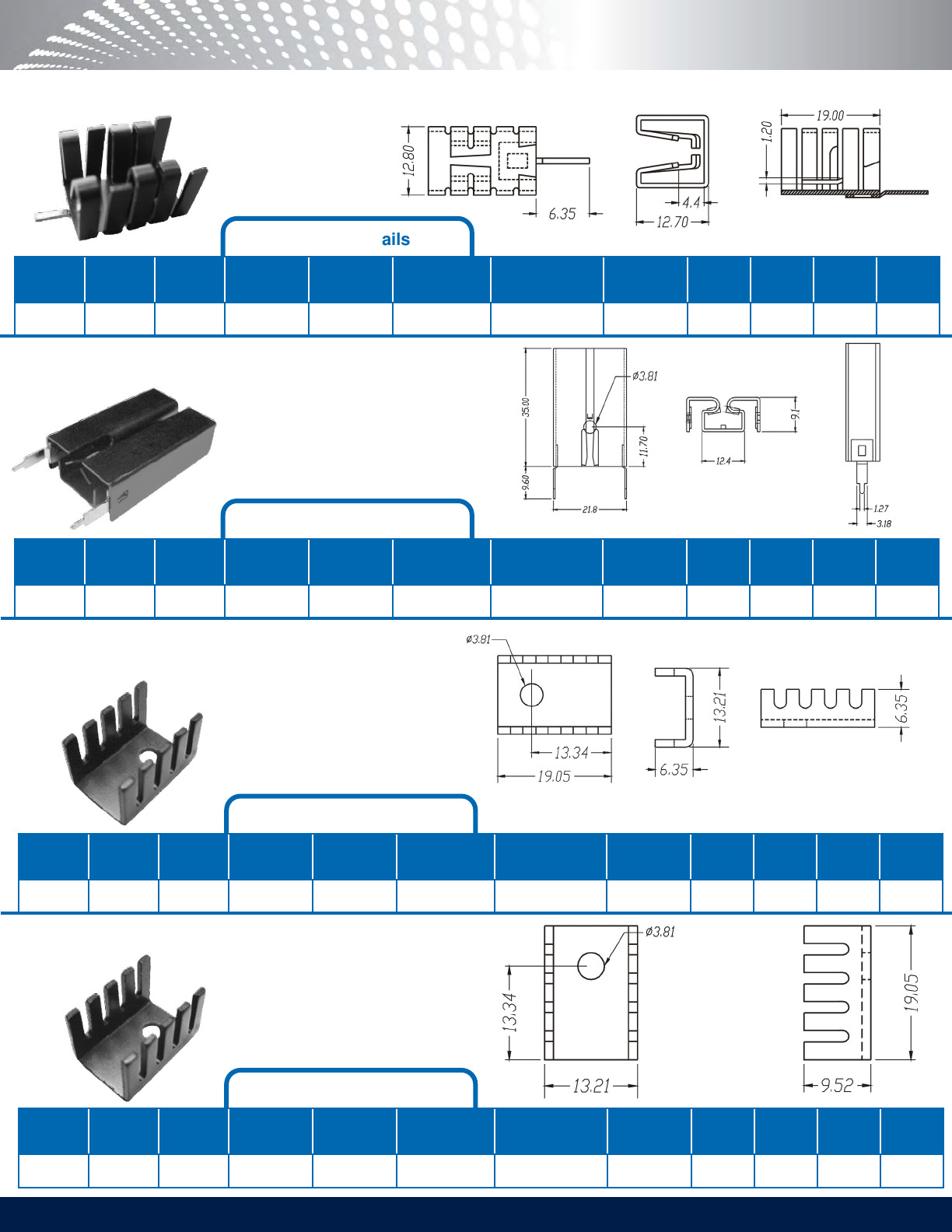

ATS-PCB1001
ATS-PCB1002
ATS-PCB1003
ATS-PCB1004

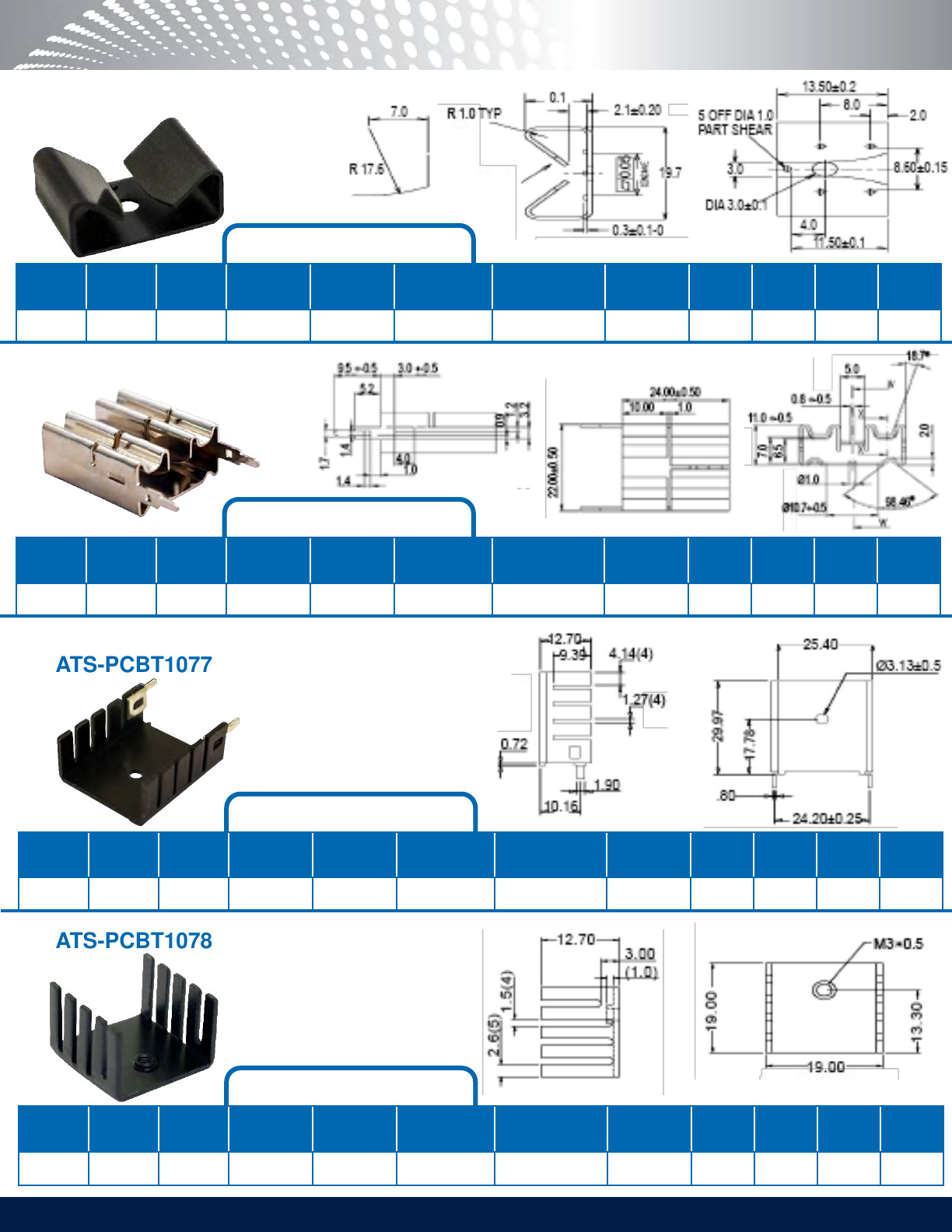

Product Details
Product Details
Product Details
Product Details
Length
(mm) Width
(mm) Height
(mm) Tim Material Finish Packaged Cooled Thermal
Resistance
(Natural Convection)
R @ 200
LFM R @ 400
LFM R @ 600
LFM R @ 800
LFM
19 12.8 12.7 No TIM Aluminum Blk Anodized TO-220,TO-262 27.3 10.2 7.0 5.7 4.8
Length
(mm) Width
(mm) Height
(mm) Tim Material Finish Packaged Cooled Thermal
Resistance
(Natural Convection)
R @ 200
LFM R @ 400
LFM R @ 600
LFM R @ 800
LFM
19 12.8 12.7 No TIM Aluminum Blk Anodized TO-220,TO-262 27.3 10.2 7.0 5.7 4.8
Length
(mm) Width
(mm) Height
(mm) Tim Material Finish Packaged Cooled Thermal
Resistance
(Natural Convection)
R @ 200
LFM R @ 400
LFM R @ 600
LFM R @ 800
LFM
38.1 12.7 12.7 No TIM Aluminum Blk Anodized TO-220 20.0 7.0 4.6 3.7 3.0
Length
(mm) Width
(mm) Height
(mm) Tim Material Finish Packaged Cooled Thermal
Resistance
(Natural Convection)
R @ 200
LFM R @ 400
LFM R @ 600
LFM R @ 800
LFM
19.1 21.8 10.0 No TIM Aluminum Blk Anodized TO-220 23.2 12.7 9.0 7.0 5.6
03 8t IVWIIYIV ATS-P031013 [ram ATS-PCB1014 ”430 3 :I (U I I I w w I I I w 7 LI i334“ 14 P 1905 J 7 54 .5732 Nu1—/ L 13/0 '1 ~13 l
89-27 Access Road, Norwood, MA 02062 USA | T: 781.769. 2800 | ats-hq@qats.com | www.qats.com
R16_0920
Standard Board Level Heat Sinks

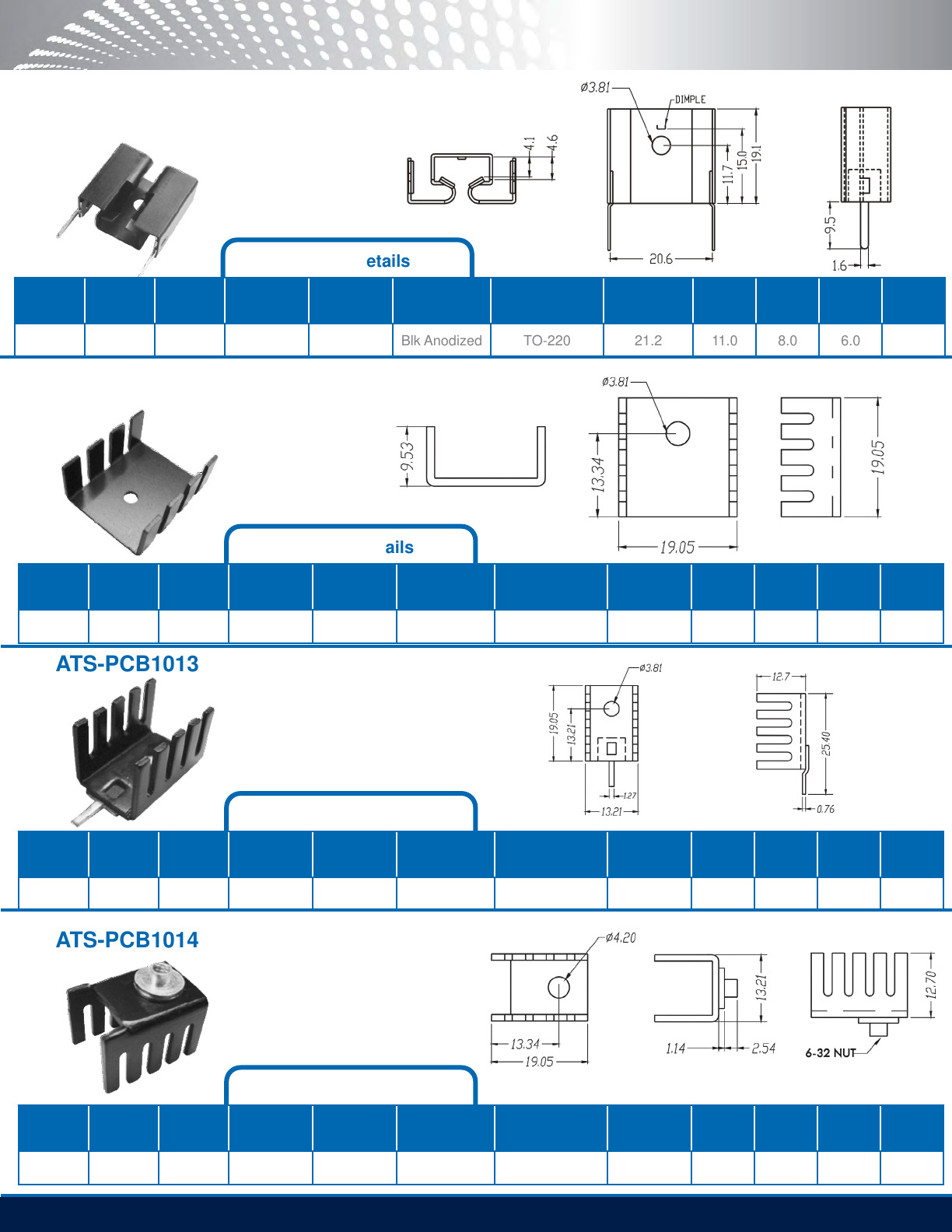

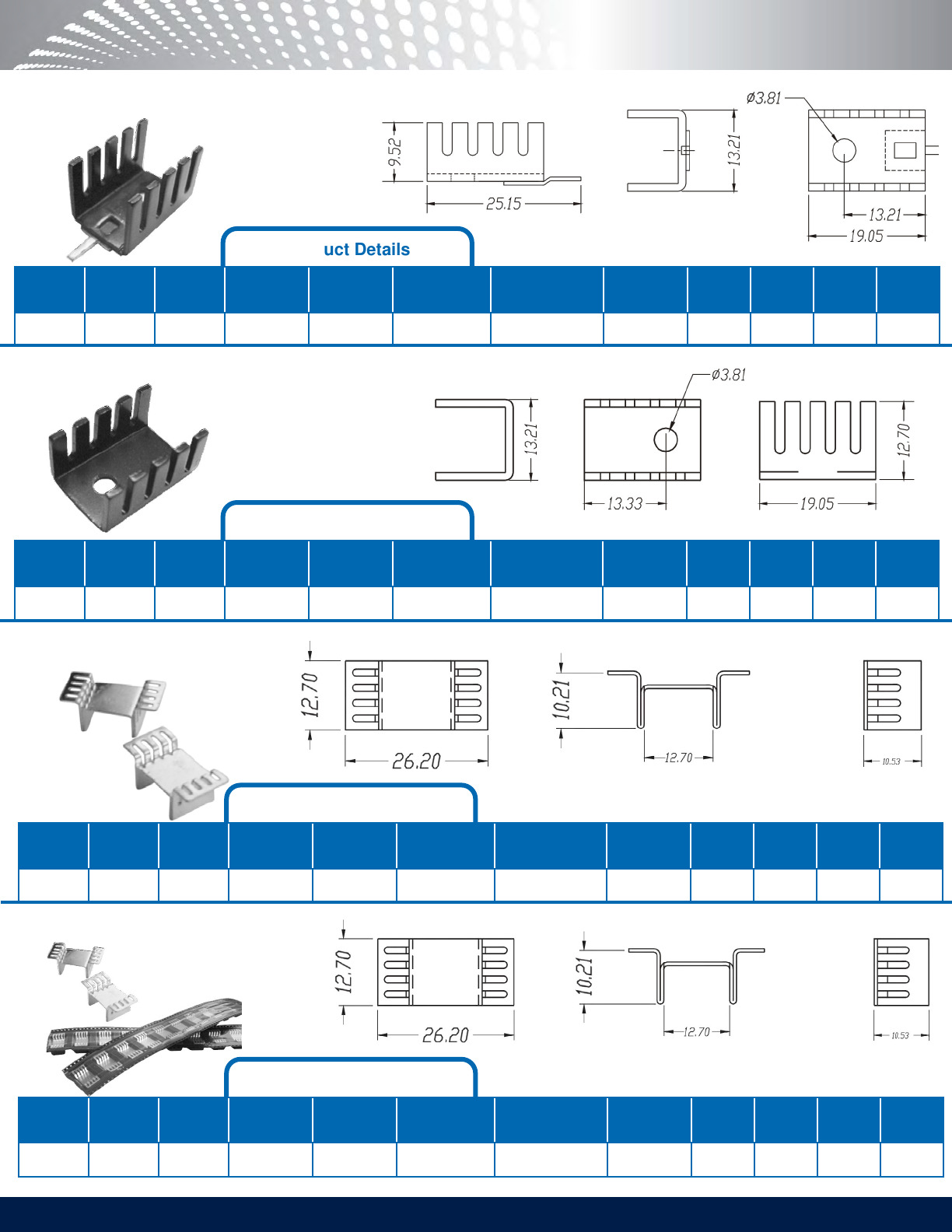

ATS-PCB1006
Product Details
Length
(mm) Width
(mm) Height
(mm) Tim Material Finish Packaged Cooled Thermal
Resistance
(Natural Convection)
R @ 200
LFM R @ 400
LFM R @ 600
LFM R @ 800
LFM
19.1 21.8 9.9 No TIM Aluminum Blk Anodized TO-220 21.2 11.0 8.0 6.0 4.8
ATS-PCB1009
Product Details
Length
(mm) Width
(mm) Height
(mm) Tim Material Finish Packaged Cooled Thermal
Resistance
(Natural Convection)
R @ 200
LFM R @ 400
LFM R @ 600
LFM R @ 800
LFM
19. 19. 9.5 No TIM Aluminum Blk Anodized TO-220 24.0 10.0 6.1 5.0 4.0
ATS-PCB1013
ATS-PCB1014
Product Details
Product Details
Length
(mm) Width
(mm) Height
(mm) Tim Material Finish Packaged Cooled Thermal
Resistance
(Natural Convection)
R @ 200
LFM R @ 400
LFM R @ 600
LFM R @ 800
LFM
19. 13.2 12.7 No TIM Aluminum Blk Anodized TO-220 24.4 9.5 6.8 6.4 6.0
Length
(mm) Width
(mm) Height
(mm) Tim Material Finish Packaged Cooled Thermal
Resistance
(Natural Convection)
R @ 200
LFM R @ 400
LFM R @ 600
LFM R @ 800
LFM
19. 13.2 12.7 No TIM Aluminum Blk Anodized TO-220 24.4 9.5 6.8 6.4 6.0
ATS-PCB1019 _. ,_‘ fl firms: “w 4 Q 1/? L 4 ME 23355 7: ' ' ' ' ' [7] ma M m: 3714
89-27 Access Road, Norwood, MA 02062 USA | T: 781.769. 2800 | ats-hq@qats.com | www.qats.com
R16_0920

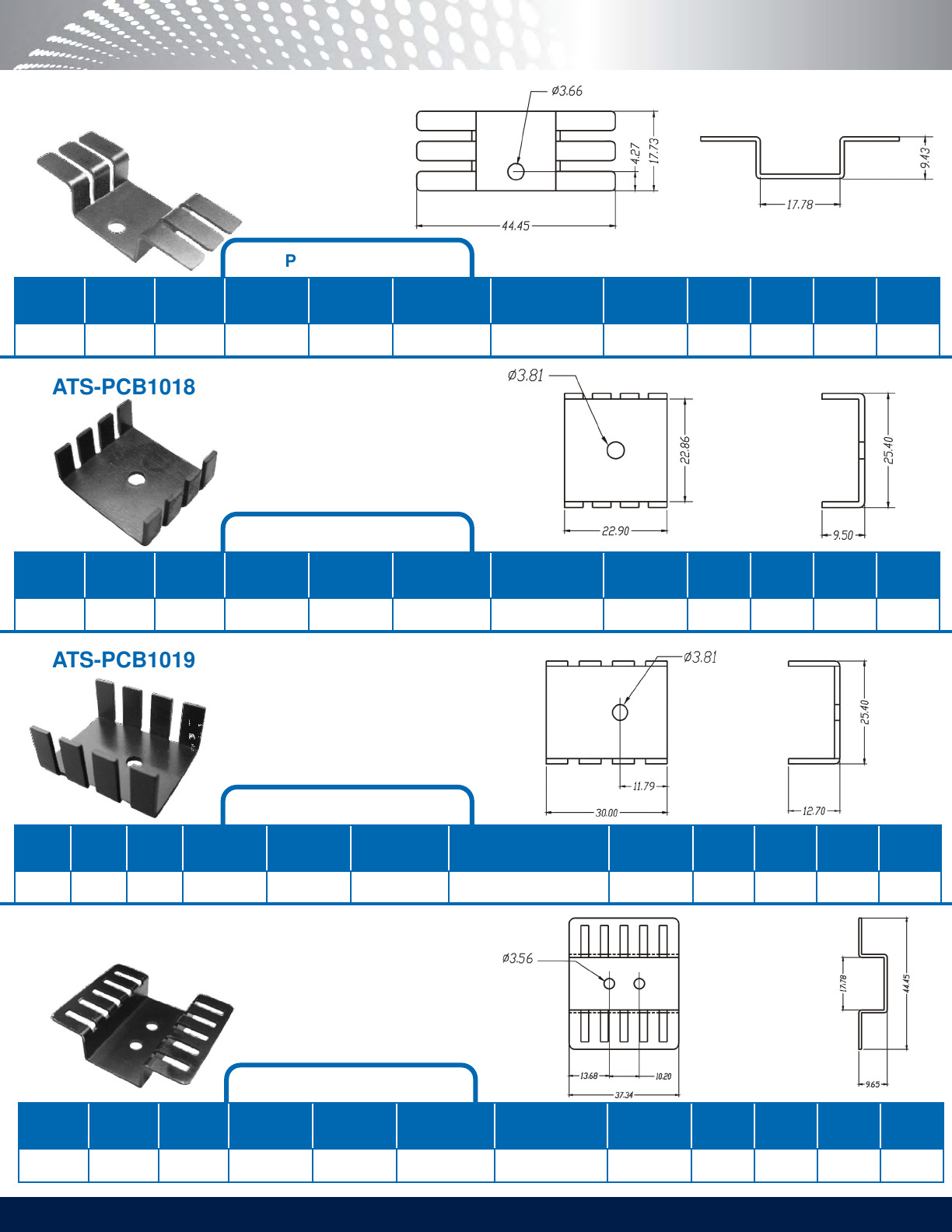

Standard Board Level Heat Sinks
ATS-PCB1017
ATS-PCB1018
ATS-PCB1019
Product Details
Product Details
Product Details
Length
(mm) Width
(mm) Height
(mm) Tim Material Finish Packaged Cooled Thermal
Resistance
(Natural Convection)
R @ 200
LFM R @ 400
LFM R @ 600
LFM R @ 800
LFM
17.7 44.5 9.4 No TIM Aluminum Blk Anodized TO-220, TO-202 15.6 7.1 5.5 4.2 3.2
Length
(mm) Width
(mm) Height
(mm) Tim Material Finish Packaged Cooled Thermal
Resistance
(Natural Convection)
R @ 200
LFM R @ 400
LFM R @ 600
LFM R @ 800
LFM
22.9 25.4 9.5 No TIM Aluminum Blk Anodized TO-220 20.8 8.1 5.3 4.1 3.8
Length
(mm) Width
(mm) Height
(mm) Tim Material Finish Packaged Cooled Thermal
Resistance
(Natural Convection)
R @ 200
LFM R @ 400
LFM R @ 600
LFM R @ 800
LFM
30.0 25.4 12.7 No TIM Aluminum Blk Anodized TO-220, TO-202, TO-220 22.0 10.1 7.0 5.0 4.2
Product Details
ATS-PCB1021
Length
(mm) Width
(mm) Height
(mm) Tim Material Finish Packaged Cooled Thermal
Resistance
(Natural Convection)
R @ 200
LFM R @ 400
LFM R @ 600
LFM R @ 800
LFM
37.3 44.5 9.7 No TIM Aluminum Blk Anodized TO-220 9.6 3.0 1.8 1.0 0.9
0305 -405- 17 14 28 9‘40 . r1437” 2‘39] L950.] WflJ—l L725 4/74 #3940!
89-27 Access Road, Norwood, MA 02062 USA | T: 781.769. 2800 | ats-hq@qats.com | www.qats.com
R16_0920
Standard Board Level Heat Sinks
Product Details
ATS-PCB1024
Length
(mm) Width
(mm) Height
(mm) Tim Material Finish Packaged Cooled Thermal
Resistance
(Natural Convection)
R @ 200
LFM R @ 400
LFM R @ 600
LFM R @ 800
LFM
30.0 25.4 12.7 No TIM Aluminum Blk Anodized TO-220 16.7 11.0 7.8 6.0 5.1
Product Details
ATS-PCB1025
Length
(mm) Width
(mm) Height
(mm) Tim Material Finish Packaged Cooled Thermal
Resistance
(Natural Convection)
R @ 200
LFM R @ 400
LFM R @ 600
LFM R @ 800
LFM
14.2 15.8 9.4 No TIM Aluminum Blk Anodized TO-126 33.0 19.0 14.2 11.8 11.0
Product Details
ATS-PCB1029
Length
(mm) Width
(mm) Height
(mm) Tim Material Finish Packaged Cooled Thermal
Resistance
(Natural Convection)
R @ 200
LFM R @ 400
LFM R @ 600
LFM R @ 800
LFM
25.4 39.4 9.5 No TIM Aluminum Blk Anodized TO-220 11.0 6.8 5.0 3.7 3.0
Product Details
ATS-PCB1032
Length
(mm) Width
(mm) Height
(mm) Tim Material Finish Packaged Cooled Thermal
Resistance
(Natural Convection)
R @ 200
LFM R @ 400
LFM R @ 600
LFM R @ 800
LFM
21.6 25.4 12.7 No TIM Aluminum Blk Anodized TO-220 20.0 9.0 6.8 5.3 4.0
u n n n g as;
89-27 Access Road, Norwood, MA 02062 USA | T: 781.769. 2800 | ats-hq@qats.com | www.qats.com
R16_0920
Standard Board Level Heat Sinks
Product Details
Product Details
Product Details
Product Details

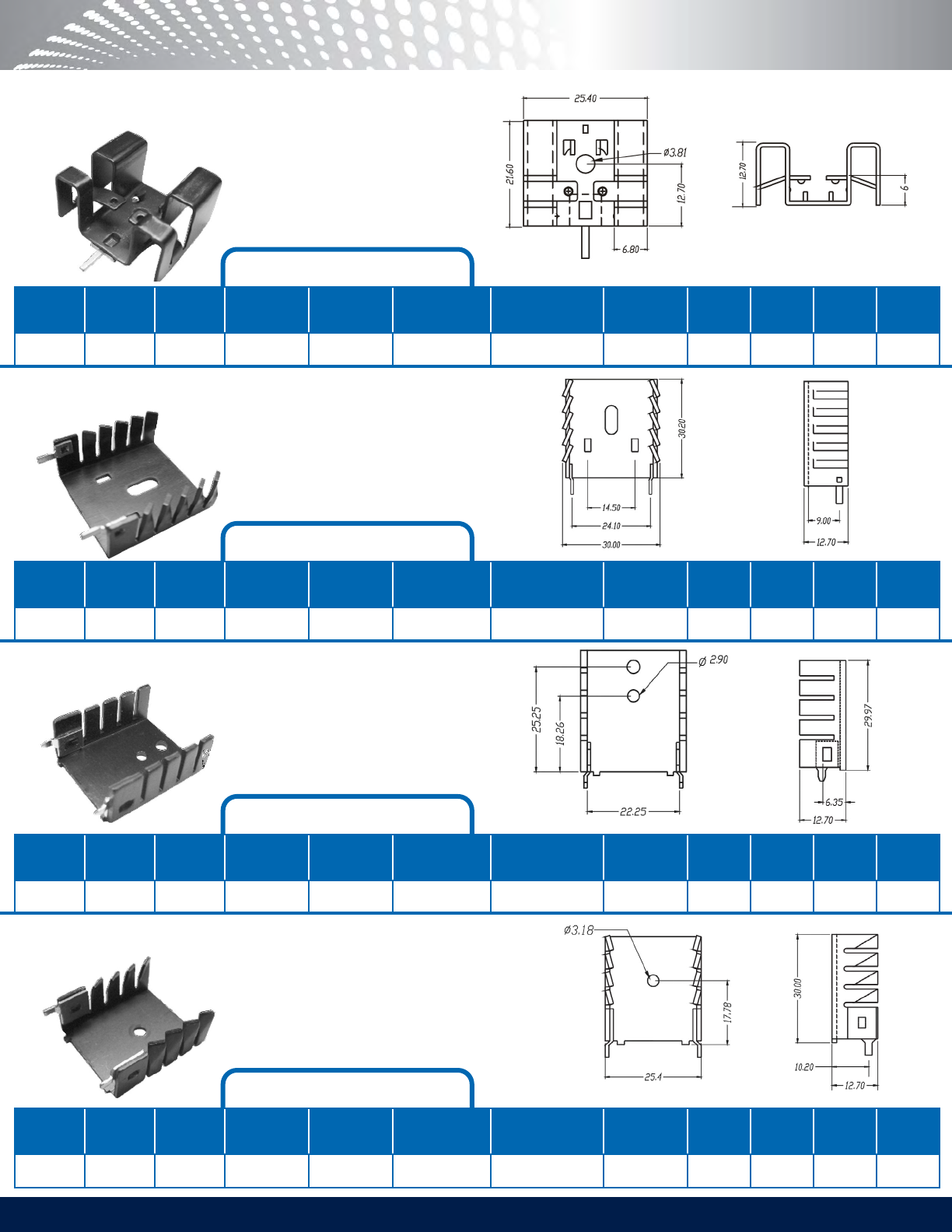

ATS-PCB1033
ATS-PCB1034
ATS-PCB1035
ATS-PCB1036
Length
(mm) Width
(mm) Height
(mm) Tim Material Finish Packaged Cooled Thermal
Resistance
(Natural Convection)
R @ 200
LFM R @ 400
LFM R @ 600
LFM R @ 800
LFM
21.6 25.4 12.7 No TIM Aluminum Blk Anodized TO-220 20.0 9.0 6.8 5.3 4.0
Length
(mm) Width
(mm) Height
(mm) Tim Material Finish Packaged Cooled Thermal
Resistance
(Natural Convection)
R @ 200
LFM R @ 400
LFM R @ 600
LFM R @ 800
LFM
30.2 30.0 12.7 No TIM Aluminum Blk Anodized TO-220 13.0 8.9 6.5 5.2 4.2
Length
(mm) Width
(mm) Height
(mm) Tim Material Finish Packaged Cooled Thermal
Resistance
(Natural Convection)
R @ 200
LFM R @ 400
LFM R @ 600
LFM R @ 800
LFM
30.0 25.4 12.7 No TIM Aluminum Blk Anodized TO-220 12.5 7.3 5.6 4.7 4.2
Length
(mm) Width
(mm) Height
(mm) Tim Material Finish Packaged Cooled Thermal
Resistance
(Natural Convection)
R @ 200
LFM R @ 400
LFM R @ 600
LFM R @ 800
LFM
30.0 25.4 12.7 No TIM Aluminum Blk Anodized TO-220 13.4 7.0 5.0 4.0 3.7
89-27 Access Road, Norwood, MA 02062 USA | T: 781.769. 2800 | ats-hq@qats.com | www.qats.com
R16_0920
Standard Board Level Heat Sinks
Product Details

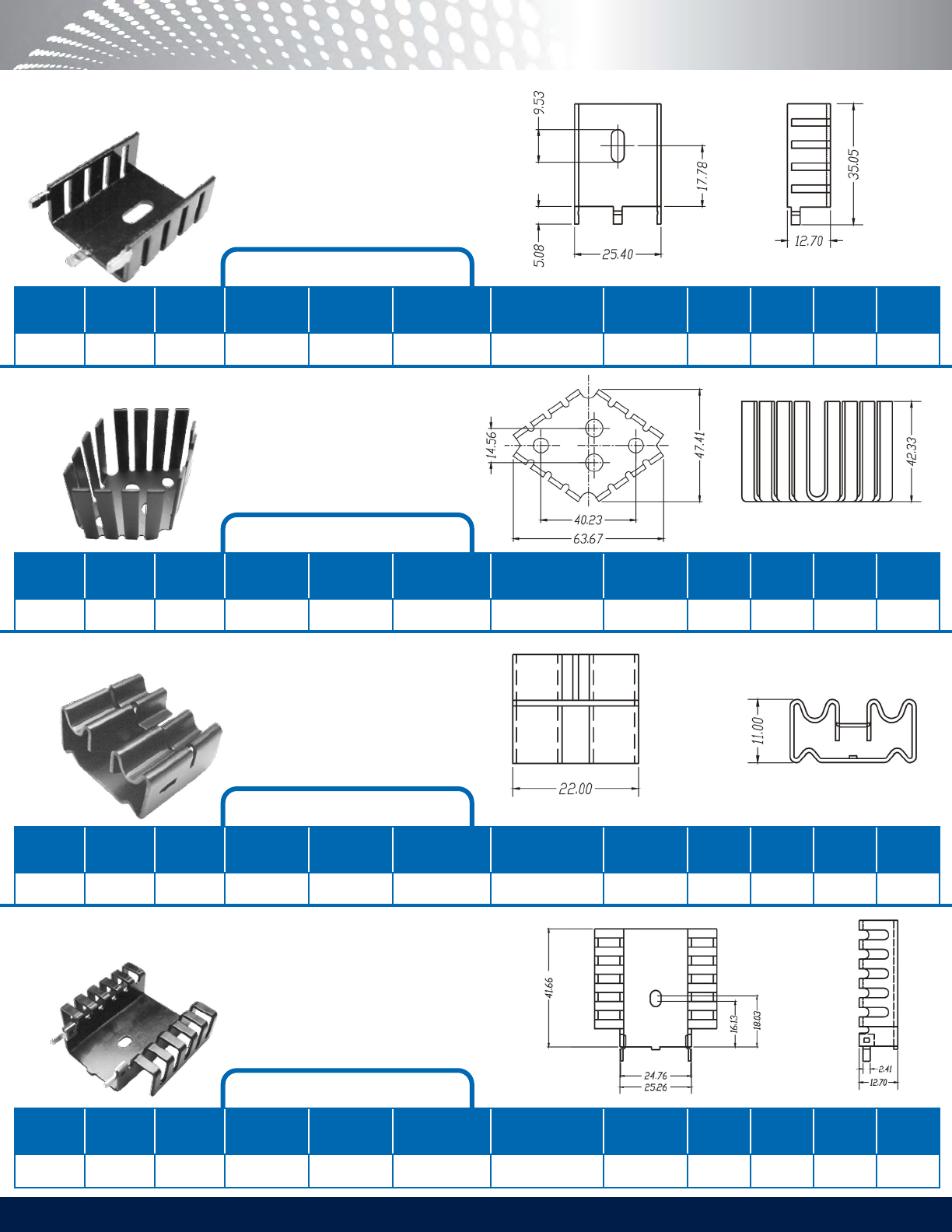

ATS-PCB1037
Length
(mm) Width
(mm) Height
(mm) Tim Material Finish Packaged Cooled Thermal
Resistance
(Natural Convection)
R @ 200
LFM R @ 400
LFM R @ 600
LFM R @ 800
LFM
35.1 25.4 12.7 No TIM Aluminum Blk Anodized TO-220 18.0 13.0 9.1 7.5 6.6
Product Details
Product Details
ATS-PCB1043
ATS-PCB1044
Length
(mm) Width
(mm) Height
(mm) Tim Material Finish Packaged Cooled Thermal
Resistance
(Natural Convection)
R @ 200
LFM R @ 400
LFM R @ 600
LFM R @ 800
LFM
63.7 47.4 42.3 No TIM Aluminum Blk Anodized TO-3 7.5 2.6 2.1 1.7 1.3
Length
(mm) Width
(mm) Height
(mm) Tim Material Finish Packaged Cooled Thermal
Resistance
(Natural Convection)
R @ 200
LFM R @ 400
LFM R @ 600
LFM R @ 800
LFM
19.0 22.0 11.0 No TIM Aluminum Blk Anodized TO-220 23.7 11.2 8.3 6.0 5.0
Product Details
ATS-PCB1046
Length
(mm) Width
(mm) Height
(mm) Tim Material Finish Packaged Cooled Thermal
Resistance
(Natural Convection)
R @ 200
LFM R @ 400
LFM R @ 600
LFM R @ 800
LFM
41.2 43.2 12.7 No TIM Aluminum Blk Anodized TO-220, TO-218 8.6 6.3 4.5 3.5 2.8
M3577 / [H U i407 X 9,53
89-27 Access Road, Norwood, MA 02062 USA | T: 781.769. 2800 | ats-hq@qats.com | www.qats.com
R16_0920
Standard Board Level Heat Sinks
Product Details
Product Details

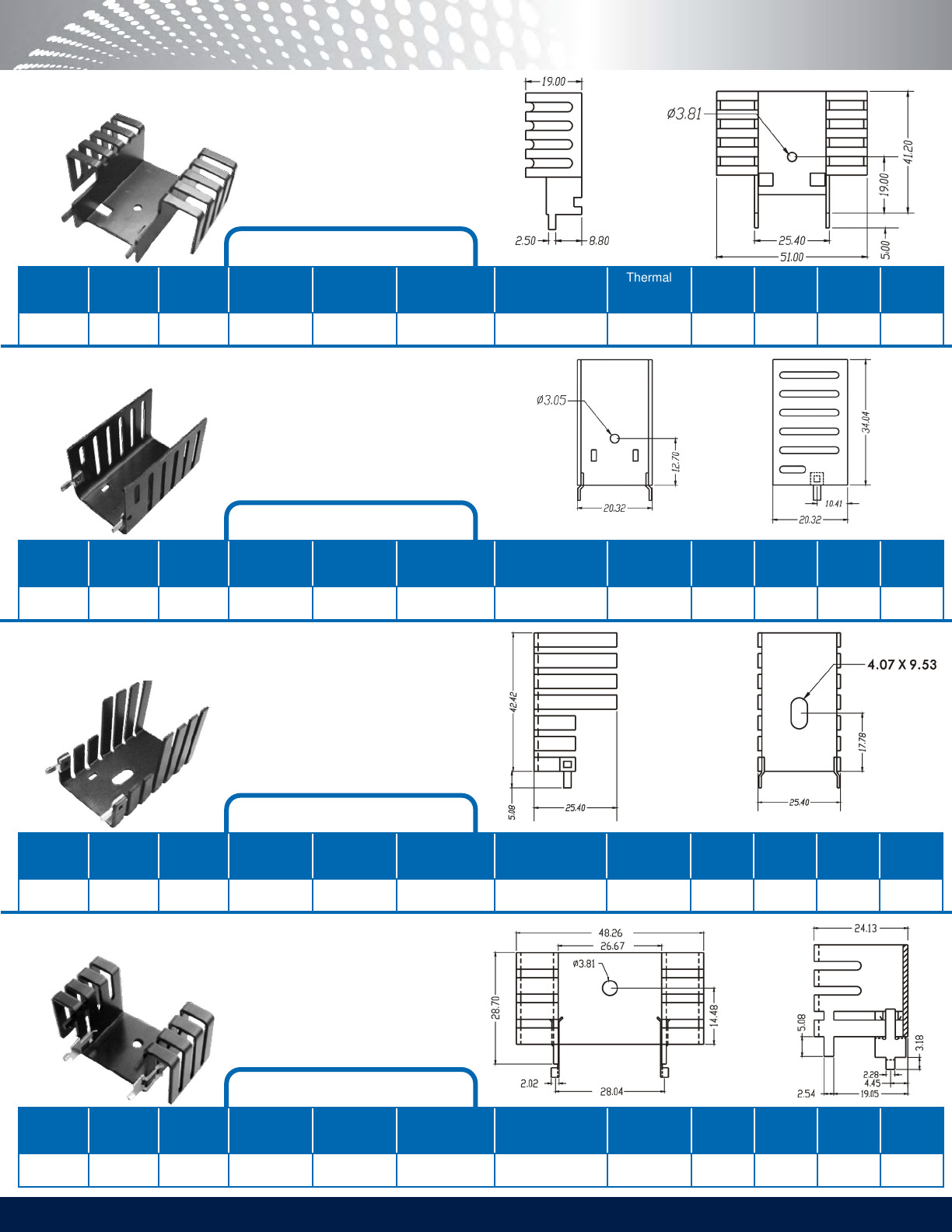

ATS-PCB1047
ATS-PCB1048
Length
(mm) Width
(mm) Height
(mm) Tim Material Finish Packaged Cooled Thermal
Resistance
(Natural Convection)
R @ 200
LFM R @ 400
LFM R @ 600
LFM R @ 800
LFM
46.2 51.0 19.0 No TIM Aluminum Blk Anodized TO-218, TO-247 8.0 2.4 1.8 1.2 1.0
Length
(mm) Width
(mm) Height
(mm) Tim Material Finish Packaged Cooled Thermal
Resistance
(Natural Convection)
R @ 200
LFM R @ 400
LFM R @ 600
LFM R @ 800
LFM
42.6 25 25 No TIM Aluminum Blk Anodized TO-220 13.0 8.0 6.5 5.4 4.9
Product Details
Product Details
ATS-PCB1049
ATS-PCB1050
Length
(mm) Width
(mm) Height
(mm) Tim Material Finish Packaged Cooled Thermal
Resistance
(Natural Convection)
R @ 200
LFM R @ 400
LFM R @ 600
LFM R @ 800
LFM
42.4 25.4 25.4 No TIM Aluminum Blk Anodized TO-220 10.0 4.4 3.6 3.0 2.8
Length
(mm) Width
(mm) Height
(mm) Tim Material Finish Packaged Cooled Thermal
Resistance
(Natural Convection)
R @ 200
LFM R @ 400
LFM R @ 600
LFM R @ 800
LFM
28.7 48.3 24.1 No TIM Aluminum Blk Anodized TO-220 6.8 4.9 3.5 2.5 2.2
— meafliJ 444: ATS-PCB1OS4 Length Wwdlh Halgm
89-27 Access Road, Norwood, MA 02062 USA | T: 781.769. 2800 | ats-hq@qats.com | www.qats.com
R16_0920
Standard Board Level Heat Sinks
Product Details

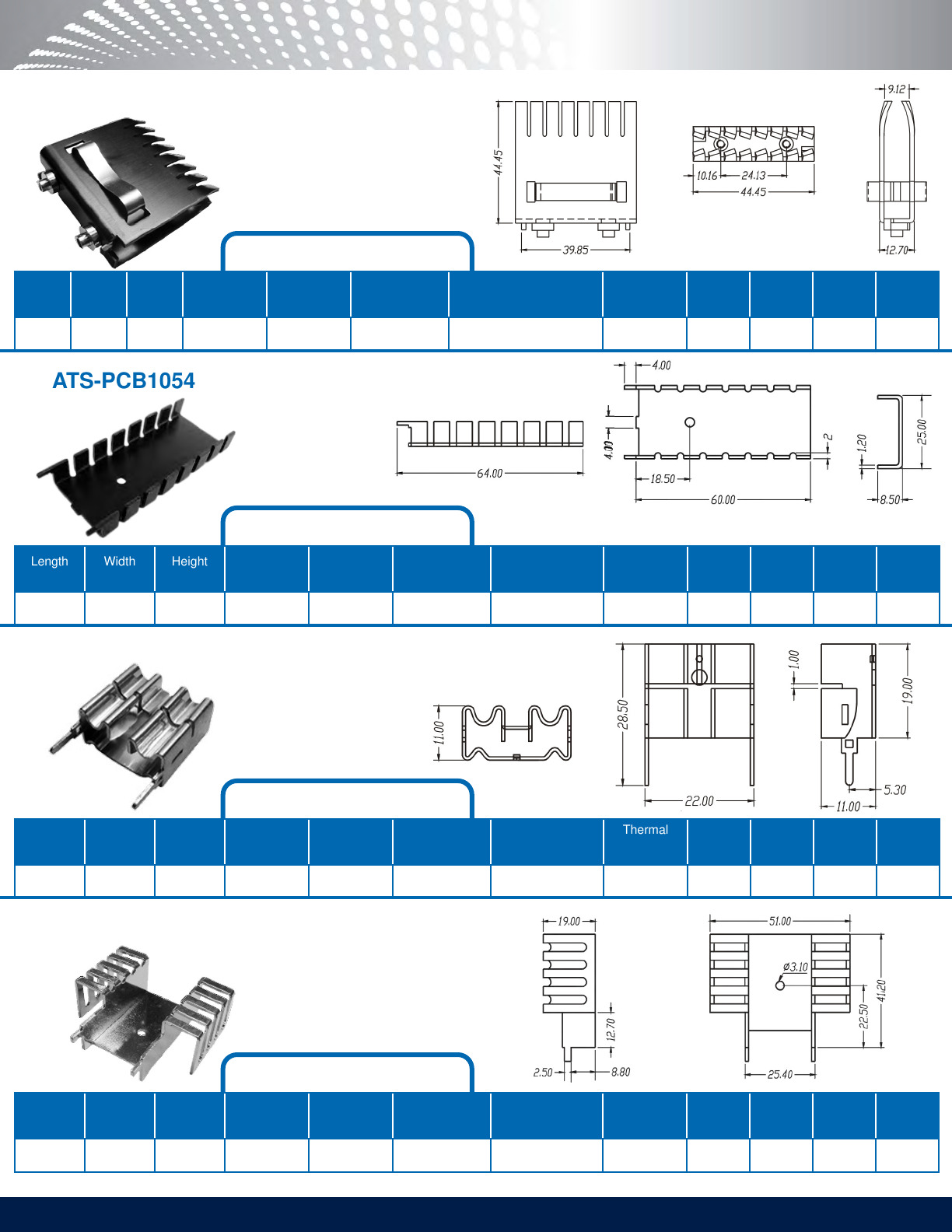

ATS-PCB1052
Length
(mm) Width
(mm) Height
(mm) Tim Material Finish Packaged Cooled Thermal
Resistance
(Natural Convection)
R @ 200
LFM R @ 400
LFM R @ 600
LFM R @ 800
LFM
44.5 12.7 44.5 No TIM Aluminum Blk Anodized
TO-220, TO-218, TO-247
6.3 2.3 1.5 1.1 0.8
Product Details
Product Details
Product Details
ATS-PCB1054
ATS-PCB1055
ATS-PCB1056
Length
(mm) Width
(mm) Height
(mm) Tim Material Finish Packaged Cooled Thermal
Resistance
(Natural Convection)
R @ 200
LFM R @ 400
LFM R @ 600
LFM R @ 800
LFM
60.0 25.0 8.5 No TIM Aluminum Blk Anodized TO-220 12.0 6.7 5.7 5.2 4.8
Length
(mm) Width
(mm) Height
(mm) Tim Material Finish Packaged Cooled Thermal
Resistance
(Natural Convection)
R @ 200
LFM R @ 400
LFM R @ 600
LFM R @ 800
LFM
19.0 22.0 11.0 No TIM Aluminum Blk Anodized TO-220 23.7 11.2 8.3 6.0 5.0
Length
(mm) Width
(mm) Height
(mm) Tim Material Finish Packaged Cooled Thermal
Resistance
(Natural Convection)
R @ 200
LFM R @ 400
LFM R @ 600
LFM R @ 800
LFM
41.2 51.0 19.0 No TIM Aluminum Blk Anodized
TO-218, TO-247
8.0 2.4 1.8 1.2 1.0
ATS-PCB1057 ATS-PCB1OS8 ‘
89-27 Access Road, Norwood, MA 02062 USA | T: 781.769. 2800 | ats-hq@qats.com | www.qats.com
R16_0920
Standard Board Level Heat Sinks
Product Details
Product Details
Product Details
Product Details

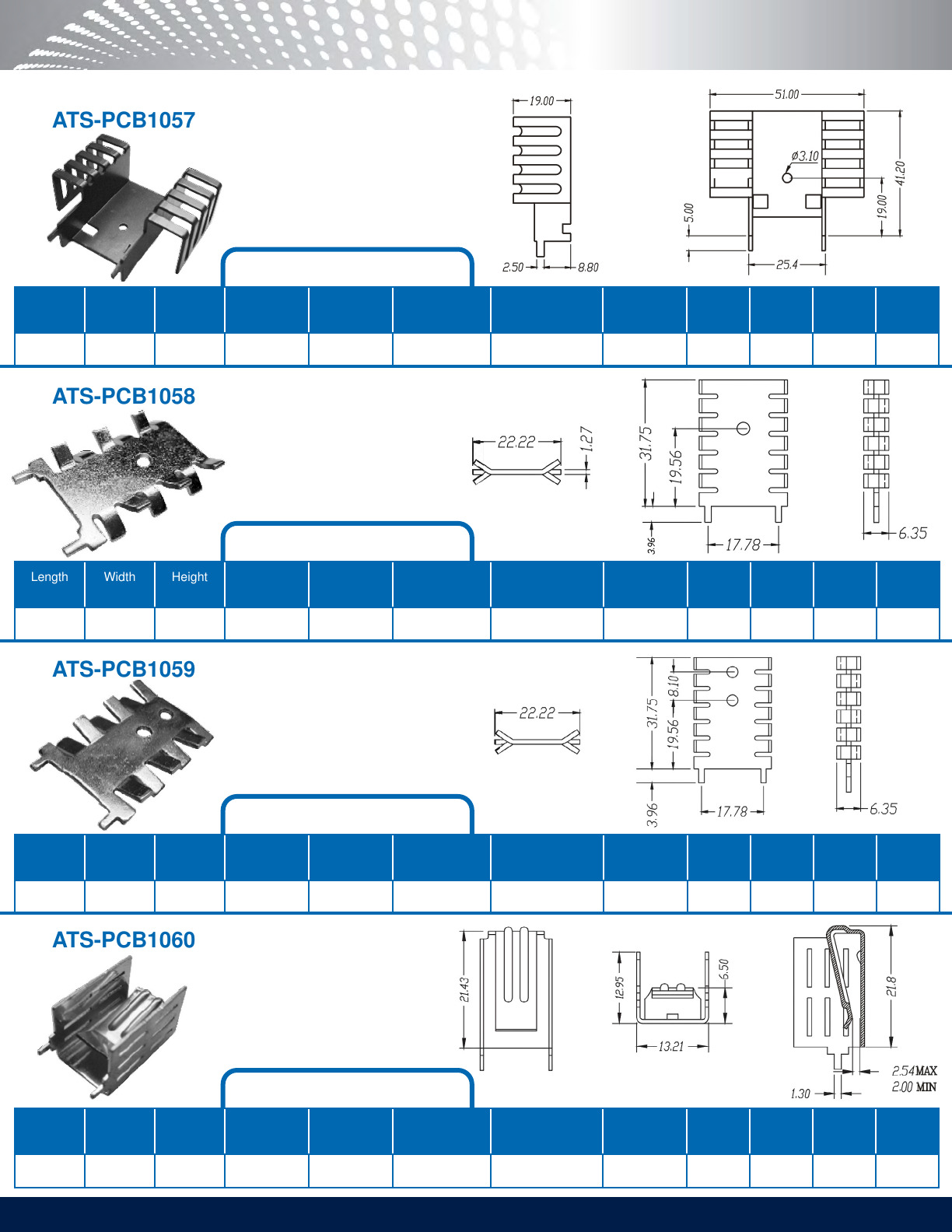

ATS-PCB1057
ATS-PCB1058
ATS-PCB1059
ATS-PCB1060
Length
(mm) Width
(mm) Height
(mm) Tim Material Finish Packaged Cooled Thermal
Resistance
(Natural Convection)
R @ 200
LFM R @ 400
LFM R @ 600
LFM R @ 800
LFM
41.2 51.0 19.0 No TIM Aluminum Blk Anodized TO-220 8.0 2.4 1.8 1.2 1.0
Length
(mm) Width
(mm) Height
(mm) Tim Material Finish Packaged Cooled Thermal
Resistance
(Natural Convection)
R @ 200
LFM R @ 400
LFM R @ 600
LFM R @ 800
LFM
31.8 22.2 6.4 No TIM Copper Tin Plated TO-220 24.0 8.8 6.1 4.1 4.0
Length
(mm) Width
(mm) Height
(mm) Tim Material Finish Packaged Cooled Thermal
Resistance
(Natural Convection)
R @ 200
LFM R @ 400
LFM R @ 600
LFM R @ 800
LFM
31.8 22.2 6.4 No TIM Copper Tin Plated TO-220 24.0 8.8 6.1 4.1 4.0
Length
(mm) Width
(mm) Height
(mm) Tim Material Finish Packaged Cooled Thermal
Resistance
(Natural Convection)
R @ 200
LFM R @ 400
LFM R @ 600
LFM R @ 800
LFM
21.8 13.2 13.0 No TIM Copper Tin Plated
TO-220
19.7 8.0 6.8 5.7 5.0
(,x é‘ \- I“; ‘2 . f) N \\ \x -»l 78-
89-27 Access Road, Norwood, MA 02062 USA | T: 781.769. 2800 | ats-hq@qats.com | www.qats.com
R16_0920
Standard Board Level Heat Sinks
Product Details
Product Details
Product Details

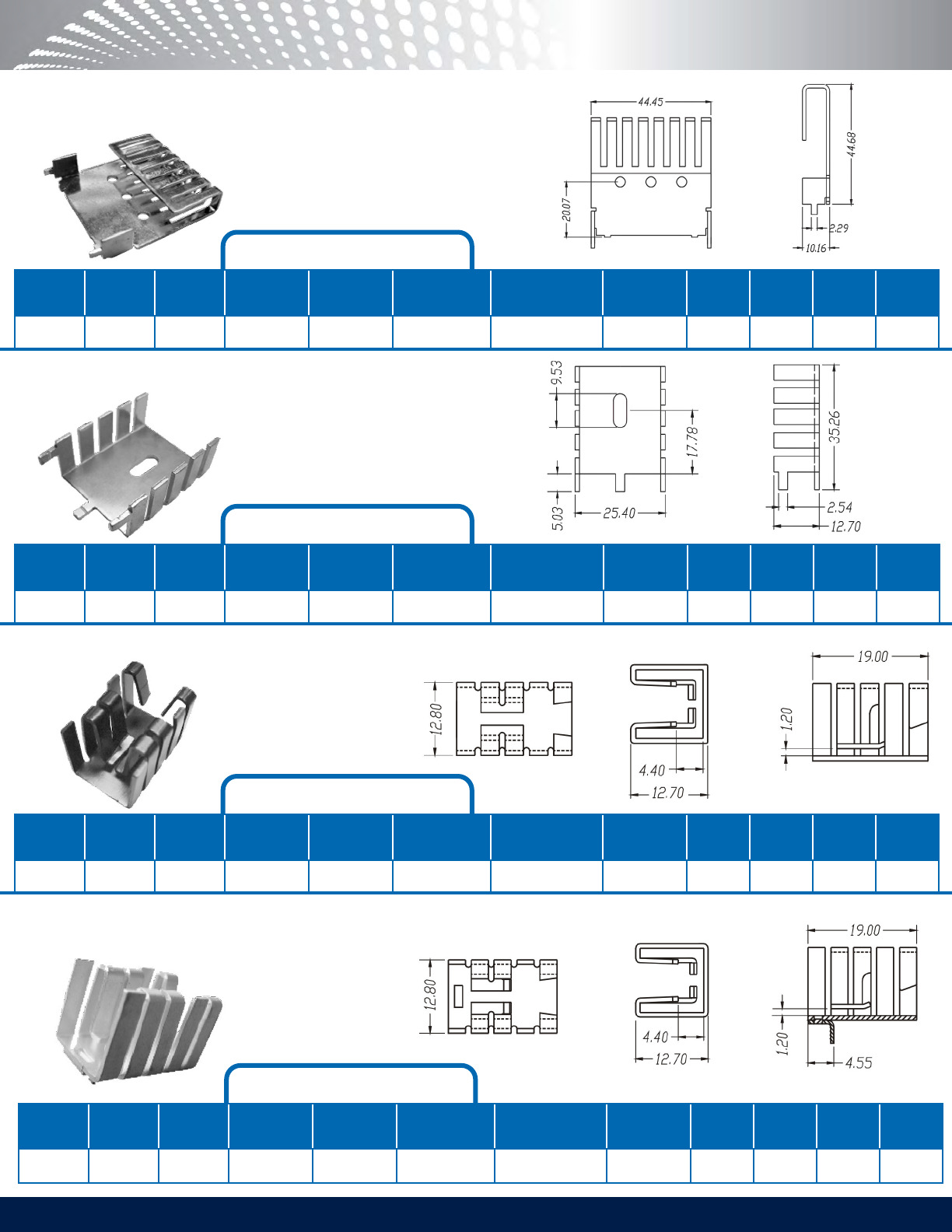

ATS-PCB1061
ATS-PCB1062
ATS-PCB1064
Length
(mm) Width
(mm) Height
(mm) Tim Material Finish Packaged Cooled Thermal
Resistance
(Natural Convection)
R @ 200
LFM R @ 400
LFM R @ 600
LFM R @ 800
LFM
44.7 44.5 10.2 No TIM Copper Tin Plated TO-126 15.0 6.5 5.1 4.3 3.6
Length
(mm) Width
(mm) Height
(mm) Tim Material Finish Packaged Cooled Thermal
Resistance
(Natural Convection)
R @ 200
LFM R @ 400
LFM R @ 600
LFM R @ 800
LFM
30.0 25.4 12.7 No TIM Copper Tin Plated TO-220 13.0 7.0 5.0 4.0 3.1
Length
(mm) Width
(mm) Height
(mm) Tim Material Finish Packaged Cooled Thermal
Resistance
(Natural Convection)
R @ 200
LFM R @ 400
LFM R @ 600
LFM R @ 800
LFM
19.0 12.8 12.7 No TIM Aluminum Blk Anodized
TO-220
27.3 10.2 7.0 5.6 4.8
Product Details
ATS-PCB1065
Length
(mm) Width
(mm) Height
(mm) Tim Material Finish Packaged Cooled Thermal
Resistance
(Natural Convection)
R @ 200
LFM R @ 400
LFM R @ 600
LFM R @ 800
LFM
19.0 12.8 12.7 No TIM Aluminum Blk Anodized TO-220 27.3 10.2 7.0 5.6 4.8
:sz § J t amfi D \ll\1l\l ~13‘34a — 5935 - am i : : , r - - ' m m : : | 9 vs I L : : I I #13214
89-27 Access Road, Norwood, MA 02062 USA | T: 781.769. 2800 | ats-hq@qats.com | www.qats.com
R16_0920
Standard Board Level Heat Sinks
Product Details
Product Details
ATS-PCB1066
ATS-PCB1068
Length
(mm) Width
(mm) Height
(mm) Tim Material Finish Packaged Cooled Thermal
Resistance
(Natural Convection)
R @ 200
LFM R @ 400
LFM R @ 600
LFM R @ 800
LFM
19.0 12.8 12.7 No TIM Aluminum Blk Anodized TO-220, TO-262 27.3 10.2 7.0 5.6 4.8
Length
(mm) Width
(mm) Height
(mm) Tim Material Finish Packaged Cooled Thermal
Resistance
(Natural Convection)
R @ 200
LFM R @ 400
LFM R @ 600
LFM R @ 800
LFM
34.9 21.8 9.1 No TIM Aluminum Blk Anodized
TO-220
16.0 11.0 8.1 6.0 4.8
Product Details
Product Details
ATS-PCB1069
ATS-PCB1070
Length
(mm) Width
(mm) Height
(mm) Tim Material Finish Packaged Cooled Thermal
Resistance
(Natural Convection)
R @ 200
LFM R @ 400
LFM R @ 600
LFM R @ 800
LFM
19.1 13.2 6.4 No TIM Aluminum Blk Anodized TO-220 32.0 15.8 11.2 9.2 7.8
Length
(mm) Width
(mm) Height
(mm) Tim Material Finish Packaged Cooled Thermal
Resistance
(Natural Convection)
R @ 200
LFM R @ 400
LFM R @ 600
LFM R @ 800
LFM
19.1 13.2 9.5 No TIM Aluminum Blk Anodized TO-220 25.9 15.8 11.2 9.2 7.8
ll H n ¢381 L; H I! VI #1321— [9‘05 $381 ”I'll” P1917544 k13814~ ; a. ID ;= = ,~ I\ :{l I]: a ‘ S Cl| ID 6 :[| ID 7 \i~\z f
89-27 Access Road, Norwood, MA 02062 USA | T: 781.769. 2800 | ats-hq@qats.com | www.qats.com
R16_0920
Standard Board Level Heat Sinks
Product Details
Product Details
ATS-PCB1071
ATS-PCB1072
Length
(mm) Width
(mm) Height
(mm) Tim Material Finish Packaged Cooled Thermal
Resistance
(Natural Convection)
R @ 200
LFM R @ 400
LFM R @ 600
LFM R @ 800
LFM
19.1 13.2 9.5 No TIM Aluminum Blk Anodized TO-220 25.9 15.6 11.0 9.0 7.6
Length
(mm) Width
(mm) Height
(mm) Tim Material Finish Packaged Cooled Thermal
Resistance
(Natural Convection)
R @ 200
LFM R @ 400
LFM R @ 600
LFM R @ 800
LFM
19.1 13.2 12.7 No TIM Aluminum Blk Anodized
TO-220
24.4 9.5 7.0 6.3 6.0
Product Details
Product Details
ATS-PCB1073
ATS-PCB1074
Length
(mm) Width
(mm) Height
(mm) Tim Material Finish Packaged Cooled Thermal
Resistance
(Natural Convection)
R @ 200
LFM R @ 400
LFM R @ 600
LFM R @ 800
LFM
12.7 26.2 10.2 No TIM Copper Tin Plated TO-263 18.0 9.5 6.8 5.2 5.0
Length
(mm) Width
(mm) Height
(mm) Tim Material Finish Packaged Cooled Thermal
Resistance
(Natural Convection)
R @ 200
LFM R @ 400
LFM R @ 600
LFM R @ 800
LFM
12.7 26.2 10.2 No TIM Copper Tin Plated TO-263 18.0 9.5 6.8 5.2 5.0
ATS-PCBT1077 I ATS-PCBT1078 Rm 0-: fi
89-27 Access Road, Norwood, MA 02062 USA | T: 781.769. 2800 | ats-hq@qats.com | www.qats.com
R16_0920
Standard Board Level Heat Sinks
Product Details
Product Details
ATS-PCBT1075
ATS-PCBT1076
Length
(mm) Width
(mm) Height
(mm) Tim Material Finish Packaged Cooled Thermal
Resistance
(Natural Convection)
R @ 200
LFM R @ 400
LFM R @ 600
LFM R @ 800
LFM
13.2 19.7 8.1 No TIM Aluminum Blk Anodized TO-126 35.8 25.0 17.0 14.0 12.0
Length
(mm) Width
(mm) Height
(mm) Tim Material Finish Packaged Cooled Thermal
Resistance
(Natural Convection)
R @ 200
LFM R @ 400
LFM R @ 600
LFM R @ 800
LFM
24.0 22.0 11.0 No TIM Aluminum Blk Anodized
TO-220
17.3 15.0 10.5 9.8 9.4
Product Details
Product Details
ATS-PCBT1077
ATS-PCBT1078
Length
(mm) Width
(mm) Height
(mm) Tim Material Finish Packaged Cooled Thermal
Resistance
(Natural Convection)
R @ 200
LFM R @ 400
LFM R @ 600
LFM R @ 800
LFM
30.0 25.4 12.7 No TIM Aluminum Blk Anodized TO-220 12.5 7.3 5.3 4.8 4.1
Length
(mm) Width
(mm) Height
(mm) Tim Material Finish Packaged Cooled Thermal
Resistance
(Natural Convection)
R @ 200
LFM R @ 400
LFM R @ 600
LFM R @ 800
LFM
19.0 19.0 12.7 No TIM Aluminum Blk Anodized TO-220 22.0 8.9 5.9 4.2 4.0
ATS-PCBT1079 ATS-PCBT1080 ‘ A Bu'a‘espe1oe l I é *lflllflfllll [15:4 . HH.‘ __.l ’ 450 L i g ’ F} . ‘J’ 1 "73 hgfnéwwwwy—ijn' Q'» 45;; 5;;
89-27 Access Road, Norwood, MA 02062 USA | T: 781.769. 2800 | ats-hq@qats.com | www.qats.com
R16_0920
Standard Board Level Heat Sinks
Product Details
Product Details

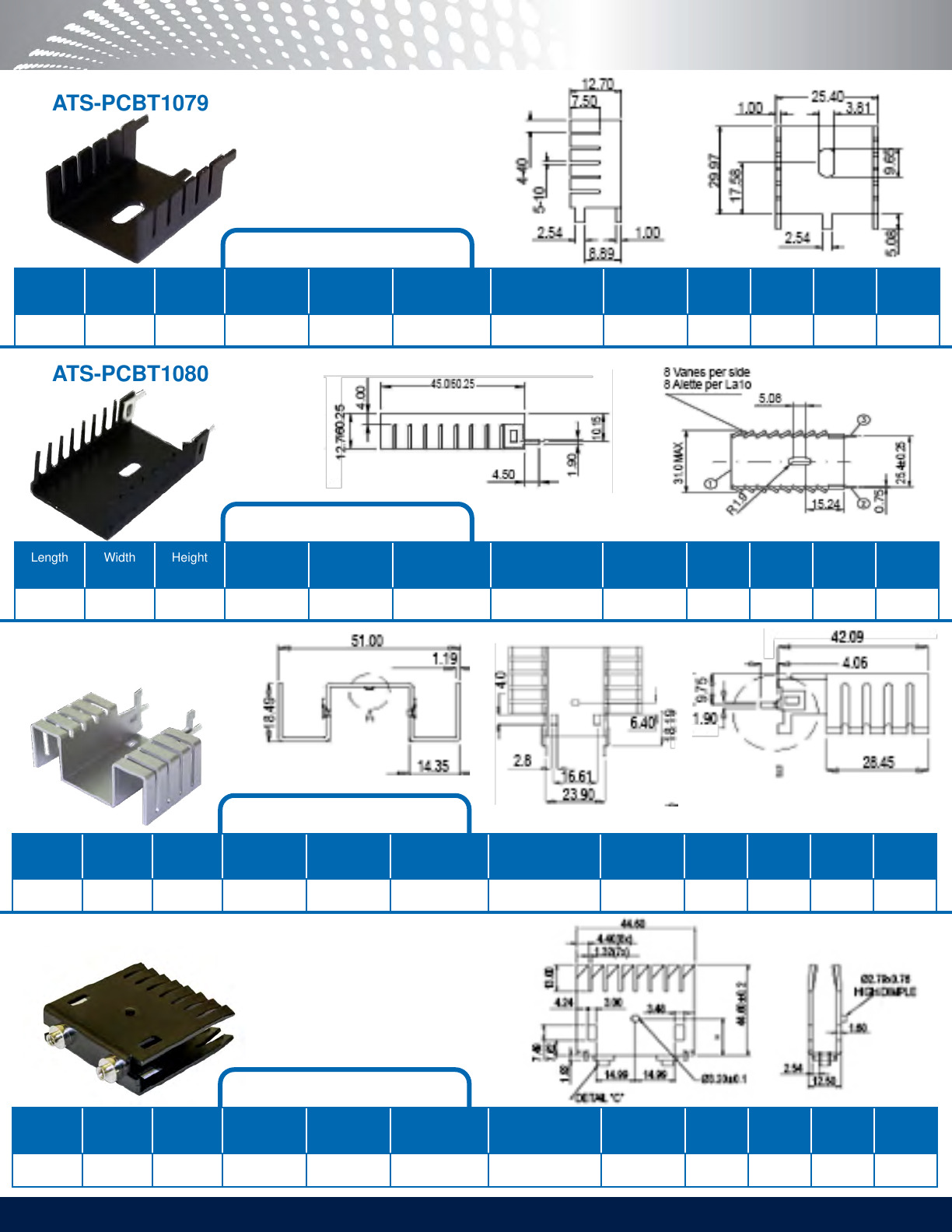

ATS-PCBT1079
ATS-PCBT1080
Length
(mm) Width
(mm) Height
(mm) Tim Material Finish Packaged Cooled Thermal
Resistance
(Natural Convection)
R @ 200
LFM R @ 400
LFM R @ 600
LFM R @ 800
LFM
30.0 25.4 12.7 No TIM Aluminum Blk Anodized TO-220 13.0 7.1 4.8 3.9 3.4
Length
(mm) Width
(mm) Height
(mm) Tim Material Finish Packaged Cooled Thermal
Resistance
(Natural Convection)
R @ 200
LFM R @ 400
LFM R @ 600
LFM R @ 800
LFM
45.0 31.0 12.7 No TIM Aluminum Blk Anodized
TO-218, TO-220
13.0 9.0 7.0 7.0 7.0
Product Details
Product Details
ATS-PCBT1081
ATS-PCBT1082
Length
(mm) Width
(mm) Height
(mm) Tim Material Finish Packaged Cooled Thermal
Resistance
(Natural Convection)
R @ 200
LFM R @ 400
LFM R @ 600
LFM R @ 800
LFM
42.1 51.0 18.5 No TIM Aluminum Blk Anodized TO-220 6.7 1.8 1.2 0.8 0.6
Length
(mm) Width
(mm) Height
(mm) Tim Material Finish Packaged Cooled Thermal
Resistance
(Natural Convection)
R @ 200
LFM R @ 400
LFM R @ 600
LFM R @ 800
LFM
44.6 12.5 44.6 No TIM Aluminum Blk Anodized TO-218 6.3 2.1 1.3 0.9 0.7
"'8 1.15525 . ‘ I Y " 0' ‘—\‘ 9‘;- V“ ‘ K» '71! \ SJ: ”4‘ Z‘M'LX ._ k .«2‘53 5 ‘eae ma: 7:
89-27 Access Road, Norwood, MA 02062 USA | T: 781.769. 2800 | ats-hq@qats.com | www.qats.com
R16_0920
Standard Board Level Heat Sinks
Product Details
Product Details

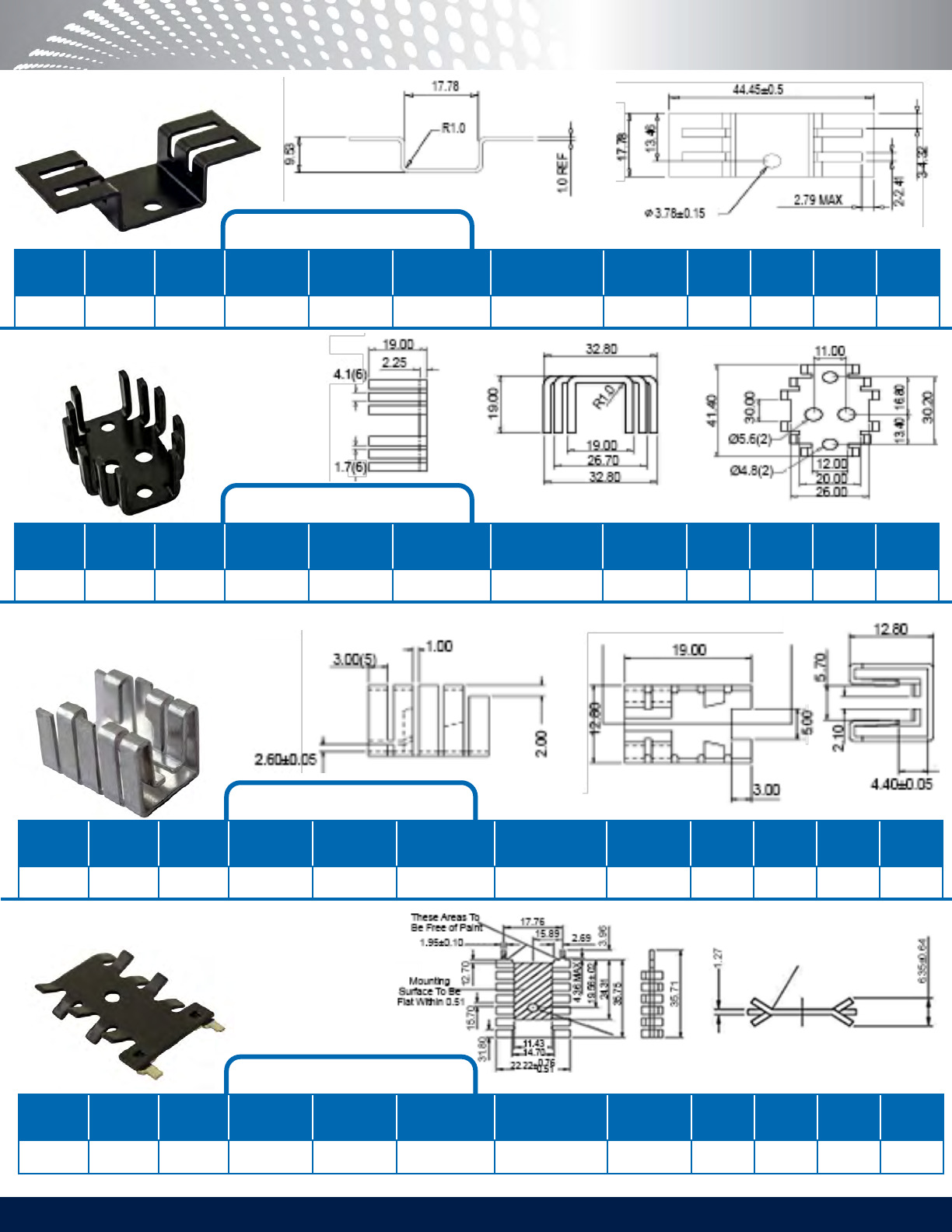

ATS-PCBT1083
ATS-PCBT1084
Length
(mm) Width
(mm) Height
(mm) Tim Material Finish Packaged Cooled Thermal
Resistance
(Natural Convection)
R @ 200
LFM R @ 400
LFM R @ 600
LFM R @ 800
LFM
17.8 44.5 9.5 No TIM Aluminum Blk Anodized TO-220 17.0 6.6 4.9 3.5 3.0
Length
(mm) Width
(mm) Height
(mm) Tim Material Finish Packaged Cooled Thermal
Resistance
(Natural Convection)
R @ 200
LFM R @ 400
LFM R @ 600
LFM R @ 800
LFM
41.4 32.8 19.0 No TIM Aluminum Blk Anodized
TO-3
13.5 4.4 3.1 2.1 1.5
Product Details
Product Details
ATS-PCBT1085
ATS-PCBT1086
Length
(mm) Width
(mm) Height
(mm) Tim Material Finish Packaged Cooled Thermal
Resistance
(Natural Convection)
R @ 200
LFM R @ 400
LFM R @ 600
LFM R @ 800
LFM
19.0 12.8 12.8 No TIM Aluminum Blk Anodized TO-220 27.3 4.4 3.1 2.1 1.5
Length
(mm) Width
(mm) Height
(mm) Tim Material Finish Packaged Cooled Thermal
Resistance
(Natural Convection)
R @ 200
LFM R @ 400
LFM R @ 600
LFM R @ 800
LFM
31.8 22.2 6.4 No TIM Aluminum Blk Anodized TO-220 22.0 9.5 6.3 4.8 3.6
‘I4IU
89-27 Access Road, Norwood, MA 02062 USA | T: 781.769. 2800 | ats-hq@qats.com | www.qats.com
R16_0920
Standard Board Level Heat Sinks
Product Details
Product Details

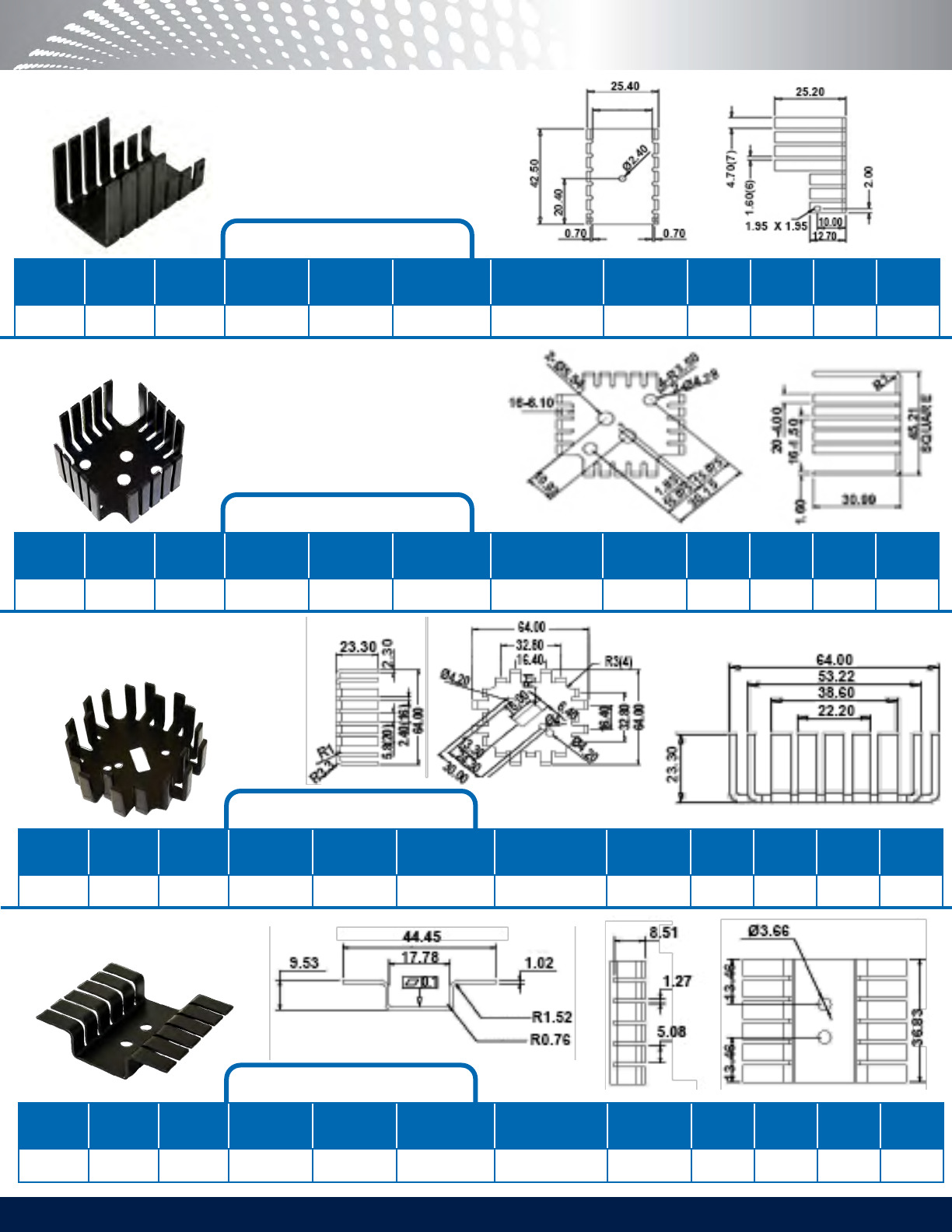

ATS-PCBT1087
ATS-PCBT1088
Length
(mm) Width
(mm) Height
(mm) Tim Material Finish Packaged Cooled Thermal
Resistance
(Natural Convection)
R @ 200
LFM R @ 400
LFM R @ 600
LFM R @ 800
LFM
42.5 25.4 25.2 No TIM Aluminum Blk Anodized TO-220 10.0 4.4 3.6 3.0 2.7
Length
(mm) Width
(mm) Height
(mm) Tim Material Finish Packaged Cooled Thermal
Resistance
(Natural Convection)
R @ 200
LFM R @ 400
LFM R @ 600
LFM R @ 800
LFM
45.2 45.2 31.0 No TIM Aluminum Blk Anodized
TO-3
6.0 2.6 1.8 1.4 1.3
Product Details
Product Details
ATS-PCBT1089
ATS-PCBT1090
Length
(mm) Width
(mm) Height
(mm) Tim Material Finish Packaged Cooled Thermal
Resistance
(Natural Convection)
R @ 200
LFM R @ 400
LFM R @ 600
LFM R @ 800
LFM
64.0 64.0 23.3 No TIM Aluminum Blk Anodized TO-3 6.0 2.6 1.8 1.4 1.3
Length
(mm) Width
(mm) Height
(mm) Tim Material Finish Packaged Cooled Thermal
Resistance
(Natural Convection)
R @ 200
LFM R @ 400
LFM R @ 600
LFM R @ 800
LFM
36.8 44.5 9.5 No TIM Aluminum Blk Anodized TO-220 (DUAL) 9.6 3.0 1.7 1.0 0.9
If( u: __J .“ LFL ‘ 1;: , C 5;: ; \» LI l’ :9}
89-27 Access Road, Norwood, MA 02062 USA | T: 781.769. 2800 | ats-hq@qats.com | www.qats.com
R16_0920
Standard Board Level Heat Sinks
Product Details
Product Details

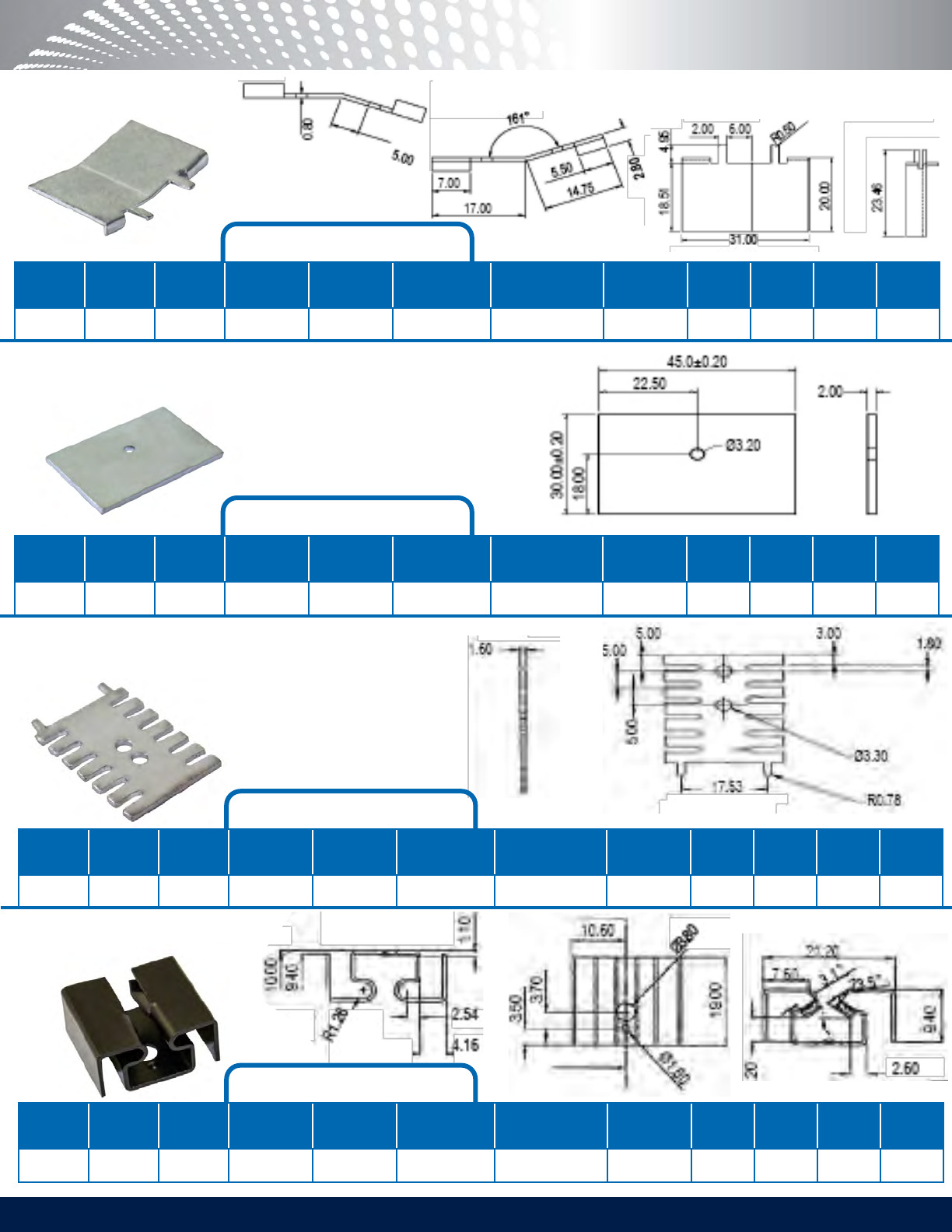

ATS-PCBT1091
ATS-PCBT1092
Length
(mm) Width
(mm) Height
(mm) Tim Material Finish Packaged Cooled Thermal
Resistance
(Natural Convection)
R @ 200
LFM R @ 400
LFM R @ 600
LFM R @ 800
LFM
20.0 31.0 0.8 No TIM Steel Tin Plated TO-220 25.0 13.0 11.2 10.3 9.5
Length
(mm) Width
(mm) Height
(mm) Tim Material Finish Packaged Cooled Thermal
Resistance
(Natural Convection)
R @ 200
LFM R @ 400
LFM R @ 600
LFM R @ 800
LFM
30.0 45.0 2.0 No TIM Aluminum None
TO-220
23.0 11.0 9.2 8.3 7.5
Product Details
Product Details
ATS-PCBT1093
ATS-PCBT1094
Length
(mm) Width
(mm) Height
(mm) Tim Material Finish Packaged Cooled Thermal
Resistance
(Natural Convection)
R @ 200
LFM R @ 400
LFM R @ 600
LFM R @ 800
LFM
31.8 23.2 1.1 No TIM Copper Tin Plated TO-220 23.0 14.0 10.7 8.6 7.7
Length
(mm) Width
(mm) Height
(mm) Tim Material Finish Packaged Cooled Thermal
Resistance
(Natural Convection)
R @ 200
LFM R @ 400
LFM R @ 600
LFM R @ 800
LFM
19.0 21.2 10.0 No TIM Aluminum Blk Anodized TO-220 21.2 11.2 8.4 6.0 5.0
89-27 Access Road, Norwood, MA 02062 USA | T: 781.769. 2800 | ats-hq@qats.com | www.qats.com
R16_0920
Standard Board Level Heat Sinks
Product Details
Product Details

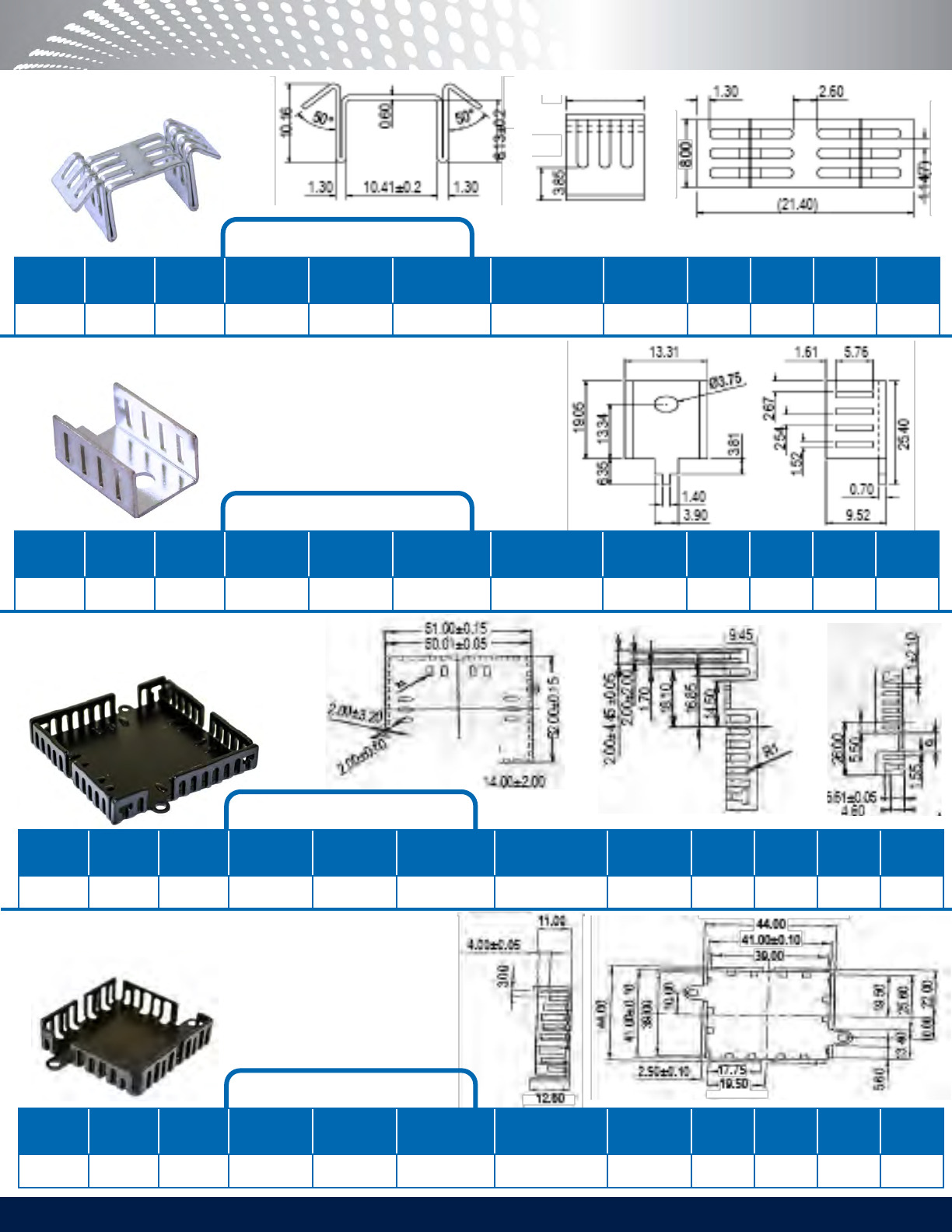

ATS-PCBT1095
ATS-PCBT1096
Length
(mm) Width
(mm) Height
(mm) Tim Material Finish Packaged Cooled Thermal
Resistance
(Natural Convection)
R @ 200
LFM R @ 400
LFM R @ 600
LFM R @ 800
LFM
8.0 21.4 10.2 No TIM Copper Tin Plated TO-252 28.0 21.0 16.0 12.5 11.0
Length
(mm) Width
(mm) Height
(mm) Tim Material Finish Packaged Cooled Thermal
Resistance
(Natural Convection)
R @ 200
LFM R @ 400
LFM R @ 600
LFM R @ 800
LFM
19.1 13.3 9.5 No TIM Steel Tin Plated
TO-220
35.7 14.0 8.7 6.6 5.6
Thickness=1.49
Product Details
Product Details
ATS-PCBT1097
ATS-PCBT1098
Length
(mm) Width
(mm) Height
(mm) Tim Material Finish Packaged Cooled Thermal
Resistance
(Natural Convection)
R @ 200
LFM R @ 400
LFM R @ 600
LFM R @ 800
LFM
58.0 52.0 1.5 No TIM Aluminum Blk Anodized TO-220 21.0 12.2 9.5 8.0 7.3
Length
(mm) Width
(mm) Height
(mm) Tim Material Finish Packaged Cooled Thermal
Resistance
(Natural Convection)
R @ 200
LFM R @ 400
LFM R @ 600
LFM R @ 800
LFM
44.0 44.0 1.5 No TIM Aluminum Blk Anodized TO-220 22.0 13.0 10.2 8.5 7.6
‘ 535“ my 5mm) D 059“ ‘ 11 5mm) 11 7 Din/n ._u 669 ‘_. [ .0 2m ‘ 538‘ (4, 5mm, —\ 0 059‘ /1 5mm; *7 o 98“ , (25 0mm) ‘—0 659“—. (17 0mm 70 2 .0; ‘ 535“ my BMW —'\ D 059“ ‘ 11 5mm) 0 98“ (25 0mm) ._u 669 ‘_. 11 7 Din/n .0 2m
89-27 Access Road, Norwood, MA 02062 USA | T: 781.769. 2800 | ats-hq@qats.com | www.qats.com
R16_0920
Standard Board Level Heat Sinks
Product Details
Product Details

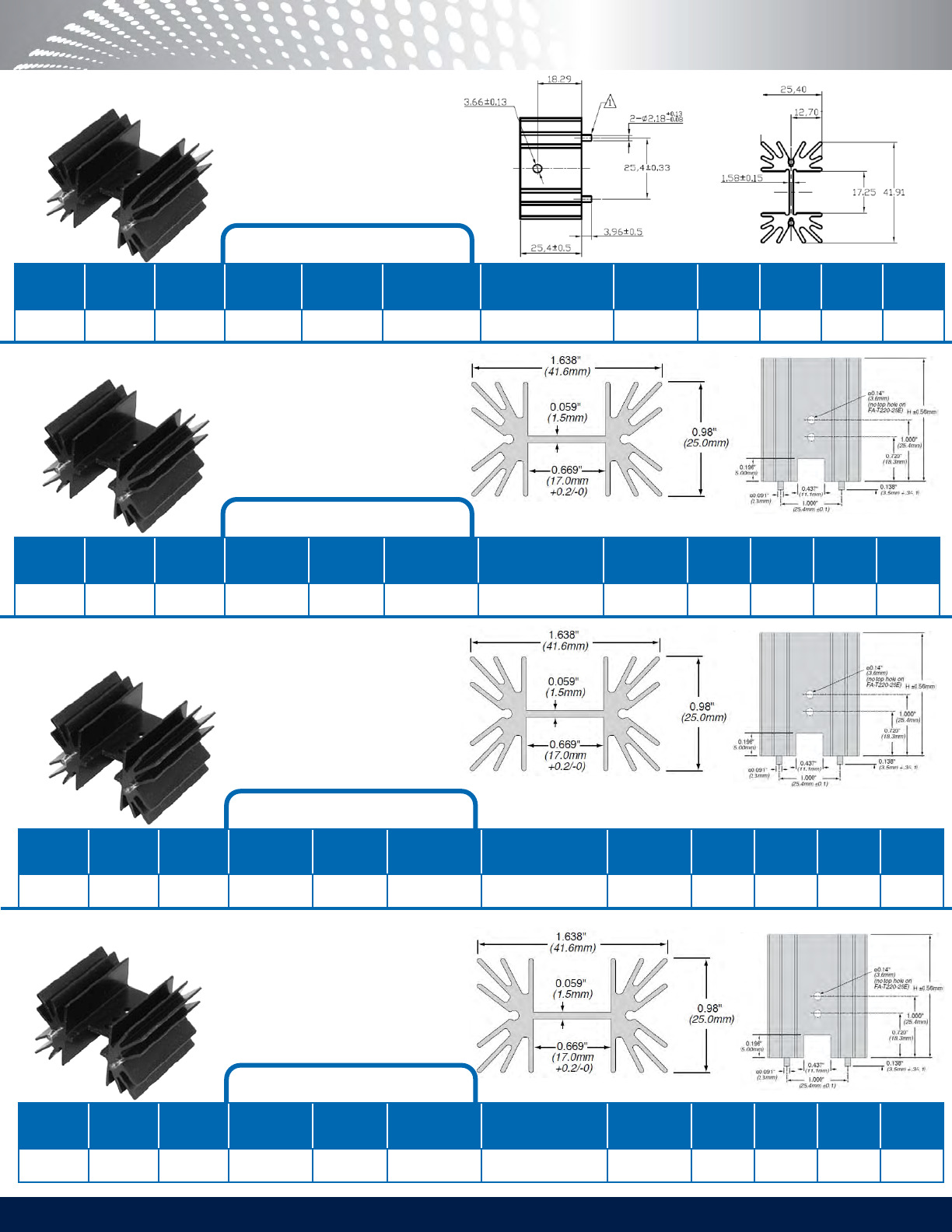

ATS-PCBM1099
ATS-PCBM1100
Length
(mm) Width
(mm) Height
(mm) Tim Material Finish Packaged Cooled Thermal
Resistance
(Natural Convection)
R @ 200
LFM R @ 400
LFM R @ 600
LFM R @ 800
LFM
25.4 41.9 25.4 No TIM Aluminum Blk Anodized
TO-218,TO-220,TO-247
4.8 4.2 3 2.3 1.8
Length
(mm) Width
(mm) Height
(mm) Tim Material Finish Packaged Cooled Thermal
Resistance
(Natural Convection)
R @ 200
LFM R @ 400
LFM R @ 600
LFM R @ 800
LFM
38.1 41.9 25.4 No TIM Aluminum Blk Anodized
TO-218,TO-220,TO-247
3.9 3.1 2.1 1.5 1.3
Product Details
Product Details
ATS-PCBM1101
ATS-PCBM1102
Length
(mm) Width
(mm) Height
(mm) Tim Material Finish Packaged Cooled Thermal
Resistance
(Natural Convection)
R @ 200
LFM R @ 400
LFM R @ 600
LFM R @ 800
LFM
63.5 41.9 25.4 No Tim Aluminum Blk Anodized
TO-218,TO-220,TO-247
3.1 2.5 1.6 1.2 1
Length
(mm) Width
(mm) Height
(mm) Tim Material Finish Packaged Cooled Thermal
Resistance
(Natural Convection)
R @ 200
LFM R @ 400
LFM R @ 600
LFM R @ 800
LFM
50.8 41.9 25.4 No Tim Aluminum Blk Anodized
TO-218,TO-220,TO-247
3.5 2.5 1.6 1.2 1
a «7‘ « «2 «7mm 5W , 5 5 ‘ 1 ‘ 7 «3mm (2mm! .7 am) 4.! «25 mm «a «« 007‘ « «2 «7mm New , 5 5 1 ‘ 7 *«55 , «3mm (2mm! ,7 am) 4.! «25 mm «a «« 2 , o as «25 ”mm! 93 «25 mm W « 55‘ «42 mm 00 H «3 mm/ H; mm! If 500m 4'. ‘ «25W ,7 om) 4” «25 mm «a «« n1? H2 0mm; ‘—‘I _ «25 mm ‘ , o as « « «25 «mm , i « 65‘ fi. 1 >- 27 55mm L75 ‘ ‘ H5 «mm
89-27 Access Road, Norwood, MA 02062 USA | T: 781.769. 2800 | ats-hq@qats.com | www.qats.com
R16_0920
Standard Board Level Heat Sinks
Product Details
Product Details
ATS-PCBM1103
ATS-PCBM1104
Length
(mm) Width
(mm) Height
(mm) Tim Material Finish Packaged Cooled Thermal
Resistance
(Natural Convection)
R @ 200
LFM R @ 400
LFM R @ 600
LFM R @ 800
LFM
38.1 41.9 25.4 No Tim Aluminum Blk Anodized
TO-218,TO-220,TO-247
3.8 1.4 1 0.8 0.6
Length
(mm) Width
(mm) Height
(mm) Tim Material Finish Packaged Cooled Thermal
Resistance
(Natural Convection)
R @ 200
LFM R @ 400
LFM R @ 600
LFM R @ 800
LFM
25.4 41.9 25.4 No Tim Aluminum Blk Anodized
TO-218,TO-220,TO-247
4.7 1.5 1.1 0.8 0.6

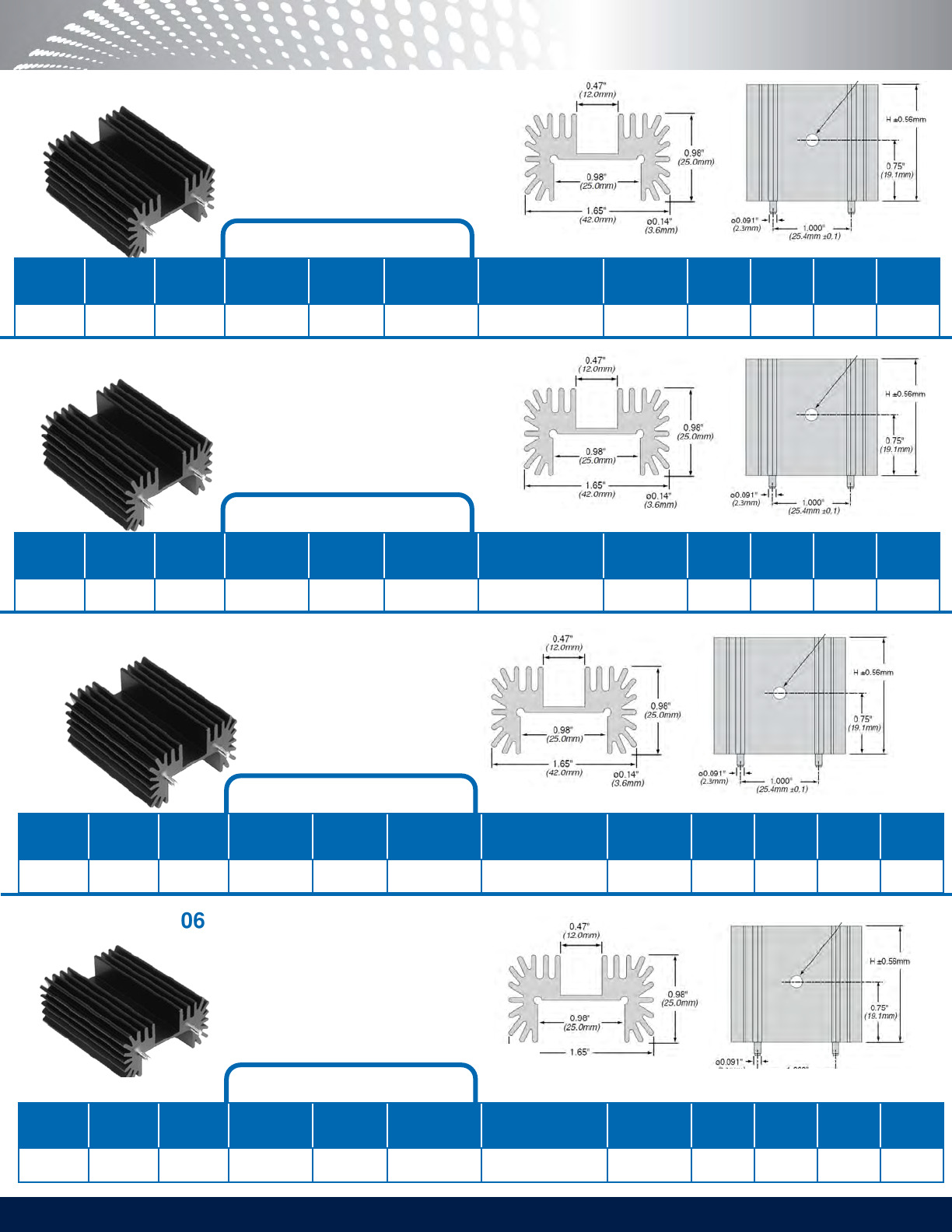

ATS-PCBM1105
ATS-PCBM1106
Product Details
Product Details
Length
(mm) Width
(mm) Height
(mm) Tim Material Finish Packaged Cooled Thermal
Resistance
(Natural Convection)
R @ 200
LFM R @ 400
LFM R @ 600
LFM R @ 800
LFM
50.8 41.9 25.4 No Tim Aluminum Blk Anodized
TO-218,TO-220,TO-247
3.4 1.3 0.9 0.7 0.6
Length
(mm) Width
(mm) Height
(mm) Tim Material Finish Packaged Cooled Thermal
Resistance
(Natural Convection)
R @ 200
LFM R @ 400
LFM R @ 600
LFM R @ 800
LFM
63.5 41.9 25.4 No Tim Aluminum Blk Anodized
TO-218,TO-220,TO-247
3 1 0.7 0.6 0.5

Products related to this Datasheet

HEATSINK TO-263 COPPER
HEATSINK TO-218/TO-247 W/TAB
HEATSINK TO-126 BLACK
HEATSINK TO-220 LOW PROFILE
HEATSINK TO-220 VERT MNT W/TAB
HEATSINK TO-220 W/TAB BLACK
HEATSINK TO-220 BLACK
HEATSINK TO-220 W/TAB BLACK
HEATSINK TO-220 CLIP-ON BLACK
HEATSINK TO-220 W/TAB BLACK
HEATSINK TO-220 CLIP-ON
HEATSINK TO-220 BLACK 6-32NUT
HEATSINK TO-220 BLACK
HEATSINK TO-220 W/TAB BLACK
HEATSINK TO-220/TO-262 W/TAB
HEATSINK TO-220 VERT MNT W/TAB
HEATSINK TO-220
HEATSINK TO-220 CLIP-ON BLK
HEATSINK TO-220 BLACK
HEATSINK TO-220 ALUMINUM
HEATSINK TO-220
HEATSINK TO-220 BLACK
HEATSINK TO-220 W/TAB BLACK
HEATSINK TO-220 BLACK
HEATSINK TO-220 ALUMINUM
HEATSINK TO-218 W/TAB BLACK
HEATSINK TO-220
HEATSINK TO-220 CLIPON W/TAB
HEATSINK TO-220 (DUAL)
HEATSINK TO-220 W/TAB BLACK
