DS3100DK Demo Kit

Evaluates: DS3100 Timing IC

General Description

The DS3100DK is an easy-to-use demo and

evaluation kit for the DS3100 Stratum 3/3E timing

card IC. A surface-mounted DS3100 and careful

layout provide maximum signal integrity. An on-board

8051-compatible microcontroller and included

software give point-and-click access to configuration

and status registers from a personal computer. LEDs

on the board indicate interrupt, power-supply

function, and GPIO status. The board provides BNC

and bantam connectors for the composite clock and

BITS interfaces. Single-ended and LVDS clocks are

accessed via SMB connectors. All LEDs and

connectors are clearly labeled with silkscreening to

identify associated signals.

Demo Kit Contents

DS3100DK PCB

Universal Power Supply

Features

 Soldered DS3100 for Best Signal Integrity

 SMB Connectors, BNC, Bantam,

Transformers, and Termination Ease

Connectivity

 Careful Layout for Analog Signal Paths

 On-Board Stratum 3 Oscillator with Footprints

for Stratum 3E Oscillators

 DS3100 Configured for CPU Bus Operation

for Complete Control Over the Device

 On-Board Microcontroller and Included

Software Provide Point-and-Click Access to

the DS3100 Register Set

 LEDs for Interrupt, Power Supplies, and GPIO

 Included International Power Supply

 Banana Jack VDD and GND Connectors

Support Use of Lab Power Supplies

 Easy-to-Read Silkscreen Labels Identify the

Signals Associated with All Connectors,

Jumpers, and LEDs

 Header Provided for Master/Slave Connection

to a Second DS3100DK

 Software Provides GUI Fields for Most

Commonly Used Features Plus Full

Read/Write Access to the Entire Register Set

 Software Support for Creating and Running

Configuration Scripts Saves Time During

Evaluation

Minimum System Requirements

 PC Running Windows® XP or Windows 2000

 Display with 1024 x 768 Resolution or Higher

 Available USB Port or Serial (COM) Port

 USB Cable or DB-9 Serial Cable

Ordering Information

PART

DESCRIPTION

DS3100DK Demo kit for DS3100

Windows is a registered trademark of Microsoft Corp.

For software revision 1.0.

Data Sheet

May 2012

O Microsemi

DS3100DK

2

Table of Contents

1. BOARD FLOORPLAN ........................................................................................................ 4

1.1 INPUT AND OUTPUT CLOCKS ......................................................................................................... 5

1.2 JUMPERS, HEADERS, AND SWITCH SETTINGS ................................................................................. 5

1.3 COMPOSITE CLOCK INTERFACE ..................................................................................................... 5

1.4 BITS INTERFACES ........................................................................................................................ 5

1.5 MICROCONTROLLER ..................................................................................................................... 5

1.6 POWER-SUPPLY CONNECTORS ..................................................................................................... 5

2. BASIC HARDWARE SETUP .............................................................................................. 6

2.1 USB DRIVER INSTALLATION .......................................................................................................... 6

3. INSTALLING AND RUNNING THE SOFTWARE............................................................... 7

3.1 COMMAND LINE OPTIONS.............................................................................................................. 7

4. OVERVIEW OF THE SOFTWARE INTERFACE ................................................................ 8

4.1 GLOBAL CONFIGURATION .............................................................................................................. 8

4.2 INPUT CLOCK MONITOR, DIVIDER, AND SELECTOR ......................................................................... 8

4.3 T0 DPLL ....................................................................................................................................10

4.4 T4 DPLL ....................................................................................................................................12

4.5 T0 APLL.....................................................................................................................................13

4.6 T4 APLL.....................................................................................................................................13

4.7 OUTPUT CLOCKS .........................................................................................................................14

4.8 DPLL FREQUENCY LIMITS, PHASE DETECTORS, DPLL LOCK CRITERIA ..........................................15

4.9 BITS RECEIVERS AND BITS TRANSMITTERS .................................................................................15

4.9.1 Note About Working with the BITS Receivers and Transmitters ......................................................... 15

4.10 COMPOSITE CLOCK RECEIVERS ................................................................................................19

4.11 REFCLK CALIBRATION ............................................................................................................19

4.12 REGISTER VIEW WINDOW .........................................................................................................20

4.13 CONFIGURATION SCRIPTS AND LOG FILE ...................................................................................21

4.13.1 Configuration Log File .......................................................................................................................... 21

4.13.2 Configuration Scripts ............................................................................................................................ 21

5. APPENDIX 1: HARDWARE COMPONENTS ................................................................... 22

6. APPENDIX 2: BITS MODE WRITE SEQUENCES ........................................................... 25

7. SCHEMATICS .................................................................................................................. 25

8. DOCUMENT REVISION HISTORY .................................................................................. 25

O Microsemi

DS3100DK

3

List of Figures

Figure 1-1. Board Floorplan ..........................................................................................................................................4

Figure 4-1. Software Main Screen ................................................................................................................................8

Figure 4-2. Software Input Clock Window ....................................................................................................................9

Figure 4-3. Software T0 DPLL Window ..................................................................................................................... 11

Figure 4-4. Software T4 DPLL Window ..................................................................................................................... 12

Figure 4-5. Software BITS Receiver Window (DS1 Mode) ....................................................................................... 16

Figure 4-6. Software BITS Receiver Window (E1 Mode) .......................................................................................... 16

Figure 4-7. Software BITS Transmitter Window (DS1 Mode and E1 Mode) ............................................................. 16

Figure 4-8. Software CC Receiver Window ............................................................................................................... 19

Figure 4-9. Software Register View Window ............................................................................................................. 20

List of Tables

Table 4-1. Mapping Between Input Clock Software Fields and DS3100 Register Fields ............................................9

Table 4-2. Mapping Between T0 DPLL Software Fields and DS3100 Register Fields ............................................. 11

Table 4-3. Mapping Between T4 DPLL Software Fields and DS3100 Register Fields ............................................. 13

Table 4-4. Mapping Between T0 APLL Software Fields and DS3100 Register Fields ............................................. 13

Table 4-5. Mapping Between T4 APLL Software Fields and DS3100 Register Fields ............................................. 13

Table 4-6. Mapping Between Output Clock Software Fields and DS3100 Register Fields ....................................... 14

Table 4-7. Mapping Between DPLL Software Fields and DS3100 Register Fields .................................................. 15

Table 4-8. Mapping Between BITS Software Fields and DS3100 Register Fields ................................................... 17

Table 4-9. Mapping Between CC Software Fields and DS3100 Register Fields ...................................................... 19

Table 4-10. Mapping Between REFCLK Software Fields and DS3100 Register Fields ........................................... 19

G Microsemi Figure 171 APPENDIX 1: HARDWARE COMPONENTS E EDD D DDDDDDDD DD D D DDDDDD DDDDDD DD DDDD

DS3100DK

4

1. BOARD FLOORPLAN

Figure 1-1 shows the floorplan of the DS3100DK. The DS3100 is in the center of the board, input clock SMB

connectors are along the top edge of the board, and output clock connectors are on the bottom edge. Between the

input clock connectors and the DS3100, land patterns are provided for several different types of local oscillators,

ranging from tiny, inexpensive TCXOs to larger, high-performance OCXOs. The right edge contains, from top to

bottom, power-supply connectors, DC-DC converters and power-indicator LEDs, reset pushbutton, serial

connector, and USB connector. An on-board DS87C520 microcontroller is located near the USB connector. The

left edge of the board is occupied by connectors and transformers for the DS3100’s built-in BITS

(DS1/E1/2048kHz) and composite clock (64kHz) receivers and transmitters. Between the BITS and composite

clock connectors are a JTAG header and three switches to control the DS3100’s MASTSLV, SONSDH, and

SRCSW pins.

See APPENDIX 1: HARDWARE COMPONENTS for a complete component list. Complete board schematics follow

Appendix 2.

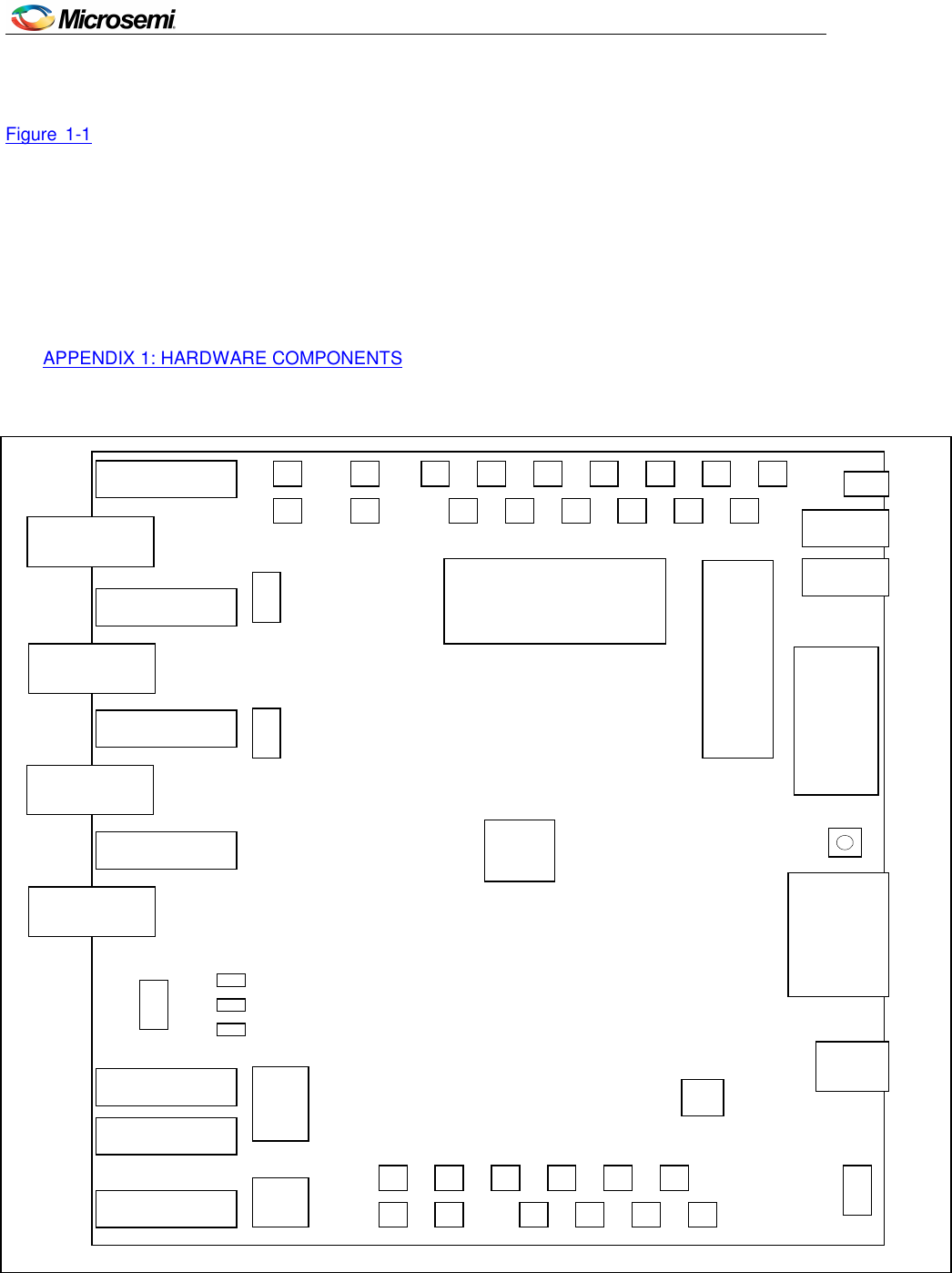

Figure 1-1. Board Floorplan

`

Power

Option

5V Banana

Jack

GND Banana

Jack

RS232 9-Pin

Connector

USB

Connector

GPIO

Circuitry

Power Supply Circuitry

LVDS Output

Clocks

Microprocessor

DS3100

Single-ended Output Clocks

Composite Clock

Input Composite Clock

Output

JTAG

Header

BITS Interfaces

Oscillator Circuitry

Single-ended Input ClocksLVDS Input

Clocks

M\S Hdr

Switches

Reset

O Microsemi

DS3100DK

5

1.1 Input and Output Clocks

There are 13 SMB connectors at the top of the board labeled IC1–IC4, IC7–IC14, and SYNC2K that provide a

single-ended clock input to the DS3100. All single-ended clock inputs are connected to the DS3100 with a 50Ω

characteristic impedance trace and terminated with 50Ω at the device. Four additional SMB connectors labeled

IC5P, IC5N, IC6P, and IC6N provide differential clock inputs to the DS3100. These differential inputs have 50Ω

trace impedance and 50Ω termination at the device (i.e., 100Ω differential).

On the other end of the PCB are eight SMB clock output connectors labeled OC1–OC5 and OC9, OC10, and

OC11. All single-ended clock outputs are buffered at the DS3100 and connected to the SMB connector via a 50Ω

characteristic impedance trace. Four additional SMB connectors labeled OC6P, OC6N, OC7P, and OC7N provide

connections to the differential outputs from the DS3100.

1.2 Jumpers, Headers, and Switch Settings

Jumpers JMP1 to JMP4 (upper right of board) provide input settings to the four DS3100 GPIO pins. If a jumper is

installed the corresponding GPIO input is high. With no jumper the GPIO pin defaults low. LEDs DS5–DS8 indicate

the logic level of the GPIO pins (LED lit means GPIO pin is high). Switches SW7 to SW9 set the SONSDH,

SRCSW, and MASTSLV pins, respectively, high or low as indicated by the silkscreen. Headers J1 and J2 provide

access to BITS1 and BITS2 framer signals, respectively. Header J51 provides access to the JTAG port of the

DS3100. Header J15 provides interface to a master or slave board depending on position of switch SW6.

1.3 Composite Clock Interface

Bantam jacks J89 and J90 provide access to composite clock inputs IC1A and IC2A through a 2:1 transformer.

Jumpers JMP7 and JMP6 configure termination for IC1A and IC2A, respectively. Silkscreen text indicates which

jumper is necessary to set the interface at 110Ω, 120Ω, or 133Ω. Bantam jack J117 provides an interface through a

1:1 transformer to the OC8 composite clock output. Jumpers JMP8, JMP9, and JMP10 provide different attenuation

configurations that are represented in silkscreen (Rs = 91Ω with no jumper installed). See the schematics for

additional details on the composite clock termination circuitry.

1.4 BITS Interfaces

The BITS1 DS1/E1 LIU uses bantam connectors J85 and J55 or BNC connectors J83 and J57 for transmit and

receive interfaces, respectively. The BITS2 LIU uses bantam connectors J86 and J56 or BNC connectors J84 and

J58 for transmit and receive, respectively. There is a dual transformer package for each BITS transceiver

(component T1 for BITS1 and T2 for BITS2). See the schematics for additional details on the BITS termination

circuitry.

1.5 Microcontroller

The DS87C520 microcontroller has factory-installed firmware in on-chip nonvolatile memory. This firmware

translates memory access requests from the RS-232 serial port or USB port into register accesses on the DS3100.

When the microcontroller starts up it turns on DS16 to indicate that the controller is working correctly. A pushbutton

switch labeled RESET (SW5) at the right middle of the board resets the microcontroller as well as the DS3100.

1.6 Power-Supply Connectors

The included international power supply can be connected to jack J3 to power the board or a 5V lab power supply

can be connected across the red (J13) and black (J19) banana jacks. The 5V input is then regulated to 3.3V and

1.8V and distributed to board components.

O Microsemi in Figure1r1

DS3100DK

6

2. BASIC HARDWARE SETUP

The following steps provide a quick start to using the DS3100DK.

1) Ensure switch SW6 (near the OC1 and OC2 connectors) is in the “MAS” position.

2) Set switch SW9 (MASTSLV) in the “1” (master) position.

3) Set switch SW8 (SRCSW) in the “0” (normal operation) position.

4) Set switch SW7 (SONSDH) to “1.”

5) To communicate with the board using a USB cable:

a) Configure the board for USB communication by placing jumpers to connect the middle and right pins of

JMP62 and JMP63 (i.e., place the jumpers toward the “USB” silkscreen).

b) Connect a USB cable between the USB connector on the DS3100DK and an available USB port on the

host computer.

6) To communicate with the board using a serial (RS-232) cable:

a) Configure the board for serial communication by placing jumpers to connect the left and middle pins of

JMP62 and JMP63 (i.e., place the jumpers toward the “RS232” silkscreen).

b) Connect a standard DB-9 serial cable between the serial port connector on the DS3100DK and an

available serial port on the host computer. (Be sure the cable is a standard straight-through cable

rather than a null-modem cable. Null-modem cables prevent proper operation.)

7) Attach the appropriate AC power supply prongs to the included international power supply.

8) Plug the power supply into an AC power outlet and connect the DC output of the supply to connector J3

(PWR in Figure 1-1).

At this point the power indicator LEDs DS1–DS4 should be lit green. Microcontroller status LED DS16 (to the right

of the USB connector) should also be lit green. SRFAIL LED DS9 should be lit red.

2.1 USB Driver Installation

When the DS3100DK is first connected to the PC using a USB cable, an on-board USB-to-serial converter IC is

automatically detected by Windows and the Found New Hardware Wizard is automatically started. Follow these

steps to install the driver:

1) In the first screen of this wizard, select “Install from a list or specific location” and click “Next.”

2) In the second screen, select “Search for the best driver in these locations,” check “Include this location in

the search,” and browse to the “USB” directory in the DS3100DK CD-ROM or downloaded ZIP file. Click

“Next.”

3) Click “Finished.”

4) Repeats steps 1 to 3 the second time the Found New Hardware Wizard starts.

After the drivers are installed, whenever the DS3100DK board is connected to a USB port on the PC the Windows

operating system will see the USB-to-serial converter IC as an additional COM port. The DS3100DK software will

automatically list the additional COM port in the PORT selection combo box in the upper-left corner of the main

window.

O Microsemi

DS3100DK

7

3. INSTALLING AND RUNNING THE SOFTWARE

At this time the DS3100 demo kit software only runs on Windows 2000 or Windows XP operating systems.

To install the demo kit software, run SETUP.EXE from the disk included in the DS3100DK box or from the zip file

available on the Microsemi website or from Microsemi timing products technical support..

After software installation is complete, set up the hardware as described above and run the software by double-

clicking the DS3100 Demo Kit icon on the Windows desktop or by selecting

Start→Programs→Microsemi→DS3100 Demo Kit. When the main window appears, select the correct serial

COM port in the box in the upper-left corner. (Note that when talking to the DS3100DK over USB cable, the USB-

to-serial converter on the board is a virtual COM port.) When communication has been properly established

between the software and the hardware, the ID field in the upper-left corner should indicate 3100 rev x, where x = 0

for a revision A1 device, and x = 1 for a revision A2 device.

The demo kit software always starts in demo mode (with the DEMO MODE checkbox in the upper-left corner

checked) to allow a user to look at the software without having the DK hardware connected to the PC. To connect

the software with the demo kit hardware, uncheck the DEMO MODE box. The software optionally initializes the

DS3100 device and then reads the state of the device to get ready for use.

3.1 Command Line Options

The demo kit software has these command line options:

-l <filepath> specifies an alternate log file example: “DS3100DK.exe –l mylog.mfg

-p[port#] sets the serial (COM) port number example: “DS3100DK.exe –p2” sets COM2

To add command line options to the DS3100 demo kit shortcut that the installer adds to the desktop, right click on

the shortcut and select Properties. In the Shortcut tab, at the end of the text in the Target text box, add a space

followed by the command line option.

G Microsemi 053100 Damn Ki|v1.0 '7 mum, pHAsgummsi,meucmm 0mg uENwst ‘D 3mm” HARDUUMH[ 1 Reglxlevv‘ew M/s MASTER J’ r MEPDEN r man v FLEN [Phase] , ”D” Wm. PERT EDMUA v F LISEMEPD V7 ELENIDHase} [Wm] ”W35” 3 2”“ Emmy Stnvl F own MEIDE xuzos: EDARSEUM 53m . v FLLDLlrreq] 5an anpm v ENABLE mum y—J r NALEILI \ kl j Rxsmg v F‘NEUM SEHBEI v cm: ’7 Ln We F SDH G SEINET 3732 g 4W cm mm, wow/m 5mm mm mm mm mm. DPLL [LUCK SHEDPLLN v ZKBK FHDMTU v a m r n mm mm_ “mm WW mm WWI mm LKMEIDE Pmumrv mm y—Mm . ram 777mm . ISUFMM 777mm v “2 wow: 7 c: v ‘ I am v ma 7 E v hm: W 1m 7 pom; m w W mu EE 2 I EkHz v DW 3 v RE“ F LKNW um TEN-348D v 7 j Mme m '71 3. M . m v m . W 4 W mm mm mm mm 7 a I am; ma 5 v RE” imum 1mm nus mam v v - yj. mm mm mm maaaan v ‘WDS J 5 "‘9“ J W '3 mm mm . sm— Emu P ‘1 7 \ij 6 l 19M v Dw 7 v ‘7775Ana‘ugj nus m7775n v 7 I 19“ v D‘R E v REFS FRED 7775MHz JPHMUN Dmpmngq ucs TEISEEEEI v a I new L m E v \ ELKSEL AEW 1m V “ALARM [isnmnwz um y—Mamn v a I W - m mm. mm - Law 1sz v 532% mm mm 7 m I W ; m m - TEES” mm” - DAMP m v W M r Aumsque‘ch “ l ‘9“ ' D‘“ ' ‘2' PHASE MDNWURAND BmLDum m \Nccaksnzj 1:: 12:: L :1: 3' PHASE meg; mum 2mm 7 F PMEN D59 mmMHz v ' ' ' unnnu F PMPBEN . NI 1m L m L mv MANUALPBDIMI v paum ”5‘“ :2? ' 71 F PBEIFFKZ mm 2 v 0va was ,7 Mme Mme DEEMED” r REML Dwsab‘e AH ,wgngcgms—,wmmwm— Emma; m M W m m M m [2 Made Bags: 7 was: . ALE V V Mode Bags: 7 was: . AM‘ E E ALDS I I mg I. 1 mm mm v mm v m “mm mm v mun v mm mm v {—M . mg I [WSW y—Ma 7 use . Mme SSM unmnusm unmunsm RAI I 55” “UUWUSTU V “U“‘UUSW '

DS3100DK

8

4. OVERVIEW OF THE SOFTWARE INTERFACE

Figure 4-1. Software Main Screen

4.1 Global Configuration

In the upper-left corner of the main window are several global status and configuration fields. The ID field displays

the device part number and revision. The M/S field shows the status of the device MASTSLV pin

(MCR3:MASTSLV). The PORT field shows the COM port to which the DK board is connected. The DEMO MODE

checkbox, which is checked by default, must be unchecked to enable the software to communicate with the DK

board. The ENABLE POLLING checkbox, also checked by default, controls software polling of the device. Finally,

the SDH and SONET radio buttons (which control device register field MCR3:SONSDH) specify whether 1.544MHz

(SON) or 2.048MHz (SDH) is an available frequency option for input clocks 1 to 14 and output clock OC9.

4.2 Input Clock Monitor, Divider, and Selector

This box occupying the left-center section of the main window contains the most frequently used configuration and

status associated with input clocks IC1–IC14. At the far left, inputs IC1 and IC2 can be configured for either

composite clock (on the IC1A and IC2A pins, respectively) or CMOS (on the IC1 and IC2 pins, respectively).

Similarly, IC5 and IC6 can be configured for LVDS or PECL operation.

Just to the right of the input clock numbers 1–14 are software LEDs that indicate the state of each input as reported

by its input monitor. These LEDs are red in the absence of any other condition. When a clock of the correct

frequency is applied to an input, the associated LED turns yellow when activity is detected and, about 10 seconds

later, it turns green if the input clock frequency is within range. If an input is disqualified by one of the DPLLs

because the DPLL could not lock to it, the LED turns magenta.

O Microsemi Figure 42 ee Table 4,1 Input Cluck Monilnr , Divider and Seleclot INPUT uucxs *LUEK TIMEUUT >FHEQUENW MEASUREMENYi So"HaldAdLockVaidEnab‘eBuck-el PHLKTO PHLKTDM In m n: m] Fl[e_:llalmce ‘I I I l I '7 n v |5D x 2m v mono v nun TuDPLLI—Zl 2I I I I I 17 E. . 1 |_ 3 I I I I I p n :1 "m“ “10:91: >LEAKYBUCKETSETTINGS ‘ I I I I I '7 U v r: LuckAlamnmeuut up”, Lam, 5“ Dam“) SIII-IWD_ r: DIS 4 a 255. v xlsmal Swnchlng s I I I I I p 1F VFW] D L I’ Ulla-Faslﬁwlchmg 7' I I I I ‘7 n v FsunAlamEnable 2 5 ‘ 3 256 ' B""'” 0;; WHaldAlamEnable 3B 4 s 255. 9 I I I I I p D , 1D. I I I I 17 0 j rrnmummwmrunuwrs “I I I I I [,7 0 v ‘INPUTELOBK SELECTEDFKEFEFKENEE 12. I I I I ,3 n .J SullLiwl[ppm] HadL'ml smmwpmluaamn 13III-IFU- ’—’—‘l—~J— MI I I I I )7 n _1 INS 1524 1143 1524

DS3100DK

9

In the middle of the box, the FREQ and LK MODE fields configure the frequency and lock mode (direct-lock, DIVN,

or LOCK8K) for each input clock. At the bottom is a field to configure the DIVN divider used for inputs configured

for DIVN mode.

All the fields in the box containing the PRIORITY fields display information about either the T0 DPLL or the T4

DPLL, depending on which of two radio buttons is selected at the top of the box. The PRIORITY fields configure

the input clock priorities for the selected DPLL. The SEL REF field shows the selected reference for the DPLL,

while the REF 1, REF 2, and REF 3 fields display the three highest priority valid inputs for the DPLL. The FREQ

and PHASE fields show the real-time frequency and phase reported by the DPLL.

Clicking the More button opens another window (Figure 4-2) with additional input clock configuration and status

fields. See Table 4-1 for details.

Figure 4-2. Software Input Clock Window

Table 4-1. Mapping Between Input Clock Software Fields and DS3100 Register Fields

SOFTWARE FIELD DS3100 REGISTER FIELDS

MAIN WINDOW

IC1 Signal Format (CMOS or CC)

MCR5:IC1SF

IC2 Signal Format (CMOS or CC)

MCR5:IC2SF

IC5 Signal Format (LVDS or PECL) MCR5:IC5SF

IC6 Signal Format (LVDS or PECL)

MCR5:IC6SF

Input Clock Status LEDs 1 to 14

ISR1–ISR7 registers

LED red when ACT = 1, HARD = 1

LED yellow when ACT = 0, HARD = 1

LED green when ACT = 0, HARD = 0, LOCK = 0

LED magenta when ACT = 0, HARD = 0, LOCK = 1

FREQ 1 to 14

ICR1 to ICR14:FREQ[3:0]

LK MODE 1 to 14

ICR1 to ICR14:LOCK8K, and DIVN

PRIORITY 1 to 14

IPR1 to IPR7

SEL REF

PTAB1:SELREF

REF 1

PTAB1:REF1

REF 2

PTAB2:REF2

G Microsemi Table 472 Figure 473

DS3100DK

10

SOFTWARE FIELD DS3100 REGISTER FIELDS

REF 3

PTAB3:REF3

FREQ (ppm)

FREQ1, FREQ2, and FREQ3 registers concatenated

PHASE (deg)

PHASE1 and PHASE2 registers concatenated

SUBWINDOW

Soft 1 to 14

ISR1 to ISR7:SOFT

Hard 1 to 14

ISR1 to ISR7:HARD

Act 1 to 14

ISR1 to ISR7:ACT

Lock 1 to 14

ISR1 to ISR7:LOCK

Valid 1 to 14

VALSR1, VALSR2

Enable 1 to 14

VALCR1, VALCR2

Bucket 1 to 14

ICR1 to ICR14:BUCKET

PHLKTO and PHLKTOM

PHLKTO

Lock Alarm Timeout

MCR3:LKATO

External Switching

MCR10:EXTSW

Ultra-Fast Switching

MCR10:UFSW

Soft Alarm Enable

MCR10:SOFTEN

Hard Alarm Enable

MCR10:HARDEN

Freq Measurement Input

MCR11:FMEASIN

Freq Measurement Freq

FMEAS

Freq Measurement Reference

MCR10:FMONCLK

Leaky Bucket Settings

LBxU, LBxL, BLxS, LBxD (x = 1 to 4)

Freq Monitor Limits, Input Clock

ILIMIT

Freq Monitor Limits, Selected Ref

SRLIMIT

4.3 T0 DPLL

The state of the T0 DPLL (free-run, locked, holdover, etc.) is shown in the STATE field. The STATE, SRFAIL, and

PHMON fields are buttons that represent latched status bits in the device. When the button is red, the

corresponding latched status bit has been set in the DS3100. Pressing the button clears the latched status bit and

changes the color of the button back to green. STATE indicates that the state of the T0 DPLL has changed since

the last time the button was pressed. SRFAIL indicates the selected reference has failed since the last time the

button was pressed. PHMON indicates the phase monitor limit (set by PMLIM) has been exceeded.

The state of the T0 DPLL can be forced using the combo box to the left of the STATE field, and the selected

reference can be forced using the CLK SEL field. Below the CLK SEL field is a field that configures the T0 DPLL for

revertive or nonrevertive input reference switching.

The frequency of the T0 DPLL is displayed in the FREQ field (fixed at 77.76MHz for the DS3100 T0 DPLL). The

acquisition and locked bandwidths are set by the ABW and LBW fields, respectively, and the damping factor is set

by the DAMP field. The acquisition bandwidth is only used if AUTOBW is checked. If the frequency of the T0

DPLL’s selected reference exceeds the SOFT LIMIT setting (in the DPLL FREQUENCY LIMITS box at the top of

the window), the SOFTLIM LED turns red.

The PALARM status LED and the PHASE MONITOR and BUILDOUT fields are advanced topics. See Table 4-2

and the DS3100 data sheet for more details.

Clicking the More button opens another window (Figure 4-3) with additional T0 DPLL configuration and status

fields.

Q Microsemi T0 DPLL HDLDDVER SYNEZK .FaxtHeady-Slowﬂeady IFSMDN V AEFSEN '— Manual Holdover r EFSEN Holdovev Type SIDwAvg v F INDEP F DEN MInIHD Type y—Jlmtan, . PHASE 0 v MON IM 3 + . HDFleq[ppm] 00000000 L ' ‘— RDAVE SUUHEE Icn v >PHASE DETEETDH 2 [PD2]- |7 PDZENABLE PDZGA 4 v PDZG D 2 v PDZGASK 1 v -APBU EIFFSET [n3] UVUUD

DS3100DK

11

Figure 4-3. Software T0 DPLL Window

Table 4-2. Mapping Between T0 DPLL Software Fields and DS3100 Register Fields

SOFTWARE FIELD DS3100 REGISTER FIELDS

MAIN WINDOW

STATE combo box

MCR1:T0STATE

STATE status box

OPSTATE:T0STATE

CLK SEL

MCR2:T0FORCE

Revertive/Nonrevertive

MCR3:REVERT

FREQ

Fixed by T0 DPLL architecture

ABW

T0ABW

LBW

T0LBW

DAMP

T0CR2:DAMP

STATE latched status

MSR2:STATE

SRFAIL

MSR2:SRFAIL

PHMON

MSR3:PHMON

PALARM

TEST1:PALARM

SOFTLIM

OPSTATE:T0SOFT

AUTOBW

MCR9:AUTOBW

LIMINT

MCR9:LIMINT

PMLIM

PHMON:PMLIM

PMEN, PMPBEN

PHMON:PMEN, PMPBEN

PBOEN, PBOFRZ

MCR10:PBOEN, PBOFRZ

RECAL

FSCR3:RECAL

MANUAL PBO

OFFSET1 and OFFSET2

SUBWINDOW

Fast Ready, Slow Ready

MSR4:FHORDY, SHORDY

Manual Holdover

MCR3:MANHO

Holdover Type

HOCR3:AVG, FAST

Mini HO Type

HOCR3:MINIHO

HO Freq

HOCR1, HOCR2, HOCR3[2:0]

RDAVG

HOCR3:RDAVG

FSMON

OPSTATE:FSMON

AEFSEN, EFSEN

MCR3:AEFSEN, EFSEN

INDEP

FSCR2:INDEP

OCN

FSCR2:OCN

PHASE

FSCR2:PHASE

MONLIM

FSCR3:MONLIM

Table 473 Figure 474 PHASE DETEETUH 2[F'DZ] '7 FDZ Enab‘e PDZGA v PD 26 D 2 v PDZGABK 1 .

DS3100DK

12

SOFTWARE FIELD DS3100 REGISTER FIELDS

SOURCE

FSCR3:SOURCE

PD2 ENABLE

T0CR3:PD2EN

PD2GA, PD2GD

T0CR3:PD2GA, PD2GD

PD2GA8K

T0CR2:PD2GA8K

APBO OFFSET

PBOFF

4.4 T4 DPLL

The state of the T4 DPLL (locked or not locked) is shown in the STATE field. The LOCK and NO INPUT fields are

buttons that represent latched status bits in the device. When the button is red, the corresponding latched status bit

has been set in the DS3100. Pressing the button clears the latched status bit and changes the color of the button

back to green. LOCK indicates the state of the T4 DPLL has changed since the last time the button was pressed.

NO INPUT means the T4 DPLL has no valid inputs available. The selected reference for the T4 DPLL can be

forced using the CLK SEL field.

The frequency of the T4 DPLL is displayed in the FREQ field. When the FREQ field is changed, the frequency of

the T4 option listed in the T4 APLL combo box automatically changes to match. If the T4 option in the T4 APLL box

is currently selected, the frequencies of all the T4 options in the OC1–OC7 output clock combo boxes automatically

change to frequencies derived from the new T4 APLL frequency. These changes match what happens inside the

DS3100 device.

The bandwidth of the T4 DPLL is set by the BW field, while the damping factor is set by the DAMP field. If the

frequency of the T4 DPLL’s selected reference exceeds the SOFT LIMIT setting (in the DPLL FREQUENCY

LIMITS box at the top of the window), the SOFTLIM LED turns red. Digital feedback (vs. analog feedback through

the T4 APLL) can be selected using the DIGFB checkbox.

The LKT4T0 and T4MT0 fields are advanced topics. See Table 4-3 and the DS3100 data sheet for more details.

Clicking the More button opens another window (Figure 4-4) with additional T4 DPLL configuration and status

fields.

Figure 4-4. Software T4 DPLL Window

G Microsemi

DS3100DK

13

Table 4-3. Mapping Between T4 DPLL Software Fields and DS3100 Register Fields

SOFTWARE FIELD

DS3100 REGISTER FIELDS

MAIN WINDOW

STATE

OPSTATE:T4LOCK

CLK SEL

MCR4:T4FORCE

FREQ

T4CR1:T4FREQ

BW

T4BW

DAMP

T4CR2:DAMP

LOCK

MSR3:T4LOCK

NO INPUT

MSR3:T4NOIN

SOFTLIM

OPSTATE:T4SOFT

DIGFB

MCR4:T4DFB

LKT4T0

MCR4:LKT4T0

T4MT0

T0CR1:T4MT0

SUBWINDOW

PD2 Enable

T4CR3:PD2EN

PD2GA, PD2GD

T4CR3:PD2GA, PD2GD

PD2GA8K

T4CR2:PD2GA8K

4.5 T0 APLL

The T0 APLL can be connected to the output of the T0 Output DFS or to the T0 Low-Frequency DFS (see the

DS3100 data sheet for details). The non-77.76 options in the Input Freq field are all frequencies from the T0 Low-

Frequency DFS. The difference between the “77.76 Analog” and “77.76 Digital” options is whether the feedback

path of the T0 DPLL includes the T0 feedback APLL. The APLL output frequency is always four times the input

frequency. When the Input Freq field is changed, the Output Freq field changes to match, and all the T0 options in

the OC1–OC7 output clock combo boxes also change to frequencies derived from the new T0 APLL frequency.

These changes match what happens in the DS3104 device.

Table 4-4. Mapping Between T0 APLL Software Fields and DS3100 Register Fields

SOFTWARE FIELD DS3100 REGISTER FIELDS

Input Freq T0CR1:T0FREQ

Output Freq Derived by software from Input Freq

4.6 T4 APLL

The T4 APLL can be connected to the output of the T4 DPLL or to the output of the T0 DPLL (specifically the T0

low-frequency DFS; see the DS3100 data sheet for details) as specified by the SRC DPLL field. When SRC DPLL

is set to T4, the Input Freq field follows the T4 DPLL FREQ field. When SRC DPLL is set to T0, several frequency

options from the T0 Low-Frequency DFS are available in the Input Freq field.

When the FREQ field is changed in the T4 DPLL box, the frequency of the T4 option listed in the T4 APLL combo

box automatically changes to match. If the T4 option in the T4 APLL box is currently selected, the frequencies of all

the T4 options in the OC1–OC7 output clock combo boxes automatically change to frequencies derived from the

new T4 APLL frequency. These changes match what happens in the DS3100 device. Similarly, if the T4 APLL

option is changed, the frequencies of all the T4 options in the OC1–OC7 output clock combo boxes automatically

change to frequencies derived from the new T4 APLL frequency.

Table 4-5. Mapping Between T4 APLL Software Fields and DS3100 Register Fields

SOFTWARE FIELD

DS3100 REGISTER FIELDS

SRC DPLL T0CR1:T4APT0

Input Freq T0CR1:T0FT4

Output Freq Derived by software from Input Freq

G Microsemi

DS3100DK

14

4.7 Output Clocks

The fields in this box configure the DS3100’s 11 output clocks. The 2K8K field specifies the source (T0 path or T4

path) for the 2kHz and 8kHz clock options for output clocks OC1–OC7. Similarly the DIG1 and DIG2 fields

configure the Digital1 and Digital2 frequency options for OC1–OC7 (see the DS3100 data sheet for details).

The OC1–OC7 fields specify the output frequencies for outputs OC1–OC7. Note that when the T0 APLL setting is

changed, the frequencies of all the T0 options in the OC1–OC7 fields automatically change to frequencies derived

from the new T0 APLL frequency. Similarly, when the T4 APLL setting is changed, the frequencies of all the T4

options in the OC1–OC7 fields automatically change to frequencies derived from the new T4 APLL frequency.

These changes match what happens in the DS3100 device.

The OC89 field specifies whether the T0 path or the T4 path is the source for output clocks OC8 and OC9. OC8 is

the 64kHz composite clock output. The OC8 field configures the OC8 output clock for 50% or 5/8 duty cycle, and

also for whether or not the output signal has 8kHz BPVs and optionally 400Hz absence-of-BPVs per ITU-T G.703

Appendix II options a) and b). The “8K” options in the list enable the 8kHz BPVs but not the 400Hz absence-of-

BPVs. The “400” options enable both the 8kHz BPVs and the 400Hz absence-of-BPVs. OC9 is a dedicated

1.544MHz or 2.048MHz output. When OC89 specifies that OC8 and OC9 are sourced from the T4 path, the Auto

Squelch checkbox specifies whether or not OC8 and OC9 are automatically squelched when T4 has no valid input

references. When OC89 indicates T0 path, Auto Squelch is not available.

OC10 is an 8kHz output that can be configured as a 50% duty cycle clock or a frame pulse and can optionally be

inverted. OC11 is a 2kHz output that can be similarly configured.

Table 4-6. Mapping Between Output Clock Software Fields and DS3100 Register Fields

SOFTWARE FIELD DS3100 REGISTER FIELDS

2K8K

FSCR1:2K8KSRC

DIG1

MCR6:DIG1SS, MCR7:DIG1F

DIG2

MCR6:DIG2SS, MCR7:DIG2F, MCR7:DIG2AF

OC1–OC7

OCR1–OCR4

OC89

MCR4:OC89

Auto Squelch

T4CR1:ASQUEL

OC8

OCR4:OC8EN, T4CR1:OC8DUTY MCR8:OC8NO8,

MCR8:OC8400

OC9

OCR4:OC9EN, T4CR1:OC9SON

OC10

OCR4:OC10EN, FSCR1:8KPUL, FSCR1:8KINV

OC11

OCR4:OC11EN, FSCR1:2KPUL, FSCR1:2KINV

G Microsemi Tab‘e 477 Figure 475 Figure 476

DS3100DK

15

4.8 DPLL Frequency Limits, Phase Detectors, DPLL Lock Criteria

The DPLL frequency limits specify the hard and soft limits of the DPLL frequency range. When the selected

reference for a DPLL exceeds the soft limit, the SOFTLIM LED for that DPLL turns red but the selected reference is

not disqualified. If the FLLOL (frequency limit loss of lock) box is checked in the DPLL Lock Criteria box, when the

selected reference for a DPLL exceeds the hard limit the DPLL will lose lock (T4 transitions to Not Locked state,

and T0 transitions to LOL state).

The remaining fields are advanced topics. See Table 4-7 and the DS3100 data sheet for more details.

Table 4-7. Mapping Between DPLL Software Fields and DS3100 Register Fields

SOFTWARE FIELD DS3100 REGISTER FIELDS

MCPDEN

PHLIM2:MCPDEN

USEMCPD

PHLIM2:USEMCPD

D180

TEST1:D180

COURSELIM

PHLIM2:COARSELIM

FINELIM

PHLIM1:FINELIM

FLEN

PHLIM1:FLEN

CLEN

PHLIM2:CLEN

FLLOL

DLIMIT3:FLLOL

NALOL

PHLIM1:NALOL

HARD LIMIT

HARDLIM[9:0] in DLIMIT1 and DLIMIT2

SOFT LIMIT

DLIMIT3:SOFTLIM

4.9 BITS Receivers and BITS Transmitters

The Mode fields in these boxes set the basic line mode for each port: DS1 ESF, DS1 SF, E1, 2048kHz, and—for

receivers only—6312kHz. The termination fields specify the line termination for the receiver or transmitter port. The

DS3100 supports either internal termination (inside the device) or external termination (resistors on the board). As

shipped from the factory the demo kit board does not have external termination resistors populated, and therefore

only the internal termination options should be selected in the software. The input clock (IC1–IC14) to which each

BITS receiver should be connected is specified in the Clock Dest fields. The output clock to which each BITS

transmitter should be connected is specified in the Clock Source fields.

In the BITS Transmitters box, when a transmitter is in DS1 ESF or E1 mode, the SSM value to be transmitted can

be specified in the SSM fields below the TX1 and TX2 headings. In E1 mode, the Sa bit channel in which to

transmit SSMs can be specified (for both transmitters) in the small combo box next to the SSM label.

In the BITS Receivers box, when a receiver is in DS1 ESF or E1 mode, the received SSM values are displayed in

the SSM fields below the RX1 and RX2 headings. In E1 mode, the Sa channel in which to look for incoming SSMs

can be specified (for both receivers) in the small combo box next to the SSM label.

The headings RX1, RX2, TX1, and TX2 are buttons that open secondary windows (Figure 4-5, Figure 4-6, and

Figure 4-7) with additional configuration and status fields.

4.9.1 Note About Working with the BITS Receivers and Transmitters

1) When switching BITS transmitter or receiver modes, the termination should be changed to match: internal

100Ω for DS1, internal 75Ω or 120Ω for E1 and 2048kHz, internal 75Ω for 6312kHz.

2) When switching BITS transmitter modes between DS1 and E1/2048kHz modes, the rate of the transmit

clock source (typically OC9) must be changed to match: 1.544MHz for DS1 and 2.048MHz for

E1/2048kHz.

3) Enabling analog loopback between BITS transmitter 1 and BITS receiver 1 and between BITS transmitter 2

and BITS receiver 2 can be useful in evaluating the DS3100. During device initialization the DS3100DK

software enables analog loopback for both BITS transmitter/receiver pairs by setting ALB = 1 (registers

B1BLCR4 (address 93h) and B2BLCR4 (address 113h)).

O Microsemi BITS Receiver 1 (D5! made) ;‘ (Q -SlENAL|/D LIU RECEWER DS‘ FRAME“ inncnxi MuKSm-ce Rene! W 3325 M F mexz :nc-s HllK P‘" W ' LEIS mm ‘52 BI: v F We,“ W aucnuu ‘ v RDUT Pm W ' mm Yevm'mah'nn 5mm v r M Imegalinn mama: ‘53“: v RSER p‘ omen v y— E " TWSRW “ FRAME svuc— -LATCHED sums— FSynchxl None ' MmluMnd: unwed v Swen": man . L05 A‘s . ‘2 v I unr I HA] rERRﬂR RESPDNSE Swan/WI“?! Syryccmlﬂi FPS CW 3 I EDFA I FDV l‘ \maidatenn & v m: Shnnvuwﬂ I ALDS mnﬁmm Dﬂmns , Evaos Dan“ I’ \mmntﬂ/x I ”VE'EW‘W‘ lSZameeleclad I' \maﬂaleunLlﬂS l UnduEwaizad DUFCHluxa 2/4 :1. gm I’ mam: unUEIF Sand Lmuds] > -25 Heme New 9925 Damn-d F \rwaldalennA‘S I Fmamzzm BITS human ([1 mode) I; E} *5‘ENALI/El LILI HECE‘VEH >E1FRAMEH MELKSouvoe 2' Mn v new ‘7 HDBa P can LDS Ell-Hie 192le v wscma I I as any RUUTHn LW ' \mumﬂumiulinn Enabled v 2552mm v I I ERUUUF HSEH Pin mam . Imam 11 MFSym: -55M :4 us . “WED?“ ”5'"? ManlmMnde DlsaMed v ﬁnawF v FRAME SYNE RCLK Pu Law v {anon nEsmng— Sammy [an] 12 v 5,“ my“ ISao man man I‘ lnvaidele an It] was sham“. I ALEIS FAS Only . ISaﬁ mun um I’ ImammthF'Vs I me. swim, Aunt-H 9 last; man man '— Inveidale on LUS I um Equalwzed WW ' Isa man man I’ Imaidals an nor 5th mg [as] > .2 5 new": NW, ISaH [m l' Invaidala anAlS BITS Transmilter 1 (051 made) Q [g] ans Transmiller 1 ([1 mode) —SIENALIIU— 051 FDHMATTEH— —SIGNAL|/ﬂ— :FDHMATYER v HD33 TIN p," l—_'. P 3325 “N P‘" :1” F ant-4 ' YDLK F" v . TELK H" 1—H ormal V l' Tvansmit RAI m Dvsabled '- 15“ pm hwy. D H d l— Japmm EH64; mm Pin Disabbd . '— SnPass

DS3100DK

16

Figure 4-5. Software BITS Receiver Window (DS1 Mode)

Figure 4-6. Software BITS Receiver Window (E1 Mode)

Figure 4-7. Software BITS Transmitter Window (DS1 Mode and E1 Mode)

APPENDIX 2: BITS MODE WRITE SEQUENCES

DS3100DK

17 of 38

Table 4-8. Mapping Between BITS Software Fields and DS3100 Register Fields

SOFTWARE FIELD

DS3100 REGISTER FIELDS

BITS RECEIVERS, MAIN WINDOW

Mode

BMCR:RMODE, BCCR3:MCLKFC, BRMMR, BRCR1:RB8ZS,

BRCR1:RFM, BRCR3:RHDB3, BRCR3:RCRC4. See

APPENDIX 2: BITS MODE WRITE SEQUENCES for exact

write sequences for each mode.

Termination

BLCR3:RION, BLCR3:RIMP

Clock Dest

BCCR2:RCLKD

Left-Hand SSM Combo (E1 Only)

BRMCR:SSMCH

SSM Text Boxes

DS1 ESF: BTBOC:TBOC

E1: BRMSR, BRSSM:SSM

ALB

BLCR4:ALB

ALOS

BLIR1:LOS

OOF, AIS, RAI

BRIR1:OOF, AIS, RAI

BITS RECEIVERS, DS1 AND E1 WINDOWS

MCLK Source

BCCR3:MCLKS

RCLK Pin

BCCR3:RCEN, RCINV

ROUT Pin

BCCR3:ROEN, ROINV, ROUTS

RSER Pin

BCCR3:RSEN

FSync Dest

BCCR2:RSYNCD

Invalidate on X Zeros

BCCR5:ZEROS

Increment on BPVs

BCCR5:BPV

Invalidate on LOS

BCCR5:LOS

Invalidate on OOF

BCCR5:OOF

Invalidate on AIS

BCCR5:AIS

Reset Button

BLCR1:LIRST

LOS Criteria

BLCR1:LCS

Internal Termination

BLCR3:RION

Turns Ratio

BLCR3:RTR

Monitor Mode

BLCR3:RMONEN

Sensitivity (dB)

BLCR3:RSMS

Short Circuit

BLIR1:SC

ALOS

BLIR1:LOS

Over Equalized

BLIR1:OEQ

Under Equalized

BLIR1:UEQ

Signal Level (dB)

BLIR2:RL

BITS RECEIVERS, DS1 WINDOW ONLY

B8ZS

BRCR1:RB8ZS

Japanese CRC-6

BRCR1:RJC

Japanese RAI

BRCR2:RSFRAI

RAI Integration

BRCR2:RAIIE

Sync Time

BRCR1:SYNCT

Sync Criteria

BRCR1:SYNCC

Auto Resync

BRCR1:ARC, SYNCD

OOF Criteria

BRCR2:OOFC

Resync Now

BRCR1:RESYNC

BOC Rx Reset

BRBCR:RBR

BOC Filter

BRBCR:RBF

BOC Disint.

BRBCR:RBD

LOS

BRSR1:LOS

OOF

BRSR1:OOF

COFA

BRSR2:COFA

AIS

BRSR1:AIS

RAI

BRSR1:RAI

G Microsemi APPENDIX 2: BITS MODE WRITE SEQUENCES

DS3100DK

18

SOFTWARE FIELD

DS3100 REGISTER FIELDS

PDV

BRSR2:RPDV

8 Zeros Detected

BRSR2:8ZD

16 Zeros Detected

BRSR2:16ZD

SEFE

BRSR2:SEFE

B8ZS Detected

BRSR2:B8ZS

Frame Bit Error

BRSR2:FBE

BITS RECEIVERS, E1 WINDOW ONLY

HDB3

BRCR3:RHDB3

CRC-4

BRCR3:RCRC4

LOS Criteria

BRCR4:RLOSC

MF Sync

BRCR5:RMFS

Sync Criteria

BRCR3:FRC

Auto Resync

BRCR3:SYNCD

Resync Now

BRCR3:RESYNC

FAS OOF

BRIR2:FASSA (LED), BRSR3:FASRC (latched status button)

CAS OOF

BRIR2:CASSA (LED), BRSR3:CASRC (latched status button)

CRC4 OOF

BRIR2:CRC4SA (LED), BRSR3:CRCRC (latched status

button)

SSM Filter

BRMCR:SSMF

SSM SaX Latched Status Button

BRMSR:SaX

SSM SaX Value

BRSX4

BITS TRANSMITTERS, MAIN WINDOW

Mode

BMCR:TMODE, BTMMR, BTCR1:TB8ZS, BTCR3:TFM,

BTCR4:THDB3, BTCR4:TCRC4, 60, 61. See APPENDIX 2:

BITS MODE WRITE SEQUENCES for exact write sequences.

Termination

BLCR2:TION, BLCR2:TIMP

Clock Source

BCCR1:TCLKS

Left-and SSM Combo (E1 Only)

Indicates which of BTSa4–BTSa8 to use

Main SSM Combos

DS1 ESF: BRBOC:RBOC

E1: BTSa4–BTSa8

BITS TRANSMITTERS, DS1 AND E1 WINDOWS

TIN Pin

BCCR4:TIINV

TCLK Pin

BCCR4:TCEN, TCINV

TOUT Pin

BCCR4:TOEN, TOINV, TOUTS

MFS Source

BCCR4:TMFS

FSync Source

BCCR1:TSYNCS

Transmit AIS

BLCR4:TAIS

Line Build-Out

BLCR2:LBO

Open-Circuit

BLIR1:OC

Short-Circuit

BLIR1:SC

BITS TRANSMITTERS, DS1 WINDOW ONLY

B8ZS

BTCR1:TB8ZS

Transmit RAI

BTCR1:TRAI

Japanese CRC-6

BTCR1:TJC

Japanese RAI

BTCR2:TSFRAI

F-Bit Pass-Through

BTCR1:TFPT

CRC6 Pass-Through

BTCR1:TCPT

Pulse Density Enforce

BTCR2:TPDE

F-Bit Corruption 1

BTCR2:FBCT1

F-Bit Corruption 2

BTCR2:FBCT2

Insert BPV

BTCR3:IBPV

Loss of Tx Clock

BTSR1:LOTC

Pulse Density

BTSR1:TPDV

O Microsemi Tab‘e 479 Composite Cluck Receivers E] “ “:1 ":2 E v ECEDGE NanHz ! g F Inclementan But Ella! No 4UUH2 ! g F Invalldale on AMI F Invalldale on Lus Figure 478

DS3100DK

19

SOFTWARE FIELD

DS3100 REGISTER FIELDS

BITS TRANSMITTERS, E1 WINDOW ONLY

HDB3

BTCR4:THDB3

CRC-4

BTCR4:TCRC4

TS0 Pass-Through

BTCR4:TFPT

Si Pass-Through

BTCR4:TSiS

Insert BPV

BTCR3:IBPV

SiAF – Sa8 Checkbox

BTOCR:SiAF – Sa8

SiAF – Sa8 Text Box

BTSiAF – BTSa8

Loss of Tx Clock

BTSR1:LOTC

4.10 Composite Clock Receivers

The AMI and LOS fields are buttons that represent latched status bits in the device. When the button is red, the

corresponding latched status bit has been set in the DS3100. Pressing the button clears the latched status bit and

chnages the color of the button back to green. The AMI buttons indicate that a deviation from the expected one-

BPV-in-eight pattern has occurred since that button was last pressed. The LOS buttons indicate no pulses were

detected in the input signal in a 32µs period (i.e., after two missing pulses).

Clicking the More button opens another window (Figure 4-8) with additional composite clock configuration and

status fields. See Table 4-9 and the DS3100 data sheet for more details.

Figure 4-8. Software CC Receiver Window

Table 4-9. Mapping Between CC Software Fields and DS3100 Register Fields

SOFTWARE FIELD DS3100 REGISTER FIELDS

MAIN WINDOW

AMI

MSR3:AMI1, AMI2

LOS

MSR3:LOS1, LOS2

SUBWINDOW

No 8kHz

MSR4:IC1NO8, IC2NO8

No 400Hz

MSR4:IC1NO4, IC2NO4

CCEDGE

MCR5:CCEDGE

Increment on Bit Error

MCR5:BITERR

Invalidate on AMI

MCR5:AMI

Invalidate on LOS

MCR5:LOS

4.11 REFCLK Calibration

Any known frequency error in the local oscillator can be calibrated out inside the DS3100 by setting the ppm value

in the REFCLK box. Also the significant edge of the REFCLK signal can be selected in XOEDGE field.

Table 4-10. Mapping Between REFCLK Software Fields and DS3100 Register Fields

SOFTWARE FIELD DS3100 REGISTER FIELDS

REFCLK slider/text box

MCLKFREQ[15:0] in MCLK1 and MCLK2

O Microsemi Figure 479 RegisIeI View -Cl|ck a 799319! ID lead ll. DoubIe Dink a remake! KO Mlle K. [0010] ISRI as [0020] ICRl an [0030] VAICRI FF [I [0001] [[12 Inc [nun] ISRZ es [0021] ICRZ an [0031] VAICRZ 3F [I {0002] REV In [0012] [5R3 as {0022] ICR3 nu [nuaz] HCRI an [I [anus] TESTl [4 [0013] [5R4 as [0023] [CR-I nu [nuaa] MCRZ OF [I [noun —— an [0014] ISRS as [0024] ICRS us [0034] MCR3 I15 [I [0005] MSRl an [0015] ISRS es [0025] ICRE D3 [003;] mu an [I [anus] HSRZ an [nms] [5R7 an [0025] ICR7 na [mas] HCRS 02 [I {0007] FREQZl nu [nu17] HERA 2F {0027] ICRE 03 [0037] IFSR 02 Ll [uuua] “SR3 1U [UUIE] [PR1 32 [0025] ICR‘3 us [0038] MCRs 7}? [I [0009] OPSTATE 84 [0019] IPR2 54 [0029] ICRID 03 [0039] MCR7 08 [I [ﬂUﬂA] PTABl no [001A] [PR3 75 [002A] ICRll 03 [003A] I-[CRP cs [I [anus] PTAEIZ DE [00113] [PR4 93 {0023] ICR12 01 [was] HERB FEI Ll [uuuC] FREQI uu [001C] IPRS BA [002C] [(21213 Ell [uuaC] [Ian 99 [I [0000] FREQZ on [001D] [PR6 Dc [0020] [c1214 01 [003D] MCLKZ 99 [I [DUDE] VALSRI nn [ﬂﬂlE] [PR7 FE [0025] W on [003E] HOCRI on [I Lunar] VALSRZ 30 [nun-'1 -— an {unzn —— nu mun-'1 [mm on [I « _>J -UiI:k a "gnu held In [sad i Double nick a Insists |n mu: iI |[unnu1|m Device Idanlihcahnn Hegslel, LSB [m ReadAll | 00011100

DS3100DK

20

XOEDGE

MCR3:XOEDGE

4.12 Register View Window

When the Register View button in the upper-right corner of the main window is pressed, the Register View window

appears (Figure 4-9). In this window the DS3100’s entire register set can be viewed and manually written as

needed.

The large grid that takes up most of the window displays the DS3100 register map. For each register, its

hexadecimal address in square brackets is followed by its register name and its contents in 2-digit hex format. The

DS3100’s core register space is 00h to 7Fh, its BITS transceiver 1 register space is 80h to FFh, and its BITS

transceiver 2 register space is 100h to 17Fh. To distinguish between BITS1 and BITS2 registers, all BITS1 register

names start with “B1” and all BITS2 register names start with “B2.”

When a register is clicked in the main register grid, its register description and fields are displayed at the bottom of

the window. Due to the limited speed of the serial port, the demo kit software does not continually poll every

register and does not make real-time updates to the data displayed on the Register View screen. Registers can be

manually read as described below.

The Register View window supports the following actions:

• Read a register. Select the register in the register map.

• Read a register field. Select the register in the map or the register field at the bottom of the window.

• Read all registers. Press the Read All button.

• Write a register. Double-click the register name in the register map and enter the value to be written.

• Write a register field. Select the register, double-click the field, and enter the value to be written.

• Write a multiregister field. Double-click one of the register names and enter the value for the field.

Figure 4-9. Software Register View Window

O Microsemi

DS3100DK

21

4.13 Configuration Scripts and Log File

4.13.1 Configuration Log File

Every write command issued by the software to the DS3100DK board is logged in file DS3100DKLog.mfg located

in the same directory as the software executable. This file can be viewed in Notepad by pressing the Log File

button in the upper-right corner of the main window. Command line option "-l <filepath>" can be used to cause the

software to write to a file other than DS3100DKLog.mfg.

4.13.2 Configuration Scripts

All or part of the text in the Configuration Log File can be copied to a text file with a .mfg file extension for use as a

configuration script. Configuration scripts are useful for quickly configuring the DS3100 without having to remember

all the required settings.

Two types of configuration scripts are possible: full and partial. A full configuration script can start with the DS3100

in its power-on default state and configure every aspect of the device to bring it to a desired state. To make a full

configuration script, run the software, uncheck the Demo Mode checkbox, configure the device using the DK

software fields, press the Log File button, and use File → Save As in Notepad to save a copy of the entire log file to

a different file name.

A partial configuration file only affects a subset of the DS3100 device settings. To make a partial configuration

script, press the Log File button to view the Log File, press Ctrl-End to jump to the end of the file, and add to the

end of the file a carriage return or comment line (starting with a semicolon) to delimit the start of the configuration.

Save and exit the Log File. Next, configure the device using the DK software fields (including Register View writes

as needed). Finally, view the log file again, jump to the end, and copy everything from the delimiter you made

earlier to the end of the file into a new .mfg file.

To run a configuration script, press the Config Script button in the upper-right corner of the main window. In the

script window, type the path to the file or press the Browse button to navigate to the file. Note that the browser

window does not display the files and folders on the Desktop other than My Documents and My Computer. These

files and folders can be found under My Computer under c:\Documents and Settings\<username>\Desktop.

Note that when the Demo Mode checkbox is unchecked, during the "Initializing the DS3100" step, the software

runs configuration script startup.mfg located in the same directory as the software executable. Startup.mfg can be

edited or replaced as needed to change the initial configuration of the device.

G Microsemi

DS3100DK

22

5. APPENDIX 1: HARDWARE COMPONENTS

DESIGNATION QTY DESCRIPTION SUPPLIER PART

C1, C2, C3, C8, C42,

C59–C138, C140,

C142, C143, C145,

C147, C149, C151,

C155, C163–C166,

C168, C169

99 0.1µF ±20%, 16V X7R ceramic capacitors (0603) AVX 0603YC104MAT

C4, C5, C6, C27 4 Ceramic capacitors (0805)

DO NOT POPULATE

— —

C6 1 470pF ±5%, 50V CGO ceramic capacitor (0805) AVX 08055A471JAT

C7 1 68µF ±20%, 16V tantalum capacitor (D case) Panasonic ECS-T1CD686R

C13, C14, C16, C41 4 4.7µF ±10%, 25V X5R ceramic capacitors (1206) Panasonic ECJ-3YB1E475K

C17, C18, C20 3 6.8µF ±10%, 6.3V X5R ceramic capacitors (1206) Panasonic ECJ-3YB0J685K

C28, C29 2 560pF ±5%, 50V NPO ceramic capacitor (0805) Panasonic ECJ-2VC1H561K

C34–C38, C51–C58,

C139, C141, C153,

C154

17 10µF ±20%, 10V ceramic capacitors (1206) Panasonic ECJ-3YB1A106M

C39, C40 2 22pF ±10%, 100V ceramic capacitors (1206) AVX Corp. 12061A220KAT2A

C43 1 1µF ±10%, 16V ceramic capacitor (1206) Panasonic ECJ-3YB1C105K

C48, C49 2 0.47µF ±10%, 16V ceramic capacitors (0805) Panasonic ECJ-2YB1C474K

D1 1 1A, 50V general-purpose silicon diode

Vishay

General

Semiconductor

1N4001

D7 1 1A, 40V Schottky diode International

Rectifier

10BQ040

DS1–DS4 4 Green LEDs (SMD) Panasonic LN1351C

DS5–DS10 6 Red LEDs (SMD) Panasonic LN1251C

DS16 1 Green LED (SMD) Panasonic LN1351C

J1, J2 2 6-pin socket strip (single row, vertical) Samtec SS-106-TT-2-N

J3 1 2.1mm/5.5mm closed frame power jack, high

current (right angle PCB, 24VDC at 5A)

CUI Inc. PJ-002AH

J6–J12, J20–J41 29 5-pin vertical SMB connectors (50Ω) AMP 413990-1

J13 1 Red socket (banana plug, horizontal) Mouser 164-6219

J14 1 5-pin vertical SMB connector (50Ω)

DO NOT POPULATE

AMP 413990-1

J15 1 10-pin terminal strip (dual row, vertical) Samtec TSW-105-07-T-D

J19 1 Black horizontal banana plug socket Mouser 164-6218

J50 1 DB9 right-angle connector (long case) AMP 747459-1

J51 1 10-pin terminal strip (dual row, vertical) — —

J54 1 USB Type B black connector (right angle) Molex 67068-0000

J55, J56, J85, J86,

J89, J90, J117 7 Bantam jack connectors (right angle) Switchcraft RTT34B02

G Microsemi

DS3100DK

23

DESIGNATION QTY DESCRIPTION SUPPLIER PART

J57, J58, J83, J84 4 5-pin BNC connectors (50Ω, right angle) Trompeter CBJR220

JMP1–JMP5, JMP8,

JMP9, JMP11, JMP12,

JMP36, JMP37

11 2-pin vertical headers, 0.100" centers Samtec TSW-102-07-T-S

JMP6, JMP7, JMP10,

JMP62, JMP63 5 3-pin vertical headers, 0.100" centers Samtec TSW-103-07-T-S

R1 1 10kΩ ±5%, 1/10W resistor (0805) Panasonic ERJ-6GEYJ103V

R2, R3, R6, R7, R9,

R11, R16-R18

9

Resistors (0603)

DO NOT POPULATE

— —

R4, R5, R8, R10, R12-

R14, R20, R25, R42,

R46, R84, R91, R92,

R95-R97, R110, R113,

R115, R116, R120-

R123

25 10kΩ ±5%, 1/16W resistors (0603) Panasonic ERJ-3GEYJ103V

R15, R22, R23, R24,

R41, R43, R45,

R47,R49, R51, R53,

R55, R80, R81, R111,

R112, R117, R118

18 0Ω ±1%, 1/16W resistors (0603) AVX CJ10-000F

R19, R21, R40, R44 4 1.0kΩ ±5%, 1/16W resistors (0603) Panasonic ERJ-3GEYJ102V

R26, R27, R48, R50,

R52

5 470Ω ±5%, 1/16W resistors (0603) Panasonic ERJ-3GEYJ471V

R28 1 33.2Ω ±1%, 1/16W resistors (0603) Panasonic ERJ-3EKF33R2V

R29–R35, R59–R68 17 51.1Ω ±1%, 1/16W resistors (0603) Panasonic ERJ-3EKF51R1V

R36–R39, R94, R108 6 330Ω ±5%, 1/16W resistors (0603) Panasonic ERJ-3GEYJ331V

R54, R56, R57, R58,

R74, R77, R89, R90 8 0Ω ±5%, 1/8W resistors (1206) Panasonic ERJ-8GEYJ0R00V

R69, R72 2 110Ω ±1%, 1/10W resistors (0805) Panasonic ERJ-6ENF1100V

R70, R93 2 10.0Ω ±1%, 1/10W resistors (0805) Panasonic ERJ-6ENF10R0V

R71, R73 2 13.0Ω ±1%, 1/10W resistors (0805) Panasonic ERJ-6ENF13R0V

R75, R76 2 90.9Ω ±1%, 1/10W resistors (0805) Panasonic ERJ-6ENF90R9V

R78 1 357Ω ±1%, 1/10W resistor (0805) Panasonic ERJ-6ENF3570V

R79 1 301Ω ±1%, 1/10W resistor (0805) Panasonic ERJ-6ENF3010V

R82, R83 2

0.0

Ω

±

5%, 1/10W resistors (0805)

Panasonic ERJ-6GEY0R00V

R85–R88 4

Resistors (0805)

DO NOT POPULATE

— —

SW5 1 4-pin single-pole switch Panasonic EVQPAE04M

SW6 1 6-pin, through-hole, DPDT slide switch Tyco SSA22

SW7, SW8, SW9 3 3-pin, through-hole, SPDT slide switches Tyco SSA12

T1, T2 2 16-pin SMT T1 transformers

(1CT:1CT and 1CT:2CT, 1500V)

Pulse

Engineering

PE-68678

T3 1 12-pin dual SMT transformer

(64kbps, 1CT:2CT, 1500V) Pulse

Engineering T7015

T4 1 64kbps interface transformer

(1CT:1CT, 1500V, 6-pin DIP) Pulse

Engineering PE-65540

TP1–TP10, TP18–

TP42, TP49–TP61,

TP65–TP84

68 1 plated hole test points

DO NOT STUFF — —

U1 1 High-frequency, surface-mount socket

(1mm, 256-pin BGA) Ironwood

Electronics SG-BGA-6017

G Microsemi

DS3100DK

24

DESIGNATION QTY DESCRIPTION SUPPLIER PART

U2, U3, U5, U7,

U9–U26 22 TinyLogic ultra-high-speed 2-input OR gates

(5-pin SOT23) Fairchild

Semiconductor NC7SZ32M5

U4, U6 2 3.3V linear regulator

(16-pin TSSOP-EP) Maxim MAX1793EUE-33

U8 1 1.8V linear regulator

(16-pin TSSOP-EP) Maxim MAX1793EUE-18

U27 1 3-line to 8-line decoder/demultiplexer

(16-pin SO ) Texas

Instruments SN74HC138NSR

U41 1 Dual RS-232 transmitter/receiver

(16-pin, 300-mil SO) Maxim DS232AS

U42 1 High-speed microcontroller

(44-pin TQFP, 0°C to +70°C) Maxim DS87C520-ECL

U44 1 Microprocessor voltage monitor (3.08V reset

threshold) (4-pin SOT143) Maxim MAX811TEUS-T

U45 1 Microprocessor voltage monitor (4.38V reset

threshold) (4-pin SOT143) Maxim MAX812MEUS-T

U46 1 Single-chip USB to UART bridge

(28-pin QFN) Silicon

Laboratories CP2101

Y1 1 3.3V, 12.8MHz OCXO (5-pin) through-hole

DO NOT POPULATE Vectron MC853X4-035W

Y2 1 3.3V, 12.8MHz TCXO (4-pin SMD) Vectron C2260A1-0028

Y3 1

3.3V, 12.8MHz OCXO (4-pin SMD)

DO NOT POPULATE

Vectron C4400A1-0044

Y7 1 Low-profile 11.0592MHz crystal Pletronics LP49-33-11.0592M

G Microsemi

DS3100DK

25

6. APPENDIX 2: BITS MODE WRITE SEQUENCES

BITS Transmitter

DS1 ESF

address 04h, set TMODE[1:0]=00

address 21h, write 02h

address 21h, write 00h

address 27h, write 0Ch

address 29h, write 00h

address 21h, write 80h

address 21h, write C0h

DS1 SF/D4

address 04h, set TMODE[1:0]=00

address 21h, write 02h

address 21h, write 00h

address 27h, write 0Ch

address 29h, write 04h

address 21h, write 80h

address 21h, write C0h

E1

address 04h, set TMODE[1:0]=01

address 21h, write 02h

address 21h, write 00h

address 29h, write 00h

address 2Ah, write 05h

address 21h, write 81h

address 21h, write C1h

address 60h, write 1Bh

address 61h, write 40h

2048kHz

address 04h, set TMODE[1:0]=10

address 21h, write 02h

address 21h, write 00h

BITS Receiver

DS1 ESF

address 04h, set RMODE[1:0]=00

address 0Ah, write 40h

address 20h, write 02h

address 20h, write 00h

address 22h, write 40h

address 20h, write 80h

address 20h, write C0h

DS1 SF/D4

address 04h, set RMODE[1:0]=00

address 0Ah, write 40h

address 20h, write 02h

address 20h, write 00h

address 22h, write 60h

address 20h, write 80h

address 20h, write C0h

E1

address 04h, set RMODE[1:0]=01

address 20h, write 02h

address 20h, write 00h

address 24h, write 68h

address 20h, write 81h

address 20h, write C1h

2048 kHz

address 04h, set RMODE[1:0]=10

address 20h, write 02h

address 20h, write 00h

6312 kHz

address 04h, set RMODE[1:0]=11

address 20h, write 02h

address 20h, write 00h

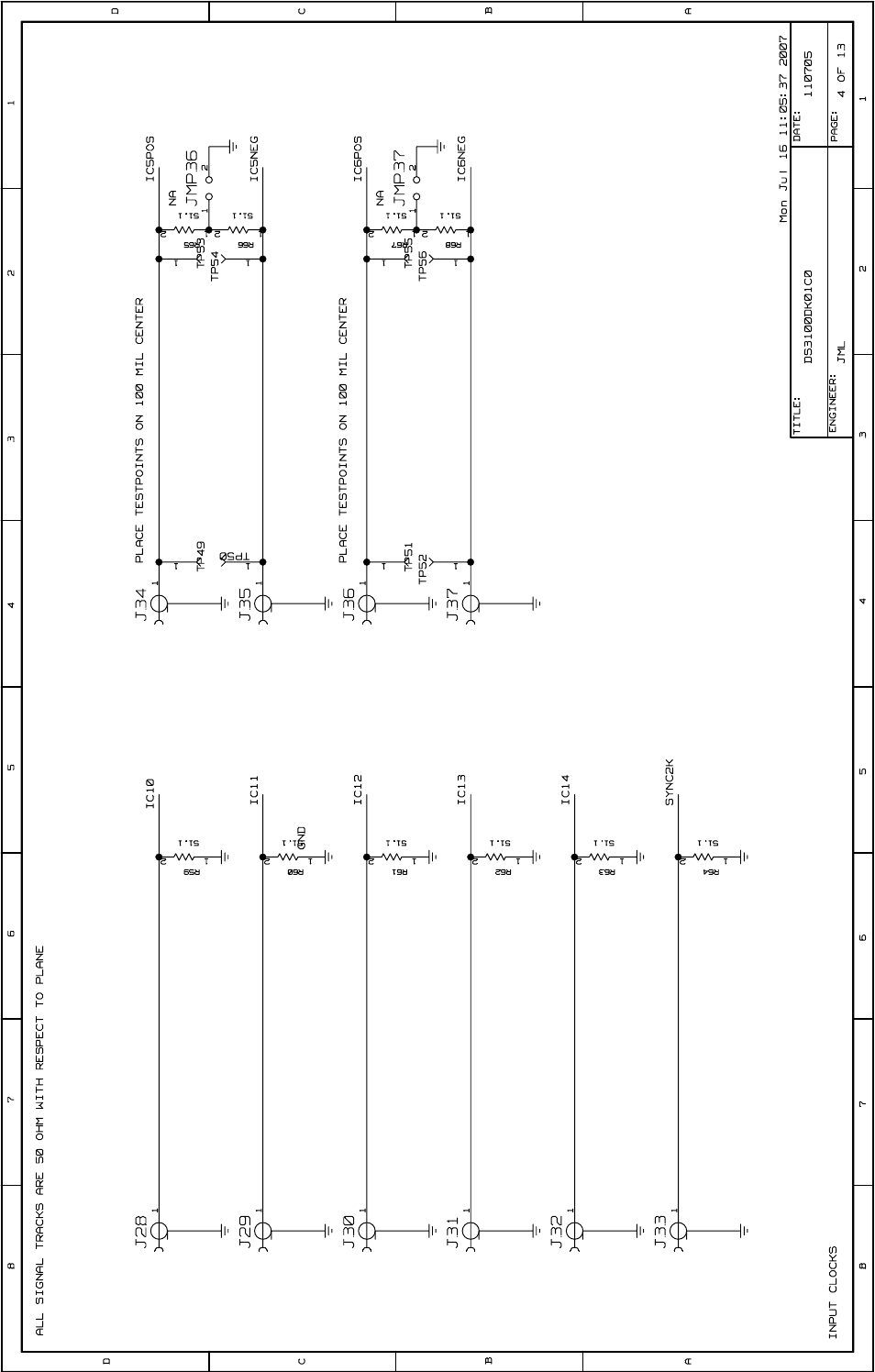

7. SCHEMATICS

The DS3100DK schematics are featured in the following 13 pages.

8. DOCUMENT REVISION HISTORY

REVISION

DATE

DESCRIPTION

091806 Initial DS3100DK data sheet release.

110206

Updated document to describe software v0.7 features: (page 1) Features section; (page 6)

Section 3.1; (page 14) Section 4.12; (page 15) added Section 4.13, 4.13.1, 4.13.2; updated

table captions.

040507 Updated document for sentence clarification (pages 6, 7, 13, and 14).

052307

Updated document to describe changes and new features of software revision 0.8; added USB

support.

071807

Added screen shots of the software windows and updated document to describe new features

of software revision 1.0.

2012-05 Reformatted for Microsemi. No content change.

. N m w m m r 2 no A A5 Human Emmznuzm ‘ mag: EEXEEED Es 9E rSEN Snumj: ma 7i. r5: mm mm: LmamnEE mg 5 s A I x x A A A A : A M o A A A A x o A w “Ema A “SEXY: AA 92?? E5 5. a m a W mm , y y y a y A if? %4:T;m, A?“ :ixiu: a o :ummz: $2.29“: .515 . w w m u u u . . n ma ﬂou‘imiz m «N w . m A , , , > m: mzm n e u m 5% ‘ m E 5 A5 38% ‘5 .3 Ba 5 mum a; Funm Axum m3 :3: Li M mum m5 AME: As; A m ram/5m NDKIde‘ x‘um‘nmvnz rxm {E Emitua Eulm ﬂag ‘ 2!. NE y y :84 a a E84 saw AoEzoo NC. A , $1 an m as m wmzﬂo‘ﬁ ﬁzmuu ajwssammnﬁ E: 49:: ms nu Wonmuo‘ w: Bo R: 8250 G “2 #3 monsolmﬁ is a: 6183‘: Ea: mama‘s Ages was. ‘ w muo‘a ﬂ Em: A any i wan. Go a GA 5 %§ § . A \ mg m 3 EUR \ “U04 So am: mama A A A A A A A A A A A A N: ‘5: Em A; :AAAAAAAA:mAAxA m“ a auamawanamawawmmﬂwm a. a M n K 1 “A V m y . 1 m w s s awn. m a M A w m m m m c GE :E mmntmupvmﬁmﬁ A a m m m m as: SEEK: m5: “ELK”: a}. _ n m w m p

INTEL MUX

Mon Jul 16 11:12:10 2007

SRFAIL

IFSEL2

IC2A

IC7

IC8

MASTSLV

SONSDH

MASTSLV

WDT

10K

330

.1UF

RED

0.0

10K

OC2

OC1

OC7NEG

OC7POS

OC6POS

OC5

OC4

IC1

IC2

IC3

IC6POS

IC5POS

IC5NEG

IC10

IC11

GPIO2

JTCLK

JTRST

JTDI

NC3

NC2

NC1

INTREQ

RDY

IFSEL0

HIZ

PORNOT

WDT

CS_3100

SRCSW

NA

JTDO

IC1A

SONSDH

INTREQ

OC9

SRCSW

OC3

OC8POS

OC10

AD3

AD4

AD5

AD6

AD7

REFCLK

ALE

WR

RD

A8

GPIO3

TM2

TM1

OC6NEG

JTMS

AD7

10K

IFSEL0

DNP

10K

IFSEL2

DNP

10K

IFSEL1

DNP

IC13

IC4

OC8NEG

DNP DNP

IFSEL1 GPIO1

AD2

AD1

AD0

OC11

U1

H16

H15

G16

H14

G15

F16

G14

F15

E16

E15

D16

C16

D15

C15

E14

D14

C14

K14

J16

E2

F3

H2

J1

R14

A10

B10

C10

A11

B5

B4

B11

C11

A12

B12

A13

C12

B13

P6

P7

A5

N1

N2

P1

A15

R8

R9

P9

T9

T8

R11

P12

C13

F14

C6

A7

B7

C7

A8

B3

C2

C8

A9

B9

C9

A3

C1

B8

J14

B15

H1

T7

B6

M3

M2

J2

B14

T15

R6

L14

T6

K16

R7

K15

P2

R15

N3

P13

P3

P14

C5

J15

R1

1

2

1

R80

1

2

1

2

1

R9

1

2

R7

1

2

R97

1

2

R94

1

2

C8

1

2

DS10

1

2

1

2

SW7

1

2

3

SW8

1

2

3

SW9

1

2

3

R12

1

2

R8

1

2

R83

1

R10

1

2

R84

1

2

R82

1

2

R98

1

2

R91

1

2

R92

1

2

R99

1

2

DS3100DK01C0

JML

110705

1OF 13

A4

R81

R13

A14

SYNC2K

IC14

IC12

IC9

IC6NEG

0.0

2

AD6

RESREF

GPIO4

TP28

TP1

TP2

TP3

TP4 TP5

DNP

2

1

R95

10K

R96

10K

TP29

TP31

TP36

TP37 TP38

TP39 TP40

TP41

TP42

TP61

1

TP34

TP32

CONTROL

DS3100_U1

SRCSW

SRFAIL

ALE

WR_RW*

CS*

WDT

SONSDH

MASTSLV

IFSEL<2>

JTDO

RESREF

REFCLK

RST*

HIZ*

IFSEL<0>

IFSEL<1>

RD_DS*

RDY*

INTREQ

NC1

NC2

NC3

JTDI

JTRST*

JTCLK

JTMS

AD<4>

AD<5>

AD<6>_CPHA

GPIO1

GPIO3

GPIO2

GPIO4

TM1

TST_RA1

TM2

TST_RB2

TST_RB1

TST_RA2

TST_RC2

TST_RC1

TST_TA2

TST_TA1

TST_TC1

TST_TB2

TST_TB1

TST_TC2

A<1>

IC14

IC13

IC11

IC12

IC10

IC8

IC9

IC6NEG

IC7

IC5NEG

IC5POS

IC6POS

IC3

IC4

IC2

IC1A

IC2A

IC1

SYNC2K

A<0>

A<8>

A<5>

A<7>

A<6>

A<3>

A<4>

A<2>

OC3

OC4

OC5

OC6POS

OC6NEG

OC7POS

OC7NEG

OC8POS

OC8NEG

OC9

OC10

AD<0>_SDO

AD<1>_SDI

AD<2>_SCLK

AD<3>

AD<7>_CPOL

OC1

OC2

OC11

VCC

SPDT

VCC

PAGE:

DATE:

TITLE:

ENGINEER:

A A

B B

C C

DD

1

2

3

4

45

56

6

7

8

m m w r m a; "$125 $528 V EEXEEED ma: ER 33:: E m u (z w NEE? as SEE x Nznpmnn x: P x 92:5 SE SE Egan”. 45;; a 55 mama a mu; wan: x s 3.. if? V 33 $25 9 g a . :2, E Es: mate 5. i‘jig mugynnanziigﬁg 5 Er 57:3 x #9:”: i h gm Nanf : Eon mm 4, Nmanp «7 an“: \ A; 4 urn #3 Emammﬂ : a a a w“: 3 a; V V w T 3 am 128 V ,2 : P E E m n; mu % m nzu a win 4. d V . 2 m 3 gamma m: m 3 J V A m2 ‘ x « mu x m a m z . ﬁn :r 31% $71.63 m : “is: l 2:. mm; mm P x :2: .r 59% :33 ”mm m E mmmmmmmmmmmmmmmmmmmmmmmm an; :3. V 3 xi ; :31 x DE m S gawmmﬂmgngnmmﬂmmmmmm WE Eur: v m! a! 1:3: a» m 3 Hr. . y a as .855 a E“? SE V V k V V .KuZHwC mn no 3» 9:3 unquZHmu sw« m u u u 1‘ ‘C 5:: ,V g a :5: WT... :7 u: mnkjn aqua“ «at» Fuou niniwﬂpu w, um mm mm Swamammm A A A A u u u u ,u ,u ,u ,u E“ S c c = c 33 w w w 1 Etc 11 w w w 1 if v g a V HE R w m p a

DS3100DK01C0

Mon Jul 16 11:14:08 2007

110705

2OF 13

JML

AVDD_PLL1

AVDD_PLL2

AVDD_PLL3

AVDD_PLL4

0.0

2

1

R13

2

1

R14

1

TP18

1

TP10

1

R15

1

R22

1

R23

1

R24

2

1

C163

2

1

C164

2

1

C165

2

1

C166

1

TP9

1

TP7

1

TP8

1

TP6

6

5

4

3

2

1

J2

6

5

4

3

2

1

J1

D3

A2

C4

E12

E5

E4

D13

T16

T1

N13

N12

N5

N4

M13

D12

M12

M5

M4

L11

L10

L9

L8

L7

L6

K11

D5

K10

K9

K8

K7

K6

J11

J10

J9

J8

J7

D4

J6

H11

H10

H9

H8

H7

H6

G11

G10

G9

A16

G8

G7

G6

F11

F10

F9

F8

F7

F6

E13

A1

G4

E10

E9

E8

E7

D10

D7

R16

R1

N10

N7

M10

M9

M8

M7

K13

B16

K12

K5

K4

J12

J5

H12

H5

G13

G12

G5

B1

C3

B2

A6

F12

F5

F4

E11

E6

D11

D9

N11

N9

N8

N6

M11

D8

M6

L13

L12

L5

L4

J13

J4

H13

H4

F13

D6

N14

P4

M16

R4

M14

P5

M15

T4

P8

H3

G3

G2

E3

D2

G1

F1

E1

D1

U1

N16

N15

T13

P16

P15

P11

R12

T14

T12

L16

T11

L15

P10

R10

T10

U1

T3

R3

L3

T2

R2

M1

L1

K3

L2

T5

J3

R5

K2

K1

F2

U1

NA

DUT18

NA

RTIP2

RRING2

TTIPA2

TRINGA2

THZE2

TTIPA2

ROUT2

RCLK2

MCLK2

RSER2 TSER2

TOUT2

TIN2

TCLK2

NA

RTIP1

RRING1

TTIPA1

TRINGA1

THZE1

TTIPA1

ROUT1

RCLK1

MCLK1

RSER1 TSER1

TOUT1

TIN1

TCLK1

DUT33

10K

RSER2

ROUT2

TSER2

RCLK2

TIN2

NA

RSER1

ROUT1

TSER1

RCLK1

TIN1

I31

I14

I30

.1UF

AVDD_PLL4

.1UF

AVDD_PLL3

AVDD_PLL1

AVDD_PLL2

I15

DUT33

GND

PAGE:

DATE:

TITLE:

ENGINEER:

A A

B B

C C

DD

1

2

3

4

45

56

6

7

8

3

2

1

6

CONN_6P_U

5

4

3

2

1

6

CONN_6P_U

5

4

DS3100_U1

PWR &GND

VDD3

VDD2

VDD1

VDDIO6

VDDIO7

VDDIO8

VDDIO9

VDDIO11

VDDIO10

VDDIO12

VDDIO13

VDDIO16

VDDIO14

VDDIO15

VDDIO18

VDDIO17

VDDIO19

VDDIO20

VDDIO21

VDDIO22

VDDIO23

VDDIO24

VDDIO25

VDDIO26

VDDIO27

VDDIO28

VSS1

VSS2

VSS4

VSS3

VSS7

VSS6

VSS5

VSS9

VSS8

VSS10

VSS11

VSS12

VSS13

VSS14

VSS15

VSS16

VSS17

VSS18

VSS19

VSS20

VSS22

VSS21

VSS24

VSS23

VSS25

VSS26

VSS28

VSS27

VDDIO5

VDD_OC7

VDD_OC6

VDD_ICDIFF

TVDD_P2

TVDD_P1

RVDD_P2

RVDD_P1

DVDD

AVDD_PLL4

AVDD_PLL2

AVDD_PLL3

AVDD_PLL1

VDD24

VDD23

VDD22

VDD21

VDD20

VDD17

VDD16

VDD11

VDD9

VDD10

VDD8

VDD7

VDD6

VDD5

VDD4

VSS55

VSS56

VSS54

VSS53

VSS52

VSS51

VSS50

VSS49

VSS48

VSS47

VSS46

VSS45

VSS44

VSS43

VSS42

VSS41

VSS40

VSS39

VSS38

VSS37

VSS36

VSS35

VSS34

VSS33

VSS32

VSS31

VSS30

VSS29

DVSS

VSS_OC7

VSS_OC6

VSS_ICDIFF

TVSS_P2

TVSS_P1

RVSS_P2

RVSS_P1

AVSS_PLL4

AVSS_PLL3

AVSS_PLL2

AVSS_PLL1

VDDIO1

VDDIO2

VDDIO3

VDDIO4

VDD12

VDD13

VDD14

VDD15

VDD19

VDD18

DS3100_U1

PORT

RTIP

RRING

TTIPB

TRINGA

TRINGB

THZE

TTIPA

ROUT

RCLK

MCLK

RSER TSER

TOUT

TIN

TCLK

DS3100_U1

PORT

RTIP

RRING

TTIPB

TRINGA

TRINGB

THZE

TTIPA

ROUT

RCLK

MCLK

RSER TSER

TOUT

TIN

TCLK

m JE. "Suzaﬁ mars: Qua muExumEmmu mat msmw mvuaum. 5 mm: um: m2 mu” EH «2 WE m8 Gm mm N . J a; v: myuod :37: m ‘ “so my: men M :wmmavma E 5% E5 2 « own) #35 m : m5. 6?; 7 ‘ a‘hm mm: a; Nxxm .E 9 mmumo :93 e. :m E‘ 223% w m > ) Lmdxzm .E . as E1 fubu an F7 aquuma h N > ‘Nxzm .m. 135:de 2; E E E‘ m ﬁznam mmumo A y % .m‘Nxzm .m‘ sza 9 Cunmmz ES :5 sm WE €65: ézEm jc m p a

ALL SIGNAL TRACKS ARE 50 OHM WITH RESPECT TO PLANE

INPUT CLOCKS

Wed May 10 13:21:45 2006

DS3100DK01C0

JML

110705

3OF 13

2

1

R102

2

1

C21

2

1

C15

2

1

R101

2

1

R100

2

1

C12

2

1

C19

2

1

C11

2

4

16

3

12

13

5

14

1

11

15

U29

1

J14

2

1

R16

2

1

R18

14

8

7

1

Y3

4

1

3

2

Y2

5

1

2

Y1

2

1

C3

2

1

R11

2

1

C2

2

1

R28

2

1

C1

2

1

R17

2

1

R35

1

J12

2

1

R34

1

J11

2

1

R33

1

J10

2

1

R32

1

J9

2

1

R31

1

J8

2

1

R30

1

J7

2

1

R29

1

J6

DNP

12.8MHZ

DNP

IC9

IC8

IC7

IC4

IC3

IC2

IC1

51.1 51.1 51.1 51.1 51.1 51.1 51.1

DNP

12.8MHZ_3.3V

.1UF

33.2

.1UF

12.8MHZ_3.3V

OSC33

REFCLK

DNP

.1UF

OSC33

PAGE:

DATE:

TITLE:

ENGINEER:

A A

B B

C C

DD

1

2

3

4

45

56

6

7

8

VCC

OSC_OCXO

RF_OUT

EFC

GND

RF_OUT

OSC_TCXO

VC VS

GND

OSC_MC853X4

GND

RF_OUT

SUPPLY_V

DS4026_U

VOSC

VCCD

VCC

VREF

GNDOSC

GNDA

GND

GNDD

FOUT

SCL

SDA

momma” nmEuu d: m5 :0 mEHoEmE mu; E8 mzmﬁ o» Emummm 1:: :10 mm mg @0un . N m w m m r m 2 he a 45 DER amzaé wood 5qu 3E: 5.535% 9% ma: ER 5mg": 5 E E: K x316 mmm aquH mmm 1% q a m y umzmun ., a ,x ,.. . mCH . ‘ q a nmm Hmm a man Nmn» \ \ H y 5 mm L .m p 5 a \ rmuz, q a ‘ E «Z v V , , . momma NE ”MENU #2 an“ :0 mESEWE “a; wmh Ema u % nzya a mnh a w m p quuHm jq

INPUT CLOCKS

PLACE TESTPOINTS ON 100 MIL CENTER

ALL SIGNAL TRACKS ARE 50 OHM WITH RESPECT TO PLANE

Mon Jul 16 11:05:37 2007

DS3100DK01C0

JML

110705

4OF 13

J28

51.1

1

TP56

1

TP55

1

TP54

1

TP53

1

J37

1

TP52

1

TP51

1

J36

2

1

R68

2

1

R67

2

1

JMP37

2

1

JMP36

1

TP50

1

TP49

1

J35

2

1

R66

1

J34

2

1

R65

1

J33

1

J32

1

J31

1

J30

2

1

R64

2

1

R63

2

1

R62

2

1

R61

2

1

R60

1

J29

1

2

1

R59

GND

SYNC2K

IC14

IC13

IC12

IC11

IC10

IC6NEG

IC6POS

IC5NEG

IC5POS

51.1 51.1 51.1 51.1 51.1

51.1 51.1

NA

51.1 51.1

NA

PAGE:

DATE:

TITLE:

ENGINEER:

A A

B B

C C

DD

1

2

3

4

45

56

6

7

8

N m w n JE. "Suzaﬁ mmmmmm Qua muExumEmmu mat msmw masts. 5 Us Em» 2:9 mm Em: :10 mm a: 55mm in as. 20 353me main V umzrua mmnp E: rm m. H moupuo omzmuo moumuo mmNmPULﬁ mz mmwmpuz A mac :9 5% Ram: Eu) Em) Em) Lzo L5 L15 on L10 sm am am mm mm SNH mnNnruz mmuod 532a mun mus Ea muo muo

OUTPUT CLOCKS

PLACE TESTPOINTS ON 100 MIL CENTER

DS3100DK01C0

Thu Oct 13 10:14:03 2005

JML

092205

5OF 13

1

TP58

1

TP57

1

TP60

1

TP59

1

J39

1

J38

1

J41

1

J40

4

2

1

U24

2

1

R55

4

2

1

U23

4

2

1

U22

4

2

1

U21

2

1

R53

1

J26

1

J27

4

2

1

U20

4

2

1

U19

2

1

R51

1

J25

4

2

1

U18

4

2

1

U17

2

1

R49

1

J24

4

2

1

U16

4

2

1

U15

2

1

R47

1

J23

4

2

1

U14

4

2

1

U13

2

1

R45

1

J22

4

2

1

U12

4

2

1

U11

2

1

R43

1

J21

2

1

R41

4

2

1

U10

4

2

1

U9

1

J20

NA

50 OHM VERT

OC6POS

OC6NEG

OC7POS

OC7NEG

50 OHM VERT

I116

I115

I114

I113

I111

I109

I107

I105

OC11

OC10

OC9

OC5

OC4

OC3

OC2

OC1

0.0

50 OHM VERT

0.0

50 OHM VERT

0.0

50 OHM VERT

0.0

PAGE:

DATE:

TITLE:

ENGINEER:

A A

B B

C C

DD

1

2

3

4

45

56

6

7

8

NC7SZ32

AC

B

NC7SZ32

AC

B

NC7SZ32

AC

B

NC7SZ32

AC

B

NC7SZ32

AC

B

NC7SZ32

AC

B

NC7SZ32

AC

B

NC7SZ32

AC

B

NC7SZ32

AC

B

NC7SZ32

AC

B

NC7SZ32

AC

B

NC7SZ32

AC

B

NC7SZ32

AC

B

NC7SZ32

AC

B

NC7SZ32

AC

B

NC7SZ32

AC

B

m a m M m mm m a F m E s. x E. a E WA WI DH HAM? MW?) m a a a a o a a

GPIO

JML

092205

6OF 13

DS3100DK01C0

Thu Oct 13 10:14:03 2005

2

1

R25

2

1

JMP2

4

2

1

U7

2

1

R21

2

1

DS6

2

1

R27

2

1

R46

2

1

DS8

2

1

R50

4

2

1

U25

2

1

JMP4

2

1

R44

2

1

R20

2

1

JMP1

4

2

1

U3

2

1

R19

2

1

DS5

2

1

R26

2

1

R42

2

1

DS7

2

1

R48

4

2

1

U2

2

1

JMP3

2

1

R40

2

1

JMP5

2

1

DS9

2

1

R52

4

2

1

U26

GPIO1

I19

I15

RED

I8

470

I35 I25

I1

I9

1.0K

SRFAIL

GPIO4

GPIO3

GPIO2

10K

RED

I36

I31 I27

I24

I20

I11

I5

I4

470

RED

1.0K

470

10K

1.0K

470

RED

10K

470

RED

1.0K

10K

PAGE:

DATE:

TITLE:

ENGINEER:

A A

B B

C C

DD

1

2

3

4

45

56

6

7

8

NC7SZ32

AC

B

VCC

NC7SZ32

AC

B

VCC

NC7SZ32

AC

B

VCC

NC7SZ32

AC

B

VCC

NC7SZ32

AC

B

. m v m r n ma LO P Human JE- "mmmznuzm 539ng min mg: 8.535% "as 9E ER SE": E E E: Hf N d T ‘ 7. SEE vow ‘ a z . mum :Ezqm‘zzou m: ‘ NEEE M m. :Ezqm‘zzou x m m w a a W\[ﬁ . [MJ 5 p w. w mm W4 : m mmm wk i an a H ﬂ‘ mmh {akzqmwzzou T TCHAI 1 fkle Wmﬁ m m: ‘ szg m n w 32: uEE GEE ZﬂkZﬂW‘ZZOU mmh Eta

BITS TRANSCEIVER DS3100DK01C0

7OF 13

Mon Jul 16 11:06:10 2007

110705

JML

15

RTIP2

1

2

J58

2

5

J56

2

1

R88

1

16

3

14

2

15

T2

2

1

C27

2

1

R87

2

1

R90

2

1

C29

11

6

98

10

7

T2

2

1

JMP12

1

2

J84

2

5

J86

1

2

J57

2

5

J55

1

16

3

14

2

T1

2

1

R86

2

1

R85

2

1

C26

2

1

R89

2

1

C28

11

6

98

10

7

T1

2

1

JMP11

1

2

J83

2

5

J85

TTIPA2

TTIPA1

RRING2

TRINGA2

RRING1

RTIP1

TRINGA1

DNP

0.0

560PF

DNP

0.0

560PF

PAGE:

DATE:

TITLE:

ENGINEER:

A A

B B

C C

DD

1

2

3

4

45

56

6

7

8

1:2

CONN_BANTAM

T

R

1:1

1:2

CONN_BANTAM

T

R

CONN_BANTAM

T

R

1:1

CONN_BANTAM

T

R

m JE. "Suzaﬁ mars: Qua muExumEmmu mat msmw TIE": 5 mm: um: ZCFZQW\ZZOU \L H P a H H. «.2 w umzmua M moumua xuad mLmuuxou ZﬂFZGmm‘ZZOU

COMPOSITE CLOCK

Wed May 10 13:21:43 2006

JML

DS3100DK01C0

8OF 13

110705

2

1

C9

2

1

C10

2

5

J90

2

1

R56

12

1

10

3

11

T3

2

1

R71

2

1

R70

2

1

R54

2

1

R69

2

5

J89

2

1

R58

2

1

R73

9 4

7

6

8

T3

2

1

R93

2

1

R72

2

1

R57

2

1

C49

3

2

1

JMP6

3

2

1

JMP7

2

1

C48

2

1

C5

2

1

C4

2

1

R77

2

1

R76

2

1

JMP9

2

1

C6

2

1

R75

2

1

R74

2

1

R78

3

2

1

JMP10

2

1

JMP8

4

3

2

6

1

T4

2

1

R79

2

5

J117

NA

0.0

NA

0.0

.47UF

NA

DNP DNP

0.0

90.9

NA

357

NA

1:1

301

NA

IC2A

OC8NEG

OC8POS

0.0

.47UF

NA

90.9

0.0

NA

IC1A

NA

330PF

24

2.4

4.7

.01UF

PAGE:

DATE:

TITLE:

ENGINEER:

A A

B B

C C

DD

1

2

3

4

45

56

6

7

8

CONN_BANTAM

T

R

2:1

1:1

CONN_BANTAM

T

R

2:1

CONN_BANTAM

T

R

. N m w _ m r m E 1.0 m 45. DER amzaé mmmmmm muExEEmmu 1 "as ma: nickﬁmmunmma a in .133 x 1 m E .2 SE mﬁxzmmmsi Lﬂom‘u S E N12 35‘ z a D a 1a 571 .9340 a 1M 1 an gsmliﬂﬁﬁmd ma 1 a m. 93 :3 Eng mm WE mﬂm1 mzm a RR .9 E 1 ummn1zzou 1 uz mm in 131m mm awn 13 m BEE m w: 12;: 6 Sign a E 51 Eli. r on w a; n; h: m LV max "1.15414 : ax WEJ L Em an 151 .Mgmm mnq an 1513 3 m mam an «151% 1 9mm 55 Eu 1; mm . mum u: 91: 1% 33 any: m 0‘3 mm: 2de whim L2H u “E1218 1.39 5.111 1 mmmé 1 .2: a: E . m m «Z 1%? 591 m m n Tr é; a; m m m. I mnmxm m . m $33 :2 m 5me is 55 I 1 m . m 31859 SIN u 3% mRsJM‘EL% N NE 33! m. E 3313i: vs ﬂu: 53‘? 5N1; m: ammmma N ﬂ 1: av: n mmmmn 5% _ n w v. w p a

(SDIO)

(SCLK)

9OF 13

092205

JML

DS3100DK01C0

Thu Oct 13 10:14:03 2005

2

1

R6

2

1

R5

2

1

R4

2

1

R3

2

1

R2

4

2

1

U5

6

54

3

2

1

SW6

7

9

10

11

12

13

14

15

5

4

6

3

2

1

U27

10

9

8

7

65

4

3

2

1

J15

3

2

1

JMP63

3

2

1

JMP62

9

8

7

6

5

4

3

2

1

J50

2

1

C39

2

1

C40

1

2

Y7

2

1

C34

2

1

C36

2

1

C37

2

1

C35

2

6

16

7

10

14

11

9

8

12

13

15

4

5

1

3

U41

2

1

C38

2

1

R110

2

1

R108

2

1

DS16

15

14

38

4

26

13

12

11

10

9

8

7

5

25

24

23

22

21

20

19

18

3

2

1

44

43

42

41

40

29

27

30

31

32

33

34

35

36

37

U42

A8

ALE

NA

AD1

AD2

SLAVE

AD1

RXD0

TX232

POR

TXD0

INTREQ

AD0

AD1

AD2

AD4

AD6

AD7

A12

RD

WR

AD3

AD5

CSM

CSS

CS_3100

A12

SCS

GND

DNP

0.0

11.0592MHZ

22PF

10UF

RXD0

USB_RXD

RX232

RS232

SLAVE

CSS

330

NA

0.0

USB_TXD

TXD0

SCS

AD2

NA

SLAVE

CSM

10K

GREEN

74AHC138

0.0

PAGE:

DATE:

TITLE:

ENGINEER:

A A

B B

C C

DD

1

2

3

4

45

56

6

7

8

VCC

NC7SZ32

AC

B

V5_0

DPDT

B

C

G2B* Y0*

Y1*

Y2*

Y4*

Y5*

Y6*

Y3*

A

Y7*G2A*

G1

6

10

8

4

1

2

3

5

7

9

CONN_10P

CONN_DB9P

H

G

F

C

A

B

D

E

J

DS87C520_TQFP

P1_5

GND<2-0>

XTAL2

VCC

AD0

AD1

AD2

AD4

AD6

AD7

ALE

PSEN

P2_7

P2_6

P2_5

P2_3

P2_4

P2_2

P2_1

P2_0

P1_4

RST

P1_6

P3_1

P3_0

P3_2

P3_4

P3_3

P3_7

P3_6

P3_5

XTAL1

AD3

P1_3

P1_1

P1_2

P1_7

EA

AD5

P1_0

DS232A

T2IN

T1IN

R1IN

R2IN

T2OUT

T1OUT

R2OUT

R1OUT

C1POS

C1NEG

VNEG

VPOS

C2NEG

GND

C2POS

VCC

V5_0

. N m w m w r m. 5 E a; "E swag mmmmmm 8.535% "as 9E msmm $32: 2 so :i K \S? h 553 N i; é!“ q “x .E m H ML ::: 3 E98: 3 :96: q . 1,573.32 : ‘ H J mv: E 1.: 11 w m m m m m w mm M s mﬁm .3; S V name ism m Eu: PMH Sv~ 65513 ‘ 31 55513.. M 51 u I a; as“ r h “2218 SJEmuu mi) N 2 z m m H: A ,‘ :5: Ram: m rpmmph mu: . mlm md‘mzt a: «z 5%; 1 a v m m a; 1 m m a a on: 2 Eu: 9 a: m V is a m m ‘\§lm ‘ nu? D Q m m p

DS3100DK01C0

092205

JML

Thu Oct 13 10:14:03 2005

10 OF 13

USB_TXD

USB_RXD

R117

4

3

2

1

SW5

4

2

3

1

U44

2

1

R111

4

2

3

1

U45

2

1

R112

1

TP83

1

TP84

2

1

R123

2

1

R122

2

1

R121

2

1

R120

5

4

3

2

1

J54

2

1

R118

2

1

2

1

C41

2

1

C43

2

1

C42

2

1

R116

2

1

R115

10

9

8

7

65

4

3

2

1

J51

2

1

R113

6

8

4

5

26

11

12

25

24

9 2

7

20

19

18

17

16

15

14

13

22

21

10

3

28

27

1

23

U46

1UF

.1UF

0.0

NA

NA NA

NA

10K

4.7UF

10K

JTMS

JTDI

JTRST

JTDO

JTCLK

0.0

I37

4.38V

0.0

I40

3.08V

I42

POR

PORNOT

PAGE:

DATE:

TITLE:

ENGINEER:

A A

B B

C C

DD

1

2

3

4

45

56

6

7

8

MAX811_U

RESET*

VCC

GND

MR*

VCC

MAX812_U

VCC

GND

MR*

RESET

V5_0

CP2101_U1

USBDM

VBUS

USBDP

RTS*

DTR*

CTS*

DSR*

DCD*

RI*

NC7

NC8

NC9

NC10

NC11

RST*

REGIN

NC6

NC4

NC5

NC3

NC2

NC1

GND

VDD

TXD

RXD

SUSPEND_HIGH

SUSPEND_LOW*

USB

GND

SH

DAT+

DAT-

VDD

VCC

6

10

8

4

1

2

3

5

7

9

CONN_10P

. N m w m m m. kn 2 45. Dual "Suzaﬁ mars: muExumEmmu 9% mar msmw SHE": 5 mm: um: ‘ mj‘mmixq: ﬂ mmNmBz E 2 mxtmm .55 h g a m n m I ma a: v m ‘ 2 a3 m y N . N. :3 N .53 “Ev: «W E W x m: 3 N3 WWPAXQZ ‘ a a a . ix? {3% h m PM E s m m4 :3 «E m n m m I Ca 2 . ﬂ v E ~50 «5 m. v ‘ nWiiE . . mmumo 1%; W E 1 mj‘mmmﬁxq: an 5 m‘ 25% m Em .mzr: .m g a m n m z :3 2 . m E v m4 «So «E m v a“ 412 ms“. ox: . 1% w 8% v: Em

DS3100DK01C0

Wed May 10 13:21:47 2006

JML

110705

11 OF 13

2

1

JMP14

2

1

JMP15

2

1

JMP13

4

2

1

U28

7

11

6

15

14

13

12

5

4

3

2

10

U8

1

2

J3

2

1

J19

1

2

D7

2

1

J13

1

2

D1

2

1

C7

2

1

R39

2

1

DS4

2

1

R38

2

1

DS3

2

1

R37

2

1

DS2

2

1

R36

2

1

DS1

2

1

C16

2

1

C13

7

11

6

15

14

13

12

5

4

3

2

10

U4

2

1

C20

2

1

C18

2

1

C17

2

1

C14

7

11

6

15

14

13

12

5

4

3

2

10

U6

DUT18

DUT33

OSC33

330

NA

DUT18

OSC33

NA

6.8UF

NA

2.1MM/5.5MM

DUT33

330

V5_0

4.7UF 4.7UF

6.8UF

1AMP

68UF

4.7UF

6.8UF

PAGE:

DATE:

TITLE:

ENGINEER:

A A

B B

C C

DD

1

2

3

4

45

56

6

7

8

NC7SZ32

AC

B

MAX1793_U2

IN2

IN3

GND

SHDN*

IN4

IN1

SET

RST*

OUT1

OUT4

OUT2

OUT3

CONN_BANANA_2P

B

A

V5_0

CONN_BANANA_2P

B

A

VCC

MAX1793_U2

IN2

IN3

GND

SHDN*

IN4

IN1

SET

RST*

OUT1

OUT4

OUT2

OUT3

V5_0

MAX1793_U2

IN2

IN3

GND

SHDN*

IN4

IN1

SET

RST*

OUT1

OUT4

OUT2

OUT3

. N m w m m r n ma 30 Na Guam 4th Emmznuﬁ :3 Zimwmmnzlﬁlflnm. ”mmmjmiminjfkﬁit xu‘gpzaumzm zaazz zazz aazz ea Airings ‘una3QDWoaa a a 3 E3: 3:”:m12mmfmf : 3333 3333 E33 33 3“ “H mH mHmH mHH 333 a f o 3:231 ernrHutrtx 35313 H3 3 «:w: H: 339% o

092205

JML

Thu Oct 13 10:14:03 2005

12 OF 13

DS3100DK01C0

2

1

C142

2

1

C140

2

1

C58

2

1

C54

2

1

C57

2

1

C53

2

1

C56

2

1

C52

2

1

C62

2

1

C66

2

1

C70

2

1

C74

2

1

C78

2

1

C61

2

1

C65

2

1

C69

2

1

C73

2

1

C77

2

1

C82

2

1

C86

2

1

C90

2

1

C94

2

1

C98

2

1

C102

2

1

C106

2

1

C81

2

1

C85

2

1

C89

2

1

C93

2

1

C97

2

1

C101

2

1

C105

2

1

C110

2

1

C114

2

1

C118

2

1

C122

2

1

C126

2

1

C130

2

1

C134

2

1

C109

2

1

C113

2

1

C117

2

1

C121

2

1

C125

2

1

C129

2

1

C133

2

1

C138

2

1

C137

2

1

C60

2

1

C64

2

1

C68

2

1

C72

2

1

C76

1

TP65

1

TP66

1

TP67

2

1

C51

2

1

C55

2

1

C59

2

1

C63

2

1

C67

2

1

C71

2

1

C75

2

1

C80

2

1

C84

2

1

C88

2

1

C92

1

TP68

1

TP69

1

TP71

1

TP70

2

1

C96

2

1

C100

2

1

C104

1

TP72

1

TP73

1

TP74

2

1

C79

2

1

C83

2

1

C87

2

1

C91

2

1

C95

2

1

C99

2

1

C103

2

1

C108

2

1

C112

2

1

C116

1

TP75

1

TP76

1

TP77

1

TP78

2

1

C120

2

1

C124

2

1

C128

2

1

C132

1

TP79

1

TP81

1

TP80

2

1

C107

2

1

C111

2

1

C115

2

1

C119

2

1

C123

2

1

C127

2

1

C131

2

1

C136

1

TP82

2

1

C135

2

1

C153

2

1

C154

2

1

C155

2

1

C169

2

1

C168

2

1

C139

2

1

C141

2

1

C143

2

1

C145

2

1

C147

2

1

C149

2

1

C151

OSC33

10UF

.1UF

.1UF.1UF

.1UF

I60

.1UF

I69 I70

.1UF

.1UF.1UF

.1UF

I71

I76

.1UF

I77

.1UF

I79 I78

.1UF

I90

I91

.1UF

I92

.1UF

I97I96

.1UF

I98I99

.1UF

I111

.1UF

I112

.1UF

.1UF .1UF

.1UF

I113

10UF

.1UF

DUT33

DUT18

.1UF

VCC

GND

.1UF

10UF

10UF10UF

10UF

.1UF

V5_0

10UF

PAGE:

DATE:

TITLE:

ENGINEER:

A A

B B

C C

DD

1

2

3

4

45

56

6

7

8

V5_0

VCC

N m w m 2 Lo m. Lama 45. "Suzaﬁ mmmmmm muExumEmmu mat Go a: ma: nixzqmd qumzmw :Enau E chukzzou :vﬁixu ExC mkzuzouzou 07Cuouu3m nzq 0x3 mmmvmn ”Dana m 0% mmu nzq SEE ow :3 ”ﬁg: mmmuuq as muobuﬁumu E mumuzjn umﬁorm umunq SE. OF XF xuod EHmouzou zo aqu umuzqru uHuOJ nmmwmvmm uzq a .E 0% 54 x0 n3 mug: UI {can urm 0% m: umozqtu mum onEszuE xuod ukaouzou mix: 5qu 6016 mimouzoo E mumu Lusmm ”Baum qubn mac: x3: dbé mam: mzoCumzzou min dté ”Emma mumi CméEm E muokmkmﬁ :10 s Eccq E. )m; E ain‘t Eccq HE E umqudu zuH 20E n: N 204 65H: :05 mmruzzm nzq mum]! ”mug 3m 3302mm mm 10E: 0? muoEszmun bu nmwzqru mjomijmumE 315 .uq: 502m: 330: 331533 mnuxzmu :52 fqu 1301 insisﬂjmﬂ 3:13.911 x: 1m 3mm uou mmamdu Em _ E 5 msnsms Sm mamas sq mam a as ms mswgm Vs msqmn a mg mg? a H mm mmrE H E \ >HOFWHI ZOHmHDMU

GENERAL CLEAN-UP

B0 -050206 -

01 -110705 -RELEASE FOR REVIEW

REVISION HISTORY -

MOVED CSM TO 1000 AND CSS TO 0

ADDED 330PF CAPS AT COMPOSITE CLOCK INPUT

CHANGED CAP ON COMPOSITE CLOCK TX TO .01UF

ADDED INTEL BUS CONNECTIONS

04 -010406 -CHANGED REF DESIGNATORS TO MATCH EE

ADDED 0OHM RESISTORS AT SDIO,SCLK,SCS

FIXED COMPOSITE CLOCK TERMINATION RES

C0 -071607 -FIXED RXD,TXD CONNECTION TO CP2101

ADDED DS4026 TCXO AND SUPPORTING COMPONENTS

ADDED SHORTED JUMPERS AT REGULATORS FOR ACCESS

CHANGED 138 TO AHC FROM HC

ADDED BUFFER TO 1.8V LED

A0 -012106 -RELEASE TO FAB

03 -112105 -MOVED MEMORY MAP,OTHER MISCELLANEOUS

MOVED UP OK LED TO P1.1 AND REVERSED LOGIC

MADE INTEL MUX MODE DEFAULT

05 -011306 -REMOVED 5V CAPS, LEDS AND SWITCHES FROM MICRO, LOW ZTP FROM ICN

02 -111905 -FIX TRANSFORMER ISSUES,ADDED POWER JACK,FIXED CSM/CSS LOGIC,ADDED TPS

DS3100DK01C0

Thu Oct 13 10:14:03 2005

092205

JML

13 OF 13

PAGE:

DATE:

TITLE:

ENGINEER:

A A

B B

C C

DD

1

2

3

4

45

56

6

7

8

Microsemi. www.microsemi.com

Microsemi Corporate Headquarters

One Enterprise, Aliso Viejo CA 92656 USA

Within the USA: +1 (949) 380-6100

Sales: +1 (949) 380-6136

Fax: +1 (949) 215-4996

Microsemi Corporation (NASDAQ: MSCC) offers a comprehensive portfolio of semiconductor

solutions for: aerospace, defense and security; enterprise and communications; and industrial

and alternative energy markets. Products include high-performance, high-

reliability analog and

RF devices, mixed signal and RF integrated circuits, customizable SoCs, FPGAs, and

complete subsystems. Microsemi is headquartered in Aliso Viejo, Calif.

Learn more at

www.microsemi.com.

Microsemi Corporation. All other trademarks and service marks are the property of their respective owners.

DS3100DK Datasheet by Microsemi Consumer Medical Product Group

Products related to this Datasheet
