IB ST (ZF) 24 PT 100 4/4

01/2000

Data Sheet 5080C

Figure 1 IB ST 24 PT 100 4/4 module

This data sheet is intended to be

used in conjunction with the

IBS SYS PRO UM E User Manual.

Ground the mounting rail. The module

is grounded by installing it on the

mounting rail.

Terminal Assignment

Local Diagnostic and Status Indicators

NTER

UL CC BA

4 RTD Inputs , Module Ident.: 123

IB STME 24 PT 100 4/4 , Ord.No.: 2750138

00 01 02 03 04 05 06 07 08 09 10

5080C001

12345678910 11 12 13 14 15 16

17 18 19 20 21 22 23 24 25 26 27 28 29 3130

49 50 51 52 53 54 55 56 57 58 59 60 61 6362

33 34 35 36 37 38 39 40 41 42 43 44 45 4746

Signal Terminal

+24 V supply 33 and 36

Ground of the supply

(⊥) 49 and 52

Functional earth

ground (FE) 48 and 64

Channel 1234

Sensor power 2

and

Sensor current 1

and

Shield 20 24 28 32

Not used; do not

wire! 17 to 19, 21 to 23, 25 to

27, and 29 to 31

Des. Color Meaning

UL Green Supply voltage for the

electronics module

CC Green Cable check

BA Green Bus active

US Green 24 V I/O supply voltage

5080C000

Analog Input Module with 4 Channels for the

Connection of Resistance Temperature

Detectors (RTDs)

r \ / \ r x, \7/ x, ‘4 (D / \ (D O ‘ \ O O C) \j \ / J- _1 D ADC L fWJ/I//’ W‘iir’f‘iiﬂ@@% zzvzw % w}- HP HP PHCENIX CONTACT

IB ST (ZF) 24 PT 100 4/4

25080C

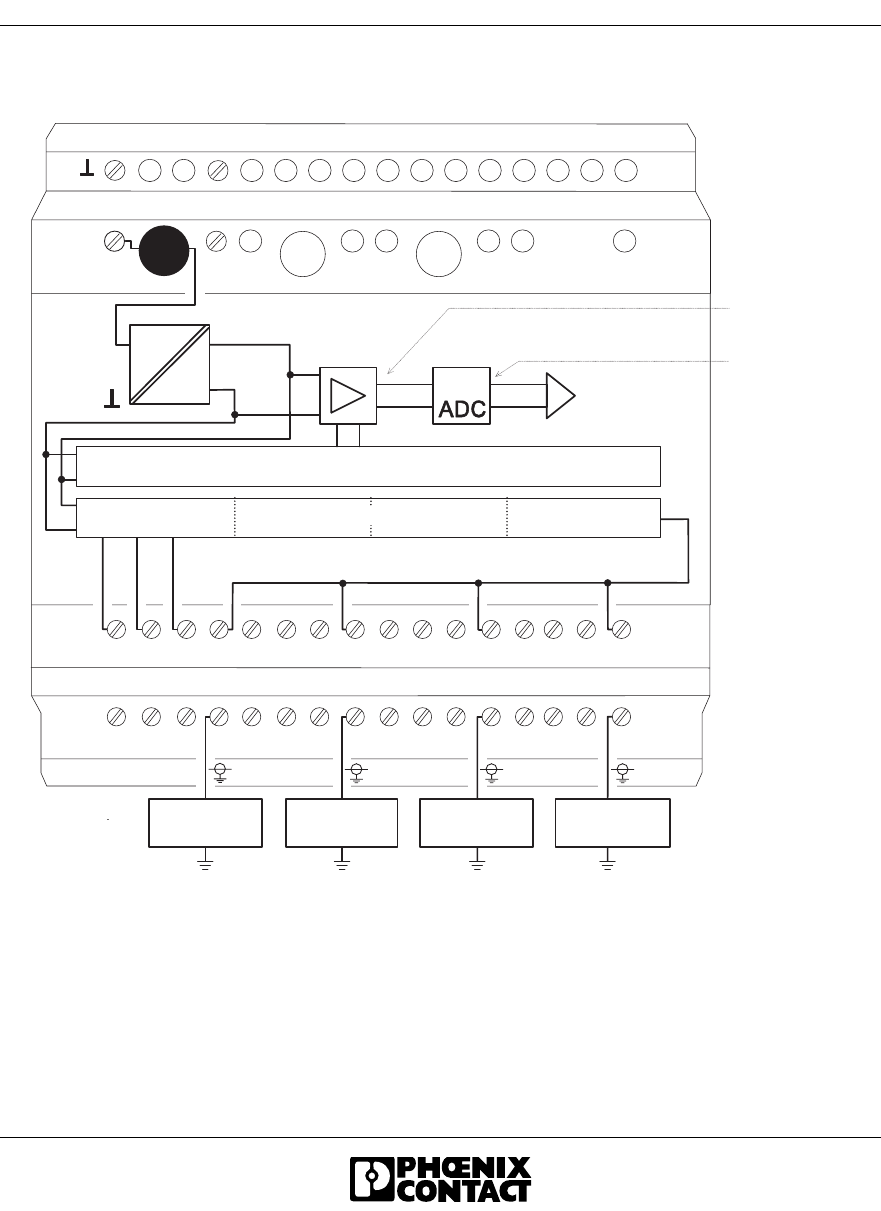

Internal Circuit Diagram

Figure 2 Internal wiring of the module terminals

33 36

49 52

D ifferential channel m ultiplexer

Filter and protective circuits

Signal

conditioning

Digital

output

to µ P

+U B

+U S

U+I+

PE potential

5080C 004

+24 V D C

+5 V D C

17 18 19 20

1234

21 22 23 24 25 26 27 28 29 30 31 32

5678910111213141516

C oupling netw ork

(internal)

C oupling netw ork

(internal)

C oupling netw ork

(internal)

C oupling netw ork

(internal)

U-

I1 - I2 - I3 - I4 -

C hannel 1

IB ST (ZF) 24 PT 100 4/4

5080C 3

Electrical Isolation of the Function Areas

Figure 3 Electrical isolation of the function areas

Connection Examples

Connection of the Supply Voltage and Potential Jumpering

Figure 4 Connection of the supply voltage

Potential jumpering in the screw-

clamp module:

If you want to connect more module ,

an external jumper is required between the terminals 33 and 36 (Us), 49 and

52 (⊥).

24 V

I/O interface

B us interface

(µP and SuPI)

INTERBUS

lo c a l b u s (O U T )

24 V D C

supply

Analog inputs

PE potential

5080C 003

E le c tr ic a l is o la tio n

betw een area A and

area B

INTERBUS

local bus (IN )

5 V

INTERBUS

UL CC BA

IB S TM E 24 P T 100 4/4 , O rd. N o.: 2750138

To next m odule

Screw -clam p term inal m odule IB S T 24 PT 100 4/4

INTERBUS

UL CC BA

49 52

33 36

Spring-clam p term inal m odule IB ST ZF 24 P T 100 4/4

24 V D C 24 V D C

5080C 002

S u p p ly v o lta g e w ith s e p a ra te

wires for

each m odule

IB S TM E 24 P T 100 4/4 , O rd. N o.: 2750138

L ‘ "‘"Tﬂ1ﬁi,‘ﬂ H \ PHGNIX c°NTAcr

IB ST (ZF) 24 PT 100 4/4

45080C

Typical Sensor Connections

Figure 5 Sensor connection in 2-, 3-, and 4-wire termination

Always connect sensors using

shielded, twisted-pair cables.

Connect the shield directly to the

terminals 20, 24, 28, or 32. Additional

wiring is not necessary. Connect the

shield of the sensor with PE potential.

4 analog Input, 0 - 10 V / 4...20 m A M odule Ident.:126

I+ U+ U- I- I+ U+ U- I- I+ U+ U- I- I+ U+ U- I-

123456789

10 11 13

12 14 15 16

17 18 20

19 21 22 23 24 25 27

26 28 29 30 31 32

4 R TD Inputs , M odule Ident.: 123

5080C 005

00 01 02 03 04 05 06 07 08 09 10

ϑϑϑ

2-w ire

term ination

3-w ire term ination

(w ithout internal com pensation

of the m easuring conductor

resistances)

4-w ire

term ination

PHENIX CONTACT

IB ST (ZF) 24 PT 100 4/4

5080C 5

INTERBUS IN Process Data Word

Figure 6 Sequence of the four INTERBUS IN process data words in the INTERBUS ring and

representation of the bits of a process data word

Bit Assignment of the INTERBUS IN Process Data Word

The 16 bits of the calculated measured value (16-bit ADC resolution) are used according to the

following table. Bit 15 is the sign bit (SB).

Celsius Scale (Table on page 6)

The permissible temperature ranges for the

characteristic curves are marked in the table on

page 6 in the first three columns. The

temperatures range from -200°C to +850°C for

Pt 100 sensors and Pt 1000 sensors.

The sensor characteristic curves for Ni 100 and

Ni 1000 sensors range from -60°C to +250°C

(DIN characteristic) and from -60°C to +200°C

(SAMA characteristic).

Temperature values outside the permissible

range cause the error code E004hex of the

corresponding channel to be indicated.

Fahrenheit Scale (Table on page 7)

The permissible temperature ranges for the

characteristic curves are marked in the table on

page 7 in the first three columns. The

temperatures range from -328°F to +1562°F for

Pt 100 sensors and Pt 1000 sensors.

The sensor characteristic curves for Ni 100 and

Ni 1000 sensors range from -76°F to +482°F

(DIN characteristic) and from -76°F to +342°F

(SAMA characteristic).

Temperature values outside the permissible

range cause the error code E004hex of the

corresponding channel to be indicated.

C hannel 1

MSB LSB

014 13 12 11 10 9 8 7 6 5 4 3 2 1

C hannel 2 C hannel 3 Channel 4

5080C 006

AD C m easured value (16 bits)

Process data w ord 1

Sign bit

Process data w ord 4Process data w ord 2 Process data w ord 3

PHGNIX CONTACI'

IB ST (ZF) 24 PT 100 4/4

65080C

Celsius Scale

Sensor Temperature Process Data Word

Decimal Hexadecimal Binary

+3276.7°C +32767 7FFF 0111 1111 1111 1111

... ... ... ...

+1000.0°C +10000 2710 0010 0111 0001 0000

... ... ... ...

Pt 100/Pt 1000

+850.0°C +8500 2134 0010 0001 0011 0100

... ... ... ...

Ni100/Ni 1000 DIN characteristic

+250.0°C +2500 09C4 0000 1001 1100 0100

... ... ... ...

Ni 100/Ni 1000 SAMA characteristic

+200.0°C +2000 07D0 0000 0111 1101 0000

... ... ... ...

+100.0°C +1000 03E8 0000 0011 1110 1000

... ... ... ...

+10.0°C +100 0064 0000 0000 0110 0100

... ... ... ...

+1.0°C 10 000A 0000 0000 0000 1010

... ... ... ...

+0.1°C 1 0001 0000 0000 0000 0001

... ... ... ...

0.0°C 0 0000 0000 0000 0000 0000

... ... ... ...

-0.1°C -1 FFFF 1111 1111 1111 1111

... ... ... ...

-1.0°C -10 FFF6 1111 1111 1111 0110

... ... ... ...

-10.0°C -100 FF9C 1111 1111 1001 1100

... ... ... ...

-60.0°C -600 FDA8 1111 1101 1010 1000

... ... ... ...

-100.0°C -1000 FC18 1111 1100 0001 1000

... ... ... ...

-200.0°C -2000 F830 1111 1000 0011 0000

-273.1°C -2731 F555 1111 0101 0101 0101

PHENIX CONTACI'

IB ST (ZF) 24 PT 100 4/4

5080C 7

Fahrenheit Scale

Sensor Temperature Process Data Word

Decimal Hexadecimal Binary

+3276.7°F +32767 7FFFhex 0111 1111 1111 1111bin

... ... ... ...

Pt 100/Pt 1000

+1562.0°F +15620 3D04hex 0011 1101 0000 0100bin

... ... ... ...

+1000.0°F +10000 2710hex 0010 0111 0001 0000bin

... ... ... ...

Ni100/Ni 1000 DIN characteristic

+482.0°F +4820 12D4hex 0001 0010 1101 0100bin

... ... ... ...

Ni 100/Ni 1000 SAMA characteristic

+392.0°F +3920 0F50hex 0000 1111 0101 0000bin

... ... ... ...

+100.0°F +1000 03E8hex 0000 0011 1110 1000bin

... ... ... ...

+10.0°F +100 0064hex 0000 0000 0110 0100bin

... ... ... ...

+1.0°F 10 000Ahex 0000 0000 0000 1010bin

... ... ... ...

+0.1°F 1 0001hex 0000 0000 0000 0001bin

... ... ... ...

0.0°F 0 0000hex 0000 0000 0000 0000bin

... ... ... ...

-0.1°F -1 FFFFhex 1111 1111 1111 1111bin

... ... ... ...

-1.0°F -10 FFF6hex 1111 1111 1111 0110bin

... ... ... ...

-10.0°F -100 FF9Chex 1111 1111 1001 1100bin

... ... ... ...

-76.0°F -760 FD08hex 1111 1101 0000 1000bin

-100.0°F -1000 FC18hex 1111 1100 0001 1000bin

... ... ... ...

-328.0°F -3280 F330hex 1111 0011 0011 0000bin

... ... ... ...

-459.6°F -4596 EE0Chex 1110 1110 0000 1100bin

+3276.7°F +32767 7FFFhex 0111 1111 1111 1111bin

K—Y—ILV—l PHGNIX CONTACI'

IB ST (ZF) 24 PT 100 4/4

85080C

Error Messages

In normal mode, every process data input word

contains the temperature value of the

corresponding channel. When an error occurs

on a channel or module, a code is written to the

corresponding input word that indicates the error

cause.

If the value E0xxh occurs in the

process data this is not a measured

value but an error message.

Figure 7 Bit assignment of the error code

Checking the Supply Voltage

The I/O supply voltage is permanently

monitored. If the voltage value is outside the

predefined range a module error message is

released. The error code E008hex is entered into

the process data input words instead of the

temperature values.

Checking the Data in the Non-Volatile

Memory

The configuration is not stored in the volatile

memory of the EEPROM. If the configuration of

the EEPROM is invalid, a module error message

is released and the error code E002hex is written

to all process data input words.

Monitoring Converter Activities

A timeout function checks the analog to digital

converter (ADC). If the ADC fails, a module error

message is released and the error code E010hex

is entered in all process data input words.

15 14 13 12 11 10 9876543210

Bit

Open circuit

5080C 009

E0hex R e a d e rro r in E E P R O M

O ut of m easuring range

Supply voltage U S not present

AD C defective

Invalid configuration

Reserved

PHENIX CONTACT

IB ST (ZF) 24 PT 100 4/4

5080C 9

INTERBUS OUT Process Data Word

HIGH and LOW Byte of the First Process Data Output Word

Figure 8 HIGH and LOW byte of the first process data output word

The module can be configured with the INTERBUS master. For this, only the LOW byte of the first

process data output word is used. The configuration is valid for all four channels. The process data

output words of channels 2, 3, and 4 are not evaluated. During configuration, the measured

temperature values continue to be entered in the process data input words of channels 2, 3, and 4

(for channel 1 see note below). The format changes with every new configuration.

Possible Configurations in the LOW Byte

Figure 9 Possible configurations in the LOW byte

The configuration is stored in the non-volatile memory of the EEPROM and is saved when

the supply voltage is disconnected. After the configuration is read/written, the 0000hex

value must be written to the first process data output word. This causes the first channel

to be reset to measuring operation. In the first process data input word, the measured temperature

value is transmitted. The default upon module delivery is that all bits of the configuration bytes are

set to zero. This leads to the following configuration:

Process data format: °C, standard of the characteristic curve: DIN IEC 60751, sensor type: Pt 100,

filter frequency: 50 Hz

15 14 13 12 11 10 98765 43210

Bit

HIGH byte LO W byte 5080C 007

76543210

Bit

Sensor type

5080C 008

000 - P t 100

001 - P t 1000

010 - N i 100

011 - N i 1000

100 - N i 1000

(L a n d is & G y r)

Standard

0 - D IN IEC 751 (P t)

DIN 43760 (Ni)

1 - SAM A

Unit

0 - C e ls iu s

1 - Fahrenheit

Filter frequency

(suppression)

0 - 50 H z

1 - 16

PHGNIX CONTACI'

IB ST (ZF) 24 PT 100 4/4

10 5080C

Assignment of the HIGH and LOW Byte in the First Process Data Output Word

The control system transmits a request to the module to read or write the configuration

through a corresponding process data output word.

The module confirms this process through a corresponding process data input word.

Read configuration

Write configuration

Adresses for Error Messages and Configuration

Programming Data

HIGH Byte LOW Byte

Output word 80hex 00hex

Input word Result OK 80hex Previous configuration

Result error 88hex Previous configuration

HIGH Byte LOW Byte

Output word 81hex New configuration

Input word Result OK 81hex New configuration

Result error 89hex Previous configuration

Status Process Data Word

Decimal Hexadecimal Binary

Error messages -7937 E0FF 1110 0000 1111 1111

... ... ...

-8192 E000 1110 0000 0000 0000

Reserved ... ... ...

Configuration -32257 81FF 1000 0001 1111 1111

... ... ...

-32768 8000 1000 0000 0000 0000

ID code 7Bhex (123dec) Output address area 8 bytes

Length code 4hex Parameter channel

(PCP) 0 bytes

Input address area 8 bytes Register length 8 bytes

PHENIX CONTACI'

IB ST (ZF) 24 PT 100 4/4

5080C 11

Assignment of the Module Terminals to the INTERBUS Reference

INTERBUS

reference Word Word x

Bit 1514131211109876543210

Byte Byte 0 Byte 1

Bit 7654321076543210

Module

terminals

channel 1

Sensor current

(+)

Sign bit

Terminal 1

Sensor power (+) Terminal 2

Sensor power (-) Terminal 3

Sensor current (-) Terminal 4

Shield Terminal 20

Module

terminals

channel 2

Sensor current

(+)

Sign bit

Terminal 5

Sensor power (+) Terminal 6

Sensor power (-) Terminal 7

Sensor current (-) Terminal 8

Shield Terminal 24

Module

terminals

channel 3

Sensor current

(+)

Sign bit

Terminal 9

Sensor power (+) Terminal 10

Sensor power (-) Terminal 11

Sensor current (-) Terminal 12

Shield Terminal 28

Module

terminals

channel 4

Sensor current

(+)

Sign bit

Terminal 13

Sensor power (+) Terminal 14

Sensor power (-) Terminal 15

Sensor current (-) Terminal 16

Shield Terminal 32

* PHGNIX CONTACI'

IB ST (ZF) 24 PT 100 4/4

12 5080C

Technical Data

General

Housing dimensions (width x height x depth) 118 mm x 116 mm x 117 mm

(4.646 in. x 4.567 in. x 4.606 in.)

Operating mode Process data operation with 4 words

Connection type of the sensors 2-, 3-, or/and 4-wire technology

Total power consumption 2.4 W, typical

Permissible operating temperature -25°C to 55°C (-13°F to +131°F)

Permissible storage temperature -25°C to +75°C (-13°F to +167°F)

Degree of protection IP 20, DIN 40050, IEC 60529

Class of protection Class 3 VDE 0106, IEC 60536

Humidity 75% on average, 85% occasionally,

no condensation

Air pressure (operation) 80 kPa to 106 kPa, 2000 m (6562 ft.) above sea

level

Electrical isolation Test voltage

Bus/inputs 500 V AC, 1 min., 50 Hz

Supply voltage/inputs 500 V AC, 1 min., 50 Hz

Supply voltage/protective conductor 500 V AC, 1 min., 50 Hz

I/O voltage/protective conductor 500 V AC, 1 min., 50 Hz

Emitted interference EN 50081-2, Class A

Processor monitoring Watchdog circuit

Preferred installation position Panel mounting

Protective ground Via DIN rail

Weight 540 g, typical

Interface

INTERBUS ST interface ST cable (supplied with the module)

PHENIX CONTACI'

IB ST (ZF) 24 PT 100 4/4

5080C 13

Power Consumption

Communications power 9 V

Current consumption from the local bus 85 mA, typical; 100 mA, maximum

Power consumption from the local bus 800 mW, typical

I/O supply voltage US24 V DC

Current consumption of US 65 mA, typical; 85 mA, maximum

Power consumption from power pack and

application side (24 V supply) 1.5 W, typical

2.0 W, maximum

I/O Supply Voltage (US)

Nominal value 24 V DC

Permissible ripple 3.6 Vpp within the permissible voltage range

Permissible voltage range (including ripple) 18.5 V DC to 30.5 V DC

Current consumption of US 65 mA, typical

Electrical isolation With DC/DC converter

Test voltage 500 V AC, 50 Hz, 1 min.

Protection against polarity reversal Via diode connected in series

Surge voltage protection Fuses in the terminal block base

IBS TR5 0,4 AT

Transient protection Yes

Failure detection Yes

Power consumption from power supply unit and

application side (24 V supply) 1.5 W, typical

2.0 W, maximum

PHGNIX CONTACI'

IB ST (ZF) 24 PT 100 4/4

14 5080C

Analog Inputs for Temperature Sensors (RTD)

Number 4

Available sensor types Pt 100, Pt 1000

Ni 100, Ni 1000

Standards for characteristic curves DIN IEC 60751 (Pt 100, Pt 1000)

DIN 43760 (Ni 100, Ni 1000)

SAMA RC 21-4-1966 (Pt 100, Ni 100

corresponds to Type I)

Landis & Gyr (Ni 1000)

Temperature measuring unit Celsius or Fahrenheit scale

Temperature measuring range (value range) -273,1°C to 3276.7°C on Celsius scale

-459.6°F to 3276.7°F on Fahrenheit scale

Resolution of the measured values 0.1°C corresponds to 0.1 K on the Celsius scale

0.1°F corresponds to 0.056K on the Fahrenheit

scale

Temperature-proportional, linearized

Resolution of the ADC 16 bits

Measuring principle Sigma-delta method

Representation of output value 16-bit two's complement

Sensor current 0.2 mA

Basic error limit ±0.003% of the value range (±0.1°C)

Temperature drift ±0.009% of the value range (±0.3°C)

Typical duration of a measuring cycle depending

on the number of channels connected with 50 Hz

suppression

1 channel: 258 ms

2 channels: 444 ms

3 channels: 630 ms

4 channels: 816 ms

Typical duration of a measuring cycle depending

on the number of channels connected with

16.67 Hz suppression

1 channel: 618 ms

2 channels: 1164 ms

3 channels: 1710 ms

4 channels: 2256 ms

PHENIX CONTACI'

IB ST (ZF) 24 PT 100 4/4

5080C 15

All percentage data refers to the entire value range of the module ranging from -273.1°C

to +3276.7°C.

Module Error Messages

Failure of the internal I/O supply voltage

(+5 V DC) Yes

Breakdown of fuse F1 for the I/O supply voltage Yes

Breakdown of the external I/O supply voltage US

of 24 V DC Yes

Analog/digital converter defective Yes

Content of the EEPROM invalid Yes

Configuration invalid Yes

Open circuit detection No (error message in the process data input

word)

Tolerances Influenced by Electromagnetic Fields

Type of electromagnetic interference Deviation of the measured temperature

value

Relative Absolute

Radiated-noise immunity according to

IEC 60801-3: 1984 (field strength 10 V/m) < ±0.3% < ±10.0°C

Radiated-noise immunity according to

IEC 60801-3: 1984 (field strength 3 V/m) < ±0.005% < ±0.2°C

Conducted high-frequency interference (0.15 MHz to

80 MHz) according to IEC 60801-6, Class 3

(ENV 50141: 1993)

< ±0.015% < ±0.5°C

Transient interferences (burst) according to

IEC 60801-4 Class 4 up to 1000 V No deviation No deviation

Transient interferences (burst) according to

IEC 60801-4 Class 4 from 1000 V to 2000 V < ±0.5% < ±18.0°C

PHENIX CONTACI'

IB ST (ZF) 24 PT 100 4/4

16 5080C

Ordering Data

Description Order Designation Order No.

Analog input module (screw-clamp terminals) IB ST 24 PT 100 4/4 27 52 76 7

Analog input module (spring-clamp terminals) IB ST ZF 24 PT 100 4/4 27 50 95 0

Electronics module IB STME 24 PT 100 4/4 27 50 13 8

Replacement terminal block (screw-clamp

terminals) IB STTB 24 PT 100 4/4 27 51 78 4

Replacement terminal block (spring-clamp

terminals) IB STTB ZF 24 PT 100 4/4 27 19 15 3

Fuses (0.4 AT) IBS TR5 0,4 AT 27 53 47 8

Products related to this Datasheet

REPLACEMENT MODULE ELECTRONICS

2750138
